glassJAw Posted February 4, 2007 Share Posted February 4, 2007 THANK YOU BRESSON!!!!! Link to comment Share on other sites More sharing options...
Xess666 Posted February 4, 2007 Share Posted February 4, 2007 Oh my god..... What wrong with my EDID. I try anyway to get x1700 work I used ok.zip to make my own when i reboot lcd is black Anybody have any ide for x1700? Link to comment Share on other sites More sharing options...
bresson Posted February 4, 2007 Share Posted February 4, 2007 Oh my god..... What wrong with my EDID. I try anyway to get x1700 work I used ok.zip to make my own when i reboot lcd is black Anybody have any ide for x1700? *** attach file only for asus s96j don't try any notebooks *** *** attach file only for asus s96j don't try any notebooks *** *** attach file only for asus s96j don't try any notebooks *** Link to comment Share on other sites More sharing options...
bluesonic Posted February 4, 2007 Share Posted February 4, 2007 experventol, did you shut down the PC and start it after it being powered off. It only works me that way, the laptop must be shut down (not rebooted), and then the laptop has the backlight, but no image... that's how my laptop works. Link to comment Share on other sites More sharing options...
kawsy Posted February 4, 2007 Share Posted February 4, 2007 Has anyone tried this with the x1400? My thinkpad t60 is arriving on Thursday and I'm dying to this out. Link to comment Share on other sites More sharing options...
sheriffbounce Posted February 5, 2007 Share Posted February 5, 2007 @Koala75: here is your ATIinject... i just created the single display-version at first just to make sure that it's working at all... cheers sheriff ATIinject.kext.zip Link to comment Share on other sites More sharing options...
koala75 Posted February 5, 2007 Share Posted February 5, 2007 @Koala75: here is your ATIinject...i just created the single display-version at first just to make sure that it's working at all... cheers sheriff Thanks a lot sheriff, i will try and tell you what happens... Link to comment Share on other sites More sharing options...

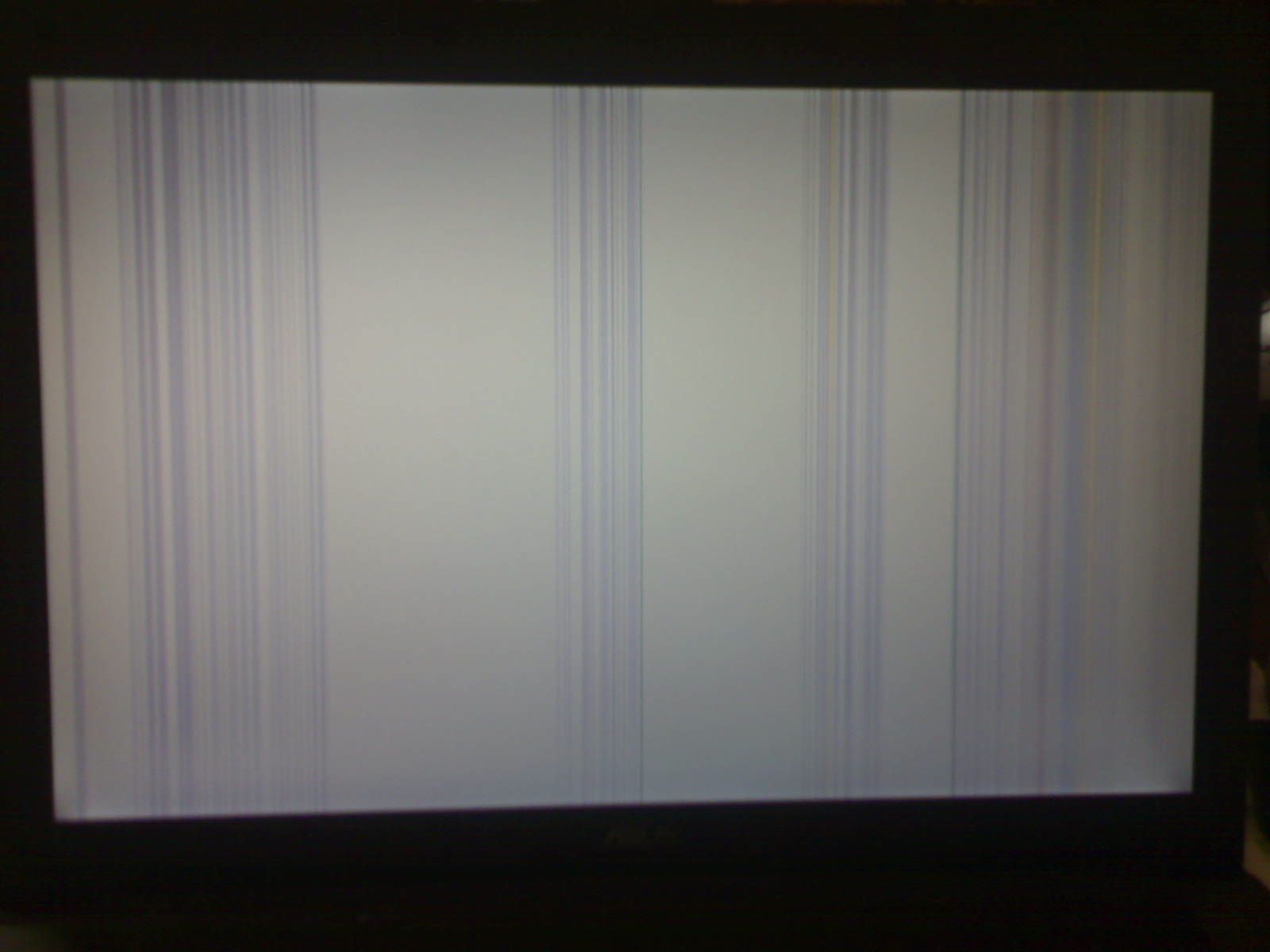

koala75 Posted February 5, 2007 Share Posted February 5, 2007 Thanks a lot sheriff, i will try and tell you what happens... Sheriff, after trying to boot with the modified kext files you post (ATINDRV.kext, IONDRVSupport.kext) and the ATIinject.kext you prepared for me, my screen goes grey with vertical color lines (see the picture under). What did i not do right? Thanks a lot for your patience. cheers Link to comment Share on other sites More sharing options...
mastro Posted February 8, 2007 Share Posted February 8, 2007 Hi...any news about x1600 mobility and Asus A6ja? I've tried many times but everytime I've had black screen (backlight doesn't work) Link to comment Share on other sites More sharing options...
bluesonic Posted February 8, 2007 Share Posted February 8, 2007 Nope, I've been trying pretty much everything with my A6ja... without success. I also tried OSX 10.4.5 in my laptop, with all the same methods as in 10.4.8, and got black screen too... I'm about to give up soon Link to comment Share on other sites More sharing options...
Lord Uffa Posted February 8, 2007 Share Posted February 8, 2007 (edited) Hi, I was able to get something like 1400x1050 res changing the default value in com.apple.boot etc. (I put 1680X1050, but it seems the display osx uses - the one in System/Library/DIsplay/Overrides/ - has only 1400x1050 for max value... it would be nice to try with appropriate display, or to know how to change this setting) with qe enabled, and it's not bad. Thus giving me better visibility; however nochance to change resolution in prefs. In getting EDID, phoenix complains about the fact the edid structure is not v1 rev 3and that some values can be reporter uncorrectly. could it be this the cause of the failure of atiinject.kext? EDIT: Sheriffbounce, I see 2 edid One is LPL1289 standard monitor type the other is PNP09FE generic television here are some snippets from windowserver.log and system.log: Feb 02 19:21:37 [86] Server is starting up Feb 02 19:21:37 [86] kCGErrorFailure: MappedDisplay Driver: can't open any framebuffer Feb 02 19:21:37 [86] kCGErrorFailure: CGXDisplayDriverInitialize: No Display drivers loaded Feb 02 19:21:37 [86] kCGErrorFailure: IOHIDSetCursorEnable returns -536870208 Feb 02 19:21:37 [86] CGXPerformInitialDisplayConfiguration Feb 02 19:21:37 [86] Display 0x41dc9d00: VirtualDisplay Unit 0; Vendor 0x756e6b6e Model 0x76697274 S/N 0; online enabled built-in (0,0)[1024 x 768], base addr 0xb0021000 Feb 02 19:21:38 [86] kCGErrorFailure: _CGXUpdateDisplayWaitCallback : Invalid window Feb 02 19:21:57 [86] CGXRestartSessionWorkspace: session workspace exited for session 256 ( on console ) Feb 02 19:21:57 [86] loginwindow connection closed; closing server. System.log: ATY,Copyright=Copyright ATI Technologies Inc. 2005 Feb 2 19:53:53 localhost kernel[0]: ATIinject: Setting @0,display-link-component-bits=0x00000006 Feb 2 19:53:53 localhost kernel[0]: ATIinject: Setting DFP1,EDID=<data not shown> Feb 2 19:53:53 localhost kernel[0]: ATIinject: Setting device_type=ATY,WormyParent Feb 2 19:53:53 localhost kernel[0]: ATIinject: Setting model=ATY,RadeonX1600 Feb 2 19:53:53 localhost kernel[0]: ATIinject: Setting @0,name=ATY,Wormy Feb 2 19:53:53 localhost mDNSResponder-108.2 (Aug 25 2006 14: 50:48)[54]: starting Feb 2 19:53:53 localhost memberd[61]: memberd starting up Feb 2 19:53:53 localhost DirectoryService[67]: Launched version 2.1 (v353.5) Feb 2 19:53:53 localhost lookupd[65]: lookupd (version 369.6) starting - Fri Feb 2 19:53:53 2007 Feb 2 19:53:55 localhost kernel[0]: ATY,Wormy: Not usable Feb 2 19:53:55 localhost kernel[0]: ERROR: VendorAccelerator::set_display_mode_and_vram() call to fFramebuffers[0].framebuffer->getPixelInformation() result:E00002CD Feb 2 19:53:55 localhost kernel[0]: ATY,Wormy: Not usable Feb 2 19:53:55 localhost kernel[0]: ERROR: VendorAccelerator::set_display_mode_and_vram() call to fFramebuffers[0].framebuffer->getPixelInformation() result:E00002CD Feb 2 19:53:55 localhost configd[58]: No AirPort Driver found Cheers, Nick My System: HP Compaq NX9420 Intel Core Duo 1.83GHz 1GB Ram 100GB SATA HDD Ati Mobility x1600 Dev ID 71C5 Laptop monitor vendor ID LPL1289 Internal WLan: Intel 3945abg Bluetooth OK OSX 10.4.8 JAS DVD Edited February 8, 2007 by Lord Uffa Link to comment Share on other sites More sharing options...
sheriffbounce Posted February 8, 2007 Share Posted February 8, 2007 Nope, I've been trying pretty much everything with my A6ja... without success. I also tried OSX 10.4.5 in my laptop, with all the same methods as in 10.4.8, and got black screen too... I'm about to give up soon inject-kexts don't work with 10.4.5... you need 8.8.1 kernel Question for you guys not getting internal display working: do u see more than 2 or 3 EDIDs in phoenix tool? phoenix tool is retrieving EDID informations from windows registry and shows EVERY display ever connected to your laptop so for me it's been 5 or 6 EDIDs to try... cheers sheriff Link to comment Share on other sites More sharing options...
Beselch Posted February 8, 2007 Share Posted February 8, 2007 Hi, First of all, sorry for my english because I don´t write it so much (I´m spanish). I have a Dell Inspiron 6400 with JaS 10.4.8 iso, semthex kernel and a X1300 graphic card, so I have installed the "Natit Auto" driver. My problem is that it doesn´t recognize my laptop screen. I see a black screen after the gray apple. When I connect my CRT monitor to the VGA output, all is ok (I see my desktop on the CRT monitor and I can change resolution). Any idea? Thanks! Link to comment Share on other sites More sharing options...
mastro Posted February 8, 2007 Share Posted February 8, 2007 inject-kexts don't work with 10.4.5... you need 8.8.1 kernel Question for you guys not getting internal display working: do u see more than 2 or 3 EDIDs in phoenix tool? phoenix tool is retrieving EDID informations from windows registry and shows EVERY display ever connected to your laptop so for me it's been 5 or 6 EDIDs to try... cheers sheriff I've only one EDID Link to comment Share on other sites More sharing options...
koala75 Posted February 9, 2007 Share Posted February 9, 2007 Nick : I ve tried the same method as you, (...I was able to get something like 1400x1050 res changing the default value in com.apple.boot etc.) And it works at this res, so it's better than with 1024x768...but mouse tearing seems to be the same problem... My laptop is an ASUS W1J, and my graphic card, the same as your (ati x 1600 mobility), and i have the same problem as you with PHOENIX (...the edid structure is not v1 rev 3and that some values can be reporter uncorrectly...), i never manage to start my modify ATIinject, grey screen with vertical color lines... I think that this bug could explain why it doesn't work properly... Just notice that your monitor is an LG PHILIPS (LPL), the same as me...lol but my device is LPL1179... Hope we will find the solution to this... cheers.... Hi,I was able to get something like 1400x1050 res changing the default value in com.apple.boot etc. (I put 1680X1050, but it seems the display osx uses - the one in System/Library/DIsplay/Overrides/ - has only 1400x1050 for max value... it would be nice to try with appropriate display, or to know how to change this setting) with qe enabled, and it's not bad. Thus giving me better visibility; however nochance to change resolution in prefs. In getting EDID, phoenix complains about the fact the edid structure is not v1 rev 3and that some values can be reporter uncorrectly. could it be this the cause of the failure of atiinject.kext? EDIT: Sheriffbounce, I see 2 edid One is LPL1289 standard monitor type the other is PNP09FE generic television here are some snippets from windowserver.log and system.log: Feb 02 19:21:37 [86] Server is starting up Feb 02 19:21:37 [86] kCGErrorFailure: MappedDisplay Driver: can't open any framebuffer Feb 02 19:21:37 [86] kCGErrorFailure: CGXDisplayDriverInitialize: No Display drivers loaded Feb 02 19:21:37 [86] kCGErrorFailure: IOHIDSetCursorEnable returns -536870208 Feb 02 19:21:37 [86] CGXPerformInitialDisplayConfiguration Feb 02 19:21:37 [86] Display 0x41dc9d00: VirtualDisplay Unit 0; Vendor 0x756e6b6e Model 0x76697274 S/N 0; online enabled built-in (0,0)[1024 x 768], base addr 0xb0021000 Feb 02 19:21:38 [86] kCGErrorFailure: _CGXUpdateDisplayWaitCallback : Invalid window Feb 02 19:21:57 [86] CGXRestartSessionWorkspace: session workspace exited for session 256 ( on console ) Feb 02 19:21:57 [86] loginwindow connection closed; closing server. System.log: ATY,Copyright=Copyright ATI Technologies Inc. 2005 Feb 2 19:53:53 localhost kernel[0]: ATIinject: Setting @0,display-link-component-bits=0x00000006 Feb 2 19:53:53 localhost kernel[0]: ATIinject: Setting DFP1,EDID=<data not shown> Feb 2 19:53:53 localhost kernel[0]: ATIinject: Setting device_type=ATY,WormyParent Feb 2 19:53:53 localhost kernel[0]: ATIinject: Setting model=ATY,RadeonX1600 Feb 2 19:53:53 localhost kernel[0]: ATIinject: Setting @0,name=ATY,Wormy Feb 2 19:53:53 localhost mDNSResponder-108.2 (Aug 25 2006 14: 50:48)[54]: starting Feb 2 19:53:53 localhost memberd[61]: memberd starting up Feb 2 19:53:53 localhost DirectoryService[67]: Launched version 2.1 (v353.5) Feb 2 19:53:53 localhost lookupd[65]: lookupd (version 369.6) starting - Fri Feb 2 19:53:53 2007 Feb 2 19:53:55 localhost kernel[0]: ATY,Wormy: Not usable Feb 2 19:53:55 localhost kernel[0]: ERROR: VendorAccelerator::set_display_mode_and_vram() call to fFramebuffers[0].framebuffer->getPixelInformation() result:E00002CD Feb 2 19:53:55 localhost kernel[0]: ATY,Wormy: Not usable Feb 2 19:53:55 localhost kernel[0]: ERROR: VendorAccelerator::set_display_mode_and_vram() call to fFramebuffers[0].framebuffer->getPixelInformation() result:E00002CD Feb 2 19:53:55 localhost configd[58]: No AirPort Driver found Cheers, Nick My System: HP Compaq NX9420 Intel Core Duo 1.83GHz 1GB Ram 100GB SATA HDD Ati Mobility x1600 Dev ID 71C5 Laptop monitor vendor ID LPL1289 Internal WLan: Intel 3945abg Bluetooth OK OSX 10.4.8 JAS DVD Link to comment Share on other sites More sharing options...
Lord Uffa Posted February 9, 2007 Share Posted February 9, 2007 Hi Koala75, I tried even with softmccs, and I get a different edid; but raw data edid seems the same as the edid I get with phoenix. The strange thing, I think, is to have the same laptop as sheriffbounce and don't get expected results. I.E. the edid of sheriffbounce seems to be exactly like mine, not a surprise given the fact his laptop is the same as mine, except for the cpu clock. So I must suppose - if this is true - the solution lies in another place, not in edid or even in ATIinject.kext, but in some setting/kext/Display or other damn stuff the sheriff has and I haven't. Wouldn't it be nice to get an image of sheriffbounce system and compare with mine...? cheers, Nick Nick : I ve tried the same method as you, (...I was able to get something like 1400x1050 res changing the default value in com.apple.boot etc.) And it works at this res, so it's better than with 1024x768...but mouse tearing seems to be the same problem... My laptop is an ASUS W1J, and my graphic card, the same as your (ati x 1600 mobility), and i have the same problem as you with PHOENIX (...the edid structure is not v1 rev 3and that some values can be reporter uncorrectly...), i never manage to start my modify ATIinject, grey screen with vertical color lines... I think that this bug could explain why it doesn't work properly... Just notice that your monitor is an LG PHILIPS (LPL), the same as me...lol but my device is LPL1179... Hope we will find the solution to this... cheers.... Nick's System: HP Compaq NX9420 Intel Core 2 Duo 1.83GHz 1GB Ram 100GB SATA HDD Ati Mobility x1600 Dev ID 71C5 Laptop monitor vendor ID LPL1289 Internal WLan: Intel 3945abg Bluetooth OK OSX 10.4.8 JAS DVD Link to comment Share on other sites More sharing options...
reeiit Posted February 10, 2007 Share Posted February 10, 2007 Hi. sorry for my English. Help me please. I don't have Plist Editor. Is anybody can edit info.plist for me? my edid: 00FFFFFF FFFFFF00 320C0000 00000000 000F0103 80FFFFFF EA0000A0 57499B26 10484F21 08000101 01010101 01010101 01010101 0101D51B 00A05020 17303020 26002115 10000019 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000051 my hackintosh - Toshiba A100-237. what i must write here? <key>LVDS,EDID</key> <data> ???? </data> Link to comment Share on other sites More sharing options...
koala75 Posted February 10, 2007 Share Posted February 10, 2007 Thanks Nick for your response, i think you're right, something in my (your) system is missing...Did you have any information about sheriff image system? Keep in touch... cheers... Hi Koala75,I tried even with softmccs, and I get a different edid; but raw data edid seems the same as the edid I get with phoenix. The strange thing, I think, is to have the same laptop as sheriffbounce and don't get expected results. I.E. the edid of sheriffbounce seems to be exactly like mine, not a surprise given the fact his laptop is the same as mine, except for the cpu clock. So I must suppose - if this is true - the solution lies in another place, not in edid or even in ATIinject.kext, but in some setting/kext/Display or other damn stuff the sheriff has and I haven't. Wouldn't it be nice to get an image of sheriffbounce system and compare with mine...? cheers, Nick Nick's System: HP Compaq NX9420 Intel Core 2 Duo 1.83GHz 1GB Ram 100GB SATA HDD Ati Mobility x1600 Dev ID 71C5 Laptop monitor vendor ID LPL1289 Internal WLan: Intel 3945abg Bluetooth OK OSX 10.4.8 JAS DVD Link to comment Share on other sites More sharing options...
sheriffbounce Posted February 11, 2007 Share Posted February 11, 2007 Thanks Nick for your response, i think you're right, something in my (your) system is missing...Did you have any information about sheriff image system? Keep in touch... cheers... sorry guys for not replying earlier, had much stress last week... @Nick&Koala: no other tool than Phoenix EDID Tool gave me the right one, believe me! don't care about the error message Phoenix tool gives you about EDID 1.3 version blabla... the EDID is correct! Nick did you already gave me your EDID? lost the overview a lil... if not just it and i'll prepare a complete package with all files you need for the nx9420... if need anything else whats not working on your NB but working on mine just tell me (u r the first nx9420 owner i know having OS X installed beside me...) Koala: i'm really unsure about what could be the issue for you but since i have your EDID - i'll prepare a complete ATI package for u too (after sleeping a lil bit - just came back from the dj-ing @ a club...) QUESTION FOR ALL THE OTHER PEOPLE THAT GOT MOBILITY X1600 WORKING WITH THIS SOLUTION: anybody got a VGA-port instead of DVI for external display? i know the ASUS series have DVI-D (which should be working in OSX) i just realized what MAX could have mentioned saying he needs some testing on the external display... VGA is not working - display stays black while beeing shown as active in OSX using the dual monitor info.plist in ATIinject.kext (thats the standard info.plist inside) looked around a little and already tried CRT1 instead of DFP1 but did not work... anyone got it working or got an idea how to fix this? cheers Sheriff Link to comment Share on other sites More sharing options...
starimage Posted February 11, 2007 Share Posted February 11, 2007 Asus A7j internal - ok! External DVI Benq21 - ok! Link to comment Share on other sites More sharing options...
sunriis Posted February 11, 2007 Share Posted February 11, 2007 Nope, I've been trying pretty much everything with my A6ja... without success. I also tried OSX 10.4.5 in my laptop, with all the same methods as in 10.4.8, and got black screen too... I'm about to give up soon I'm not the only unlucky one with an asus a6ja then! Link to comment Share on other sites More sharing options...
koala75 Posted February 11, 2007 Share Posted February 11, 2007 Thanks sheriff... I will wait for your package... #how was your set mix?# cheers sorry guys for not replying earlier, had much stress last week...@Nick&Koala: no other tool than Phoenix EDID Tool gave me the right one, believe me! don't care about the error message Phoenix tool gives you about EDID 1.3 version blabla... the EDID is correct! Nick did you already gave me your EDID? lost the overview a lil... if not just it and i'll prepare a complete package with all files you need for the nx9420... if need anything else whats not working on your NB but working on mine just tell me (u r the first nx9420 owner i know having OS X installed beside me...) Koala: i'm really unsure about what could be the issue for you but since i have your EDID - i'll prepare a complete ATI package for u too (after sleeping a lil bit - just came back from the dj-ing @ a club...) QUESTION FOR ALL THE OTHER PEOPLE THAT GOT MOBILITY X1600 WORKING WITH THIS SOLUTION: anybody got a VGA-port instead of DVI for external display? i know the ASUS series have DVI-D (which should be working in OSX) i just realized what MAX could have mentioned saying he needs some testing on the external display... VGA is not working - display stays black while beeing shown as active in OSX using the dual monitor info.plist in ATIinject.kext (thats the standard info.plist inside) looked around a little and already tried CRT1 instead of DFP1 but did not work... anyone got it working or got an idea how to fix this? cheers Sheriff Link to comment Share on other sites More sharing options...
bresson Posted February 11, 2007 Share Posted February 11, 2007 +1 asus s96j works fine 1280x800 open gl QE-CI this method (x1600 - M56) ok Link to comment Share on other sites More sharing options...
bluesonic Posted February 12, 2007 Share Posted February 12, 2007 The VGA output on my Asus A6JA is working out-of-box, but I'm also locked only to 1024x768 resolution on it. When I try any atiinject.kext methods the external monitor connected via VGA stops working also - either blue screen, blue stripes or black screen. Sunriis - nice to know I'm not alone! =) Link to comment Share on other sites More sharing options...
mastro Posted February 12, 2007 Share Posted February 12, 2007 The VGA output on my Asus A6JA is working out-of-box, but I'm also locked only to 1024x768 resolution on it. When I try any atiinject.kext methods the external monitor connected via VGA stops working also - either blue screen, blue stripes or black screen. Sunriis - nice to know I'm not alone! =) I have the same problem Link to comment Share on other sites More sharing options...
