thor486 Posted January 23, 2007 Share Posted January 23, 2007 (edited) this will never work!!!!just read the thread exactly-starimage may have the same laptop as u but he definitly has a different EDID...without your own EDID it wont work.. I previously tried with your kext inserting the edid both of my laptop monitor and my external monitor but I got blank screen. However, I checked the starimage's kext and he has my same edid (probably because he has my same monitor). I noticed that with 10.4.5 kext I can have full video support (but no QE/CI) only in safe boot. I have jas 10.4.8 dvd with kernel 8.8.1 with v1 patch. Edited January 23, 2007 by thor486 Link to comment Share on other sites More sharing options...
sheriffbounce Posted January 23, 2007 Share Posted January 23, 2007 sheriffbounce: I have tried the ATIinject.kext files you gave to me . but I got a black screen then. So it seems not work on my Notebook. I have checked the vedio card's DEV ID , there are all right. So how can I do then? My NoteBook is ASUS A6j series. which tool did you use to get the EDID? U NEED: 10.4.8 kernel 8.8.1 ATINDRV and IONDRVSupport posted by me before (did you use these files) and ATIinject.kext with your CORRECT EDID... if you have ATINDRV and IONDRVSupport by me then the EDID you gave was incorrect... Link to comment Share on other sites More sharing options...
thor486 Posted January 23, 2007 Share Posted January 23, 2007 to get the edid I used phoenix tool. I'm pretty sure it's correct. I'll try reinstalling osx... Link to comment Share on other sites More sharing options...
mastro Posted January 23, 2007 Share Posted January 23, 2007 I've the same problem of Thor486... I have black screen after reboot with ATIinject... I've ATI Radeon X1600 Mobility (Chipset 71C5 Vendor 1002) My edid (obtained with Phoenix) is: EDID BYTES: 0x 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F ------------------------------------------------ 00 | 00 FF FF FF FF FF FF 00 06 AF 74 19 00 00 00 00 10 | 01 0F 01 03 80 21 15 78 0A 85 A5 99 57 4F 8F 26 20 | 1D 50 54 00 00 00 01 01 01 01 01 01 01 01 01 01 30 | 01 01 01 01 01 01 EA 1A 00 80 50 20 10 30 15 20 40 | 44 00 4B CF 10 00 00 18 00 00 00 0F 00 00 00 00 50 | 00 00 00 00 00 00 00 00 00 02 00 00 00 FE 00 41 60 | 55 4F 0A 20 20 20 20 20 20 20 20 20 00 00 00 FE 70 | 00 42 31 35 34 45 57 30 31 20 56 39 20 0A 00 CC Can someone help me please? Link to comment Share on other sites More sharing options...

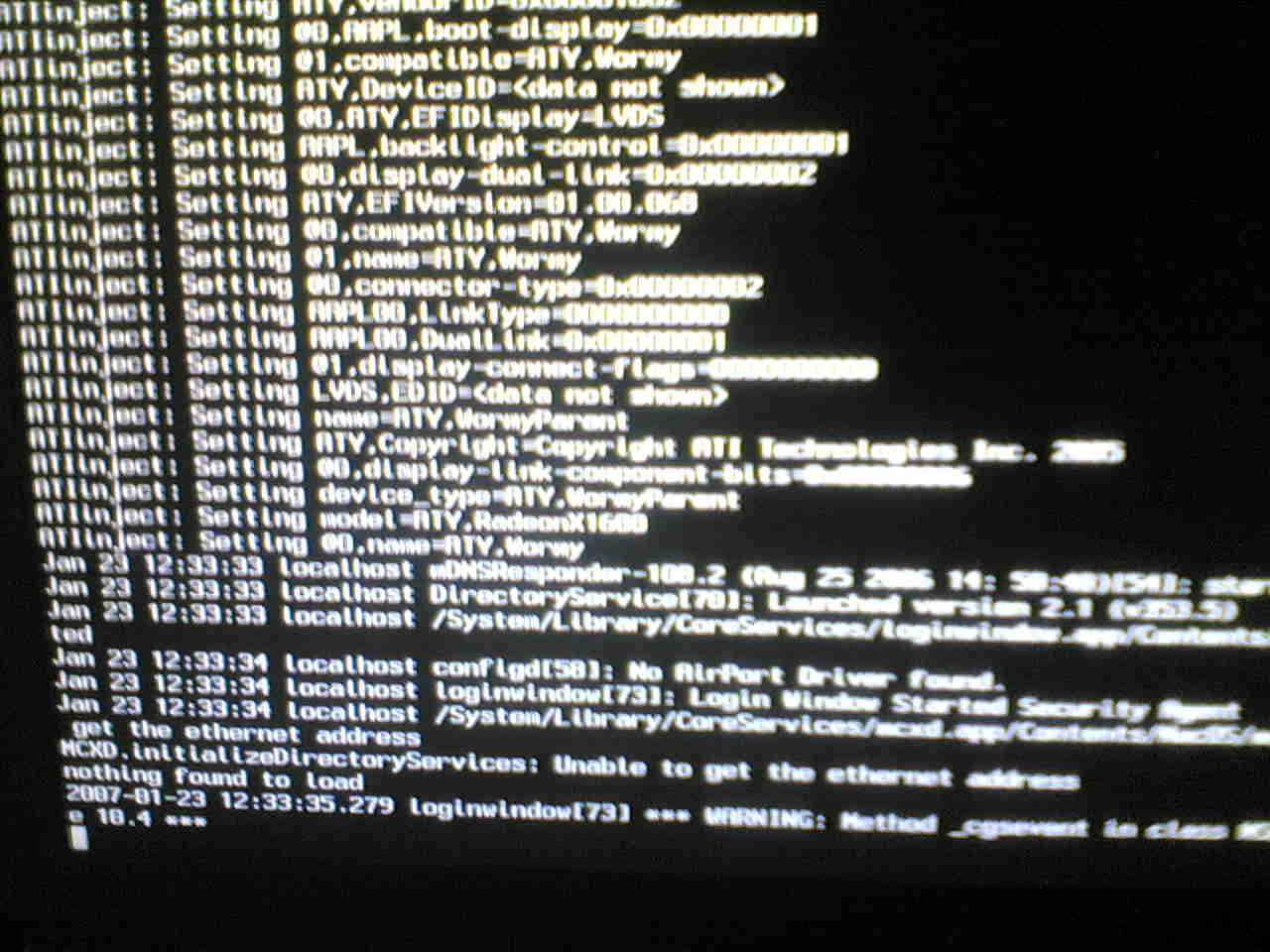

thor486 Posted January 23, 2007 Share Posted January 23, 2007 (edited) I tried to insert again the sferiffbounce's .kexts and now osx doesn't boot. I have a warning about a method of loginapp cgsevent that is obsolete... I attach the screenshot of the error... Edited January 23, 2007 by thor486 Link to comment Share on other sites More sharing options...
thor486 Posted January 23, 2007 Share Posted January 23, 2007 it works!!! I used 10.4.5 ATINDR.kext and 10.4.8 IONDRVSupport.kext and it works! Now I have 1440x900 resolution with full QE/CI and dual monitor!! I have also installed 10.4.5 login app but I don't know if it's necessary. Thanks sheriffbounce and starimage! Link to comment Share on other sites More sharing options...
mastro Posted January 23, 2007 Share Posted January 23, 2007 could someone help me writing ATIinjiect correctly? Link to comment Share on other sites More sharing options...
AVPS Posted January 23, 2007 Share Posted January 23, 2007 it works!!! I used 10.4.5 ATINDR.kext and 10.4.8 IONDRVSupport.kext and it works! Now I have 1440x900 resolution with full QE/CI and dual monitor!! I have also installed 10.4.5 login app but I don't know if it's necessary. Thanks sheriffbounce and starimage! thor486, could you help me too i have a sapphire 1600 pro too and cant get it it to work, can u post the atindr and iondrv u used and telp me how to use it and re insate them, thanks Link to comment Share on other sites More sharing options...
thor486 Posted January 23, 2007 Share Posted January 23, 2007 what version of osx do u have? Did u try with natit installer? Link to comment Share on other sites More sharing options...
lord123 Posted January 23, 2007 Share Posted January 23, 2007 Hi lord123 Can You post your EDID Because I have notebook same model like you (Asus A8Jp) I not sure about my EDID Thank you.. I'll post it this evening here... Link to comment Share on other sites More sharing options...
AVPS Posted January 23, 2007 Share Posted January 23, 2007 what version of osx do u have? Did u try with natit installer? i have jas 10.4.8 amd intel sse2 sse3 installed, tried natit and got resolution and everything but the screen is pixelated and there are boxes and lines running alll over as u said before i need to get kext's from 10.4.5 update which i have downloaded but dont know how to extract. please give me a step by step procedure, appreciate ur help, btw tried boris method also, same result Link to comment Share on other sites More sharing options...
AVPS Posted January 23, 2007 Share Posted January 23, 2007 can u give me the atinjet u used and tell me where to change values Link to comment Share on other sites More sharing options...
mastro Posted January 23, 2007 Share Posted January 23, 2007 someone can help me too please? Link to comment Share on other sites More sharing options...
cmx Posted January 24, 2007 Share Posted January 24, 2007 which tool did you use to get the EDID?U NEED: 10.4.8 kernel 8.8.1 ATINDRV and IONDRVSupport posted by me before (did you use these files) and ATIinject.kext with your CORRECT EDID... if you have ATINDRV and IONDRVSupport by me then the EDID you gave was incorrect... I will try later. I used Phoenix_1_3 getting my EDID. So I think it should be right . Link to comment Share on other sites More sharing options...
sheriffbounce Posted January 24, 2007 Share Posted January 24, 2007 someone can help me too please? it's all properly described in this thread... if you don't get it running post your EDID here and i'll send you the ready-to-go-atiinjet... but first please read the how-to! Link to comment Share on other sites More sharing options...
mastro Posted January 24, 2007 Share Posted January 24, 2007 I've tried many times, but I've black screen everytime... I've ATI Radeon X1600 Mobility (Chipset 71C5 Vendor 1002) My edid (obtained with Phoenix) is: EDID BYTES: 0x 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F ------------------------------------------------ 00 | 00 FF FF FF FF FF FF 00 06 AF 74 19 00 00 00 00 10 | 01 0F 01 03 80 21 15 78 0A 85 A5 99 57 4F 8F 26 20 | 1D 50 54 00 00 00 01 01 01 01 01 01 01 01 01 01 30 | 01 01 01 01 01 01 EA 1A 00 80 50 20 10 30 15 20 40 | 44 00 4B CF 10 00 00 18 00 00 00 0F 00 00 00 00 50 | 00 00 00 00 00 00 00 00 00 02 00 00 00 FE 00 41 60 | 55 4F 0A 20 20 20 20 20 20 20 20 20 00 00 00 FE 70 | 00 42 31 35 34 45 57 30 31 20 56 39 20 0A 00 CC Please, help me! and thank you! Link to comment Share on other sites More sharing options...
cmx Posted January 24, 2007 Share Posted January 24, 2007 I guess the confliction is that sheriffbounce 's resolution is 1600x1050 But mine is 1280x800. I retried the ATIinject and other two kext files. My screen is till deep gray, but I could see the login interface . I reposted my EDID. sheriffbounce ,could you help me? Hardware ID : CPT13B1 EDID BYTES: 0x 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F ------------------------------------------------ 00 | 00 FF FF FF FF FF FF 00 0E 14 B1 13 00 00 00 00 10 | 07 10 01 03 80 21 15 78 0A 8E 2D 9D 55 50 8F 27 20 | 20 50 54 00 00 00 01 01 01 01 01 01 01 01 01 01 30 | 01 01 01 01 01 01 EA 1A 00 80 50 20 0D 30 18 20 40 | 13 00 4B CF 10 00 00 19 00 00 00 0F 00 20 20 20 50 | 20 20 20 20 20 20 6E 05 0F 00 00 00 00 FE 00 43 60 | 50 54 0A 20 20 20 20 20 20 20 20 20 00 00 00 FE 70 | 00 43 4C 41 41 31 35 34 57 41 30 35 41 20 00 C0 Hardware ID : PNP09FE EDID BYTES: 0x 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F ------------------------------------------------ 00 | 00 FF FF FF FF FF FF 00 41 D0 FE 09 00 00 00 00 10 | 00 00 01 03 00 00 00 00 F0 00 00 00 00 00 00 00 20 | 00 00 00 21 08 00 00 00 00 00 00 00 00 00 00 00 30 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 40 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 50 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 60 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 70 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 D1 Link to comment Share on other sites More sharing options...
sheriffbounce Posted January 24, 2007 Share Posted January 24, 2007 I guess the confliction is that sheriffbounce 's resolution is 1600x1050 But mine is 1280x800. I retried the ATIinject and other two kext files. My screen is till deep gray, but I could see the login interface . I reposted my EDID. sheriffbounce ,could you help me? Hardware ID : CPT13B1 EDID BYTES: 0x 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F ------------------------------------------------ 00 | 00 FF FF FF FF FF FF 00 0E 14 B1 13 00 00 00 00 10 | 07 10 01 03 80 21 15 78 0A 8E 2D 9D 55 50 8F 27 20 | 20 50 54 00 00 00 01 01 01 01 01 01 01 01 01 01 30 | 01 01 01 01 01 01 EA 1A 00 80 50 20 0D 30 18 20 40 | 13 00 4B CF 10 00 00 19 00 00 00 0F 00 20 20 20 50 | 20 20 20 20 20 20 6E 05 0F 00 00 00 00 FE 00 43 60 | 50 54 0A 20 20 20 20 20 20 20 20 20 00 00 00 FE 70 | 00 43 4C 41 41 31 35 34 57 41 30 35 41 20 00 C0 Hardware ID : PNP09FE EDID BYTES: 0x 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F ------------------------------------------------ 00 | 00 FF FF FF FF FF FF 00 41 D0 FE 09 00 00 00 00 10 | 00 00 01 03 00 00 00 00 F0 00 00 00 00 00 00 00 20 | 00 00 00 21 08 00 00 00 00 00 00 00 00 00 00 00 30 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 40 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 50 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 60 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 70 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 D1 okay that should be your ATIinject.kext... i did not use the second EDID since this is the EDID for a TV-out... ATIinject.kext.zip Link to comment Share on other sites More sharing options...
sheriffbounce Posted January 24, 2007 Share Posted January 24, 2007 I've tried many times, but I've black screen everytime... I've ATI Radeon X1600 Mobility (Chipset 71C5 Vendor 1002) My edid (obtained with Phoenix) is: EDID BYTES: 0x 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F ------------------------------------------------ 00 | 00 FF FF FF FF FF FF 00 06 AF 74 19 00 00 00 00 10 | 01 0F 01 03 80 21 15 78 0A 85 A5 99 57 4F 8F 26 20 | 1D 50 54 00 00 00 01 01 01 01 01 01 01 01 01 01 30 | 01 01 01 01 01 01 EA 1A 00 80 50 20 10 30 15 20 40 | 44 00 4B CF 10 00 00 18 00 00 00 0F 00 00 00 00 50 | 00 00 00 00 00 00 00 00 00 02 00 00 00 FE 00 41 60 | 55 4F 0A 20 20 20 20 20 20 20 20 20 00 00 00 FE 70 | 00 42 31 35 34 45 57 30 31 20 56 39 20 0A 00 CC Please, help me! and thank you! and here is yours... ATIinject.kext.zip Link to comment Share on other sites More sharing options...
mastro Posted January 24, 2007 Share Posted January 24, 2007 Thank you vary much...I'll try it this evening! Link to comment Share on other sites More sharing options...
AVPS Posted January 24, 2007 Share Posted January 24, 2007 dear sheriffbounce can u help me with my atiinjet pls my edid and other data is below. Many Thanks in advance 001F64AE2B...Querying 00010001 001F64AE2C...I2C_ReadEDID at port 1 on R5xx 001F64CD2D......Raw data received = 0x00 001F64CD2E......00: 00FFFFFF FFFFFF00 4C2D2502 39314148 001F64CD2F......10: 14100103 0E291A87 8AD7A5A2 594A9624 001F64CD30......20: 145054BF EF809500 950F8180 8140714F 001F64CD31......30: 01010101 01019A29 A0D05184 22305098 001F64CD32......40: 36009A01 1100001C 000000FD 00384B1E 001F64CD33......50: 510E000A 20202020 20200000 00FC0053 001F64CD34......60: 796E634D 61737465 720A2020 000000FF 001F64CD35......70: 00485645 4C353130 3231390A 202000C7 001F64CD36...Found device on 00010001 001F64CD37...Monitor ID = Samsung SyncMaster (SAM0225.HVEL510219) 001F64CD38...Checking DDC/CI support 001F64CD39......Raw data sent 001F64CD3A......00: 51820110 00000000 00000000 00000000 001F64FC3B......Raw data received = 0xFF 001F64FC3C......00: 6E880200 10000064 0064A400 00000000 001F64FC3D...VCP command - ok 001F64FC3E...Found DDC/CI monitor 001F64FC3F...GetCaps - segment 0x0000:0 001F64FC40......Raw data sent 001F64FC41......00: 5183F300 00000000 00000000 00000000 001F653B42......Raw data received = 0xFF 001F653B43......00: 6EA3E300 00287479 7065284C 43442976 001F653B44......10: 63702830 34203035 20303620 30382030 001F653B45......20: 45203130 20320000 00000000 00000000 001F656A46...GetCaps - segment 0x0020:0 001F656A47......Raw data sent 001F656A48......00: 5183F300 20000000 00000000 00000000 001F65A849......Raw data received = 0xFF 001F65A84A......00: 6EA3E300 20313220 31362031 38203141 001F65A84B......10: 20314520 32302033 30203345 20363028 001F65A84C......20: 31203329 20250000 00000000 00000000 001F65D74D...GetCaps - segment 0x0040:0 001F65D74E......Raw data sent 001F65D74F......00: 5183F300 40000000 00000000 00000000 001F661650......Raw data received = 0xFF 001F661651......00: 6EA3E300 40423028 31203229 20423620 001F661652......10: 43362043 38204339 20443628 31203429 001F661653......20: 20444328 31260000 00000000 00000000 001F664454...GetCaps - segment 0x0060:0 001F664455......Raw data sent 001F664456......00: 5183F300 60000000 00000000 00000000 001F668357......Raw data received = 0xFF 001F668358......00: 6EA3E300 60203220 33203420 35203629 001F668359......10: 20444620 46322046 30283020 31203220 001F66835A......20: 33203429 20140000 00000000 00000000 001F66B25B...GetCaps - segment 0x0080:0 001F66B25C......Raw data sent 001F66B25D......00: 5183F300 80000000 00000000 00000000 001F66F05E......Raw data received = 0xFF 001F66F05F......00: 6EA3E300 80464120 46422046 39204643 001F66F060......10: 20464420 46452038 37204530 28302031 001F66F061......20: 20322033 29FD0000 00000000 00000000 001F671F62...GetCaps - segment 0x00A0:0 001F671F63......Raw data sent 001F671F64......00: 5183F300 A0000000 00000000 00000000 001F675E65......Raw data received = 0xFF 001F675E66......00: 6E85E300 A02929F8 00000000 00000000 001F678D67...GetCaps - segment 0x00A2:0 001F678D68......Raw data sent 001F678D69......00: 5183F300 A2000000 00000000 00000000 001F67BB6A......Raw data received = 0xFF 001F67BB6B......00: 6E83E300 A2FC0000 00000000 00000000 001F67BB6C...Raw capabilities string = (type(LCD)vcp(04 05 06 08 0E 10 12 16 18 1A 1E 20 30 3E 60(1 3) B0(1 2) B6 C6 C8 C9 D6(1 4) DC(1 2 3 4 5 6) DF F2 F0(0 1 2 3 4) FA FB F9 FC FD FE 87 E0(0 1 2 3))) 001F67BB6D...Read errors = 0 001F67BB6E...Capabilities string = (type(LCD)vcp(04 05 06 08 0E 10 12 16 18 1A 1E 20 30 3E 60(1 3) B0(1 2) B6 C6 C8 C9 D6(1 4) DC(1 2 3 4 5 6) DF F2 F0(0 1 2 3 4) FA FB F9 FC FD FE 87 E0(0 1 2 3))) 001F67CB6F...VCP control list = 04,05,06,08,0E,10,12,16,18,1A,1E,20,30,3E,60,C6,C8,C9,D6,F2,F0,FE,87,E0 001F67CB70...DDC/CI query - elapsed time = 766ms 001F67CB71...VCP table 001F67CB72......Raw data sent 001F67CB73......00: 51820104 00000000 00000000 00000000 001F67EA74......Raw data received = 0xFF 001F67EA75......00: 6E880200 04010001 0000B000 00000000 001F67EA76....Opcode 0x04 = 00010000 001F67FA77......Raw data sent 001F67FA78......00: 51820105 00000000 00000000 00000000 001F681979......Raw data received = 0xFF 001F68197A......00: 6E880200 05010001 0000B100 00000000 001F68197B....Opcode 0x05 = 00010000 001F68297C......Raw data sent 001F68297D......00: 51820106 00000000 00000000 00000000 001F68487E......Raw data received = 0xFF 001F68487F......00: 6E880200 06010001 0000B200 00000000 001F684880....Opcode 0x06 = 00010000 001F685881......Raw data sent 001F685882......00: 51820108 00000000 00000000 00000000 001F687783......Raw data received = 0xFF 001F687784......00: 6E880200 08010001 0000BC00 00000000 001F687785....Opcode 0x08 = 00010000 001F688786......Raw data sent 001F688787......00: 5182010E 00000000 00000000 00000000 001F68A688......Raw data received = 0xFF 001F68A689......00: 6E880200 0E0100A0 00514A00 00000000 001F68A68A....Opcode 0x0E = 00A00051 001F68B58B......Raw data sent 001F68B58C......00: 51820110 00000000 00000000 00000000 001F68D58D......Raw data received = 0xFF 001F68D58E......00: 6E880200 10000064 0064A400 00000000 001F68D58F....Opcode 0x10 = 00640064 001F68E490......Raw data sent 001F68E491......00: 51820112 00000000 00000000 00000000 001F690492......Raw data received = 0xFF 001F690493......00: 6E880200 12000064 004B8900 00000000 001F690494....Opcode 0x12 = 0064004B 001F691395......Raw data sent 001F691396......00: 51820116 00000000 00000000 00000000 001F693297......Raw data received = 0xFF 001F693298......00: 6E880200 16000040 0020C200 00000000 001F693299....Opcode 0x16 = 00400020 001F69429A......Raw data sent 001F69429B......00: 51820118 00000000 00000000 00000000 001F69619C......Raw data received = 0xFF 001F69619D......00: 6E880200 18000040 0020CC00 00000000 001F69619E....Opcode 0x18 = 00400020 001F69719F......Raw data sent 001F6971A0......00: 5182011A 00000000 00000000 00000000 001F6990A1......Raw data received = 0xFF 001F6990A2......00: 6E880200 1A000040 0020CE00 00000000 001F6990A3....Opcode 0x1A = 00400020 001F69A0A4......Raw data sent 001F69A0A5......00: 5182011E 00000000 00000000 00000000 001F69BFA6......Raw data received = 0xFF 001F69BFA7......00: 6E880200 1E000002 0000A800 00000000 001F69BFA8....Opcode 0x1E = 00020000 001F69CFA9......Raw data sent 001F69CFAA......00: 51820120 00000000 00000000 00000000 001F69EEAB......Raw data received = 0xFF 001F69EEAC......00: 6E880200 20000064 0037C700 00000000 001F69EEAD....Opcode 0x20 = 00640037 001F69FEAE......Raw data sent 001F69FEAF......00: 51820130 00000000 00000000 00000000 001F6A1DB0......Raw data received = 0xFF 001F6A1DB1......00: 6E880200 30000028 0013BF00 00000000 001F6A1DB2....Opcode 0x30 = 00280013 001F6A2CB3......Raw data sent 001F6A2CB4......00: 5182013E 00000000 00000000 00000000 001F6A4CB5......Raw data received = 0xFF 001F6A4CB6......00: 6E880200 3E00001F 000C9900 00000000 001F6A4CB7....Opcode 0x3E = 001F000C 001F6A5BB8......Raw data sent 001F6A5BB9......00: 51820160 00000000 00000000 00000000 001F6A7BBA......Raw data received = 0xFF 001F6A7BBB......00: 6E880200 60000003 0001D600 00000000 001F6A8ABC....Opcode 0x60 = 00030001 001F6A8ABD......Raw data sent 001F6A8ABE......00: 51820187 00000000 00000000 00000000 001F6AA9BF......Raw data received = 0xFF 001F6AA9C0......00: 6E880200 87000019 000F2500 00000000 001F6AA9C1....Opcode 0x87 = 0019000F 001F6AB9C2......Raw data sent 001F6AB9C3......00: 518201C6 00000000 00000000 00000000 001F6AD8C4......Raw data received = 0xFF 001F6AD8C5......00: 6E880201 C6000000 00007300 00000000 001F6AD8C6....Opcode 0xC6 = 00000000 001F6AE8C7......Raw data sent 001F6AE8C8......00: 518201C8 00000000 00000000 00000000 001F6B07C9......Raw data received = 0xFF 001F6B07CA......00: 6E880201 C8000000 00007D00 00000000 001F6B07CB....Opcode 0xC8 = 00000000 001F6B17CC......Raw data sent 001F6B17CD......00: 518201C9 00000000 00000000 00000000 001F6B36CE......Raw data received = 0xFF 001F6B36CF......00: 6E880201 C9000000 00007C00 00000000 001F6B36D0....Opcode 0xC9 = 00000000 001F6B46D1......Raw data sent 001F6B46D2......00: 518201D6 00000000 00000000 00000000 001F6B65D3......Raw data received = 0xFF 001F6B65D4......00: 6E880200 D6000004 00016700 00000000 001F6B65D5....Opcode 0xD6 = 00040001 001F6B75D6......Raw data sent 001F6B75D7......00: 518201E0 00000000 00000000 00000000 001F6B94D8......Raw data received = 0xFF 001F6B94D9......00: 6E880200 E0000003 00035400 00000000 001F6B94DA....Opcode 0xE0 = 00030003 001F6BA3DB......Raw data sent 001F6BA3DC......00: 518201F0 00000000 00000000 00000000 001F6BC3DD......Raw data received = 0xFF 001F6BC3DE......00: 6E880200 F0000004 00034300 00000000 001F6BC3DF....Opcode 0xF0 = 00040003 001F6BD2E0......Raw data sent 001F6BD2E1......00: 518201F2 00000000 00000000 00000000 001F6BF2E2......Raw data received = 0xFF 001F6BF2E3......00: 6E880200 F2000002 00004400 00000000 001F6BF2E4....Opcode 0xF2 = 00020000 001F6C01E5......Raw data sent 001F6C01E6......00: 518201FE 00000000 00000000 00000000 001F6C20E7......Raw data received = 0xFF 001F6C20E8......00: 6E880201 FE000000 00004B00 00000000 001F6C20E9....Opcode 0xFE = 00000000 001F6C30EA......Raw data sent 001F6C30EB......00: 51810700 00000000 00000000 00000000 001F6C7EEC......Raw data received = 0x75 001F6C7EED......00: 7FFFFFFF FFFFFFFF FFFFFFFF FFFFFFFF 001F6C7EEE...Timing string = n/a 001F6C7EEF...Update VCP table - elapsed time = 1203ms 001F6C7EF0...******************************************* 001F6C7EF1...Querying 00020001 001F6C7EF2...I2C_ReadEDID at port 2 on R5xx 001F6CDCF3...Nothing found on 00020001 001F6CDCF4...******************************************* 001F6CDCF5...Windows monitor enumeration 001F6CDCF6...******************************************* 001F6CDCF7...GPU StateFlags for 00000000 = 08000005 001F6CDCF8....DeviceNumber = 0 001F6CDCF9....DeviceName = \\.\DISPLAY1 001F6CDCFA....DeviceString = Sapphire RADEON X1600 PRO 001F6CDCFB....DeviceID = PCI\VEN_1002&DEV_71C2&SUBSYS_0840174B&REV_00 001F6CDCFC....DeviceKey = \Registry\Machine\System\CurrentControlSet\Control\Video\{C7053B47-C69F-41F0-966F-24723FB37789}00 001F6CDCFD....DeviceDriver = ati2dvag 6.14.10.6660 001F6CDCFE....Monitor StateFlags for 00000000 = 00000003 001F6CDCFF.....DeviceName = \\.\DISPLAY1\Monitor0 001F6CDC00.....DeviceString = Plug and Play Monitor 001F6CDC01.....DeviceID = Monitor\SAM0225\{4D36E96E-E325-11CE-BFC1-08002BE10318}01 001F6CDC02.....DeviceKey = \Registry\Machine\System\CurrentControlSet\Control\Class\{4D36E96E-E325-11CE-BFC1-08002BE10318}01 001F6CDC03.....DeviceEnum = \Registry\Machine\System\CurrentControlSet\Enum\Display\SAM0225\5&2d35580d&0&10000080&07&00 001F6CDC04......Raw data received = 0x00 001F6CDC05......00: 00FFFFFF FFFFFF00 4C2D2502 39314148 001F6CDC06......10: 14100103 0E291A87 8AD7A5A2 594A9624 001F6CDC07......20: 145054BF EF809500 950F8180 8140714F 001F6CDC08......30: 01010101 01019A29 A0D05184 22305098 001F6CDC09......40: 36009A01 1100001C 000000FD 00384B1E 001F6CDC0A......50: 510E000A 20202020 20200000 00FC0053 001F6CDC0B......60: 796E634D 61737465 720A2020 000000FF 001F6CDC0C......70: 00485645 4C353130 3231390A 202000C7 001F6CEC0D...******************************************* 001F6CEC0E...Device correlation 001F6CEC0F...******************************************* 001F6CEC10....Monitor #1: Hardware device: Samsung SyncMaster 001F6CEC11............... Windows device number: 0 001F6CEC12............... Windows device name: \\.\DISPLAY1 001F6CEC13............... Windows device string: Sapphire RADEON X1600 PRO 001F6CEC14............... Windows device ID: PCI\VEN_1002&DEV_71C2&SUBSYS_0840174B&REV_00 001F6CEC15............... Windows monitor name: \\.\DISPLAY1\Monitor0 001F6CEC16............... Windows monitor string: Plug and Play Monitor 001F6CEC17...Finished monitor enumeration, total elapsed time = 2110 ms 001F6CEC18...Number of hardware monitors enumerated = 1 total, 1 DDC/CI Link to comment Share on other sites More sharing options...
sheriffbounce Posted January 24, 2007 Share Posted January 24, 2007 (edited) dear sheriffbounce can u help me with my atiinjet pls my edid and other data is below. Many Thanks in advance 001F64AE2B...Querying 00010001 001F64AE2C...I2C_ReadEDID at port 1 on R5xx 001F64CD2D......Raw data received = 0x00 001F64CD2E......00: 00FFFFFF FFFFFF00 4C2D2502 39314148 001F64CD2F......10: 14100103 0E291A87 8AD7A5A2 594A9624 001F64CD30......20: 145054BF EF809500 950F8180 8140714F 001F64CD31......30: 01010101 01019A29 A0D05184 22305098 001F64CD32......40: 36009A01 1100001C 000000FD 00384B1E 001F64CD33......50: 510E000A 20202020 20200000 00FC0053 001F64CD34......60: 796E634D 61737465 720A2020 000000FF 001F64CD35......70: 00485645 4C353130 3231390A 202000C7 001F64CD36...Found device on 00010001 001F64CD37...Monitor ID = Samsung SyncMaster (SAM0225.HVEL510219) 001F64CD38...Checking DDC/CI support 001F64CD39......Raw data sent 001F64CD3A......00: 51820110 00000000 00000000 00000000 001F64FC3B......Raw data received = 0xFF 001F64FC3C......00: 6E880200 10000064 0064A400 00000000 001F64FC3D...VCP command - ok 001F64FC3E...Found DDC/CI monitor 001F64FC3F...GetCaps - segment 0x0000:0 001F64FC40......Raw data sent 001F64FC41......00: 5183F300 00000000 00000000 00000000 001F653B42......Raw data received = 0xFF 001F653B43......00: 6EA3E300 00287479 7065284C 43442976 001F653B44......10: 63702830 34203035 20303620 30382030 001F653B45......20: 45203130 20320000 00000000 00000000 001F656A46...GetCaps - segment 0x0020:0 001F656A47......Raw data sent 001F656A48......00: 5183F300 20000000 00000000 00000000 001F65A849......Raw data received = 0xFF 001F65A84A......00: 6EA3E300 20313220 31362031 38203141 001F65A84B......10: 20314520 32302033 30203345 20363028 001F65A84C......20: 31203329 20250000 00000000 00000000 001F65D74D...GetCaps - segment 0x0040:0 001F65D74E......Raw data sent 001F65D74F......00: 5183F300 40000000 00000000 00000000 001F661650......Raw data received = 0xFF 001F661651......00: 6EA3E300 40423028 31203229 20423620 001F661652......10: 43362043 38204339 20443628 31203429 001F661653......20: 20444328 31260000 00000000 00000000 001F664454...GetCaps - segment 0x0060:0 001F664455......Raw data sent 001F664456......00: 5183F300 60000000 00000000 00000000 001F668357......Raw data received = 0xFF 001F668358......00: 6EA3E300 60203220 33203420 35203629 001F668359......10: 20444620 46322046 30283020 31203220 001F66835A......20: 33203429 20140000 00000000 00000000 001F66B25B...GetCaps - segment 0x0080:0 001F66B25C......Raw data sent 001F66B25D......00: 5183F300 80000000 00000000 00000000 001F66F05E......Raw data received = 0xFF 001F66F05F......00: 6EA3E300 80464120 46422046 39204643 001F66F060......10: 20464420 46452038 37204530 28302031 001F66F061......20: 20322033 29FD0000 00000000 00000000 001F671F62...GetCaps - segment 0x00A0:0 001F671F63......Raw data sent 001F671F64......00: 5183F300 A0000000 00000000 00000000 001F675E65......Raw data received = 0xFF 001F675E66......00: 6E85E300 A02929F8 00000000 00000000 001F678D67...GetCaps - segment 0x00A2:0 001F678D68......Raw data sent 001F678D69......00: 5183F300 A2000000 00000000 00000000 001F67BB6A......Raw data received = 0xFF 001F67BB6B......00: 6E83E300 A2FC0000 00000000 00000000 001F67BB6C...Raw capabilities string = (type(LCD)vcp(04 05 06 08 0E 10 12 16 18 1A 1E 20 30 3E 60(1 3) B0(1 2) B6 C6 C8 C9 D6(1 4) DC(1 2 3 4 5 6) DF F2 F0(0 1 2 3 4) FA FB F9 FC FD FE 87 E0(0 1 2 3))) 001F67BB6D...Read errors = 0 001F67BB6E...Capabilities string = (type(LCD)vcp(04 05 06 08 0E 10 12 16 18 1A 1E 20 30 3E 60(1 3) B0(1 2) B6 C6 C8 C9 D6(1 4) DC(1 2 3 4 5 6) DF F2 F0(0 1 2 3 4) FA FB F9 FC FD FE 87 E0(0 1 2 3))) 001F67CB6F...VCP control list = 04,05,06,08,0E,10,12,16,18,1A,1E,20,30,3E,60,C6,C8,C9,D6,F2,F0,FE,87,E0 001F67CB70...DDC/CI query - elapsed time = 766ms 001F67CB71...VCP table 001F67CB72......Raw data sent 001F67CB73......00: 51820104 00000000 00000000 00000000 001F67EA74......Raw data received = 0xFF 001F67EA75......00: 6E880200 04010001 0000B000 00000000 001F67EA76....Opcode 0x04 = 00010000 001F67FA77......Raw data sent 001F67FA78......00: 51820105 00000000 00000000 00000000 001F681979......Raw data received = 0xFF 001F68197A......00: 6E880200 05010001 0000B100 00000000 001F68197B....Opcode 0x05 = 00010000 001F68297C......Raw data sent 001F68297D......00: 51820106 00000000 00000000 00000000 001F68487E......Raw data received = 0xFF 001F68487F......00: 6E880200 06010001 0000B200 00000000 001F684880....Opcode 0x06 = 00010000 001F685881......Raw data sent 001F685882......00: 51820108 00000000 00000000 00000000 001F687783......Raw data received = 0xFF 001F687784......00: 6E880200 08010001 0000BC00 00000000 001F687785....Opcode 0x08 = 00010000 001F688786......Raw data sent 001F688787......00: 5182010E 00000000 00000000 00000000 001F68A688......Raw data received = 0xFF 001F68A689......00: 6E880200 0E0100A0 00514A00 00000000 001F68A68A....Opcode 0x0E = 00A00051 001F68B58B......Raw data sent 001F68B58C......00: 51820110 00000000 00000000 00000000 001F68D58D......Raw data received = 0xFF 001F68D58E......00: 6E880200 10000064 0064A400 00000000 001F68D58F....Opcode 0x10 = 00640064 001F68E490......Raw data sent 001F68E491......00: 51820112 00000000 00000000 00000000 001F690492......Raw data received = 0xFF 001F690493......00: 6E880200 12000064 004B8900 00000000 001F690494....Opcode 0x12 = 0064004B 001F691395......Raw data sent 001F691396......00: 51820116 00000000 00000000 00000000 001F693297......Raw data received = 0xFF 001F693298......00: 6E880200 16000040 0020C200 00000000 001F693299....Opcode 0x16 = 00400020 001F69429A......Raw data sent 001F69429B......00: 51820118 00000000 00000000 00000000 001F69619C......Raw data received = 0xFF 001F69619D......00: 6E880200 18000040 0020CC00 00000000 001F69619E....Opcode 0x18 = 00400020 001F69719F......Raw data sent 001F6971A0......00: 5182011A 00000000 00000000 00000000 001F6990A1......Raw data received = 0xFF 001F6990A2......00: 6E880200 1A000040 0020CE00 00000000 001F6990A3....Opcode 0x1A = 00400020 001F69A0A4......Raw data sent 001F69A0A5......00: 5182011E 00000000 00000000 00000000 001F69BFA6......Raw data received = 0xFF 001F69BFA7......00: 6E880200 1E000002 0000A800 00000000 001F69BFA8....Opcode 0x1E = 00020000 001F69CFA9......Raw data sent 001F69CFAA......00: 51820120 00000000 00000000 00000000 001F69EEAB......Raw data received = 0xFF 001F69EEAC......00: 6E880200 20000064 0037C700 00000000 001F69EEAD....Opcode 0x20 = 00640037 001F69FEAE......Raw data sent 001F69FEAF......00: 51820130 00000000 00000000 00000000 001F6A1DB0......Raw data received = 0xFF 001F6A1DB1......00: 6E880200 30000028 0013BF00 00000000 001F6A1DB2....Opcode 0x30 = 00280013 001F6A2CB3......Raw data sent 001F6A2CB4......00: 5182013E 00000000 00000000 00000000 001F6A4CB5......Raw data received = 0xFF 001F6A4CB6......00: 6E880200 3E00001F 000C9900 00000000 001F6A4CB7....Opcode 0x3E = 001F000C 001F6A5BB8......Raw data sent 001F6A5BB9......00: 51820160 00000000 00000000 00000000 001F6A7BBA......Raw data received = 0xFF 001F6A7BBB......00: 6E880200 60000003 0001D600 00000000 001F6A8ABC....Opcode 0x60 = 00030001 001F6A8ABD......Raw data sent 001F6A8ABE......00: 51820187 00000000 00000000 00000000 001F6AA9BF......Raw data received = 0xFF 001F6AA9C0......00: 6E880200 87000019 000F2500 00000000 001F6AA9C1....Opcode 0x87 = 0019000F 001F6AB9C2......Raw data sent 001F6AB9C3......00: 518201C6 00000000 00000000 00000000 001F6AD8C4......Raw data received = 0xFF 001F6AD8C5......00: 6E880201 C6000000 00007300 00000000 001F6AD8C6....Opcode 0xC6 = 00000000 001F6AE8C7......Raw data sent 001F6AE8C8......00: 518201C8 00000000 00000000 00000000 001F6B07C9......Raw data received = 0xFF 001F6B07CA......00: 6E880201 C8000000 00007D00 00000000 001F6B07CB....Opcode 0xC8 = 00000000 001F6B17CC......Raw data sent 001F6B17CD......00: 518201C9 00000000 00000000 00000000 001F6B36CE......Raw data received = 0xFF 001F6B36CF......00: 6E880201 C9000000 00007C00 00000000 001F6B36D0....Opcode 0xC9 = 00000000 001F6B46D1......Raw data sent 001F6B46D2......00: 518201D6 00000000 00000000 00000000 001F6B65D3......Raw data received = 0xFF 001F6B65D4......00: 6E880200 D6000004 00016700 00000000 001F6B65D5....Opcode 0xD6 = 00040001 001F6B75D6......Raw data sent 001F6B75D7......00: 518201E0 00000000 00000000 00000000 001F6B94D8......Raw data received = 0xFF 001F6B94D9......00: 6E880200 E0000003 00035400 00000000 001F6B94DA....Opcode 0xE0 = 00030003 001F6BA3DB......Raw data sent 001F6BA3DC......00: 518201F0 00000000 00000000 00000000 001F6BC3DD......Raw data received = 0xFF 001F6BC3DE......00: 6E880200 F0000004 00034300 00000000 001F6BC3DF....Opcode 0xF0 = 00040003 001F6BD2E0......Raw data sent 001F6BD2E1......00: 518201F2 00000000 00000000 00000000 001F6BF2E2......Raw data received = 0xFF 001F6BF2E3......00: 6E880200 F2000002 00004400 00000000 001F6BF2E4....Opcode 0xF2 = 00020000 001F6C01E5......Raw data sent 001F6C01E6......00: 518201FE 00000000 00000000 00000000 001F6C20E7......Raw data received = 0xFF 001F6C20E8......00: 6E880201 FE000000 00004B00 00000000 001F6C20E9....Opcode 0xFE = 00000000 001F6C30EA......Raw data sent 001F6C30EB......00: 51810700 00000000 00000000 00000000 001F6C7EEC......Raw data received = 0x75 001F6C7EED......00: 7FFFFFFF FFFFFFFF FFFFFFFF FFFFFFFF 001F6C7EEE...Timing string = n/a 001F6C7EEF...Update VCP table - elapsed time = 1203ms 001F6C7EF0...******************************************* 001F6C7EF1...Querying 00020001 001F6C7EF2...I2C_ReadEDID at port 2 on R5xx 001F6CDCF3...Nothing found on 00020001 001F6CDCF4...******************************************* 001F6CDCF5...Windows monitor enumeration 001F6CDCF6...******************************************* 001F6CDCF7...GPU StateFlags for 00000000 = 08000005 001F6CDCF8....DeviceNumber = 0 001F6CDCF9....DeviceName = \\.\DISPLAY1 001F6CDCFA....DeviceString = Sapphire RADEON X1600 PRO 001F6CDCFB....DeviceID = PCI\VEN_1002&DEV_71C2&SUBSYS_0840174B&REV_00 001F6CDCFC....DeviceKey = \Registry\Machine\System\CurrentControlSet\Control\Video\{C7053B47-C69F-41F0-966F-24723FB37789}00 001F6CDCFD....DeviceDriver = ati2dvag 6.14.10.6660 001F6CDCFE....Monitor StateFlags for 00000000 = 00000003 001F6CDCFF.....DeviceName = \\.\DISPLAY1\Monitor0 001F6CDC00.....DeviceString = Plug and Play Monitor 001F6CDC01.....DeviceID = Monitor\SAM0225\{4D36E96E-E325-11CE-BFC1-08002BE10318}01 001F6CDC02.....DeviceKey = \Registry\Machine\System\CurrentControlSet\Control\Class\{4D36E96E-E325-11CE-BFC1-08002BE10318}01 001F6CDC03.....DeviceEnum = \Registry\Machine\System\CurrentControlSet\Enum\Display\SAM0225\5&2d35580d&0&10000080&07&00 001F6CDC04......Raw data received = 0x00 001F6CDC05......00: 00FFFFFF FFFFFF00 4C2D2502 39314148 001F6CDC06......10: 14100103 0E291A87 8AD7A5A2 594A9624 001F6CDC07......20: 145054BF EF809500 950F8180 8140714F 001F6CDC08......30: 01010101 01019A29 A0D05184 22305098 001F6CDC09......40: 36009A01 1100001C 000000FD 00384B1E 001F6CDC0A......50: 510E000A 20202020 20200000 00FC0053 001F6CDC0B......60: 796E634D 61737465 720A2020 000000FF 001F6CDC0C......70: 00485645 4C353130 3231390A 202000C7 001F6CEC0D...******************************************* 001F6CEC0E...Device correlation 001F6CEC0F...******************************************* 001F6CEC10....Monitor #1: Hardware device: Samsung SyncMaster 001F6CEC11............... Windows device number: 0 001F6CEC12............... Windows device name: \\.\DISPLAY1 001F6CEC13............... Windows device string: Sapphire RADEON X1600 PRO 001F6CEC14............... Windows device ID: PCI\VEN_1002&DEV_71C2&SUBSYS_0840174B&REV_00 001F6CEC15............... Windows monitor name: \\.\DISPLAY1\Monitor0 001F6CEC16............... Windows monitor string: Plug and Play Monitor 001F6CEC17...Finished monitor enumeration, total elapsed time = 2110 ms 001F6CEC18...Number of hardware monitors enumerated = 1 total, 1 DDC/CI just shot down my keyboard on OSX while trying some touchpad drivers (yes i forgot to backup files silly me!°!!!)so the EDID stuff is a little hard to do...if you could send me your ApplePS2Controller.kext from your extnesions folder i could access my keyboard again and try to help you...my mail: better post it here since my mailaccount is blocked from the office cheers sheriff Edited January 24, 2007 by sheriffbounce Link to comment Share on other sites More sharing options...
AVPS Posted January 24, 2007 Share Posted January 24, 2007 just shot down my keyboard on OSX while trying some touchpad drivers (yes i forgot to backup files silly me!°!!!)so the EDID stuff is a little hard to do...if you could send me your ApplePS2Controller.kext from your extnesions folder i could access my keyboard again and try to help you...my mail: better post it here since my mailaccount is blocked from the office cheers sheriff give me a min i need to change my hdd for mac by the way below is the data with my LCD on DVI port 00046D7B25...Graphics controllers found = 1 00046D7B26...Device 1 = 14,71C21002,0840174B,00000700,C0A00000,00001000,00000002,R5xx 00046D7B27...Beginning initialization 00046D8B28.../////////////////////////////////////////// 00046D8B29...Hardware monitor enumeration 00046D8B2A...******************************************* 00046D8B2B...Querying 00010001 00046D8B2C...I2C_ReadEDID at port 1 on R5xx 00046DF82D...Nothing found on 00010001 00046DF82E...******************************************* 00046DF82F...Querying 00020001 00046DF830...I2C_ReadEDID at port 2 on R5xx 00046E1831......Raw data received = 0x00 00046E1832......00: 00FFFFFF FFFFFF00 4C2D2602 39314148 00046E1833......10: 14100103 80291A87 2AD7A5A2 594A9624 00046E1834......20: 145054BF EF809500 950F8180 8140714F 00046E1835......30: 01010101 01019A29 A0D05184 22305098 00046E1836......40: 36009A01 1100001C 000000FD 00384B1E 00046E1837......50: 510E000A 20202020 20200000 00FC0053 00046E1838......60: 796E634D 61737465 720A2020 000000FF 00046E1839......70: 00485645 4C353130 3231390A 202000B4 00046E183A...Found device on 00020001 00046E183B...Monitor ID = Samsung SyncMaster (SAM0226.HVEL510219) 00046E183C...Checking DDC/CI support 00046E183D......Raw data sent 00046E183E......00: 51820110 00000000 00000000 00000000 00046E473F......Raw data received = 0xFF 00046E4740......00: 6E880200 10000064 0064A400 00000000 00046E4741...VCP command - ok 00046E4742...Found DDC/CI monitor 00046E4743...GetCaps - segment 0x0000:0 00046E4744......Raw data sent 00046E4745......00: 5183F300 00000000 00000000 00000000 00046E8546......Raw data received = 0xFF 00046E8547......00: 6EA3E300 00287479 7065284C 43442976 00046E8548......10: 63702830 34203035 20303820 31302031 00046E8549......20: 32203136 20450000 00000000 00000000 00046EB44A...GetCaps - segment 0x0020:0 00046EB44B......Raw data sent 00046EB44C......00: 5183F300 20000000 00000000 00000000 00046EF24D......Raw data received = 0xFF 00046EF24E......00: 6EA3E300 20313820 31412036 30283120 00046EF24F......10: 33292042 30283120 32292042 36204336 00046EF250......20: 20433820 434B0000 00000000 00000000 00046F2151...GetCaps - segment 0x0040:0 00046F2152......Raw data sent 00046F2153......00: 5183F300 40000000 00000000 00000000 00046F6054......Raw data received = 0xFF 00046F6055......00: 6EA3E300 40392044 36283120 34292044 00046F6056......10: 43283120 32203320 34203520 36292044 00046F6057......20: 46204632 20260000 00000000 00000000 00046F8F58...GetCaps - segment 0x0060:0 00046F8F59......Raw data sent 00046F8F5A......00: 5183F300 60000000 00000000 00000000 00046FCD5B......Raw data received = 0xFF 00046FCD5C......00: 6EA3E300 60463028 30203120 32203320 00046FCD5D......10: 34292046 41204642 20463920 46432046 00046FCD5E......20: 44204645 20050000 00000000 00000000 00046FFC5F...GetCaps - segment 0x0080:0 00046FFC60......Raw data sent 00046FFC61......00: 5183F300 80000000 00000000 00000000 0004703B62......Raw data received = 0xFF 0004703B63......00: 6E93E300 80383720 45302830 20312032 0004703B64......10: 20332929 29B50000 00000000 00000000 0004706965...GetCaps - segment 0x0090:0 0004706966......Raw data sent 0004706967......00: 5183F300 90000000 00000000 00000000 0004709868......Raw data received = 0xFF 0004709869......00: 6E83E300 90CE0000 00000000 00000000 000470986A...Raw capabilities string = (type(LCD)vcp(04 05 08 10 12 16 18 1A 60(1 3) B0(1 2) B6 C6 C8 C9 D6(1 4) DC(1 2 3 4 5 6) DF F2 F0(0 1 2 3 4) FA FB F9 FC FD FE 87 E0(0 1 2 3))) 000470986B...Read errors = 0 0004721F6C...Capabilities string = (type(LCD)vcp(04 05 08 10 12 16 18 1A 60(1 3) B0(1 2) B6 C6 C8 C9 D6(1 4) DC(1 2 3 4 5 6) DF F2 F0(0 1 2 3 4) FA FB F9 FC FD FE 87 E0(0 1 2 3))) 0004722F6D...VCP control list = 04,05,08,10,12,16,18,1A,60,C6,C8,C9,D6,F2,F0,FE,87,E0 0004722F6E...DDC/CI query - elapsed time = 1047ms 0004722F6F...VCP table 0004722F70......Raw data sent 0004722F71......00: 51820104 00000000 00000000 00000000 0004724E72......Raw data received = 0xFF 0004724E73......00: 6E880200 04010001 0000B000 00000000 0004724E74....Opcode 0x04 = 00010000 0004725D75......Raw data sent 0004725D76......00: 51820105 00000000 00000000 00000000 0004727D77......Raw data received = 0xFF 0004727D78......00: 6E880200 05010001 0000B100 00000000 0004727D79....Opcode 0x05 = 00010000 0004728C7A......Raw data sent 0004728C7B......00: 51820108 00000000 00000000 00000000 000472AC7C......Raw data received = 0xFF 000472AC7D......00: 6E880200 08010001 0000BC00 00000000 000472AC7E....Opcode 0x08 = 00010000 000472BB7F......Raw data sent 000472BB80......00: 51820110 00000000 00000000 00000000 000472DA81......Raw data received = 0xFF 000472DA82......00: 6E880200 10000064 0064A400 00000000 000472DA83....Opcode 0x10 = 00640064 000472EA84......Raw data sent 000472EA85......00: 51820112 00000000 00000000 00000000 0004730986......Raw data received = 0xFF 0004730987......00: 6E880200 12000064 004B8900 00000000 0004730988....Opcode 0x12 = 0064004B 0004731989......Raw data sent 000473198A......00: 51820116 00000000 00000000 00000000 000473388B......Raw data received = 0xFF 000473388C......00: 6E880200 16000040 0020C200 00000000 000473388D....Opcode 0x16 = 00400020 000473488E......Raw data sent 000473488F......00: 51820118 00000000 00000000 00000000 0004736790......Raw data received = 0xFF 0004736791......00: 6E880200 18000040 0020CC00 00000000 0004736792....Opcode 0x18 = 00400020 0004737793......Raw data sent 0004737794......00: 5182011A 00000000 00000000 00000000 0004739695......Raw data received = 0xFF 0004739696......00: 6E880200 1A000040 0020CE00 00000000 0004739697....Opcode 0x1A = 00400020 000473A698......Raw data sent 000473A699......00: 51820160 00000000 00000000 00000000 000473C59A......Raw data received = 0xFF 000473C59B......00: 6E880200 60000003 0003D400 00000000 000473C59C....Opcode 0x60 = 00030003 000473D49D......Raw data sent 000473D49E......00: 51820187 00000000 00000000 00000000 000473F49F......Raw data received = 0xFF 000473F4A0......00: 6E880200 87000019 000F2500 00000000 000473F4A1....Opcode 0x87 = 0019000F 00047403A2......Raw data sent 00047403A3......00: 518201C6 00000000 00000000 00000000 00047423A4......Raw data received = 0xFF 00047423A5......00: 6E880201 C6000000 00007300 00000000 00047423A6....Opcode 0xC6 = 00000000 00047432A7......Raw data sent 00047432A8......00: 518201C8 00000000 00000000 00000000 00047451A9......Raw data received = 0xFF 00047451AA......00: 6E880201 C8000000 00007D00 00000000 00047451AB....Opcode 0xC8 = 00000000 00047461AC......Raw data sent 00047461AD......00: 518201C9 00000000 00000000 00000000 00047480AE......Raw data received = 0xFF 00047480AF......00: 6E880201 C9000000 00007C00 00000000 00047480B0....Opcode 0xC9 = 00000000 00047490B1......Raw data sent 00047490B2......00: 518201D6 00000000 00000000 00000000 000474AFB3......Raw data received = 0xFF 000474AFB4......00: 6E880200 D6000004 00016700 00000000 000474AFB5....Opcode 0xD6 = 00040001 000474BFB6......Raw data sent 000474BFB7......00: 518201E0 00000000 00000000 00000000 000474DEB8......Raw data received = 0xFF 000474DEB9......00: 6E880200 E0000003 00035400 00000000 000474DEBA....Opcode 0xE0 = 00030003 000474EEBB......Raw data sent 000474EEBC......00: 518201F0 00000000 00000000 00000000 0004750DBD......Raw data received = 0xFF 0004750DBE......00: 6E880200 F0000004 00034300 00000000 0004751DBF....Opcode 0xF0 = 00040003 0004751DC0......Raw data sent 0004751DC1......00: 518201F2 00000000 00000000 00000000 0004753CC2......Raw data received = 0xFF 0004753CC3......00: 6E880200 F2000002 00004400 00000000 0004753CC4....Opcode 0xF2 = 00020000 0004754BC5......Raw data sent 0004754BC6......00: 518201FE 00000000 00000000 00000000 0004756BC7......Raw data received = 0xFF 0004756BC8......00: 6E880201 FE000000 00004B00 00000000 0004756BC9....Opcode 0xFE = 00000000 0004757ACA......Raw data sent 0004757ACB......00: 51810700 00000000 00000000 00000000 000475C8CC......Raw data received = 0x5E 000475C8CD......00: 7FFFFFFF FFFFFFFF FFFFFFFF FFFFFFFF 000475C8CE...Timing string = n/a 000475C8CF...Update VCP table - elapsed time = 921ms 000475C8D0...******************************************* 000475C8D1...Windows monitor enumeration 000475C8D2...******************************************* 000475C8D3...GPU StateFlags for 00000000 = 08000005 000475C8D4....DeviceNumber = 0 000475C8D5....DeviceName = \\.\DISPLAY1 000475C8D6....DeviceString = Sapphire RADEON X1600 PRO 000475C8D7....DeviceID = PCI\VEN_1002&DEV_71C2&SUBSYS_0840174B&REV_00 000475C8D8....DeviceKey = \Registry\Machine\System\CurrentControlSet\Control\Video\{C7053B47-C69F-41F0-966F-24723FB37789}00 000475C8D9....DeviceDriver = ati2dvag 6.14.10.6660 000475C8DA....Monitor StateFlags for 00000000 = 00000003 000475C8DB.....DeviceName = \\.\DISPLAY1\Monitor0 000475C8DC.....DeviceString = Plug and Play Monitor 000475C8DD.....DeviceID = Monitor\SAM0226\{4D36E96E-E325-11CE-BFC1-08002BE10318}02 000475C8DE.....DeviceKey = \Registry\Machine\System\CurrentControlSet\Control\Class\{4D36E96E-E325-11CE-BFC1-08002BE10318}02 000475C8DF.....DeviceEnum = \Registry\Machine\System\CurrentControlSet\Enum\Display\SAM0226\5&2d35580d&0&10000083&07&00 000475C8E0......Raw data received = 0x00 000475C8E1......00: 00FFFFFF FFFFFF00 4C2D2602 39314148 000475C8E2......10: 14100103 80291A87 2AD7A5A2 594A9624 000475C8E3......20: 145054BF EF809500 950F8180 8140714F 000475C8E4......30: 01010101 01019A29 A0D05184 22305098 000475C8E5......40: 36009A01 1100001C 000000FD 00384B1E 000475C8E6......50: 510E000A 20202020 20200000 00FC0053 000475C8E7......60: 796E634D 61737465 720A2020 000000FF 000475C8E8......70: 00485645 4C353130 3231390A 202000B4 000475C8E9...******************************************* 000475C8EA...Device correlation 000475C8EB...******************************************* 000475C8EC....Monitor #1: Hardware device: Samsung SyncMaster 000475C8ED............... Windows device number: 0 000475C8EE............... Windows device name: \\.\DISPLAY1 000475C8EF............... Windows device string: Sapphire RADEON X1600 PRO 000475C8F0............... Windows device ID: PCI\VEN_1002&DEV_71C2&SUBSYS_0840174B&REV_00 000475C8F1............... Windows monitor name: \\.\DISPLAY1\Monitor0 000475C8F2............... Windows monitor string: Plug and Play Monitor 000475C8F3...Finished monitor enumeration, total elapsed time = 2109 ms 000475C8F4...Number of hardware monitors enumerated = 1 total, 1 DDC/CI Link to comment Share on other sites More sharing options...
AVPS Posted January 24, 2007 Share Posted January 24, 2007 sheriff here u go please let me know if i need to do anything else for my machine, do i need to change anything else ApplePS2Controller.kext.zip Link to comment Share on other sites More sharing options...
sheriffbounce Posted January 24, 2007 Share Posted January 24, 2007 sheriff here u go please let me know if i need to do anything else for my machine, do i need to change anything else question: u got the TFT connected via DVI-D?? Link to comment Share on other sites More sharing options...
