[pre-release] macOS Sonoma

[Stefanalmare]

1 hour ago, cankiulascmnfye said:

and I don't think they are from Broadcom either



They are Broadcom. At least in my MBP15,1.





[AlfredoM]

For the AirDrop problems, there is an alternative that is not quite as convenient, but it also works well for people who absolutely need it.

It's called Drop Copy

[PoMpIs]

41 minutes ago, AlfredoM said:

For the AirDrop problems, there is an alternative that is not quite as convenient, but it also works well for people who absolutely need it.

It's called Drop Copy



Well, DropCopy works very well... 👌 ...  It is a good alternative to Airdrop



Thanks

Edited June 18, 2023 by PoMpIs

[Cyberdevs]

12 hours ago, antuneddu said:

In the meantime that the problem is solved try to use

https://github.com/localsend/localsend

... or similar

This one works amazingly well, Drop Copy can't handle large files but local send is pretty amazing. In case we can't get the WiFi to work in Sonoma this one can replace AirDrop!

[SavageAUS]

11 hours ago, Stefanalmare said:



For me it works all the time. Try to put "enable-backlight-registers-alternative-fix" to device properties and delete boot-args.

The strange thing is that with my other laptop (10th gen Dell) the -igfxblr boot arg works just fine.

It is the 9th gen laptop that is causing me problems and I don't have that one with me today until later but I will try the device property only.

[cankiulascmnfye]

19 hours ago, Stefanalmare said:



They are Broadcom. At least in my MBP15,1.







I've downloaded Darwin Dumped IOREGs and checked some of them. Seem like macBookAir9,x, MacBookPro15,x and iMac19,1 all use Broadcom.



So my guess is, Apple will integrate these drives back into their .dext version later. Otherwise they would have to correct the list of compatible device which would be a really bad look for them.

[SavageAUS]

21 hours ago, Stefanalmare said:



For me it works all the time. Try to put "enable-backlight-registers-alternative-fix" to device properties and delete boot-args.

Using properties I still get black screen for 3 minutes.

I will assume it is a data type with the value of 01000000



I am actually at my wits end with this 3 minute delay.

The new fix isn't working for me.

I have tried using the device properties only, boot arg only and both at the same time clearing nvram in between.



config.plist

[Henties]

1 hour ago, cankiulascmnfye said:



I've downloaded Darwin Dumped IOREGs and checked some of them. Seem like macBookAir9,x, MacBookPro15,x and iMac19,1 all use Broadcom.



So my guess is, Apple will integrate these drives back into their .dext version later. Otherwise they would have to correct the list of compatible device which would be a really bad look for them.



Oh thank you, you are now echoing precisely what I have been writing all along on this particular topic.



Well done.



Greetings Henties





[acquarius13]

I would like to thank Hervé about this detailed recap that I just copied.

I paste it here in order to let people stop arguing about wireless issues, both related to 1st beta (or ongoing betas) and broadcom chipsets.



- Sonoma 1st beta officially drops 7th gen. Kaby Lake platforms (on top of older ones of course) but, for the moment, retains KBL graphics drivers. Why? Simple: because it's required to support Amber Lake UHD617 graphics of MBA8,1.
- Sonoma 1st beta drops Broadcom legacy 802.11ac wireless chipsets that Ventura still supported through IO80211FamilyLegacy kext: 14e4:43ba, 14e4:43a3 and 14e4:43a0, i.e. BCM43602, BCM4350 and BCM4360. Big Sur had already dropped support for the last 802.11bgn cards that Apple had retained up to Catalina. Supporting those older 802.11ac chipsets through a kext bearing the name "legacy" should have been quite an obvious hint in itself as far as what the future held...
- Sonoma 1st beta supports only the following Broadcom chipsets: 14e4:43dc, 14e4:4464, 14e4:4488, 14e4:4425, 14e4:4433 and 14e4:4434, i.e. BCM4355 (802.11ac), BCM4364 (802.11ac), BCM4377b (802.11ac), BCM4378 (802.11ax), BCM4387 (802.11ax) and BCM4388 (802.11ax). Afaik, all those are provided as specific SOCs to Apple by Broadcom, i.e. chips to be soldered on Apple motherboards and not available on add-on mini-PCIe/M.2 cards.



With regards to the wireless chipsets fitted to Intel Mac platforms supported by Sonoma, it's as follows:
- 2018 Mac mini8,1 -> BCM4364 (pci14e4,4464)
- 2018/2019 MacBookAir8,x -> BCM4355 (pci14e4,43dc)
- 2020 MacBookAir9,1 -> BCM4377b (pci14e4,4488)
- 2018/2019 MacBookPro15,x -> BCM4364 (pci14e4,4464)
- 2019/2020 MacBookPro16,x -> BCM4364 (pci14e4,4464)
- 2019 iMac19,x -> BCM4364 (pci14e4,4464)
- 2020 iMac20,x -> BCM4364 (pci14e4,4464)
- 2017 iMacPro1,1 -> BCM4355 (pci14e4,43dc)
- 2019 MacPro7,1 -> BCM4364 (pci14e4,4464)



Make your own considerations

[D3v1L]

21 minutes ago, acquarius13 said:

I would like to thank Hervé about this detailed recap that I just copied.

I paste it here in order to let people stop arguing about wireless issues, both related to 1st beta (or ongoing betas) and broadcom chipsets.



- Sonoma 1st beta officially drops 7th gen. Kaby Lake platforms (on top of older ones of course) but, for the moment, retains KBL graphics drivers. Why? Simple: because it's required to support Amber Lake UHD617 graphics of MBA8,1.
- Sonoma 1st beta drops Broadcom legacy 802.11ac wireless chipsets that Ventura still supported through IO80211FamilyLegacy kext: 14e4:43ba, 14e4:43a3 and 14e4:43a0, i.e. BCM43602, BCM4350 and BCM4360. Big Sur had already dropped support for the last 802.11bgn cards that Apple had retained up to Catalina. Supporting those older 802.11ac chipsets through a kext bearing the name "legacy" should have been quite an obvious hint in itself as far as what the future held...
- Sonoma 1st beta supports only the following Broadcom chipsets: 14e4:43dc, 14e4:4464, 14e4:4488, 14e4:4425, 14e4:4433 and 14e4:4434, i.e. BCM4355 (802.11ac), BCM4364 (802.11ac), BCM4377b (802.11ac), BCM4378 (802.11ax), BCM4387 (802.11ax) and BCM4388 (802.11ax). Afaik, all those are provided as specific SOCs to Apple by Broadcom, i.e. chips to be soldered on Apple motherboards and not available on add-on mini-PCIe/M.2 cards.



With regards to the wireless chipsets fitted to Intel Mac platforms supported by Sonoma, it's as follows:
- 2018 Mac mini8,1 -> BCM4364 (pci14e4,4464)
- 2018/2019 MacBookAir8,x -> BCM4355 (pci14e4,43dc)
- 2020 MacBookAir9,1 -> BCM4377b (pci14e4,4488)
- 2018/2019 MacBookPro15,x -> BCM4364 (pci14e4,4464)
- 2019/2020 MacBookPro16,x -> BCM4364 (pci14e4,4464)
- 2019 iMac19,x -> BCM4364 (pci14e4,4464)
- 2020 iMac20,x -> BCM4364 (pci14e4,4464)
- 2017 iMacPro1,1 -> BCM4355 (pci14e4,43dc)
- 2019 MacPro7,1 -> BCM4364 (pci14e4,4464)



Make your own considerations

Give to people 2 or maybe at least 3 post...and you find a new one asking "why my BT work and not my wifi?!" 🤣 LoL

Edited June 19, 2023 by D3v1L

[marsuss]

hello, anyone heave an idea what I'm doing wrong? I have all kexts up to date as I said before I did installer like in this topic OC 0.9.3. I was able install I mean first stage on smbios iMac20,1 then on second stage of installation I'm getting KP. I think I've tried everything but maybe I've missed something. can someone have a look on my refi please and tell me what's wrong? thank you for any help.

SonomaEFI.zip

[cankiulascmnfye]

30 minutes ago, marsuss said:

hello, anyone heave an idea what I'm doing wrong? I have all kexts up to date as I said before I did installer like in this topic OC 0.9.3. I was able install I mean first stage on smbios iMac20,1 then on second stage of installation I'm getting KP. I think I've tried everything but maybe I've missed something. can someone have a look on my refi please and tell me what's wrong? thank you for any help.

SonomaEFI.zip 5.01 MB · 0 downloads



I am using iMac20,2 on my 10th gen comet lake and I didn't had to change a single thing for installing Sonoma. So it's possible a config issue. Use the debug version of OpenCore and generate a bootlog

48 minutes ago, D3v1L said:

Give to people 2 or maybe at least 3 post...and you find a new one asking "why my BT work and not my wifi?!" 🤣 LoL



That's a problem of linear structured forums using pages in general.

1 hour ago, Henties said:



Oh thank you, you are now echoing precisely what I have been writing all along on this particular topic.



Well done.



Greetings Henties







Ball flach halten…

[The Tech]

On 6/8/2023 at 12:44 AM, surenmunoo said:

Try this kext and don't use any SSDT's for the 6900XT

Does RX 6900XT requires this Kext? If so, where is the source of this kext?

[mboy]

Does the latest version of OCLP now allow experimental patching for Broadcom wifi access ?

https://github.com/dortania/OpenCore-Legacy-Patcher/commit/8487eab01002a59062f66d26f41003561137ba30

[draylax]

Thanks for your post acquarius13.

the next round of questions will inevitably be, what M.2 WIFI/BT combo cards are available that will run natively on Sonoma.



It’s getting tiring, I have the BCM94360NG bought for Ventura and its about the 5th Wifi and or BT bit of hardware I’ve had to buy, had several WIFI pcie cards, various BT USB adapters now the BCM94360NG, what’s next thats needed, cos I don’t have PCIe slots for another WIFI card and no more USB ports for a new BT adapter.



[draylax]

I suppose another question is, if WIFI is gona be broken in Sonoma for many of us, will Airdrop work (or can we get it working) if enable and connect to the network with wired ethernet, that’s one alternative to think about.

[fantomas]

Please, stay focused on the topic



If you need some exotic discussion, use PM.



Thank you

[Cyberdevs]

@draylax

I strongly suggest to wait and see what happens with the future releases of Sonoma in regard to WiFi compatibility and support before buying devices. Things may have change in the next releases or maybe developers find a way to add the legacy support back.

[Max.1974]

3 hours ago, The Tech said:

O RX 6900XT requer este Kext? Se sim, onde está a fonte desse kext?

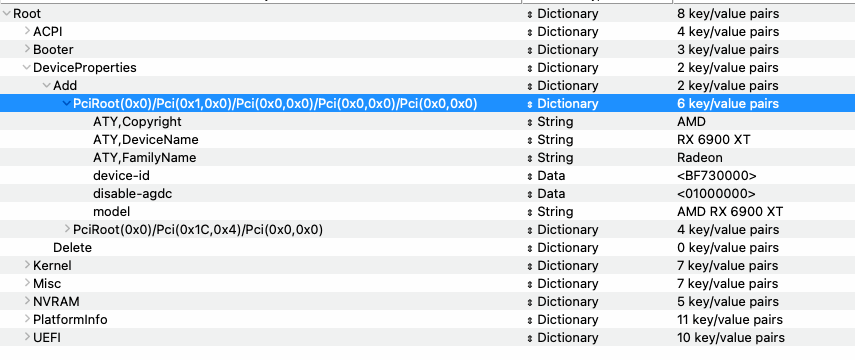

For my desktop only used SSDT and DeviceProperties to RX6900XT





Boot args: -lilubeta -alcbeta -revbeta -wegbeta shikigva=40 alcid=12 watchdog=0 agdpmod=pikera npci=0x2000 keepsyms=1 (for sonoma)





SSDT-BRG0.aml.zip

[Max.1974]

8 hours ago, marsuss said:

hello, anyone heave an idea what I'm doing wrong? I have all kexts up to date as I said before I did installer like in this topic OC 0.9.3. I was able install I mean first stage on smbios iMac20,1 then on second stage of installation I'm getting KP. I think I've tried everything but maybe I've missed something. can someone have a look on my refi please and tell me what's wrong? thank you for any help.

SonomaEFI.zip 5.01 MB · 5 downloads

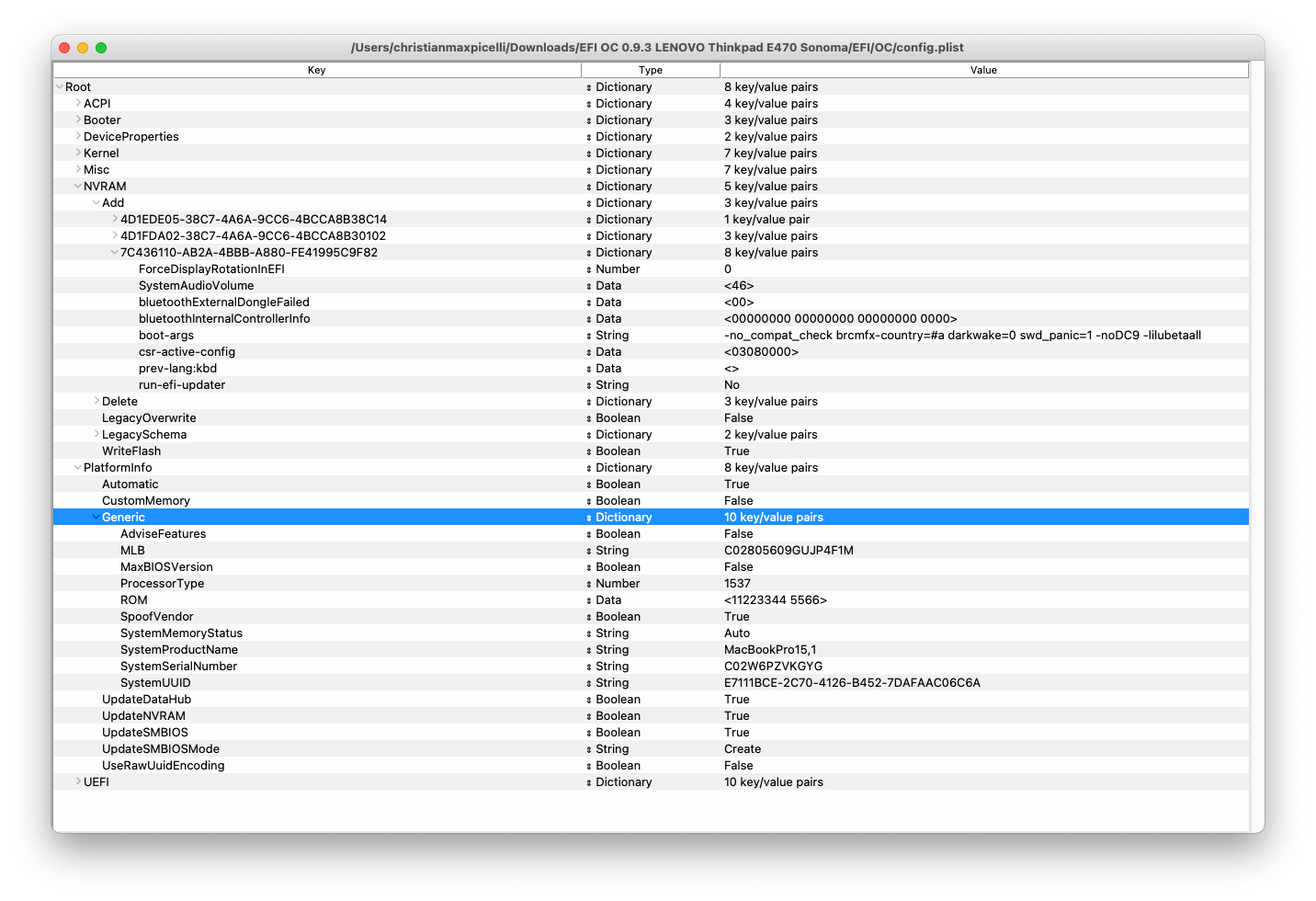

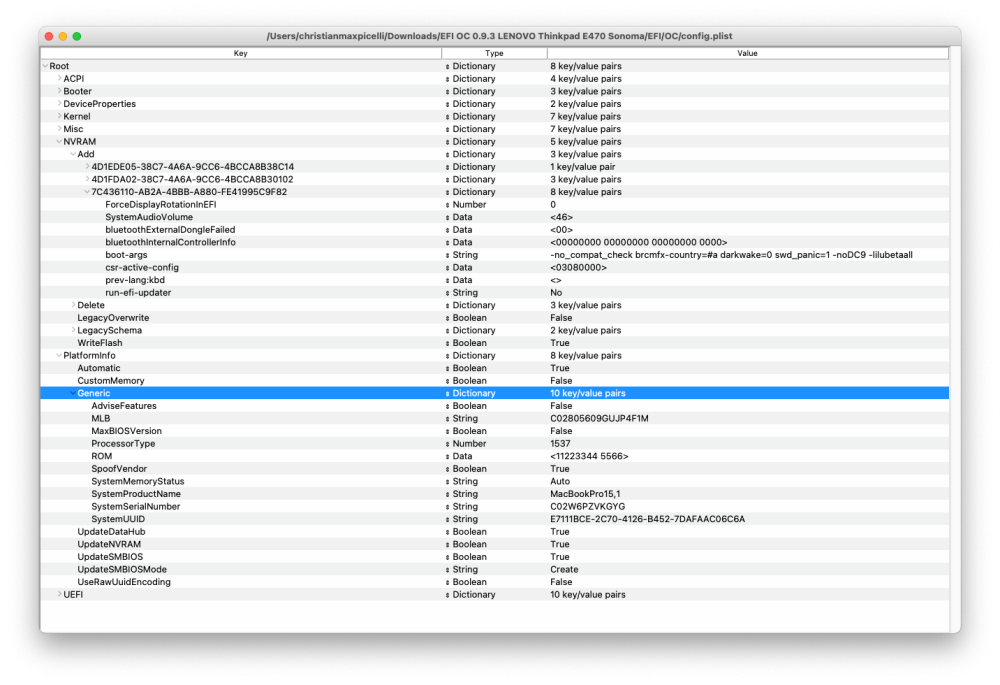

I suggest you use MacBookPro15,1



And based on my boot-args in this EFI



https://osxlatitude.com/forums/topic/19378-lenovo-thinkpad-e470-efi-opencore-093-sonoma-14-beta/?_fromLogin=1



Just look your intel UHD and change your own DDST or SSDT and serial SMBIOS.



Change Kexts what you need. Try this first.





My boot-args



-no_compat_check brcmfx-country=#a darkwake=0 swd_panic=1 -noDC9 -lilubetaall







824908019_EFIOC0.9.3LENOVOThinkpadE470Sonoma.zip

Edited June 19, 2023 by Max.1974

[Max.1974]

On 6/18/2023 at 12:56 PM, Cyberdevs said:

This one works amazingly well, Drop Copy can't handle large files but local send is pretty amazing. In case we can't get the WiFi to work in Sonoma this one can replace AirDrop!



Awesome my friend, im try used LocalSend but no success

On 6/18/2023 at 10:24 AM, AlfredoM said:

For the AirDrop problems, there is an alternative that is not quite as convenient, but it also works well for people who absolutely need it.

It's called Drop Copy



Thanks Alfredo I will try use it!!

[Max.1974]

9 hours ago, acquarius13 said:

Gostaria de agradecer a Hervé por esta recapitulação detalhada que acabei de copiar.

Eu colo aqui para que as pessoas parem de discutir sobre problemas sem fio, ambos relacionados ao 1o beta (ou betas em andamento) e chipsets broadcom.



- Sonoma 1a versão beta lança oficialmente a 7a geração. Plataformas Kaby Lake (além das mais antigas, é claro), mas, por enquanto, mantém os drivers gráficos KBL. Por quê? Simples: porque é necessário suportar gráficos Amber Lake UHD617 do MBA8,1.
- Sonoma 1st beta lança chipsets sem fio 802.11ac legados Broadcom que Ventura ainda suportava através do IO80211FamilyLegacy kext: 14e4:43ba, 14e4:43a3 e 14e4:43a0, i.e. BCM43602, BCM4350 e BCM4360. A Big Sur já havia deixado cair o suporte para os últimos cartões 802.11bgn que a Apple havia mantido até o Catalina. Apoiar esses chipsets 802.11ac mais antigos através de um kext com o nome "legado" deveria ter sido uma dica bastante óbvia em si mesmo no que diz respeito ao que o futuro guardava...
- Sonoma 1st beta suporta apenas os seguintes chipsets Broadcom: 14e4:43dc, 14e4:4464, 14e4:4488, 14e4:4425, 14e4:4433 e 14e4:4434, ou seja, BCM4355 (802.11ac), BCM4364 (802.11ac), BCM4377b (802.11ac), BCM4378 (802.11ax), BCM4387 (802.11ax) e BCM4388 (802.11ax). Afaik, todos eles são fornecidos como SOCs específicos para a Apple pela Broadcom, ou seja, chips a serem soldados em placas-mãe da Apple e não disponíveis em placas mini-PCIe/M.2 adicionais.



No que diz respeito aos chipsets sem fio instalados nas plataformas Intel Mac suportadas pela Sonoma, é o seguinte:
- 2018 Mac mini8,1 -> BCM4364 (pci14e4,4464)
- 2018/2019 MacBookAir8,x -> BCM4355 (pci14e4,43dc)
- 2020 MacBookAir9,1 -> BCM4377b (pci14e4,4488)
- 2018/2019 MacBookPro15,x -> BCM4364 (pci14e4,4464)
- 2019/2020 MacBookPro16,x -> BCM4364 (pci14e4,4464)
- 2019 iMac19,x -> BCM4364 (pci14e4,4464)
- 2020 iMac20,x -> BCM4364 (pci14e4,4464)
- 2017 iMacPro1,1 -> BCM4355 (pci14e4,43dc)
- 2019 MacPro7,1 -> BCM4364 (pci14e4,4464)



Faça suas próprias considerações



The information is very useful, in my MBA I have one of them, and apparently all of them are soldered on mobo?

I believe that Chinese manufacturers do not forgive a lot of time and will make others, compatible, soon.

Edited June 19, 2023 by Max.1974

[Cyberdevs]

8 minutes ago, Max.1974 said:

Awesome my friend, im try used LocalSend but no success

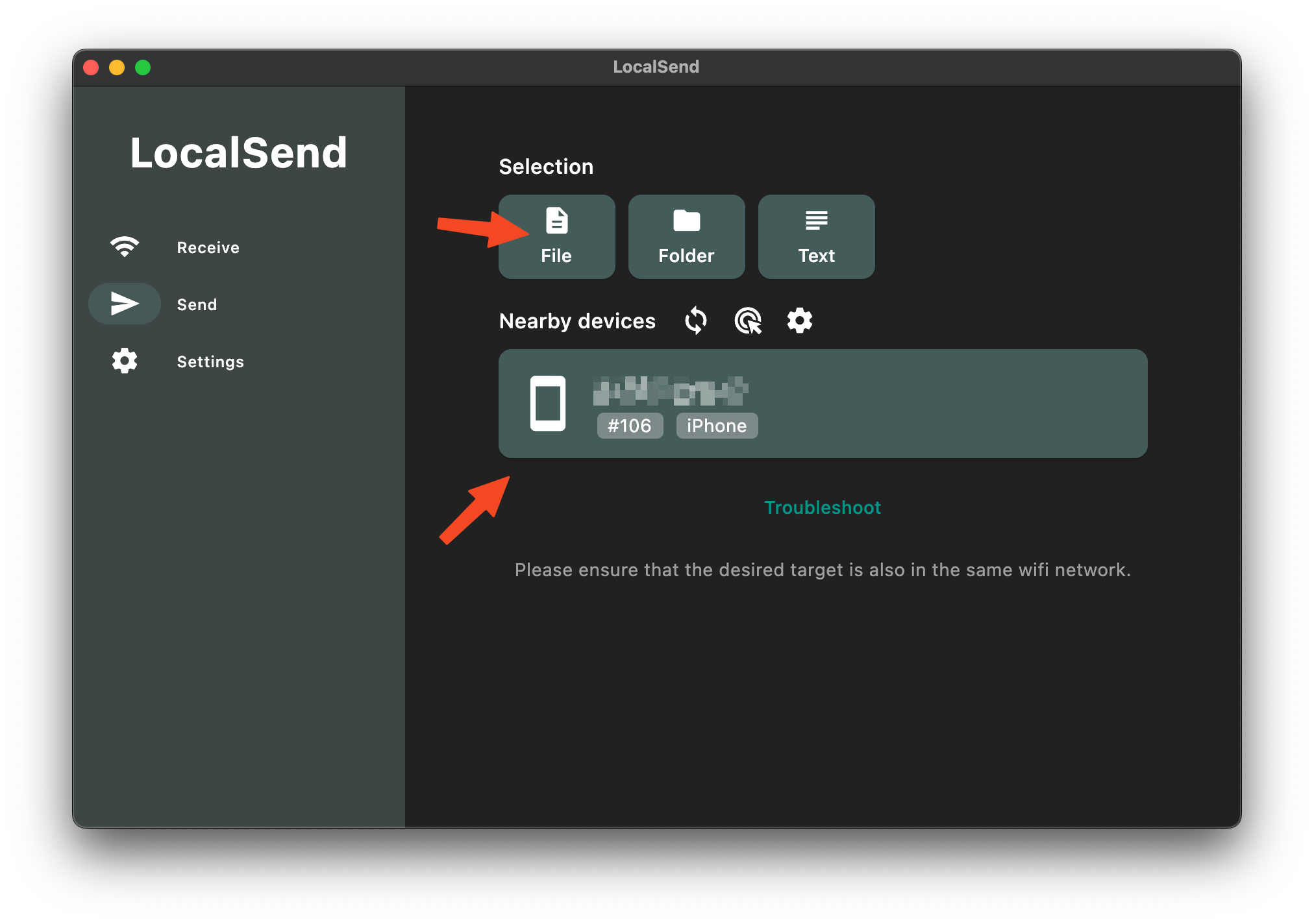

You need to have it installed on the devices that you want to transfer files between them, then add a file to transfer then select the destination as shown in the list.

Select Send on the computer you want to send the file from and you'll see the list of nearby devices that can receive the file



Spoiler



[MacWill]

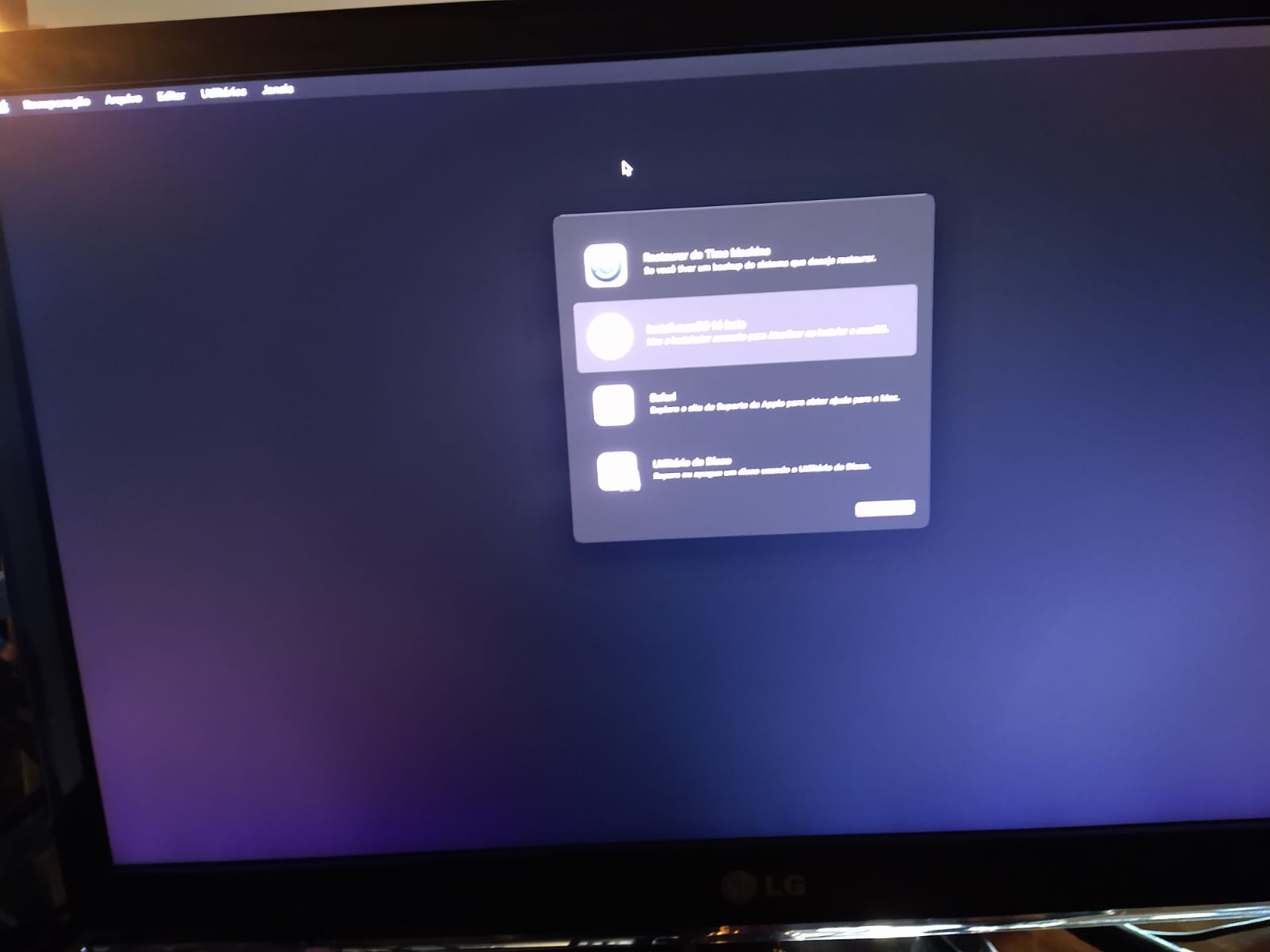

Help!

I'm stuck here...



[Max.1974]

Are you using USB 2.0?
opencore version?

3 hours ago, Cyberdevs said:

You need to have it installed on the devices that you want to transfer files between them, then add a file to transfer then select the destination as shown in the list.

Select Send on the computer you want to send the file from and you'll see the list of nearby devices that can receive the file



  Reveal hidden contents



So glad for your help. Im Will test today alter work. Thanks a lot
