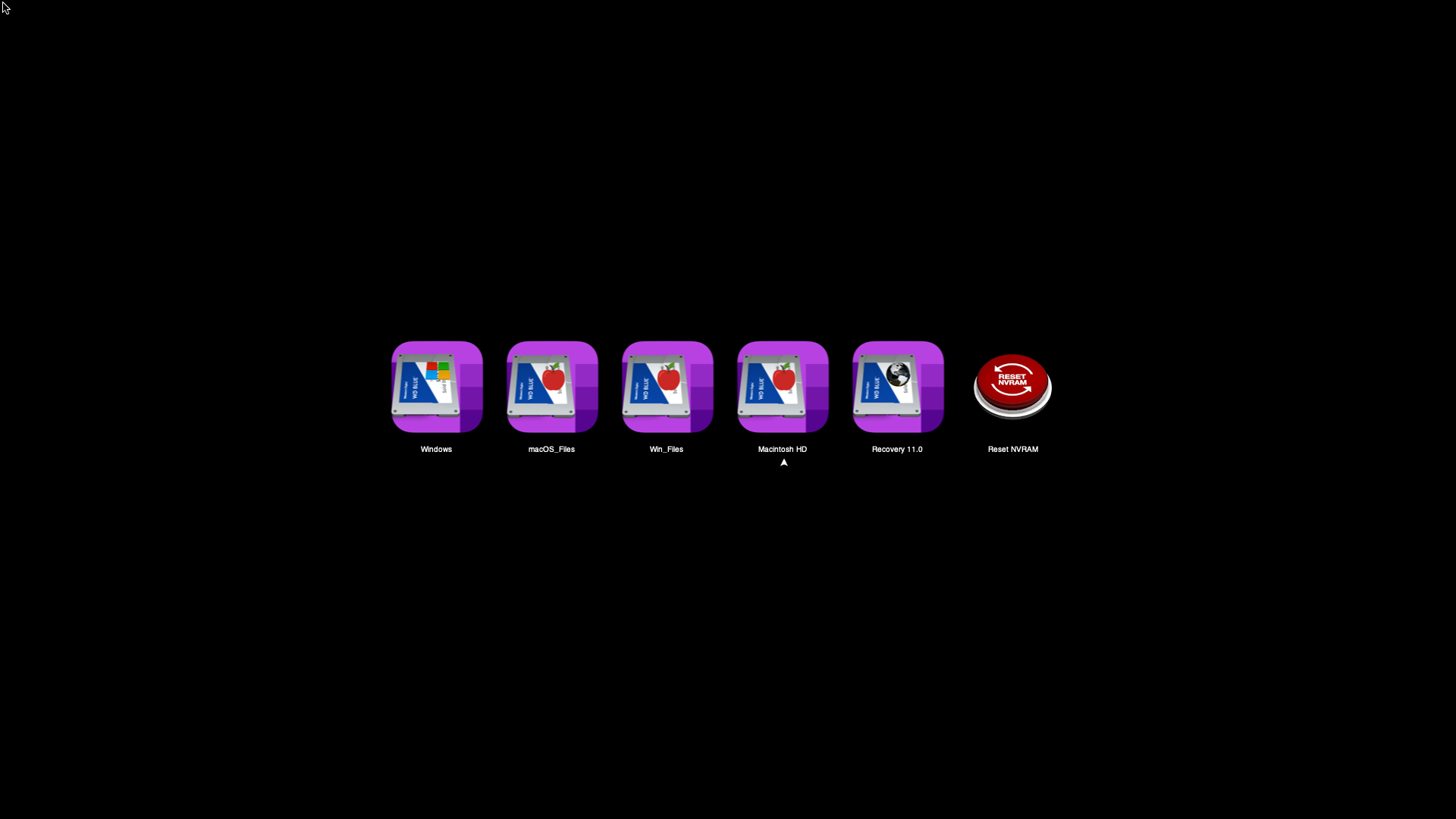

Those icons look pretty small on that image sized 2560x1440. I guess that's the default size used in OpenCanopy until the threshold is met to switch to HiDPI. Have you tried changing the UIScale setting to use the larger icons?

57 minutes ago, blackosx said:

Those icons look pretty small on that image sized 2560x1440. I guess that's the default size used in OpenCanopy until the threshold is met to switch to HiDPI. Have you tried changing the UIScale setting to use the larger icons?

No I haven't but to be honest I quite like this size but will try your suggestion and see - Thanks.

1 hour ago, blackosx said:

Those icons look pretty small on that image sized 2560x1440. I guess that's the default size used in OpenCanopy until the threshold is met to switch to HiDPI. Have you tried changing the UIScale setting to use the larger icons?

Yes the icons are teeny tiny on a 4K display. UIScale=2 is too big in my option. 1.5 would be perfect but you can’t do that.

On 8/26/2020 at 11:14 PM, chris1111 said:

You can try and use an Automate folder for icnspack I made its working perfectly good

create this set of Icon at the good size and use the name bellow  (verry important)

⬇︎

NOTE Selector.png must be 80x80 in 144 pixels

Selected.png  must be 288x288 in 144 pixels

All the others must be 256x256 in 144 pixels

---------------------------------

Do not worry about resizing and creating the final icon because the script will take care of it

You can read the script it is readable with any text editor.

Your only have to copy and paste your set of Icon in the folder Icon then double clic to icnspack-Build.command

In the video I create a themes in 3 seconds

NOTE: Folder Resource is removed with each use, and empty the Icon folder before starting over.

hope you like it

Folder attach

⬇︎

OMG! This is Fan-tastic!!! Not only do I not have to make two sets of pngs (1x and 2x), this takes the whole folder of PNGs and boom! It's done! Genius.

It is only missing the "Apple" icon option.

7 minutes ago, pkdesign said:

OMG! This is Fan-tastic!!! Not only do I not have to make two sets of pngs (1x and 2x), this takes the whole folder of PNGs and boom! It's done! Genius.

It is only missing the "Apple" icon option.

Thanks  yea working like a charm

Apple Option ?

Hello, I've been trying to figure out how to use custom system icons for a few days and don't understand the instructions in the OpenCore document or here.  Can someone just please clarify it a bit.

So, I have Ubuntu booting just fine with OpenCore.  I took the "ubuntu" icon and renamed it to ".VolumeIcons.icns" and put it in a usb drive then booted into Ubuntu and used "sudo mv" command to move it to "/" of my Ubuntu partition.  That didn't work.  I also placed the ".VolumeIcons.icns" icon in the "Ubuntu" folder of my EFI.  That didn't work either.  Thank you.

Apple.icns and Windows.icns are applied just fine.

PickerAttributes = 1

PickerMode = External

I have not tried setting custom icons for any Linux distro so cannot give 100% advice but what you've tried sounds correct, though is clearly not working for you.

Could maybe using Custom Entries help?

Have you tried using DBG version of OpenCore and OrenCanopy to see if there's anything in the log?

Edited by blackosx
1 hour ago, blackosx said:

Could maybe using Custom Entries help?

OMG, thank you very much.  What answered my question was the pull request made by the user that opened the issue in the link.  He wrote:

For entry with Path = .../\EFI\path\to\bootloader.efi it should try to load .../\EFI\path\to\bootloader.efi.icns

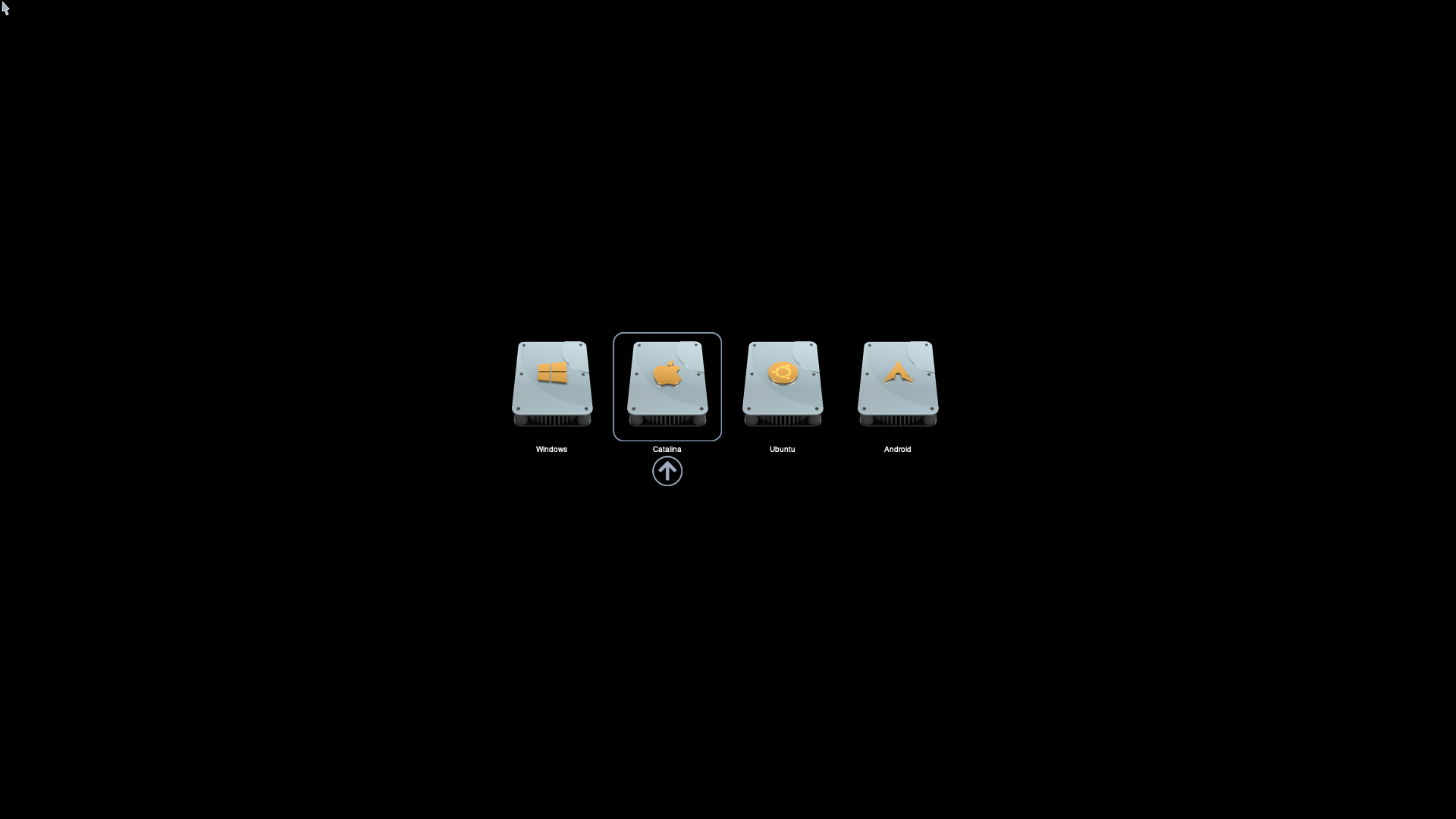

So, basically what I did was place the icon in the OS folder in the EFI (in my case ubuntu and android) and renamed them to the same name as the bootloader with it's extension plus ".icns" and the end.  i.e. grubx64.efi.icns.  And boom everything worked.  Thanks for pointing me in that direction.

ps.  Love your icons.  Please consider adding some Android ones in the future if it's not too much trouble.

Edited by billgates

Great news! Thanks for the report.

When you ask for Android icons would you be thinking Android-x86, RemixOS and PhoenixOS?

I am using Android-x64 but I just meant the generic Android logo, that would cover all of them.

Edited by billgates

Thanks for confirming.

Sure, I’ll add that to my list for the next round of updates.

@blackosx This set with the Gold is just popping!!!! Nice, clean look I love it. Good to see you actively giving OC that personal touch, don't stop keep them coming Bro.

On 8/28/2020 at 7:00 PM, chris1111 said:

Thanks  yea working like a charm

Apple Option ?

Yes, one just for Apple.icns. You have one for "Windows," but not just "Apple"

58 minutes ago, pkdesign said:

Yes, one just for Apple.icns. You have one for "Windows," but not just "Apple"

Apple is HardDrive.png

18 hours ago, chris1111 said:

Apple is HardDrive.png

If you have icns labeled Apple.icns then any Macintosh drive will show that icon. If it is labeled HardDrive.icns then any unknown (such as an EFI drive, Linux, etc) will use the HardDrive.icns.

Check blackosx drive sets and you can see Apple.icns options.

1 minute ago, pkdesign said:

If you have icns labeled Apple.icns then any Macintosh drive will show that icon. If it is labeled HardDrive.icns then any unknown (such as an EFI drive, Linux, etc) will use the HardDrive.icns.

Check blackosx drive sets and you can see Apple.icns options.

You only have rename HardDrive.png in the script

Well there is an idea. I'll try my hand at editing the script!

11 minutes ago, pkdesign said:

Well there is an idea. I'll try my hand at editing the script!

Here take a look if is correct I rename Apple.png / Apple1.png / Apple.icns

icnspack-Build.command.zip

Apple.icns for macOS

HardDrive.icns for all, if no other icons. (This icon shall be present surely. It is used for everything that isn't defined specially.)

3 hours ago, chris1111 said:

Here take a look if is correct I rename Apple.png / Apple1.png / Apple.icns

This one still didn’t make all of them. I edited and this works!

icnspack-Build.command

15 minutes ago, pkdesign said:

This one still didn’t make all of them. I edited and this works!

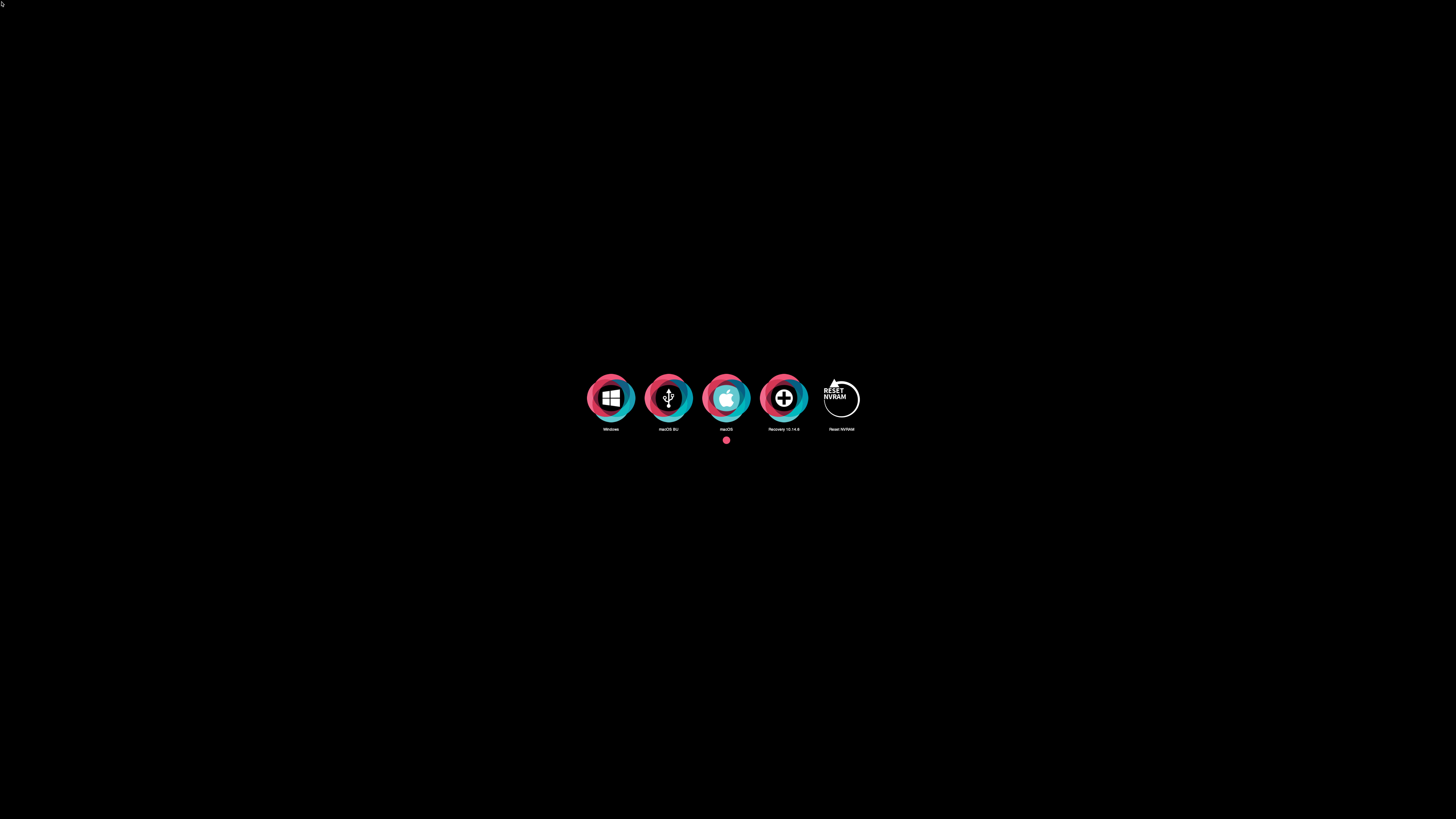

Well, after many weeks of trying to perfect this process, I have created a second and third set of icons for OpenCanopy I call CircleBlobIcon and CircleBlobText. I take a very different approach to icons.

You can find them here: https://github.com/pkdesign/OpenCanopyIcons

Many, many thanks to @chris1111 for his incredible batch script!

Spoiler

1 hour ago, pkdesign said:

Well, after many weeks of trying to perfect this process, I have created a second and third set of icons for OpenCanopy I call CircleBlobIcon and CircleBlobText. I take a very different approach to icons.

You can find them here: https://github.com/pkdesign/OpenCanopyIcons

Many, many thanks to @chris1111 for his incredible batch script!

Reveal hidden contents

Beautyfull set of icons  verry clean themes

Copied icons from CircleBlobIcon to the EFI OC Resources - Image folder, but did not show the icon menu at startup.
Why?

×
×
