panosru Posted January 5, 2021 Share Posted January 5, 2021 Thanks mate! I forgot about that! I just rebuild kextcache from hackintool utilities and I'll see how it goes.. 1 Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/161/#findComment-2748263 Share on other sites More sharing options...
AudioGod Posted January 5, 2021 Author Share Posted January 5, 2021 (edited) 20 minutes ago, panosru said: Thanks mate! I forgot about that! I just rebuild kextcache from hackintool utilities and I'll see how it goes.. Clear your nvram out straight after while your at it. 2 minutes ago, eSaF said: B - I am sure that feature in Hackintool no longer work in BS because of the Seal Volume but maybe still works in Catalina. That’s a point...lol..what about with SIP disabled? you can still clear your cache manually or via many a app on the App Store though. Edited January 5, 2021 by AudioGod 1 Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/161/#findComment-2748266 Share on other sites More sharing options...
panosru Posted January 5, 2021 Share Posted January 5, 2021 Yes I always do that! @eSaF, hackintool asked me to approve the operation, it seems that it run normally Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/161/#findComment-2748267 Share on other sites More sharing options...
AudioGod Posted January 5, 2021 Author Share Posted January 5, 2021 4 minutes ago, panosru said: Yes I always do that! @eSaF, hackintool asked me to approve the operation, it seems that it run normally Awesome, they must of fixed it via an update I guess. Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/161/#findComment-2748268 Share on other sites More sharing options...

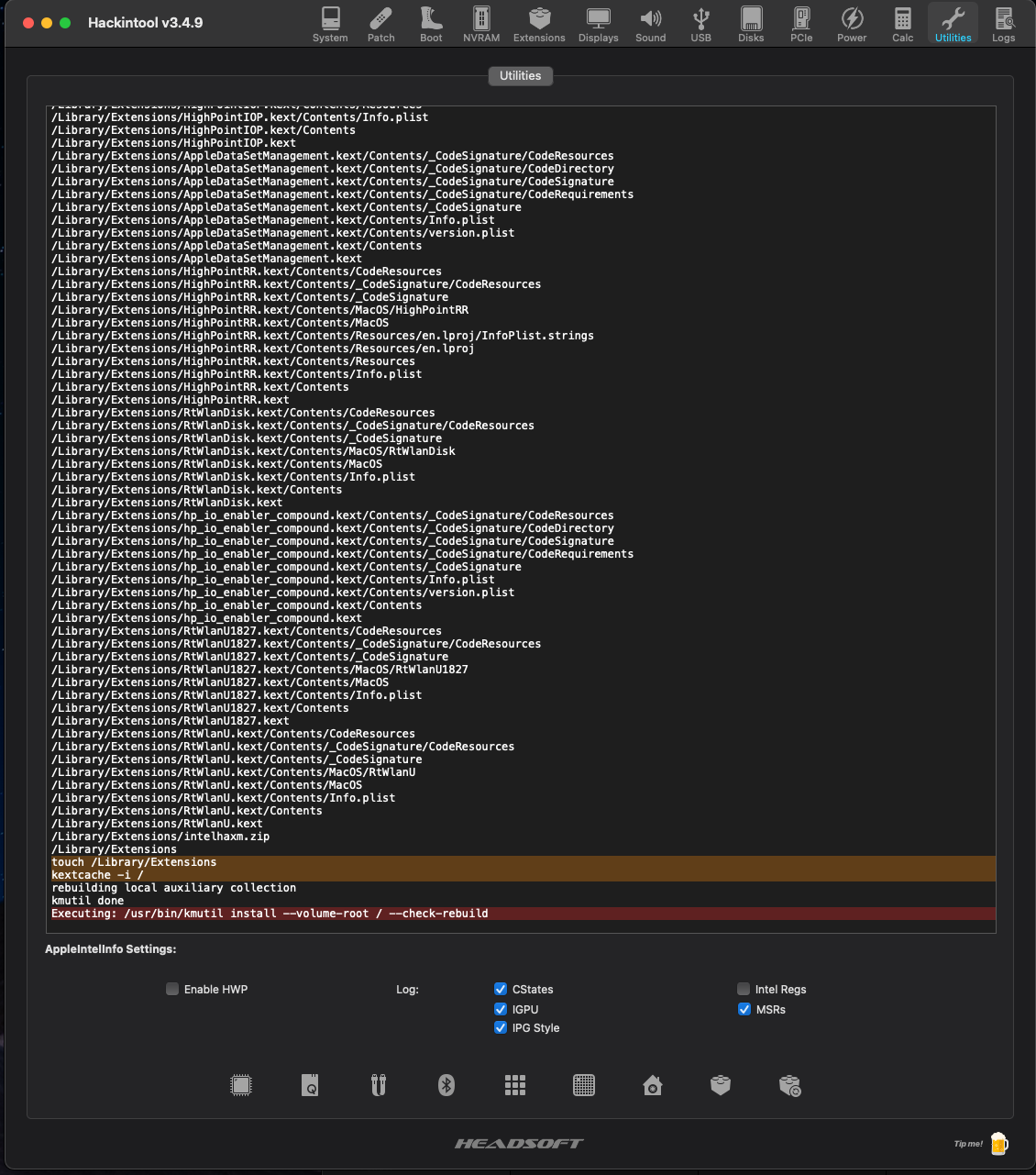

panosru Posted January 5, 2021 Share Posted January 5, 2021 (edited) @eSaF I re-run it: Finder closes and opens again, then: Sleep now seems to be working again Edited January 5, 2021 by panosru 1 Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/161/#findComment-2748272 Share on other sites More sharing options...
AudioGod Posted January 5, 2021 Author Share Posted January 5, 2021 8 minutes ago, panosru said: @eSaF I re-run it: Finder closes and opens again, then: Sleep now seems to be working again simples Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/161/#findComment-2748273 Share on other sites More sharing options...

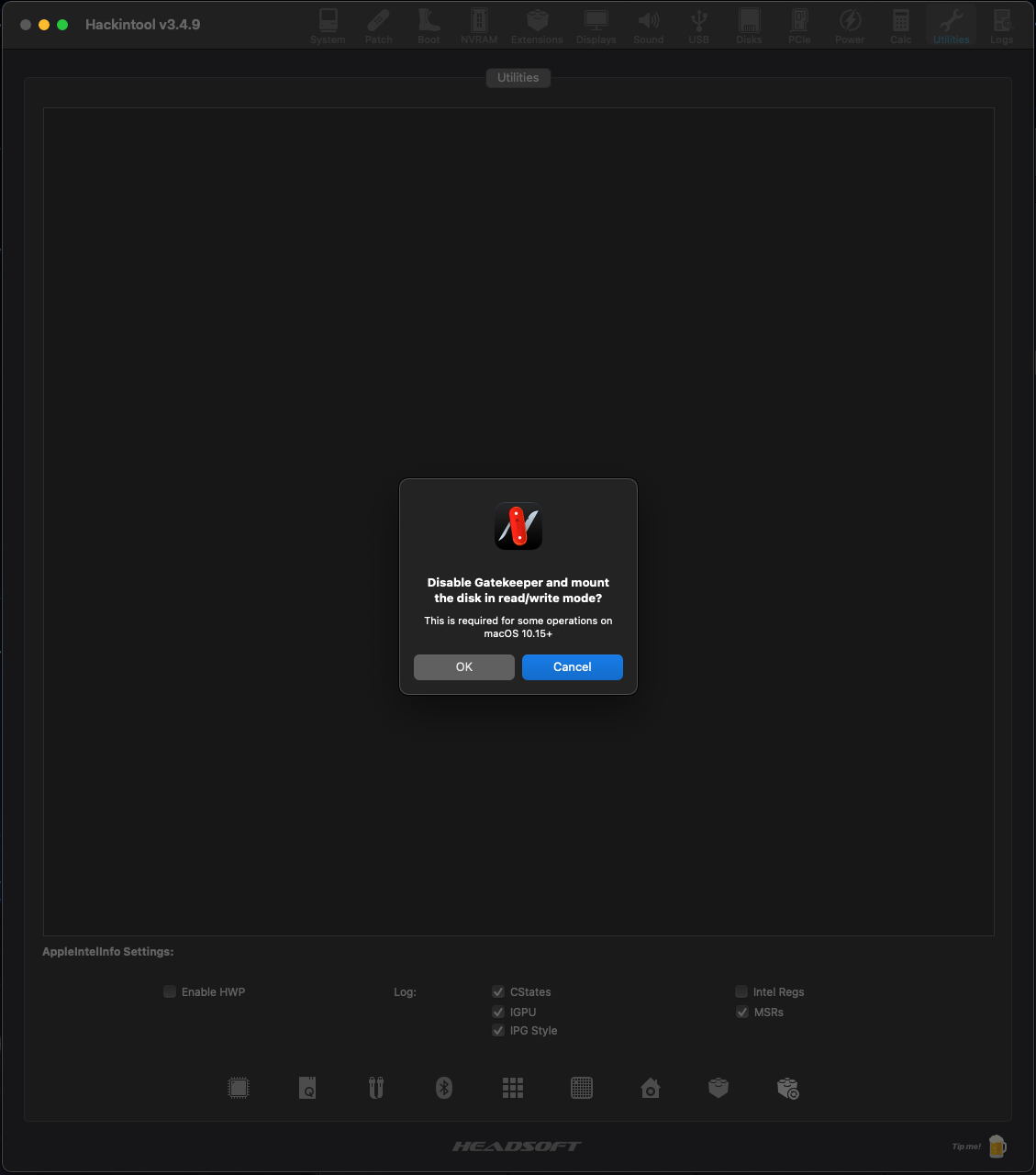

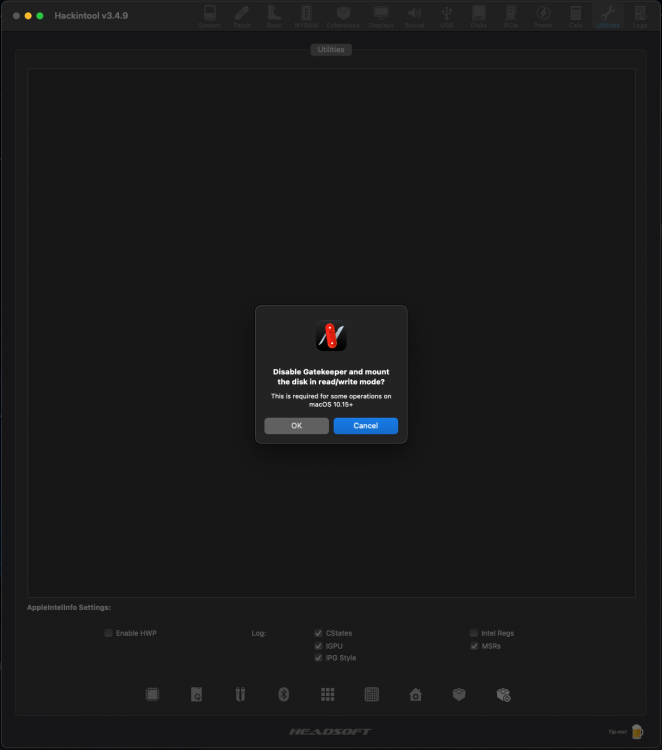

AudioGod Posted January 5, 2021 Author Share Posted January 5, 2021 (edited) 6 minutes ago, eSaF said: @panosru I got the same result as you (see pic) by disabling SIP and cleaning NVRAM but I still maintain Hackintool is not working like before but I am willing to be proven wrong. Do this test in Hackintool/Utilities/GetAppleIntelinfo (see pic) and prove me wrong if any info comes up, if it does, it means you've removed/unsealed BS data volume. Hide contents Test is opened to anyone else. @eSaF Works for me buddy with SIP fully enabled. You sure your using the latest version of hackintool over there my friend? Edited January 5, 2021 by AudioGod Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/161/#findComment-2748275 Share on other sites More sharing options...
panosru Posted January 5, 2021 Share Posted January 5, 2021 (edited) Actually AppleIntelInfo also not working for me. It asks me to restart to enable the extension, I restart, but then after I restarted it tries to re-install it again and asks for restart again.. strange. SIP for me is disabled. Edited January 5, 2021 by panosru Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/161/#findComment-2748276 Share on other sites More sharing options...
AudioGod Posted January 5, 2021 Author Share Posted January 5, 2021 5 minutes ago, eSaF said: Ver:3.4.9 ? - I did check and it said it is the latest - What am I missing? Yea I get that as well but when I do and rerun it all I get is a flashing cursor and no CPU info. I Canny test that one out as I use a Ryzen and it only shows intel info sorry Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/161/#findComment-2748278 Share on other sites More sharing options...
stavidawg Posted January 5, 2021 Share Posted January 5, 2021 @AudioGod, I feel stupid asking this but is all that is needed to do a clean install of big sur a Mac OS X install of Big Sur with your EFI on a flash drive? The reason I ask is that I used to use clover and simply switched over to open core by replacing the EFI, I've never actually done a clean install with open core before. Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/161/#findComment-2748296 Share on other sites More sharing options...
AudioGod Posted January 5, 2021 Author Share Posted January 5, 2021 (edited) 13 minutes ago, stavidawg said: @AudioGod, I feel stupid asking this but is all that is needed to do a clean install of big sur a Mac OS X install of Big Sur with your EFI on a flash drive? The reason I ask is that I used to use clover and simply switched over to open core by replacing the EFI, I've never actually done a clean install with open core before. Clean installs are always nice and the best install you can do but not really necessary so just go for it and just update or you can do what I do sometimes and clean install macOS and then use a TM backup and restore your setup. Ends up the same whatever way you go. Updates can end up ever so slightly slower when it comes to boot time but I’m talking so slight it really doesn’t matter. Edited January 5, 2021 by AudioGod Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/161/#findComment-2748297 Share on other sites More sharing options...
pkdesign Posted January 6, 2021 Share Posted January 6, 2021 Updated to OC 065 with no issues. Updated my own EFI and doubled check with AudioGod's EFI. 2 Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/161/#findComment-2748357 Share on other sites More sharing options...
MorenoAv Posted January 6, 2021 Share Posted January 6, 2021 Hi @eSaF, And where can we download that gem... ? Thanks Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/161/#findComment-2748377 Share on other sites More sharing options...
AudioGod Posted January 6, 2021 Author Share Posted January 6, 2021 2 minutes ago, MorenoAv said: Hi @eSaF, And where can we download that gem... ? Thanks https://github.com/ic005k/QtOpenCoreConfig 1 3 Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/161/#findComment-2748378 Share on other sites More sharing options...
pkdesign Posted January 6, 2021 Share Posted January 6, 2021 (edited) Oh man, nice!! I've been dying for a tool like this. I was able to update my laptop in 15 minutes! Edited January 6, 2021 by pkdesign Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/161/#findComment-2748382 Share on other sites More sharing options...
MorenoAv Posted January 7, 2021 Share Posted January 7, 2021 (edited) Hi all, And thanks to @AudioGod, and @eSaF, for your constant help but I have one question, how do I start the program? Edited January 7, 2021 by MorenoAv Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/161/#findComment-2748415 Share on other sites More sharing options...
pkdesign Posted January 7, 2021 Share Posted January 7, 2021 Does this happen to anyone else? This has been going on for a long time. When my computer wakes from screen sleep (not full sleep, doesn’t work on my system) my desktop picture is no longer in hi res. Not until I log out and log back in or restart does my desktop go back to normal. I have no idea why this happens. Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/161/#findComment-2748467 Share on other sites More sharing options...

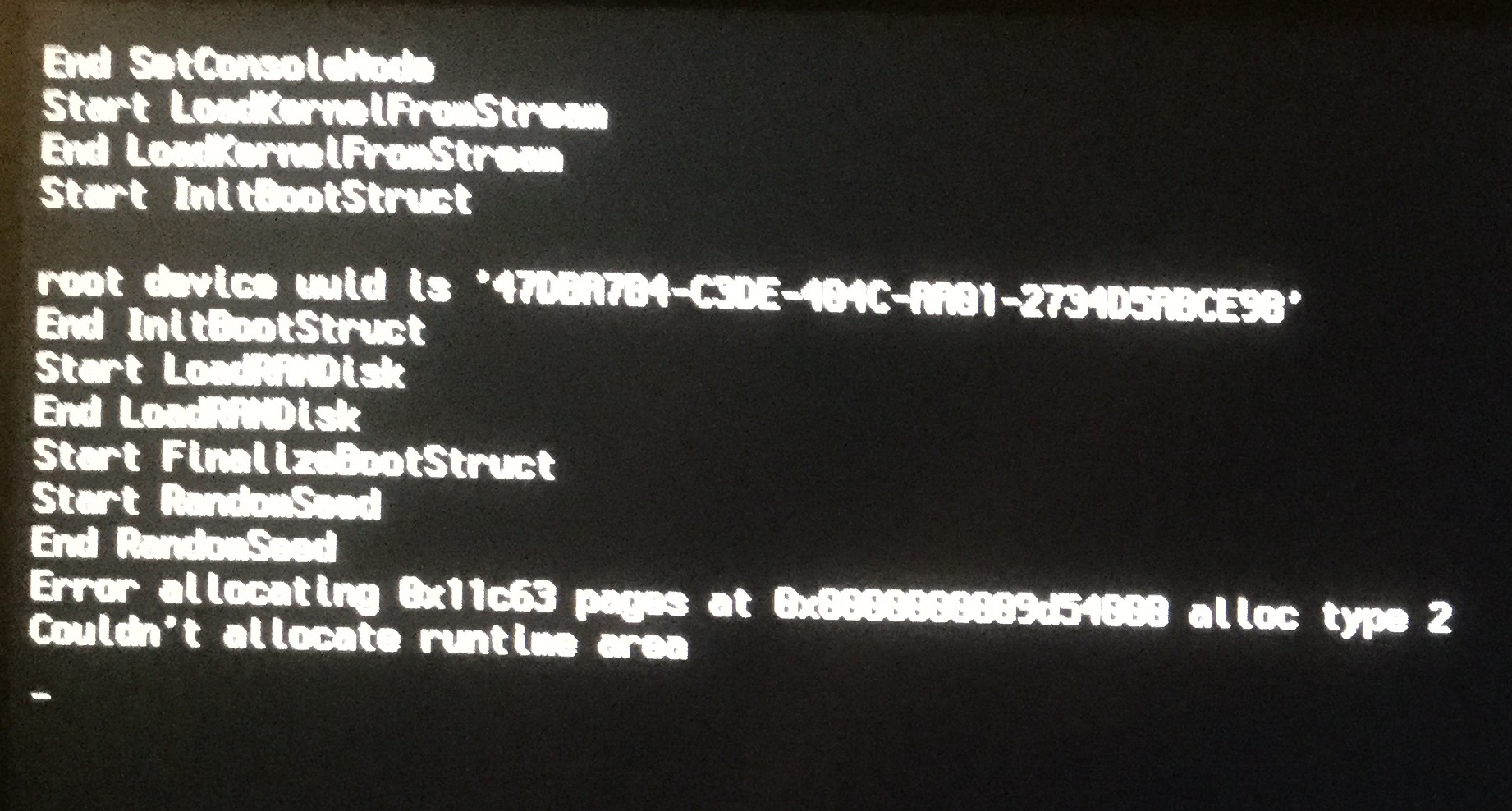

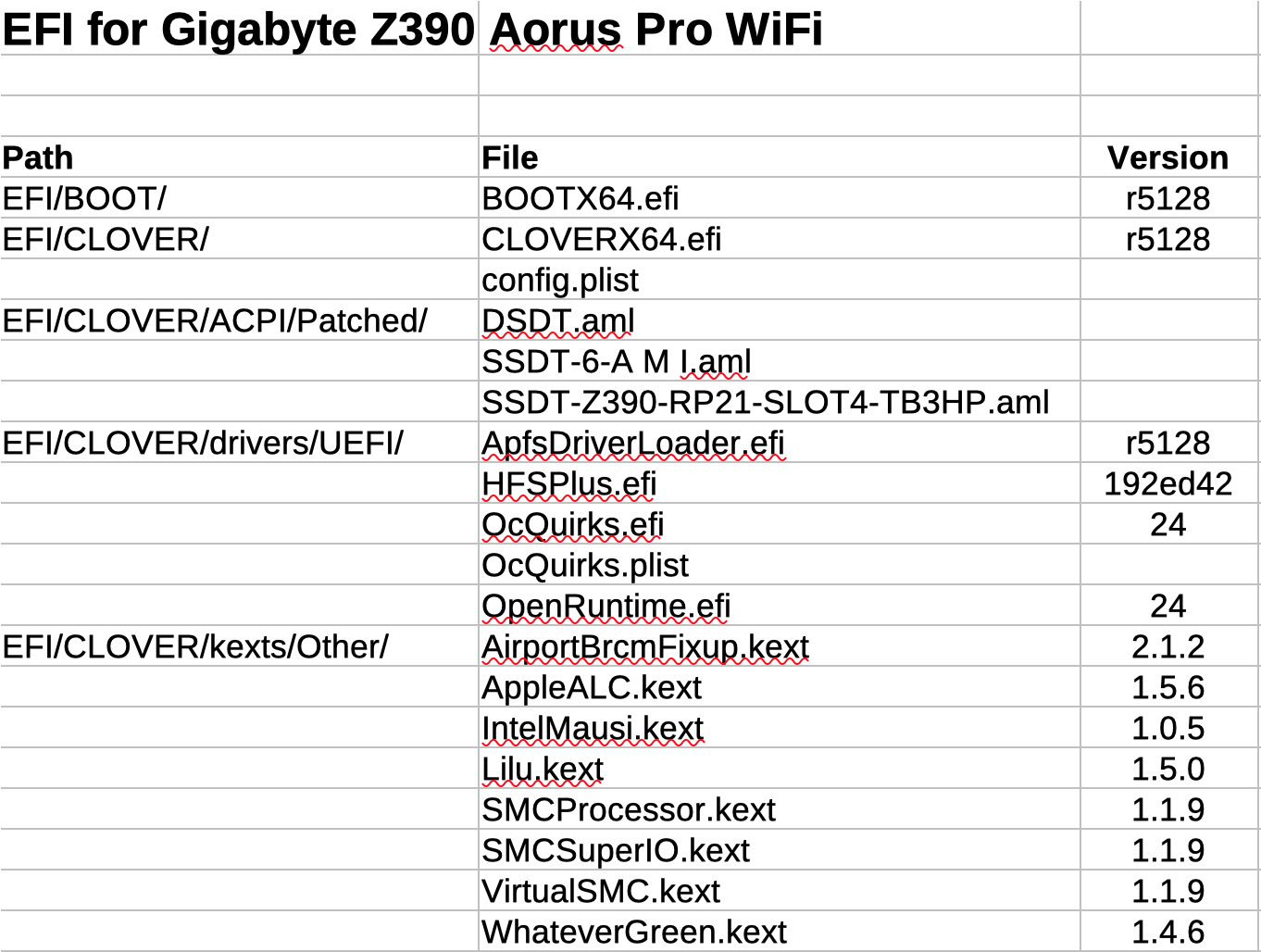

Project 2501 Posted January 8, 2021 Share Posted January 8, 2021 I decided to update my Clover EFI to r5128 along with the latest verions of the KEXTs and EFI drivers; not quite ready to move to OC, so I figured I should learn to maintain my EFI for the time being. I tested the EFI on USB flash drive to be safe and got the dreaded "Couldn't allocate runtime area" error. I reused the unmodified OcQuirks.plist from @AudioGod's Clover EFI 040820 (Polaris; 19,1)... perhaps the old settings don't work with Clover r5128 + Mojave? Here is a snapshot of the error message and a listing of my EFI contents. Any advice will be greatly appreciated. Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/161/#findComment-2748516 Share on other sites More sharing options...
Project 2501 Posted January 9, 2021 Share Posted January 9, 2021 17 hours ago, Project 2501 said: I decided to update my Clover EFI to r5128 along with the latest verions of the KEXTs and EFI drivers; not quite ready to move to OC, so I figured I should learn to maintain my EFI for the time being. I tested the EFI on USB flash drive to be safe and got the dreaded "Couldn't allocate runtime area" error. I reused the unmodified OcQuirks.plist from @AudioGod's Clover EFI 040820 (Polaris; 19,1)... perhaps the old settings don't work with Clover r5128 + Mojave? Here is a snapshot of the error message and a listing of my EFI contents. Any advice will be greatly appreciated. Quick update if anybody is out there... I reverted back to Clover r5120 but kept all the updated drivers, and it booted just fine. Not sure where to go from here, but if Clover is a dead end, I guess trying OC won't hurt. 1 Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/161/#findComment-2748546 Share on other sites More sharing options...

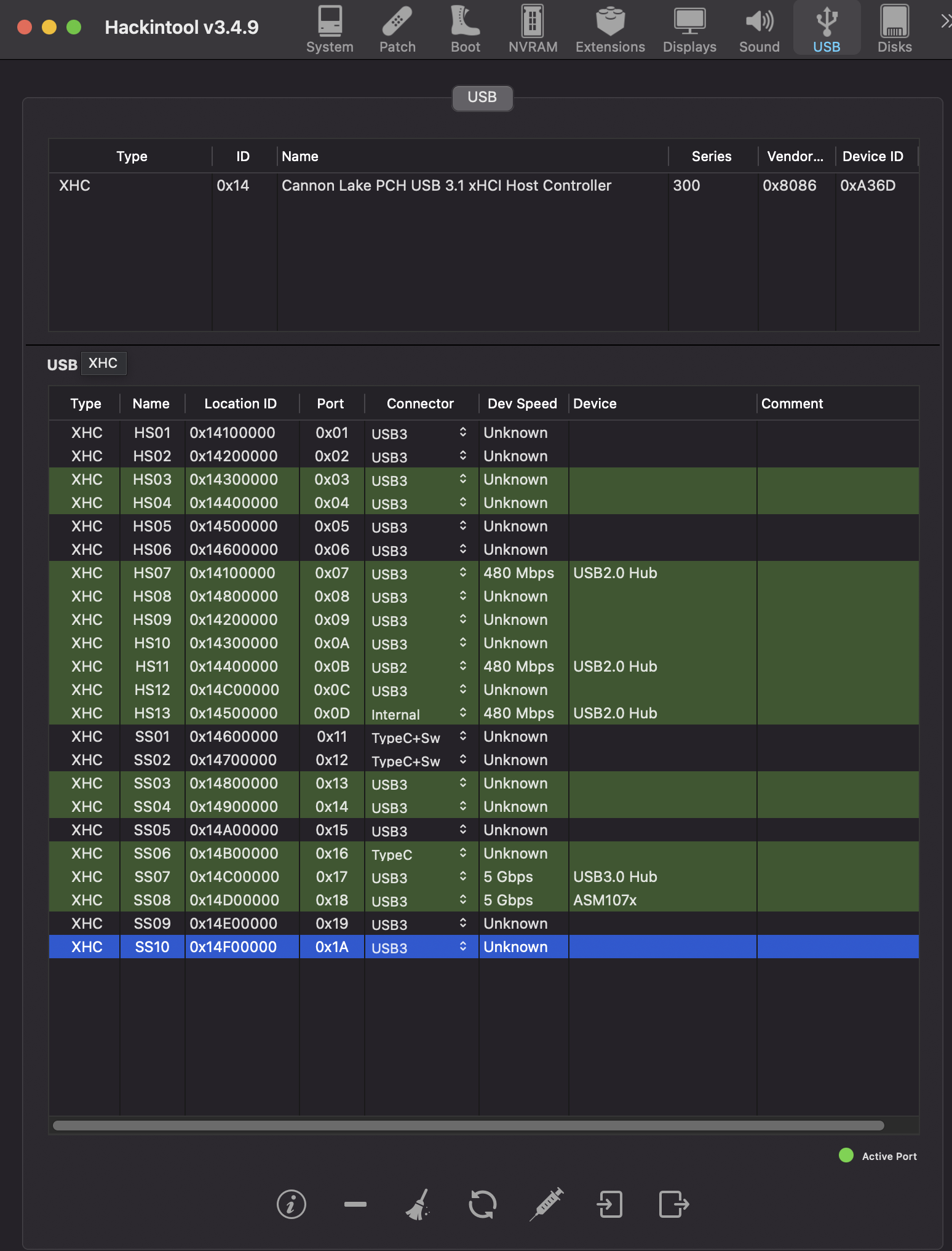

benjiolino Posted January 9, 2021 Share Posted January 9, 2021 (edited) Hello AudioGod, Everything works fine on my build. I was just wondering if the 15 port limit is still a thing with Big Sur because I checked with hacking tool and I realised that 23 ports a detected in my build with your EFI and the USB port map. Only problem I still have (not a Hackintosh problem) is that my computer crashes after less then 5 min when I enable XMP. I tried the 3rd kit of RAM already and always the same. I doesn't crash with 2 sticks but as soon as I take 4 sticks it crashes. Meanwhile I think it's the motherboard. Without XMP it runs perfectly smooth. Best Ben Edited January 9, 2021 by benjiolino Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/161/#findComment-2748555 Share on other sites More sharing options...
AudioGod Posted January 9, 2021 Author Share Posted January 9, 2021 (edited) 26 minutes ago, benjiolino said: Hello AudioGod, Everything works fine on my build. I was just wondering if the 15 port limit is still a thing with Big Sur because I checked with hacking tool and I realised that 23 ports a detected in my build with your EFI and the USB port map. Only problem I still have (not a Hackintosh problem) is that my computer crashes after less then 5 min when I enable XMP. I tried the 3rd kit of RAM already and always the same. I doesn't crash with 2 sticks but as soon as I take 4 sticks it crashes. Meanwhile I think it's the motherboard. Without XMP it runs perfectly smooth. Best Ben What’s going on there then? 15 port is in effect. Check to see the quirk to bypass the limit is disabled on the plist bud. I just checked the EFI here and it’s all correct plus it’s the first I’m hearing about this one. If your using your own personal USB kext instead of mine you need to make sure it’s name is USBMap.kext Edited January 9, 2021 by AudioGod Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/161/#findComment-2748557 Share on other sites More sharing options...
benjiolino Posted January 9, 2021 Share Posted January 9, 2021 (edited) 4 hours ago, AudioGod said: What’s going on there then? 15 port is in effect. Check to see the quirk to bypass the limit is disabled on the plist bud. I just checked the EFI here and it’s all correct plus it’s the first I’m hearing about this one. If your using your own personal USB kext instead of mine you need to make sure it’s name is USBMap.kext I did´nt modify anything on your EFI. Only I put in a Serial and MBL. I use your latest OpenCore v0.6.5, SMBios iMac19,... ere´s my EFI. I only deleted the serial numbers before uploading: EFI.zip Edited January 9, 2021 by benjiolino Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/161/#findComment-2748565 Share on other sites More sharing options...
jmcm Posted January 9, 2021 Share Posted January 9, 2021 Hi, I'm still on Catalina with @AudioGod latest Clover release on bios F12K, and everything is working great as usual, but when I try to boot from usb stick with Opencore Efi (OC 065 19,1 Z390 Pro EFI 040121) it just won't boot. I just changed the MLB, SN and UUID. I start with F12, choose OpenCore, then Space to clean NVRAM, F12 again, OpenCore again, select the MacOS and the message is: OCSB: No suitable signature - Security Violation OCB: Apple Secure Boot prohibits this boot entry, enforcingl OCB: LoadImage failed - Security Violation Can someone understand what I'm doing wrong? Thanks. Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/161/#findComment-2748569 Share on other sites More sharing options...
benjiolino Posted January 9, 2021 Share Posted January 9, 2021 46 minutes ago, jmcm said: Hi, I'm still on Catalina with @AudioGod latest Clover release on bios F12K, and everything is working great as usual, but when I try to boot from usb stick with Opencore Efi (OC 065 19,1 Z390 Pro EFI 040121) it just won't boot. I just changed the MLB, SN and UUID. I start with F12, choose OpenCore, then Space to clean NVRAM, F12 again, OpenCore again, select the MacOS and the message is: OCSB: No suitable signature - Security Violation OCB: Apple Secure Boot prohibits this boot entry, enforcingl OCB: LoadImage failed - Security Violation Can someone understand what I'm doing wrong? Thanks. As far as I know you should not select OpenCore in Bootmenu. You have to select the EFI partition on your USB. it should be called UEFI on drive name (sandisk or whatever) Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/161/#findComment-2748570 Share on other sites More sharing options...
rob1980 Posted January 9, 2021 Share Posted January 9, 2021 On 1/5/2021 at 9:41 PM, AudioGod said: in the bios set, • Boot -> Windows 8/10 Features -> Win 8/10 WHQL Yes confirmed mate.. its got me stumped lol. Its not the end of the world and appears to be an issue I have but not others Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/161/#findComment-2748577 Share on other sites More sharing options...
