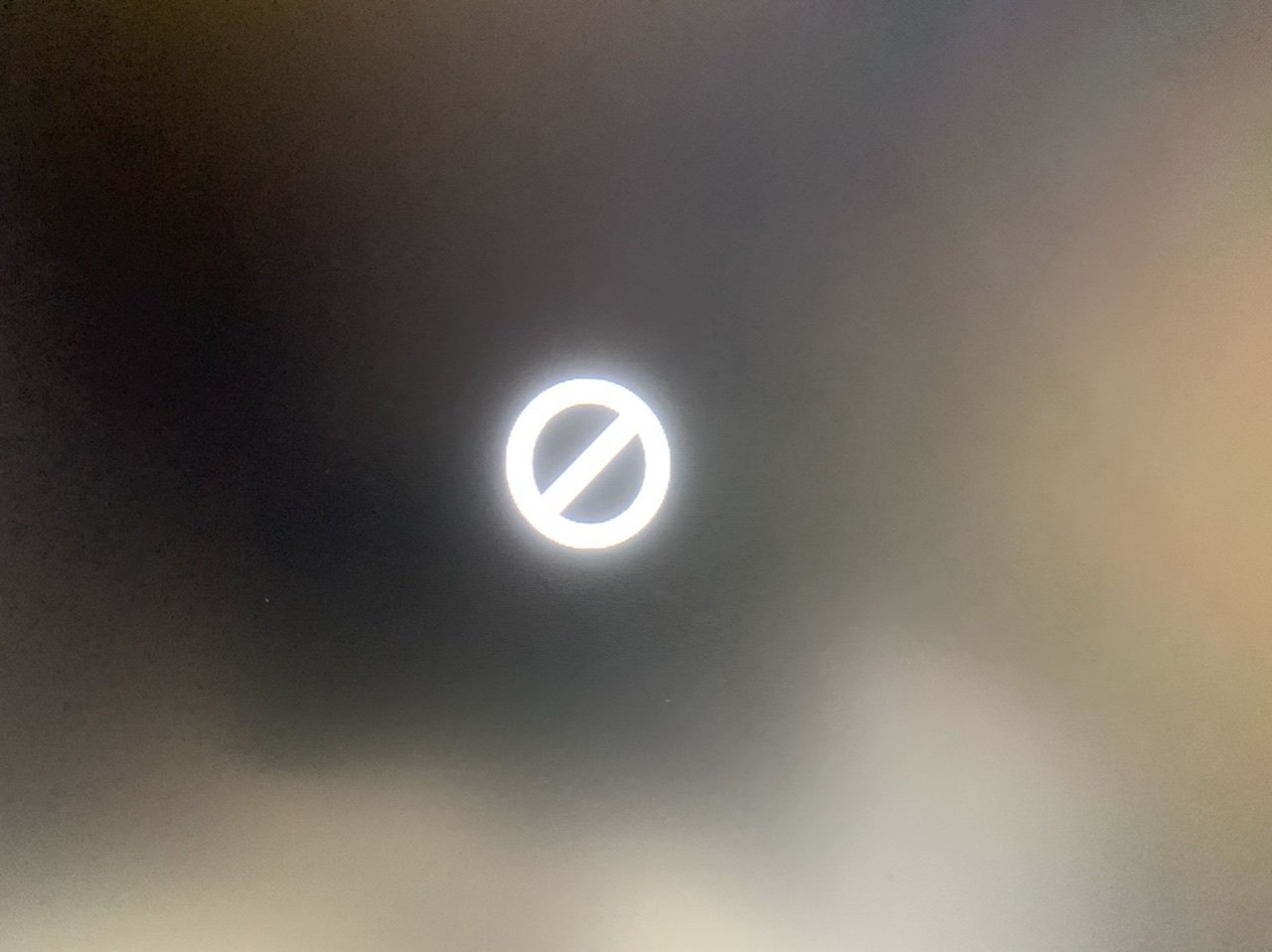

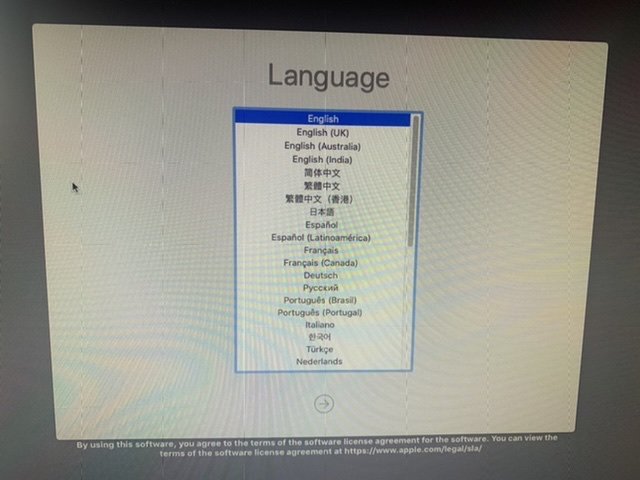

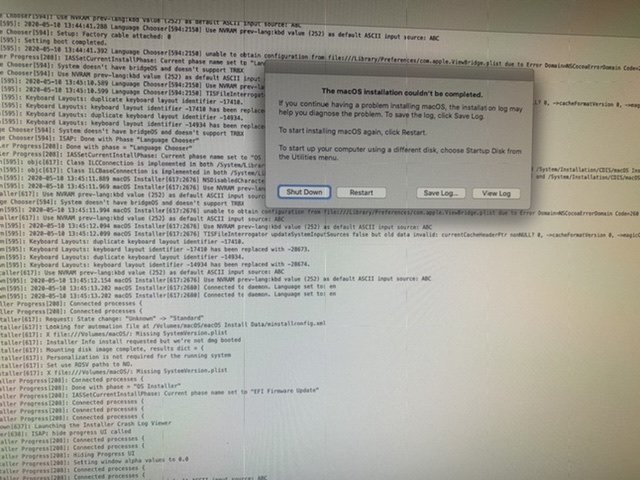

RDZ Posted May 10, 2020 Share Posted May 10, 2020 in the second usb stick, Clover showed me the language during the installation. unfortunately it ended the same way as before. We'll see if this reset helps. ok, I take out the batteries, I'll wait a while, then I'll upload your bios profile and try again. also now i will try with clover after bios reset Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/124/#findComment-2721788 Share on other sites More sharing options...
AudioGod Posted May 10, 2020 Author Share Posted May 10, 2020 (edited) Is your ssd drive faulty? Edited May 10, 2020 by AudioGod Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/124/#findComment-2721789 Share on other sites More sharing options...

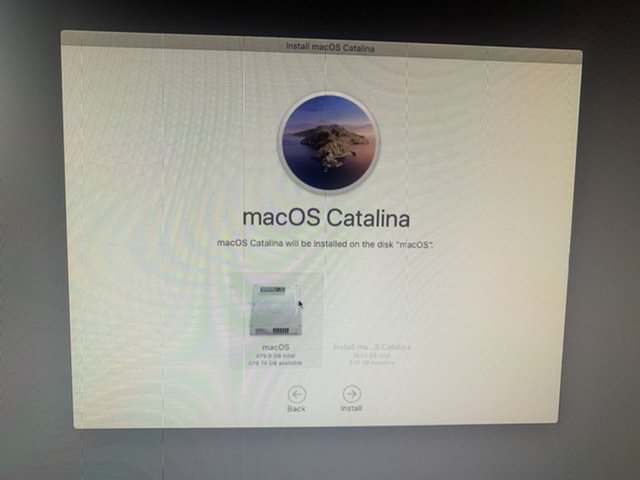

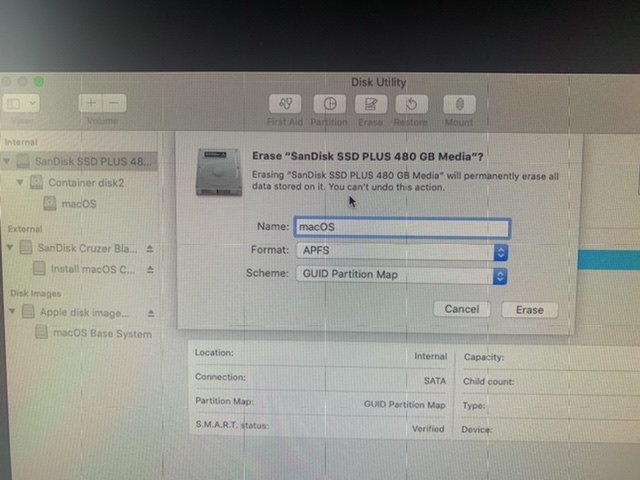

RDZ Posted May 10, 2020 Share Posted May 10, 2020 No, before i had i7 6700k, Asus z270a, it worked without a problem. I installed windows 10 and everything worked. I still have Samsung m2 500gb, but I had the same problem during installation. I think it's not a disk I did everything as you wrote, again there is the same problem. I can upload photos from the whole installation, but there were some. I don't want to make a trash here Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/124/#findComment-2721790 Share on other sites More sharing options...
AudioGod Posted May 10, 2020 Author Share Posted May 10, 2020 2 minutes ago, RDZ said: No, before i had i7 6700k, Asus z270a, it worked without a problem. I installed windows 10 and everything worked. I still have Samsung m2 500gb, but I had the same problem during installation. I think it's not a disk I did everything as you wrote, again there is the same problem. I can upload photos from the whole installation, but there were some. I don't want to make a trash here No need. how about a different USB key made with a fresh install using this guide? https://dortania.github.io/OpenCore-Desktop-Guide/installer-guide/mac-install.html Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/124/#findComment-2721791 Share on other sites More sharing options...
RDZ Posted May 10, 2020 Share Posted May 10, 2020 Almost done, should I try Clover or OC? Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/124/#findComment-2721798 Share on other sites More sharing options...
AudioGod Posted May 10, 2020 Author Share Posted May 10, 2020 11 minutes ago, RDZ said: Almost done, should I try Clover or OC? Up too you. OpenCore is my favourite Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/124/#findComment-2721800 Share on other sites More sharing options...
RDZ Posted May 10, 2020 Share Posted May 10, 2020 same... I try 3 usb stick Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/124/#findComment-2721803 Share on other sites More sharing options...
AudioGod Posted May 10, 2020 Author Share Posted May 10, 2020 (edited) 1 minute ago, RDZ said: same... I try 3 usb stick What’s your full spec including everything inside the system down to the cooler please? and what slots are in use on the board and are you using a vertical mount. Include everything basically including makes and models? Edited May 10, 2020 by AudioGod Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/124/#findComment-2721804 Share on other sites More sharing options...

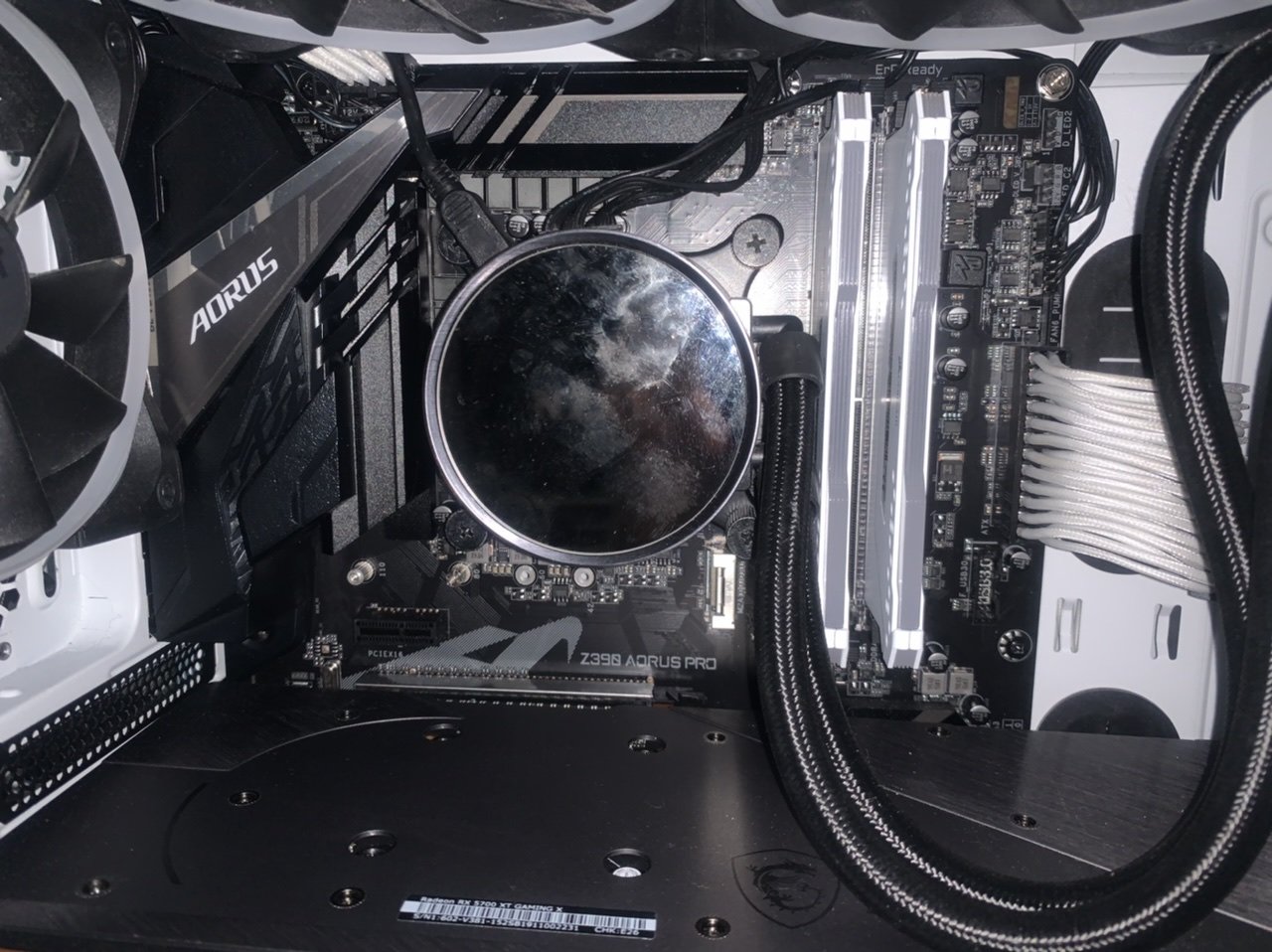

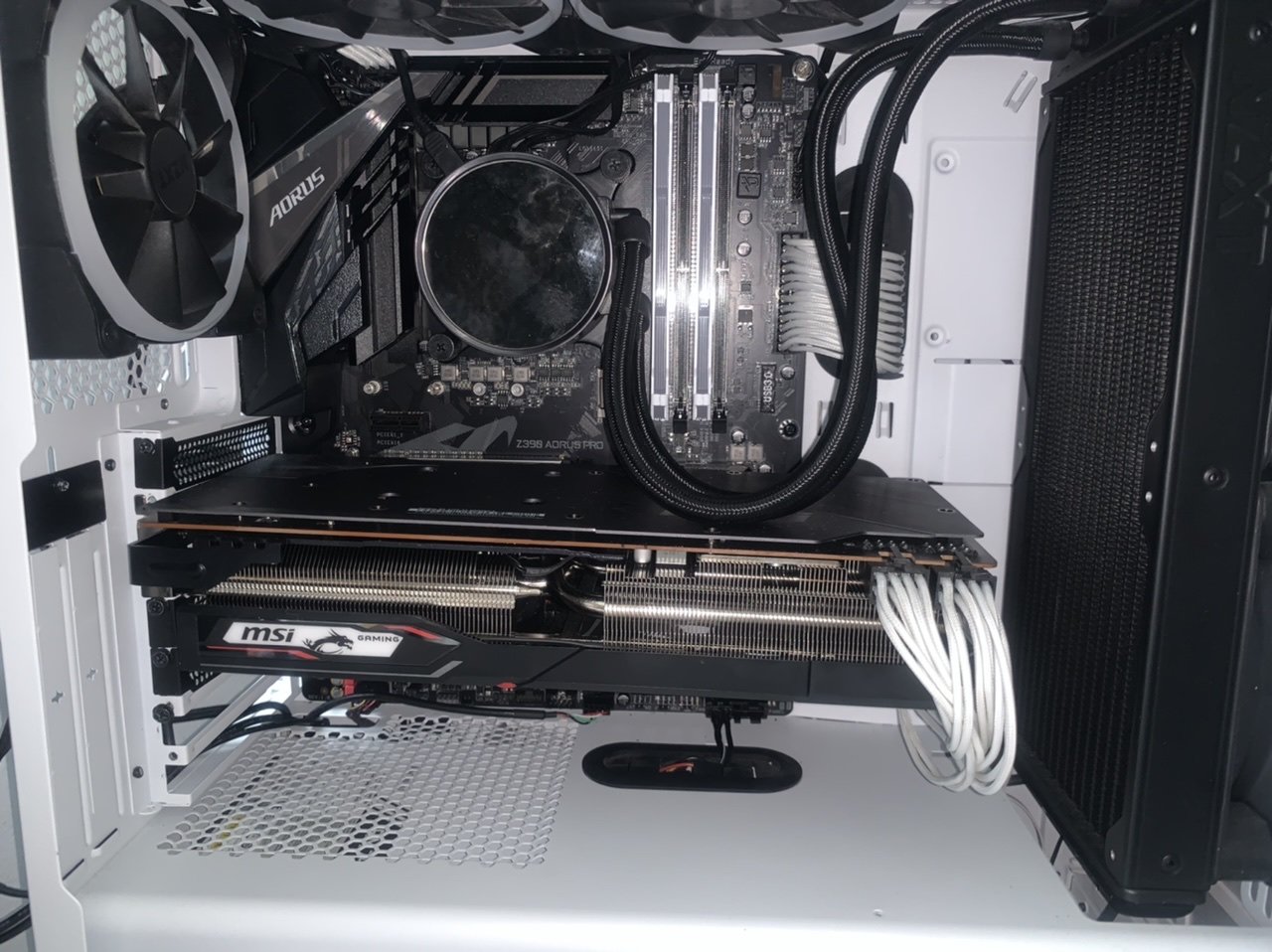

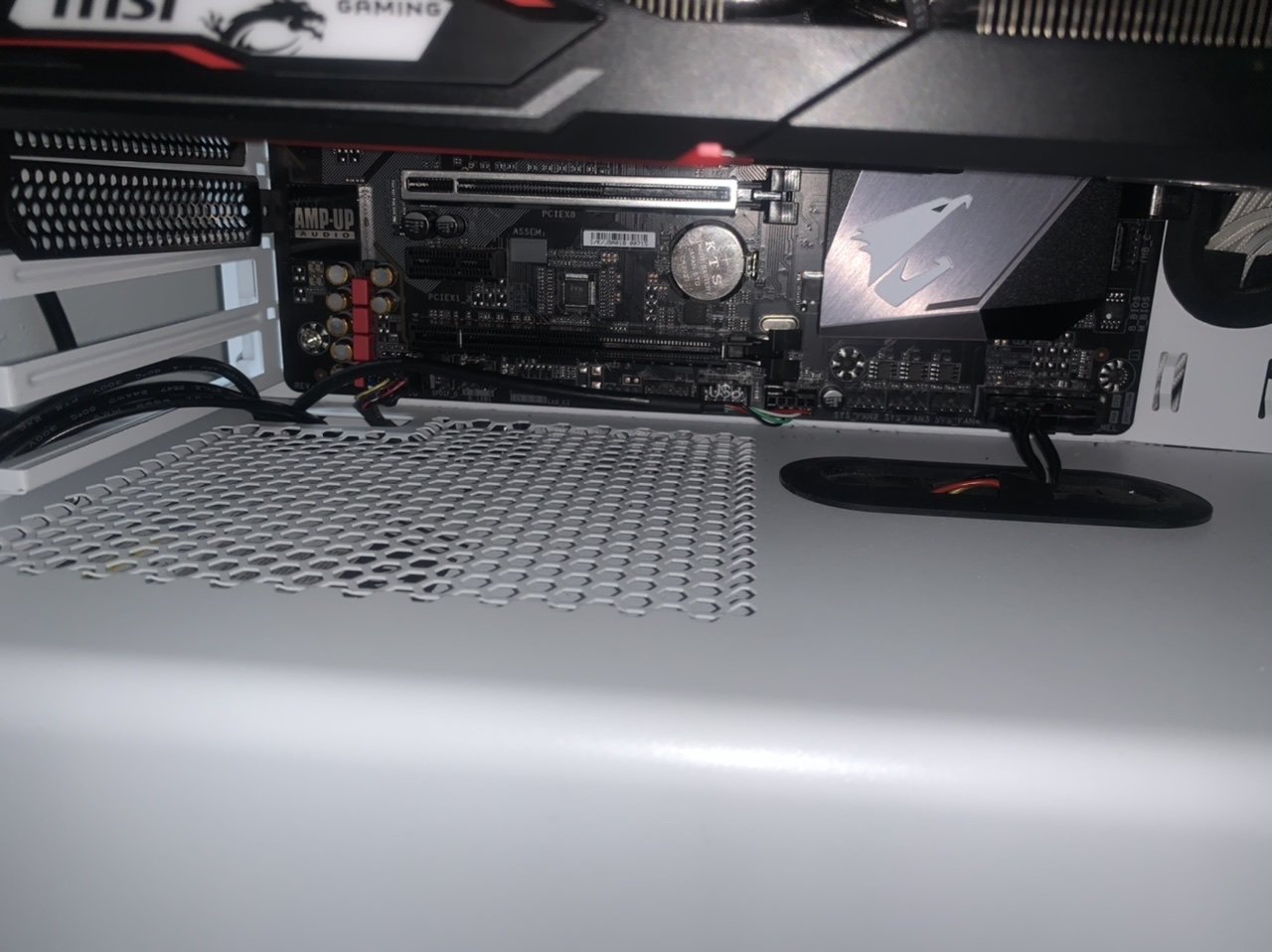

RDZ Posted May 10, 2020 Share Posted May 10, 2020 (edited) I have: I7 9700k Gigabyte Z390 Msi Rx 5700xt Corsair Vengeance RGB PRO DDR4-3200 DIMM CL16-18-18-36 2x 8gb Corsair RMX 750x 80+Gold NZXT Kraken X62 V2 I also have a network and sound card but I don't have them connected right now. Edited May 10, 2020 by RDZ Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/124/#findComment-2721806 Share on other sites More sharing options...
RDZ Posted May 10, 2020 Share Posted May 10, 2020 (edited) @AudioGod when I have OC-EFI, I get a error, can you check my EFI? EFI-OC.zip Edited May 10, 2020 by RDZ Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/124/#findComment-2721808 Share on other sites More sharing options...

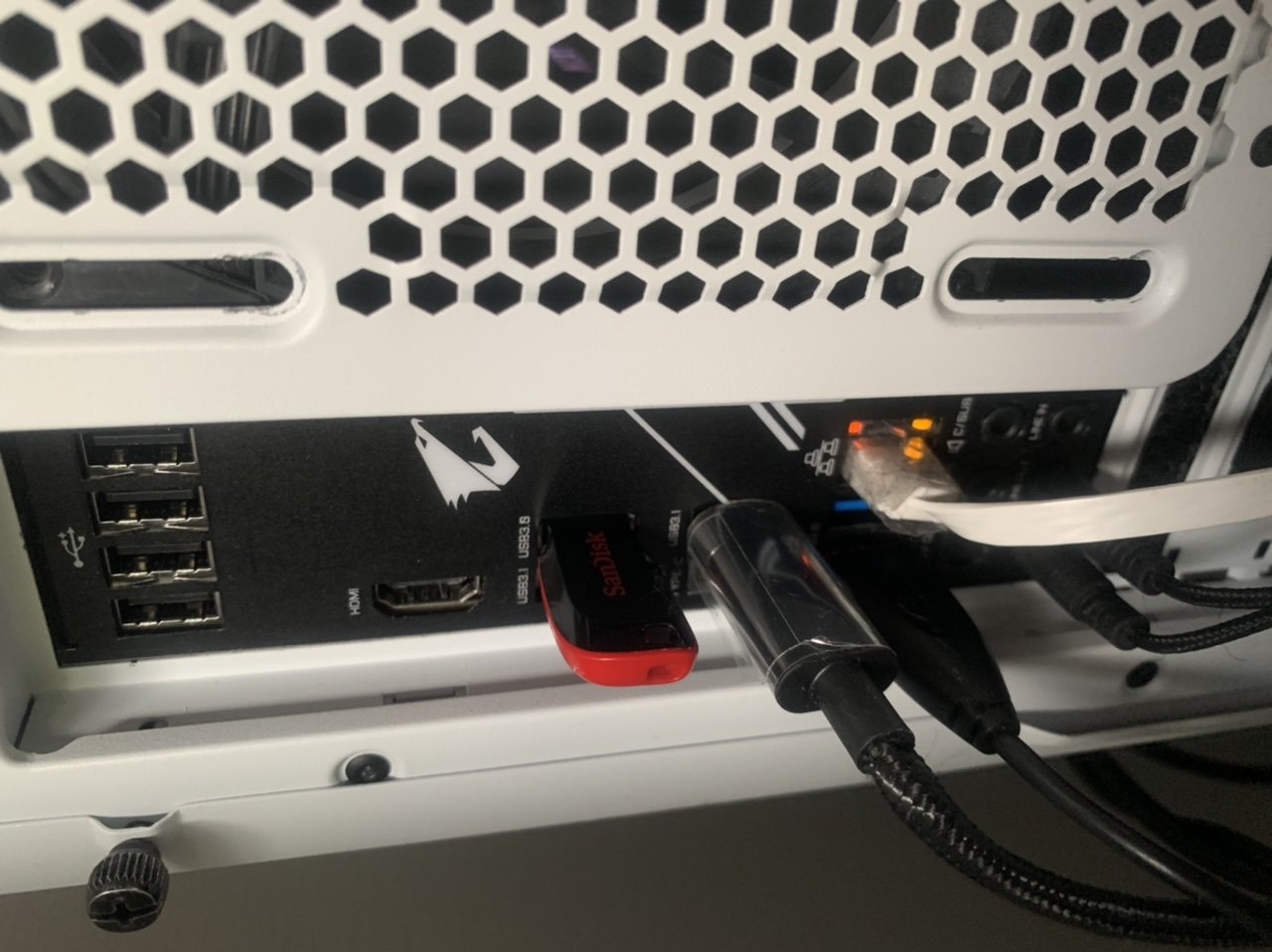

AudioGod Posted May 10, 2020 Author Share Posted May 10, 2020 (edited) Move your keyboard and mouse to the usb2 hub At the top of the io plate (the black row of four usb2 hub) and remove any other usb devices for now. (Excluding the usb install key) also while you have no WiFi bluetooth card in there disable airportbrcmfixup.fixup in the config.plist in OpenCore or in clover remove the kext from the kext folder temperately. Edited May 10, 2020 by AudioGod Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/124/#findComment-2721816 Share on other sites More sharing options...
carter1810 Posted May 10, 2020 Share Posted May 10, 2020 (edited) 3 hours ago, RDZ said: in the second usb stick, Clover showed me the language during the installation. unfortunately it ended the same way as before. We'll see if this reset helps. ok, I take out the batteries, I'll wait a while, then I'll upload your bios profile and try again. also now i will try with clover after bios reset I have MSI MPG Gaming Edge Z390 in my company with 5700xt have same problem. I switched to vega64 and install succesfully, after that I put 5700xt back. Worked! Edited May 10, 2020 by carter1810 Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/124/#findComment-2721819 Share on other sites More sharing options...
RDZ Posted May 10, 2020 Share Posted May 10, 2020 @AudioGod ok i try it. @carter1810 rx 570/580xt will they also work? Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/124/#findComment-2721826 Share on other sites More sharing options...
WizeMan Posted May 10, 2020 Share Posted May 10, 2020 1 hour ago, RDZ said: @AudioGod when I have OC-EFI, I get a error, can you check my EFI? EFI-OC.zip Are you sure MSR (CFG Lock) is disabled on your motherboard? @AudioGod’s OC EFIs are set up for motherboards with disabled CFG Lock by default. If it’s not unlocked check the first page of the topic there are two values that need to be enabled on OC config.plist Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/124/#findComment-2721827 Share on other sites More sharing options...
RDZ Posted May 10, 2020 Share Posted May 10, 2020 I use @AudioGod cfg bios. How can I check if it is disabled? Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/124/#findComment-2721828 Share on other sites More sharing options...
WizeMan Posted May 10, 2020 Share Posted May 10, 2020 (edited) 8 minutes ago, RDZ said: I use @AudioGod cfg bios. How can I check if it is disabled? while on OpenCore Boot Picker, press space and select “Modified GRUB Shell” then type: setup_var_3 0x5C1 and press enter. If it returns 0x00 then it is indeed unlocked. you can shut down the computer pressing the power button after that. PS Do not type anything else on the grub shell, I have no responsibility whatsoever if your motherboard flies to Mars Edited May 10, 2020 by WizeMan Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/124/#findComment-2721830 Share on other sites More sharing options...
pkdesign Posted May 10, 2020 Share Posted May 10, 2020 39 minutes ago, RDZ said: I use @AudioGod cfg bios. How can I check if it is disabled? Or use Hackintool>Utilities>Click Get AppleIntelInfo button at bottom left and look for: MSR_PMG_CST_CONFIG_CONTROL........(0xE2) : 0x7E000008 ------------------------------------------ - I/O MWAIT Redirection Enable......... : 0 (not enabled) - CFG Lock............................. : 0 (MSR not locked) Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/124/#findComment-2721843 Share on other sites More sharing options...
pkdesign Posted May 10, 2020 Share Posted May 10, 2020 Well I finally got around to testing AudioGod's OC 0.5.8 EFI and I can say that it works with my Mojave OS machine. Had to make some additions/deletions for my particular set-up (necessary WiFi kexts, changing audio layout and deleting agdpmod=pikera) but everything including Messages and Facetime worked. Still have my newly discover sleep issue (I thought magically OC would fix it ) but oh well. Three questions: 1) I'm guessing that the only GUI for OC (not the NDK fork) is the text that lists the possible OSes to boot? Have no idea how opencanopy works; 2) Can that be moved to the center of the screen; and 3) can it be made larger? Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/124/#findComment-2721846 Share on other sites More sharing options...
WizeMan Posted May 10, 2020 Share Posted May 10, 2020 41 minutes ago, pkdesign said: Well I finally got around to testing AudioGod's OC 0.5.8 EFI and I can say that it works with my Mojave OS machine. Had to make some additions/deletions for my particular set-up (necessary WiFi kexts, changing audio layout and deleting agdpmod=pikera) but everything including Messages and Facetime worked. Still have my newly discover sleep issue (I thought magically OC would fix it ) but oh well. Three questions: 1) I'm guessing that the only GUI for OC (not the NDK fork) is the text that lists the possible OSes to boot? Have no idea how opencanopy works; 2) Can that be moved to the center of the screen; and 3) can it be made larger? Check this: https://dortania.github.io/OpenCore-Desktop-Guide/extras/gui.html#setting-up-opencores-gui But mind that it’s work in progress, hotkeys do not work and generally not recommended yet. 1 Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/124/#findComment-2721852 Share on other sites More sharing options...
carter1810 Posted May 11, 2020 Share Posted May 11, 2020 6 hours ago, RDZ said: @AudioGod ok i try it. @carter1810 rx 570/580xt will they also work? Yes I think so. Maybe you can try to use igpu only, just to installation. After that you can boot with 5700XT and remember add agdpmod=pikera to bootarg Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/124/#findComment-2721868 Share on other sites More sharing options...

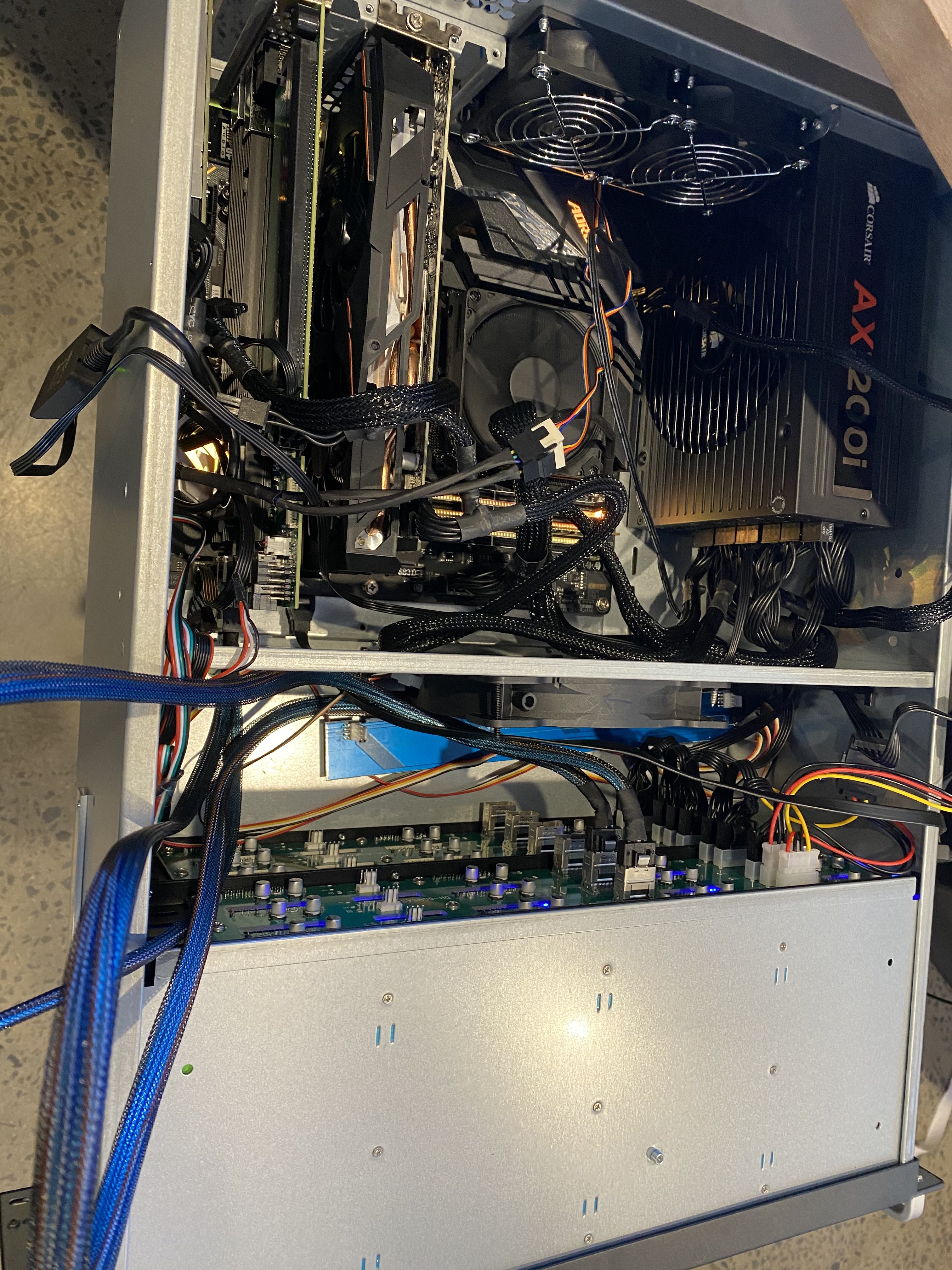

smidge Posted May 11, 2020 Share Posted May 11, 2020 Just a quick update, once i installed the same series graphics card as your original build its been completely stable and dual boots windows and mac.. I've actually set it up in a configuration that it runs mac os server and can house and control 32 x HDD's using an internal ARECA PCI Card with SAS. I've set it as JBOD but it will do raid also. You can access this card from windows or mac. The drives show up as usable volumes in whatever format you choose. Only issue im having is the graphics card isn't stable in windows and i'd rather remove it entirely and use the IGPU (server so don't need acceleration) but it won't boot if i remove the card at all... Also got a StarTech ST10000SPEX 10gbe ethernet PCI card for it but can't get that to work at all, 1gb is ok for now. 1 Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/124/#findComment-2721878 Share on other sites More sharing options...
dredhorse Posted May 11, 2020 Share Posted May 11, 2020 Hi, just tried the OpenCore 058 Z390 Pro 1,1 040520 Version for installing. I updated the Bios of my Master to F11c and did load the profile to enable NVRAM. When I boot into OC and OSX runs it is is Russion / Greek ? When I than start Catalina Install it is English, but than it tells me all my drives are locked. Any Idea? I'm new to OC. Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/124/#findComment-2721969 Share on other sites More sharing options...
AudioGod Posted May 11, 2020 Author Share Posted May 11, 2020 21 minutes ago, dredhorse said: Hi, just tried the OpenCore 058 Z390 Pro 1,1 040520 Version for installing. I updated the Bios of my Master to F11c and did load the profile to enable NVRAM. When I boot into OC and OSX runs it is is Russion / Greek ? When I than start Catalina Install it is English, but than it tells me all my drives are locked. Any Idea? I'm new to OC. you have a Z390 Master and you're using all the wrong files as this thread is for the z390 Pro. I would of thought this would of been obvious from the file names and thread title... Try again using the files from here. Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/124/#findComment-2721975 Share on other sites More sharing options...
n19htz Posted May 11, 2020 Share Posted May 11, 2020 Hey, anybody experienced the problem with shutdown - ie when you try to shutdown hackintosh via apple logo -> Shutdown its droping everything, but screen freeze and its not going to actually shutodown, but you can not do anything with hack apart from shutdown it via holding power button? Opencore 0.5.8 here Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/124/#findComment-2722003 Share on other sites More sharing options...
AudioGod Posted May 11, 2020 Author Share Posted May 11, 2020 (edited) 16 minutes ago, n19htz said: Hey, anybody experienced the problem with shutdown - ie when you try to shutdown hackintosh via apple logo -> Shutdown its droping everything, but screen freeze and its not going to actually shutodown, but you can not do anything with hack apart from shutdown it via holding power button? Opencore 0.5.8 here never heard of that one sorry, That’s probably a messy os of problem device. You could try clearing your cache and rebuilding permissions then restart and clear your nvram. Edited May 11, 2020 by AudioGod Link to comment https://www.insanelymac.com/forum/topic/339980-audiogods-aorus-z390-pro-patched-dsdt-mini-guide-and-discussion/page/124/#findComment-2722005 Share on other sites More sharing options...
