Post install Asus X550JX DM217T [Mojave dev 11]

93 posts in this topic

Recommended Posts

Ciao ragazzi,

volevo anticipatamente nuovamente ringraziare gengik84 per avermi realizzato il medesimo portatile su High Sierra perfettamente funzionante, che fino ad oggi non mi ha mai dato nessun problema.



Ho deciso di installare la developer 11 o se meglio vogliamo chiamarla "DG" che dovrebbe essere l'anticipazione della stabile, tutto funziona correttamente tranne le seguenti cose:



- WiFi non funzionante (prima andava senza problemi, addirittura la 5Ghz)

- Bug grafici (che ad es. disattivato l'accelerazione hardware da Chrome, non da più problemi)

- Se non avvio Clover in -v, non parte



Avreste modo di aiutarmi?

Per il resto, touchpad, tastiera, audio, batteria, ethernet e quant'altro vanno senza problemi.



Grazie anticipatamente e allego la EFI

EFI.zip

Share this post


Link to post
Share on other sites
Advertisement

Niente, non funziona proprio. Anche se devo essere sincero, anche dalla chiavetta non si avvia più (mi esce la scritta veloce in verbose e si riavvia il Portatile). @gengik84 hai qualche consiglio? te che ci hai messo mano sul portatile? Grazie ad entrambi nel frattempo

Share this post


Link to post
Share on other sites
2 minutes ago, gengik84 said:

Ciao che wifi hai?



Wi-Fi Atheros AR9462 AR5B22

5 minutes ago, gengik84 said:

Ciao che wifi hai?

Atheros...

AppleHa rimosso i kext quindi rimosso il supporto a tali wifi...



Che brutta notizia che mi dai!

A questo punto mi consigli qualche altra scheda funzionante (così da rimuovere questa, come ho fatto inizialmente con quella originale che non era 5Ghz) o rimango su High Sierra?



Grazie anticipatamente

Share this post


Link to post
Share on other sites

non ricordo il modello esatto che monti adesso



comunque si può provare ma non ti prometto nulla perchè tocca andare a installare kext di 10.13



riguardo ai wifi la miglior cosa è andare su broadcom

a secondo se mini pci-e o m2 ci sono alcuni modelli compatibili

Share this post


Link to post
Share on other sites
2 minutes ago, gengik84 said:

non ricordo il modello esatto che monti adesso



comunque si può provare ma non ti prometto nulla perchè tocca andare a installare kext di 10.13



riguardo ai wifi la miglior cosa è andare su broadcom

a secondo se mini pci-e o m2 ci sono alcuni modelli compatibili



E' una mini pci-e, esattamente questa: https://www.amazon.com/Bluetooth-PCI-Express-Half-Size-Atheros-chipset/dp/B012JQVUX8

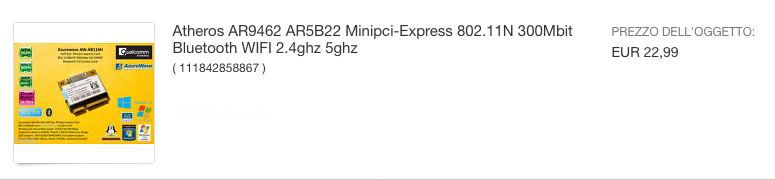

EDIT: Questa nello screenshot esattamente



Schermata 2018-09-14 alle 12.47.53.png

Edited by onlyJRevenge

Share this post


Link to post
Share on other sites

EDIT: non avevo letto... ti faccio fare una prova...

è una mini pci-e

 quindi in caso devi acquistare una BCM4352 che ha BT 4.0

Share this post


Link to post
Share on other sites
1 minute ago, gengik84 said:

EDIT: non avevo letto... ti faccio fare una prova...



Dai un occhiata nello screenshot, non vorrei fossero diverse le due che ho mandate.

Share this post


Link to post
Share on other sites

in un primo momento avevi scritto che andava tutto :D togli i sensor dalla EFI e inserisci il fake ID  0x12345678 in devices intel GFX oppure direttamente dalla GUI di clover



In caso di riavvii o blocchi servirebbe foto o video per capire quale potrebbe essere il problema

Share this post


Link to post
Share on other sites
Just now, iCanaro said:

in un primo momento avevi scritto che andava tutto :D togli i sensor dalla EFI e inserisci il fake ID  0x12345678 in devices intel GFX oppure direttamente dalla GUI di clover



In caso di riavvii o blocchi servirebbe foto o video per capire quale potrebbe essere il problema



Allora all'inizio post-installazione andava tutto, tranne:



- Bug grafici (ma rimuovendo l'accelerazione hardware a tipo Chrome, non lo dava, ovviamente solo su Chrome)

- Si avvia solo in -v, senza -v non parte

- Il WiFi non funzionante, ma abbiamo capito dove sta il problema.



Dopo che ho provato a mettere dei comandi nel boot arg, ha iniziato a dare anche altri problemi.

Nel caso, uso il tuo config e la rimozione del kext che mi hai detto, o uso la mia che funziona e faccio questa prova?

Just now, gengik84 said:

perchè togli i sensors? e usa il fakeID?

ha detto che ha solo glitch...



Esattamente mi va anche la % della batteria. I sensori funzionano. Ho solamente quel problema che me lo fece anche su High Sierra e poi mi sistemasti te, e quell'avvio solamente in -v con verbose

Share this post


Link to post
Share on other sites

@gengik84 io non ci stò capendo niente allora, prima ha detto che ha solo i glitch, poi ora ha scritto che non gli parte più nemmeno con la USB...sono un po' confuso :o

Share this post


Link to post
Share on other sites

@onlyJRevenge

Fai questa prova, sostituisci la cartella clover

poi trovi due kext sempre allegati, installali direttamente in S/L/E riavvia e controlla il wifi

Per installarli usa https://www.insanelymac.com/forum/applications/core/interface/file/attachment.php?id=187043

trasportali dentro l'app, fa tutto da se, quando ha finito devi solo riavviare



per il wifi se vuoi sostituirlo ti confermo quello sopra citato

Share this post


Link to post
Share on other sites

se il problema sono i glitch, azhul con mojave non serve una cippa, e nel config che ho messo ci stà la relativa patch 9Mb cursor per risolvere il problema

Share this post


Link to post
Share on other sites
2 minutes ago, iCanaro said:

@gengik84 io non ci stò capendo niente allora, prima ha detto che ha solo i glitch, poi ora ha scritto che non gli parte più nemmeno con la USB...sono un po' confuso :o



Sì, ma infatti ora neanche parte con la USB, ma probabilmente perchè ho combinato casini io. Adesso reinstallo tutto da zero, con la mia EFI e poi provo la guida suggerita da @gengik84

Just now, gengik84 said:

EDIT:Aspetta ho visto ora che hai un po di confusione anche nei driver..



Confido in voi allora! Attendo e se volete, faccio l'installazione da zero con la vostra EFI sistemata



Share this post


Link to post
Share on other sites

nella tua EFI ti ribadisco che azhul lo devi togliere

nel tuo config è sbagliato il SIP hai inserito solo 3, occorre almeno 0x67

Share this post


Link to post
Share on other sites
3 minutes ago, iCanaro said:

nella tua EFI ti ribadisco che azhul lo devi togliere

nel tuo config è sbagliato il SIP hai inserito solo 3, occorre almeno 0x67



Se è sbagliato, provvedo a corregerlo. Avendo utilizzato su High Sierra senza problemi, non l'ho mai toccato per questo motivo.

Edited by onlyJRevenge

Share this post


Link to post
Share on other sites

Ho un'hack simile al tuo e ho avuto gli stessi problemi quando installai la prima beta di mojave... poi grazie a gengik ho risolto :)

azhul non serve e si usa una patch che trovi nel config che ti ho messo



chiaro che 0x67 non è obbligatorio ;)

Edited by iCanaro

Share this post


Link to post
Share on other sites

@iCanaro

Dalla mia guida per usb, info riguardo a SIP

configurazione 0x3

       Apple Internal: disabled
       Kext Signing: disabled
       Filesystem Protections: disabled
       Debugging Restrictions: enabled
       DTrace Restrictions: enabled
       NVRAM Protections: enabled
       BaseSystem Verification: enabled



Share this post


Link to post
Share on other sites
2 minutes ago, gengik84 said:

@onlyJRevenge

sostituisci e segui le info del post precedente

Archivio.zip

@iCanaro andrebbe bene solo che doveva mettere 0x3 e non 3

non è obbligo 0x67



Grazie mille ad entrambi. Posso procedere con la mia EFI all'installazione (che sto facendo) e so che mi porta a termine tutto e successivamente, una volta avviato, provvedo con la vostra EFI e consigli? così almeno riesco a muovervi all'interno di Mojave, senza quel casino che ho creato precedentemente.

Share this post


Link to post
Share on other sites
1 minute ago, onlyJRevenge said:



Grazie mille ad entrambi. Posso procedere con la mia EFI all'installazione (che sto facendo) e so che mi porta a termine tutto e successivamente, una volta avviato, provvedo con la vostra EFI e consigli? così almeno riesco a muovervi all'interno di Mojave, senza quel casino che ho creato precedentemente.

Non so a quale confusioni ti riferisci... non posso sapere quella sul sistema...io per ora ho visto solo quella nella EFI

quindi se reinstalli con quella non cambia gran che..

Poi se hai anche "pacioccato" il sistema ...allora altro discorso

Share this post


Link to post
Share on other sites
5 minutes ago, gengik84 said:

Non so a quale confusioni ti riferisci... non posso sapere quella sul sistema...io per ora ho visto solo quella nella EFI

quindi se reinstalli con quella non cambia gran che..

Poi se hai anche "pacioccato" il sistema ...allora altro discorso



Sì, infatti procedo ad installare da zero con la mia EFI, appena finisce, la sostituisco con la tua e installo i due kext tramite Utility che mi hai inviato. Riavvio e vi faccio sapere. Il problema con l'avvio solamente in -v me lo dava anche all'inizio, nella prima installazione, secondo voi, come mai? l'SSD lo formatto in APFS - Guid (se può essere quello il problema)



EDIT: Ecco, dopo il primo avvio dell'installazione da chiavetta (con il metodo Vanilla), passo per selezionare l'SSD per procedere nell'installazione e non va. Se faccio partire con -v continua l'installazione e la porta a termine.

Edited by onlyJRevenge

Share this post


Link to post
Share on other sites
