vector sigma
vector sigma
Posted
Posted
19 minutes ago, jinbingmao said:

error

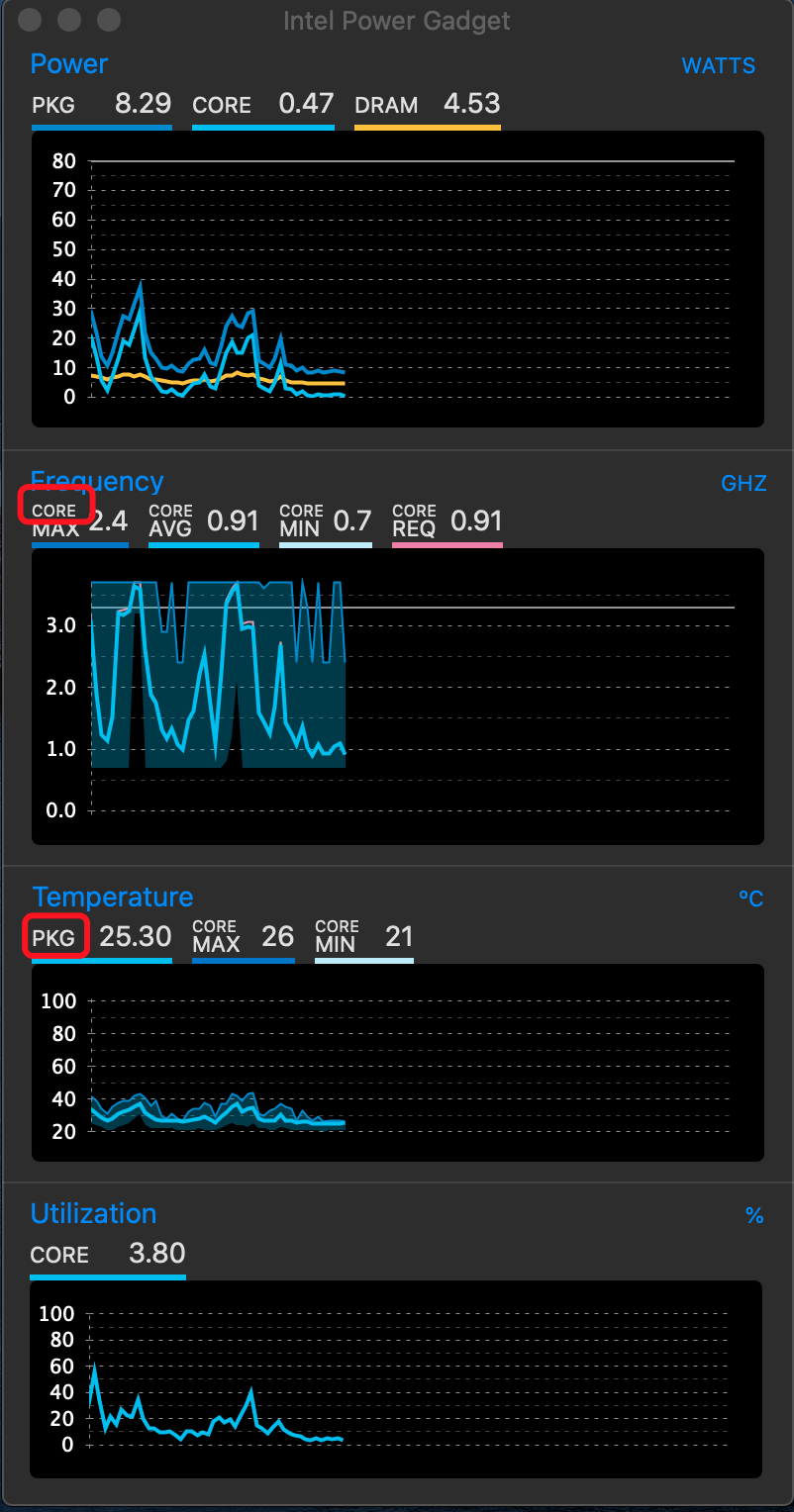

while the second is "Core" and not Package by mistake, the first is correct:

/*@function PGSample_GetIATemperature
* @abstract Get the CPU core temperature across all cores for the specified sample.
* @discussion CPU temperature is constantly changing over time, and can vary by core. The method used to measure CPU temperature can vary by CPU features and configuration, and may include mutliple measurements per core per sample. This function returns 3 values that represent CPU temperature across all cores on this package: (1) the mean temperature of all measurements across all cores; (2) the minimum temperature observed in any measurement on any core for this sample; (3) the maximum temperature observed in any measurement on any core for this sample.
* @param sampleID1 First sample, must precede the second sample in time.
* @param sampleID2 Second sample, must follow the first sample in time.
* @param mean Pointer that will be updated with mean CPU temperature across all measurements in degrees Celcius.
* @param min Pointer that will be updated with minimum CPU temperature across any measurement in degrees Celcius.
* @param max Pointer that will be updated with maximum CPU temperature across any measurement in degrees Celcius.
* @result True on success, false on failure. */
bool PGSample_GetIATemperature(PGSampleID sampleID, double* mean, double* min, double* max);



  • Thanks 1
jinbingmao
jinbingmao
Posted
Posted
46 minutes ago, vector sigma said:

while the second is "Core" and not Package by mistake, the first is correct:


/*@function PGSample_GetIATemperature
* @abstract Get the CPU core temperature across all cores for the specified sample.
* @discussion CPU temperature is constantly changing over time, and can vary by core. The method used to measure CPU temperature can vary by CPU features and configuration, and may include mutliple measurements per core per sample. This function returns 3 values that represent CPU temperature across all cores on this package: (1) the mean temperature of all measurements across all cores; (2) the minimum temperature observed in any measurement on any core for this sample; (3) the maximum temperature observed in any measurement on any core for this sample.
* @param sampleID1 First sample, must precede the second sample in time.
* @param sampleID2 Second sample, must follow the first sample in time.
* @param mean Pointer that will be updated with mean CPU temperature across all measurements in degrees Celcius.
* @param min Pointer that will be updated with minimum CPU temperature across any measurement in degrees Celcius.
* @param max Pointer that will be updated with maximum CPU temperature across any measurement in degrees Celcius.
* @result True on success, false on failure. */
bool PGSample_GetIATemperature(PGSampleID sampleID, double* mean, double* min, double* max);



I didn't look at the source code. I thought you took the value here.


ctich
ctich
Posted
Posted
4 hours ago, vector sigma said:

@joedm ru i had a lot of problems in retrieve the ChipName property, until i realize that the key is published this way:


\U0421hipName

and even the ioreg command line refuse to show it, so I made the code this way:


if (ioreg) {
    auto chipName = OSString::withCString(dataSource->getModelName());
    const OSSymbol *cn = OSSymbol::withCString("ChipName");
    ioreg->setProperty(cn, chipName);
    chipName->release();
}

This is the fixed file SMCSuperIO.cpp.zip (please don't copy/paste from the forum)





Guys, try the following app and the following SMCSuperIO.kext, otherwise wont work:

HWMonitorSMC2.app_v2.5.2_Beta.zip



SMCSuperIO.kext_v1.1.1.zip





Help in making the configuration:

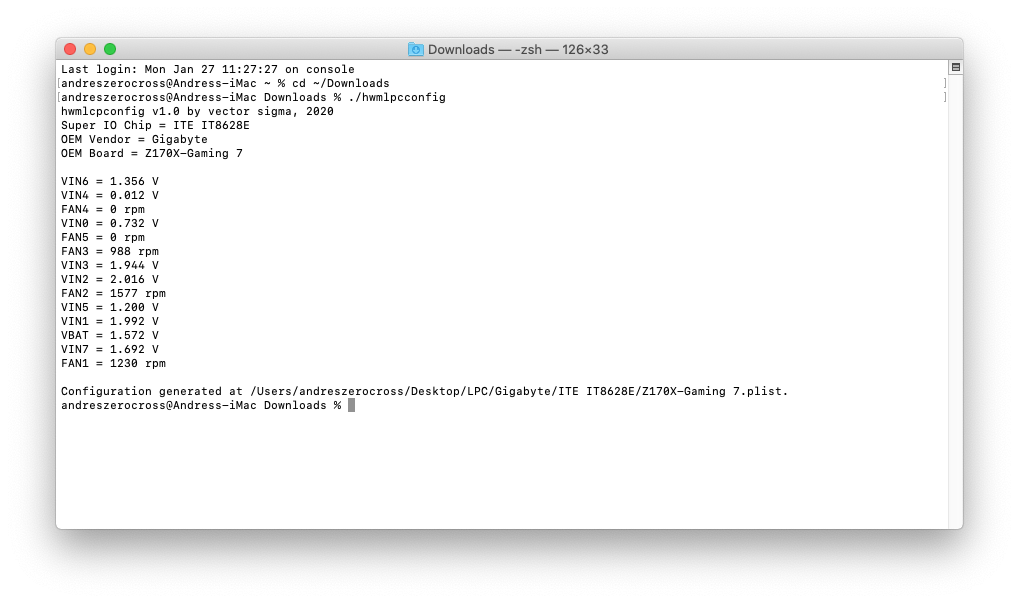

use this command line: hwmlpcconfig.zip to create the right  directory structure for HWMonitorSMC2.app. The program will show OEM informations and not last the LPC chip name needed to correctly place the configuration in the appropriate sub directory. ~/Desktop/LPC/Vendor/ChipName/Board.plist will be created. Of course this is not a valid configuration: you have to correct it with real values.



Note: users that already posted their configurations should run hwmlpcconfig and tell me the new path to make them working again.



P.S. the autodetection will work only with Clover and with very last OpenCore.

In HWMonitorSMC2:

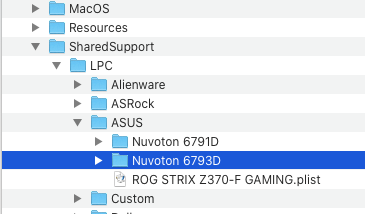

But there must be Nuvoton NCT6793D.



  • Like 1
vector sigma
vector sigma
Posted
Posted (edited)
On 1/26/2020 at 10:35 PM, ctich said:

But there must be Nuvoton NCT6793D.

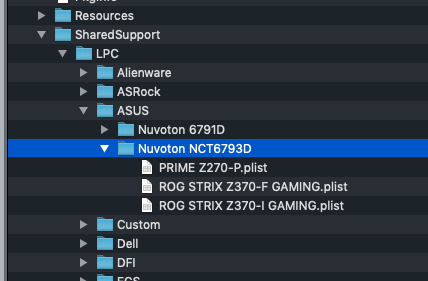

Fixed thanks.



Guys, the final [REMOVED], check it one last.



OT

For who may be interested, here you can find all the files to translate the app. Mostly needs just some lines to be translated after latest changes.

Edited by vector sigma
Beta app removed
  • Like 1
  • Thanks 1
Nuacho
Nuacho
Posted
Posted
5 minutes ago, vector sigma said:

Fixed thanks.



Guys, the final HWMonitorSMC2.app.zip, check it one last.



OT

For who may be interested, here you can find all the files to translate the app. Mostly needs just some lines to be translated after latest changes.

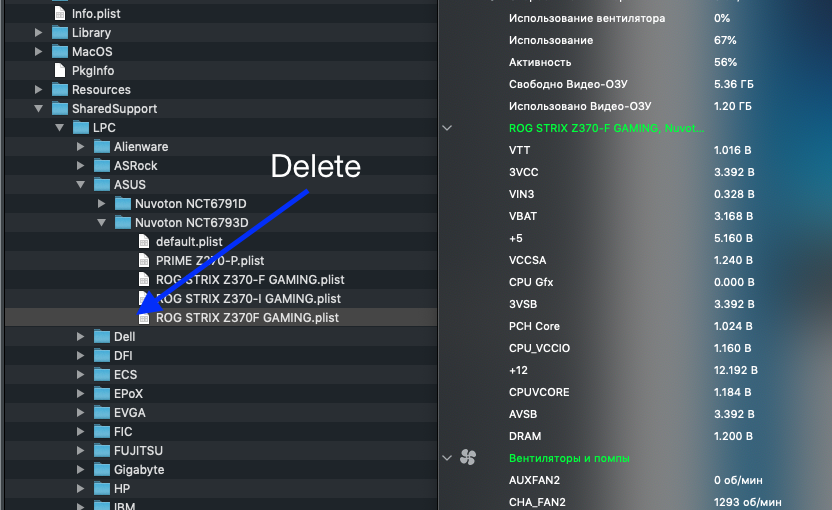

all right. remove one plist


Andres ZeroCross
Andres ZeroCross
Posted
Posted (edited)
6 hours ago, vector sigma said:

To the end I did not understand if you want to show them or not Lol

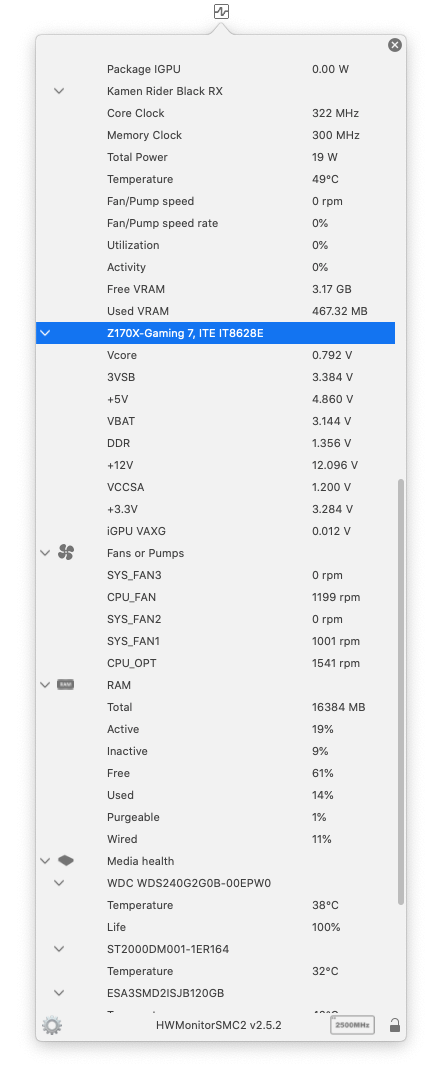

Z170X-Gaming 7.plist

Edited by Andres ZeroCross
  • Thanks 1
jinbingmao
jinbingmao
Posted
Posted (edited)
5 hours ago, Andres ZeroCross said:





Z170X-游戏 7.plist

Should be submitted like this。

Gigabyte.zip

LPC/Gigabyte/ITE IT8628E/Z170X-Gaming 7.plist

Please delete this file

LPC/Gigabyte/ITE IT8728F/Z170X-Gaming 7.plist

Edited by jinbingmao
Nuacho
Nuacho
Posted
Posted
3 minutes ago, vector sigma said:

Ребята, а что если фанаты, которые сообщают 0 об / мин, будут автоматически пропущены?

yes, I think it will be right

  • Like 1
Nuacho
Nuacho
Posted
Posted (edited)
7 minutes ago, vector sigma said:

Not entirely true. When the sensor it is added it will continue monitoring even if the value is zero. The problem is if starts broken.

do let's check

Edited by Nuacho
Andrey1970
Andrey1970
Posted
Posted
12 hours ago, vector sigma said:

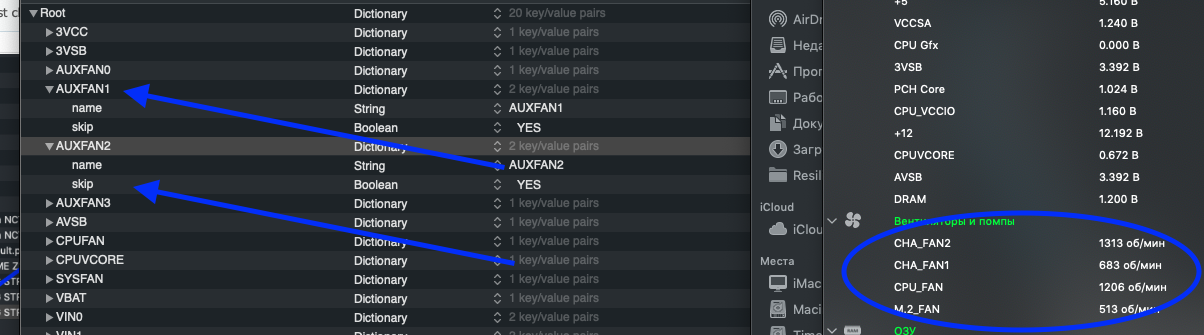

Guys, what if fans that reports 0 rpm will be automatically skipped?



But then users will send not full configuration files of motherboards to database HWMonitorSMC2.

In configuration database there shall be all fans.

  • Like 2
jinbingmao
jinbingmao
Posted
Posted
12 hours ago, vector sigma said:

Not entirely true. When the sensor it is added it will continue monitoring even if the value is zero. The problem is if starts broken.

Add an option button in the main menu, which is freely selected by the user.
