ivanmacx85

Rilasciati NVIDIA WebDriver per High Sierra 10.13

226 posts in this topic

Recommended Posts

NVIDIA ha rilasciato i driver grafici per macOS High Sierra 10.13

Questi driver sono attualmente l’unico metodo per ottenere l’accelerazione grafica delle schede:

-Pascal   GTX 1050, 1050 Ti, 1060, 1070, 1080, 1080 Ti, TITAN Xp
-Maxwell GTX 750, 750 Ti, 950, 960, 970, 980, 980 Ti, TITAN X




Per disinstallare i vecchi WebDriver attenersi alla seguente procedura:

1.) Aprire l'NVIDIA Driver Manager nella voce della barra dei menu.

2.) Fare clic sull'icona del lucchetto e immettere la password dell'amministratore.

3.) Fare clic sul pulsante disinstallazione.

4.) Fare clic su disinstalla e continuare con la disinstallazione. Riavviare il sistema come indicato

5.) Installare la versione originale del kext AppleGraphicsControl.kext (solo se lo avevate modificato in precedenza) in / S / L / E / tramite Kext Utility


Ignorate questi passaggi se venite da un'installazione pulita di High Sierra


Per installare il nuovo pacchetto WebDriver NVIDIA 10.13 distribuito ufficialmente, procedere come segue:

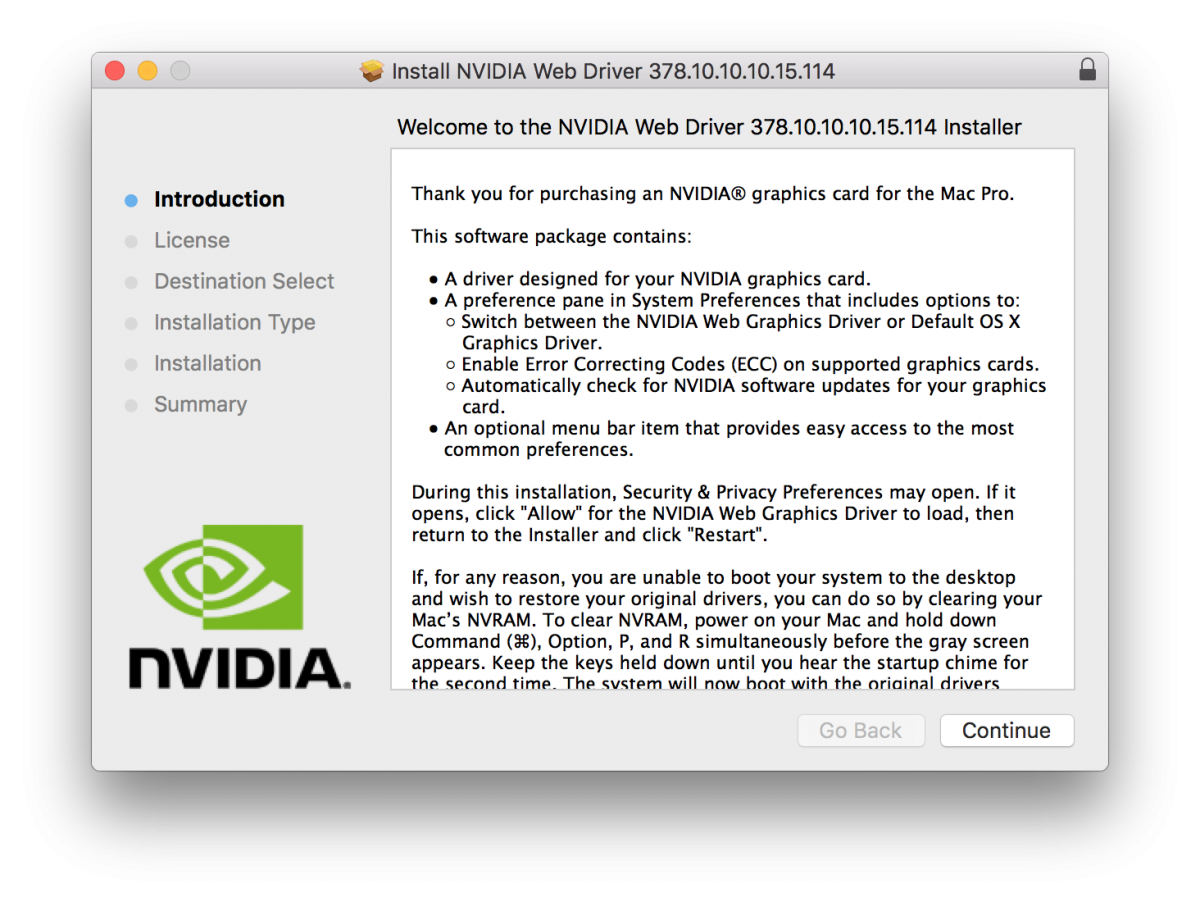

1.) Scaricare e installare il pacchetto NVIDIA WebDriver HighSierra 10.13.pkg Durante l'installazione comparirà un messaggio di errore, ignoratelo e continuare l'installazione finché non vi verrà richiesto di riavviare il sistema.

2.) Solo per chi ha smbios iMac 15,1 - iMac 17,1 - MacPro 6.1 Prima di riavviare mettere nella cartella kext other NVWebDriverLibValFix.kext.zip, NvidiaGraphicsFixup.kext.zip e Lilu.kext per evitare il problema dello schermo nero dopo l'avvio del sistema



3.) In alcuni casi è necessario impostare nel file .config il SIP (CsrActiveConfig) su 0x3

4.) Ora riavviate il sistema. Al momento dell'avvio del sistema, avrete il WebDriver Nvidia completamente funzionante con supporto OpenGL e Metal 2 :thumbsup_anim:



Share this post


Link to post
Share on other sites

Grazie per le indicazioni, le ho seguite alla lettera (dopo 3 installazioni pulite) purtroppo non funziona.... il pc si riavvia e non so proprio perchè.

Share this post


Link to post
Share on other sites

Fammi sapere come va

Con smbios iMac 17,1 il problema dello schermo nero causato da agdp non patchato persiste.



Ho risolto aggiungendo questo kext che allego.

Dato che nel frattempo ho pasticciato con il config.plist nel tentativo di risolvere il problema, non so se questo kext basta. Stasera faccio delle prove e vi faccio sapere.

NVWebDriverLibValFix.kext.zip

Share this post


Link to post
Share on other sites

Guida aggiornata per risolvere i problemi di riavvio e schermo nero

NVWebDriverLibValFix.kext si può anche mettere in 10.13 (o Others). Io ce l'ho lì e non mi dà problemi. Nel vecchio config avevo delle voci riguardo all'integrata. Non so se anche quelle causavano conflitto. Appena riesco, faccio delle prove.

Share this post


Link to post
Share on other sites

Buona sera il desktop in firma monta una GT730 che va bene già con 10.13 senza kext,magari grazie a SMBios iMac 12,2......

Mettere I driver Nvidia web migliorerebbe le cose??

Faccio questa domanda xche ho provato a installare ma mi rilascia un errore quindi non termina la stessa ....

Grazie

Share this post


Link to post
Share on other sites

Buona sera il desktop in firma monta una GT730 che va bene già con 10.13 senza kext,magari grazie a SMBios iMac 12,2......

Mettere I driver Nvidia web migliorerebbe le cose??

Grazie , faccio questa domanda xche ho provato a installare ma mi rilascia un errore quindi non termina la stessa ....

Grazie

Non ti servono i WebDriver!!



La GT730 funziona semplicemente impostando inject Nvidia nel file .config

Share this post


Link to post
Share on other sites

Grazie per le indicazioni, le ho seguite alla lettera (dopo 3 installazioni pulite) purtroppo non funziona.... il pc si riavvia e non so proprio perchè.



Ho appena aggiornato al guida  :) prova cosi'

Share this post


Link to post
Share on other sites

Ho appena aggiornato al guida  :) prova cosi'





Grazie  ivanmacx85  dopo aver seguito la tua guida  funziona tutto alla grande   :thumbsup_anim:

Share this post


Link to post
Share on other sites

Con smbios iMac 17,1 il problema dello schermo nero causato da agdp non patchato persiste.



Ho risolto aggiungendo questo kext che allego.

Dato che nel frattempo ho pasticciato con il config.plist nel tentativo di risolvere il problema, non so se questo kext basta. Stasera faccio delle prove e vi faccio sapere.

Risolto anche io , con l'aggiunta di qst kext in Library/System

Share this post


Link to post
Share on other sites

Salve,

           ho aggiornato correttamente alla versione High sierra (desktop in firma), e  seguendo la guida di questo post (Grazie ivanmacx85) ho eseguito il boot del PC senza problemi :thumbsup_anim: compresa l'installazione dei driver NVIDA ;) .



L'unico problema che si presenta è dato nello spostamento delle finestre sul desktop, che generano una fastidiosa scia dovuta probabilmente alla mancanza di refresh, e di fatto rendendo inutilizzabile la finestra aperta  non pienamente visibile :(, a patto di massimizzare e nuovamente iconizzare  un'altra finestra su di essa.



Qualche consiglio?

Share this post


Link to post
Share on other sites

Salve,

           ho aggiornato correttamente alla versione High sierra (desktop in firma), e  seguendo la guida di questo post (Grazie ivanmacx85) ho eseguito il boot del PC senza problemi :thumbsup_anim: compresa l'installazione dei driver NVIDA ;) .



L'unico problema che si presenta è dato nello spostamento delle finestre sul desktop, che generano una fastidiosa scia dovuta probabilmente alla mancanza di refresh, e di fatto rendendo inutilizzabile la finestra aperta  non pienamente visibile :(, a patto di massimizzare e nuovamente iconizzare  un'altra finestra su di essa.



Qualche consiglio?



Ciao aliens12 sono contento che la mia guida ti sia stata d'aiuto  :)



Guardando in firma ho notato che hai smbios Macbook pro 14.2 come mai se hai un fisso?

Comunque nelle info la scheda viene riconosciuta? Fai un screen del resoconto di sistema nella sezione grafica/monitor

Share this post


Link to post
Share on other sites



Guardando in firma ho notato che hai smbios Macbook pro 14.2 come mai se hai un fisso?



:blush:  non ricordo il perchè... forse ho sbagliato a scrivere la firma :hysterical:

Share this post


Link to post
Share on other sites

Con la guida sono riuscito finalmente a far partire 10.13. Asus P8H77V-le i73770k GTX1070 MSI Gaming installato temporaneamente su un HD 2.5 a 5400rpm. Solo che la scheda grafica mostra 256 MB invece degli 8GB, chiedo se il valore è puramente indicativo.

La scheda video sembra lavorare a metà rispetto a 10.12 la demo di unigine a 1080P gira max a 30fps con dettaglio ultra.



IMPORTANTE

Finalmente funziona F1 2016 che con 10.11 crashava dopo qualche minuto, ieri sono riuscito a fare 10 giri consecutivi. Ma con dettagli medi e senza antialiasig.

Invece dovrebbe girare a 60fps con dettagli al max a 1080p

Qualche consiglio?



Grazie :D

Share this post


Link to post
Share on other sites

Con la guida sono riuscito finalmente a far partire 10.13. Asus P8H77V-le i73770k GTX1070 MSI Gaming installato temporaneamente su un HD 2.5 a 5400rpm. Solo che la scheda grafica mostra 256 MB invece degli 8GB, chiedo se il valore è puramente indicativo.

La scheda video sembra lavorare a metà rispetto a 10.12 la demo di unigine a 1080P gira max a 30fps con dettaglio ultra.



IMPORTANTE

Finalmente funziona F1 2016 che con 10.11 crashava dopo qualche minuto, ieri sono riuscito a fare 10 giri consecutivi. Ma con dettagli medi e senza antialiasig.

Invece dovrebbe girare a 60fps con dettagli al max a 1080p

Qualche consiglio?



Grazie :D



Credo proprio che se fosse riconosciuta perfettamente dovresti vedere gli 8GB nelle info della scheda.



Allega la EFI e fai un screen del resoconto di sistema nella sezione grafica/monitor così vediamo meglio   ;)

Share this post


Link to post
Share on other sites

ciao a tutti, ho installato i driver ma, rimane lo schermo nero come faccio ad accedere per cambiare kext?

Mettili prima sulla usb che hai usato per installare high sierra. Avvia e poi li metti sulla efi del disco.

Share this post


Link to post
Share on other sites

Credo proprio che se fosse riconosciuta perfettamente dovresti vedere gli 8GB nelle info della scheda.



Allega la EFI e fai un screen del resoconto di sistema nella sezione grafica/monitor così vediamo meglio   ;)

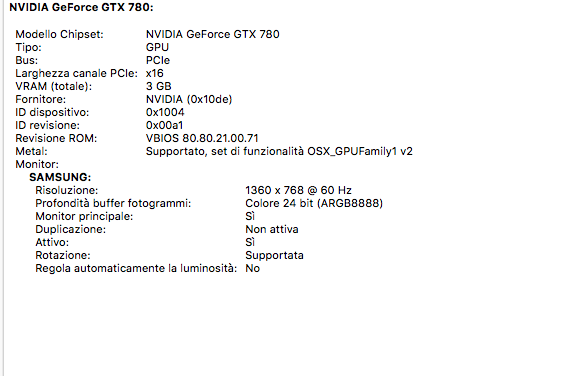

 Non so come estrarre le efi della scheda grafica rilevata dal sistema, credevo di trovare una app o il metodo, ma ho trovato solo vecchi programmi che avevano un tot di schede grafiche, ormai del paleozoico e relativo file di configurazione. Abbiamo un link per poter imparare a farlo? :D

2017-09-29%2006.55.04%20pm.png?dl=0

2017-09-29%2006.55.12%20pm.png?dl=0

Cliccando le immagini si dovrebbero aprire da Dropbox !?!?!? o.O

 Non so come estrarre le efi della scheda grafica rilevata dal sistema, credevo di trovare una app o il metodo, ma ho trovato solo vecchi programmi che avevano un tot di schede grafiche, ormai del paleozoico e relativo file di configurazione. Abbiamo un link per poter imparare a farlo? :D

2017-09-29%2006.55.04%20pm.png?dl=0

2017-09-29%2006.55.12%20pm.png?dl=0

Cliccando le immagini si dovrebbero aprire da Dropbox !?!?!? o.O

Aggiornamento. E' bastato mettere la spunta in Clover a LoadVBios e la ram segnalata è esatta. Il benchmark uligine adesso gira a 60FPS fissi. Problema risolto per il quantitativo di ram sbagliato. :D

Share this post


Link to post
Share on other sites

Non ti servono i WebDriver!!



La GT730 funziona semplicemente impostando inject Nvidia nel file .config

Grazie x la dritta , infatti la mia VGA va benissimo cosi , con inject Nvidia spuntato e basta ................

Share this post


Link to post
Share on other sites

Mettili prima sulla usb che hai usato per installare high sierra. Avvia e poi li metti sulla efi del disco.

Anche inserendo i kext ho sempre lo schermo nero che faccio?

Share this post


Link to post
Share on other sites

  • Recently Browsing   0 members

    No registered users viewing this page.

  • Similar Content

    • By kushwavez
      A really good motherboard with macOS compatible bult-in Wifi & Bluetooth

      ASUS Z170-Deluxe (with Wifi)
      BIOS: v3801
      CPU: i7-6700K 4.0 to 4.2 GHz (w/o OC)
      RAM: 1x 16 GB Corsair DDR4 2400 MHz
      GPU: Intel HD 530 (Headless) & ASUS Radeon RX 5700 OC 8 GB
      Audio: ALC 1150
      Ethernet: I219V2, I211-AT
      WiFi & Bluetooth: Broadcom BCM94360HMB Half-Mini-PCI-E
      More Specs: https://www.asus.com/Motherboards/Z170-DELUXE/specifications/

      El Capitan 10.11.6 -> Big Sur 11 - Windows 10

      What is working:
      BCM94360HMB Wifi and Bluetooth AirDrop, Handoff, FaceTime, Messages, App Store, iCloud, etc. Intel HD 530 (QE/CI tested, but now I'm using it in headless) Sleep RX 5700 (QE/CI with 2 1080p monitors connected) Sound (all ports) USB Ports Two Ethernet ports macOS with a light OC (4.12 GHz - 4.5 Ghz, XMP, ASUS optimal) ASUS HyperKit and M.2 with a KINGSTON NVMe SSD - 250 GB Hardware decoding/encoding on both HD 530 and RX 5700 (HD 530 up to HEVC, RX 5700 at the time of writing VP9) iGPU only (with QuickSync) is used in the default config.plist To use dGPU for hw decode/encode and also use Intel QuickSync you need to start with "config_headless.plist" This will use iMac17,2 SMBIOS and shikigva=80 To use dGPU only boot with "config_amd.plist" also disable iGPU completely in BIOS. This will use iMacPro1,1 SMBIOS without iGPU System Integrity Protection is Enabled by default. If you need to boot with SIP disabled you may use "config_debug.plist" or disable it manually in Clover settings. If you want Enabled SIP but with allowing unsigned kexts you may boot with "CsrActiveConfig = 0x01"
      What is not working:
      -

      Not tested:
      Thunderbolt (no equipment)
      Issues:
      None
      BIOS Settings:
      Boot\CSM (Compatibility Support Module): Launch CSM: Disabled Boot\Secure Boot: OS type: Other OS Secure Boot State: Disabled Advanced\System agent (sa) Configuration: VT-d: Enabled Graphics Configuration: (This is for HD 530 in headless) Primary Display: Auto (to use dGPU only this must be PEG) iGPU Multi-monitor: Enabled (to use dGPU only this must be Disabled) RC6(Render Standby): Enabled (to use dGPU only this must be Disabled) DVMT Pre-Allocated: 128M Advanced\PCH Storage Configuration: SATA Mode Selection: AHCI HyperKit: Enable (if you have NVMe SSD with ASUS HyperKit) Advanced\CPU Configuration: Intel Virtualization Technology: Enabled CPU- Power Management Control: CPU- C-States: Enabled Intel SpeedShift: Enabled
      Getting ready for installation:
      Download the bootpack (Clover v5126): Click here -> Z170-DELUXE_Clover_v5126.zip (Tested: El Capitan 10.11.6 -> macOS Big Sur 11.0.1)
      Installation:
      Create an installer with any method you know (- Mac: createinstallmedia, gibMacOS - Windows: Transmac, Vmware, Win32diskimager, gibMacOS) Copy my Clover folder to the USB's EFI folder Boot with the Installer USB If you have any problem (kp or freeze) boot with config_debug.plist to see what causes the issue
      Post Installation:
      Download Clover Configurator and generate a new Serial Number for yourself
      Some pictures:







      El Capitan 10.11.6

      Sierra 10.12.6

      High Sierra 10.13.6

      Mojave 10.14.6

      Catalina 10.15.7

      Catalina & Windows 10 Dual-Boot (clean install, on one drive):
       Boot into your Mac installer, Create 2 partitions in GUID table (1 for Win (I used FAT32 but I think it doesn't matter what you choose), 1 for Mac)
       Install Mac, boot with your USB, mount your EFI partition (use terminal or an EFI mounter app), create an EFI folder (if there is no folder), copy the CLOVER folder I attached to the EFI folder, restart
      Boot into your Win installer, Format the partition you created for Win, install.
      Now, it's automatically booting into Windows. To use Clover open cmd in administrator, type:
      bcdedit /set {bootmgr} path \EFI\CLOVER\CLOVERX64.efi
      You're done! It will booting into Clover when you start the system, and you can select Win or Mac (or another OS if installed on a 3rd partition).

      IF YOU GETTING ERRORS DURING WINDOWS INSTALLATION (could not be formatted, etc):
      Make sure you have GPT partitions, and GPT (UEFI) installer, also disconnect all external storage drives (except the installer USB)
      Mounting EFI from Windows:
      Open cmd in administrator mode and type: mountvol b: /s (This will mount your EFI) Open Total Commander or Explorer++ in administrator mode to manage EFI mountvol b: /d (This will unmount your EFI)
      Useful Applications for Mac:
      EFI Mountain Show -> To easily mount your EFI Clover Configurator -> To easily manage your config.plist https://mackie100projects.altervista.org/download-clover-configurator/ PlistEditPro -> Advanced plist editor https://www.fatcatsoftware.com/plisteditpro/ iStat Menus -> To monitoring your devices https://bjango.com/mac/istatmenus/ Boom 3D -> To significantly increase your audio quality https://www.globaldelight.com/boom/ TextMate -> a basic code editor just like Notepad++ on Windows https://macromates.com Modified Wineskin to run basic Windows 32-bit or 64-bit (or DX9 games) applications on Catalina -> https://www.reddit.com/r/MacOS/comments/fobx5t/i_didnt_want_to_boot_windows_every_time_when_i/ MaciASL -> View/Edit your .aml, .dsl files https://bitbucket.org/RehabMan/os-x-maciasl-patchmatic/downloads/ Hackintool -> All useful info, tools in one place https://github.com/headkaze/Hackintool IORegistryExplorer V2.1 -> To view your IO tables https://github.com/vulgo/IORegistryExplorer/releases/tag/v2.1 App Cleaner -> To delete your apps with caches https://freemacsoft.net/appcleaner/ Intel Power Gadget -> To see your frequencies https://software.intel.com/en-us/articles/intel-power-gadget Carbon Copy Cloner -> Advanced macOS drive backup utility https://bombich.com Commander One ->A Total Commander alternative for macOS https://mac.eltima.com/file-manager.html
      Useful Applications for Windows:
      Total Commander -> To easily manage EFI https://www.ghisler.com gibMacOS -> A python script for downloading/creating macOS Internet Recovery USB from Windows (working internet is needed when installing) https://github.com/corpnewt/gibMacOS mountvol b: /s -> To mount your system drive EFI
      EasyUEFI -> To manage boot orders and any bootloaders with ease https://www.easyuefi.com/index.html
      MiniTool Partition Wizard -> To mount your USB EFI, and manage other drives https://www.minitool.com/partition-manager/
      Notepad++ -> Basic code editor for all type of files https://notepad-plus-plus.org

      Notes:
      According to @albertoacj's comment Sidecar is only working in headless iGPU mode when using an AMD GPU, keep that in mind No need to change anything inside Clover from El Capitan to Big Sur For macOS Mojave and older you might need the full AirPortBrcmFixup.kext for full WiFi support
      Changelog:
      2020.11.12: Noticed that the CPU is always at 4200 Mhz, created an SSDT for proper CPU stepping. Updated to Big Sur release version, updated bootpack
      2020.11.03: Tested El Capitan, Sierra, High Sierra, Mojave, Catalina, Big Sur
      2020.11.01: Updated bootpack to Clover v5126, ready for macOS 11 Big Sur final release
      2020.04.23: Corrected layout-id to use all audio ports, updated bootpack
      2020.04.22: Deleted unnecessary boot-args, can boot without any custom boot-args (except agdpmod=pikera for RX 5700), updated bootpack
      2020.04.20: Deleted unnecessary lines from config.plist, updated bootpack
      2020.04.17: Replaced FakeSMC with VirtualSMC because FakeSMC is outdated (to see your frequencies use Intel Power Gadget) -> Removed unnecessary kexts, Updated all necessary kexts, updated Clover to v5112, updated bootpack, enabled SIP, deleted bootcamp theme
      2020.03.26: Updated to 10.15.4 -> Updated WhateverGreen, Lilu -> Updated Clover to v5107
      2020.03.23: Removed "EmuVariableUefi.efi" -> deleted, caused false nvram map, now it's native, updated Clover to v5106
      2020.02.11: Updated to 10.15.3 -> No problem when/after installing
      2020.01.19: Added ASUS HyperKit NVMe SSD to the "What is working" list
      2020.01.12: Tested system with OC, added more informations to BIOS settings
      2020.01.11: Added SmallTreeIntel82576.kext for 2nd Ethernet, Tested Ethernet ports
      2020.01.11: First upload

    • By kushwavez
      Acer Aspire V15 V5-591G - macOS Sierra 10.12.6 - Big Sur 11
      Running Big Sur 11.0.1!
      (Sierra, High Sierra and Mojave needs "SATA-100-series-unsupported.kext" and unmodified "AirPortBrcmFixup.kext")

      (Note: mine is 55TU version, but the bootpack will work fine with another versions of 591G, for example: V5-591G-71K2, -764Z, -59PU, etc.)
      Specifications:
      Motherboard: USOPP_SLS (Skylake-H PCH) BIOS: Insyde Corp. v 1.15 CPU: Intel Core i5-6300HQ 2.3 GHz (Skylake) GPU: NVIDIA GeForce GTX 950M 2 GB (Optimus) & Intel HD Graphics 530 RAM: 16 GB DDR4 (2x 8 GB SAMSUNG 2133 MHz) WiFi + Bluetooth: Qualcomm Atheros QCNFA344A 5 GHz (Later -> Broadcom BRCM94352Z M.2 5 GHz WiFi + 4.0 Bluetooth) Audio: Realtek HD Audio: ALC 255  Ethernet: Realtek RTL8168/8111 Card Reader: Realtek USB 2.0 Card Reader (USB2.0-CRW) Webcam: HD Webcam HDD: TOSHIBA 500 GB HDD SSD: KINGSTON A2000 NVMe PCI-e SSD (if you want Windows dual-boot then you need M.2 SATA SSD since NVMe will not work on Windows due interfering with NVIDIA GTX 950M (bluescreen when loading drivers)) Display: 1366x768 (15.6", Matte) Battery: 6 cell 56Wh / 5040mAh Connectors:  1x SD Card Reader 2x USB 3.0 (1x USB Charging), 1x USB 2.0 1x VGA 1x HDMI 1x 3.5mm microphone/audio combined jack connector 1x Ethernet (Rj-45) Keyboard & Touchpad: Multi-Touch & Multi-gestures ELAN 501 Touchpad, Backlight Keyboard. Working:
      Wi-Fi (with BCM94352Z) Bluetooth hand-off (With BCM94352Z) Full Graphics Acceleration Display: if default colour profile is corrupted (blue is not actual blue but purplish) Use "Rec. ITU-R BT. 709-5" Color Profile (System Pref. -> Displays -> Color) HDMI & VGA Outputs Audio  Ethernet  App Store, Messages, FaceTime, Siri, iCloud Integrated webcam 3.0 USB Touchpad and Keyboard (with working gestures and Fn+Brightness keys) Battery info Sleep Mode NVMe PCI-e x4 SSD Power Management Hardware decoding/encoding (up to HEVC) Not working:
      Original Wi-Fi (Qualcomm Atheros QCNFA344A):  Only Bluetooth is working, Wifi is unsupported, changed to Broadcom BCM94352Z NVIDIA GeForce GTX 950M: Optimus not supported. Card Reader: Unsupported For Wi-Fi:
      1st method: You can choose an external USB wifi dongle (I used TP-Link Archer T1U (5GHz support), TP-Link has official macOS drivers, you just need to install it 2nd and best method: Replace your M.2 Qualcomm Card with a compatible BCM94352Z card (you will have hand-off Bluetooth too), just install the kexts (enabled with BrcmFirmwareRepo, BrcmPatchRAM3, AirportBrcmFixup kexts they're all in my attached zip). Or buy BCM94360NG for OOB support. You could buy these cards from ebay, aliexpress, or amazon Issues:
      - Sometimes Combo Jack audio is not working after sleep
      Not tested:
      - Hibernation
      - FileVault
      BIOS Settings:
      - BIOS version 1.15 (irrelevant)
      - Secure Boot: Disabled
      - Touchpad: Advanced
      - Boot mode: UEFI
      Getting ready for Installation:
       Download the install zip (bootpack & postinstall):  Click here (v5126) -> Acer_Aspire_V5-591G_Clover_v5126.zip (Tested: Sierra 10.12.6 -> macOS Big Sur 11.0.1)
      Installation:
      - Create an installer with any method you know (- Mac: createinstallmedia, gibMacOS - Windows: Transmac, Vmware, Win32diskimager, gibMacOS)
      - Copy my Clover folder to the USB's EFI folder
      - Boot with the Installer USB
      - If you stuck in boot, reboot and in the Clover bootloader select "config_debug.plist" -> you'll have more informations about the freeze
      - To disable SIP boot with "config_debug.plist"

      Please open the README.pdf in my install zip for more informations about the USB Installer & Post installation!
      If you have a single RAM and getting panic at boot, then you need to edit the "config.plist" with these (SMBIOS->after "Version 1.0"):
      ->Edit "Frequency" and "Size" to match your RAM values
      <key>Version</key> <string>1.0</string> <key>Memory</key> <dict> <key>Channels</key> <integer>1</integer> <key>SlotCount</key> <integer>1</integer> <key>Modules</key> <array> <dict> <key>Slot</key> <integer>0</integer> <key>Size</key> <integer>8192</integer> <key>Frequency</key> <integer>2133</integer> <key>Type</key> <string>DDR4</string> </dict> </array> </dict> </dict> Before updating to a new version of macOS please update kexts (and clover if necessary) to newer versions to avoid kernel panics.
      Generate a serial number with Clover Configurator.app (open up your config.plist with CC then -> SMBIOS -> Serial Number -> Generate New)
      Here some pictures:


      Running fine on Big Sur 11.0.1


      Finally a fully working touchpad.

      Sierra 10.12.6

      High Sierra 10.13.6

      Mojave 10.14.6

      Catalina 10.15.7
      macOS & Windows 10 Dual-Boot:
      Dual-boot clean install (on one drive), UEFI Only:

       Boot into your Mac installer, Create 2 partitions in GUID table (1 for Win (I used FAT32 but I think it doesn't matter what you choose), 1 for Mac),   Install Mac, boot with your USB, mount your EFI partition (use terminal or an EFI mounter app), create an EFI folder (if there is no folder), copy the CLOVER folder I attached to the EFI folder, restart,  Boot into your Win installer, Format the partition you created for Win, install.   Now, it's automatically booting into Windows. To use Clover open cmd in administrator, type:  bcdedit /set {bootmgr} path \EFI\CLOVER\CLOVERX64.efi
            5.  You're done! It will booting into Clover when you start the system, and you can select Win or Mac (or another OS if installed on a 3rd partition).

      IF YOU GETTING ERRORS DURING WINDOWS INSTALLATION (could not be formatted, etc):
      Make sure you have GPT partitions, and GPT (UEFI) installer, also disconnect all external storage drives (except the installer USB)
      IF YOU CAN'T MOUNT YOUR EFI PARTITION (No EFI partition found):
      It's because your EFI is not 200 MB or not an "Apple" original EFI,  but don't worry, try another EFI mounter, or mount from terminal (I used EFI Mountain Show: Getting errors, but you can mount and use without problem) You also could "mount" the EFI from Windows: 1st method: open cmd in administrator mode and type:
      diskpart list vol (Now select the "System" volume,(FAT 32) For example I select 4) sel vol 4 list part (Select System type partition, for example 2) sel part 2 assign letter=b (This will "mount" your EFI partition) Open Explorer++ in administrator mode to manage EFI
      remove letter=b (This will "unmount" your EFI) 2nd method: open cmd in administrator mode and type:
      mountvol b: /s (This will mount your EFI) Open Explorer++ in administrator mode to manage EFI
      mountvol b: /d (This will unmount your EFI) Useful Applications for Mac:
      EFI Mountain Show -> To easily mount your EFI Clover Configurator -> To easily manage your config.plist https://mackie100projects.altervista.org/download-clover-configurator/ PlistEditPro -> Advanced plist editor https://www.fatcatsoftware.com/plisteditpro/ iStat Menus -> To monitoring your devices https://bjango.com/mac/istatmenus/ Boom 3D -> To significantly increase your audio quality https://www.globaldelight.com/boom/ TextMate -> a basic code editor just like Notepad++ on Windows https://macromates.com Modified Wineskin to run basic Windows 32-bit or 64-bit (or DX9 games) applications on Catalina -> https://www.reddit.com/r/MacOS/comments/fobx5t/i_didnt_want_to_boot_windows_every_time_when_i/ CrossOver 20 -> Run DirectX 11 applications on Catalina=< https://www.codeweavers.com/crossover/ MaciASL -> View/Edit your .aml, .dsl files https://bitbucket.org/RehabMan/os-x-maciasl-patchmatic/downloads/ Hackintool -> All useful info, tools in one place https://github.com/headkaze/Hackintool IORegistryExplorer V2.1 -> To view your IO tables https://github.com/vulgo/IORegistryExplorer/releases/tag/v2.1 App Cleaner -> To delete your apps with caches https://freemacsoft.net/appcleaner/ Intel Power Gadget -> To see your frequencies https://software.intel.com/en-us/articles/intel-power-gadget Carbon Copy Cloner -> Advanced macOS drive backup utility https://bombich.com Commander One -> A Total Commander alternative for macOS https://mac.eltima.com/file-manager.html
      Useful Applications for Windows:
      Total Commander -> To easily manage EFI https://www.ghisler.com mountvol b: /s -> To mount your system drive EFI EasyUEFI -> To manage boot orders and any bootloaders with ease https://www.easyuefi.com/index.html MiniTool Partition Wizard -> To mount your USB EFI, and manage other drives https://www.minitool.com/partition-manager/ Notepad++ -> Basic code editor for all type of files https://notepad-plus-plus.org gibMacOS -> A python script for downloading/creating macOS Internet Recovery USB from Windows (working internet is needed when installing) https://github.com/corpnewt/gibMacOS

      Notes:
      For Sierra, High Sierra, Mojave you need to download and use the full AirPortBrcmFixup.kext for WiFi, and replace CtlnaAHCIPort.kext with SATA-100-series-unsupported.kext for AHCI Sata drives For Sierra only you need to replace SMCBatteryManager.kext with ACPIBatteryManager.kext for working Battery indicator
      Changelog:
      2020.11.12: Touchpad now fully functional with gestures, Patched Fn+Brightness keys (Fn+Left, Fn+Right), repatched DSDT, changed SMBIOS to MacBookPro13,1 for better support, fixed CPU Stepping, fixed some wrong lines in config.plist, updated to Big Sur release, updated bootpack, updated guide. 2020.11.03: Tested macOS Sierra, High Sierra, Mojave, Catalina, Big Sur, updated guide 2020.11.01: Initial upload
    • By davi11084
      Buongiorno a tutti.

      Io ho da poco effettuato l'installazione di High Sierra 10.13.6. Successivamente ho risolto qualche problema con i due monitor e ho messo i driver nvidia.
      Adesso devo risolvere il problema dell'audio.

      La mia scheda madre è: MSI Gaming M3 H270 con chipset audio ALC1220.

      Ho provato a installare lilu con appleALC e ho provato i vari codec(1,2,5,7,11) ma nulla, non funziona.
      Metto in allegato la cartella efi con tutto.
      Come posso risolvere?

      EFI.zip
    • By fantomas
      Hi InsanelyMacaliens

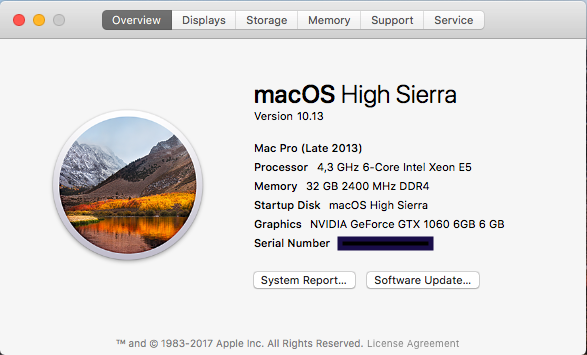

      Use this thread to link / talk about of the future Nvidia Web Driver updates for macOS High Sierra.

      10.13.6

      Nvidia Web Driver - 387.10.10.10.40.140 --> build 17G14042 (thanks to lukazm) New!
      Nvidia Web Driver - 387.10.10.10.40.139 --> build 17G14033 (thanks to iCanaro)
      Nvidia Web Driver - 387.10.10.10.40.138 --> build 17G14019 (thanks to TimeLord04)
      Nvidia Web Driver - 387.10.10.10.40.137 --> build 17G13035 (thanks to fabiosun)
      Nvidia Web Driver - 387.10.10.10.40.136 --> build 17G13033 (thanks to iCanaro)
      Nvidia Web Driver - 387.10.10.10.40.135 --> build 17G12034 (thanks to iCanaro)
      Nvidia Web Driver - 387.10.10.10.40.134 --> build 17G11023 (thanks to TimeLord04)
      Nvidia Web Driver - 387.10.10.10.40.133 --> build 17G10021 (thanks to phi777)
      Nvidia Web Driver - 387.10.10.10.40.132 --> build 17G9016 (thanks to iCanaro)
      Nvidia Web Driver - 387.10.10.10.40.131 --> build 17G8037 (thanks to phi777)
      Nvidia Web Driver - 387.10.10.10.40.130 --> build 17G8030 (thanks to fabiosun)
      Nvidia Web Driver - 387.10.10.10.40.129 --> build 17G8029 (thanks to TimeLord04)
      Nvidia Web Driver - 387.10.10.10.40.128 --> build 17G7024 (thanks to flowrider)
      Nvidia Web Driver - 387.10.10.10.40.127 --> build 17G6030 (thanks to Extreme™)
      Nvidia Web Driver - 387.10.10.10.40.124 --> build 17G6030 (thanks to flowrider)
      Nvidia Web Driver - 387.10.10.10.40.123 --> build 17G6029 (thanks to Badruzeus)
      Nvidia Web Driver - 387.10.10.10.40.122 --> build 17G5019 (thanks to TimeLord04)
      Nvidia Web Driver - 387.10.10.10.40.118 --> build 17G5019 (thanks to ReddestDream)
      Nvidia Web Driver - 387.10.10.10.40.113 --> build 17G4015 (thanks to flowrider)
      Nvidia Web Driver - 387.10.10.10.40.108 --> build 17G3025 (check here)
      Nvidia Web Driver - 387.10.10.15.15.108 --> build 17G2307 (thanks to marcozardi)
      Nvidia Web Driver - 387.10.10.10.40.105 --> build 17G65 (thanks to sl0wtarget)

      10.13.5
      Nvidia Web Driver - 387.10.10.10.35.106 --> build 17F77 (check here)

      10.13.4
      Nvidia Web Driver - 387.10.10.10.30.107 --> build 17E202 (check here)
      Nvidia Web Driver - 387.10.10.10.30.106 --> build 17E199 (thanks to BreBo)
      Nvidia Web Driver - 387.10.10.10.30.103 --> build 17E199 (thanks to ricoc90)


      10.13.3
      Nvidia Web Driver - 387.10.10.10.25.161 --> build 17D102 (thanks to Cyberdevs)
      Nvidia Web Driver - 387.10.10.10.25.160 --> build 17D2102 (thanks to Cyberdevs)
      Nvidia Web Driver - 387.10.10.10.25.159 --> build 17D2012 (thanks to cyberdevs)
      Nvidia Web Driver - 387.10.10.10.25.158 --> build 17D102 (thanks to cyberdevs)
      Nvidia Web Driver - 387.10.10.10.25.157 --> build 17D2047 (thanks to cyberdevs)
      Nvidia Web Driver - 387.10.10.10.25.156 --> build 17D47 (thanks to darthsian)


      10.13.2
      Nvidia Web Driver - 378.10.10.10.25.106 --> build 17C2205 (thanks to KGP-X99)
      Nvidia Web Driver - 378.10.10.10.25.105 --> build 17C2120 (see this post)
      Nvidia Web Driver - 378.10.10.10.25.104 --> build 17C205 (thanks to ReddestDream)
      Nvidia Web Driver - 378.10.10.10.25.103 --> build 17C89 (thanks to Il Francy MacPc)
      Nvidia Web Driver - 378.10.10.10.25.102 --> build 17C88 (thanks to piiggggg)


      10.13.1
      Nvidia Web Driver - 378.10.10.10.20.109 --> build 17B1003 (see this post)
      Nvidia Web Driver - 378.10.10.10.20.108 --> build 17B1002 (thanks to BreBo)
      Nvidia Web Driver -378.10.10.10.20.107 --> build 17B48 (thanks to piiggggg)


      10.13.0
      Nvidia Web Driver - 378.10.10.10.15.121 --> build 17A405 (thanks to Asgorath)
      Nvidia Web Driver - 378.10.10.10.15.120 --> build 17A405 (thanks to phi777)
      Nvidia Web Driver - 378.10.10.10.15.117 --> build 17A405 (thanks to phi777)
      Nvidia Web Driver - 378.10.10.10.15.114 --> build 17A365 (thanks to Asgorath).
    • By gekko.be
      I have an old Hackintosh that I have brought back to life. An ASUS P5KPLAM-SE mobo, Intel Core 2 Quad, with a Sapphire HD 5670 1GB graphics card. It used to work just fine on High Sierra 10.13.3 (I think it was .3) However I only used the DVI port. Updated to 10.13.6 and with AMD kexts rollback to the previous versions I got everything o wrk just fine: boot, HDMI video, HDMI audio etc etc. The only problem I face is that my USB keyboard and mouse freeze/hang seemingly very random... I can not seem to get it right. Unplugging and replugging the USB device makes it work again, sometimes for a few seconds sometimes for an hour ... No idea what's wrong... Have tried tons of options in clover, USBInjectall.kext with port limit patch, whatever I could find... Would there be anyone out there who would have an idea of what could be the problem?
×
