[GUIDE] EL Capitan / Sierra / High Sierra / Mojave / Catalina on Intel LGA 775 motherboards / DSDT


MaLd0n
909 posts in this topic

Recommended Posts

hello again MaLd0n ....also running Sierra 10.12 for the first time...but without video acceleration...nvidia in vesa mode to get to desktop...hoping a little tinkering will get things right...

here are some of what you ask for.....

 first ioregistryexplorer



attachicon.gifLes’s iMac.zip



...and a dump from clover f4



attachicon.giforigin.zip



...and my clover folder



attachicon.gifCLOVER.zip

CLOVER.zip

install web driver

  • Like 1
Link to comment
Share on other sites

something is amiss...seems to still be using old clover folder booting from efi of sierra hdd...not sure how ...I replaced mine with yours....running yosemite right now and in clover menu my old setting and injected kexts were still there?

  • Like 1
Link to comment
Share on other sites

...yes two hdd one has windows and yosemite mbr ...sierra is on it's own hdd guid



the yosemite /windows hdd was always booted from usb to mac...so as to leave the windows boot manager to boot windows 10 on its' own



...i'll try to replace the clover folder on the usb drive .....brb

  • Like 1
Link to comment
Share on other sites

...hmmm, boots fine from usb with your clover folder...but no internet....gonna try another kext to inject instead of mausi kext....also external disk error orange generic icons ich9 achi shows as generic ahci...wouldn't normally mount usb drive....could read but not alter any files...also have a maybe fix for that....and no sound...but will try voodoo for that later....back on yosemite now...booting from efi partion of sierra hdd...which has preserved old clover folder somehow...going to try my fixes on the usb clover before i bother you more...thanks for the push in the right direction :smoke:

  • Like 1
Link to comment
Share on other sites

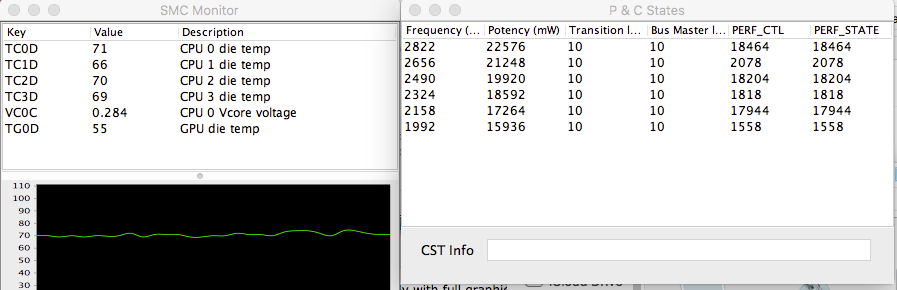

...temps are quite high for cpu...powermanagement version shows blank in smc monitor app






...edit: got it cooled down now... removed your patch for AppleIntelCPUPM....added my own lpc  injector...

...another ioregistryexplorer save...



Les’s iMac2.zip









                                                     :whistle:





  • Like 1
Link to comment
Share on other sites

...well good morning Mal...yes tried, but without the changes I made, was imperfect... now better...  :smoke: using VoodooHDA.kext-2.9.0d10 in s/l/e...   and my own lpc and ahci injectors

...many thanks    :thumbsup_anim:

take a test, remove ur LPC injector

DSDT.aml.zip

  • Like 1
Link to comment
Share on other sites

...ok...testing now....removed LPC injector...temps are high again...20 degrees C higher...the injector seems to do the job, albeit not as clean as dsdt, but it works...gives me

AICPMVers number 0x1240105 under IOService:/AppleACPIPlatformExpert/CPU0@0/AppleACPICPU/ACPI_SMC_PlatformPlugin in ioregistryexplorer...your dsdt does not...

edit: I'll reinject LPC again my way ...just to sure...brb

  • Like 1
Link to comment
Share on other sites

...just to add...my problem with clover folder replacement...not having any effect...  :wink_anim: ..I remembered a failed install of clover on my Yosemite partition...not installed to efi partition, but to the system partition...it just was sitting there...EFI folder...  :rolleyes: ..I deleted that and cloned the working usb clover partition to the efi partition of Sierra...booted from hdd...and voila!...  :whistle:

not just whistling dixie here...I know my sh*t...just can't remember where I put it ... :blink:  nuf said

  • Like 1
Link to comment
Share on other sites

...now I'm just being picky, but if you look in my ioregistryexplorer file, you'll see IODeviceTree/efi/platform has some vestiges of lenovo still...

My question is : can they be removed/altered to reflect a more apple like flavor through dsdt?



OEMProduct  OEMBoard  OEMVendor

  • Like 1
Link to comment
Share on other sites

...now I'm just being picky, but if you look in my ioregistryexplorer file, you'll see IODeviceTree/efi/platform has some vestiges of lenovo still...

My question is : can they be removed/altered to reflect a more apple like flavor through dsdt?



OEMProduct  OEMBoard  OEMVendor

70%+ from ur tables macOs don't use

Check my DSDT LGA775, work good, only devices in use

DSDT.MaLd0n.zip

  • Like 2
Link to comment
Share on other sites
