TASK FORCE - [AMD] to missing SSE4.1 Instruction set - older CPUs on macOS Sierra (10.12.x)


271 posts in this topic

Recommended Posts

I've tested all my emulations with intrinsics.  They all work.  Well, maybe movntdqa does not have correct side effect.

Now I am trying to test them with opemu.

I need to manually generate opcode and keep xmm registers consistent.

Anybody knows a test suit for this?  gcc tests?



Otherwise I have to dig throw compiled intrinsics tests and fish for instruction binaries.

  • Like 1

I've tested all my emulations with intrinsics.  They all work.  Well, maybe movntdqa does not have correct side effect.

Now I am trying to test them with opemu.

I need to manually generate opcode and keep xmm registers consistent.

Anybody knows a test suit for this?  gcc tests?



Otherwise I have to dig throw compiled intrinsics tests and fish for instruction binaries.

Found an online assembler to generate opcode and use _load_xmm from opemu to load data to registers.

Finally extractps to gives correct result.  Need to test  pextrb, pextrw, pextrd and pextrw.  These things have

general register or memory address as dest, different from the xmm dest in existing code.  After that, things

are down hill.  Almost there!

  • Like 6

Found an online assembler to generate opcode and use _load_xmm from opemu to load data to registers.

Finally extractps to gives correct result.  Need to test  pextrb, pextrw, pextrd and pextrw.  These things have

general register or memory address as dest, different from the xmm dest in existing code.  After that, things

are down hill.  Almost there!

Good news !

Waiting for your testing kernel as soon as possible !

Please test this.  I don't have the hardware.  But this kernel runs on FX.

Thanks ydeng ! For the kernel

may i know what is the difference between this kernel and bronya kernel ?



and is there any associated System.kext with this kernel ?







EDIT : works on FX CPU

          - usb works

          - sound works

          - ethernet works









Thanks ydeng ! For the kernel

may i know what is the difference between this kernel and bronya kernel ?



and is there any associated System.kext with this kernel ?







EDIT : works on FX CPU

          - usb works

          - sound works

          - ethernet works









This is  https://github.com/Shaneee92/SierraAMD-XNU+ plus sse4.1 emulation.  You have FX cpu, don't need this one.  Thanks for testing.

AMD Athlon X2 4050

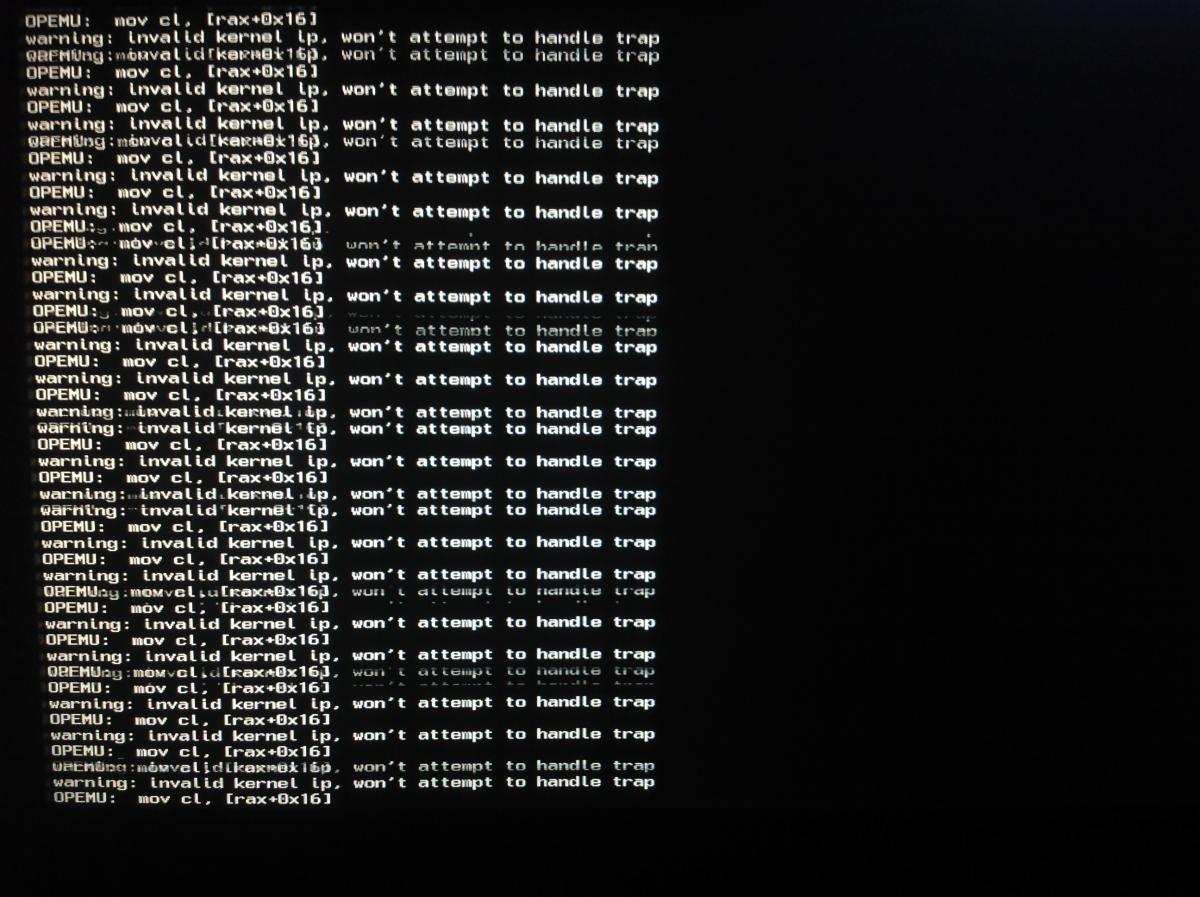

Where does this happen?  Did it boot at all?

  • Like 1

Forgot to turn sse4.1 emulation on in kernel trap.  Please try this one.

This one comes from here https://github.com/Shaneee92/SierraAMD-XNU/blob/master/osfmk/i386/trap.c#L802.  The memory address pointed to by instruction counter does not exist!

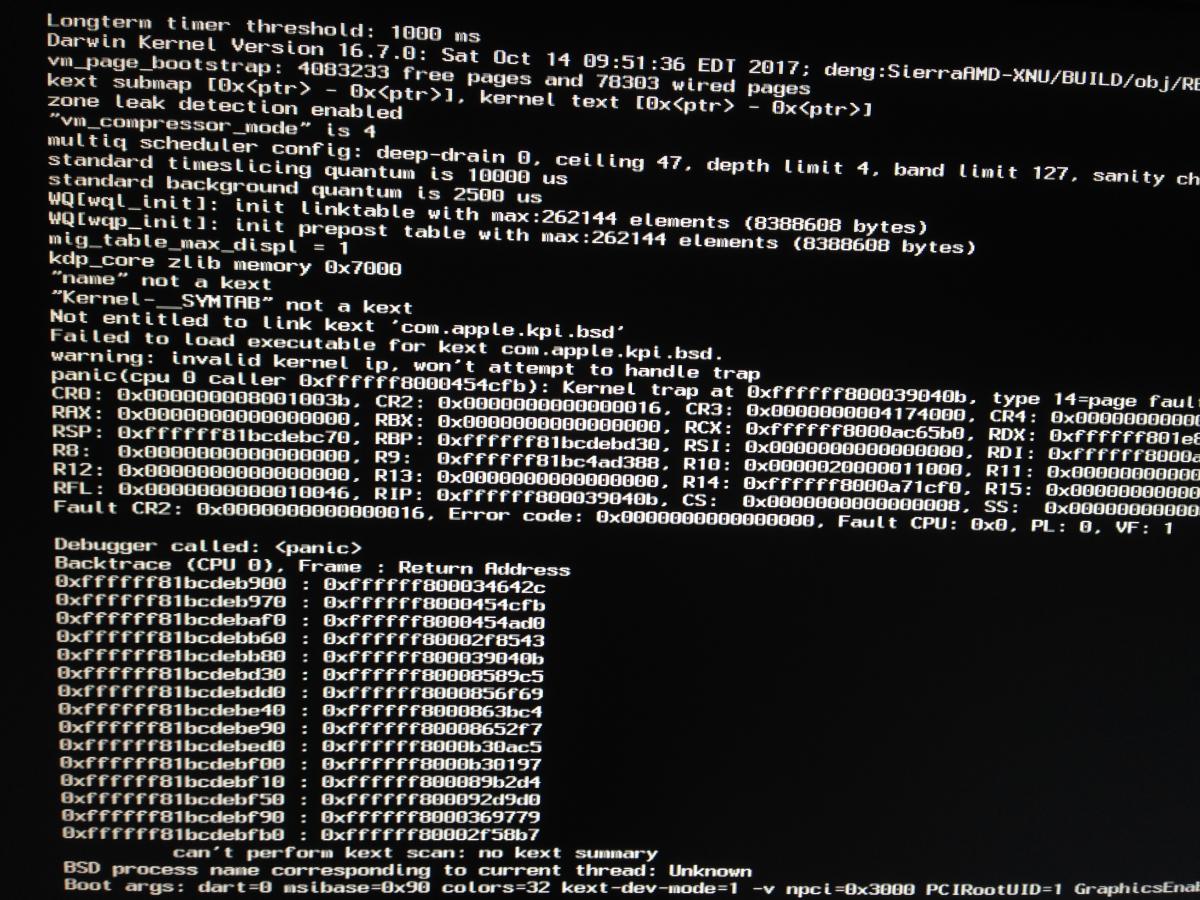

Thanks for this testing kernel which got the same error as Post#82 here in my FX-6300 hackintosh.

I'll test it later in Phenom II x6 hackintosh later.

Thanks for this testing kernel which got the same error as Post#82 here in my FX-6300 hackintosh.

I'll test it later in Phenom II x6 hackintosh later.

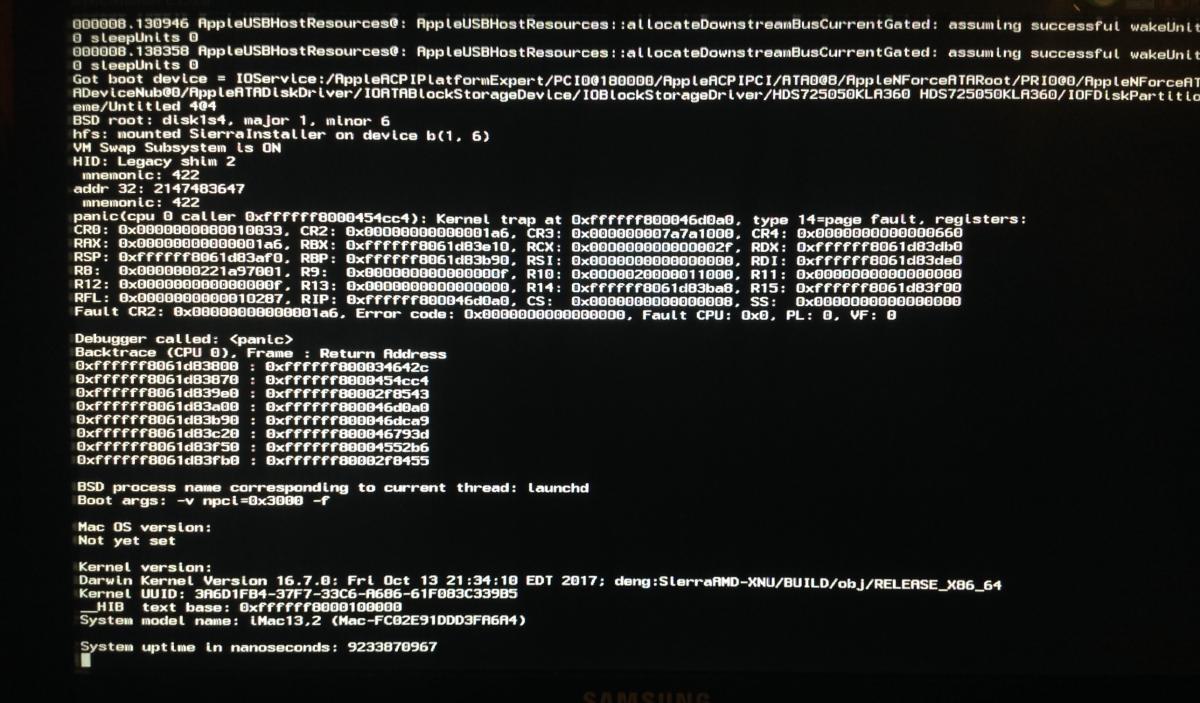

Are you able to see anything else before it prints pages of invalid kernel ip?  This one boots FX8350 with no problem.



I turned on trap panic.  Should be able to see what happens before the memory error.

  • Like 2

You can not compare the FX-6300 or the FX8350 which that has the CPU Features SSE4.1 and SSE4.2 with a simple CPU such as Phenom II X6 or AMD Athlon X2 4050. Therefore, check the kernel only with a CPU without SSE4. 1 / SSE4.2, so we can see if the changes work, which we all hope.

I can not check ydeng kernel until the end of next week. When I'm home

  • Like 1

Are you able to see anything else before it prints pages of invalid kernel ip?  This one boots FX8350 with no problem.



I turned on trap panic.  Should be able to see what happens before the memory error.

This kernel can boot to desktop at 10.12.6 by Clover, but it got KP by Enoch/Bronya.


  • Like 1

Are you able to see anything else before it prints pages of invalid kernel ip?  This one boots FX8350 with no problem.



I turned on trap panic.  Should be able to see what happens before the memory error.

the first kernel with Enoch r2902:

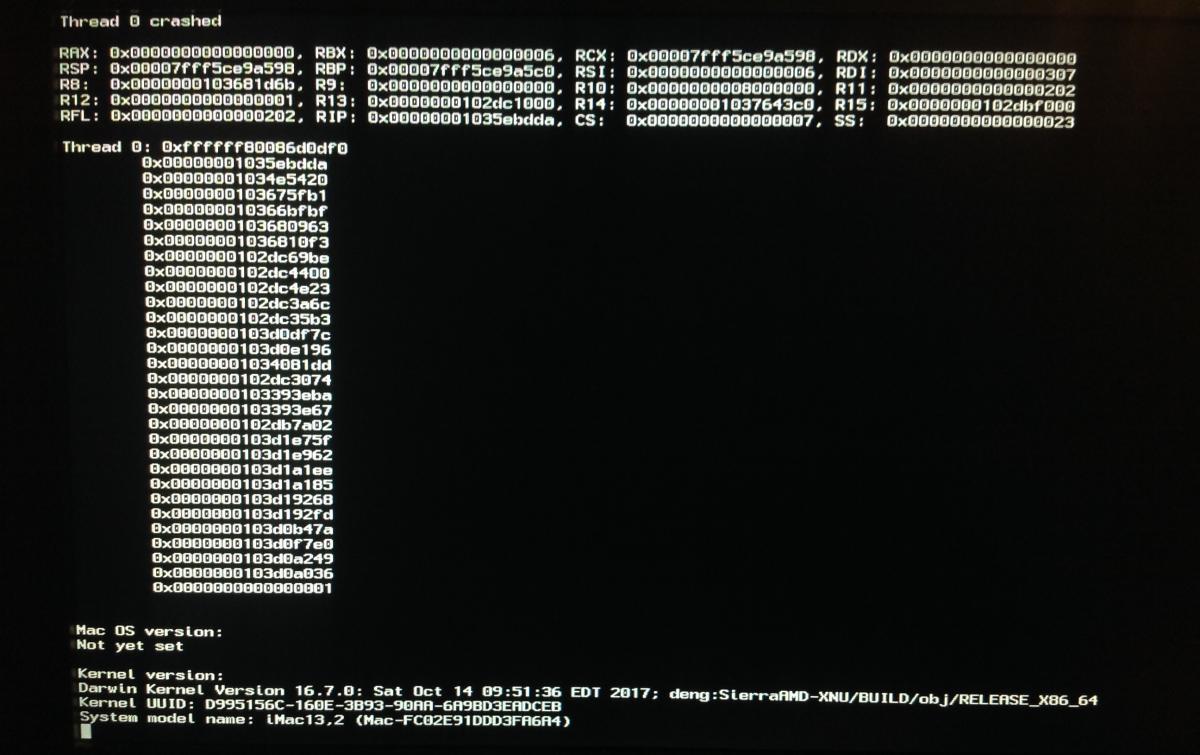

the latest kernel:

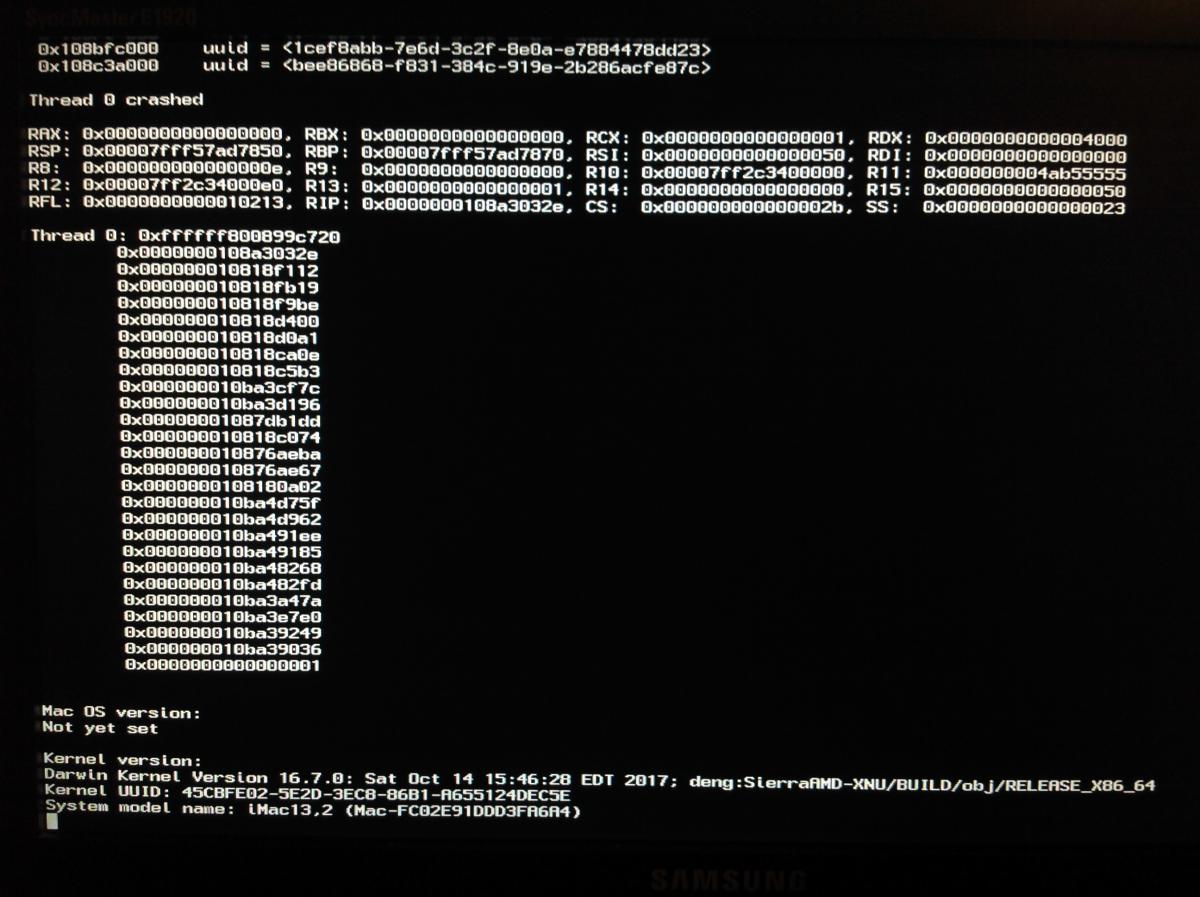

and it gives a lot of messages of "mnemonic: 422" and things like "0x103777000     uuid = <13d3b12d-3c1c-3f22-8735-f8ec784714f4>"  before  and says initproc exited -- no exit reason available -- (signal 6, exit status 0 )

  • Like 2

the first kernel with Enoch r2902:




the latest kernel:


and it gives a lot of messages of "mnemonic: 422" and things like "0x103777000     uuid = <13d3b12d-3c1c-3f22-8735-f8ec784714f4>"  before  and says initproc exited -- no exit reason available -- (signal 6, exit status 0 )

I forgot to turn some of the debug prints off.  'mnemonic: 422' is sse4.1 instruction pinsrd . Let me remove those so that we can see where it crashes.



Here's another one. Thanks for trying.

  • Like 1

I forgot to turn some of the debug prints off.  'mnemonic: 422' is sse4.1 instruction pinsrd . Let me remove those so that we can see where it crashes.



Here's another one. Thanks for trying.

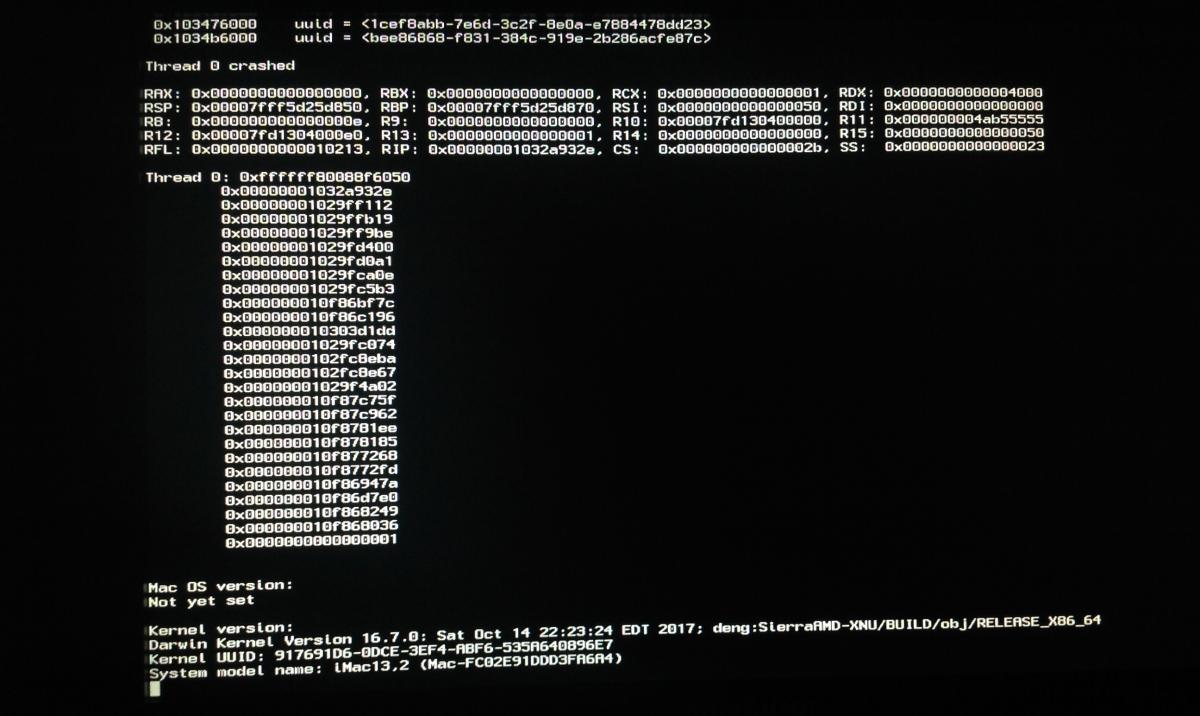

it still gives me a lot of messages with uuid like the first two in the screenshot


it still gives me a lot of messages with uuid like the first two in the screenshot


I think I need to copyin/out between user space memory and kernel space.

Thanks for the update.  This takes a lot of patience.  But we are getting there.



Please try again.  Fixed a bunch of bugs.

  • Like 2
×
×
