[Guide] Mac OSX 10.12 and 10.13 with X99 Broadwell-E family and Haswell-E family

PMheart · February 23, 2017

Missing AppleHDA patches in my config.plist... WHOOPPPSS! I forgot I swapped over an old config.plist to test XCPM patches. I'll retest again

Oops. Yes. There are 2 patches for fixing popping sound and losing sound after waking, which is from AppleALC as well. (Sorry. I didn't where them are from exactly...)

In my sample config. There are 7 patches for HDA related.

2x - Codec ID related

2x - Removing redundant logs

2x - Getting rid of popping sound and Fixing no sound after waking

1x - HDMI Audio Controller related

nmano · February 23, 2017

X99_with Gigabyte

BIOS Configuration for XCPM

CPU Clock Ratio: 43x

XMP: profile 1

Uncore Ratio: 40x or 43x

C1E: Disabled

C6/C7: Enabled

CPU Thermal Monitor: Auto

C3: auto

EIST: Enabled

Last login: Sun Feb 19 00:17:15 on ttys000
navaratnams-Pro:~ navaratnammanoranjan$ sudo chown -R root:wheel /Users/navaratnammanoranjan/Desktop/AppleIntelInfo.kext
Password:
navaratnams-Pro:~ navaratnammanoranjan$ sudo chmod -R 755 /Users/navaratnammanoranjan/Desktop/AppleIntelInfo.kext
navaratnams-Pro:~ navaratnammanoranjan$ sudo kextload /Users/navaratnammanoranjan/Desktop/AppleIntelInfo.kext
navaratnams-Pro:~ navaratnammanoranjan$ sudo cat /tmp/AppleIntelInfo.dat

AppleIntelInfo.kext v2.0 Copyright © 2012-2016 Pike R. Alpha. All rights reserved
enableHWP................................: 0

Settings:
------------------------------------------
logMSRs..................................: 1
logIGPU..................................: 0
logCStates...............................: 1
logIPGStyle..............................: 1
InitialTSC...............................: 0x2e4a375ec9a (106 MHz)
MWAIT C-States...........................: 8480

Processor Brandstring....................: Intel(R) Core(TM) i7-5960X CPU @ 3.00GHz

Processor Signature..................... : 0x306F2
------------------------------------------
 - Family............................... : 6
 - Stepping............................. : 2
 - Model................................ : 0x3F (63)

Model Specific Registers (MSRs)
------------------------------------------

MSR_CORE_THREAD_COUNT............(0x35)  : 0xFFFFFF805BB12700
------------------------------------------
 - Core Count........................... : 8
 - Thread Count......................... : 16

MSR_PLATFORM_INFO................(0xCE)  : 0x80C3BF3811E00
------------------------------------------
 - Maximum Non-Turbo Ratio.............. : 0x1E (3000 MHz)
 - Ratio Limit for Turbo Mode........... : 1 (programmable)
 - TDP Limit for Turbo Mode............. : 1 (programmable)
 - Low Power Mode Support............... : 1 (LPM supported)
 - Number of ConfigTDP Levels........... : 1 (additional TDP level(s) available)
 - Maximum Efficiency Ratio............. : 12
 - Minimum Operating Ratio.............. : 8

MSR_PMG_CST_CONFIG_CONTROL.......(0xE2)  : 0x7E000403
------------------------------------------
 - I/O MWAIT Redirection Enable......... : 1 (enabled, IO read of MSR(0xE4) mapped to MWAIT)
 - CFG Lock............................. : 0 (MSR not locked)
 - C3 State Auto Demotion............... : 1 (enabled)
 - C1 State Auto Demotion............... : 1 (enabled)
 - C3 State Undemotion.................. : 1 (enabled)
 - C1 State Undemotion.................. : 1 (enabled)
 - Package C-State Auto Demotion........ : 1 (enabled)
 - Package C-State Undemotion........... : 1 (enabled)

MSR_PMG_IO_CAPTURE_BASE..........(0xE4)  : 0x10414
------------------------------------------
 - LVL_2 Base Address................... : 0x414
 - C-state Range........................ : 1 (C6 is the max C-State to include)

IA32_MPERF.......................(0xE7)  : 0x2B7A77CE5C
IA32_APERF.......................(0xE8)  : 0x3D9227736E

MSR_FLEX_RATIO...................(0x194) : 0xE0000
------------------------------------------

MSR_IA32_PERF_STATUS.............(0x198) : 0x280400002B00
------------------------------------------
 - Current Performance State Value...... : 0x2B00 (4300 MHz)

MSR_IA32_PERF_CONTROL............(0x199) : 0x3200
------------------------------------------
 - Target performance State Value....... : 0x3200 (5000 MHz)
 - Intel Dynamic Acceleration........... : 0 (IDA engaged)

IA32_CLOCK_MODULATION............(0x19A) : 0x0

IA32_THERM_INTERRUPT.............(0x19B) : 0x0

IA32_THERM_STATUS................(0x19C) : 0x883B0000
------------------------------------------
 - Thermal Status....................... : 0
 - Thermal Log.......................... : 0
 - PROCHOT # or FORCEPR# event.......... : 0
 - PROCHOT # or FORCEPR# log............ : 0
 - Critical Temperature Status.......... : 0
 - Critical Temperature log............. : 0
 - Thermal Threshold #1 Status.......... : 0
 - Thermal Threshold #1 log............. : 0
 - Thermal Threshold #2 Status.......... : 0
 - Thermal Threshold #2 log............. : 0
 - Power Limitation Status.............. : 0
 - Power Limitation log................. : 0
 - Current Limit Status................. : 0
 - Current Limit log.................... : 0
 - Cross Domain Limit Status............ : 0
 - Cross Domain Limit log............... : 0
 - Digital Readout...................... : 59
 - Resolution in Degrees Celsius........ : 1
 - Reading Valid........................ : 1 (valid)

MSR_THERM2_CTL...................(0x19D) : 0x0

IA32_MISC_ENABLES................(0x1A0) : 0x850089
------------------------------------------
 - Fast-Strings......................... : 1 (enabled)
 - FOPCODE compatibility mode Enable.... : 0
 - Automatic Thermal Control Circuit.... : 1 (enabled)
 - Split-lock Disable................... : 0
 - Performance Monitoring............... : 1 (available)
 - Bus Lock On Cache Line Splits Disable : 0
 - Hardware prefetch Disable............ : 0
 - Processor Event Based Sampling....... : 0 (PEBS supported)
 - GV1/2 legacy Enable.................. : 0
 - Enhanced Intel SpeedStep Technology.. : 1 (enabled)
 - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported)
 - Adjacent sector prefetch Disable..... : 0
 - CFG Lock............................. : 0 (MSR not locked)
 - xTPR Message Disable................. : 1 (disabled)

MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x591200
------------------------------------------
 - Turbo Attenuation Units.............. : 0
 - Temperature Target................... : 89
 - TCC Activation Offset................ : 0

MSR_MISC_PWR_MGMT................(0x1AA) : 0x400000
------------------------------------------
 - EIST Hardware Coordination........... : 0 (hardware coordination enabled)
 - Energy/Performance Bias support...... : 1
 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software)
 - Thermal Interrupt Coordination Enable : 1 (thermal interrupt routed to all cores)

MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x2B2B2B2B2B2B2B2B
------------------------------------------
 - Maximum Ratio Limit for C01.......... : 2B (4300 MHz)
 - Maximum Ratio Limit for C02.......... : 2B (4300 MHz)
 - Maximum Ratio Limit for C03.......... : 2B (4300 MHz)
 - Maximum Ratio Limit for C04.......... : 2B (4300 MHz)
 - Maximum Ratio Limit for C05.......... : 2B (4300 MHz)
 - Maximum Ratio Limit for C06.......... : 2B (4300 MHz)
 - Maximum Ratio Limit for C07.......... : 2B (4300 MHz)
 - Maximum Ratio Limit for C08.......... : 2B (4300 MHz)

IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x5
------------------------------------------
 - Power Policy Preference...............: 5 (balanced performance and energy saving)

MSR_POWER_CTL....................(0x1FC) : 0x21040059
------------------------------------------
 - Bi-Directional Processor Hot..........: 1 (enabled)
 - C1E Enable............................: 0 (disabled)

MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03
------------------------------------------
 - Power Units.......................... : 3 (1/8 Watt)
 - Energy Status Units.................. : 14 (61 micro-Joules)
 - Time Units .......................... : 10 (976.6 micro-Seconds)

MSR_PKG_POWER_LIMIT..............(0x610) : 0x7FFD00014EA82
------------------------------------------
 - Package Power Limit #1............... : 3408 Watt
 - Enable Power Limit #1................ : 1 (enabled)
 - Package Clamping Limitation #1....... : 0 (disabled)
 - Time Window for Power Limit #1....... : 10 (2560 milli-Seconds)
 - Package Power Limit #2............... : 4090 Watt
 - Enable Power Limit #2................ : 1 (enabled)
 - Package Clamping Limitation #2....... : 1 (allow going below OS-requested P/T state setting Time Window for Power Limit #2)
 - Time Window for Power Limit #2....... : 3 (20 milli-Seconds)
 - Lock................................. : 0 (MSR not locked)

MSR_PKG_ENERGY_STATUS............(0x611) : 0x6FD8585
------------------------------------------
 - Total Energy Consumed................ : 7158 Joules (Watt = Joules / seconds)

MSR_PKG_POWER_INFO...............(0x614) : 0x1280460
------------------------------------------
 - Thermal Spec Power................... : 140 Watt
 - Minimum Power........................ : 0
 - Maximum Power........................ : 0
 - Maximum Time Window.................. : 0

MSR_PP0_POWER_LIMIT..............(0x638) : 0x14FFD0
------------------------------------------
 - Power Limit.......................... : 4090 Watt
 - Enable Power Limit................... : 1 (enabled)
 - Clamping Limitation.................. : 0 (disabled)
 - Time Window for Power Limit.......... : 10 (10240 milli-Seconds)
 - Lock................................. : 0 (MSR not locked)

MSR_PP0_ENERGY_STATUS............(0x639) : 0x0

MSR_TURBO_ACTIVATION_RATIO.......(0x64C) : 0x0

MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x1E
MSR_CONFIG_TDP_LEVEL1............(0x649) : 0x940000001B0460
MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0x94000000000000
MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x0
MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0
MSR_PKGC6_IRTL...................(0x60b) : 0x0
MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x24A3225B60
MSR_PKG_C3_RESIDENCY.............(0x3f8) : 0x0
MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x29E09C14CC

IA32_TSC_DEADLINE................(0x6E0) : 0x2E4A6DBA32D

CPU Ratio Info:
------------------------------------------
Base Clock Frequency (BLCK)............. : 100 MHz
Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz)
Maximum non-Turbo Ratio/Frequency........: 30 (3000 MHz)
Maximum Turbo Ratio/Frequency............: 43 (4300 MHz)
P-State ratio * 100 = Frequency in MHz
------------------------------------------
CPU P-States [ 40 (43) ]
CPU C3-Cores [ 1 2 4 6 10 12 ]
CPU C6-Cores [ 0 2 4 7 8 11 12 14 ]
CPU P-States [ (12) 26 40 43 ]
CPU C3-Cores [ 0 1 2 4 6 7 10 12 ]
CPU C6-Cores [ 0 2 4 6 7 8 10 11 12 14 ]
CPU C6-Cores [ 0 2 4 5 6 7 8 10 11 12 14 ]
CPU P-States [ 12 26 33 40 (43) ]
CPU C6-Cores [ 0 1 2 4 5 6 7 8 10 11 12 14 ]
CPU P-States [ 12 26 33 36 40 (43) ]
CPU C3-Cores [ 0 1 2 4 6 7 10 12 13 ]
CPU P-States [ (12) 26 33 36 37 40 43 ]
CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 10 11 12 14 ]
CPU P-States [ (12) 26 31 33 36 37 40 43 ]
CPU C3-Cores [ 0 1 2 4 5 6 7 10 11 12 13 ]
CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 10 11 12 13 14 ]
CPU P-States [ (12) 26 31 33 34 36 37 40 43 ]
CPU P-States [ 12 26 31 32 33 34 36 37 40 (43) ]
CPU P-States [ (12) 26 27 31 32 33 34 36 37 40 43 ]
CPU P-States [ 12 26 27 31 32 33 34 36 37 38 40 (43) ]
CPU P-States [ 12 26 27 28 31 32 33 34 36 37 38 40 (43) ]
CPU C3-Cores [ 0 1 2 3 4 5 6 7 10 11 12 13 ]
CPU P-States [ 12 26 27 28 30 31 32 33 34 36 37 38 40 (43) ]
CPU P-States [ 12 26 27 28 30 31 32 33 34 36 37 38 40 41 (43) ]
CPU P-States [ 12 26 27 28 30 31 32 33 34 35 36 37 38 40 41 (43) ]
CPU P-States [ (12) 26 27 28 29 30 31 32 33 34 35 36 37 38 40 41 43 ]
CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 ]
CPU P-States [ 12 25 26 27 28 29 30 31 32 33 34 35 36 37 38 40 41 (43) ]
CPU P-States [ 12 25 26 27 28 29 30 31 32 33 34 35 36 37 38 40 41 42 (43) ]
CPU P-States [ (12) 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 40 41 42 43 ]
CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 ]
CPU P-States [ 12 22 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 40 41 42 (43) ]
CPU P-States [ 12 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 40 41 42 (43) ]
CPU P-States [ 12 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 40 41 42 (43) ]
CPU P-States [ 12 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 (43) ]
navaratnams-Pro:~ navaratnammanoranjan$

config.plist.zip

mfc88 · February 23, 2017

MSR_PP0_POWER_LIMIT..............(0x638) : 0x14FFD0
------------------------------------------
 - Power Limit.......................... : 4090 Watt
 - Enable Power Limit................... : 1 (enabled)
 - Clamping Limitation.................. : 0 (disabled)
 - Time Window for Power Limit.......... : 10 (10240 milli-Seconds)
 - Lock................................. : 0 (MSR not locked)

According to Pike, those values are incorrect. You should manually set the values in your BIOS according to CPU specs...

Not sure where it is on a Gigabyte board, but for Asus BIOS (see notes below):

MSR_PKG_POWER_LIMIT..............(0x610) : 0x7854000DF8460
------------------------------------------
 - Package Power Limit #1............... : 140 Watt // set this according to your CPU's max TDP in BIOS, Ai Tweaker/Internal CPU Power Management => "Long Duration Package Limiter"
 - Enable Power Limit #1................ : 1 (enabled)
 - Package Clamping Limitation #1....... : 1 (allow going below OS-requested P/T state during Time Window for Power Limit #1)
 - Time Window for Power Limit #1....... : 111 (327680 milli-Seconds) // set to 1-127mS in BIOS, Ai Tweaker/Internal CPU Power Management => "Power Package Time Window"
 - Package Power Limit #2............... : 168 Watt // set according to your CPU's max TDP + 20% in BIOS, Ai Tweaker/Internal CPU Power Management => "Short Duration Package Limiter"
 - Enable Power Limit #2................ : 1 (enabled)
 - Package Clamping Limitation #2....... : 1 (allow going below OS-requested P/T state setting Time Window for Power Limit #2)
 - Time Window for Power Limit #2....... : 3 (20 milli-Seconds)
 - Lock................................. : 0 (MSR not locked)

mfc88 · February 23, 2017

Here's the correct location for setting TDP package settings (for Asus):
AI Tweaker/Internal CPU Power Management:

Set according to YOUR CPU specs:

((The following assumes you're not overclocking, otherwise, you'll have to adjust these figures to factor in the higher vCore usage))
L.D.P.P.L. = Max TDP according to Intel CPU specs
P.P.T.W. = Time (in seconds) before clocks are reduced when hitting L.D.P.P.L
S.D.P.P.L. = Max TDP + 20% (if hitting this TDP, it'll reduce clocks immediately)

mfc88 · February 23, 2017

Looks like the pop and freeze may not be related to audio... resetting everything back to the way it was and trying to eliminate the root...

PMheart · February 23, 2017

That's weird. AFAIK a wrong CPU Bus Speed may cause a popping sound...

Sent from my iPhone 7 using Tapatalk

mfc88 · February 23, 2017

That's weird. AFAIK a wrong CPU Bus Speed may cause a popping sound...

Sent from my iPhone 7 using Tapatalk

Could because of the XCPM patch I removed... hard to tell... seems to happen every 2 hours or so...

This one in particular:

F: BE0200000031D2E86CFCFFFF
R: BE0200000031D29090909090
C: _xcpm_core_scope_msrs  © Pike R. Alpha

PMheart · February 23, 2017

Could because of the XCPM patch I removed... hard to tell... seems to happen every 2 hours or so...

This one in particular:
F: BE0200000031D2E86CFCFFFFR: BE0200000031D29090909090C: _xcpm_core_scope_msrs   Pike R. Alpha

I don't think so. Seriously... But anyway. You can also try to add it back.

Sent from my iPhone 7 using Tapatalk

mfc88 · February 23, 2017

I don't think so. Seriously... But anyway. You can also try to add it back.

Sent from my iPhone 7 using Tapatalk

I reset my S/L/E back to where I had it and included ONE of the AHCI port injector's. Continuing to run without the XCPM patch. I'll update if it still pops/freezes.

Update: Pop/Freeze without XCPM patch. Re-adding the patch and continuing testing. If this fails, it may the BIOS TDP settings, which I'll reset. If I get another freeze, then I'll swap over to my primary drive and check and see if this a possible hardware failure.

Despite loosing residency (missing C1-C3 states auto demotion as well)

MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x0

MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x0

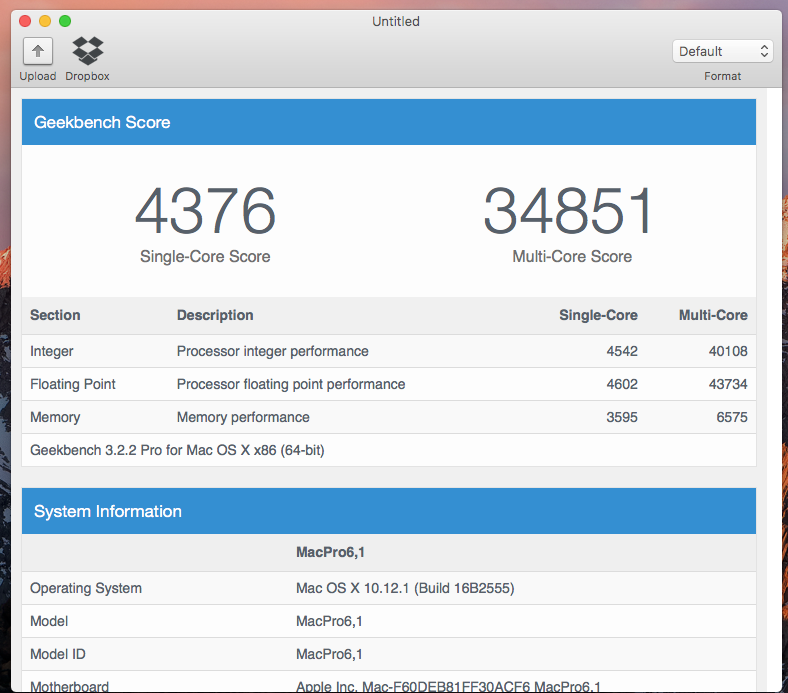

Performance remains the same (idle remains similar, but I only have two states: 1200 and 3700):

PMheart · February 24, 2017

I reset my S/L/E back to where I had it and included ONE of the AHCI port injector's. Continuing to run without the XCPM patch. I'll update if it still pops/freezes.

Update: Pop/Freeze without XCPM patch. Re-adding the patch and continuing testing. If this fails, it may the BIOS TDP settings, which I'll reset. If I get another freeze, then I'll swap over to my primary drive and check and see if this a possible hardware failure.

Despite loosing residency (missing C1-C3 states auto demotion as well)

MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x0

MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x0

Performance remains the same (idle remains similar, but I only have two states: 1200 and 3700):

I see.

So what you mean? I assume that you have to re-add your previously removed patch related to XCPM back right?

And if not, you will only get 2 P-States like this?

Hmm...

mfc88 · February 24, 2017

I see.

So what you mean? I assume that you have to re-add your previously removed patch related to XCPM back right?

And if not, you will only get 2 P-States like this?

Hmm...

Re-added the XCPM patch (the one I mentioned above). Been running about 3-4 hours and no freezing (so far). However, as you can see, I lost CPU states (see added notes in code box below):

AppleIntelInfo.kext v2.0 Copyright © 2012-2016 Pike R. Alpha. All rights reserved
enableHWP................................: 0

Settings:
------------------------------------------
logMSRs..................................: 1
logIGPU..................................: 0
logCStates...............................: 1
logIPGStyle..............................: 1
InitialTSC...............................: 0xb16f328fda (21 MHz)
MWAIT C-States...........................: 8480

Processor Brandstring....................: Intel(R) Core(TM) i7-5930K CPU @ 3.50GHz

Processor Signature..................... : 0x306F2
------------------------------------------
 - Family............................... : 6
 - Stepping............................. : 2
 - Model................................ : 0x3F (63)

Model Specific Registers (MSRs)
------------------------------------------

MSR_CORE_THREAD_COUNT............(0x35)  : 0xFFFFFF805200A400
------------------------------------------
 - Core Count........................... : 6
 - Thread Count......................... : 12

MSR_PLATFORM_INFO................(0xCE)  : 0x20080C3BF3812300
------------------------------------------
 - Maximum Non-Turbo Ratio.............. : 0x23 (3500 MHz)
 - Ratio Limit for Turbo Mode........... : 1 (programmable)
 - TDP Limit for Turbo Mode............. : 1 (programmable)
 - Low Power Mode Support............... : 1 (LPM supported)
 - Number of ConfigTDP Levels........... : 1 (additional TDP level(s) available)
 - Maximum Efficiency Ratio............. : 12
 - Minimum Operating Ratio.............. : 8

MSR_PMG_CST_CONFIG_CONTROL.......(0xE2)  : 0x400
------------------------------------------
 - I/O MWAIT Redirection Enable......... : 1 (enabled, IO read of MSR(0xE4) mapped to MWAIT) // was not enabled
 - CFG Lock............................. : 0 (MSR not locked)
 - C3 State Auto Demotion............... : 0 (disabled/unsupported) // missing
 - C1 State Auto Demotion............... : 0 (disabled/unsupported) // missing
 - C3 State Undemotion.................. : 0 (disabled/unsupported) // missing
 - C1 State Undemotion.................. : 0 (disabled/unsupported) // missing
 - Package C-State Auto Demotion........ : 0 (disabled/unsupported)
 - Package C-State Undemotion........... : 0 (disabled/unsupported)

MSR_PMG_IO_CAPTURE_BASE..........(0xE4)  : 0x10414
------------------------------------------
 - LVL_2 Base Address................... : 0x414
 - C-state Range........................ : 1 (C6 is the max C-State to include)

IA32_MPERF.......................(0xE7)  : 0x5C8FD82A8
IA32_APERF.......................(0xE8)  : 0x5BF0537D5

MSR_FLEX_RATIO...................(0x194) : 0xE0000
------------------------------------------

MSR_IA32_PERF_STATUS.............(0x198) : 0x236F00002500
------------------------------------------
 - Current Performance State Value...... : 0x2500 (3700 MHz)

MSR_IA32_PERF_CONTROL............(0x199) : 0xC00
------------------------------------------
 - Target performance State Value....... : 0xC00 (1200 MHz)
 - Intel Dynamic Acceleration........... : 0 (IDA engaged)

IA32_CLOCK_MODULATION............(0x19A) : 0x0

IA32_THERM_INTERRUPT.............(0x19B) : 0x0

IA32_THERM_STATUS................(0x19C) : 0x88470800
------------------------------------------
 - Thermal Status....................... : 0
 - Thermal Log.......................... : 0
 - PROCHOT # or FORCEPR# event.......... : 0
 - PROCHOT # or FORCEPR# log............ : 0
 - Critical Temperature Status.......... : 0
 - Critical Temperature log............. : 0
 - Thermal Threshold #1 Status.......... : 0
 - Thermal Threshold #1 log............. : 0
 - Thermal Threshold #2 Status.......... : 0
 - Thermal Threshold #2 log............. : 0
 - Power Limitation Status.............. : 0
 - Power Limitation log................. : 1
 - Current Limit Status................. : 0
 - Current Limit log.................... : 0
 - Cross Domain Limit Status............ : 0
 - Cross Domain Limit log............... : 0
 - Digital Readout...................... : 71
 - Resolution in Degrees Celsius........ : 1
 - Reading Valid........................ : 1 (valid)

MSR_THERM2_CTL...................(0x19D) : 0x0

IA32_MISC_ENABLES................(0x1A0) : 0x840089
------------------------------------------
 - Fast-Strings......................... : 1 (enabled)
 - FOPCODE compatibility mode Enable.... : 0
 - Automatic Thermal Control Circuit.... : 1 (enabled)
 - Split-lock Disable................... : 0
 - Performance Monitoring............... : 1 (available)
 - Bus Lock On Cache Line Splits Disable : 0
 - Hardware prefetch Disable............ : 0
 - Processor Event Based Sampling....... : 0 (PEBS supported)
 - GV1/2 legacy Enable.................. : 0
 - Enhanced Intel SpeedStep Technology.. : 0 (disabled)
 - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported)
 - Adjacent sector prefetch Disable..... : 0
 - CFG Lock............................. : 0 (MSR not locked)
 - xTPR Message Disable................. : 1 (disabled)

MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x640A00
------------------------------------------
 - Turbo Attenuation Units.............. : 0
 - Temperature Target................... : 100
 - TCC Activation Offset................ : 0

MSR_MISC_PWR_MGMT................(0x1AA) : 0x400000
------------------------------------------
 - EIST Hardware Coordination........... : 0 (hardware coordination enabled)
 - Energy/Performance Bias support...... : 1
 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software)
 - Thermal Interrupt Coordination Enable : 1 (thermal interrupt routed to all cores)

MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x2424252525252525
------------------------------------------
 - Maximum Ratio Limit for C01.......... : 25 (3700 MHz)
 - Maximum Ratio Limit for C02.......... : 25 (3700 MHz)
 - Maximum Ratio Limit for C03.......... : 25 (3700 MHz)
 - Maximum Ratio Limit for C04.......... : 25 (3700 MHz)
 - Maximum Ratio Limit for C05.......... : 25 (3700 MHz)
 - Maximum Ratio Limit for C06.......... : 25 (3700 MHz)

IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x0

MSR_POWER_CTL....................(0x1FC) : 0x29040059
------------------------------------------
 - Bi-Directional Processor Hot..........: 1 (enabled)
 - C1E Enable............................: 0 (disabled) // missing

MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03
------------------------------------------
 - Power Units.......................... : 3 (1/8 Watt)
 - Energy Status Units.................. : 14 (61 micro-Joules)
 - Time Units .......................... : 10 (976.6 micro-Seconds)

MSR_PKG_POWER_LIMIT..............(0x610) : 0x7854000DF8460
------------------------------------------
 - Package Power Limit #1............... : 140 Watt
 - Enable Power Limit #1................ : 1 (enabled)
 - Package Clamping Limitation #1....... : 1 (allow going below OS-requested P/T state during Time Window for Power Limit #1)
 - Time Window for Power Limit #1....... : 111 (327680 milli-Seconds)
 - Package Power Limit #2............... : 168 Watt
 - Enable Power Limit #2................ : 1 (enabled)
 - Package Clamping Limitation #2....... : 1 (allow going below OS-requested P/T state setting Time Window for Power Limit #2)
 - Time Window for Power Limit #2....... : 3 (20 milli-Seconds)
 - Lock................................. : 0 (MSR not locked)

MSR_PKG_ENERGY_STATUS............(0x611) : 0x17F9C3E
------------------------------------------
 - Total Energy Consumed................ : 1534 Joules (Watt = Joules / seconds)

MSR_PKG_POWER_INFO...............(0x614) : 0x1280460
------------------------------------------
 - Thermal Spec Power................... : 140 Watt
 - Minimum Power........................ : 0
 - Maximum Power........................ : 0
 - Maximum Time Window.................. : 0

MSR_PP0_POWER_LIMIT..............(0x638) : 0x0

MSR_PP0_ENERGY_STATUS............(0x639) : 0x0

MSR_TURBO_ACTIVATION_RATIO.......(0x64C) : 0x0

MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x23
MSR_CONFIG_TDP_LEVEL1............(0x649) : 0x94000000200460
MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0x94000000000000
MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x0
MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0
MSR_PKGC6_IRTL...................(0x60b) : 0x0
MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x0 // missing
(MSR_PKG_C3_RESIDENCY.............(0x3f8) : 0x0 // not reported and missing)
MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x0 // missing

IA32_TSC_DEADLINE................(0x6E0) : 0xB1743DD206

CPU Ratio Info:
------------------------------------------
Base Clock Frequency (BLCK)............. : 100 MHz
Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz)
Maximum non-Turbo Ratio/Frequency........: 35 (3500 MHz)
Maximum Turbo Ratio/Frequency............: 37 (3700 MHz)
P-State ratio * 100 = Frequency in MHz
------------------------------------------
CPU P-States [ (12) 29 37 ]
CPU C6-Cores [ 1 2 4 6 8 10 ]
CPU P-States [ 12 19 29 (37) ]
CPU C6-Cores [ 1 2 3 4 5 6 7 8 9 10 11 ]
CPU P-States [ (12) 19 23 29 37 ]
CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 ]
CPU P-States [ 12 19 22 23 29 (37) ]
CPU P-States [ (12) 19 22 23 29 30 37 ]
CPU P-States [ 12 18 19 22 23 29 30 (37) ]
CPU P-States [ (12) 18 19 22 23 26 29 30 37 ]
CPU P-States [ (12) 18 19 20 22 23 26 29 30 37 ]
CPU P-States [ (12) 15 18 19 20 22 23 26 29 30 37 ]
CPU P-States [ (12) 15 18 19 20 22 23 26 29 30 31 37 ]
CPU P-States [ (12) 15 18 19 20 22 23 26 29 30 31 35 37 ]
CPU P-States [ (12) 15 18 19 20 22 23 25 26 29 30 31 35 37 ]
CPU P-States [ 12 15 17 18 19 20 22 23 25 26 29 30 31 35 (37) ]
CPU P-States [ 12 15 16 17 18 19 20 22 23 25 26 29 30 31 35 (37) ]
CPU P-States [ (12) 15 16 17 18 19 20 22 23 24 25 26 29 30 31 35 37 ]
CPU P-States [ (12) 15 16 17 18 19 20 21 22 23 24 25 26 29 30 31 35 37 ]
CPU P-States [ (12) 15 16 17 18 19 20 21 22 23 24 25 26 27 29 30 31 35 37 ]
CPU P-States [ (12) 13 15 16 17 18 19 20 21 22 23 24 25 26 27 29 30 31 35 37 ]
CPU P-States [ (12) 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 29 30 31 35 37 ]
CPU P-States [ 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 29 30 31 35 36 (37) ]
CPU P-States [ (12) 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 35 36 37 ]
CPU P-States [ 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 35 36 (37) ]
CPU P-States [ (12) 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 35 36 37 ]
CPU P-States [ (12) 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 ]

Also CPU-S only recognizes lowest multiplier and turbo (without the XCPM patch mentioned above, I get base 3500Mhz as well):


PMheart · February 24, 2017

Re-added the XCPM patch (the one I mentioned above). Been running about 3-4 hours and no freezing (so far). However, as you can see, I lost CPU states:

AppleIntelInfo.kext v2.0 Copyright © 2012-2016 Pike R. Alpha. All rights reserved
enableHWP................................: 0

Settings:
------------------------------------------
logMSRs..................................: 1
logIGPU..................................: 0
logCStates...............................: 1
logIPGStyle..............................: 1
InitialTSC...............................: 0xb16f328fda (21 MHz)
MWAIT C-States...........................: 8480

Processor Brandstring....................: Intel(R) Core(TM) i7-5930K CPU @ 3.50GHz

Processor Signature..................... : 0x306F2
------------------------------------------
 - Family............................... : 6
 - Stepping............................. : 2
 - Model................................ : 0x3F (63)

Model Specific Registers (MSRs)
------------------------------------------

MSR_CORE_THREAD_COUNT............(0x35)  : 0xFFFFFF805200A400
------------------------------------------
 - Core Count........................... : 6
 - Thread Count......................... : 12

MSR_PLATFORM_INFO................(0xCE)  : 0x20080C3BF3812300
------------------------------------------
 - Maximum Non-Turbo Ratio.............. : 0x23 (3500 MHz)
 - Ratio Limit for Turbo Mode........... : 1 (programmable)
 - TDP Limit for Turbo Mode............. : 1 (programmable)
 - Low Power Mode Support............... : 1 (LPM supported)
 - Number of ConfigTDP Levels........... : 1 (additional TDP level(s) available)
 - Maximum Efficiency Ratio............. : 12
 - Minimum Operating Ratio.............. : 8

MSR_PMG_CST_CONFIG_CONTROL.......(0xE2)  : 0x400
------------------------------------------
 - I/O MWAIT Redirection Enable......... : 1 (enabled, IO read of MSR(0xE4) mapped to MWAIT)
 - CFG Lock............................. : 0 (MSR not locked)
 - C3 State Auto Demotion............... : 0 (disabled/unsupported)
 - C1 State Auto Demotion............... : 0 (disabled/unsupported)
 - C3 State Undemotion.................. : 0 (disabled/unsupported)
 - C1 State Undemotion.................. : 0 (disabled/unsupported)
 - Package C-State Auto Demotion........ : 0 (disabled/unsupported)
 - Package C-State Undemotion........... : 0 (disabled/unsupported)

MSR_PMG_IO_CAPTURE_BASE..........(0xE4)  : 0x10414
------------------------------------------
 - LVL_2 Base Address................... : 0x414
 - C-state Range........................ : 1 (C6 is the max C-State to include)

IA32_MPERF.......................(0xE7)  : 0x5C8FD82A8
IA32_APERF.......................(0xE8)  : 0x5BF0537D5

MSR_FLEX_RATIO...................(0x194) : 0xE0000
------------------------------------------

MSR_IA32_PERF_STATUS.............(0x198) : 0x236F00002500
------------------------------------------
 - Current Performance State Value...... : 0x2500 (3700 MHz)

MSR_IA32_PERF_CONTROL............(0x199) : 0xC00
------------------------------------------
 - Target performance State Value....... : 0xC00 (1200 MHz)
 - Intel Dynamic Acceleration........... : 0 (IDA engaged)

IA32_CLOCK_MODULATION............(0x19A) : 0x0

IA32_THERM_INTERRUPT.............(0x19B) : 0x0

IA32_THERM_STATUS................(0x19C) : 0x88470800
------------------------------------------
 - Thermal Status....................... : 0
 - Thermal Log.......................... : 0
 - PROCHOT # or FORCEPR# event.......... : 0
 - PROCHOT # or FORCEPR# log............ : 0
 - Critical Temperature Status.......... : 0
 - Critical Temperature log............. : 0
 - Thermal Threshold #1 Status.......... : 0
 - Thermal Threshold #1 log............. : 0
 - Thermal Threshold #2 Status.......... : 0
 - Thermal Threshold #2 log............. : 0
 - Power Limitation Status.............. : 0
 - Power Limitation log................. : 1
 - Current Limit Status................. : 0
 - Current Limit log.................... : 0
 - Cross Domain Limit Status............ : 0
 - Cross Domain Limit log............... : 0
 - Digital Readout...................... : 71
 - Resolution in Degrees Celsius........ : 1
 - Reading Valid........................ : 1 (valid)

MSR_THERM2_CTL...................(0x19D) : 0x0

IA32_MISC_ENABLES................(0x1A0) : 0x840089
------------------------------------------
 - Fast-Strings......................... : 1 (enabled)
 - FOPCODE compatibility mode Enable.... : 0
 - Automatic Thermal Control Circuit.... : 1 (enabled)
 - Split-lock Disable................... : 0
 - Performance Monitoring............... : 1 (available)
 - Bus Lock On Cache Line Splits Disable : 0
 - Hardware prefetch Disable............ : 0
 - Processor Event Based Sampling....... : 0 (PEBS supported)
 - GV1/2 legacy Enable.................. : 0
 - Enhanced Intel SpeedStep Technology.. : 0 (disabled)
 - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported)
 - Adjacent sector prefetch Disable..... : 0
 - CFG Lock............................. : 0 (MSR not locked)
 - xTPR Message Disable................. : 1 (disabled)

MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x640A00
------------------------------------------
 - Turbo Attenuation Units.............. : 0
 - Temperature Target................... : 100
 - TCC Activation Offset................ : 0

MSR_MISC_PWR_MGMT................(0x1AA) : 0x400000
------------------------------------------
 - EIST Hardware Coordination........... : 0 (hardware coordination enabled)
 - Energy/Performance Bias support...... : 1
 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software)
 - Thermal Interrupt Coordination Enable : 1 (thermal interrupt routed to all cores)

MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x2424252525252525
------------------------------------------
 - Maximum Ratio Limit for C01.......... : 25 (3700 MHz)
 - Maximum Ratio Limit for C02.......... : 25 (3700 MHz)
 - Maximum Ratio Limit for C03.......... : 25 (3700 MHz)
 - Maximum Ratio Limit for C04.......... : 25 (3700 MHz)
 - Maximum Ratio Limit for C05.......... : 25 (3700 MHz)
 - Maximum Ratio Limit for C06.......... : 25 (3700 MHz)

IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x0

MSR_POWER_CTL....................(0x1FC) : 0x29040059
------------------------------------------
 - Bi-Directional Processor Hot..........: 1 (enabled)
 - C1E Enable............................: 0 (disabled)

MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03
------------------------------------------
 - Power Units.......................... : 3 (1/8 Watt)
 - Energy Status Units.................. : 14 (61 micro-Joules)
 - Time Units .......................... : 10 (976.6 micro-Seconds)

MSR_PKG_POWER_LIMIT..............(0x610) : 0x7854000DF8460
------------------------------------------
 - Package Power Limit #1............... : 140 Watt
 - Enable Power Limit #1................ : 1 (enabled)
 - Package Clamping Limitation #1....... : 1 (allow going below OS-requested P/T state during Time Window for Power Limit #1)
 - Time Window for Power Limit #1....... : 111 (327680 milli-Seconds)
 - Package Power Limit #2............... : 168 Watt
 - Enable Power Limit #2................ : 1 (enabled)
 - Package Clamping Limitation #2....... : 1 (allow going below OS-requested P/T state setting Time Window for Power Limit #2)
 - Time Window for Power Limit #2....... : 3 (20 milli-Seconds)
 - Lock................................. : 0 (MSR not locked)

MSR_PKG_ENERGY_STATUS............(0x611) : 0x17F9C3E
------------------------------------------
 - Total Energy Consumed................ : 1534 Joules (Watt = Joules / seconds)

MSR_PKG_POWER_INFO...............(0x614) : 0x1280460
------------------------------------------
 - Thermal Spec Power................... : 140 Watt
 - Minimum Power........................ : 0
 - Maximum Power........................ : 0
 - Maximum Time Window.................. : 0

MSR_PP0_POWER_LIMIT..............(0x638) : 0x0

MSR_PP0_ENERGY_STATUS............(0x639) : 0x0

MSR_TURBO_ACTIVATION_RATIO.......(0x64C) : 0x0

MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x23
MSR_CONFIG_TDP_LEVEL1............(0x649) : 0x94000000200460
MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0x94000000000000
MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x0
MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0
MSR_PKGC6_IRTL...................(0x60b) : 0x0
MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x0
MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x0

IA32_TSC_DEADLINE................(0x6E0) : 0xB1743DD206

CPU Ratio Info:
------------------------------------------
Base Clock Frequency (BLCK)............. : 100 MHz
Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz)
Maximum non-Turbo Ratio/Frequency........: 35 (3500 MHz)
Maximum Turbo Ratio/Frequency............: 37 (3700 MHz)
P-State ratio * 100 = Frequency in MHz
------------------------------------------
CPU P-States [ (12) 29 37 ]
CPU C6-Cores [ 1 2 4 6 8 10 ]
CPU P-States [ 12 19 29 (37) ]
CPU C6-Cores [ 1 2 3 4 5 6 7 8 9 10 11 ]
CPU P-States [ (12) 19 23 29 37 ]
CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 ]
CPU P-States [ 12 19 22 23 29 (37) ]
CPU P-States [ (12) 19 22 23 29 30 37 ]
CPU P-States [ 12 18 19 22 23 29 30 (37) ]
CPU P-States [ (12) 18 19 22 23 26 29 30 37 ]
CPU P-States [ (12) 18 19 20 22 23 26 29 30 37 ]
CPU P-States [ (12) 15 18 19 20 22 23 26 29 30 37 ]
CPU P-States [ (12) 15 18 19 20 22 23 26 29 30 31 37 ]
CPU P-States [ (12) 15 18 19 20 22 23 26 29 30 31 35 37 ]
CPU P-States [ (12) 15 18 19 20 22 23 25 26 29 30 31 35 37 ]
CPU P-States [ 12 15 17 18 19 20 22 23 25 26 29 30 31 35 (37) ]
CPU P-States [ 12 15 16 17 18 19 20 22 23 25 26 29 30 31 35 (37) ]
CPU P-States [ (12) 15 16 17 18 19 20 22 23 24 25 26 29 30 31 35 37 ]
CPU P-States [ (12) 15 16 17 18 19 20 21 22 23 24 25 26 29 30 31 35 37 ]
CPU P-States [ (12) 15 16 17 18 19 20 21 22 23 24 25 26 27 29 30 31 35 37 ]
CPU P-States [ (12) 13 15 16 17 18 19 20 21 22 23 24 25 26 27 29 30 31 35 37 ]
CPU P-States [ (12) 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 29 30 31 35 37 ]
CPU P-States [ 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 29 30 31 35 36 (37) ]
CPU P-States [ (12) 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 35 36 37 ]
CPU P-States [ 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 35 36 (37) ]
CPU P-States [ (12) 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 35 36 37 ]
CPU P-States [ (12) 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 ]

Also CPU-S only recognizes lowest multiplier and turbo (without the XCPM patch mentioned above, I get base 3500Mhz as well):

Ok. Congratulations!

In this case. Just keep that patch.

BTW. You are currently using AppleALC or the dummy kext that I gave you yesterday?

mfc88 · February 24, 2017

Ok. Congratulations!

In this case. Just keep that patch.

BTW. You are currently using AppleALC or the dummy kext that I gave you yesterday?

No congratulations. I'm still having CPU PM problems (missing power stepping)!!!

AppleALC. I'll switch over to your dummy kext tomorrow. Just want to be 100% sure it's the XCPM patch causing the freezes.

As far as performance, with the patch, it's relatively the same (as shown above). However, I noticed that it doesn't really idle (frequency spiking between 1.70ghz-2.95ghz || power hovers around 15W-17W //// without the patch, frequency stays between 1.45ghz-1.90ghz and power hovers around 12w-13w -- in other words, missing a base stepping frequency of 3.5hz):

PMheart · February 24, 2017

No congratulations. I'm still having CPU PM problems (missing power stepping)!!!

AppleALC. I'll switch over to your dummy kext tomorrow. Just want to be 100% sure it's the XCPM patch causing the freezes.

As far as performance, with the patch, it's relatively the same (as shown above). However, I noticed that it doesn't really idle (frequency spiking between 1.70ghz-2.95ghz || power hovers around 15W-17W //// without the patch, frequency stays between 1.45ghz-1.90ghz and power hovers around 12w-13w -- in other words, missing a base stepping frequency of 3.5hz):

Oops I'm a little confused...

So.

With the patch. You can't idle.

Without the patch. You can. But. You will got popping sound etc and you cannot get a high performance.

Is above right?

mfc88 · February 24, 2017

Oops I'm a little confused...

So.

With the patch. You can't idle.

Without the patch. You can. But. You will got popping sound etc and you cannot get a high performance.

Is above right?

The problem isn't so much the popping sound, but the fact that it locks up the entire computer and I have to hard reset it.

PMheart · February 24, 2017

The problem isn't so much the popping sound, but the fact that it locks up the entire computer and I have to hard reset it.

Yep that's also what I mean

Anyway, potential issues... Need further testing and.. waiting for it!

thenightflyer · February 24, 2017

Got a loud popping sound, then my computer froze (no KP). No crash reports in console.

Yes. However, I recommend not to use EIST in BIOS. I tested with it and found that it only achieved slightly above low scores (~15k for my CPU).

I have EIST enabled in bios with that patch in config and i've high scores too, but maybe it's because i've a different CPU i don't need to overclock.

mfc88 · February 25, 2017

Yep that's also what I mean

Anyway, potential issues... Need further testing and.. waiting for it!

As I suspected, it was the missing XCPM patch (without it, not stable). No more popping/freezing. Also, switched over to AppleHDA dummy kext.

PMheart · February 25, 2017

As I suspected, it was the missing XCPM patch (without it, not stable). No more popping/freezing. Also, switched over to AppleHDA dummy kext.

Ok. Glad to hear that !

Congratulations.

mfc88 · February 25, 2017

Update to Sierra 12.4 Beta 3 (16E163f) and Clover r4012.

Again everything went well, without any intervention from me after the update. Just missing the new NV Web Drive to have full acceleration...

Can you do me a favor and run a Geekbench 4.04 test. I'm curious if you're getting full CPU PM.

PMheart · February 25, 2017

As I suspected, it was the missing XCPM patch (without it, not stable). No more popping/freezing. Also, switched over to AppleHDA dummy kext.

And btw. Try to get rid of CodecCommander and just use my AppleHDA related patches from my config.plist sample above then test whether you can get sound after waking please?

mfc88 · February 25, 2017

And btw. Try to get rid of CodecCommander and just use my AppleHDA related patches from my config.plist sample above then test whether you can get sound after waking please?

CodecCommander was removed alongside AppleALC.

Last time I checked, sleep was partially broken. So I don't use it. (short sleep is ok (1-2min), but long sleep (15 min+) results in a black screen on wake)

PMheart · February 25, 2017

CodecCommander was removed alongside AppleALC.

Last time I checked, sleep was partially broken. So I don't use it. (short sleep is ok (1-2min), but long sleep (15 min+) results in a black screen on wake)

Yup. I see.

But could you get sound properly without CodecCommander?

BTW. Same here. Previously CodecCommander caused a KP on my hack after waking. But actually. I found that I had no need for it later on

mfc88 · February 25, 2017

Yup. I see.

But could you get sound properly without CodecCommander?

BTW. Same here. Previously CodecCommander caused a KP on my hack after waking. But actually. I found that I had no need for it later on

In my limited testing (4-5 hours), I haven't needed the CodecCommander.kext to run normally (again, I don't use sleep).

PMheart · February 25, 2017

In my limited testing (4-5 hours), I haven't needed the CodecCommander.kext to run normally (again, I don't use sleep).

I see. If you don't sleep then you will have no need for it absolutely.

[Guide] Mac OSX 10.12 and 10.13 with X99 Broadwell-E family and Haswell-E family

Recommended Posts

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites
