Hi Guys,



I have the following hardware:



ASRock X99E-itx/ac using a 5960x

RAM Patriot 32GB

SSD Crucial MX-300 1TB

ASUS GTX 960 4GB



And I tried to make fresh install of 10.12.3, without any success.

I created flash drive (USB 3.0 32GB) with 10.12.3, then installed latest Clover on it and then copied files from 'Mac osx Installer' archive.

After all recommended settings in BIOS, I tried boot, but unfortunately without success.

What's wrong?

Could you please help me with right setup?

Thanks!

Attach your EFI folder and what errors (if any) you are getting.

[alcher67]

Attach your EFI folder and what errors (if any) you are getting.



EFI exactly the same like in the archive from the first page, including config.plist (also from this archive, unchanged).

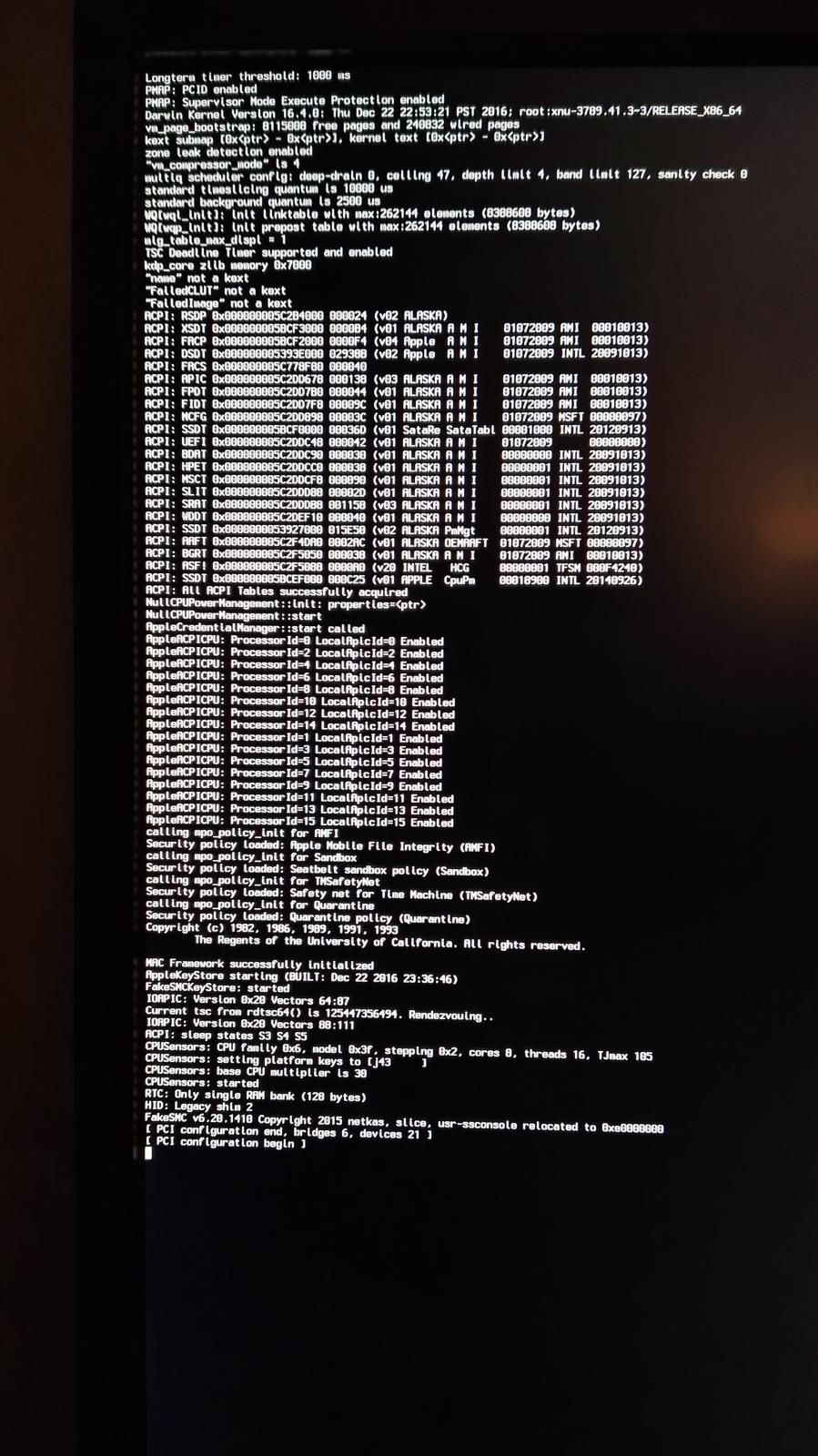

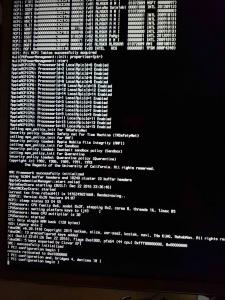

After 15 seconds after boot, I have STOP sign in the center of screen.

Boot screen is below.



[mfc88]

EFI exactly the same like in the archive from the first page, including config.plist (also from this archive, unchanged).

After 15 seconds after boot, I have STOP sign in the center of screen.

Boot screen is below.




Usually when it stops there it's a CPU issue (not always).



I suggest starting from scratch and not using someone else's EFI folder. Do me a favor and install the latest clover: https://sourceforge.net/projects/cloverefiboot/

In EFI->CLOVER->Drivers64 -- Replace OsxAptioFixDrv-64.efi with this 20000_OsxAptioFixDrv-64.efi.zip or with this: OsxAptioFix2Drv-free2000.efi

!!!Only use one, not both!!!



Create a new config.plist...



In config.plist, under Boot, boot arguments, check:

- verbose (-v)

- npci=0x3000

- nv_disable=1



In config.plist, under Graphics:

- Inject nvidia => checked



In config.plist, under KernelAndKextsToPatch:

KextsToPatch
Name: IOPCIFamily
Find: 4881FB00000040
Replace: 4881FB00000080
Comment: 5960X 10.12 Brumbaer

KernelToPatch (optional if causing random reboots on OS entry)
Find: 554889E5415741564155415453504189D64189F74889FB4585FF0F84
Replace: C34889E5415741564155415453504189D64189F74889FB4585FF0F84
Comment: reboot fix 10.12 © Pike R. Alpha

In config.plist, under RT variables:

Bootconfig => 0x28

CsrActivConfig => 0x67



In config.plist, under SMBIOS:

Use the magic wand and create a Mac Pro 6,1 SMBIOS



In config.plist, under System Paramenters:

Injects Kexts => Yes

System ID => checked



And you'll want to add Voodootsync, FakeSMC and IntelMausiEthernet to your EFI->CLOVER->kexts->10.12 folder...



Note: This removes a lot of functionality, but we'll work our way to a better hack in small steps!



If you're still having problems, when at the Clover boot screen (not loading up the OS), dump your ACPI tables (press F4 then wait 5 seconds). Then you're going to need to mount the drive and grab the entire EFI folder and paste it here.

kexts.zip

[fedemax-t]

Hello all and thanks for this topic!

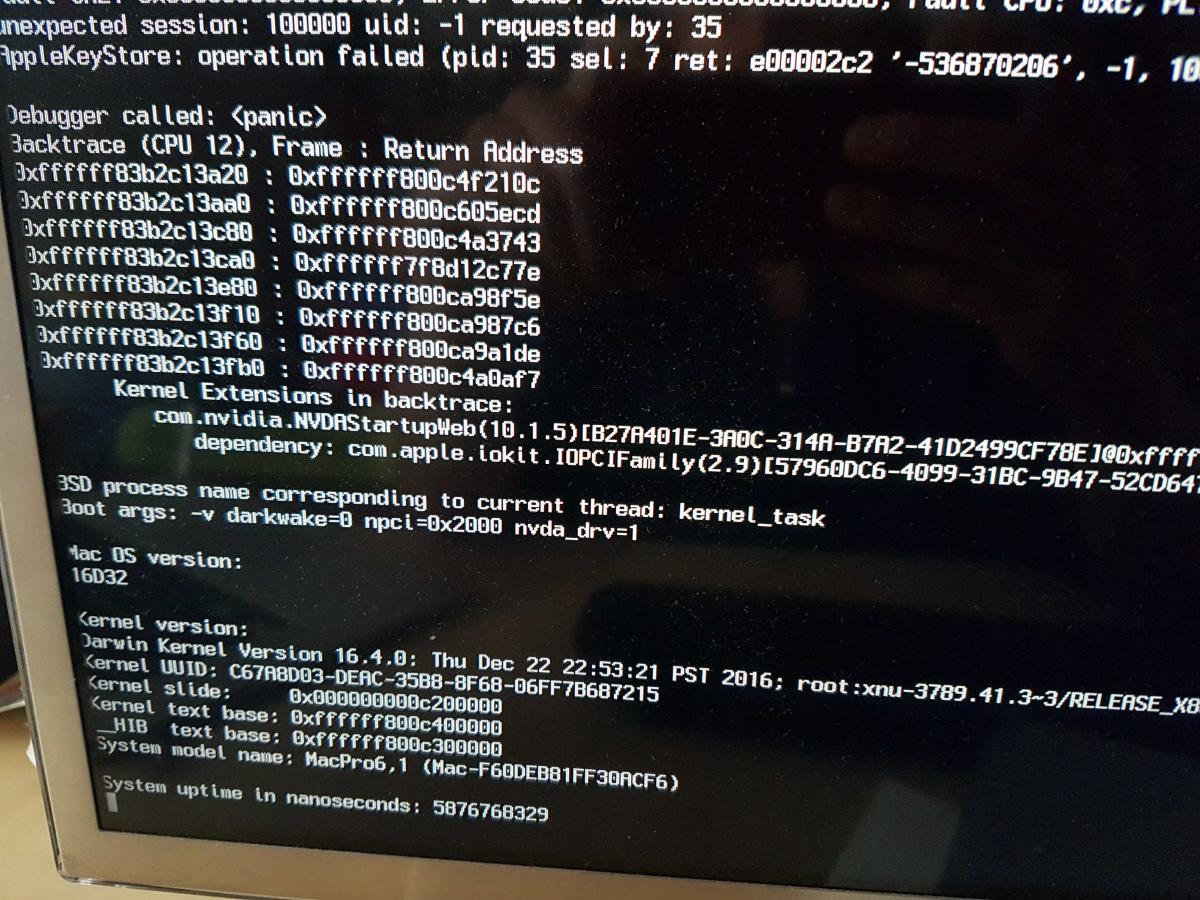

I need help, my computer reboots after "system uptime in nanosecond" (see attached reboot.jpeg)

I bet my patched DSDT is somehow responsible, I tried everything b4 asking you, but i´m stuck since last week.



I attach also my EFI folder & the IOreg

Hope you can help!

thx



My configuration

Sierra 10.12.3

5960x

Gigabyte x99 ud4

zotac gtx 980

samsung evo 500gb

EFI.zip

IOReg_Mac Pro.zip

[fedemax-t]

Thanks Fabiosun,



I´ll clean it up straight away.



Do you have any suggestion for a DSDT.aml working on UD4?

Under SystemReport->PCI I still have "There was an error gathering PCI device"



Thanks again

DSDT.aml.zip

[mfc88]

Hello all and thanks for this topic!



I need help, my computer reboots after "system uptime in nanosecond" (see attached reboot.jpeg)

I bet my patched DSDT is somehow responsible, I tried everything b4 asking you, but i´m stuck since last week.



I attach also my EFI folder & the IOreg

Hope you can help!

thx



My configuration

Sierra 10.12.3

5960x

Gigabyte x99 ud4

zotac gtx 980

samsung evo 500gb

Try this...



Update: Forgot to add an internet kext, add IntelMausiEthernet to EFI->CLOVER->kexts->10.12

[fedemax-t]

Try this...

Hey mfc88, thanks for your help.



With the EFI you sent back it hangs at PCI configuration begin.

ill post now my original dsdt with F4 clover

This is my original ACPI output (F4 on clover boot), I´ll attach my ioreg too.



im on:

Sierra 10.12.3

5960x

Gigabyte x99 ud4

zotac gtx 980

samsung evo 500gb

#######

#update#

########

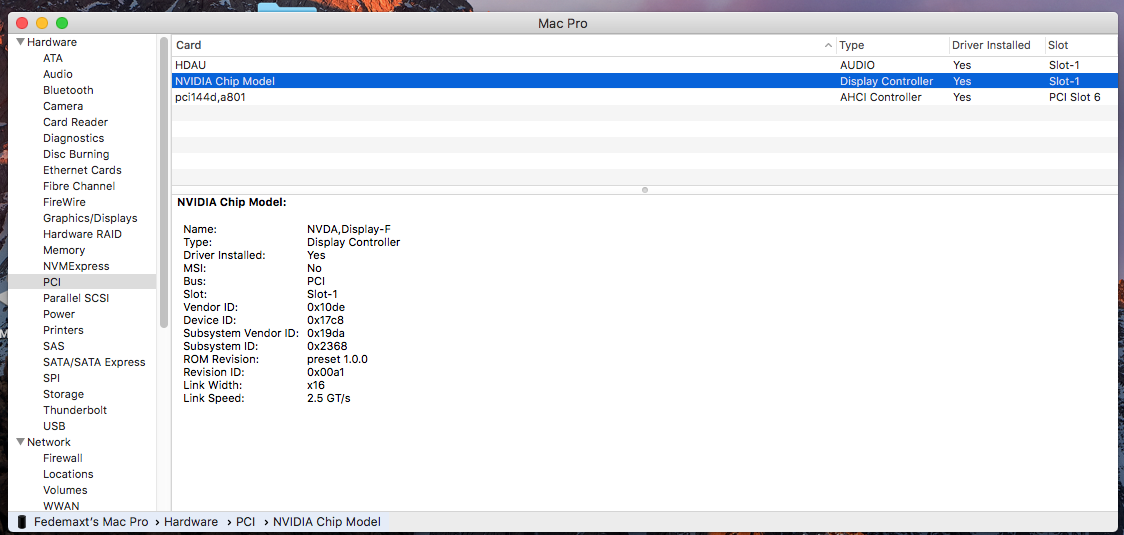

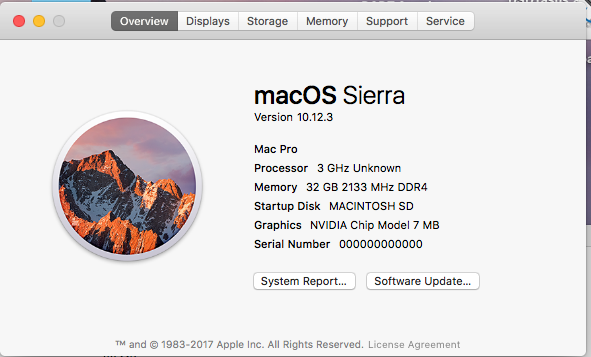

thanks to your help i could have some PCI devices on the System report.

But it seems the webdrivers are not implemented so that the zotac 980 doesn´t get fully recognized.



Any suggestion?

origin.zip

IOReg_Mac Pro.zip

[mfc88]

Hey mfc88, thanks for your help.



With the EFI you sent back it hangs at PCI configuration begin.

ill post now my original dsdt with F4 clover

This is my original ACPI output (F4 on clover boot), I´ll attach my ioreg too.



im on:

Sierra 10.12.3

5960x

Gigabyte x99 ud4

zotac gtx 980

samsung evo 500gb

#######

#update#

########



thanks to your help i could have some PCI devices on the System report.

But it seems the webdrivers are not implemented so that the zotac 980 doesn´t get fully recognized.



Any suggestion?

Messed up on a few things (forgot to save your DSDT as DSDT.aml  and injected the wrong vendor ID for graphics), now... let's try this...



If you don't have internet, swap out IntelMausiEthernet.kext for AppleIntelE1000E.kext.

EFI.zip

AppleIntelE1000e.kext.zip

[fedemax-t]

thanks mfc88, ill try it overnight

[mfc88]

thanks mfc88, ill try it overnight

Updated post above.



Also, make sure you have full CPU PM: Checking for XCPM properties and FrequencyVectors



I'm not sure if your CPU requires any patches, but look at nmano's config.plist (KernelToPatch) if you run into problems.

[Fergarth]

@ fedemax-t

Just as a complement to what mcf88 said, run these commands in the Terminal to make sure your XCPM is working well.



AppleIntelCPUPowerManagement.kext and AppleIntelCPUPowerManagementClient.kext

If output is blank you are good.

kextstat|grep -y appleintelcpu



Changed QPI settings to 100 in clover Plist. In the blogs from Piker (SSdt Script generator and vector script creator, which i both used for PM) he states that the output the bios is generating (400000000) for my specific cpu (I7 5820K) is wrong and should be (100000000).

Check output in terminal:

sysctl hw | grep frequency



Also you might need com.apple.driver.X86PlatformPlugin and com.apple.driver.X86PlatformShim loaded.

If it generates a line (or more) of output your fine.

kextstat|grep -y x86plat



Check if Vectors are load (1)

sysctl -n machdep.xcpm.vectors_loaded_count





And for AppleIntelInfo:



sudo -s



chown -R 0:0 ~/Desktop/AppleIntelInfo.kext



chmod -R 755 ~/Desktop/AppleIntelInfo.kext



kextload ~/Desktop/AppleIntelInfo.kext



cat /tmp/AppleIntelInfo.dat (run this several times)



kextunload ~/Desktop/AppleIntelInfo.kext

[jacoweb]

Hi Guys!

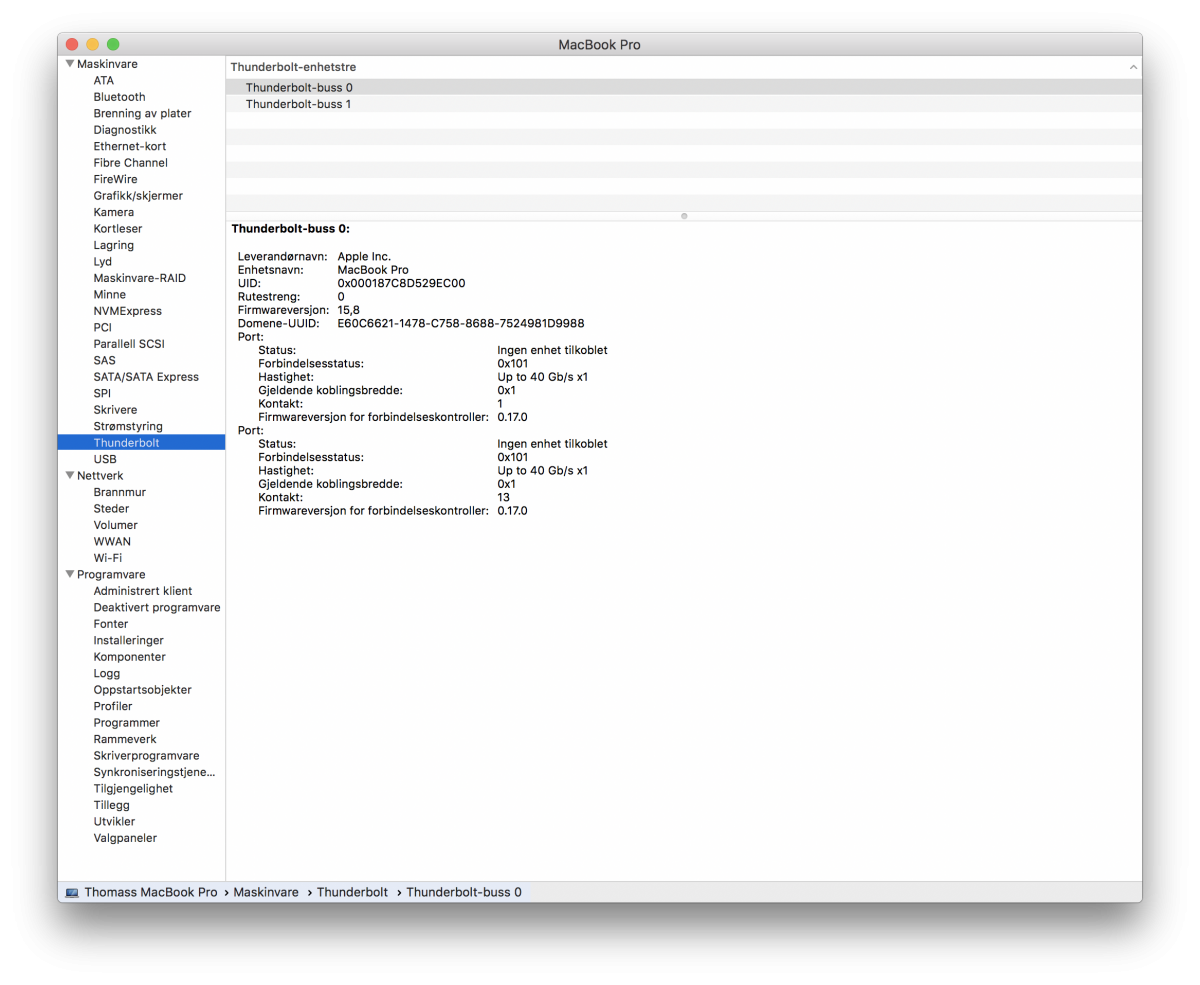

I have a cosmetic question. I use USB-C to connect my UAD Apollo Tunderbolt Card. How can i fix so it shows my deviced in systeminfo?

See screenshot attached (its from my Macbook btw).





[fedemax-t]

Bad news, unfortunately im still stuck @ system uptime in nanoseconds, and im not able anymore to access USB EFI to configure system or apply changes.



Ill start again a new installation and ill get back to you.

[nmano]

Hey mfc88, thanks for your help.



With the EFI you sent back it hangs at PCI configuration begin.

ill post now my original dsdt with F4 clover

This is my original ACPI output (F4 on clover boot), I´ll attach my ioreg too.



im on:

Sierra 10.12.3

5960x

Gigabyte x99 ud4

zotac gtx 980

samsung evo 500gb

#######

#update#

########



thanks to your help i could have some PCI devices on the System report.

But it seems the webdrivers are not implemented so that the zotac 980 doesn´t get fully recognized.



Any suggestion?

please send your original DSDT

I check your folder its was patched.

[fedemax-t]

Hey nmano, thanks for your help

DSDT.aml.zip

[nmano]

Gigabyte X99 UD4

#test-1 to Fedemax

Gigabyte x99 ud4.zip

[fedemax-t]

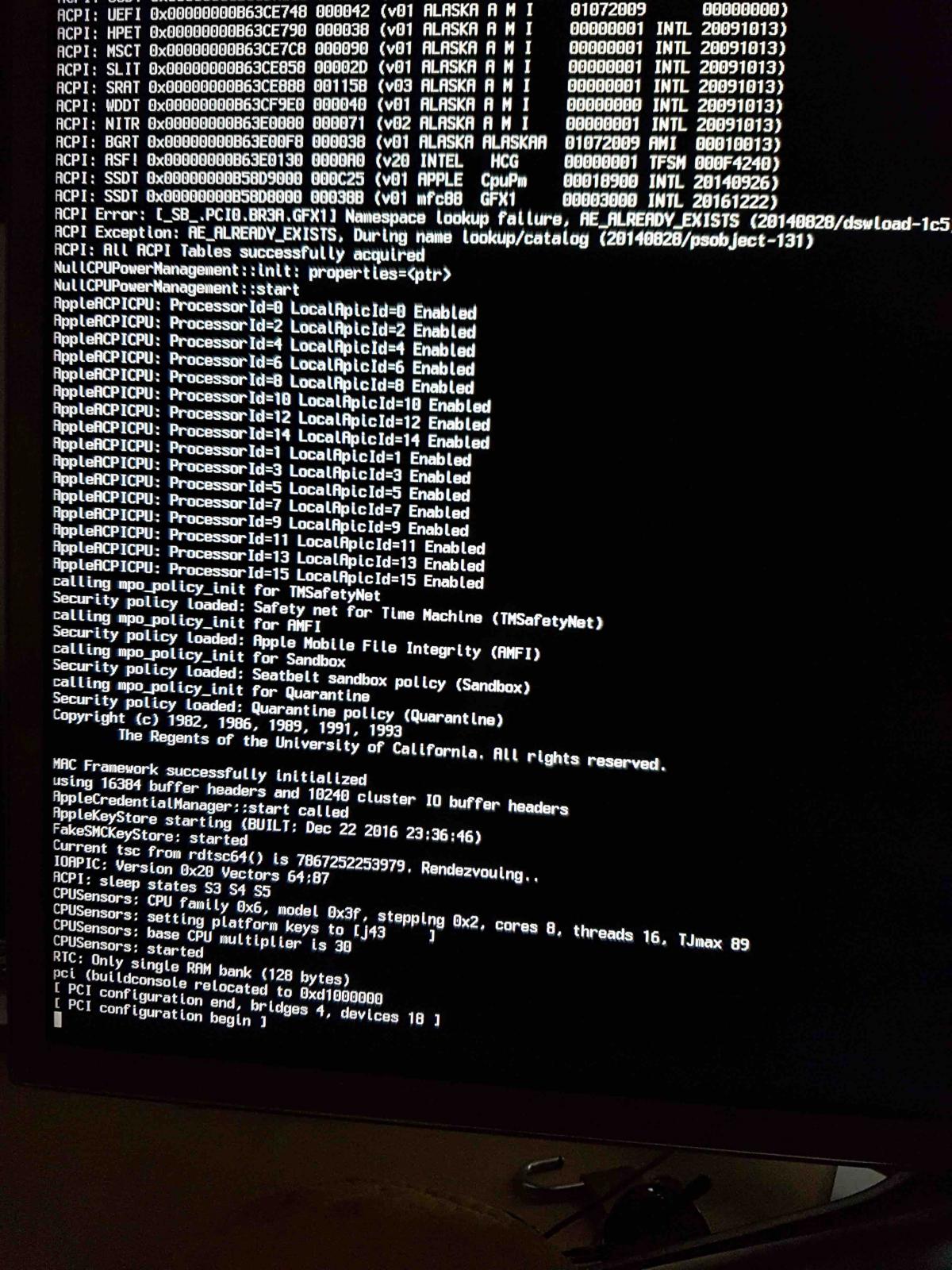

Hey nmano, im still stuck there, i attach you the output

[nmano]

Hey nmano, im still stuck there, i attach you the output

remove applealc and NullCPUPowerManagement.kext

try restart

you have to remove all SSDT just keep cpupm.

[fedemax-t]

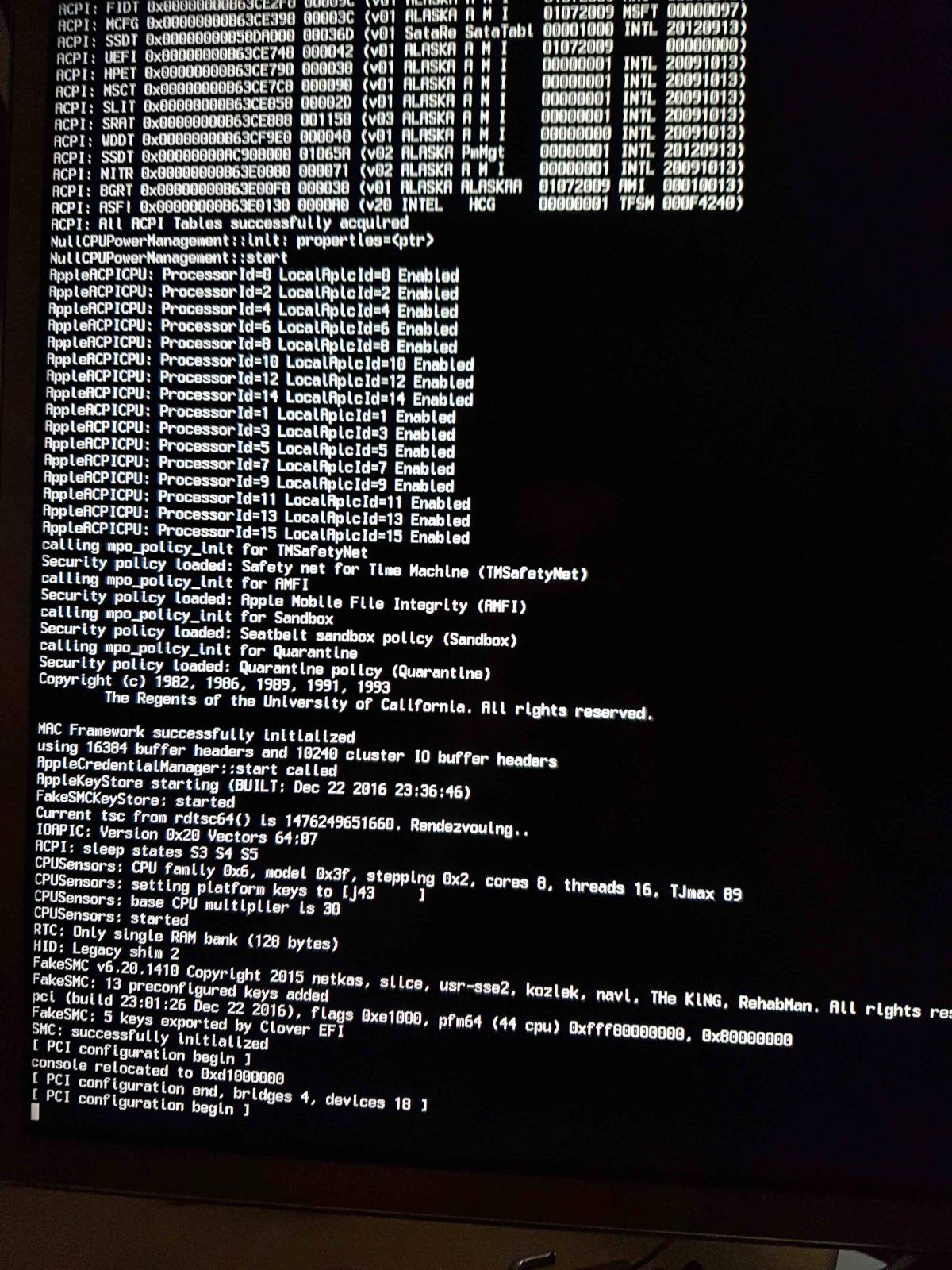

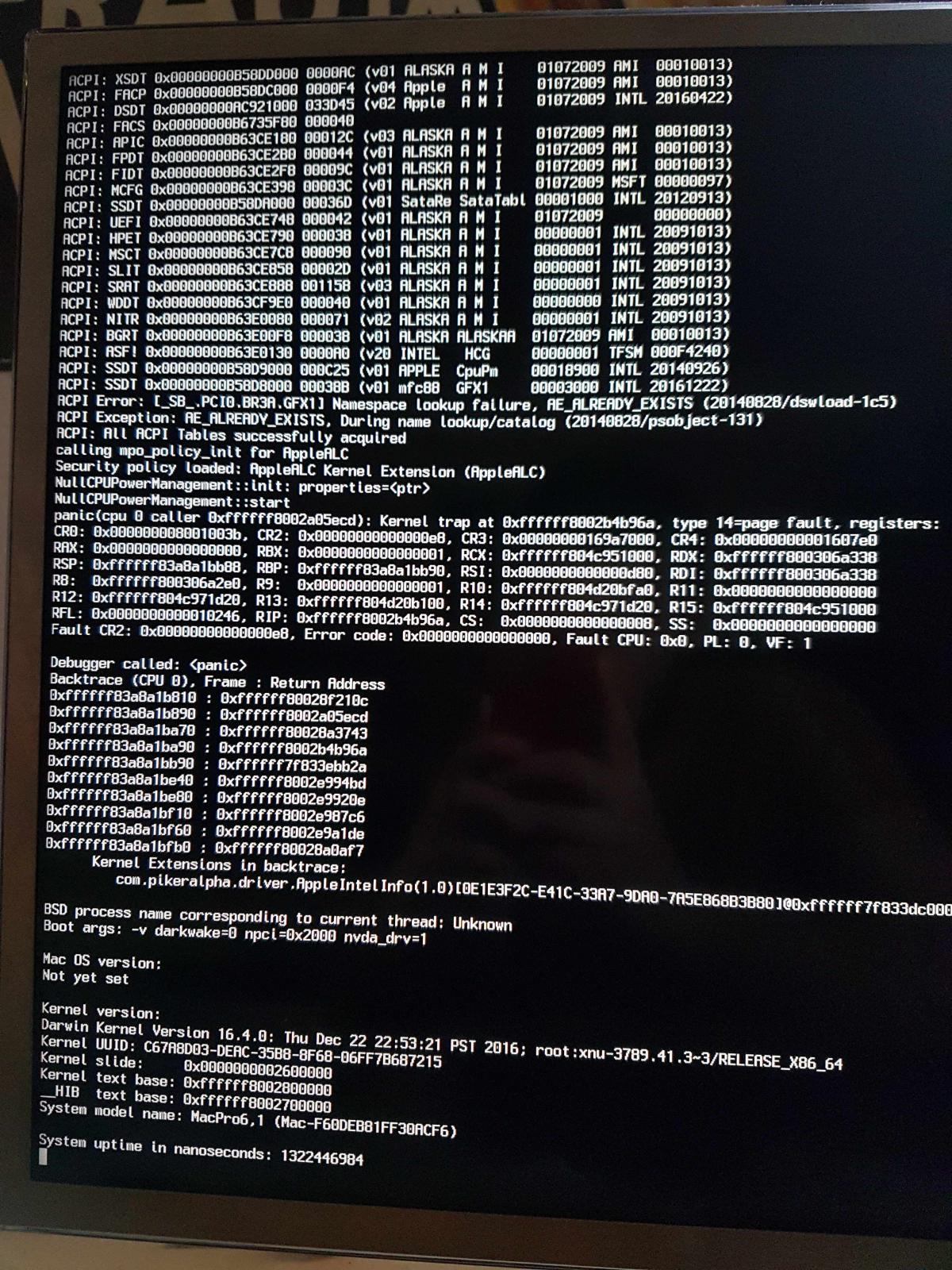

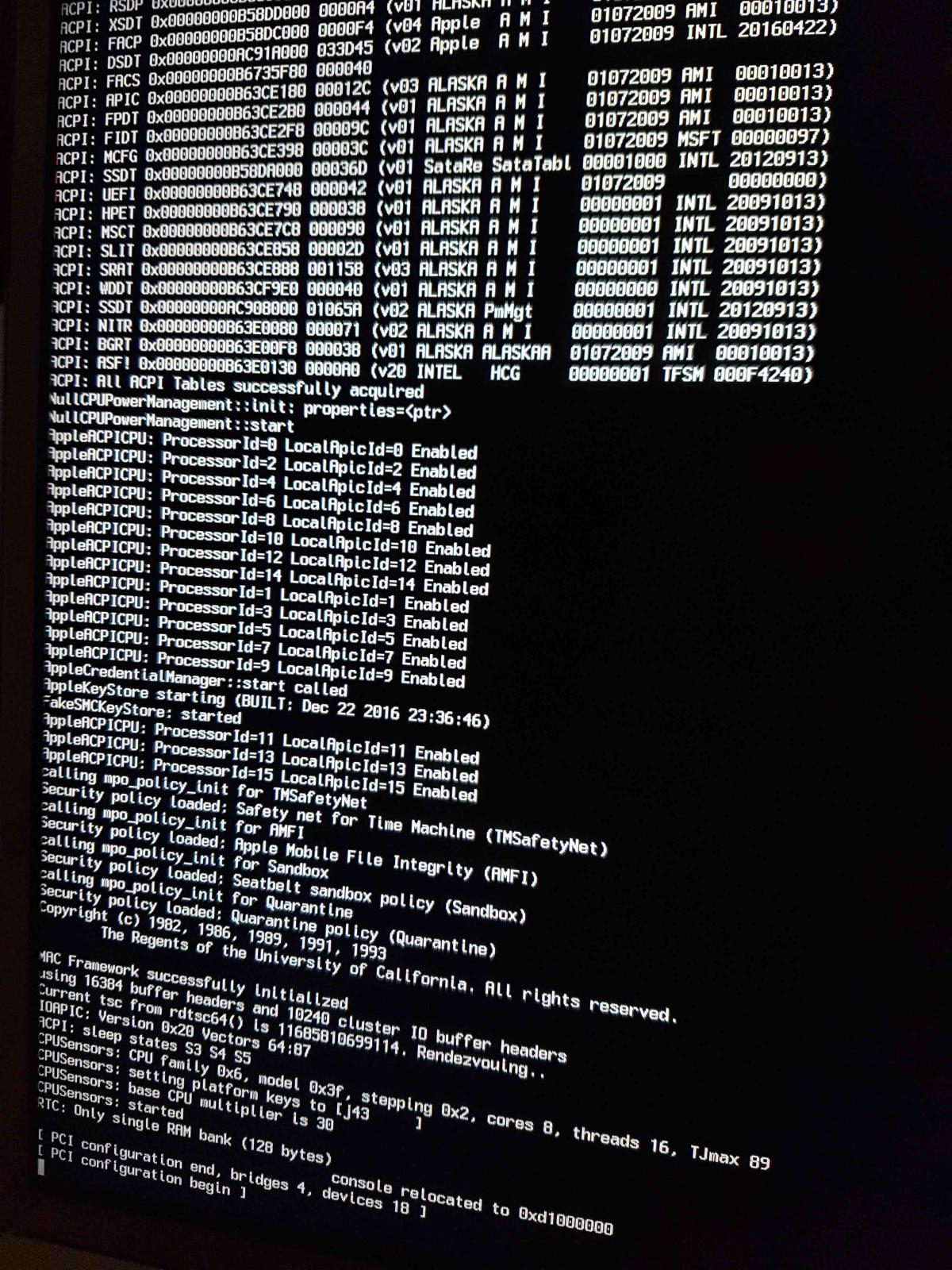

Hey nmano, it goes this far and than reboots

[mfc88]

Hey nmano, it goes this far and than reboots

It's kernel panicking when you use AppleIntelInfo. That should NOT be in your kexts folder. Nor should nullcpumanagement nor AppleALC.



1. With my EFI do USB ports still work, or no?

2. Take a snapshot of where it's failing.





If you want to use AppleIntelInfo, then you can use my loader inside the OS: AppleIntelInfo.kext Loader

[nmano]

Hey nmano, it goes this far and than reboots

X99_Injector USB 3.kext

XHC to XHCI

[fedemax-t]

applealc/nullcpupm/intelinfo removed from kexts->10.12



still reboots at pci config

[mfc88]

applealc/nullcpupm/intelinfo removed from kexts->10.12



still reboots at pci config

Do me a favor and remove the SSDT.aml from EFI->CLOVER->ACPI->Patched, then in your config.plist remove everything from ACPI->DSDT Drop Tables, then try again.

[fedemax-t]

allright and yes, the usb3 was definitely working

Do me a favor and remove the SSDT.aml from EFI->CLOVER->ACPI->Patched, then in your config.plist remove everything from ACPI->DSDT Drop Tables, then try again.

I removed everything you said, still no-go, pci config and reboot

[fedemax-t]

in that condition could you try to boot with nv_disable=1

then, why are you using nullcpupowermanagement kext?

Hi Fabiosun,

with nv_disable arg it isn´t booting either.



Should i use terminal kextunload nullcpu and remove it? I can´t find it in either kexts->10.12 or extensions
