RehabMan Posted October 27, 2015 Share Posted October 27, 2015 Hi @ all I need some help for the last problem on my hackbook. I have USB 3.0 Intel which works oob on El Capitan 10.11.1 but its destroy sleep. syslog says: Wake reason: XHC EHC2 Is there any way for DSDT or Clover to fix this problem? If i disable XHCI in BIOS sleep works fine but no USB 3.0 I hope someone can help me I have Lenovo G500. Check into the _PRW patches in my repo: https://github.com/RehabMan/Laptop-DSDT-Patch Link to comment Share on other sites More sharing options...
Lord Kamina Posted October 27, 2015 Share Posted October 27, 2015 RehabMan, do you have any insight on the log errors and stuff so perhaps we can get Renesas and such working again at some point? i.e. This not being a detection issue but rather a protocol/interface/negotiation issue with the hub. Link to comment Share on other sites More sharing options...
RehabMan Posted October 27, 2015 Share Posted October 27, 2015 RehabMan, do you have any insight on the log errors and stuff so perhaps we can get Renesas and such working again at some point? i.e. This not being a detection issue but rather a protocol/interface/negotiation issue with the hub. No idea on Renesas. I have an FL1100 based PCIe USB3 card (4-port external + internal USB3 header) on the way for use in my desktop. Link to comment Share on other sites More sharing options...
a1k0n Posted October 27, 2015 Share Posted October 27, 2015 Thx RehabMan It works like a charm Do you know any solution for card reader? USB2.0-CRW: Produkt-ID: 0x0129 Hersteller-ID: 0x0bda (Realtek Semiconductor Corp.) Version: 39.60 Seriennummer: 20100201396000000 Geschwindigkeit: Bis zu 480 MBit/s Hersteller: Generic Standort-ID: 0x1a140000 / 3 Verfügbare Stromstärke (mA): 1000 Zusätzlicher Betriebsstrom (mA): 0 Integriert: Ja Link to comment Share on other sites More sharing options...
RehabMan Posted October 28, 2015 Share Posted October 28, 2015 Thx RehabMan It works like a charm Do you know any solution for card reader? USB2.0-CRW: Produkt-ID: 0x0129 Hersteller-ID: 0x0bda (Realtek Semiconductor Corp.) Version: 39.60 Seriennummer: 20100201396000000 Geschwindigkeit: Bis zu 480 MBit/s Hersteller: Generic Standort-ID: 0x1a140000 / 3 Verfügbare Stromstärke (mA): 1000 Zusätzlicher Betriebsstrom (mA): 0 Integriert: Ja There are guides for USB card readers to be found if you search. Off-topic here. Link to comment Share on other sites More sharing options...
Dennis Lee Posted October 28, 2015 Share Posted October 28, 2015 in 10.11 there was a USB2.0 controller listed in system information. But devices connected to the controller are not shown. They were working in 10.10.5. After upgrading to 10.11.1 and using the dummy kext for EHCI there is no longer any USB2.0 controller... I tried to change both name in DSDT and info.plist to EH00 and EH01 to no avail... Any idea why? ioreg and dsdt attached ehci.zip Link to comment Share on other sites More sharing options...
RehabMan Posted October 28, 2015 Share Posted October 28, 2015 in 10.11 there was a USB2.0 controller listed in system information. But devices connected to the controller are not shown. They were working in 10.10.5. After upgrading to 10.11.1 and using the dummy kext for EHCI there is no longer any USB2.0 controller... I tried to change both name in DSDT and info.plist to EH00 and EH01 to no avail... Any idea why? ioreg and dsdt attached No ports enabled on EH01. All devices are showing on XHC. If all devices/ports are working, nothing wrong with that. Link to comment Share on other sites More sharing options...
schot Posted October 28, 2015 Share Posted October 28, 2015 Still have not got my USB3 working, only USB2... When i make an injection KEXT non of the ports are working. Since i use a patch bios it seems to be impossible to compile a DSDT, so i have to work with an injector. I have an MSI H87-G41 PC Mate http://eu.msi.com/product/motherboard/H87-G41-PC-Mate.html#hero-overview Rest is working just fine... funny thing.... OSX is saying it is connected to an USB3 port but it is USB2. USB3 ports are not working at all. Made a dummy kext injector.... USB2 works and USB3 works, after deleting DSDT files Now only USB2 devices on USB 3 does not work. Next challenge is to get my USB3 NEC card in my MacPro3,1 working.... I have it working... well it finds the USB3 device only it is super slow... slower then USB1 anybody any idea?? Link to comment Share on other sites More sharing options...
Lord Kamina Posted October 28, 2015 Share Posted October 28, 2015 Still have not got my USB3 working, only USB2... When i make an injection KEXT non of the ports are working. Since i use a patch bios it seems to be impossible to compile a DSDT, so i have to work with an injector. I have an MSI H87-G41 PC Mate http://eu.msi.com/product/motherboard/H87-G41-PC-Mate.html#hero-overview Rest is working just fine... funny thing.... OSX is saying it is connected to an USB3 port but it is USB2. USB3 ports are not working at all. Made a dummy kext injector.... USB2 works and USB3 works, after deleting DSDT files Now only USB2 devices on USB 3 does not work. Next challenge is to get my USB3 NEC card in my MacPro3,1 working.... I have it working... well it finds the USB3 device only it is super slow... slower then USB1 anybody any idea?? Nothing here, I am in the exact same situation. So, as a recap... which chipsets do we know to be working... either OOB or with an injector? In case I decide to bite the bullet and get a new ExpressCard? Link to comment Share on other sites More sharing options...
TheRacerMaster Posted October 28, 2015 Share Posted October 28, 2015 Nothing here, I am in the exact same situation. So, as a recap... which chipsets do we know to be working... either OOB or with an injector? In case I decide to bite the bullet and get a new ExpressCard? FL1100 is native (MacPro6,1 uses it). Link to comment Share on other sites More sharing options...
schot Posted October 29, 2015 Share Posted October 29, 2015 FL1100 is native (MacPro6,1 uses it). I will buy that for my hackintosh, anybody any idea what to get for the MacPro3,1? I now have a NEC chipset which worked perfectly in Yosemite with Generic usb kext but not anymore on El Capitan. I tried a dummy kext but got it only working on USB1 speed but maybe name if the ports are not correct because since then i have also memory errors my Mac only works now on one memorybank Link to comment Share on other sites More sharing options...
Monq Posted October 29, 2015 Share Posted October 29, 2015 Is this ever going to be fixed automatically with a kext or with something Clover does automatically? Link to comment Share on other sites More sharing options...
Dennis Lee Posted October 30, 2015 Share Posted October 30, 2015 No ports enabled on EH01. All devices are showing on XHC. If all devices/ports are working, nothing wrong with that. Thanks. some devices are on EHCI. my webcam, Bluetooth and touchscreen are not working. They worked on 10.10.5. Any idea why? Link to comment Share on other sites More sharing options...
RehabMan Posted October 30, 2015 Share Posted October 30, 2015 Thanks. some devices are on EHCI. my webcam, Bluetooth and touchscreen are not working. They worked on 10.10.5. Any idea why? You need an injector. USBInjectAll.kext can help: https://github.com/RehabMan/OS-X-USB-Inject-All Make sure you read the README. 1 Link to comment Share on other sites More sharing options...
akismeg Posted October 31, 2015 Share Posted October 31, 2015 hello.i have problem with my el capitan usb installer.because the el capitan it is not recognise my usb ports i can't boot the usb to install el capitan on my laptop. motherboard chipset HM65 core i5 sandy bridge WIFI atheros 9285 intel hd 3000 graphics amd 6470m dont work and my usb ports in the url. http://prntscr.com/8xd140 i use some kexts i found 2 usb injectors kexts 8 and 9 series but nothing.. can any one help me please? Link to comment Share on other sites More sharing options...
RehabMan Posted October 31, 2015 Share Posted October 31, 2015 hello.i have problem with my el capitan usb installer.because the el capitan it is not recognise my usb ports i can't boot the usb to install el capitan on my laptop. motherboard chipset HM65 core i5 sandy bridge WIFI atheros 9285 intel hd 3000 graphics amd 6470m dont work and my usb ports in the url. http://prntscr.com/8xd140 i use some kexts i found 2 usb injectors kexts 8 and 9 series but nothing.. can any one help me please? Read post #566. Link to comment Share on other sites More sharing options...
le0nardwashingt0n Posted October 31, 2015 Share Posted October 31, 2015 Anyone else having a 10 or so second delay before usb 2 devices function at login screen on boot? I'm using pjalm dsdt patches and all USB ports function properly after those 10 seconds. Link to comment Share on other sites More sharing options...
magarcan Posted November 2, 2015 Share Posted November 2, 2015 I'm noob here. I'm still building by bootable USB installation so after reading the post I tried to fix usb problem in the following way: I've edited /System/Library/Extensions/IOUSBHostFamily.kext/Contents/PlugIns/AppleUSBEHCIPCI.kext/Contents/Info.plist in the following way: I did the same for MacBookPro6,2 ECH2 and renamed string to EH02. I'm using MacBookPro6,2 because is the one Clover uses. As my computer doesn't support USB 3, I don't need to edit AppleUSBXHCIPCI.kext file. The fact is that isn't working. What else am I missing? Cheer! PS: I know injection is better in order to update System and all that, but is tougher for a beginner as me. Link to comment Share on other sites More sharing options...
RehabMan Posted November 2, 2015 Share Posted November 2, 2015 I'm noob here. I'm still building by bootable USB installation so after reading the post I tried to fix usb problem in the following way: I've edited /System/Library/Extensions/IOUSBHostFamily.kext/Contents/PlugIns/AppleUSBEHCIPCI.kext/Contents/Info.plist in the following way: ... I did the same for MacBookPro6,2 ECH2 and renamed string to EH02. I'm using MacBookPro6,2 because is the one Clover uses. As my computer doesn't support USB 3, I don't need to edit AppleUSBXHCIPCI.kext file. The fact is that isn't working. What else am I missing? Cheer! PS: I know injection is better in order to update System and all that, but is tougher for a beginner as me. What you're doing doesn't make sense. The idea is to change EHCx->EH0x so it *doesn't* match against the built-in port injectors. No sense in doing the rename, only to turn around and modify the system kext to match again (you're back where you started). Link to comment Share on other sites More sharing options...
Riley Freeman Posted November 2, 2015 Share Posted November 2, 2015 Does anyone using a FL1100 card have the speed and current information visible in System Profiler? I've been working a little on my card, trying to get rid of some console errors. Link to comment Share on other sites More sharing options...
heretic99 Posted November 2, 2015 Share Posted November 2, 2015 Hi everybody ! i have some strange problems with the usb since 10.11 . 1) i have 2 2.0 hub, if i plug one usb storage in the first hub it will be showed like an internal device ... if i plug it in the second hub show like a external correctly ... any idea ??? 2) sometimes when i unplug a usb device all the hub reset and disconnect al the devices connected and reconnect everything after a couple of seconds.. Link to comment Share on other sites More sharing options...
le0nardwashingt0n Posted November 2, 2015 Share Posted November 2, 2015 Hi everybody ! i have some strange problems with the usb since 10.11 . 1) i have 2 2.0 hub, if i plug one usb storage in the first hub it will be showed like an internal device ... if i plug it in the second hub show like a external correctly ... any idea ??? 2) sometimes when i unplug a usb device all the hub reset and disconnect al the devices connected and reconnect everything after a couple of seconds.. I'm having a similar problem to #2 (total usb reset). For me when my USB (GMYLE) bluetooth adapter is plugged into a USB 2 port every 15 - 20 minutes or so all of my USB ports reset (turn off then turn back on in about 10 seconds). It doesn't happen when bluetooth is plugged into USB 3. Link to comment Share on other sites More sharing options...
RehabMan Posted November 2, 2015 Share Posted November 2, 2015 Hi everybody ! i have some strange problems with the usb since 10.11 . 1) i have 2 2.0 hub, if i plug one usb storage in the first hub it will be showed like an internal device ... if i plug it in the second hub show like a external correctly ... any idea ??? The port needs to be marked as correct type... Clearly one is marked as an external port the other internal (UsbConnector=255 is internal). I'm having a similar problem to #2 (total usb reset). For me when my USB (GMYLE) bluetooth adapter is plugged into a USB 2 port every 15 - 20 minutes or so all of my USB ports reset (turn off then turn back on in about 10 seconds). It doesn't happen when bluetooth is plugged into USB 3. If the BT device needs firmware upload, make sure you have a valid firmware uploader for it installed. Link to comment Share on other sites More sharing options...
akismeg Posted November 2, 2015 Share Posted November 2, 2015 Read post #566. after a lot of search i found the solution on this topic in post 179 http://www.insanelymac.com/forum/topic/308325-guide-1011-full-speed-usb-series-89-keeping-vanilla-sle/page-9?do=findComment&comment=2175618 i put the usbinjectall kext to efi/clover/kexts and with clover configurator i am going to kernel and kext patches and i change the number 83BD8CFEFFFF10 to 83BD8CFEFFFF16.and finally my usb installer start and now i write from my el capitan clean install.thanks for the help arix98 and rehabman and sorry for my bad english. Link to comment Share on other sites More sharing options...

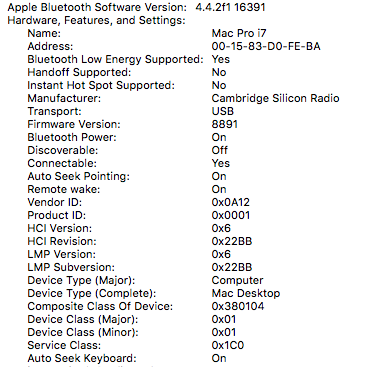

le0nardwashingt0n Posted November 3, 2015 Share Posted November 3, 2015 If the BT device needs firmware upload, make sure you have a valid firmware uploader for it installed. Rehabman, I did some research, found your post about bluetooth firmware upload, and it looks like my GMYLE USB Bluetooth is by CSR not Broadcom. It seems to work ok when it's in a USB 3.0 port, just acts a little funny on USB 2.0. Link to comment Share on other sites More sharing options...
