Script version 0.15

Kext /System/Library/Extensions/AMD2400Controller.kext/Contents/MacOS/AMD2400Controller
Personality: Iago
ConnectorInfo count in decimal: 2
Disk offset in decimal 1093104
0000000 02 00 00 00 40 00 00 00 19 00 00 00 00 00 00 00 00 01 00 12 00 00 00 00
0000024 00 10 00 00 16 00 00 00 c4 00 00 00 00 00 00 00 10 00 01 11 00 00 00 00

Kext /System/Library/Extensions/AMD2600Controller.kext/Contents/MacOS/AMD2600Controller
Personality: Hypoprion
ConnectorInfo count in decimal: 2
Disk offset in decimal 1093056
0000000 02 00 00 00 40 00 00 00 19 00 00 00 00 00 00 00 00 01 00 12 00 00 00 00
0000024 00 10 00 00 16 00 00 00 c4 00 00 00 00 00 00 00 10 00 01 11 00 00 00 00

Personality: Lamna
ConnectorInfo count in decimal: 2
Disk offset in decimal 1093104
0000000 00 02 00 00 14 00 00 00 80 00 00 00 00 00 00 00 00 01 02 11 00 00 00 00
0000024 04 00 00 00 16 00 00 00 80 00 00 00 00 00 00 00 00 10 01 12 00 00 00 00

Kext /System/Library/Extensions/AMD3800Controller.kext/Contents/MacOS/AMD3800Controller
Personality: Megalodon
ConnectorInfo count in decimal: 3
Disk offset in decimal 1097120
0000000 00 02 00 00 14 00 00 00 00 00 00 00 00 00 00 00 00 01 02 11 00 00 00 00
0000024 04 00 00 00 16 00 00 00 00 00 00 00 00 00 00 00 00 10 01 12 00 00 00 00
0000048 80 00 00 00 02 00 00 00 04 00 00 00 00 00 00 00 00 10 00 00 00 00 00 00

Personality: Triakis
ConnectorInfo count in decimal: 2
Disk offset in decimal 1097200
0000000 00 02 00 00 14 00 00 00 00 00 00 00 00 00 00 00 00 01 02 11 00 00 00 00
0000024 04 00 00 00 16 00 00 00 00 00 00 00 00 00 00 00 00 10 01 12 00 00 00 00

Kext /System/Library/Extensions/AMD4600Controller.kext/Contents/MacOS/AMD4600Controller
Personality: Flicker
ConnectorInfo count in decimal: 3
Disk offset in decimal 1084704
0000000 00 04 00 00 00 04 00 00 00 01 00 00 00 00 00 00 02 01 03 05 00 00 00 00
0000024 00 04 00 00 00 04 00 00 00 01 00 00 00 00 00 00 01 00 02 02 00 00 00 00
0000048 00 02 00 00 14 02 00 00 00 01 00 00 00 00 00 00 00 10 01 04 00 00 00 00

Personality: Gliff
ConnectorInfo count in decimal: 3
Disk offset in decimal 1084784
0000000 02 00 00 00 40 00 00 00 19 01 00 00 00 00 00 00 02 01 00 03 00 00 00 00
0000024 02 00 00 00 00 01 00 00 19 01 00 00 00 00 00 00 20 01 02 02 00 00 00 00
0000048 00 04 00 00 04 06 00 00 00 01 00 00 00 00 00 00 10 00 01 01 00 00 00 00

Personality: Shrike
ConnectorInfo count in decimal: 3
Disk offset in decimal 1084864
0000000 02 00 00 00 40 00 00 00 19 01 00 00 00 00 00 00 02 01 00 03 00 00 00 00
0000024 02 00 00 00 00 01 00 00 19 01 00 00 00 00 00 00 20 01 02 02 00 00 00 00
0000048 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 10 00 01 01 00 00 00 00

Kext /System/Library/Extensions/AMD4800Controller.kext/Contents/MacOS/AMD4800Controller
Personality: Cardinal
ConnectorInfo count in decimal: 2
Disk offset in decimal 1080656
0000000 00 02 00 00 14 02 00 00 00 01 00 00 00 00 00 00 01 01 01 04 00 00 00 00
0000024 04 00 00 00 14 02 00 00 00 01 00 00 00 00 00 00 00 10 02 03 00 00 00 00

Personality: MotMot
ConnectorInfo count in decimal: 2
Disk offset in decimal 1080704
0000000 00 04 00 00 04 01 00 00 00 01 00 00 00 00 00 00 10 00 02 03 00 00 00 00
0000024 04 00 00 00 14 02 00 00 00 01 00 00 00 00 00 00 01 11 01 04 00 00 00 00

Personality: Quail
ConnectorInfo count in decimal: 3
Disk offset in decimal 1080752
0000000 02 00 00 00 40 00 00 00 19 01 00 00 00 00 00 00 22 01 00 07 00 00 00 00
0000024 02 00 00 00 00 01 00 00 19 01 00 00 00 00 00 00 20 01 03 04 00 00 00 00
0000048 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 10 00 02 03 00 00 00 00

Kext /System/Library/Extensions/AMD5000Controller.kext/Contents/MacOS/AMD5000Controller
Personality: Douc
ConnectorInfo count in decimal: 2
Disk offset in decimal 1765280
0000000 02 00 00 00 00 05 00 00 19 03 00 00 00 00 00 00 21 03 02 02 00 00 00 00
0000024 00 04 00 00 04 02 00 00 00 03 00 00 00 00 00 00 11 02 01 01 00 00 00 00

Personality: Langur
ConnectorInfo count in decimal: 3
Disk offset in decimal 1765328
0000000 00 04 00 00 04 06 00 00 00 01 00 00 00 00 00 00 21 03 04 02 00 00 00 00
0000024 00 04 00 00 04 06 00 00 00 01 00 00 00 00 00 00 11 02 01 01 00 00 00 00
0000048 04 00 00 00 14 02 00 00 00 01 00 00 00 00 00 00 02 04 05 03 00 00 00 00

Personality: Uakari
ConnectorInfo count in decimal: 4
Disk offset in decimal 1765408
0000000 00 04 00 00 00 04 00 00 00 71 00 00 00 00 00 00 12 04 04 01 00 00 00 00
0000024 04 00 00 00 14 00 00 00 00 71 00 00 00 00 00 00 01 12 01 03 00 00 00 00
0000048 00 02 00 00 14 00 00 00 00 71 00 00 00 00 00 00 00 00 06 05 00 00 00 00
0000072 00 08 00 00 00 02 00 00 00 71 00 00 00 00 00 00 22 05 05 04 00 00 00 00

Personality: Zonalis
ConnectorInfo count in decimal: 6
Disk offset in decimal 1765504
0000000 00 04 00 00 04 06 00 00 00 71 00 00 00 00 00 00 20 01 06 06 00 00 00 00
0000024 00 04 00 00 04 06 00 00 00 71 00 00 00 00 00 00 10 00 05 05 00 00 00 00
0000048 00 04 00 00 04 06 00 00 00 71 00 00 00 00 00 00 21 03 02 04 00 00 00 00
0000072 00 04 00 00 04 06 00 00 00 71 00 00 00 00 00 00 11 02 01 03 00 00 00 00
0000096 00 04 00 00 04 06 00 00 00 71 00 00 00 00 00 00 22 05 04 02 00 00 00 00
0000120 00 04 00 00 04 06 00 00 00 71 00 00 00 00 00 00 12 04 03 01 00 00 00 00

Personality: Alouatta
ConnectorInfo count in decimal: 4
Disk offset in decimal 1765648
0000000 02 00 00 00 00 01 00 00 19 01 00 00 00 00 00 00 12 04 03 03 00 00 00 00
0000024 00 04 00 00 04 06 00 00 00 71 00 00 00 00 00 00 11 02 01 01 00 00 00 00
0000048 00 04 00 00 04 06 00 00 00 71 00 00 00 00 00 00 21 03 02 02 00 00 00 00
0000072 00 04 00 00 04 06 00 00 00 71 00 00 00 00 00 00 22 05 04 04 00 00 00 00

Personality: Hoolock
ConnectorInfo count in decimal: 3
Disk offset in decimal 1765744
0000000 00 04 00 00 04 06 00 00 00 01 00 00 00 00 00 00 21 03 05 01 00 00 00 00
0000024 00 04 00 00 04 06 00 00 00 01 00 00 00 00 00 00 11 02 04 02 00 00 00 00
0000048 04 00 00 00 14 02 00 00 00 01 00 00 00 00 00 00 02 04 01 03 00 00 00 00

Personality: Vervet
ConnectorInfo count in decimal: 4
Disk offset in decimal 1765824
0000000 00 04 00 00 00 04 00 00 00 71 00 00 00 00 00 00 12 04 04 02 00 00 00 00
0000024 04 00 00 00 14 00 00 00 00 71 00 00 00 00 00 00 01 12 01 04 00 00 00 00
0000048 00 02 00 00 14 00 00 00 00 71 00 00 00 00 00 00 00 00 06 03 00 00 00 00
0000072 00 08 00 00 00 02 00 00 00 71 00 00 00 00 00 00 22 05 05 01 00 00 00 00

Personality: Baboon
ConnectorInfo count in decimal: 3
Disk offset in decimal 1765920
0000000 04 00 00 00 14 00 00 00 00 01 00 00 00 00 00 00 01 02 01 03 00 00 00 00
0000024 00 08 00 00 00 02 00 00 00 71 00 00 00 00 00 00 22 05 02 01 00 00 00 00
0000048 10 00 00 00 10 00 00 00 00 01 00 00 00 00 00 00 00 10 00 02 00 00 00 00

Personality: Eulemur
ConnectorInfo count in decimal: 3
Disk offset in decimal 1766000
0000000 04 00 00 00 14 00 00 00 00 01 00 00 00 00 00 00 01 02 01 04 00 00 00 00
0000024 00 08 00 00 00 02 00 00 00 71 00 00 00 00 00 00 12 04 04 02 00 00 00 00
0000048 10 00 00 00 10 00 00 00 00 00 00 00 00 00 00 00 00 10 00 01 00 00 00 00

Personality: Galago
ConnectorInfo count in decimal: 2
Disk offset in decimal 1766096
0000000 02 00 00 00 00 01 00 00 19 03 00 00 00 00 00 00 21 03 02 02 00 00 00 00
0000024 00 04 00 00 04 06 00 00 00 73 00 00 00 00 00 00 11 02 01 01 00 00 00 00

Personality: Colobus
ConnectorInfo count in decimal: 2
Disk offset in decimal 1766160
0000000 02 00 00 00 00 01 00 00 19 03 00 00 00 00 00 00 21 03 02 02 00 00 00 00
0000024 00 04 00 00 04 06 00 00 00 73 00 00 00 00 00 00 11 02 01 01 00 00 00 00

Personality: Mangabey
ConnectorInfo count in decimal: 2
Disk offset in decimal 1766224
0000000 02 00 00 00 40 00 00 00 19 01 00 00 00 00 00 00 00 00 00 03 00 00 00 00
0000024 00 04 00 00 04 06 00 00 00 73 00 00 00 00 00 00 11 02 01 01 00 00 00 00

Personality: Nomascus
ConnectorInfo count in decimal: 4
Disk offset in decimal 1766288
0000000 02 00 00 00 40 00 00 00 19 01 00 00 00 00 00 00 00 00 00 05 00 00 00 00
0000024 02 00 00 00 00 01 00 00 19 03 00 00 00 00 00 00 12 04 03 03 00 00 00 00
0000048 00 04 00 00 04 06 00 00 00 73 00 00 00 00 00 00 11 02 01 01 00 00 00 00
0000072 00 04 00 00 04 07 00 00 00 73 00 00 00 00 00 00 21 03 02 02 00 00 00 00

Personality: Orangutan
ConnectorInfo count in decimal: 2
Disk offset in decimal 1766400
0000000 02 00 00 00 40 00 00 00 19 01 00 00 00 00 00 00 00 00 00 05 00 00 00 00
0000024 00 04 00 00 04 06 00 00 00 73 00 00 00 00 00 00 11 02 01 01 00 00 00 00

Kext /System/Library/Extensions/AMD6000Controller.kext/Contents/MacOS/AMD6000Controller
Personality: Pithecia
ConnectorInfo count in decimal: 2
Disk offset in decimal 1791200
0000000 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 21 03 02 04 00 00 00 00
0000024 04 00 00 00 14 02 00 00 00 01 00 00 00 00 00 00 00 00 04 03 00 00 00 00

Personality: Bulrushes
ConnectorInfo count in decimal: 6
Disk offset in decimal 1791248
0000000 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 11 02 01 01 00 00 00 00
0000024 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 21 03 02 02 00 00 00 00
0000048 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 12 04 03 03 00 00 00 00
0000072 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 22 05 04 04 00 00 00 00
0000096 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 10 00 05 05 00 00 00 00
0000120 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 20 01 06 06 00 00 00 00

Personality: Cattail
ConnectorInfo count in decimal: 4
Disk offset in decimal 1791392
0000000 02 00 00 00 40 00 00 00 39 05 00 00 00 00 00 00 00 00 00 05 00 00 00 00
0000024 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 11 02 01 01 00 00 00 00
0000048 00 04 00 00 00 01 00 00 00 09 10 00 00 00 00 00 21 03 02 02 00 00 00 00
0000072 00 04 00 00 00 01 00 00 00 09 10 00 00 00 00 00 12 04 03 03 00 00 00 00

Personality: Hydrilla
ConnectorInfo count in decimal: 5
Disk offset in decimal 1791488
0000000 02 00 00 00 00 01 00 00 19 01 00 00 00 00 00 00 12 04 03 03 00 00 00 00
0000024 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 11 02 01 01 00 00 00 00
0000048 00 04 00 00 00 01 00 00 00 09 10 00 00 00 00 00 21 03 02 02 00 00 00 00
0000072 00 04 00 00 00 01 00 00 00 09 10 00 00 00 00 00 22 05 05 04 00 00 00 00
0000096 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 10 00 04 05 00 00 00 00

Personality: Duckweed
ConnectorInfo count in decimal: 4
Disk offset in decimal 1791616
0000000 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 12 04 04 01 00 00 00 00
0000024 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 22 05 05 02 00 00 00 00
0000048 00 08 00 00 04 02 00 00 00 01 00 00 00 00 00 00 11 02 03 04 00 00 00 00
0000072 00 02 00 00 14 02 00 00 00 01 00 00 00 00 00 00 00 00 06 05 00 00 00 00

Personality: Fanwort
ConnectorInfo count in decimal: 4
Disk offset in decimal 1791712
0000000 02 00 00 00 40 00 00 00 39 05 00 00 00 00 00 00 00 00 00 04 00 00 00 00
0000024 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 11 02 01 01 00 00 00 00
0000048 00 04 00 00 00 01 00 00 00 09 10 00 00 00 00 00 21 03 02 02 00 00 00 00
0000072 00 04 00 00 00 01 00 00 00 09 10 00 00 00 00 00 12 04 03 03 00 00 00 00

Personality: Elodea
ConnectorInfo count in decimal: 5
Disk offset in decimal 1791808
0000000 02 00 00 00 00 01 00 00 19 01 00 00 00 00 00 00 12 04 03 03 00 00 00 00
0000024 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 10 00 05 05 00 00 00 00
0000048 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 11 02 01 01 00 00 00 00
0000072 00 04 00 00 00 01 00 00 00 09 10 00 00 00 00 00 21 03 02 02 00 00 00 00
0000096 00 04 00 00 00 01 00 00 00 09 10 00 00 00 00 00 22 05 04 04 00 00 00 00

Personality: Kudzu
ConnectorInfo count in decimal: 2
Disk offset in decimal 1791936
0000000 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 12 04 03 03 00 00 00 00
0000024 00 08 00 00 04 02 00 00 00 01 00 00 00 00 00 00 11 02 01 01 00 00 00 00

Personality: Gibba
ConnectorInfo count in decimal: 5
Disk offset in decimal 1791984
0000000 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 12 04 05 01 00 00 00 00
0000024 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 22 05 04 02 00 00 00 00
0000048 00 08 00 00 04 02 00 00 00 01 00 00 00 00 00 00 11 02 06 04 00 00 00 00
0000072 00 02 00 00 14 02 00 00 00 01 00 00 00 00 00 00 00 00 03 05 00 00 00 00
0000096 04 00 00 00 04 02 00 00 00 01 00 00 00 00 00 00 11 02 01 03 00 00 00 00

Personality: Lotus
ConnectorInfo count in decimal: 3
Disk offset in decimal 1792112
0000000 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 11 02 01 01 00 00 00 00
0000024 00 08 00 00 04 02 00 00 00 01 00 00 00 00 00 00 22 05 04 04 00 00 00 00
0000048 00 04 00 00 00 01 00 00 00 01 00 00 00 00 00 00 21 03 02 02 00 00 00 00

Personality: Ipomoea
ConnectorInfo count in decimal: 3
Disk offset in decimal 1792192
0000000 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 12 04 01 05 00 00 00 00
0000024 00 08 00 00 04 02 00 00 00 01 00 00 00 00 00 00 11 02 04 03 00 00 00 00
0000048 10 00 00 00 10 00 00 00 00 01 00 00 00 00 00 00 00 00 00 02 00 00 00 00

Personality: Muskgrass
ConnectorInfo count in decimal: 4
Disk offset in decimal 1792272
0000000 00 04 00 00 04 03 00 00 00 01 01 00 00 00 00 00 11 02 01 01 00 00 00 00
0000024 00 04 00 00 00 01 00 00 00 09 12 00 00 00 00 00 21 03 02 02 00 00 00 00
0000048 00 04 00 00 00 01 00 00 00 09 13 00 00 00 00 00 22 05 04 04 00 00 00 00
0000072 00 08 00 00 04 02 00 00 00 01 04 00 00 00 00 00 12 04 03 03 00 00 00 00

Personality: Juncus
ConnectorInfo count in decimal: 4
Disk offset in decimal 1792368
0000000 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 12 04 03 03 00 00 00 00
0000024 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 10 00 04 05 00 00 00 00
0000048 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 11 02 01 01 00 00 00 00
0000072 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 21 03 02 02 00 00 00 00

Personality: Osmunda
ConnectorInfo count in decimal: 4
Disk offset in decimal 1792464
0000000 02 00 00 00 00 01 00 00 39 05 01 00 00 00 00 00 10 00 05 05 00 00 00 00
0000024 00 04 00 00 04 03 00 00 00 09 02 00 00 00 00 00 11 02 01 01 00 00 00 00
0000048 00 04 00 00 04 03 00 00 00 09 03 00 00 00 00 00 21 03 02 02 00 00 00 00
0000072 00 08 00 00 04 02 00 00 00 01 04 00 00 00 00 00 12 04 03 03 00 00 00 00

Personality: Pondweed
ConnectorInfo count in decimal: 3
Disk offset in decimal 1792560
0000000 02 00 00 00 00 01 00 00 19 01 01 00 00 00 00 00 10 00 05 05 00 00 00 00
0000024 00 04 00 00 04 03 00 00 00 01 02 00 00 00 00 00 11 02 01 01 00 00 00 00
0000048 00 04 00 00 04 03 00 00 00 01 03 00 00 00 00 00 21 03 02 02 00 00 00 00

Personality: Spikerush
ConnectorInfo count in decimal: 4
Disk offset in decimal 1792640
0000000 02 00 00 00 40 00 00 00 39 05 01 00 00 00 00 00 00 00 00 05 00 00 00 00
0000024 00 04 00 00 04 03 00 00 00 01 02 00 00 00 00 00 11 02 01 01 00 00 00 00
0000048 00 04 00 00 00 01 00 00 00 09 02 00 00 00 00 00 21 03 02 02 00 00 00 00
0000072 00 04 00 00 00 01 00 00 00 09 03 00 00 00 00 00 12 04 03 03 00 00 00 00

Personality: Typha
ConnectorInfo count in decimal: 5
Disk offset in decimal 1792736
0000000 00 04 00 00 04 03 00 00 00 01 01 00 00 00 00 00 11 02 04 01 00 00 00 00
0000024 00 04 00 00 04 03 00 00 00 01 02 00 00 00 00 00 21 03 05 02 00 00 00 00
0000048 00 04 00 00 00 01 00 00 00 09 03 00 00 00 00 00 10 00 02 05 00 00 00 00
0000072 00 04 00 00 00 01 00 00 00 09 04 00 00 00 00 00 20 01 03 06 00 00 00 00
0000096 04 00 00 00 14 02 00 00 00 01 05 00 00 00 00 00 02 04 01 03 00 00 00 00

Kext /System/Library/Extensions/AMD7000Controller.kext/Contents/MacOS/AMD7000Controller
Personality: Ramen
ConnectorInfo count in decimal: 6
Disk offset in decimal 1923920
0000000 02 00 00 00 00 01 00 00 39 05 01 08 00 00 00 00 20 01 05 06 00 00 00 00
0000024 00 08 00 00 04 02 00 00 00 01 02 00 00 00 00 00 10 00 03 05 00 00 00 00
0000048 00 04 00 00 04 03 00 00 00 01 03 43 00 00 00 00 11 02 01 01 00 00 00 00
0000072 00 04 00 00 00 01 00 00 00 01 04 31 00 00 00 00 21 03 04 03 00 00 00 00
0000096 00 04 00 00 04 03 00 00 00 01 05 63 00 00 00 00 12 04 02 02 00 00 00 00
0000120 00 04 00 00 00 01 00 00 00 01 06 51 00 00 00 00 22 05 04 03 00 00 00 00

Personality: Tako
ConnectorInfo count in decimal: 6
Disk offset in decimal 1924176
0000000 02 00 00 00 00 01 00 00 00 01 01 51 00 00 00 00 22 05 02 04 00 00 00 00
0000024 02 00 00 00 00 01 00 00 00 01 02 61 01 00 00 00 12 04 01 03 00 00 00 00
0000048 00 04 00 00 04 03 00 00 00 01 03 43 00 00 00 00 11 02 03 01 00 00 00 00
0000072 00 04 00 00 00 01 00 00 00 01 04 31 00 00 00 00 21 03 05 05 00 00 00 00
0000096 00 04 00 00 04 03 00 00 00 01 05 23 00 00 00 00 10 00 04 02 00 00 00 00
0000120 00 04 00 00 00 01 00 00 00 01 06 11 00 00 00 00 20 01 05 05 00 00 00 00

Personality: Namako
ConnectorInfo count in decimal: 4
Disk offset in decimal 1924320
0000000 02 00 00 00 00 01 00 00 00 01 01 51 00 00 00 00 22 05 02 02 00 00 00 00
0000024 02 00 00 00 00 01 00 00 00 01 02 61 01 00 00 00 12 04 01 01 00 00 00 00
0000048 00 04 00 00 04 03 00 00 00 01 03 43 00 00 00 00 11 02 03 03 00 00 00 00
0000072 00 04 00 00 04 03 00 00 00 01 04 33 00 00 00 00 21 03 04 04 00 00 00 00

Personality: Aji
ConnectorInfo count in decimal: 4
Disk offset in decimal 1924512
0000000 00 04 00 00 04 03 00 00 00 01 01 01 00 00 00 00 12 04 05 01 00 00 00 00
0000024 00 04 00 00 04 03 00 00 00 01 02 01 00 00 00 00 22 05 04 02 00 00 00 00
0000048 04 00 00 00 14 02 00 00 00 01 03 00 00 00 00 00 00 00 03 06 00 00 00 00
0000072 00 08 00 00 04 02 00 00 00 01 04 00 00 00 00 00 11 02 01 04 00 00 00 00

Personality: Buri
ConnectorInfo count in decimal: 4
Disk offset in decimal 1924608
0000000 02 00 00 00 00 01 00 00 39 05 01 00 00 00 00 00 10 00 05 05 00 00 00 00
0000024 00 04 00 00 04 03 00 00 00 09 02 00 00 00 00 00 11 02 01 01 00 00 00 00
0000048 00 04 00 00 04 03 00 00 00 09 03 00 00 00 00 00 21 03 02 02 00 00 00 00
0000072 00 08 00 00 04 02 00 00 00 01 04 00 00 00 00 00 12 04 03 03 00 00 00 00

Personality: Chutoro
ConnectorInfo count in decimal: 5
Disk offset in decimal 1924704
0000000 02 00 00 00 00 01 00 00 19 01 01 00 00 00 00 00 12 04 03 03 00 00 00 00
0000024 00 04 00 00 04 03 00 00 00 01 02 01 00 00 00 00 11 02 01 01 00 00 00 00
0000048 00 04 00 00 00 01 00 00 00 09 03 00 00 00 00 00 21 03 02 02 00 00 00 00
0000072 00 04 00 00 00 01 00 00 00 09 04 00 00 00 00 00 22 05 04 04 00 00 00 00
0000096 00 04 00 00 04 03 00 00 00 01 05 00 00 00 00 00 10 00 05 05 00 00 00 00

Personality: Dashimaki
ConnectorInfo count in decimal: 4
Disk offset in decimal 1924832
0000000 00 04 00 00 04 03 00 00 00 01 01 01 00 00 00 00 12 04 02 02 00 00 00 00
0000024 00 04 00 00 04 03 00 00 00 01 02 00 00 00 00 00 22 05 03 05 00 00 00 00
0000048 04 00 00 00 14 02 00 00 00 01 03 01 00 00 00 00 00 00 04 04 00 00 00 00
0000072 00 08 00 00 04 02 00 00 00 01 04 00 00 00 00 00 11 02 01 01 00 00 00 00

Personality: Ebi
ConnectorInfo count in decimal: 5
Disk offset in decimal 1924928
0000000 02 00 00 00 00 01 00 00 19 01 01 00 00 00 00 00 12 04 03 03 00 00 00 00
0000024 00 04 00 00 04 03 00 00 00 01 02 01 00 00 00 00 11 02 01 01 00 00 00 00
0000048 00 04 00 00 00 01 00 00 00 09 03 01 00 00 00 00 21 03 02 02 00 00 00 00
0000072 00 04 00 00 00 01 00 00 00 09 04 01 00 00 00 00 22 05 04 04 00 00 00 00
0000096 00 04 00 00 04 03 00 00 00 01 05 01 00 00 00 00 10 00 05 05 00 00 00 00

Personality: Gari
ConnectorInfo count in decimal: 5
Disk offset in decimal 1925056
0000000 02 00 00 00 00 01 00 00 19 01 01 00 00 00 00 00 12 04 03 03 00 00 00 00
0000024 00 04 00 00 04 03 00 00 00 01 02 01 00 00 00 00 11 02 01 01 00 00 00 00
0000048 00 04 00 00 00 01 00 00 00 09 03 00 00 00 00 00 21 03 02 02 00 00 00 00
0000072 00 04 00 00 00 01 00 00 00 09 04 00 00 00 00 00 22 05 04 04 00 00 00 00
0000096 00 04 00 00 04 03 00 00 00 01 05 00 00 00 00 00 10 00 05 05 00 00 00 00

Personality: Futomaki
ConnectorInfo count in decimal: 4
Disk offset in decimal 1925232
0000000 00 04 00 00 04 03 00 00 00 01 01 01 00 00 00 00 12 04 04 01 00 00 00 00
0000024 00 04 00 00 04 03 00 00 00 01 02 01 00 00 00 00 22 05 05 02 00 00 00 00
0000048 04 00 00 00 14 02 00 00 00 01 03 00 00 00 00 00 00 00 06 06 00 00 00 00
0000072 00 08 00 00 04 02 00 00 00 01 04 00 00 00 00 00 11 02 01 03 00 00 00 00

Personality: Hamachi
ConnectorInfo count in decimal: 4
Disk offset in decimal 1925328
0000000 00 04 00 00 04 03 00 00 00 01 01 01 00 00 00 00 12 04 05 01 00 00 00 00
0000024 00 04 00 00 04 03 00 00 00 01 02 01 00 00 00 00 22 05 04 02 00 00 00 00
0000048 04 00 00 00 14 02 00 00 00 01 03 00 00 00 00 00 00 00 03 06 00 00 00 00
0000072 00 08 00 00 04 02 00 00 00 01 04 00 00 00 00 00 11 02 01 04 00 00 00 00

Personality: OPM
ConnectorInfo count in decimal: 6
Disk offset in decimal 1925488
0000000 00 04 00 00 04 03 00 00 00 01 00 01 00 00 00 00 11 02 01 01 00 00 00 00
0000024 00 04 00 00 04 03 00 00 00 01 00 01 00 00 00 00 21 03 02 02 00 00 00 00
0000048 00 04 00 00 04 03 00 00 00 01 00 01 00 00 00 00 12 04 03 03 00 00 00 00
0000072 00 04 00 00 04 03 00 00 00 01 00 01 00 00 00 00 22 05 04 04 00 00 00 00
0000096 00 04 00 00 04 03 00 00 00 01 00 01 00 00 00 00 10 00 05 05 00 00 00 00
0000120 00 04 00 00 14 03 00 00 00 01 00 01 00 00 00 00 20 01 06 06 00 00 00 00

Personality: Ikura
ConnectorInfo count in decimal: 1
Disk offset in decimal 1925632
0000000 00 08 00 00 04 02 00 00 00 01 01 00 00 00 00 00 12 04 03 01 00 00 00 00

Personality: IkuraS
ConnectorInfo count in decimal: 6
Disk offset in decimal 1925664
0000000 00 04 00 00 04 03 00 00 00 01 01 43 00 00 00 00 11 02 01 03 00 00 00 00
0000024 00 04 00 00 04 03 00 00 00 01 02 33 00 00 00 00 21 03 02 04 00 00 00 00
0000048 00 04 00 00 04 03 00 00 00 01 03 63 00 00 00 00 12 04 03 01 00 00 00 00
0000072 00 04 00 00 04 03 00 00 00 01 04 53 00 00 00 00 22 05 04 02 00 00 00 00
0000096 00 04 00 00 04 03 00 00 00 01 05 23 00 00 00 00 10 00 05 05 00 00 00 00
0000120 00 04 00 00 04 03 00 00 00 01 06 13 00 00 00 00 20 01 06 06 00 00 00 00

Personality: Junsai
ConnectorInfo count in decimal: 6
Disk offset in decimal 1925808
0000000 00 04 00 00 04 03 00 00 00 01 00 01 00 00 00 00 12 04 03 01 00 00 00 00
0000024 00 04 00 00 04 03 00 00 00 01 00 01 00 00 00 00 22 05 04 02 00 00 00 00
0000048 00 04 00 00 04 03 00 00 00 01 00 01 00 00 00 00 11 02 01 03 00 00 00 00
0000072 00 04 00 00 04 03 00 00 00 01 00 01 00 00 00 00 21 03 02 04 00 00 00 00
0000096 00 04 00 00 04 03 00 00 00 01 00 01 00 00 00 00 10 00 05 05 00 00 00 00
0000120 00 04 00 00 04 03 00 00 00 01 00 01 00 00 00 00 20 01 06 06 00 00 00 00

Personality: Kani
ConnectorInfo count in decimal: 1
Disk offset in decimal 1925952
0000000 00 08 00 00 04 02 00 00 00 01 01 00 00 00 00 00 12 04 03 01 00 00 00 00

Personality: KaniS
ConnectorInfo count in decimal: 6
Disk offset in decimal 1925984
0000000 00 04 00 00 04 03 00 00 00 01 01 43 00 00 00 00 11 02 01 03 00 00 00 00
0000024 00 04 00 00 04 03 00 00 00 01 02 33 00 00 00 00 21 03 02 04 00 00 00 00
0000048 00 04 00 00 04 03 00 00 00 01 03 63 00 00 00 00 12 04 03 01 00 00 00 00
0000072 00 04 00 00 04 03 00 00 00 01 04 53 00 00 00 00 22 05 04 02 00 00 00 00
0000096 00 04 00 00 04 03 00 00 00 01 05 23 00 00 00 00 10 00 05 05 00 00 00 00
0000120 00 04 00 00 04 03 00 00 00 01 06 13 00 00 00 00 20 01 06 06 00 00 00 00

Personality: DashimakiS
ConnectorInfo count in decimal: 4
Disk offset in decimal 1926128
0000000 00 04 00 00 04 03 00 00 00 01 01 01 00 00 00 00 12 04 02 02 00 00 00 00
0000024 00 04 00 00 04 03 00 00 00 01 02 01 00 00 00 00 22 05 03 05 00 00 00 00
0000048 04 00 00 00 14 02 00 00 00 01 03 00 00 00 00 00 00 00 04 04 00 00 00 00
0000072 00 08 00 00 04 02 00 00 00 01 04 00 00 00 00 00 11 02 01 01 00 00 00 00

Personality: Maguro
ConnectorInfo count in decimal: 1
Disk offset in decimal 1926224
0000000 00 08 00 00 04 02 00 00 00 01 01 00 00 00 00 00 12 04 03 01 00 00 00 00

Personality: MaguroS
ConnectorInfo count in decimal: 6
Disk offset in decimal 1926256
0000000 00 04 00 00 04 03 00 00 00 01 01 43 00 00 00 00 11 02 01 03 00 00 00 00
0000024 00 04 00 00 04 03 00 00 00 01 02 33 00 00 00 00 21 03 02 04 00 00 00 00
0000048 00 04 00 00 04 03 00 00 00 01 03 63 00 00 00 00 12 04 03 01 00 00 00 00
0000072 00 04 00 00 04 03 00 00 00 01 04 53 00 00 00 00 22 05 04 02 00 00 00 00
0000096 00 04 00 00 04 03 00 00 00 01 05 23 00 00 00 00 10 00 05 05 00 00 00 00
0000120 00 04 00 00 04 03 00 00 00 01 06 13 00 00 00 00 20 01 06 06 00 00 00 00

Kext /System/Library/Extensions/AMD8000Controller.kext/Contents/MacOS/AMD8000Controller
Personality: Exmoor
ConnectorInfo count in decimal: 6
Disk offset in decimal 1927840
0000000 02 00 00 00 00 01 00 00 00 01 01 51 00 00 00 00 22 05 02 04 00 00 00 00
0000024 02 00 00 00 00 01 00 00 00 01 02 61 01 00 00 00 12 04 01 03 00 00 00 00
0000048 00 04 00 00 04 03 00 00 00 01 03 43 00 00 00 00 11 02 03 01 00 00 00 00
0000072 00 04 00 00 00 01 00 00 00 01 04 31 00 00 00 00 21 03 05 05 00 00 00 00
0000096 00 04 00 00 04 03 00 00 00 01 05 23 00 00 00 00 10 00 04 02 00 00 00 00
0000120 00 04 00 00 00 01 00 00 00 01 06 11 00 00 00 00 20 01 05 05 00 00 00 00

Personality: Baladi
ConnectorInfo count in decimal: 6
Disk offset in decimal 1928240
0000000 00 04 00 00 04 03 00 00 00 01 03 00 00 00 00 00 12 04 03 03 00 00 00 00
0000024 00 04 00 00 04 03 00 00 00 01 01 00 00 00 00 00 11 02 01 01 00 00 00 00
0000048 00 04 00 00 04 03 00 00 00 01 02 00 00 00 00 00 21 03 02 02 00 00 00 00
0000072 00 04 00 00 04 03 00 00 00 01 04 00 00 00 00 00 22 05 04 04 00 00 00 00
0000096 00 04 00 00 04 03 00 00 00 01 05 00 00 00 00 00 10 00 05 05 00 00 00 00
0000120 00 04 00 00 04 03 00 00 00 01 06 00 00 00 00 00 20 01 06 06 00 00 00 00

Kext /System/Library/Extensions/AMD9000Controller.kext/Contents/MacOS/AMD9000Controller
Personality: Exmoor
ConnectorInfo count in decimal: 6
Disk offset in decimal 1931936
0000000 02 00 00 00 00 01 00 00 00 01 01 51 00 00 00 00 22 05 02 04 00 00 00 00
0000024 02 00 00 00 00 01 00 00 00 01 02 61 01 00 00 00 12 04 01 03 00 00 00 00
0000048 00 04 00 00 04 03 00 00 00 01 03 43 00 00 00 00 11 02 03 01 00 00 00 00
0000072 00 04 00 00 00 01 00 00 00 01 04 31 00 00 00 00 21 03 05 05 00 00 00 00
0000096 00 04 00 00 04 03 00 00 00 01 05 23 00 00 00 00 10 00 04 02 00 00 00 00
0000120 00 04 00 00 00 01 00 00 00 01 06 11 00 00 00 00 20 01 05 05 00 00 00 00

Personality: OPM
ConnectorInfo count in decimal: 6
Disk offset in decimal 1932080
0000000 00 04 00 00 04 03 00 00 00 00 00 01 00 00 00 00 10 00 01 01 00 00 00 00
0000024 00 04 00 00 04 03 00 00 00 00 00 01 00 00 00 00 20 01 02 02 00 00 00 00
0000048 00 04 00 00 04 03 00 00 00 00 00 01 00 00 00 00 11 02 03 03 00 00 00 00
0000072 00 04 00 00 04 03 00 00 00 00 00 01 00 00 00 00 21 03 04 04 00 00 00 00
0000096 00 04 00 00 04 03 00 00 00 00 00 01 00 00 00 00 12 04 05 05 00 00 00 00
0000120 00 04 00 00 04 03 00 00 00 00 00 01 00 00 00 00 22 05 06 06 00 00 00 00

Personality: MalteseS
ConnectorInfo count in decimal: 1
Disk offset in decimal 1932224
0000000 00 08 00 00 04 02 00 00 00 01 01 00 00 00 00 00 12 04 03 01 00 00 00 00

Personality: Lagotto
ConnectorInfo count in decimal: 4
Disk offset in decimal 1932256
0000000 00 04 00 00 04 03 00 00 00 01 01 00 00 00 00 00 11 02 04 01 00 00 00 00
0000024 00 08 00 00 04 02 00 00 00 01 02 00 00 00 00 00 21 03 05 03 00 00 00 00
0000048 04 00 00 00 04 02 00 00 00 01 03 00 00 00 00 00 00 00 01 05 00 00 00 00
0000072 04 00 00 00 04 02 00 00 00 01 04 00 00 00 00 00 02 04 06 06 00 00 00 00
Personality: GreyhoundS
ConnectorInfo count in decimal: 1
Disk offset in decimal 1932352
0000000 00 08 00 00 04 02 00 00 00 01 01 00 00 00 00 00 12 04 03 01 00 00 00 00

Personality: Maltese
ConnectorInfo count in decimal: 6
Disk offset in decimal 1932496
0000000 00 04 00 00 04 03 00 00 00 01 01 23 00 00 00 00 10 00 01 03 00 00 00 00
0000024 00 04 00 00 04 03 00 00 00 01 02 13 00 00 00 00 20 01 02 04 00 00 00 00
0000048 00 04 00 00 04 03 00 00 00 01 03 43 00 00 00 00 11 02 03 01 00 00 00 00
0000072 00 04 00 00 04 03 00 00 00 01 04 33 00 00 00 00 21 03 04 02 00 00 00 00
0000096 00 04 00 00 04 03 00 00 00 01 05 63 00 00 00 00 12 04 05 05 00 00 00 00
0000120 00 04 00 00 04 03 00 00 00 01 06 53 00 00 00 00 22 05 06 06 00 00 00 00

Personality: Labrador
ConnectorInfo count in decimal: 6
Disk offset in decimal 1932672
0000000 02 00 00 00 00 01 00 00 00 01 01 31 00 00 00 00 21 03 02 04 00 00 00 00
0000024 02 00 00 00 00 01 00 00 00 01 02 41 01 00 00 00 11 02 01 03 00 00 00 00
0000048 00 04 00 00 04 03 00 00 00 01 03 23 00 00 00 00 10 00 03 01 00 00 00 00
0000072 00 04 00 00 00 01 00 00 00 01 04 11 00 00 00 00 20 01 05 05 00 00 00 00
0000096 00 04 00 00 04 03 00 00 00 01 05 63 00 00 00 00 12 04 04 02 00 00 00 00
0000120 00 04 00 00 00 01 00 00 00 01 06 51 00 00 00 00 22 05 05 05 00 00 00 00

Personality: Basset
ConnectorInfo count in decimal: 4
Disk offset in decimal 1932816
0000000 02 00 00 00 00 01 00 00 00 01 01 31 00 00 00 00 21 03 02 02 00 00 00 00
0000024 02 00 00 00 00 01 00 00 00 01 02 41 01 00 00 00 11 02 01 01 00 00 00 00
0000048 00 04 00 00 04 03 00 00 00 01 03 23 00 00 00 00 10 00 03 03 00 00 00 00
0000072 00 04 00 00 04 03 00 00 00 01 04 13 00 00 00 00 20 01 04 04 00 00 00 00

Personality: Greyhound
ConnectorInfo count in decimal: 6
Disk offset in decimal 1933040
0000000 00 04 00 00 04 03 00 00 00 01 01 23 00 00 00 00 10 00 01 03 00 00 00 00
0000024 00 04 00 00 04 03 00 00 00 01 02 13 00 00 00 00 20 01 02 04 00 00 00 00
0000048 00 04 00 00 04 03 00 00 00 01 03 43 00 00 00 00 11 02 03 01 00 00 00 00
0000072 00 04 00 00 04 03 00 00 00 01 04 33 00 00 00 00 21 03 04 02 00 00 00 00
0000096 00 04 00 00 04 03 00 00 00 01 05 63 00 00 00 00 12 04 05 05 00 00 00 00
0000120 00 04 00 00 04 03 00 00 00 01 06 53 00 00 00 00 22 05 06 06 00 00 00 00

Personality: Baladi
ConnectorInfo count in decimal: 6
Disk offset in decimal 1933216
0000000 00 04 00 00 04 03 00 00 00 01 03 00 00 00 00 00 12 04 03 03 00 00 00 00
0000024 00 04 00 00 04 03 00 00 00 01 01 00 00 00 00 00 11 02 01 01 00 00 00 00
0000048 00 04 00 00 04 03 00 00 00 01 02 00 00 00 00 00 21 03 02 02 00 00 00 00
0000072 00 04 00 00 04 03 00 00 00 01 04 00 00 00 00 00 22 05 04 04 00 00 00 00
0000096 00 04 00 00 04 03 00 00 00 01 05 00 00 00 00 00 10 00 05 05 00 00 00 00
0000120 00 04 00 00 04 03 00 00 00 01 06 00 00 00 00 00 20 01 06 06 00 00 00 00

Kext /System/Library/Extensions/AMD9500Controller.kext/Contents/MacOS/AMD9500Controller
Personality: Exmoor
ConnectorInfo count in decimal: 6
Disk offset in decimal 1952464
0000000 02 00 00 00 00 01 00 00 00 01 01 51 00 00 00 00 22 05 02 04 00 00 00 00
0000024 02 00 00 00 00 01 00 00 00 01 02 61 01 00 00 00 12 04 01 03 00 00 00 00
0000048 00 04 00 00 04 03 00 00 00 01 03 43 00 00 00 00 11 02 03 01 00 00 00 00
0000072 00 04 00 00 00 01 00 00 00 01 04 31 00 00 00 00 21 03 05 05 00 00 00 00
0000096 00 04 00 00 04 03 00 00 00 01 05 23 00 00 00 00 10 00 04 02 00 00 00 00
0000120 00 04 00 00 00 01 00 00 00 01 06 11 00 00 00 00 20 01 05 05 00 00 00 00

Personality: Berbice
ConnectorInfo count in decimal: 5
Disk offset in decimal 1952608
0000000 02 00 00 00 00 01 00 00 39 05 01 08 00 00 00 00 20 01 01 01 00 00 00 00
0000024 00 04 00 00 00 01 00 00 00 01 02 43 00 00 00 00 10 00 02 02 00 00 00 00
0000048 00 04 00 00 04 03 00 00 00 01 03 13 00 00 00 00 21 03 03 03 00 00 00 00
0000072 00 04 00 00 04 03 00 00 00 01 04 53 00 00 00 00 11 02 04 04 00 00 00 00
0000096 00 04 00 00 04 03 00 00 00 01 05 33 00 00 00 00 12 04 05 05 00 00 00 00

Personality: Elqui
ConnectorInfo count in decimal: 5
Disk offset in decimal 1952736
0000000 02 00 00 00 00 01 00 00 00 01 01 41 00 00 00 00 11 02 02 04 00 00 00 00
0000024 02 00 00 00 00 01 00 00 00 01 02 31 01 00 00 00 21 03 01 03 00 00 00 00
0000048 00 04 00 00 04 03 00 00 00 01 03 03 00 00 00 00 20 01 03 01 00 00 00 00
0000072 00 04 00 00 04 03 00 00 00 01 04 03 00 00 00 00 12 04 04 02 00 00 00 00
0000096 00 04 00 00 04 03 00 00 00 01 05 01 00 00 00 00 10 00 05 05 00 00 00 00

Personality: Acre
ConnectorInfo count in decimal: 3
Disk offset in decimal 1952960
0000000 00 04 00 00 04 03 00 00 00 01 01 01 00 00 00 00 11 02 02 01 00 00 00 00
0000024 00 08 00 00 04 02 00 00 00 01 02 00 00 00 00 00 21 03 05 04 00 00 00 00
0000048 04 00 00 00 04 02 00 00 00 01 03 00 00 00 00 00 00 00 03 05 00 00 00 00

Personality: Caroni
ConnectorInfo count in decimal: 5
Disk offset in decimal 1953152
0000000 02 00 00 00 00 01 00 00 00 01 01 41 00 00 00 00 11 02 02 04 00 00 00 00
0000024 02 00 00 00 00 01 00 00 00 01 02 31 01 00 00 00 21 03 01 03 00 00 00 00
0000048 00 04 00 00 04 03 00 00 00 01 03 03 00 00 00 00 20 01 03 01 00 00 00 00
0000072 00 04 00 00 04 03 00 00 00 01 04 03 00 00 00 00 12 04 04 02 00 00 00 00
0000096 00 04 00 00 04 03 00 00 00 01 05 01 00 00 00 00 10 00 05 05 00 00 00 00

Personality: Florin
ConnectorInfo count in decimal: 6
Disk offset in decimal 1953376
0000000 02 00 00 00 00 01 00 00 00 01 01 41 00 00 00 00 11 02 02 04 00 00 00 00
0000024 02 00 00 00 00 01 00 00 00 01 02 31 01 00 00 00 21 03 01 03 00 00 00 00
0000048 00 04 00 00 04 03 00 00 00 01 03 13 00 00 00 00 20 01 03 01 00 00 00 00
0000072 00 04 00 00 04 03 00 00 00 01 04 21 00 00 00 00 10 00 05 05 00 00 00 00
0000096 00 04 00 00 04 03 00 00 00 01 05 53 00 00 00 00 22 05 04 02 00 00 00 00
0000120 00 04 00 00 04 03 00 00 00 01 06 61 00 00 00 00 12 04 06 06 00 00 00 00

Personality: Guariba
ConnectorInfo count in decimal: 6
Disk offset in decimal 1953552
0000000 00 04 00 00 04 03 00 00 00 01 01 01 00 00 00 00 12 04 06 01 00 00 00 00
0000024 00 04 00 00 04 03 00 00 00 01 02 01 00 00 00 00 22 05 04 03 00 00 00 00
0000048 00 04 00 00 04 03 00 00 00 01 03 01 00 00 00 00 11 02 01 02 00 00 00 00
0000072 00 08 00 00 04 02 00 00 00 01 04 00 00 00 00 00 21 03 05 04 00 00 00 00
0000096 04 00 00 00 04 02 00 00 00 01 05 00 00 00 00 00 00 00 03 06 00 00 00 00
0000120 00 04 00 00 00 01 00 00 00 01 06 01 00 00 00 00 20 01 02 05 00 00 00 00

Personality: Dayman
ConnectorInfo count in decimal: 6
Disk offset in decimal 1953696
0000000 00 04 00 00 04 03 00 00 00 01 01 01 00 00 00 00 12 04 06 01 00 00 00 00
0000024 00 04 00 00 04 03 00 00 00 01 02 01 00 00 00 00 22 05 04 03 00 00 00 00
0000048 00 04 00 00 04 03 00 00 00 01 03 01 00 00 00 00 11 02 01 02 00 00 00 00
0000072 00 08 00 00 04 02 00 00 00 01 04 00 00 00 00 00 21 03 05 04 00 00 00 00
0000096 04 00 00 00 04 02 00 00 00 01 05 00 00 00 00 00 00 00 03 06 00 00 00 00
0000120 00 04 00 00 00 01 00 00 00 01 06 01 00 00 00 00 20 01 02 05 00 00 00 00

Personality: Baladi
ConnectorInfo count in decimal: 6
Disk offset in decimal 1953872
0000000 00 04 00 00 04 03 00 00 00 01 03 00 00 00 00 00 12 04 03 03 00 00 00 00
0000024 00 04 00 00 04 03 00 00 00 01 01 00 00 00 00 00 11 02 01 01 00 00 00 00
0000048 00 04 00 00 04 03 00 00 00 01 02 00 00 00 00 00 21 03 02 02 00 00 00 00
0000072 00 04 00 00 04 03 00 00 00 01 04 00 00 00 00 00 22 05 04 04 00 00 00 00
0000096 00 04 00 00 04 03 00 00 00 01 05 00 00 00 00 00 10 00 05 05 00 00 00 00
0000120 00 04 00 00 04 03 00 00 00 01 06 00 00 00 00 00 20 01 06 06 00 00 00 00

Personality: OPM
ConnectorInfo count in decimal: 5
Disk offset in decimal 1954016
0000000 00 04 00 00 04 03 00 00 00 00 00 01 00 00 00 00 11 02 02 02 00 00 00 00
0000024 00 04 00 00 04 03 00 00 00 00 00 01 00 00 00 00 21 03 03 03 00 00 00 00
0000048 00 04 00 00 04 03 00 00 00 00 00 01 00 00 00 00 12 04 01 01 00 00 00 00
0000072 00 04 00 00 04 03 00 00 00 00 00 01 00 00 00 00 10 00 04 04 00 00 00 00
0000096 00 04 00 00 04 03 00 00 00 00 00 01 00 00 00 00 20 01 05 05 00 00 00 00

This one doesn't work after patching. we need more dumps, i dont know why i think it's not correct. Also the the format looks weird

Link to comment
Share on other sites

The format is right, thats the format that Sierra uses now





Here is the dump from 8000 kext

0000000 00 04 00 00 04 03 00 00 00 01 03 00 00 00 00 00 12 04 03 03 00 00 00 00
0000024 00 04 00 00 04 03 00 00 00 01 01 00 00 00 00 00 11 02 01 01 00 00 00 00
0000048 00 04 00 00 04 03 00 00 00 01 02 00 00 00 00 00 21 03 02 02 00 00 00 00
0000072 00 04 00 00 04 03 00 00 00 01 04 00 00 00 00 00 22 05 04 04 00 00 00 00
0000096 00 04 00 00 04 03 00 00 00 01 05 00 00 00 00 00 10 00 05 05 00 00 00 00
0000120 00 04 00 00 04 03 00 00 00 01 06 00 00 00 00 00 20 01 06 06 00 00 00 00

if address bytes removed it becomes like this in byte form

00 04 00 00   04 03 00 00   00 01 03 00   00 00 00 00   12 04 03 03   00 00 00 00
00 04 00 00   04 03 00 00   00 01 01 00   00 00 00 00   11 02 01 01   00 00 00 00
00 04 00 00   04 03 00 00   00 01 02 00   00 00 00 00   21 03 02 02   00 00 00 00
00 04 00 00   04 03 00 00   00 01 04 00   00 00 00 00   22 05 04 04   00 00 00 00
00 04 00 00   04 03 00 00   00 01 05 00   00 00 00 00   10 00 05 05   00 00 00 00
00 04 00 00   04 03 00 00   00 01 06 00   00 00 00 00   20 01 06 06   00 00 00 00

is this correct?

Link to comment
Share on other sites

Yes but again with only 1 monitor no need for frame buffer patch, RadeonFramebuffer will work just fine for 290X on 1 monitor



Well, i applied the patch for my card and here is the news after getting the correct format for Sierra's FB. After applying the patch i was able to have the same behavior that happened with the default FB [RadeonFrameBuffer] A flash and then back to boot text.



I went to UEFI bios and made IGPU primary and the patch worked flawlessly [ of course i had to boot blindly till the login screen]



so as this was my last hope, i give up and i'm going to use the igpu with Sierra. And also i hope apple will fix this issue or i find a solution for it.



Here is the Patch if anyone is interested



Find:

000400000403000000010300000000001204030300000000000400000403000000010100000000001102010100000000000400000403000000010200000000002103020200000000000400000403000000010400000000002205040400000000000400000403000000010500000000001000050500000000000400000403000000010600000000002001060600000000

Replace:

000400000403000000010300000000001204020100000000000400001402000000010100000000001102010400000000000400000403000000010200000000002103020200000000000200000403000000010400000000002205030300000000000400001402000000010500000000001000060600000000000400000403000000010600000000002001060600000000

Please note: My GPU is

SAPPHIRE VAPOR-X R9 290X TRI-X OC 4GB

[with clock 1080 and memclock 1410]

This patch might not work with other R9 290X [test at your own risk]

Link to comment
Share on other sites

Well, i applied the patch for my card and here is the news after getting the correct format for Sierra's FB. After applying the patch i was able to have the same behavior that happened with the default FB [RadeonFrameBuffer] A flash and then back to boot text.



I went to UEFI bios and made IGPU primary and the patch worked flawlessly [ of course i had to boot blindly till the login screen]



so as this was my last hope, i give up and i'm going to use the igpu with Sierra. And also i hope apple will fix this issue or i find a solution for it.



Here is the Patch if anyone is interested



Find:

000400000403000000010300000000001204030300000000000400000403000000010100000000001102010100000000000400000403000000010200000000002103020200000000000400000403000000010400000000002205040400000000000400000403000000010500000000001000050500000000000400000403000000010600000000002001060600000000

Replace:

000400000403000000010300000000001204020100000000000400001402000000010100000000001102010400000000000400000403000000010200000000002103020200000000000200000403000000010400000000002205030300000000000400001402000000010500000000001000060600000000000400000403000000010600000000002001060600000000

Please note: My GPU is

SAPPHIRE VAPOR-X R9 290X TRI-X OC 4GB

[with clock 1080 and memclock 1410]

This patch might not work with other R9 290X [test at your own risk]

All Sapphire 290x have the same connector data unless its a reference design. Also I think the reason you are having a flash and then back to boot text is because you have verbose checked in your config for boot option, uncheck that and try

Link to comment
Share on other sites

All Sapphire 290x have the same connector data unless its a reference design. Also I think the reason you are having a flash and then back to boot text is because you have verbose checked in your config for boot option, uncheck that and try

no success, the screen flashes and the progress under the apple gets stuck in the middle.

Link to comment
Share on other sites

Same problem as Tusskan but with an 390x.
My current workaround: enabled iGPU and made it primary (the only way I found that get's me behind that loading apple)

That's not too bad. The only thing that is a bit irritating is that I've no image until login screen and a fourth internal screen is recognized...









Any idea to "turn that screen off" or, even better, patch it for standalone run without internal gpu?

Link to comment
Share on other sites

  • 2 weeks later...

Thanks for all the tools, and all the helpful posts guys (Vlada., Mork vom Ork, tyufhl, Pavo, Slice, etc)! And even though I think I have everything I need (I've done this successfully multiple times on 10.9-10.11), I would like to solve the problem I am having running the script from this post on 10.12.



Here is the fatal error I am getting:

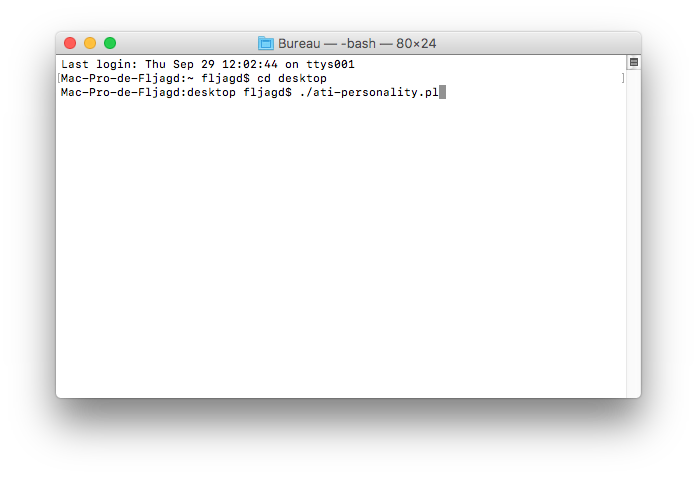

$ ati-personality.pl
Script version 0.15
Kext /System/Library/Extensions/AMD2400Controller.kext/Contents/MacOS/AMD2400Controller
Personality: Iago
ConnectorInfo count in decimal: 2
Disk offset in decimal 1093104
rm: /tmp/x: Permission denied
Cannot setup temp file
fatal error: /Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/otool: fatal error in /Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/objdump
$

I have tried to run the command under 'sudo', and also as root. All attempts have pretty much the same results.

$ su -
root# ati-personality.pl
Script version 0.15
Kext /System/Library/Extensions/AMD2400Controller.kext/Contents/MacOS/AMD2400Controller
Personality: Iago
ConnectorInfo count in decimal: 2
Disk offset in decimal 1093104
od command failed
fatal error: /Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/otool: fatal error in /Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/objdump
root#

I am running Xcode 8.0 Build version 8A218a.



macOS 10.12 (16A323)



When I try to run any of the other scripts made for < 10.12, I just get the following, which doesn't look right at all...

$ php ATI_FrameBuffers.php
-------------------------AMD2400Controller.kext-------------------------

warning: /Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/otool: -Q functionality obsolete
Iago (2) @ 0x10adf0
LVDS,
02000000400000001900000000000000
00010012000000000010000016000000

-------------------------AMD2600Controller.kext-------------------------

warning: /Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/otool: -Q functionality obsolete
Hypoprion (2) @ 0x10adc0
LVDS,
02000000400000001900000000000000
00010012000000000010000016000000

Lamna (2) @ 0x10adf0
SDVI,
00020000140000008000000000000000
00010211000000000400000016000000

-------------------------AMD3800Controller.kext-------------------------

warning: /Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/otool: -Q functionality obsolete
Megalodon (3) @ 0x10bda0
SDVI, ,
00020000140000000000000000000000
00010211000000000400000016000000
00000000000000000010011200000000

Triakis (2) @ 0x10bdf0
SDVI,
00020000140000000000000000000000
00010211000000000400000016000000

-------------------------AMD4600Controller.kext-------------------------

warning: /Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/otool: -Q functionality obsolete
Flicker (3) @ 0x108d20
DP, ,
00040000000400000001000000000000
02010305000000000004000000040000
00010000000000000100020200000000

Gliff (3) @ 0x108d70
LVDS, ,
02000000400000001901000000000000
02010003000000000200000000010000
19010000000000002001020200000000

Shrike (3) @ 0x108dc0
LVDS, ,
02000000400000001901000000000000
02010003000000000200000000010000
19010000000000002001020200000000

-------------------------AMD4800Controller.kext-------------------------

warning: /Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/otool: -Q functionality obsolete
Cardinal (2) @ 0x107d50
SDVI,
00020000140200000001000000000000
01010104000000000400000014020000

MotMot (2) @ 0x107d80
DP,
00040000040100000001000000000000
10000203000000000400000014020000

Quail (3) @ 0x107db0
LVDS, ,
02000000400000001901000000000000
22010007000000000200000000010000
19010000000000002001030400000000

-------------------------AMD5000Controller.kext-------------------------

warning: /Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/otool: -Q functionality obsolete
Douc (2) @ 0x1aefa0
LVDS,
02000000000500001903000000000000
21030202000000000004000004020000

Langur (3) @ 0x1aefd0
DP, ,
00040000040600000001000000000000
21030402000000000004000004060000
00010000000000001102010100000000

Uakari (4) @ 0x1af020
DP, , , SDVI
00040000000400000071000000000000
12040401000000000400000014000000
00710000000000000112010300000000
00020000140000000071000000000000

Zonalis (6) @ 0x1af080
DP, , , DP, ,
00040000040600000071000000000000
20010606000000000004000004060000
00710000000000001000050500000000
00040000040600000071000000000000
21030204000000000004000004060000
00710000000000001102010300000000

Alouatta (4) @ 0x1af110
LVDS, , , DP
02000000000100001901000000000000
12040303000000000004000004060000
00710000000000001102010100000000
00040000040600000071000000000000

Hoolock (3) @ 0x1af170
DP, ,
00040000040600000001000000000000
21030501000000000004000004060000
00010000000000001102040200000000

Vervet (4) @ 0x1af1c0
DP, , , SDVI
00040000000400000071000000000000
12040402000000000400000014000000
00710000000000000112010400000000
00020000140000000071000000000000

Baboon (3) @ 0x1af220
DDVI, ,
04000000140000000001000000000000
01020103000000000008000000020000
00710000000000002205020100000000

Eulemur (3) @ 0x1af270
DDVI, ,
04000000140000000001000000000000
01020104000000000008000000020000
00710000000000001204040200000000

Galago (2) @ 0x1af2d0
LVDS,
02000000000100001903000000000000
21030202000000000004000004060000

Colobus (2) @ 0x1af310
LVDS,
02000000000100001903000000000000
21030202000000000004000004060000

Mangabey (2) @ 0x1af350
LVDS,
02000000400000001901000000000000
00000003000000000004000004060000

Nomascus (4) @ 0x1af390
LVDS, , , DP
02000000400000001901000000000000
00000005000000000200000000010000
19030000000000001204030300000000
00040000040600000073000000000000

Orangutan (2) @ 0x1af400
LVDS,
02000000400000001901000000000000
00000005000000000004000004060000

-------------------------AMD6000Controller.kext-------------------------

warning: /Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/otool: -Q functionality obsolete
Pithecia (2) @ 0x1b54e0
DP,
00040000040300000001000000000000
21030204000000000400000014020000

Bulrushes (6) @ 0x1b5510
DP, , , DP, ,
00040000040300000001000000000000
11020101000000000004000004030000
00010000000000002103020200000000
00040000040300000001000000000000
12040303000000000004000004030000
00010000000000002205040400000000

Cattail (4) @ 0x1b55a0
LVDS, , , DP
02000000400000003905000000000000
00000005000000000004000004030000
00010000000000001102010100000000
00040000000100000009100000000000

Hydrilla (5) @ 0x1b5600
LVDS, , , DP,
02000000000100001901000000000000
12040303000000000004000004030000
00010000000000001102010100000000
00040000000100000009100000000000
21030202000000000004000000010000

Duckweed (4) @ 0x1b5680
DP, , , HDMI
00040000040300000001000000000000
12040401000000000004000004030000
00010000000000002205050200000000
00080000040200000001000000000000

Fanwort (4) @ 0x1b56e0
LVDS, , , DP
02000000400000003905000000000000
00000004000000000004000004030000
00010000000000001102010100000000
00040000000100000009100000000000

Elodea (5) @ 0x1b5740
LVDS, , , DP,
02000000000100001901000000000000
12040303000000000004000004030000
00010000000000001000050500000000
00040000040300000001000000000000
11020101000000000004000000010000

Kudzu (2) @ 0x1b57c0
DP,
00040000040300000001000000000000
12040303000000000008000004020000

Gibba (5) @ 0x1b57f0
DP, , , HDMI,
00040000040300000001000000000000
12040501000000000004000004030000
00010000000000002205040200000000
00080000040200000001000000000000
11020604000000000002000014020000

Lotus (3) @ 0x1b5870
DP, ,
00040000040300000001000000000000
11020101000000000008000004020000
00010000000000002205040400000000

Ipomoea (3) @ 0x1b58c0
DP, ,
00040000040300000001000000000000
12040105000000000008000004020000
00010000000000001102040300000000

Muskgrass (4) @ 0x1b5910
DP, , , DP
00040000040300000001010000000000
11020101000000000004000000010000
00091200000000002103020200000000
00040000000100000009130000000000

Juncus (4) @ 0x1b5970
DP, , , DP
00040000040300000001000000000000
12040303000000000004000004030000
00010000000000001000040500000000
00040000040300000001000000000000

Osmunda (4) @ 0x1b59d0
LVDS, , , DP
02000000000100003905010000000000
10000505000000000004000004030000
00090200000000001102010100000000
00040000040300000009030000000000

Pondweed (3) @ 0x1b5a30
LVDS, ,
02000000000100001901010000000000
10000505000000000004000004030000
00010200000000001102010100000000

Spikerush (4) @ 0x1b5a80
LVDS, , , DP
02000000400000003905010000000000
00000005000000000004000004030000
00010200000000001102010100000000
00040000000100000009020000000000

Typha (5) @ 0x1b5ae0
DP, , , DP,
00040000040300000001010000000000
11020401000000000004000004030000
00010200000000002103050200000000
00040000000100000009030000000000
10000205000000000004000000010000

-------------------------AMD7000Controller.kext-------------------------

warning: /Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/otool: -Q functionality obsolete
Ramen (6) @ 0x1d5b50
LVDS, , , DP, ,
02000000000100003905010800000000
20010506000000000008000004020000
00010200000000001000030500000000
00040000040300000001034300000000
11020101000000000004000000010000
00010431000000002103040300000000

Tako (6) @ 0x1d5c50
LVDS, , , DP, ,
02000000000100000001015100000000
22050204000000000200000000010000
00010261010000001204010300000000
00040000040300000001034300000000
11020301000000000004000000010000
00010431000000002103050500000000

Namako (4) @ 0x1d5ce0
LVDS, , , DP
02000000000100000001015100000000
22050202000000000200000000010000
00010261010000001204010100000000
00040000040300000001034300000000

Aji (4) @ 0x1d5da0
DP, , , DDVI
00040000040300000001010100000000
12040501000000000004000004030000
00010201000000002205040200000000
04000000140200000001030000000000

Buri (4) @ 0x1d5e00
LVDS, , , DP
02000000000100003905010000000000
10000505000000000004000004030000
00090200000000001102010100000000
00040000040300000009030000000000

Chutoro (5) @ 0x1d5e60
LVDS, , , DP,
02000000000100001901010000000000
12040303000000000004000004030000
00010201000000001102010100000000
00040000000100000009030000000000
21030202000000000004000000010000

Dashimaki (4) @ 0x1d5ee0
DP, , , DDVI
00040000040300000001010100000000
12040202000000000004000004030000
00010200000000002205030500000000
04000000140200000001030100000000

Ebi (5) @ 0x1d5f40
LVDS, , , DP,
02000000000100001901010000000000
12040303000000000004000004030000
00010201000000001102010100000000
00040000000100000009030100000000
21030202000000000004000000010000

Gari (5) @ 0x1d5fc0
LVDS, , , DP,
02000000000100001901010000000000
12040303000000000004000004030000
00010201000000001102010100000000
00040000000100000009030000000000
21030202000000000004000000010000

Futomaki (4) @ 0x1d6070
DP, , , DDVI
00040000040300000001010100000000
12040401000000000004000004030000
00010201000000002205050200000000
04000000140200000001030000000000

Hamachi (4) @ 0x1d60d0
DP, , , DDVI
00040000040300000001010100000000
12040501000000000004000004030000
00010201000000002205040200000000
04000000140200000001030000000000

OPM (6) @ 0x1d6170
DP, , , DP, ,
00040000040300000001000100000000
11020101000000000004000004030000
00010001000000002103020200000000
00040000040300000001000100000000
12040303000000000004000004030000
00010001000000002205040400000000

Ikura (1) @ 0x1d6200
HDMI
00080000040200000001010000000000

IkuraS (6) @ 0x1d6220
DP, , , DP, ,
00040000040300000001014300000000
11020103000000000004000004030000
00010233000000002103020400000000
00040000040300000001036300000000
12040301000000000004000004030000
00010453000000002205040200000000

Junsai (6) @ 0x1d62b0
DP, , , DP, ,
00040000040300000001000100000000
12040301000000000004000004030000
00010001000000002205040200000000
00040000040300000001000100000000
11020103000000000004000004030000
00010001000000002103020400000000

Kani (1) @ 0x1d6340
HDMI
00080000040200000001010000000000

KaniS (6) @ 0x1d6360
DP, , , DP, ,
00040000040300000001014300000000
11020103000000000004000004030000
00010233000000002103020400000000
00040000040300000001036300000000
12040301000000000004000004030000
00010453000000002205040200000000

DashimakiS (4) @ 0x1d63f0
DP, , , DDVI
00040000040300000001010100000000
12040202000000000004000004030000
00010201000000002205030500000000
04000000140200000001030000000000

Maguro (1) @ 0x1d6450
HDMI
00080000040200000001010000000000

MaguroS (6) @ 0x1d6470
DP, , , DP, ,
00040000040300000001014300000000
11020103000000000004000004030000
00010233000000002103020400000000
00040000040300000001036300000000
12040301000000000004000004030000
00010453000000002205040200000000

-------------------------AMD8000Controller.kext-------------------------

warning: /Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/otool: -Q functionality obsolete
Exmoor (6) @ 0x1d6aa0
LVDS, , , DP, ,
02000000000100000001015100000000
22050204000000000200000000010000
00010261010000001204010300000000
00040000040300000001034300000000
11020301000000000004000000010000
00010431000000002103050500000000

Baladi (6) @ 0x1d6c30
DP, , , DP, ,
00040000040300000001030000000000
12040303000000000004000004030000
00010100000000001102010100000000
00040000040300000001020000000000
21030202000000000004000004030000
00010400000000002205040400000000

-------------------------AMD9000Controller.kext-------------------------

warning: /Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/otool: -Q functionality obsolete
Exmoor (6) @ 0x1d7aa0
LVDS, , , DP, ,
02000000000100000001015100000000
22050204000000000200000000010000
00010261010000001204010300000000
00040000040300000001034300000000
11020301000000000004000000010000
00010431000000002103050500000000

OPM (6) @ 0x1d7b30
DP, , , DP, ,
00040000040300000000000100000000
10000101000000000004000004030000
00000001000000002001020200000000
00040000040300000000000100000000
11020303000000000004000004030000
00000001000000002103040400000000

MalteseS (1) @ 0x1d7bc0
HDMI
00080000040200000001010000000000

Lagotto (4) @ 0x1d7be0
DP, , , DDVI
00040000040300000001010000000000
11020401000000000008000004020000
00010200000000002103050300000000
04000000040200000001030000000000

GreyhoundS (1) @ 0x1d7c40
HDMI
00080000040200000001010000000000

Maltese (6) @ 0x1d7cd0
DP, , , DP, ,
00040000040300000001012300000000
10000103000000000004000004030000
00010213000000002001020400000000
00040000040300000001034300000000
11020301000000000004000004030000
00010433000000002103040200000000

Labrador (6) @ 0x1d7d80
LVDS, , , DP, ,
02000000000100000001013100000000
21030204000000000200000000010000
00010241010000001102010300000000
00040000040300000001032300000000
10000301000000000004000000010000
00010411000000002001050500000000

Basset (4) @ 0x1d7e10
LVDS, , , DP
02000000000100000001013100000000
21030202000000000200000000010000
00010241010000001102010100000000
00040000040300000001032300000000

Greyhound (6) @ 0x1d7ef0
DP, , , DP, ,
00040000040300000001012300000000
10000103000000000004000004030000
00010213000000002001020400000000
00040000040300000001034300000000
11020301000000000004000004030000
00010433000000002103040200000000

Baladi (6) @ 0x1d7fa0
DP, , , DP, ,
00040000040300000001030000000000
12040303000000000004000004030000
00010100000000001102010100000000
00040000040300000001020000000000
21030202000000000004000004030000
00010400000000002205040400000000

-------------------------AMD9500Controller.kext-------------------------

warning: /Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/otool: -Q functionality obsolete
Exmoor (6) @ 0x1dcad0
LVDS, , , DP, ,
02000000000100000001015100000000
22050204000000000200000000010000
00010261010000001204010300000000
00040000040300000001034300000000
11020301000000000004000000010000
00010431000000002103050500000000

Berbice (5) @ 0x1dcb60
LVDS, , , DP,
02000000000100003905010800000000
20010101000000000004000000010000
00010243000000001000020200000000
00040000040300000001031300000000
21030303000000000004000004030000

Elqui (5) @ 0x1dcbe0
LVDS, , , DP,
02000000000100000001014100000000
11020204000000000200000000010000
00010231010000002103010300000000
00040000040300000001030300000000
20010301000000000004000004030000

Acre (3) @ 0x1dccc0
DP, ,
00040000040300000001010100000000
11020201000000000008000004020000
00010200000000002103050400000000

Caroni (5) @ 0x1dcd80
LVDS, , , DP,
02000000000100000001014100000000
11020204000000000200000000010000
00010231010000002103010300000000
00040000040300000001030300000000
20010301000000000004000004030000

Florin (6) @ 0x1dce60
LVDS, , , DP, ,
02000000000100000001014100000000
11020204000000000200000000010000
00010231010000002103010300000000
00040000040300000001031300000000
20010301000000000004000004030000
00010421000000001000050500000000

Guariba (6) @ 0x1dcf10
DP, , , DP, ,
00040000040300000001010100000000
12040601000000000004000004030000
00010201000000002205040300000000
00040000040300000001030100000000
11020102000000000008000004020000
00010400000000002103050400000000

Dayman (6) @ 0x1dcfa0
DP, , , DP, ,
00040000040300000001010100000000
12040601000000000004000004030000
00010201000000002205040300000000
00040000040300000001030100000000
11020102000000000008000004020000
00010400000000002103050400000000

Baladi (6) @ 0x1dd050
DP, , , DP, ,
00040000040300000001030000000000
12040303000000000004000004030000
00010100000000001102010100000000
00040000040300000001020000000000
21030202000000000004000004030000
00010400000000002205040400000000

OPM (5) @ 0x1dd0e0
DP, , , DP,
00040000040300000000000100000000
11020202000000000004000004030000
00000001000000002103030300000000
00040000040300000000000100000000
12040101000000000004000004030000

$

Oh! And just in the case that anyone is wondering about SIP;

$ csrutil status
System Integrity Protection status: enabled (Custom Configuration).

Configuration:
	Apple Internal: disabled
	Kext Signing: disabled
	Filesystem Protections: disabled
	Debugging Restrictions: enabled
	DTrace Restrictions: enabled
	NVRAM Protections: enabled
	BaseSystem Verification: enabled

This is an unsupported configuration, likely to break in the future and leave your machine in an unknown state.

Thanks guys!

Link to comment
Share on other sites

Great

Thank a lot

on 10.12 With Xcode 8



Last login: Tue Sep 27 08:31:31 on ttys000

/Users/fljagd/Downloads/ati-personalityXcode8/Ati-fram.command ; exit;

Mac-Pro-de-Fljagd:~ fljagd$ /Users/fljagd/Downloads/ati-personalityXcode8/Ati-fram.command ; exit;



Script version 0.15

Kext /System/Library/Extensions/AMD2400Controller.kext/Contents/MacOS/AMD2400Controller

Personality: Iago

ConnectorInfo count in decimal: 2

Disk offset in decimal 1093104

0000000 02 00 00 00 40 00 00 00 19 00 00 00 00 00 00 00 00 01 00 12 00 00 00 00

0000024 00 10 00 00 16 00 00 00 c4 00 00 00 00 00 00 00 10 00 01 11 00 00 00 00

0000048

Kext /System/Library/Extensions/AMD2600Controller.kext/Contents/MacOS/AMD2600Controller

Personality: Hypoprion

ConnectorInfo count in decimal: 2

Disk offset in decimal 1093056

0000000 02 00 00 00 40 00 00 00 19 00 00 00 00 00 00 00 00 01 00 12 00 00 00 00

0000024 00 10 00 00 16 00 00 00 c4 00 00 00 00 00 00 00 10 00 01 11 00 00 00 00

0000048

Personality: Lamna

ConnectorInfo count in decimal: 2

Disk offset in decimal 1093104

0000000 00 02 00 00 14 00 00 00 80 00 00 00 00 00 00 00 00 01 02 11 00 00 00 00

0000024 04 00 00 00 16 00 00 00 80 00 00 00 00 00 00 00 00 10 01 12 00 00 00 00

0000048

Kext /System/Library/Extensions/AMD3800Controller.kext/Contents/MacOS/AMD3800Controller

Personality: Megalodon

ConnectorInfo count in decimal: 3

Disk offset in decimal 1097120

0000000 00 02 00 00 14 00 00 00 00 00 00 00 00 00 00 00 00 01 02 11 00 00 00 00

0000024 04 00 00 00 16 00 00 00 00 00 00 00 00 00 00 00 00 10 01 12 00 00 00 00

0000048 80 00 00 00 02 00 00 00 04 00 00 00 00 00 00 00 00 10 00 00 00 00 00 00

0000072

Personality: Triakis

ConnectorInfo count in decimal: 2

Disk offset in decimal 1097200

0000000 00 02 00 00 14 00 00 00 00 00 00 00 00 00 00 00 00 01 02 11 00 00 00 00

0000024 04 00 00 00 16 00 00 00 00 00 00 00 00 00 00 00 00 10 01 12 00 00 00 00

0000048

Kext /System/Library/Extensions/AMD4600Controller.kext/Contents/MacOS/AMD4600Controller

Personality: Flicker

ConnectorInfo count in decimal: 3

Disk offset in decimal 1084704

0000000 00 04 00 00 00 04 00 00 00 01 00 00 00 00 00 00 02 01 03 05 00 00 00 00

0000024 00 04 00 00 00 04 00 00 00 01 00 00 00 00 00 00 01 00 02 02 00 00 00 00

0000048 00 02 00 00 14 02 00 00 00 01 00 00 00 00 00 00 00 10 01 04 00 00 00 00

0000072

Personality: Gliff

ConnectorInfo count in decimal: 3

Disk offset in decimal 1084784

0000000 02 00 00 00 40 00 00 00 19 01 00 00 00 00 00 00 02 01 00 03 00 00 00 00

0000024 02 00 00 00 00 01 00 00 19 01 00 00 00 00 00 00 20 01 02 02 00 00 00 00

0000048 00 04 00 00 04 06 00 00 00 01 00 00 00 00 00 00 10 00 01 01 00 00 00 00

0000072

Personality: Shrike

ConnectorInfo count in decimal: 3

Disk offset in decimal 1084864

0000000 02 00 00 00 40 00 00 00 19 01 00 00 00 00 00 00 02 01 00 03 00 00 00 00

0000024 02 00 00 00 00 01 00 00 19 01 00 00 00 00 00 00 20 01 02 02 00 00 00 00

0000048 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 10 00 01 01 00 00 00 00

0000072

Kext /System/Library/Extensions/AMD4800Controller.kext/Contents/MacOS/AMD4800Controller

Personality: Cardinal

ConnectorInfo count in decimal: 2

Disk offset in decimal 1080656

0000000 00 02 00 00 14 02 00 00 00 01 00 00 00 00 00 00 01 01 01 04 00 00 00 00

0000024 04 00 00 00 14 02 00 00 00 01 00 00 00 00 00 00 00 10 02 03 00 00 00 00

0000048

Personality: MotMot

ConnectorInfo count in decimal: 2

Disk offset in decimal 1080704

0000000 00 04 00 00 04 01 00 00 00 01 00 00 00 00 00 00 10 00 02 03 00 00 00 00

0000024 04 00 00 00 14 02 00 00 00 01 00 00 00 00 00 00 01 11 01 04 00 00 00 00

0000048

Personality: Quail

ConnectorInfo count in decimal: 3

Disk offset in decimal 1080752

0000000 02 00 00 00 40 00 00 00 19 01 00 00 00 00 00 00 22 01 00 07 00 00 00 00

0000024 02 00 00 00 00 01 00 00 19 01 00 00 00 00 00 00 20 01 03 04 00 00 00 00

0000048 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 10 00 02 03 00 00 00 00

0000072

Kext /System/Library/Extensions/AMD5000Controller.kext/Contents/MacOS/AMD5000Controller

Personality: Douc

ConnectorInfo count in decimal: 2

Disk offset in decimal 1765280

0000000 02 00 00 00 00 05 00 00 19 03 00 00 00 00 00 00 21 03 02 02 00 00 00 00

0000024 00 04 00 00 04 02 00 00 00 03 00 00 00 00 00 00 11 02 01 01 00 00 00 00

0000048

Personality: Langur

ConnectorInfo count in decimal: 3

Disk offset in decimal 1765328

0000000 00 04 00 00 04 06 00 00 00 01 00 00 00 00 00 00 21 03 04 02 00 00 00 00

0000024 00 04 00 00 04 06 00 00 00 01 00 00 00 00 00 00 11 02 01 01 00 00 00 00

0000048 04 00 00 00 14 02 00 00 00 01 00 00 00 00 00 00 02 04 05 03 00 00 00 00

0000072

Personality: Uakari

ConnectorInfo count in decimal: 4

Disk offset in decimal 1765408

0000000 00 04 00 00 00 04 00 00 00 71 00 00 00 00 00 00 12 04 04 01 00 00 00 00

0000024 04 00 00 00 14 00 00 00 00 71 00 00 00 00 00 00 01 12 01 03 00 00 00 00

0000048 00 02 00 00 14 00 00 00 00 71 00 00 00 00 00 00 00 00 06 05 00 00 00 00

0000072 00 08 00 00 00 02 00 00 00 71 00 00 00 00 00 00 22 05 05 04 00 00 00 00

0000096

Personality: Zonalis

ConnectorInfo count in decimal: 6

Disk offset in decimal 1765504

0000000 00 04 00 00 04 06 00 00 00 71 00 00 00 00 00 00 20 01 06 06 00 00 00 00

0000024 00 04 00 00 04 06 00 00 00 71 00 00 00 00 00 00 10 00 05 05 00 00 00 00

0000048 00 04 00 00 04 06 00 00 00 71 00 00 00 00 00 00 21 03 02 04 00 00 00 00

0000072 00 04 00 00 04 06 00 00 00 71 00 00 00 00 00 00 11 02 01 03 00 00 00 00

0000096 00 04 00 00 04 06 00 00 00 71 00 00 00 00 00 00 22 05 04 02 00 00 00 00

0000120 00 04 00 00 04 06 00 00 00 71 00 00 00 00 00 00 12 04 03 01 00 00 00 00

0000144

Personality: Alouatta

ConnectorInfo count in decimal: 4

Disk offset in decimal 1765648

0000000 02 00 00 00 00 01 00 00 19 01 00 00 00 00 00 00 12 04 03 03 00 00 00 00

0000024 00 04 00 00 04 06 00 00 00 71 00 00 00 00 00 00 11 02 01 01 00 00 00 00

0000048 00 04 00 00 04 06 00 00 00 71 00 00 00 00 00 00 21 03 02 02 00 00 00 00

0000072 00 04 00 00 04 06 00 00 00 71 00 00 00 00 00 00 22 05 04 04 00 00 00 00

0000096

Personality: Hoolock

ConnectorInfo count in decimal: 3

Disk offset in decimal 1765744

0000000 00 04 00 00 04 06 00 00 00 01 00 00 00 00 00 00 21 03 05 01 00 00 00 00

0000024 00 04 00 00 04 06 00 00 00 01 00 00 00 00 00 00 11 02 04 02 00 00 00 00

0000048 04 00 00 00 14 02 00 00 00 01 00 00 00 00 00 00 02 04 01 03 00 00 00 00

0000072

Personality: Vervet

ConnectorInfo count in decimal: 4

Disk offset in decimal 1765824

0000000 00 04 00 00 00 04 00 00 00 71 00 00 00 00 00 00 12 04 04 02 00 00 00 00

0000024 04 00 00 00 14 00 00 00 00 71 00 00 00 00 00 00 01 12 01 04 00 00 00 00

0000048 00 02 00 00 14 00 00 00 00 71 00 00 00 00 00 00 00 00 06 03 00 00 00 00

0000072 00 08 00 00 00 02 00 00 00 71 00 00 00 00 00 00 22 05 05 01 00 00 00 00

0000096

Personality: Baboon

ConnectorInfo count in decimal: 3

Disk offset in decimal 1765920

0000000 04 00 00 00 14 00 00 00 00 01 00 00 00 00 00 00 01 02 01 03 00 00 00 00

0000024 00 08 00 00 00 02 00 00 00 71 00 00 00 00 00 00 22 05 02 01 00 00 00 00

0000048 10 00 00 00 10 00 00 00 00 01 00 00 00 00 00 00 00 10 00 02 00 00 00 00

0000072

Personality: Eulemur

ConnectorInfo count in decimal: 3

Disk offset in decimal 1766000

0000000 04 00 00 00 14 00 00 00 00 01 00 00 00 00 00 00 01 02 01 04 00 00 00 00

0000024 00 08 00 00 00 02 00 00 00 71 00 00 00 00 00 00 12 04 04 02 00 00 00 00

0000048 10 00 00 00 10 00 00 00 00 00 00 00 00 00 00 00 00 10 00 01 00 00 00 00

0000072

Personality: Galago

ConnectorInfo count in decimal: 2

Disk offset in decimal 1766096

0000000 02 00 00 00 00 01 00 00 19 03 00 00 00 00 00 00 21 03 02 02 00 00 00 00

0000024 00 04 00 00 04 06 00 00 00 73 00 00 00 00 00 00 11 02 01 01 00 00 00 00

0000048

Personality: Colobus

ConnectorInfo count in decimal: 2

Disk offset in decimal 1766160

0000000 02 00 00 00 00 01 00 00 19 03 00 00 00 00 00 00 21 03 02 02 00 00 00 00

0000024 00 04 00 00 04 06 00 00 00 73 00 00 00 00 00 00 11 02 01 01 00 00 00 00

0000048

Personality: Mangabey

ConnectorInfo count in decimal: 2

Disk offset in decimal 1766224

0000000 02 00 00 00 40 00 00 00 19 01 00 00 00 00 00 00 00 00 00 03 00 00 00 00

0000024 00 04 00 00 04 06 00 00 00 73 00 00 00 00 00 00 11 02 01 01 00 00 00 00

0000048

Personality: Nomascus

ConnectorInfo count in decimal: 4

Disk offset in decimal 1766288

0000000 02 00 00 00 40 00 00 00 19 01 00 00 00 00 00 00 00 00 00 05 00 00 00 00

0000024 02 00 00 00 00 01 00 00 19 03 00 00 00 00 00 00 12 04 03 03 00 00 00 00

0000048 00 04 00 00 04 06 00 00 00 73 00 00 00 00 00 00 11 02 01 01 00 00 00 00

0000072 00 04 00 00 04 07 00 00 00 73 00 00 00 00 00 00 21 03 02 02 00 00 00 00

0000096

Personality: Orangutan

ConnectorInfo count in decimal: 2

Disk offset in decimal 1766400

0000000 02 00 00 00 40 00 00 00 19 01 00 00 00 00 00 00 00 00 00 05 00 00 00 00

0000024 00 04 00 00 04 06 00 00 00 73 00 00 00 00 00 00 11 02 01 01 00 00 00 00

0000048

Kext /System/Library/Extensions/AMD6000Controller.kext/Contents/MacOS/AMD6000Controller

Personality: Pithecia

ConnectorInfo count in decimal: 2

Disk offset in decimal 1791200

0000000 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 21 03 02 04 00 00 00 00

0000024 04 00 00 00 14 02 00 00 00 01 00 00 00 00 00 00 00 00 04 03 00 00 00 00

0000048

Personality: Bulrushes

ConnectorInfo count in decimal: 6

Disk offset in decimal 1791248

0000000 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 11 02 01 01 00 00 00 00

0000024 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 21 03 02 02 00 00 00 00

0000048 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 12 04 03 03 00 00 00 00

0000072 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 22 05 04 04 00 00 00 00

0000096 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 10 00 05 05 00 00 00 00

0000120 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 20 01 06 06 00 00 00 00

0000144

Personality: Cattail

ConnectorInfo count in decimal: 4

Disk offset in decimal 1791392

0000000 02 00 00 00 40 00 00 00 39 05 00 00 00 00 00 00 00 00 00 05 00 00 00 00

0000024 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 11 02 01 01 00 00 00 00

0000048 00 04 00 00 00 01 00 00 00 09 10 00 00 00 00 00 21 03 02 02 00 00 00 00

0000072 00 04 00 00 00 01 00 00 00 09 10 00 00 00 00 00 12 04 03 03 00 00 00 00

0000096

Personality: Hydrilla

ConnectorInfo count in decimal: 5

Disk offset in decimal 1791488

0000000 02 00 00 00 00 01 00 00 19 01 00 00 00 00 00 00 12 04 03 03 00 00 00 00

0000024 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 11 02 01 01 00 00 00 00

0000048 00 04 00 00 00 01 00 00 00 09 10 00 00 00 00 00 21 03 02 02 00 00 00 00

0000072 00 04 00 00 00 01 00 00 00 09 10 00 00 00 00 00 22 05 05 04 00 00 00 00

0000096 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 10 00 04 05 00 00 00 00

0000120

Personality: Duckweed

ConnectorInfo count in decimal: 4

Disk offset in decimal 1791616

0000000 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 12 04 04 01 00 00 00 00

0000024 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 22 05 05 02 00 00 00 00

0000048 00 08 00 00 04 02 00 00 00 01 00 00 00 00 00 00 11 02 03 04 00 00 00 00

0000072 00 02 00 00 14 02 00 00 00 01 00 00 00 00 00 00 00 00 06 05 00 00 00 00

0000096

Personality: Fanwort

ConnectorInfo count in decimal: 4

Disk offset in decimal 1791712

0000000 02 00 00 00 40 00 00 00 39 05 00 00 00 00 00 00 00 00 00 04 00 00 00 00

0000024 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 11 02 01 01 00 00 00 00

0000048 00 04 00 00 00 01 00 00 00 09 10 00 00 00 00 00 21 03 02 02 00 00 00 00

0000072 00 04 00 00 00 01 00 00 00 09 10 00 00 00 00 00 12 04 03 03 00 00 00 00

0000096

Personality: Elodea

ConnectorInfo count in decimal: 5

Disk offset in decimal 1791808

0000000 02 00 00 00 00 01 00 00 19 01 00 00 00 00 00 00 12 04 03 03 00 00 00 00

0000024 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 10 00 05 05 00 00 00 00

0000048 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 11 02 01 01 00 00 00 00

0000072 00 04 00 00 00 01 00 00 00 09 10 00 00 00 00 00 21 03 02 02 00 00 00 00

0000096 00 04 00 00 00 01 00 00 00 09 10 00 00 00 00 00 22 05 04 04 00 00 00 00

0000120

Personality: Kudzu

ConnectorInfo count in decimal: 2

Disk offset in decimal 1791936

0000000 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 12 04 03 03 00 00 00 00

0000024 00 08 00 00 04 02 00 00 00 01 00 00 00 00 00 00 11 02 01 01 00 00 00 00

0000048

Personality: Gibba

ConnectorInfo count in decimal: 5

Disk offset in decimal 1791984

0000000 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 12 04 05 01 00 00 00 00

0000024 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 22 05 04 02 00 00 00 00

0000048 00 08 00 00 04 02 00 00 00 01 00 00 00 00 00 00 11 02 06 04 00 00 00 00

0000072 00 02 00 00 14 02 00 00 00 01 00 00 00 00 00 00 00 00 03 05 00 00 00 00

0000096 04 00 00 00 04 02 00 00 00 01 00 00 00 00 00 00 11 02 01 03 00 00 00 00

0000120

Personality: Lotus

ConnectorInfo count in decimal: 3

Disk offset in decimal 1792112

0000000 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 11 02 01 01 00 00 00 00

0000024 00 08 00 00 04 02 00 00 00 01 00 00 00 00 00 00 22 05 04 04 00 00 00 00

0000048 00 04 00 00 00 01 00 00 00 01 00 00 00 00 00 00 21 03 02 02 00 00 00 00

0000072

Personality: Ipomoea

ConnectorInfo count in decimal: 3

Disk offset in decimal 1792192

0000000 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 12 04 01 05 00 00 00 00

0000024 00 08 00 00 04 02 00 00 00 01 00 00 00 00 00 00 11 02 04 03 00 00 00 00

0000048 10 00 00 00 10 00 00 00 00 01 00 00 00 00 00 00 00 00 00 02 00 00 00 00

0000072

Personality: Muskgrass

ConnectorInfo count in decimal: 4

Disk offset in decimal 1792272

0000000 00 04 00 00 04 03 00 00 00 01 01 00 00 00 00 00 11 02 01 01 00 00 00 00

0000024 00 04 00 00 00 01 00 00 00 09 12 00 00 00 00 00 21 03 02 02 00 00 00 00

0000048 00 04 00 00 00 01 00 00 00 09 13 00 00 00 00 00 22 05 04 04 00 00 00 00

0000072 00 08 00 00 04 02 00 00 00 01 04 00 00 00 00 00 12 04 03 03 00 00 00 00

0000096

Personality: Juncus

ConnectorInfo count in decimal: 4

Disk offset in decimal 1792368

0000000 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 12 04 03 03 00 00 00 00

0000024 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 10 00 04 05 00 00 00 00

0000048 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 11 02 01 01 00 00 00 00

0000072 00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 21 03 02 02 00 00 00 00

0000096

Personality: Osmunda

ConnectorInfo count in decimal: 4

Disk offset in decimal 1792464

0000000 02 00 00 00 00 01 00 00 39 05 01 00 00 00 00 00 10 00 05 05 00 00 00 00

0000024 00 04 00 00 04 03 00 00 00 09 02 00 00 00 00 00 11 02 01 01 00 00 00 00

0000048 00 04 00 00 04 03 00 00 00 09 03 00 00 00 00 00 21 03 02 02 00 00 00 00

0000072 00 08 00 00 04 02 00 00 00 01 04 00 00 00 00 00 12 04 03 03 00 00 00 00

0000096

Personality: Pondweed

ConnectorInfo count in decimal: 3

Disk offset in decimal 1792560

0000000 02 00 00 00 00 01 00 00 19 01 01 00 00 00 00 00 10 00 05 05 00 00 00 00

0000024 00 04 00 00 04 03 00 00 00 01 02 00 00 00 00 00 11 02 01 01 00 00 00 00

0000048 00 04 00 00 04 03 00 00 00 01 03 00 00 00 00 00 21 03 02 02 00 00 00 00

0000072

Personality: Spikerush

ConnectorInfo count in decimal: 4

Disk offset in decimal 1792640

0000000 02 00 00 00 40 00 00 00 39 05 01 00 00 00 00 00 00 00 00 05 00 00 00 00

0000024 00 04 00 00 04 03 00 00 00 01 02 00 00 00 00 00 11 02 01 01 00 00 00 00

0000048 00 04 00 00 00 01 00 00 00 09 02 00 00 00 00 00 21 03 02 02 00 00 00 00

0000072 00 04 00 00 00 01 00 00 00 09 03 00 00 00 00 00 12 04 03 03 00 00 00 00

0000096

Personality: Typha

ConnectorInfo count in decimal: 5

Disk offset in decimal 1792736

0000000 00 04 00 00 04 03 00 00 00 01 01 00 00 00 00 00 11 02 04 01 00 00 00 00

0000024 00 04 00 00 04 03 00 00 00 01 02 00 00 00 00 00 21 03 05 02 00 00 00 00

0000048 00 04 00 00 00 01 00 00 00 09 03 00 00 00 00 00 10 00 02 05 00 00 00 00

0000072 00 04 00 00 00 01 00 00 00 09 04 00 00 00 00 00 20 01 03 06 00 00 00 00

0000096 04 00 00 00 14 02 00 00 00 01 05 00 00 00 00 00 02 04 01 03 00 00 00 00

0000120

Kext /System/Library/Extensions/AMD7000Controller.kext/Contents/MacOS/AMD7000Controller

Personality: Ramen

ConnectorInfo count in decimal: 6

Disk offset in decimal 1923920

0000000 02 00 00 00 00 01 00 00 39 05 01 08 00 00 00 00 20 01 05 06 00 00 00 00

0000024 00 08 00 00 04 02 00 00 00 01 02 00 00 00 00 00 10 00 03 05 00 00 00 00

0000048 00 04 00 00 04 03 00 00 00 01 03 43 00 00 00 00 11 02 01 01 00 00 00 00

0000072 00 04 00 00 00 01 00 00 00 01 04 31 00 00 00 00 21 03 04 03 00 00 00 00

0000096 00 04 00 00 04 03 00 00 00 01 05 63 00 00 00 00 12 04 02 02 00 00 00 00

0000120 00 04 00 00 00 01 00 00 00 01 06 51 00 00 00 00 22 05 04 03 00 00 00 00

0000144

Personality: Tako

ConnectorInfo count in decimal: 6

Disk offset in decimal 1924176

0000000 02 00 00 00 00 01 00 00 00 01 01 51 00 00 00 00 22 05 02 04 00 00 00 00

0000024 02 00 00 00 00 01 00 00 00 01 02 61 01 00 00 00 12 04 01 03 00 00 00 00

0000048 00 04 00 00 04 03 00 00 00 01 03 43 00 00 00 00 11 02 03 01 00 00 00 00

0000072 00 04 00 00 00 01 00 00 00 01 04 31 00 00 00 00 21 03 05 05 00 00 00 00

0000096 00 04 00 00 04 03 00 00 00 01 05 23 00 00 00 00 10 00 04 02 00 00 00 00

0000120 00 04 00 00 00 01 00 00 00 01 06 11 00 00 00 00 20 01 05 05 00 00 00 00

0000144

Personality: Namako

ConnectorInfo count in decimal: 4

Disk offset in decimal 1924320

0000000 02 00 00 00 00 01 00 00 00 01 01 51 00 00 00 00 22 05 02 02 00 00 00 00

0000024 02 00 00 00 00 01 00 00 00 01 02 61 01 00 00 00 12 04 01 01 00 00 00 00

0000048 00 04 00 00 04 03 00 00 00 01 03 43 00 00 00 00 11 02 03 03 00 00 00 00

0000072 00 04 00 00 04 03 00 00 00 01 04 33 00 00 00 00 21 03 04 04 00 00 00 00

0000096

Personality: Aji

ConnectorInfo count in decimal: 4

Disk offset in decimal 1924512

0000000 00 04 00 00 04 03 00 00 00 01 01 01 00 00 00 00 12 04 05 01 00 00 00 00

0000024 00 04 00 00 04 03 00 00 00 01 02 01 00 00 00 00 22 05 04 02 00 00 00 00

0000048 04 00 00 00 14 02 00 00 00 01 03 00 00 00 00 00 00 00 03 06 00 00 00 00

0000072 00 08 00 00 04 02 00 00 00 01 04 00 00 00 00 00 11 02 01 04 00 00 00 00

0000096

Personality: Buri

ConnectorInfo count in decimal: 4

Disk offset in decimal 1924608

0000000 02 00 00 00 00 01 00 00 39 05 01 00 00 00 00 00 10 00 05 05 00 00 00 00

0000024 00 04 00 00 04 03 00 00 00 09 02 00 00 00 00 00 11 02 01 01 00 00 00 00

0000048 00 04 00 00 04 03 00 00 00 09 03 00 00 00 00 00 21 03 02 02 00 00 00 00

0000072 00 08 00 00 04 02 00 00 00 01 04 00 00 00 00 00 12 04 03 03 00 00 00 00

0000096

Personality: Chutoro

ConnectorInfo count in decimal: 5

Disk offset in decimal 1924704

0000000 02 00 00 00 00 01 00 00 19 01 01 00 00 00 00 00 12 04 03 03 00 00 00 00

0000024 00 04 00 00 04 03 00 00 00 01 02 01 00 00 00 00 11 02 01 01 00 00 00 00

0000048 00 04 00 00 00 01 00 00 00 09 03 00 00 00 00 00 21 03 02 02 00 00 00 00

0000072 00 04 00 00 00 01 00 00 00 09 04 00 00 00 00 00 22 05 04 04 00 00 00 00

0000096 00 04 00 00 04 03 00 00 00 01 05 00 00 00 00 00 10 00 05 05 00 00 00 00

0000120

Personality: Dashimaki

ConnectorInfo count in decimal: 4

Disk offset in decimal 1924832

0000000 00 04 00 00 04 03 00 00 00 01 01 01 00 00 00 00 12 04 02 02 00 00 00 00

0000024 00 04 00 00 04 03 00 00 00 01 02 00 00 00 00 00 22 05 03 05 00 00 00 00

0000048 04 00 00 00 14 02 00 00 00 01 03 01 00 00 00 00 00 00 04 04 00 00 00 00

0000072 00 08 00 00 04 02 00 00 00 01 04 00 00 00 00 00 11 02 01 01 00 00 00 00

0000096

Personality: Ebi

ConnectorInfo count in decimal: 5

Disk offset in decimal 1924928

0000000 02 00 00 00 00 01 00 00 19 01 01 00 00 00 00 00 12 04 03 03 00 00 00 00

0000024 00 04 00 00 04 03 00 00 00 01 02 01 00 00 00 00 11 02 01 01 00 00 00 00

0000048 00 04 00 00 00 01 00 00 00 09 03 01 00 00 00 00 21 03 02 02 00 00 00 00

0000072 00 04 00 00 00 01 00 00 00 09 04 01 00 00 00 00 22 05 04 04 00 00 00 00

0000096 00 04 00 00 04 03 00 00 00 01 05 01 00 00 00 00 10 00 05 05 00 00 00 00

0000120

Personality: Gari

ConnectorInfo count in decimal: 5

Disk offset in decimal 1925056

0000000 02 00 00 00 00 01 00 00 19 01 01 00 00 00 00 00 12 04 03 03 00 00 00 00

0000024 00 04 00 00 04 03 00 00 00 01 02 01 00 00 00 00 11 02 01 01 00 00 00 00

0000048 00 04 00 00 00 01 00 00 00 09 03 00 00 00 00 00 21 03 02 02 00 00 00 00

0000072 00 04 00 00 00 01 00 00 00 09 04 00 00 00 00 00 22 05 04 04 00 00 00 00

0000096 00 04 00 00 04 03 00 00 00 01 05 00 00 00 00 00 10 00 05 05 00 00 00 00

0000120

Personality: Futomaki

ConnectorInfo count in decimal: 4

Disk offset in decimal 1925232

0000000 00 04 00 00 04 03 00 00 00 01 01 01 00 00 00 00 12 04 04 01 00 00 00 00

0000024 00 04 00 00 04 03 00 00 00 01 02 01 00 00 00 00 22 05 05 02 00 00 00 00

0000048 04 00 00 00 14 02 00 00 00 01 03 00 00 00 00 00 00 00 06 06 00 00 00 00

0000072 00 08 00 00 04 02 00 00 00 01 04 00 00 00 00 00 11 02 01 03 00 00 00 00

0000096

Personality: Hamachi

ConnectorInfo count in decimal: 4

Disk offset in decimal 1925328

0000000 00 04 00 00 04 03 00 00 00 01 01 01 00 00 00 00 12 04 05 01 00 00 00 00

0000024 00 04 00 00 04 03 00 00 00 01 02 01 00 00 00 00 22 05 04 02 00 00 00 00

0000048 04 00 00 00 14 02 00 00 00 01 03 00 00 00 00 00 00 00 03 06 00 00 00 00

0000072 00 08 00 00 04 02 00 00 00 01 04 00 00 00 00 00 11 02 01 04 00 00 00 00

0000096

Personality: OPM

ConnectorInfo count in decimal: 6

Disk offset in decimal 1925488

0000000 00 04 00 00 04 03 00 00 00 01 00 01 00 00 00 00 11 02 01 01 00 00 00 00

0000024 00 04 00 00 04 03 00 00 00 01 00 01 00 00 00 00 21 03 02 02 00 00 00 00

0000048 00 04 00 00 04 03 00 00 00 01 00 01 00 00 00 00 12 04 03 03 00 00 00 00

0000072 00 04 00 00 04 03 00 00 00 01 00 01 00 00 00 00 22 05 04 04 00 00 00 00

0000096 00 04 00 00 04 03 00 00 00 01 00 01 00 00 00 00 10 00 05 05 00 00 00 00

0000120 00 04 00 00 14 03 00 00 00 01 00 01 00 00 00 00 20 01 06 06 00 00 00 00

0000144

Personality: Ikura

ConnectorInfo count in decimal: 1

Disk offset in decimal 1925632

0000000 00 08 00 00 04 02 00 00 00 01 01 00 00 00 00 00 12 04 03 01 00 00 00 00

0000024

Personality: IkuraS

ConnectorInfo count in decimal: 6

Disk offset in decimal 1925664

0000000 00 04 00 00 04 03 00 00 00 01 01 43 00 00 00 00 11 02 01 03 00 00 00 00

0000024 00 04 00 00 04 03 00 00 00 01 02 33 00 00 00 00 21 03 02 04 00 00 00 00

0000048 00 04 00 00 04 03 00 00 00 01 03 63 00 00 00 00 12 04 03 01 00 00 00 00

0000072 00 04 00 00 04 03 00 00 00 01 04 53 00 00 00 00 22 05 04 02 00 00 00 00

0000096 00 04 00 00 04 03 00 00 00 01 05 23 00 00 00 00 10 00 05 05 00 00 00 00

0000120 00 04 00 00 04 03 00 00 00 01 06 13 00 00 00 00 20 01 06 06 00 00 00 00

0000144

Personality: Junsai

ConnectorInfo count in decimal: 6

Disk offset in decimal 1925808

0000000 00 04 00 00 04 03 00 00 00 01 00 01 00 00 00 00 12 04 03 01 00 00 00 00

0000024 00 04 00 00 04 03 00 00 00 01 00 01 00 00 00 00 22 05 04 02 00 00 00 00

0000048 00 04 00 00 04 03 00 00 00 01 00 01 00 00 00 00 11 02 01 03 00 00 00 00

0000072 00 04 00 00 04 03 00 00 00 01 00 01 00 00 00 00 21 03 02 04 00 00 00 00

0000096 00 04 00 00 04 03 00 00 00 01 00 01 00 00 00 00 10 00 05 05 00 00 00 00

0000120 00 04 00 00 04 03 00 00 00 01 00 01 00 00 00 00 20 01 06 06 00 00 00 00

0000144

Personality: Kani

ConnectorInfo count in decimal: 1

Disk offset in decimal 1925952

0000000 00 08 00 00 04 02 00 00 00 01 01 00 00 00 00 00 12 04 03 01 00 00 00 00

0000024

Personality: KaniS

ConnectorInfo count in decimal: 6

Disk offset in decimal 1925984

0000000 00 04 00 00 04 03 00 00 00 01 01 43 00 00 00 00 11 02 01 03 00 00 00 00

0000024 00 04 00 00 04 03 00 00 00 01 02 33 00 00 00 00 21 03 02 04 00 00 00 00

0000048 00 04 00 00 04 03 00 00 00 01 03 63 00 00 00 00 12 04 03 01 00 00 00 00

0000072 00 04 00 00 04 03 00 00 00 01 04 53 00 00 00 00 22 05 04 02 00 00 00 00

0000096 00 04 00 00 04 03 00 00 00 01 05 23 00 00 00 00 10 00 05 05 00 00 00 00

0000120 00 04 00 00 04 03 00 00 00 01 06 13 00 00 00 00 20 01 06 06 00 00 00 00

0000144

Personality: DashimakiS

ConnectorInfo count in decimal: 4

Disk offset in decimal 1926128

0000000 00 04 00 00 04 03 00 00 00 01 01 01 00 00 00 00 12 04 02 02 00 00 00 00

0000024 00 04 00 00 04 03 00 00 00 01 02 01 00 00 00 00 22 05 03 05 00 00 00 00

0000048 04 00 00 00 14 02 00 00 00 01 03 00 00 00 00 00 00 00 04 04 00 00 00 00

0000072 00 08 00 00 04 02 00 00 00 01 04 00 00 00 00 00 11 02 01 01 00 00 00 00

0000096

Personality: Maguro

ConnectorInfo count in decimal: 1

Disk offset in decimal 1926224

0000000 00 08 00 00 04 02 00 00 00 01 01 00 00 00 00 00 12 04 03 01 00 00 00 00

0000024

Personality: MaguroS

ConnectorInfo count in decimal: 6

Disk offset in decimal 1926256

0000000 00 04 00 00 04 03 00 00 00 01 01 43 00 00 00 00 11 02 01 03 00 00 00 00

0000024 00 04 00 00 04 03 00 00 00 01 02 33 00 00 00 00 21 03 02 04 00 00 00 00

0000048 00 04 00 00 04 03 00 00 00 01 03 63 00 00 00 00 12 04 03 01 00 00 00 00

0000072 00 04 00 00 04 03 00 00 00 01 04 53 00 00 00 00 22 05 04 02 00 00 00 00

0000096 00 04 00 00 04 03 00 00 00 01 05 23 00 00 00 00 10 00 05 05 00 00 00 00

0000120 00 04 00 00 04 03 00 00 00 01 06 13 00 00 00 00 20 01 06 06 00 00 00 00

0000144

Kext /System/Library/Extensions/AMD8000Controller.kext/Contents/MacOS/AMD8000Controller

Personality: Exmoor

ConnectorInfo count in decimal: 6

Disk offset in decimal 1927840

0000000 02 00 00 00 00 01 00 00 00 01 01 51 00 00 00 00 22 05 02 04 00 00 00 00

0000024 02 00 00 00 00 01 00 00 00 01 02 61 01 00 00 00 12 04 01 03 00 00 00 00

0000048 00 04 00 00 04 03 00 00 00 01 03 43 00 00 00 00 11 02 03 01 00 00 00 00

0000072 00 04 00 00 00 01 00 00 00 01 04 31 00 00 00 00 21 03 05 05 00 00 00 00

0000096 00 04 00 00 04 03 00 00 00 01 05 23 00 00 00 00 10 00 04 02 00 00 00 00

0000120 00 04 00 00 00 01 00 00 00 01 06 11 00 00 00 00 20 01 05 05 00 00 00 00

0000144

Personality: Baladi

ConnectorInfo count in decimal: 6

Disk offset in decimal 1928240

0000000 00 04 00 00 04 03 00 00 00 01 03 00 00 00 00 00 12 04 03 03 00 00 00 00

0000024 00 04 00 00 04 03 00 00 00 01 01 00 00 00 00 00 11 02 01 01 00 00 00 00

0000048 00 04 00 00 04 03 00 00 00 01 02 00 00 00 00 00 21 03 02 02 00 00 00 00

0000072 00 04 00 00 04 03 00 00 00 01 04 00 00 00 00 00 22 05 04 04 00 00 00 00

0000096 00 04 00 00 04 03 00 00 00 01 05 00 00 00 00 00 10 00 05 05 00 00 00 00

0000120 00 04 00 00 04 03 00 00 00 01 06 00 00 00 00 00 20 01 06 06 00 00 00 00

0000144

Kext /System/Library/Extensions/AMD9000Controller.kext/Contents/MacOS/AMD9000Controller

Personality: Exmoor

ConnectorInfo count in decimal: 6

Disk offset in decimal 1931936

0000000 02 00 00 00 00 01 00 00 00 01 01 51 00 00 00 00 22 05 02 04 00 00 00 00

0000024 02 00 00 00 00 01 00 00 00 01 02 61 01 00 00 00 12 04 01 03 00 00 00 00

0000048 00 04 00 00 04 03 00 00 00 01 03 43 00 00 00 00 11 02 03 01 00 00 00 00

0000072 00 04 00 00 00 01 00 00 00 01 04 31 00 00 00 00 21 03 05 05 00 00 00 00

0000096 00 04 00 00 04 03 00 00 00 01 05 23 00 00 00 00 10 00 04 02 00 00 00 00

0000120 00 04 00 00 00 01 00 00 00 01 06 11 00 00 00 00 20 01 05 05 00 00 00 00

0000144

Personality: OPM

ConnectorInfo count in decimal: 6

Disk offset in decimal 1932080

0000000 00 04 00 00 04 03 00 00 00 00 00 01 00 00 00 00 10 00 01 01 00 00 00 00

0000024 00 04 00 00 04 03 00 00 00 00 00 01 00 00 00 00 20 01 02 02 00 00 00 00

0000048 00 04 00 00 04 03 00 00 00 00 00 01 00 00 00 00 11 02 03 03 00 00 00 00

0000072 00 04 00 00 04 03 00 00 00 00 00 01 00 00 00 00 21 03 04 04 00 00 00 00

0000096 00 04 00 00 04 03 00 00 00 00 00 01 00 00 00 00 12 04 05 05 00 00 00 00

0000120 00 04 00 00 04 03 00 00 00 00 00 01 00 00 00 00 22 05 06 06 00 00 00 00

0000144

Personality: MalteseS

ConnectorInfo count in decimal: 1

Disk offset in decimal 1932224

0000000 00 08 00 00 04 02 00 00 00 01 01 00 00 00 00 00 12 04 03 01 00 00 00 00

0000024

Personality: Lagotto

ConnectorInfo count in decimal: 4

Disk offset in decimal 1932256

0000000 00 04 00 00 04 03 00 00 00 01 01 00 00 00 00 00 11 02 04 01 00 00 00 00

0000024 00 08 00 00 04 02 00 00 00 01 02 00 00 00 00 00 21 03 05 03 00 00 00 00

0000048 04 00 00 00 04 02 00 00 00 01 03 00 00 00 00 00 00 00 01 05 00 00 00 00

0000072 04 00 00 00 04 02 00 00 00 01 04 00 00 00 00 00 02 04 06 06 00 00 00 00

0000096

Personality: GreyhoundS

ConnectorInfo count in decimal: 1

Disk offset in decimal 1932352

0000000 00 08 00 00 04 02 00 00 00 01 01 00 00 00 00 00 12 04 03 01 00 00 00 00

0000024

Personality: Maltese

ConnectorInfo count in decimal: 6

Disk offset in decimal 1932496

0000000 00 04 00 00 04 03 00 00 00 01 01 23 00 00 00 00 10 00 01 03 00 00 00 00

0000024 00 04 00 00 04 03 00 00 00 01 02 13 00 00 00 00 20 01 02 04 00 00 00 00

0000048 00 04 00 00 04 03 00 00 00 01 03 43 00 00 00 00 11 02 03 01 00 00 00 00

0000072 00 04 00 00 04 03 00 00 00 01 04 33 00 00 00 00 21 03 04 02 00 00 00 00

0000096 00 04 00 00 04 03 00 00 00 01 05 63 00 00 00 00 12 04 05 05 00 00 00 00

0000120 00 04 00 00 04 03 00 00 00 01 06 53 00 00 00 00 22 05 06 06 00 00 00 00

0000144

Personality: Labrador

ConnectorInfo count in decimal: 6

Disk offset in decimal 1932672

0000000 02 00 00 00 00 01 00 00 00 01 01 31 00 00 00 00 21 03 02 04 00 00 00 00

0000024 02 00 00 00 00 01 00 00 00 01 02 41 01 00 00 00 11 02 01 03 00 00 00 00

0000048 00 04 00 00 04 03 00 00 00 01 03 23 00 00 00 00 10 00 03 01 00 00 00 00

0000072 00 04 00 00 00 01 00 00 00 01 04 11 00 00 00 00 20 01 05 05 00 00 00 00

0000096 00 04 00 00 04 03 00 00 00 01 05 63 00 00 00 00 12 04 04 02 00 00 00 00

0000120 00 04 00 00 00 01 00 00 00 01 06 51 00 00 00 00 22 05 05 05 00 00 00 00

0000144

Personality: Basset

ConnectorInfo count in decimal: 4

Disk offset in decimal 1932816

0000000 02 00 00 00 00 01 00 00 00 01 01 31 00 00 00 00 21 03 02 02 00 00 00 00

0000024 02 00 00 00 00 01 00 00 00 01 02 41 01 00 00 00 11 02 01 01 00 00 00 00

0000048 00 04 00 00 04 03 00 00 00 01 03 23 00 00 00 00 10 00 03 03 00 00 00 00

0000072 00 04 00 00 04 03 00 00 00 01 04 13 00 00 00 00 20 01 04 04 00 00 00 00

0000096

Personality: Greyhound

ConnectorInfo count in decimal: 6

Disk offset in decimal 1933040

0000000 00 04 00 00 04 03 00 00 00 01 01 23 00 00 00 00 10 00 01 03 00 00 00 00

0000024 00 04 00 00 04 03 00 00 00 01 02 13 00 00 00 00 20 01 02 04 00 00 00 00

0000048 00 04 00 00 04 03 00 00 00 01 03 43 00 00 00 00 11 02 03 01 00 00 00 00

0000072 00 04 00 00 04 03 00 00 00 01 04 33 00 00 00 00 21 03 04 02 00 00 00 00

0000096 00 04 00 00 04 03 00 00 00 01 05 63 00 00 00 00 12 04 05 05 00 00 00 00

0000120 00 04 00 00 04 03 00 00 00 01 06 53 00 00 00 00 22 05 06 06 00 00 00 00

0000144

Personality: Baladi

ConnectorInfo count in decimal: 6

Disk offset in decimal 1933216

0000000 00 04 00 00 04 03 00 00 00 01 03 00 00 00 00 00 12 04 03 03 00 00 00 00

0000024 00 04 00 00 04 03 00 00 00 01 01 00 00 00 00 00 11 02 01 01 00 00 00 00

0000048 00 04 00 00 04 03 00 00 00 01 02 00 00 00 00 00 21 03 02 02 00 00 00 00

0000072 00 04 00 00 04 03 00 00 00 01 04 00 00 00 00 00 22 05 04 04 00 00 00 00

0000096 00 04 00 00 04 03 00 00 00 01 05 00 00 00 00 00 10 00 05 05 00 00 00 00

0000120 00 04 00 00 04 03 00 00 00 01 06 00 00 00 00 00 20 01 06 06 00 00 00 00

0000144

Kext /System/Library/Extensions/AMD9500Controller.kext/Contents/MacOS/AMD9500Controller

Personality: Exmoor

ConnectorInfo count in decimal: 6

Disk offset in decimal 1952464

0000000 02 00 00 00 00 01 00 00 00 01 01 51 00 00 00 00 22 05 02 04 00 00 00 00

0000024 02 00 00 00 00 01 00 00 00 01 02 61 01 00 00 00 12 04 01 03 00 00 00 00

0000048 00 04 00 00 04 03 00 00 00 01 03 43 00 00 00 00 11 02 03 01 00 00 00 00

0000072 00 04 00 00 00 01 00 00 00 01 04 31 00 00 00 00 21 03 05 05 00 00 00 00

0000096 00 04 00 00 04 03 00 00 00 01 05 23 00 00 00 00 10 00 04 02 00 00 00 00

0000120 00 04 00 00 00 01 00 00 00 01 06 11 00 00 00 00 20 01 05 05 00 00 00 00

0000144

Personality: Berbice

ConnectorInfo count in decimal: 5

Disk offset in decimal 1952608

0000000 02 00 00 00 00 01 00 00 39 05 01 08 00 00 00 00 20 01 01 01 00 00 00 00

0000024 00 04 00 00 00 01 00 00 00 01 02 43 00 00 00 00 10 00 02 02 00 00 00 00

0000048 00 04 00 00 04 03 00 00 00 01 03 13 00 00 00 00 21 03 03 03 00 00 00 00

0000072 00 04 00 00 04 03 00 00 00 01 04 53 00 00 00 00 11 02 04 04 00 00 00 00

0000096 00 04 00 00 04 03 00 00 00 01 05 33 00 00 00 00 12 04 05 05 00 00 00 00

0000120

Personality: Elqui

ConnectorInfo count in decimal: 5

Disk offset in decimal 1952736

0000000 02 00 00 00 00 01 00 00 00 01 01 41 00 00 00 00 11 02 02 04 00 00 00 00

0000024 02 00 00 00 00 01 00 00 00 01 02 31 01 00 00 00 21 03 01 03 00 00 00 00

0000048 00 04 00 00 04 03 00 00 00 01 03 03 00 00 00 00 20 01 03 01 00 00 00 00

0000072 00 04 00 00 04 03 00 00 00 01 04 03 00 00 00 00 12 04 04 02 00 00 00 00

0000096 00 04 00 00 04 03 00 00 00 01 05 01 00 00 00 00 10 00 05 05 00 00 00 00

0000120

Personality: Acre

ConnectorInfo count in decimal: 3

Disk offset in decimal 1952960

0000000 00 04 00 00 04 03 00 00 00 01 01 01 00 00 00 00 11 02 02 01 00 00 00 00

0000024 00 08 00 00 04 02 00 00 00 01 02 00 00 00 00 00 21 03 05 04 00 00 00 00

0000048 04 00 00 00 04 02 00 00 00 01 03 00 00 00 00 00 00 00 03 05 00 00 00 00

0000072

Personality: Caroni

ConnectorInfo count in decimal: 5

Disk offset in decimal 1953152

0000000 02 00 00 00 00 01 00 00 00 01 01 41 00 00 00 00 11 02 02 04 00 00 00 00

0000024 02 00 00 00 00 01 00 00 00 01 02 31 01 00 00 00 21 03 01 03 00 00 00 00

0000048 00 04 00 00 04 03 00 00 00 01 03 03 00 00 00 00 20 01 03 01 00 00 00 00

0000072 00 04 00 00 04 03 00 00 00 01 04 03 00 00 00 00 12 04 04 02 00 00 00 00

0000096 00 04 00 00 04 03 00 00 00 01 05 01 00 00 00 00 10 00 05 05 00 00 00 00

0000120

Personality: Florin

ConnectorInfo count in decimal: 6

Disk offset in decimal 1953376

0000000 02 00 00 00 00 01 00 00 00 01 01 41 00 00 00 00 11 02 02 04 00 00 00 00

0000024 02 00 00 00 00 01 00 00 00 01 02 31 01 00 00 00 21 03 01 03 00 00 00 00

0000048 00 04 00 00 04 03 00 00 00 01 03 13 00 00 00 00 20 01 03 01 00 00 00 00

0000072 00 04 00 00 04 03 00 00 00 01 04 21 00 00 00 00 10 00 05 05 00 00 00 00

0000096 00 04 00 00 04 03 00 00 00 01 05 53 00 00 00 00 22 05 04 02 00 00 00 00

0000120 00 04 00 00 04 03 00 00 00 01 06 61 00 00 00 00 12 04 06 06 00 00 00 00

0000144

Personality: Guariba

ConnectorInfo count in decimal: 6

Disk offset in decimal 1953552

0000000 00 04 00 00 04 03 00 00 00 01 01 01 00 00 00 00 12 04 06 01 00 00 00 00

0000024 00 04 00 00 04 03 00 00 00 01 02 01 00 00 00 00 22 05 04 03 00 00 00 00

0000048 00 04 00 00 04 03 00 00 00 01 03 01 00 00 00 00 11 02 01 02 00 00 00 00

0000072 00 08 00 00 04 02 00 00 00 01 04 00 00 00 00 00 21 03 05 04 00 00 00 00

0000096 04 00 00 00 04 02 00 00 00 01 05 00 00 00 00 00 00 00 03 06 00 00 00 00

0000120 00 04 00 00 00 01 00 00 00 01 06 01 00 00 00 00 20 01 02 05 00 00 00 00

0000144

Personality: Dayman

ConnectorInfo count in decimal: 6

Disk offset in decimal 1953696

0000000 00 04 00 00 04 03 00 00 00 01 01 01 00 00 00 00 12 04 06 01 00 00 00 00

0000024 00 04 00 00 04 03 00 00 00 01 02 01 00 00 00 00 22 05 04 03 00 00 00 00

0000048 00 04 00 00 04 03 00 00 00 01 03 01 00 00 00 00 11 02 01 02 00 00 00 00

0000072 00 08 00 00 04 02 00 00 00 01 04 00 00 00 00 00 21 03 05 04 00 00 00 00

0000096 04 00 00 00 04 02 00 00 00 01 05 00 00 00 00 00 00 00 03 06 00 00 00 00

0000120 00 04 00 00 00 01 00 00 00 01 06 01 00 00 00 00 20 01 02 05 00 00 00 00

0000144

Personality: Baladi

ConnectorInfo count in decimal: 6

Disk offset in decimal 1953872

0000000 00 04 00 00 04 03 00 00 00 01 03 00 00 00 00 00 12 04 03 03 00 00 00 00

0000024 00 04 00 00 04 03 00 00 00 01 01 00 00 00 00 00 11 02 01 01 00 00 00 00

0000048 00 04 00 00 04 03 00 00 00 01 02 00 00 00 00 00 21 03 02 02 00 00 00 00

0000072 00 04 00 00 04 03 00 00 00 01 04 00 00 00 00 00 22 05 04 04 00 00 00 00

0000096 00 04 00 00 04 03 00 00 00 01 05 00 00 00 00 00 10 00 05 05 00 00 00 00

0000120 00 04 00 00 04 03 00 00 00 01 06 00 00 00 00 00 20 01 06 06 00 00 00 00

0000144

Personality: OPM

ConnectorInfo count in decimal: 5

Disk offset in decimal 1954016

0000000 00 04 00 00 04 03 00 00 00 00 00 01 00 00 00 00 11 02 02 02 00 00 00 00

0000024 00 04 00 00 04 03 00 00 00 00 00 01 00 00 00 00 21 03 03 03 00 00 00 00

0000048 00 04 00 00 04 03 00 00 00 00 00 01 00 00 00 00 12 04 01 01 00 00 00 00

0000072 00 04 00 00 04 03 00 00 00 00 00 01 00 00 00 00 10 00 04 04 00 00 00 00

0000096 00 04 00 00 04 03 00 00 00 00 00 01 00 00 00 00 20 01 05 05 00 00 00 00

0000120



logout

Saving session...

...copying shared history...

...saving history...truncating history files...

...completed.



[Opération terminée]







on 10.11.6 with Xcode 8



Last login: Tue Sep 27 10:31:16 on ttys002

/Users/Fljagd/Desktop/Script-UNIX/ati-personalityXcode8/Ati-fram.command ; exit;

Mac-Pro:~ Fljagd$ /Users/Fljagd/Desktop/Script-UNIX/ati-personalityXcode8/Ati-fram.command ; exit;



Script version 0.15

Kext /System/Library/Extensions/AMD2400Controller.kext/Contents/MacOS/AMD2400Controller

Personality: Iago

ConnectorInfo count in decimal: 2

Disk offset in decimal 658272

0000000 02 00 00 00 40 00 00 00 09 00 00 00 00 01 00 12 00 10 00 00 16 00 00 00

0000024 c4 00 00 00 10 00 01 11 00 01 02 00 03 00 00 00 04 00 00 00 05 00 00 00

0000048

Kext /System/Library/Extensions/AMD2600Controller.kext/Contents/MacOS/AMD2600Controller

Personality: Hypoprion

ConnectorInfo count in decimal: 2

Disk offset in decimal 658240

0000000 02 00 00 00 40 00 00 00 09 00 00 00 00 01 00 12 00 10 00 00 16 00 00 00

0000024 c4 00 00 00 10 00 01 11 00 02 00 00 14 00 00 00 80 00 00 00 00 01 02 11

0000048

Personality: Lamna

ConnectorInfo count in decimal: 2

Disk offset in decimal 658272

0000000 00 02 00 00 14 00 00 00 80 00 00 00 00 01 02 11 04 00 00 00 16 00 00 00

0000024 80 00 00 00 00 10 01 12 00 01 02 00 03 00 00 00 04 00 00 00 05 00 00 00

0000048

Kext /System/Library/Extensions/AMD3800Controller.kext/Contents/MacOS/AMD3800Controller

Personality: Megalodon

ConnectorInfo count in decimal: 3

Disk offset in decimal 662320

0000000 00 02 00 00 14 00 00 00 00 00 00 00 00 01 02 11 04 00 00 00 16 00 00 00

0000024 00 00 00 00 00 10 01 12 80 00 00 00 02 00 00 00 04 00 00 00 00 10 00 00

0000048 00 02 00 00 14 00 00 00 00 00 00 00 00 01 02 11 04 00 00 00 16 00 00 00

0000072

Personality: Triakis

ConnectorInfo count in decimal: 2

Disk offset in decimal 662368

0000000 00 02 00 00 14 00 00 00 00 00 00 00 00 01 02 11 04 00 00 00 16 00 00 00

0000024 00 00 00 00 00 10 01 12 00 01 02 00 03 00 00 00 04 00 00 00 05 00 00 00

0000048

Kext /System/Library/Extensions/AMD4600Controller.kext/Contents/MacOS/AMD4600Controller

Personality: Flicker

ConnectorInfo count in decimal: 3

Disk offset in decimal 649968

0000000 00 04 00 00 00 04 00 00 00 01 00 00 02 01 03 05 00 04 00 00 00 04 00 00

0000024 00 01 00 00 01 00 02 02 00 02 00 00 14 02 00 00 00 01 00 00 00 10 01 04

0000048 02 00 00 00 40 00 00 00 09 01 00 00 02 01 00 03 02 00 00 00 00 01 00 00

0000072

Personality: Gliff

ConnectorInfo count in decimal: 3

Disk offset in decimal 650016

0000000 02 00 00 00 40 00 00 00 09 01 00 00 02 01 00 03 02 00 00 00 00 01 00 00

0000024 09 01 00 00 20 01 02 02 00 04 00 00 04 06 00 00 00 01 00 00 10 00 01 01

0000048 02 00 00 00 40 00 00 00 09 01 00 00 02 01 00 03 02 00 00 00 00 01 00 00

0000072

Personality: Shrike

ConnectorInfo count in decimal: 3

Disk offset in decimal 650064

0000000 02 00 00 00 40 00 00 00 09 01 00 00 02 01 00 03 02 00 00 00 00 01 00 00

0000024 09 01 00 00 20 01 02 02 00 04 00 00 04 03 00 00 00 01 00 00 10 00 01 01

0000048 00 01 02 00 03 00 00 00 04 00 00 00 05 00 00 00 06 00 00 00 10 00 00 00

0000072

Kext /System/Library/Extensions/AMD4800Controller.kext/Contents/MacOS/AMD4800Controller

Personality: Cardinal

ConnectorInfo count in decimal: 2

Disk offset in decimal 645888

0000000 00 02 00 00 14 02 00 00 00 01 00 00 01 01 01 04 04 00 00 00 14 02 00 00

0000024 00 01 00 00 00 10 02 03 00 04 00 00 04 01 00 00 00 01 00 00 10 00 02 03

0000048

Personality: MotMot

ConnectorInfo count in decimal: 2

Disk offset in decimal 645920

0000000 00 04 00 00 04 01 00 00 00 01 00 00 10 00 02 03 04 00 00 00 14 02 00 00

0000024 00 01 00 00 01 11 01 04 02 00 00 00 40 00 00 00 09 01 00 00 22 01 00 07

0000048

Personality: Quail

ConnectorInfo count in decimal: 3

Disk offset in decimal 645952

0000000 02 00 00 00 40 00 00 00 09 01 00 00 22 01 00 07 02 00 00 00 00 01 00 00

0000024 09 01 00 00 20 01 03 04 00 04 00 00 04 03 00 00 00 01 00 00 10 00 02 03

0000048 00 01 02 00 03 00 00 00 04 00 00 00 05 00 00 00 06 00 00 00 10 00 00 00

0000072

Kext /System/Library/Extensions/AMD5000Controller.kext/Contents/MacOS/AMD5000Controller

Personality: Douc

ConnectorInfo count in decimal: 2

Disk offset in decimal 1833168

0000000 02 00 00 00 00 05 00 00 09 03 00 00 21 03 02 02 00 04 00 00 04 02 00 00

0000024 00 03 00 00 11 02 01 01 00 04 00 00 04 06 00 00 00 01 00 00 21 03 04 02

0000048

Personality: Langur

ConnectorInfo count in decimal: 3

Disk offset in decimal 1833200

0000000 00 04 00 00 04 06 00 00 00 01 00 00 21 03 04 02 00 04 00 00 04 06 00 00

0000024 00 01 00 00 11 02 01 01 04 00 00 00 14 02 00 00 00 01 00 00 02 04 05 03

0000048 00 04 00 00 00 04 00 00 00 71 00 00 12 04 04 01 04 00 00 00 14 00 00 00

0000072

Personality: Uakari

ConnectorInfo count in decimal: 4

Disk offset in decimal 1833248

0000000 00 04 00 00 00 04 00 00 00 71 00 00 12 04 04 01 04 00 00 00 14 00 00 00

0000024 00 71 00 00 01 12 01 03 00 02 00 00 14 00 00 00 00 71 00 00 00 00 06 05

0000048 00 08 00 00 00 02 00 00 00 71 00 00 22 05 05 04 00 04 00 00 04 06 00 00

0000072 00 71 00 00 20 01 06 06 00 04 00 00 04 06 00 00 00 71 00 00 10 00 05 05

0000096

Personality: Zonalis

ConnectorInfo count in decimal: 6

Disk offset in decimal 1833312

0000000 00 04 00 00 04 06 00 00 00 71 00 00 20 01 06 06 00 04 00 00 04 06 00 00

0000024 00 71 00 00 10 00 05 05 00 04 00 00 04 06 00 00 00 71 00 00 21 03 02 04

0000048 00 04 00 00 04 06 00 00 00 71 00 00 11 02 01 03 00 04 00 00 04 06 00 00

0000072 00 71 00 00 22 05 04 02 00 04 00 00 04 06 00 00 00 71 00 00 12 04 03 01

0000096 02 00 00 00 00 01 00 00 09 01 00 00 12 04 03 03 00 04 00 00 04 06 00 00

0000120 00 71 00 00 11 02 01 01 00 04 00 00 04 06 00 00 00 71 00 00 21 03 02 02

0000144

Personality: Alouatta

ConnectorInfo count in decimal: 4

Disk offset in decimal 1833408

0000000 02 00 00 00 00 01 00 00 09 01 00 00 12 04 03 03 00 04 00 00 04 06 00 00

0000024 00 71 00 00 11 02 01 01 00 04 00 00 04 06 00 00 00 71 00 00 21 03 02 02

0000048 00 04 00 00 04 06 00 00 00 71 00 00 22 05 04 04 00 04 00 00 04 06 00 00

0000072 00 01 00 00 21 03 05 01 00 04 00 00 04 06 00 00 00 01 00 00 11 02 04 02

0000096

Personality: Hoolock

ConnectorInfo count in decimal: 3

Disk offset in decimal 1833472

0000000 00 04 00 00 04 06 00 00 00 01 00 00 21 03 05 01 00 04 00 00 04 06 00 00

0000024 00 01 00 00 11 02 04 02 04 00 00 00 14 02 00 00 00 01 00 00 02 04 01 03

0000048 00 04 00 00 00 04 00 00 00 71 00 00 12 04 04 02 04 00 00 00 14 00 00 00

0000072

Personality: Vervet

ConnectorInfo count in decimal: 4

Disk offset in decimal 1833520

0000000 00 04 00 00 00 04 00 00 00 71 00 00 12 04 04 02 04 00 00 00 14 00 00 00

0000024 00 71 00 00 01 12 01 04 00 02 00 00 14 00 00 00 00 71 00 00 00 00 06 03

0000048 00 08 00 00 00 02 00 00 00 71 00 00 22 05 05 01 04 00 00 00 14 00 00 00

0000072 00 01 00 00 01 02 01 03 00 08 00 00 00 02 00 00 00 71 00 00 22 05 02 01

0000096

Personality: Baboon

ConnectorInfo count in decimal: 3

Disk offset in decimal 1833584

0000000 04 00 00 00 14 00 00 00 00 01 00 00 01 02 01 03 00 08 00 00 00 02 00 00

0000024 00 71 00 00 22 05 02 01 10 00 00 00 10 00 00 00 00 01 00 00 00 10 00 02

0000048 04 00 00 00 14 00 00 00 00 01 00 00 01 02 01 04 00 08 00 00 00 02 00 00

0000072

Personality: Eulemur

ConnectorInfo count in decimal: 3

Disk offset in decimal 1833632

0000000 04 00 00 00 14 00 00 00 00 01 00 00 01 02 01 04 00 08 00 00 00 02 00 00

0000024 00 71 00 00 12 04 04 02 10 00 00 00 10 00 00 00 00 00 00 00 00 10 00 01

0000048 c0 00 00 00 0f 00 00 00 00 03 00 00 00 00 00 00 02 00 00 00 00 01 00 00

0000072

Personality: Galago

ConnectorInfo count in decimal: 2

Disk offset in decimal 1833696

0000000 02 00 00 00 00 01 00 00 09 03 00 00 21 03 02 02 00 04 00 00 04 06 00 00

0000024 00 73 00 00 11 02 01 01 c0 00 00 00 0f 00 00 00 00 03 00 00 00 00 00 00

0000048

Personality: Colobus

ConnectorInfo count in decimal: 2

Disk offset in decimal 1833744

0000000 02 00 00 00 00 01 00 00 09 03 00 00 21 03 02 02 00 04 00 00 04 06 00 00

0000024 00 73 00 00 11 02 01 01 c0 00 00 00 0f 00 00 00 00 03 00 00 00 00 00 00

0000048

Personality: Mangabey

ConnectorInfo count in decimal: 2

Disk offset in decimal 1833792

0000000 02 00 00 00 40 00 00 00 09 01 00 00 00 00 00 03 00 04 00 00 04 06 00 00

0000024 00 73 00 00 11 02 01 01 c0 00 00 00 0f 00 00 00 00 03 00 00 00 00 00 00

0000048

Personality: Nomascus

ConnectorInfo count in decimal: 4

Disk offset in decimal 1833840

0000000 02 00 00 00 40 00 00 00 09 01 00 00 00 00 00 05 02 00 00 00 00 01 00 00

0000024 09 03 00 00 12 04 03 03 00 04 00 00 04 06 00 00 00 73 00 00 11 02 01 01

0000048 00 04 00 00 04 07 00 00 00 73 00 00 21 03 02 02 c0 00 00 00 0f 00 00 00

0000072 00 03 00 00 00 00 00 00 02 00 00 00 40 00 00 00 09 01 00 00 00 00 00 05

0000096

Personality: Orangutan

ConnectorInfo count in decimal: 2

Disk offset in decimal 1833920

0000000 02 00 00 00 40 00 00 00 09 01 00 00 00 00 00 05 00 04 00 00 04 06 00 00

0000024 00 73 00 00 11 02 01 01 18 33 1a 00 00 00 00 00 21 33 1a 00 00 00 00 00

0000048

Kext /System/Library/Extensions/AMD6000Controller.kext/Contents/MacOS/AMD6000Controller

Personality: Pithecia

ConnectorInfo count in decimal: 2

Disk offset in decimal 1854944

0000000 00 04 00 00 04 03 00 00 00 01 00 00 21 03 02 04 04 00 00 00 14 02 00 00

0000024 00 01 00 00 00 00 04 03 00 04 00 00 04 03 00 00 00 01 00 00 11 02 01 01

0000048

Personality: Bulrushes

ConnectorInfo count in decimal: 6

Disk offset in decimal 1854976

0000000 00 04 00 00 04 03 00 00 00 01 00 00 11 02 01 01 00 04 00 00 04 03 00 00

0000024 00 01 00 00 21 03 02 02 00 04 00 00 04 03 00 00 00 01 00 00 12 04 03 03

0000048 00 04 00 00 04 03 00 00 00 01 00 00 22 05 04 04 00 04 00 00 04 03 00 00

0000072 00 01 00 00 10 00 05 05 00 04 00 00 04 03 00 00 00 01 00 00 20 01 06 06

0000096 02 00 00 00 40 00 00 00 29 05 00 00 00 00 00 05 00 04 00 00 04 03 00 00

0000120 00 01 00 00 11 02 01 01 00 04 00 00 00 01 00 00 00 09 10 00 21 03 02 02

0000144

Personality: Cattail

ConnectorInfo count in decimal: 4

Disk offset in decimal 1855072

0000000 02 00 00 00 40 00 00 00 29 05 00 00 00 00 00 05 00 04 00 00 04 03 00 00

0000024 00 01 00 00 11 02 01 01 00 04 00 00 00 01 00 00 00 09 10 00 21 03 02 02

0000048 00 04 00 00 00 01 00 00 00 09 10 00 12 04 03 03 02 00 00 00 00 01 00 00

0000072 09 01 00 00 12 04 03 03 00 04 00 00 04 03 00 00 00 01 00 00 11 02 01 01

0000096

Personality: Hydrilla

ConnectorInfo count in decimal: 5

Disk offset in decimal 1855136

0000000 02 00 00 00 00 01 00 00 09 01 00 00 12 04 03 03 00 04 00 00 04 03 00 00

0000024 00 01 00 00 11 02 01 01 00 04 00 00 00 01 00 00 00 09 10 00 21 03 02 02

0000048 00 04 00 00 00 01 00 00 00 09 10 00 22 05 05 04 00 04 00 00 04 03 00 00

0000072 00 01 00 00 10 00 04 05 00 04 00 00 04 03 00 00 00 01 00 00 12 04 04 01

0000096 00 04 00 00 04 03 00 00 00 01 00 00 22 05 05 02 00 08 00 00 04 02 00 00

0000120

Personality: Duckweed

ConnectorInfo count in decimal: 4

Disk offset in decimal 1855216

0000000 00 04 00 00 04 03 00 00 00 01 00 00 12 04 04 01 00 04 00 00 04 03 00 00

0000024 00 01 00 00 22 05 05 02 00 08 00 00 04 02 00 00 00 01 00 00 11 02 03 04

0000048 00 02 00 00 14 02 00 00 00 01 00 00 00 00 06 05 02 00 00 00 40 00 00 00

0000072 29 05 00 00 00 00 00 04 00 04 00 00 04 03 00 00 00 01 00 00 11 02 01 01

0000096

Personality: Fanwort

ConnectorInfo count in decimal: 4

Disk offset in decimal 1855280

0000000 02 00 00 00 40 00 00 00 29 05 00 00 00 00 00 04 00 04 00 00 04 03 00 00

0000024 00 01 00 00 11 02 01 01 00 04 00 00 00 01 00 00 00 09 10 00 21 03 02 02

0000048 00 04 00 00 00 01 00 00 00 09 10 00 12 04 03 03 02 00 00 00 00 01 00 00

0000072 09 01 00 00 12 04 03 03 00 04 00 00 04 03 00 00 00 01 00 00 10 00 05 05

0000096

Personality: Elodea

ConnectorInfo count in decimal: 5

Disk offset in decimal 1855344

0000000 02 00 00 00 00 01 00 00 09 01 00 00 12 04 03 03 00 04 00 00 04 03 00 00

0000024 00 01 00 00 10 00 05 05 00 04 00 00 04 03 00 00 00 01 00 00 11 02 01 01

0000048 00 04 00 00 00 01 00 00 00 09 10 00 21 03 02 02 00 04 00 00 00 01 00 00

0000072 00 09 10 00 22 05 04 04 00 04 00 00 04 03 00 00 00 01 00 00 12 04 03 03

0000096 00 08 00 00 04 02 00 00 00 01 00 00 11 02 01 01 00 04 00 00 04 03 00 00

0000120

Personality: Kudzu

ConnectorInfo count in decimal: 2

Disk offset in decimal 1855424

0000000 00 04 00 00 04 03 00 00 00 01 00 00 12 04 03 03 00 08 00 00 04 02 00 00

0000024 00 01 00 00 11 02 01 01 00 04 00 00 04 03 00 00 00 01 00 00 12 04 05 01

0000048

Personality: Gibba

ConnectorInfo count in decimal: 5

Disk offset in decimal 1855456

0000000 00 04 00 00 04 03 00 00 00 01 00 00 12 04 05 01 00 04 00 00 04 03 00 00

0000024 00 01 00 00 22 05 04 02 00 08 00 00 04 02 00 00 00 01 00 00 11 02 06 04

0000048 00 02 00 00 14 02 00 00 00 01 00 00 00 00 03 05 04 00 00 00 04 02 00 00

0000072 00 01 00 00 11 02 01 03 00 04 00 00 04 03 00 00 00 01 00 00 11 02 01 01

0000096 00 08 00 00 04 02 00 00 00 01 00 00 22 05 04 04 00 04 00 00 00 01 00 00

0000120

Personality: Lotus

ConnectorInfo count in decimal: 3

Disk offset in decimal 1855536

0000000 00 04 00 00 04 03 00 00 00 01 00 00 11 02 01 01 00 08 00 00 04 02 00 00

0000024 00 01 00 00 22 05 04 04 00 04 00 00 00 01 00 00 00 01 00 00 21 03 02 02

0000048 00 04 00 00 04 03 00 00 00 01 00 00 12 04 01 05 00 08 00 00 04 02 00 00

0000072

Personality: Ipomoea

ConnectorInfo count in decimal: 3

Disk offset in decimal 1855584

0000000 00 04 00 00 04 03 00 00 00 01 00 00 12 04 01 05 00 08 00 00 04 02 00 00

0000024 00 01 00 00 11 02 04 03 10 00 00 00 10 00 00 00 00 01 00 00 00 00 00 02

0000048 00 04 00 00 04 03 00 00 00 01 01 00 11 02 01 01 00 04 00 00 00 01 00 00

0000072

Personality: Muskgrass

ConnectorInfo count in decimal: 4

Disk offset in decimal 1855632

0000000 00 04 00 00 04 03 00 00 00 01 01 00 11 02 01 01 00 04 00 00 00 01 00 00

0000024 00 09 12 00 21 03 02 02 00 04 00 00 00 01 00 00 00 09 13 00 22 05 04 04

0000048 00 08 00 00 04 02 00 00 00 01 04 00 12 04 03 03 00 04 00 00 04 03 00 00

0000072 00 01 00 00 12 04 03 03 00 04 00 00 04 03 00 00 00 01 00 00 10 00 04 05

0000096

Personality: Juncus

ConnectorInfo count in decimal: 4

Disk offset in decimal 1855696

0000000 00 04 00 00 04 03 00 00 00 01 00 00 12 04 03 03 00 04 00 00 04 03 00 00

0000024 00 01 00 00 10 00 04 05 00 04 00 00 04 03 00 00 00 01 00 00 11 02 01 01

0000048 00 04 00 00 04 03 00 00 00 01 00 00 21 03 02 02 02 00 00 00 00 01 00 00

0000072 29 05 01 00 10 00 05 05 00 04 00 00 04 03 00 00 00 09 02 00 11 02 01 01

0000096

Personality: Osmunda

ConnectorInfo count in decimal: 4

Disk offset in decimal 1855760

0000000 02 00 00 00 00 01 00 00 29 05 01 00 10 00 05 05 00 04 00 00 04 03 00 00

0000024 00 09 02 00 11 02 01 01 00 04 00 00 04 03 00 00 00 09 03 00 21 03 02 02

0000048 00 08 00 00 04 02 00 00 00 01 04 00 12 04 03 03 02 00 00 00 00 01 00 00

0000072 09 01 01 00 10 00 05 05 00 04 00 00 04 03 00 00 00 01 02 00 11 02 01 01

0000096

Personality: Pondweed

ConnectorInfo count in decimal: 3

Disk offset in decimal 1855824

0000000 02 00 00 00 00 01 00 00 09 01 01 00 10 00 05 05 00 04 00 00 04 03 00 00

0000024 00 01 02 00 11 02 01 01 00 04 00 00 04 03 00 00 00 01 03 00 21 03 02 02

0000048 02 00 00 00 40 00 00 00 29 05 01 00 00 00 00 05 00 04 00 00 04 03 00 00

0000072

Personality: Spikerush

ConnectorInfo count in decimal: 4

Disk offset in decimal 1855872

0000000 02 00 00 00 40 00 00 00 29 05 01 00 00 00 00 05 00 04 00 00 04 03 00 00

0000024 00 01 02 00 11 02 01 01 00 04 00 00 00 01 00 00 00 09 02 00 21 03 02 02

0000048 00 04 00 00 00 01 00 00 00 09 03 00 12 04 03 03 00 04 00 00 04 03 00 00

0000072 00 01 01 00 11 02 04 01 00 04 00 00 04 03 00 00 00 01 02 00 21 03 05 02

0000096

Personality: Typha

ConnectorInfo count in decimal: 5

Disk offset in decimal 1855936

0000000 00 04 00 00 04 03 00 00 00 01 01 00 11 02 04 01 00 04 00 00 04 03 00 00

0000024 00 01 02 00 21 03 05 02 00 04 00 00 00 01 00 00 00 09 03 00 10 00 02 05

0000048 00 04 00 00 00 01 00 00 00 09 04 00 20 01 03 06 04 00 00 00 14 02 00 00

0000072 00 01 05 00 02 04 01 03 93 81 1a 00 00 00 00 00 9c 81 1a 00 00 00 00 00

0000096 a5 81 1a 00 00 00 00 00 00 00 00 00 00 00 00 00 f9 81 1a 00 00 00 00 00

0000120

Kext /System/Library/Extensions/AMD7000Controller.kext/Contents/MacOS/AMD7000Controller

Personality: Ramen

ConnectorInfo count in decimal: 6

Disk offset in decimal 1884704

0000000 02 00 00 00 00 01 00 00 29 05 01 10 20 01 05 06 00 08 00 00 04 02 00 00

0000024 00 01 02 00 10 00 03 05 00 04 00 00 04 03 00 00 00 01 03 07 11 02 01 01

0000048 00 04 00 00 00 01 00 00 00 01 04 03 21 03 04 03 00 04 00 00 04 03 00 00

0000072 00 01 05 07 12 04 02 02 00 04 00 00 00 01 00 00 00 01 06 03 22 05 04 03

0000096 75 e2 1a 00 00 00 00 00 7a e2 1a 00 00 00 00 00 7d e2 1a 00 00 00 00 00

0000120 81 e2 1a 00 00 00 00 00 86 e2 1a 00 00 00 00 00 8a e2 1a 00 00 00 00 00

0000144

Personality: Tako

ConnectorInfo count in decimal: 6

Disk offset in decimal 1884912

0000000 02 00 00 00 00 01 00 00 00 01 01 03 22 05 02 04 02 00 00 00 00 01 00 00

0000024 00 01 02 03 12 04 01 03 00 04 00 00 04 03 00 00 00 01 03 07 11 02 03 01

0000048 00 04 00 00 00 01 00 00 00 01 04 03 21 03 05 05 00 04 00 00 04 03 00 00

0000072 00 01 05 07 10 00 04 02 00 04 00 00 00 01 00 00 00 01 06 03 20 01 05 05

0000096 02 00 00 00 00 01 00 00 00 01 01 03 22 05 02 02 02 00 00 00 00 01 00 00

0000120 00 01 02 03 12 04 01 01 00 04 00 00 04 03 00 00 00 01 03 07 11 02 03 03

0000144

Personality: Namako

ConnectorInfo count in decimal: 4

Disk offset in decimal 1885008

0000000 02 00 00 00 00 01 00 00 00 01 01 03 22 05 02 02 02 00 00 00 00 01 00 00

0000024 00 01 02 03 12 04 01 01 00 04 00 00 04 03 00 00 00 01 03 07 11 02 03 03

0000048 00 04 00 00 04 03 00 00 00 01 04 07 21 03 04 04 75 e2 1a 00 00 00 00 00

0000072 7a e2 1a 00 00 00 00 00 7d e2 1a 00 00 00 00 00 81 e2 1a 00 00 00 00 00

0000096

Personality: Aji

ConnectorInfo count in decimal: 4

Disk offset in decimal 1885168

0000000 00 04 00 00 04 03 00 00 00 01 01 01 12 04 05 01 00 04 00 00 04 03 00 00

0000024 00 01 02 01 22 05 04 02 04 00 00 00 14 02 00 00 00 01 03 00 00 00 03 06

0000048 00 08 00 00 04 02 00 00 00 01 04 00 11 02 01 04 02 00 00 00 00 01 00 00

0000072 29 05 01 00 10 00 05 05 00 04 00 00 04 03 00 00 00 09 02 00 11 02 01 01

0000096

Personality: Buri

ConnectorInfo count in decimal: 4

Disk offset in decimal 1885232

0000000 02 00 00 00 00 01 00 00 29 05 01 00 10 00 05 05 00 04 00 00 04 03 00 00

0000024 00 09 02 00 11 02 01 01 00 04 00 00 04 03 00 00 00 09 03 00 21 03 02 02

0000048 00 08 00 00 04 02 00 00 00 01 04 00 12 04 03 03 02 00 00 00 00 01 00 00

0000072 09 01 01 00 12 04 03 03 00 04 00 00 04 03 00 00 00 01 02 01 11 02 01 01

0000096

Personality: Chutoro

ConnectorInfo count in decimal: 5

Disk offset in decimal 1885296

0000000 02 00 00 00 00 01 00 00 09 01 01 00 12 04 03 03 00 04 00 00 04 03 00 00

0000024 00 01 02 01 11 02 01 01 00 04 00 00 00 01 00 00 00 09 03 00 21 03 02 02

0000048 00 04 00 00 00 01 00 00 00 09 04 00 22 05 04 04 00 04 00 00 04 03 00 00

0000072 00 01 05 00 10 00 05 05 00 04 00 00 04 03 00 00 00 01 01 01 12 04 02 02

0000096 00 04 00 00 04 03 00 00 00 01 02 00 22 05 03 05 04 00 00 00 14 02 00 00

0000120

Personality: Dashimaki

ConnectorInfo count in decimal: 4

Disk offset in decimal 1885376

0000000 00 04 00 00 04 03 00 00 00 01 01 01 12 04 02 02 00 04 00 00 04 03 00 00

0000024 00 01 02 00 22 05 03 05 04 00 00 00 14 02 00 00 00 01 03 01 00 00 04 04

0000048 00 08 00 00 04 02 00 00 00 01 04 00 11 02 01 01 02 00 00 00 00 01 00 00

0000072 09 01 01 00 12 04 03 03 00 04 00 00 04 03 00 00 00 01 02 01 11 02 01 01

0000096

Personality: Ebi

ConnectorInfo count in decimal: 5

Disk offset in decimal 1885440

0000000 02 00 00 00 00 01 00 00 09 01 01 00 12 04 03 03 00 04 00 00 04 03 00 00

0000024 00 01 02 01 11 02 01 01 00 04 00 00 00 01 00 00 00 09 03 01 21 03 02 02

0000048 00 04 00 00 00 01 00 00 00 09 04 01 22 05 04 04 00 04 00 00 04 03 00 00

0000072 00 01 05 01 10 00 05 05 02 00 00 00 00 01 00 00 09 01 01 00 12 04 03 03

0000096 00 04 00 00 04 03 00 00 00 01 02 01 11 02 01 01 00 04 00 00 00 01 00 00

0000120

Personality: Gari

ConnectorInfo count in decimal: 5

Disk offset in decimal 1885520

0000000 02 00 00 00 00 01 00 00 09 01 01 00 12 04 03 03 00 04 00 00 04 03 00 00

0000024 00 01 02 01 11 02 01 01 00 04 00 00 00 01 00 00 00 09 03 00 21 03 02 02

0000048 00 04 00 00 00 01 00 00 00 09 04 00 22 05 04 04 00 04 00 00 04 03 00 00

0000072 00 01 05 00 10 00 05 05 82 ee 1a 00 00 00 00 00 8b ee 1a 00 00 00 00 00

0000096 94 ee 1a 00 00 00 00 00 00 00 00 00 00 00 00 00 eb ee 1a 00 00 00 00 00

0000120

Personality: Futomaki

ConnectorInfo count in decimal: 4

Disk offset in decimal 1885648

0000000 00 04 00 00 04 03 00 00 00 01 01 01 12 04 04 01 00 04 00 00 04 03 00 00

0000024 00 01 02 01 22 05 05 02 04 00 00 00 14 02 00 00 00 01 03 00 00 00 06 06

0000048 00 08 00 00 04 02 00 00 00 01 04 00 11 02 01 03 00 04 00 00 04 03 00 00

0000072 00 01 01 01 12 04 05 01 00 04 00 00 04 03 00 00 00 01 02 01 22 05 04 02

0000096

Personality: Hamachi

ConnectorInfo count in decimal: 4

Disk offset in decimal 1885712

0000000 00 04 00 00 04 03 00 00 00 01 01 01 12 04 05 01 00 04 00 00 04 03 00 00

0000024 00 01 02 01 22 05 04 02 04 00 00 00 14 02 00 00 00 01 03 00 00 00 03 06

0000048 00 08 00 00 04 02 00 00 00 01 04 00 11 02 01 04 00 00 00 00 00 00 00 00

0000072 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 80 1a 06 00 f8 89 05 00

0000096

Personality: OPM

ConnectorInfo count in decimal: 6

Disk offset in decimal 1885840

0000000 00 04 00 00 04 03 00 00 00 01 00 01 11 02 01 01 00 04 00 00 04 03 00 00

0000024 00 01 00 01 21 03 02 02 00 04 00 00 04 03 00 00 00 01 00 01 12 04 03 03

0000048 00 04 00 00 04 03 00 00 00 01 00 01 22 05 04 04 00 04 00 00 04 03 00 00

0000072 00 01 00 01 10 00 05 05 00 04 00 00 14 03 00 00 00 01 00 01 20 01 06 06

0000096 00 08 00 00 04 02 00 00 00 01 01 00 12 04 03 01 00 04 00 00 04 03 00 00

0000120 00 01 01 07 11 02 01 03 00 04 00 00 04 03 00 00 00 01 02 07 21 03 02 04

0000144

Personality: Ikura

ConnectorInfo count in decimal: 1

Disk offset in decimal 1885936

0000000 00 08 00 00 04 02 00 00 00 01 01 00 12 04 03 01 00 04 00 00 04 03 00 00

0000024

Personality: IkuraS

ConnectorInfo count in decimal: 6

Disk offset in decimal 1885952

0000000 00 04 00 00 04 03 00 00 00 01 01 07 11 02 01 03 00 04 00 00 04 03 00 00

0000024 00 01 02 07 21 03 02 04 00 04 00 00 04 03 00 00 00 01 03 07 12 04 03 01

0000048 00 04 00 00 04 03 00 00 00 01 04 07 22 05 04 02 00 04 00 00 04 03 00 00

0000072 00 01 05 07 10 00 05 05 00 04 00 00 04 03 00 00 00 01 06 07 20 01 06 06

0000096 00 04 00 00 04 03 00 00 00 01 00 01 12 04 03 01 00 04 00 00 04 03 00 00

0000120 00 01 00 01 22 05 04 02 00 04 00 00 04 03 00 00 00 01 00 01 11 02 01 03

0000144

Personality: Junsai

ConnectorInfo count in decimal: 6

Disk offset in decimal 1886048

0000000 00 04 00 00 04 03 00 00 00 01 00 01 12 04 03 01 00 04 00 00 04 03 00 00

0000024 00 01 00 01 22 05 04 02 00 04 00 00 04 03 00 00 00 01 00 01 11 02 01 03

0000048 00 04 00 00 04 03 00 00 00 01 00 01 21 03 02 04 00 04 00 00 04 03 00 00

0000072 00 01 00 01 10 00 05 05 00 04 00 00 04 03 00 00 00 01 00 01 20 01 06 06

0000096 00 08 00 00 04 02 00 00 00 01 01 00 12 04 03 01 00 04 00 00 04 03 00 00

0000120 00 01 01 07 11 02 01 03 00 04 00 00 04 03 00 00 00 01 02 07 21 03 02 04

0000144

Personality: Kani

ConnectorInfo count in decimal: 1

Disk offset in decimal 1886144

0000000 00 08 00 00 04 02 00 00 00 01 01 00 12 04 03 01 00 04 00 00 04 03 00 00

0000024

Personality: KaniS

ConnectorInfo count in decimal: 6

Disk offset in decimal 1886160

0000000 00 04 00 00 04 03 00 00 00 01 01 07 11 02 01 03 00 04 00 00 04 03 00 00

0000024 00 01 02 07 21 03 02 04 00 04 00 00 04 03 00 00 00 01 03 07 12 04 03 01

0000048 00 04 00 00 04 03 00 00 00 01 04 07 22 05 04 02 00 04 00 00 04 03 00 00

0000072 00 01 05 07 10 00 05 05 00 04 00 00 04 03 00 00 00 01 06 07 20 01 06 06

0000096 00 04 00 00 04 03 00 00 00 01 01 01 12 04 02 02 00 04 00 00 04 03 00 00

0000120 00 01 02 01 22 05 03 05 04 00 00 00 14 02 00 00 00 01 03 00 00 00 04 04

0000144

Personality: DashimakiS

ConnectorInfo count in decimal: 4

Disk offset in decimal 1886256

0000000 00 04 00 00 04 03 00 00 00 01 01 01 12 04 02 02 00 04 00 00 04 03 00 00

0000024 00 01 02 01 22 05 03 05 04 00 00 00 14 02 00 00 00 01 03 00 00 00 04 04

0000048 00 08 00 00 04 02 00 00 00 01 04 00 11 02 01 01 00 08 00 00 04 02 00 00

0000072 00 01 01 00 12 04 03 01 00 04 00 00 04 03 00 00 00 01 01 07 11 02 01 03

0000096

Personality: Maguro

ConnectorInfo count in decimal: 1

Disk offset in decimal 1886320

0000000 00 08 00 00 04 02 00 00 00 01 01 00 12 04 03 01 00 04 00 00 04 03 00 00

0000024

Personality: MaguroS

ConnectorInfo count in decimal: 6

Disk offset in decimal 1886336

0000000 00 04 00 00 04 03 00 00 00 01 01 07 11 02 01 03 00 04 00 00 04 03 00 00

0000024 00 01 02 07 21 03 02 04 00 04 00 00 04 03 00 00 00 01 03 07 12 04 03 01

0000048 00 04 00 00 04 03 00 00 00 01 04 07 22 05 04 02 00 04 00 00 04 03 00 00

0000072 00 01 05 07 10 00 05 05 00 04 00 00 04 03 00 00 00 01 06 07 20 01 06 06

0000096 1f 00 00 00 03 00 00 00 01 00 00 00 00 00 00 00 7c 00 00 00 00 00 00 40

0000120 7d 00 00 00 04 03 18 40 7e 00 00 00 00 ff 00 00 80 00 00 00 00 00 00 00

0000144

Kext /System/Library/Extensions/AMD8000Controller.kext/Contents/MacOS/AMD8000Controller

Personality: Exmoor

ConnectorInfo count in decimal: 6

Disk offset in decimal 1859360

0000000 02 00 00 00 00 01 00 00 00 01 01 03 22 05 02 04 02 00 00 00 00 01 00 00

0000024 00 01 02 03 12 04 01 03 00 04 00 00 04 03 00 00 00 01 03 07 11 02 03 01

0000048 00 04 00 00 00 01 00 00 00 01 04 03 21 03 05 05 00 04 00 00 04 03 00 00

0000072 00 01 05 07 10 00 04 02 00 04 00 00 00 01 00 00 00 01 06 03 20 01 05 05

0000096 41 88 1a 00 00 00 00 00 52 88 1a 00 00 00 00 00 63 88 1a 00 00 00 00 00

0000120 74 88 1a 00 00 00 00 00 03 85 1a 00 00 00 00 00 08 85 1a 00 00 00 00 00

0000144

Personality: Baladi

ConnectorInfo count in decimal: 6

Disk offset in decimal 1859712

0000000 00 04 00 00 04 03 00 00 00 01 03 00 12 04 03 03 00 04 00 00 04 03 00 00

0000024 00 01 01 00 11 02 01 01 00 04 00 00 04 03 00 00 00 01 02 00 21 03 02 02

0000048 00 04 00 00 04 03 00 00 00 01 04 00 22 05 04 04 00 04 00 00 04 03 00 00

0000072 00 01 05 00 10 00 05 05 00 04 00 00 04 03 00 00 00 01 06 00 20 01 06 06

0000096 d3 92 1a 00 00 00 00 00 df 92 1a 00 00 00 00 00 1f 00 00 00 03 00 00 00

0000120 01 00 00 00 00 00 00 00 7c 00 00 00 00 00 00 40 7d 00 00 00 04 03 18 40

0000144

Kext /System/Library/Extensions/AMD9000Controller.kext/Contents/MacOS/AMD9000Controller

Personality: Exmoor

ConnectorInfo count in decimal: 6

Disk offset in decimal 1854544

0000000 02 00 00 00 00 01 00 00 00 01 01 03 22 05 02 04 02 00 00 00 00 01 00 00

0000024 00 01 02 03 12 04 01 03 00 04 00 00 04 03 00 00 00 01 03 07 11 02 03 01

0000048 00 04 00 00 00 01 00 00 00 01 04 03 21 03 05 05 00 04 00 00 04 03 00 00

0000072 00 01 05 07 10 00 04 02 00 04 00 00 00 01 00 00 00 01 06 03 20 01 05 05

0000096 00 04 00 00 04 03 00 00 00 00 00 01 10 00 01 01 00 04 00 00 04 03 00 00

0000120 00 00 00 01 20 01 02 02 00 04 00 00 04 03 00 00 00 00 00 01 11 02 03 03

0000144

Personality: OPM

ConnectorInfo count in decimal: 6

Disk offset in decimal 1854640

0000000 00 04 00 00 04 03 00 00 00 00 00 01 10 00 01 01 00 04 00 00 04 03 00 00

0000024 00 00 00 01 20 01 02 02 00 04 00 00 04 03 00 00 00 00 00 01 11 02 03 03

0000048 00 04 00 00 04 03 00 00 00 00 00 01 21 03 04 04 00 04 00 00 04 03 00 00

0000072 00 00 00 01 12 04 05 05 00 04 00 00 04 03 00 00 00 00 00 01 22 05 06 06

0000096 00 08 00 00 04 02 00 00 00 01 01 00 12 04 03 01 66 76 1a 00 00 00 00 00

0000120 6b 76 1a 00 00 00 00 00 6e 76 1a 00 00 00 00 00 72 76 1a 00 00 00 00 00

0000144

Personality: GreyhoundS

ConnectorInfo count in decimal: 1

Disk offset in decimal 1854736

0000000 00 08 00 00 04 02 00 00 00 01 01 00 12 04 03 01 66 76 1a 00 00 00 00 00

0000024

Personality: Labrador

ConnectorInfo count in decimal: 6

Disk offset in decimal 1854896

0000000 02 00 00 00 00 01 00 00 00 01 01 03 21 03 02 04 02 00 00 00 00 01 00 00

0000024 00 01 02 03 11 02 01 03 00 04 00 00 04 03 00 00 00 01 03 07 10 00 03 01

0000048 00 04 00 00 00 01 00 00 00 01 04 03 20 01 05 05 00 04 00 00 04 03 00 00

0000072 00 01 05 07 12 04 04 02 00 04 00 00 00 01 00 00 00 01 06 03 22 05 05 05

0000096 02 00 00 00 00 01 00 00 00 01 01 03 21 03 02 02 02 00 00 00 00 01 00 00

0000120 00 01 02 03 11 02 01 01 00 04 00 00 04 03 00 00 00 01 03 07 10 00 03 03

0000144

Personality: Basset

ConnectorInfo count in decimal: 4

Disk offset in decimal 1854992

0000000 02 00 00 00 00 01 00 00 00 01 01 03 21 03 02 02 02 00 00 00 00 01 00 00

0000024 00 01 02 03 11 02 01 01 00 04 00 00 04 03 00 00 00 01 03 07 10 00 03 03

0000048 00 04 00 00 04 03 00 00 00 01 04 07 20 01 04 04 66 76 1a 00 00 00 00 00

0000072 6b 76 1a 00 00 00 00 00 6e 76 1a 00 00 00 00 00 72 76 1a 00 00 00 00 00

0000096

Personality: Greyhound

ConnectorInfo count in decimal: 6

Disk offset in decimal 1855184

0000000 00 04 00 00 04 03 00 00 00 01 01 07 10 00 01 03 00 04 00 00 04 03 00 00

0000024 00 01 02 07 20 01 02 04 00 04 00 00 04 03 00 00 00 01 03 07 11 02 03 01

0000048 00 04 00 00 04 03 00 00 00 01 04 07 21 03 04 02 00 04 00 00 04 03 00 00

0000072 00 01 05 07 12 04 05 05 00 04 00 00 04 03 00 00 00 01 06 07 22 05 06 06

0000096 45 82 1a 00 00 00 00 00 56 82 1a 00 00 00 00 00 67 82 1a 00 00 00 00 00

0000120 78 82 1a 00 00 00 00 00 00 04 00 00 04 03 00 00 00 01 03 00 12 04 03 03

0000144

Personality: Baladi

ConnectorInfo count in decimal: 6

Disk offset in decimal 1855312

0000000 00 04 00 00 04 03 00 00 00 01 03 00 12 04 03 03 00 04 00 00 04 03 00 00

0000024 00 01 01 00 11 02 01 01 00 04 00 00 04 03 00 00 00 01 02 00 21 03 02 02

0000048 00 04 00 00 04 03 00 00 00 01 04 00 22 05 04 04 00 04 00 00 04 03 00 00

0000072 00 01 05 00 10 00 05 05 00 04 00 00 04 03 00 00 00 01 06 00 20 01 06 06

0000096 4c 83 1a 00 00 00 00 00 58 83 1a 00 00 00 00 00 00 00 00 00 00 00 00 00

0000120 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 60 cc 05 00 10 09 05 00

0000144



logout

Saving session...

...copying shared history...

...saving history...truncating history files...

...completed.



[Opération terminée]





Edited by Fljagd
Link to comment
Share on other sites

You must change the path in Ati-Fram





That doesn't really matter, since I am running the ati-personality.pl directly. I can run the Ati-fram.command from ~/Downloads, or change the path. Either way, I get the same fatal error. Thanks for the reply to help though! :)

fatal error: /Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/otool: fatal error in /Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/objdump
Link to comment
Share on other sites



That doesn't really matter, since I am running the ati-personality.pl directly. I can run the Ati-fram.command from ~/Downloads, or change the path. Either way, I get the same fatal error. Thanks for the reply to help though! :)

fatal error: /Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/otool: fatal error in /Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/objdump

for example

If the script is on the desktop

You must have od, also on the desktop

And in the window Terminal, do as the attached photo


Link to comment
Share on other sites

Hello everybody! First of all, Vlada, thanks a lot for your guide which has helped me a lot to understand the connectors issue. I feel so close to get it working and at the same time I feel really close to jump out of the window so... PLEASE HELP ME

My system:
-Motherboard: Asrock Z68 Extreme3 Gen3 (flashed with patched 2.31 bios)
-CPU: i5 2500k
-GPU: MSI R9 390 Gaming 8G
-Display: Samsung S34E790C 3440x1440
-Bios set to Onboard Graphics as primary + AHCI + CSM disabled

Configuration:
-macOS 10.12 Sierra + clover bootloader (uefi only + ESP + osxaptiofix2drv as the only driver installed)
-FakeSMC + ethernet in kexts/other

Clover Configurator changes:
-SMBIOS iMac 12,2
-Verbose boot

Extensions Folder changes:
-added 0x67B11002 into AMD8000Controller and AMDRadeonX4000 kexts and fixed permissions

Framebuffer Info


Personality: Baladi

ConnectorInfo count in decimal: 6

Disk offset in decimal 1928240



00040000 04030000 00010300 00000000 12040303 00000000

00040000 04030000 00010100 00000000 11020101 00000000

00040000 04030000 00010200 00000000 21030202 00000000

00040000 04030000 00010400 00000000 22050404 00000000

00040000 04030000 00010500 00000000 10000505 00000000

00040000 04030000 00010600 00000000 20010606 00000000



My codes in order:



12040101 DP

22050203 HDMI

11020304 DVI-DL

10000406 DVI-DL



Patch 1 not working



04000000 14020000 00010300 00000000 11020304 00000000

00040000 04030000 00010100 00000000 12040101 00000000

00080000 04020000 00010200 00000000 22050203 00000000

04000000 14020000 00010400 00000000 10000406 00000000

00040000 04030000 00010500 00000000 10000505 00000000

00040000 04030000 00010600 00000000 20010606 00000000



Patch 2 not working



00040000 04030000 00010300 00000000 12040101 00000000

00080000 00020000 00010100 00000000 22050203 00000000

00040000 04030000 00010200 00000000 21030202 00000000

04000000 14020000 00010400 00000000 11020304 00000000

00040000 04030000 00010500 00000000 10000505 00000000

04000000 14020000 00010600 00000000 10000406 00000000





WHAT WORKS:
Setting 1920x1080 in GUI section in CC without ATI injection gives me native 3440x1440 resolution but the GPU shows as having 18MB Ram.. and well there are glitches galore.


THE PROBLEM:
When I inject my GPU ID 0x67B11002 and tick ATI injection (before patching the kexts in S/L/E I tried with 0x67B01002, the one for 390X cards, but same result) I have a BLACK SCREEN and then display goes off. disconnecting and reconnecting the cable does nothing


MY QUESTIONS:

1. Could somebody tell me what is wrong with my patches. Vlada says we should order by senseID but how exactly?
2. I read somewhere that the HDMI kext causes trouble?
3. Maybe Im just unlucky and my mobo/GPU is a bad combination?

Thanks in advance for your help.

Link to comment
Share on other sites

@c_g_f



Did you change primary graphics to iGPU in BIOS?



iGPU has to be primary or Sierra won't boot, at least for me ;)

Yes I did.. my bios settings for the graphics are:



Primary graphics: onboard

Multi monitor iGpu: disable

Shared memory: 32

Render standby: disable



I've tried with other values for shared memory and enabling multi monitor and render standby but same result. I have the DP cable linking the 390 to my monitor and a hdmi cable linking the onboard graphics to the same monitor. But there's a strange behaviour of my motherboard: if the 390 is in the system, when I enter the bios the signal goes to DP even if in bios the onboard is set as primary. The clover page also goes to DP. In windows I can actually see the second monitor, the one hooked to onboard hdmi, so I know it's working but it seems that selecting onboard as primary doesn't do what it is supposed to. I'll try with other bioses versions. I'm almost sure the problem is with my bios.



Thanks for replying!

Link to comment
Share on other sites

patch for ASUS Radeon R9 270X DirectCU II (2GB version)



dual monitors connected to DVI ports works well

macOS 10.12



Original:

00040000 04030000 00010101 00000000 12040401 00000000 //DP

00040000 04030000 00010201 00000000 22050502 00000000 //DP
04000000 14020000 00010300 00000000 00000606 00000000 //DVI_D
00080000 04020000 00010400 00000000 11020103 00000000 //HDMI

Modified:
00020000 04020000 00010101 00000000 10000306 00000000 //DVI_I
04000000 14020000 00010200 00000000 11020505 00000000 //DVI_D
00080000 00020000 00010300 00000000 22050202 00000000 //HDMI
00040000 04030000 00010401 00000000 12040101 00000000 //DP





set in config.plist in Clover:



Graphics/ FB Name: Futomaki

Graphics/Iniect ATI : mark



Kernel and Kext Patches:



Name: AMD7000Controller


Find:
000400000403000000010101000000001204040100000000000400000403000000010201000000002205050200000000040000001402000000010300000000000000060600000000000800000402000000010400000000001102010300000000

Replace:
000200000402000000010101000000001000030600000000040000001402000000010200000000001102050500000000000800000002000000010300000000002205020200000000000400000403000000010401000000001204010100000000
  • Like 1
Link to comment
Share on other sites

@c_g_f



make sure that you don't have a typo in the device ID. Once I tried to solve issues for an hour after an update just because I wrote 0x67B1102 instead of 0x67B11002 ;)



In El Capitan my r9 390 would stay black as well. I looked at different frame buffers and several had trailing "1" in the second collumn. I thought it could be a switch and tried it for the hdmi connector. Worked and kept it in Sierra as well.



Try this

Note the "1" at the end of the third column in the second row

00040000 04030000 00010300 00000000 12040101 00000000

                         |
                         v
00080000 00020000 00010101 00000000 22050203 00000000


00040000 04030000 00010200 00000000 21030202 00000000
04000000 14020000 00010400 00000000 11020304 00000000
00040000 04030000 00010500 00000000 10000505 00000000
04000000 14020000 00010600 00000000 10000406 00000000
Link to comment
Share on other sites

@ Loco Massa,



I have to try it, but I'm trying to make the DP to work, otherwise I'm stuck at 30hz since my monitor is 3440x1440. I'm pretty sure the patch I have now is the right one, IOJones matches the entries for the 4 ports.



I had to install the whole thing again because my boot or my bios became corrupt. Redownloaded bios, repatched it, reformated disk, etc. Now when I select iGPU as primary the image goes to the monitor hooked to the iGPU and I get full resolution with igpu (injecting fake intel id with some other buffer patch) but when I hooked a DP cable on the 390, boot stops at the end.



Maybe it has to be with HDMI audio? something is preventing the thing to work. I've been reading about DSDT and SSDT but now I just have an horrible headache.



When no cable is hooked to the 390 and I boot to igpu the system detect the intel card but also the 390 (I injected 0x67B01002) with all its memory but when I hook the cable I just dont see a second monitor and the system refuses to boot with a cable hooked to the 390 (I tried DP and DVI-DL)



If somebody has an idea please help. I've been praying like for a week but it doesn't seem to help :)

Link to comment
Share on other sites

@c_g_f



Give adding the "1" a try for the port you want to use as your primary in macOS. If your R9 has multiple ports add the "1" to the first DP port in the frame buffer. Adding it to my HDMI port was just for my case - wall mounted display, not enough space for DP-connector, hdmi connector to the side.



Without patching Baladi the card should run with Radeon - the default that gets selected if there is no match for the ports.



For the cause of boot stopping when a DP cable gets connected: Sorry, no clue.



Good luck!

Link to comment
Share on other sites

dont know it keep throwing error when i try and boot seems like its not loading kernel i dont have the time to check atm(getting ready for work)ill try AGAIN after work today


booting with clover should solve most of my issues





p.s.  i used shaneee's amd windows install from here http://forum.amd-osx.com/viewtopic.php?f=23&t=404

and this post install http://forum.amd-osx.com/viewtopic.php?f=24&t=80


oh yeah the hardware is a toshiba satellite l755d-s5251 on an



  AMD A4-3300M its an apu with an ati 6480g card

enoch correctly identifies the hardware names etc

https://postimg.org/image/m9sw64wbh/

https://postimg.org/image/ftpum63d3/



here is a pic of the error i get from clover

https://postimg.org/image/5ye183dq7/

Link to comment
Share on other sites

 Share

×
×
  • Create New...
