Thanks and glad to find this new kernel works for Phenom 9850 now !

Darwin Jamess-iMac.local 14.5.0 Darwin Kernel Version 14.5.0: Mo  2 Nov 2015 22:45:42 CET; mein:xnu-2782.40.9/BUILD/obj/RELEASE_X86_64 x86_64

But disk ultility app. may get freeze due to opencode errors just once !

Thanks and this kernel works for Phenom 9850 !

Darwin JamesSmiths-Mac-Pro.local 14.5.0 Darwin Kernel Version 14.5.0: вторник,  3 ноября 2015 г. 00:19:59 (MSK); ###Bronya###:xnu-2782.40.9/BUILD/obj/RELEASE_X86_64 x86_64

But disk ultility app. may get repair errors without freeze just once !

Please see the attached picture below :

Thanks, but unfortunately the following one does not work yet for Phenom 9850 ( a lot of opencode errors during booting):

Darwin Kernel Version 14.5.0: Mo  2 Nov 2015 00:02:46 CET; mein:10.10.5_SSEPlus/BUILD/obj/RELEASE_X86_64

Darwin Kernel Version 14.5.0: Mo  2 Nov 2015 18:08:06 CET; mein:10.10.5_SSEPlus-Fix_V3/BUILD/obj/RELEASE_X86_64

That with the Error "Permissions verify or repair failed" with disk Utility, has a different reason, and does not come from kernel, perhaps from Installer tool to create the partition / HDD?

I could fix the problem only with MacDrive under Windows, DiskWarrior could not help.

  • Like 1
Link to comment
Share on other sites

That with the Error "Permissions verify or repair failed" with disk Utility, has a different reason, and does not come from kernel, perhaps from Installer tool to create the partition / HDD?

I could fix the problem only with MacDrive under Windows, DiskWarrior could not help.

Thanks for your help and advice.

That error occured just once and had not occured anymore.

So I think your kernel works without bug now.



I also found that both yours and Bronya's new kernels can not show whether prelinkedkernel is used during booting, in 10.10.5R1 kernel which can show it.

But 10.10.5R1 kernel can not auto detect correct CPU/FSB frequency unless fsb=200 is added at org.chameleon.Boot.plist.

If you can add such a function will be highly appreciated.

Edited by jsl
  • Like 1
Link to comment
Share on other sites

IF this needs  prelinkedkernel - this only by bootloader , but no kernel . ) .

Do you mean this function is provided by Chameleon bootloader instead of individual kernel ?

I ask this question is using Enoch r2784 or r2795 downloaded from Insanelymac.com only booting 10.10.5R1 kernel will show prelinkedkernel used, while the other working kernels like yours and Spakk's did not show this message during successful booting.

Thanks for your excellent new kernel again !

  • Like 1
Link to comment
Share on other sites



I ask this question is using Enoch r2784 or r2795 downloaded from Insanelymac.com only booting 10.10.5R1 kernel will show prelinkedkernel used, while the other working kernels like yours and Spakk's did not show this message during successful booting.

Thanks for your excellent new kernel again !

maybe this prelinkedkernel no need' =)))) .

I think that this prelinkedkernel is hidden ... lol =)))



You can make picture for this prelinkedkernel ? ))







Do you mean this function is provided by Chameleon bootloader instead of individual kernel ?



this bootloader reads kernel and did prelinkedkernel in cache .



I getting rebuild prelinkedkernel one time .
Link to comment
Share on other sites

I am going to try it now,please wait a moment



Edit:It's working with these flags

hmmm , is strange ... please write in terminal "sysctl -a machdep.cpu "

and give to me here !

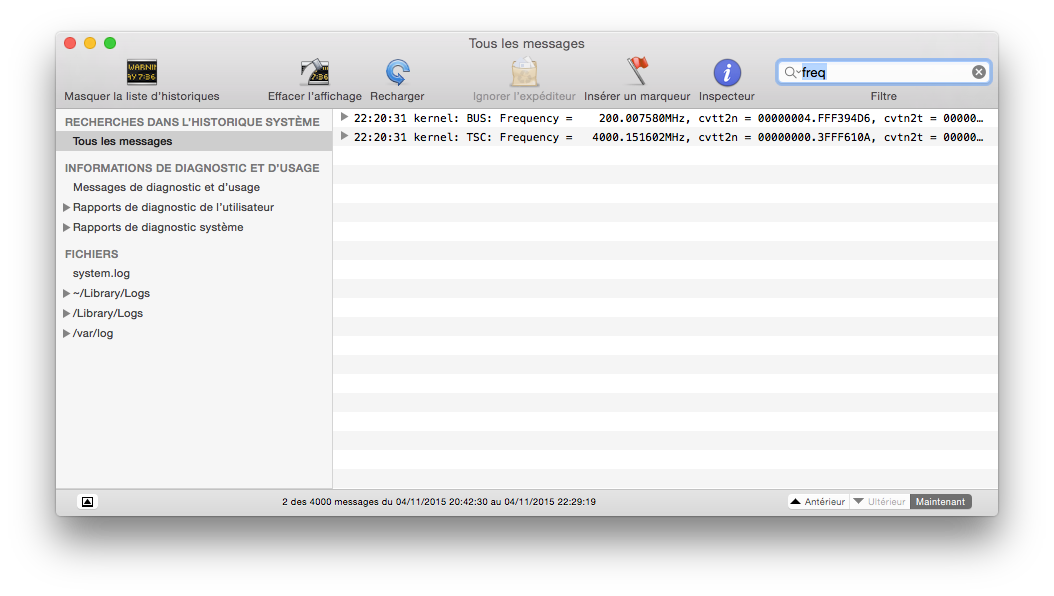

And in console you write word "freq" and picture here .

Link to comment
Share on other sites

@Bronya  machdep.tsc.frequency: 3400000000

machdep.user_idle_level: 0
machdep.cpu.max_basic: 13
machdep.cpu.max_ext: 2147483678
machdep.cpu.vendor: AuthenticAMD
machdep.cpu.brand_string: AMD FX(tm)-8320 Eight-Core Processor
machdep.cpu.family: 21
machdep.cpu.model: 2
machdep.cpu.extmodel: 0
machdep.cpu.extfamily: 6
machdep.cpu.stepping: 0
machdep.cpu.feature_bits: 4510410050032630783
machdep.cpu.leaf7_feature_bits: 1
machdep.cpu.extfeature_bits: 138415316304919551
machdep.cpu.signature: 6295328
machdep.cpu.brand: 0
machdep.cpu.features: FPU VME DE PSE TSC MSR PAE MCE CX8 APIC SEP MTRR PGE MCA CMOV PAT PSE36 CLFSH MMX FXSR SSE SSE2 HTT SSE3 PCLMULQDQ MON SSSE3 FMA CX16 SSE4.1 SSE4.2 POPCNT AES XSAVE OSXSAVE AVX1.0 F16C
machdep.cpu.leaf7_features: RDWRFSGS
machdep.cpu.extfeatures: SYSCALL XD 1GBPAGE EM64T LAHF LZCNT PREFETCHW RDTSCP TSCI
machdep.cpu.logical_per_package: 8
machdep.cpu.cores_per_package: 8
machdep.cpu.microcode_version: 21
machdep.cpu.processor_flag: 1
machdep.cpu.mwait.linesize_min: 64
machdep.cpu.mwait.linesize_max: 64
machdep.cpu.mwait.extensions: 3
machdep.cpu.mwait.sub_Cstates: 0
machdep.cpu.thermal.sensor: 0
machdep.cpu.thermal.dynamic_acceleration: 0
machdep.cpu.thermal.invariant_APIC_timer: 0
machdep.cpu.thermal.thresholds: 0
machdep.cpu.thermal.ACNT_MCNT: 1
machdep.cpu.thermal.core_power_limits: 0
machdep.cpu.thermal.fine_grain_clock_mod: 0
machdep.cpu.thermal.package_thermal_intr: 0
machdep.cpu.thermal.hardware_feedback: 0
machdep.cpu.thermal.energy_policy: 0
machdep.cpu.xsave.extended_state: 7 832 960 1073741824
machdep.cpu.arch_perf.version: 0
machdep.cpu.arch_perf.number: 0
machdep.cpu.arch_perf.width: 0
machdep.cpu.arch_perf.events_number: 0
machdep.cpu.arch_perf.events: 0
machdep.cpu.arch_perf.fixed_number: 0
machdep.cpu.arch_perf.fixed_width: 0
machdep.cpu.cache.linesize: 64
machdep.cpu.cache.L2_associativity: 16
machdep.cpu.cache.size: 2048
machdep.cpu.tlb.inst.small: 48
machdep.cpu.tlb.inst.large: 24
machdep.cpu.tlb.data.small: 64
machdep.cpu.tlb.data.small_level1: 1024
machdep.cpu.tlb.data.large: 64
machdep.cpu.tlb.data.large_level1: 1024
machdep.cpu.address_bits.physical: 48
machdep.cpu.address_bits.virtual: 48
machdep.cpu.core_count: 8
machdep.cpu.thread_count: 8
machdep.vectors.timer: 221
machdep.vectors.IPI: 222
machdep.pmap.hashwalks: 830985
machdep.pmap.hashcnts: 1109008
machdep.pmap.hashmax: 16
machdep.pmap.kernel_text_ps: 2097152
machdep.pmap.kern_pv_reserve: 8000
machdep.memmap.Conventional: 8552714240
machdep.memmap.RuntimeServices: 0
machdep.memmap.ACPIReclaim: 65536
machdep.memmap.ACPINVS: 6258688
machdep.memmap.PalCode: 0
machdep.memmap.Reserved: 90542080
machdep.memmap.Unusable: 0
machdep.memmap.Other: 0
machdep.tsc.frequency: 3400000000
machdep.tsc.deep_idle_rebase: 1
machdep.tsc.nanotime.tsc_base: 99131380217
machdep.tsc.nanotime.ns_base: 0
machdep.tsc.nanotime.scale: 1263225675
machdep.tsc.nanotime.shift: 0
machdep.tsc.nanotime.generation: 2
machdep.misc.panic_restart_timeout: 1266874889
machdep.misc.interrupt_latency_max: 0x0 0xde 0x17a3b1
machdep.misc.machine_check_panic:
machdep.misc.timer_queue_trace:
machdep.misc.nmis: 0
machdep.eager_timer_evaluations: 201
machdep.eager_timer_evaluation_max: 424882
Link to comment
Share on other sites



@Bronya  machdep.tsc.frequency: 3400000000

machdep.user_idle_level: 0
machdep.cpu.max_basic: 13
machdep.cpu.max_ext: 2147483678
machdep.cpu.vendor: AuthenticAMD
machdep.cpu.brand_string: AMD FX(tm)-8320 Eight-Core Processor
machdep.cpu.family: 21
machdep.cpu.model: 2
machdep.cpu.extmodel: 0
machdep.cpu.extfamily: 6
machdep.cpu.stepping: 0
machdep.cpu.feature_bits: 4510410050032630783
machdep.cpu.leaf7_feature_bits: 1
machdep.cpu.extfeature_bits: 138415316304919551
machdep.cpu.signature: 6295328
machdep.cpu.brand: 0
machdep.cpu.features: FPU VME DE PSE TSC MSR PAE MCE CX8 APIC SEP MTRR PGE MCA CMOV PAT PSE36 CLFSH MMX FXSR SSE SSE2 HTT SSE3 PCLMULQDQ MON SSSE3 FMA CX16 SSE4.1 SSE4.2 POPCNT AES XSAVE OSXSAVE AVX1.0 F16C
machdep.cpu.leaf7_features: RDWRFSGS
machdep.cpu.extfeatures: SYSCALL XD 1GBPAGE EM64T LAHF LZCNT PREFETCHW RDTSCP TSCI
machdep.cpu.logical_per_package: 8
machdep.cpu.cores_per_package: 8
machdep.cpu.microcode_version: 21
machdep.cpu.processor_flag: 1
machdep.cpu.mwait.linesize_min: 64
machdep.cpu.mwait.linesize_max: 64
machdep.cpu.mwait.extensions: 3
machdep.cpu.mwait.sub_Cstates: 0
machdep.cpu.thermal.sensor: 0
machdep.cpu.thermal.dynamic_acceleration: 0
machdep.cpu.thermal.invariant_APIC_timer: 0
machdep.cpu.thermal.thresholds: 0
machdep.cpu.thermal.ACNT_MCNT: 1
machdep.cpu.thermal.core_power_limits: 0
machdep.cpu.thermal.fine_grain_clock_mod: 0
machdep.cpu.thermal.package_thermal_intr: 0
machdep.cpu.thermal.hardware_feedback: 0
machdep.cpu.thermal.energy_policy: 0
machdep.cpu.xsave.extended_state: 7 832 960 1073741824
machdep.cpu.arch_perf.version: 0
machdep.cpu.arch_perf.number: 0
machdep.cpu.arch_perf.width: 0
machdep.cpu.arch_perf.events_number: 0
machdep.cpu.arch_perf.events: 0
machdep.cpu.arch_perf.fixed_number: 0
machdep.cpu.arch_perf.fixed_width: 0
machdep.cpu.cache.linesize: 64
machdep.cpu.cache.L2_associativity: 16
machdep.cpu.cache.size: 2048
machdep.cpu.tlb.inst.small: 48
machdep.cpu.tlb.inst.large: 24
machdep.cpu.tlb.data.small: 64
machdep.cpu.tlb.data.small_level1: 1024
machdep.cpu.tlb.data.large: 64
machdep.cpu.tlb.data.large_level1: 1024
machdep.cpu.address_bits.physical: 48
machdep.cpu.address_bits.virtual: 48
machdep.cpu.core_count: 8
machdep.cpu.thread_count: 8
machdep.vectors.timer: 221
machdep.vectors.IPI: 222
machdep.pmap.hashwalks: 830985
machdep.pmap.hashcnts: 1109008
machdep.pmap.hashmax: 16
machdep.pmap.kernel_text_ps: 2097152
machdep.pmap.kern_pv_reserve: 8000
machdep.memmap.Conventional: 8552714240
machdep.memmap.RuntimeServices: 0
machdep.memmap.ACPIReclaim: 65536
machdep.memmap.ACPINVS: 6258688
machdep.memmap.PalCode: 0
machdep.memmap.Reserved: 90542080
machdep.memmap.Unusable: 0
machdep.memmap.Other: 0
machdep.tsc.frequency: 3400000000
machdep.tsc.deep_idle_rebase: 1
machdep.tsc.nanotime.tsc_base: 99131380217
machdep.tsc.nanotime.ns_base: 0
machdep.tsc.nanotime.scale: 1263225675
machdep.tsc.nanotime.shift: 0
machdep.tsc.nanotime.generation: 2
machdep.misc.panic_restart_timeout: 1266874889
machdep.misc.interrupt_latency_max: 0x0 0xde 0x17a3b1
machdep.misc.machine_check_panic:
machdep.misc.timer_queue_trace:
machdep.misc.nmis: 0
machdep.eager_timer_evaluations: 201
machdep.eager_timer_evaluation_max: 424882

Thank for info . i see , this normal , but why reboot , maybe problem read fsb from boot .



Try  kernel_10.10.5_rc2 ! in archive file boot_version 2667 for you . )



Download -->kernel_10.10.5_rc2.zip

  • Like 4
Link to comment
Share on other sites

The last 2 bronya kernels are not working on my pc is restarting and won't boot already try to replaced the boot file and it doesn't work,I guess is something with the amd fx processor because tokenduemon has the exactly same issue!



Thanks for everything

Link to comment
Share on other sites



maybe this prelinkedkernel no need' =)))) .

I think that this prelinkedkernel is hidden ... lol =)))



You can make picture for this prelinkedkernel ? ))





this bootloader reads kernel and did prelinkedkernel in cache .



I getting rebuild prelinkedkernel one time .



The boot photos for 10.10.5R1 and Bronya's RC1 kernel are attached here for your comparison and reference :

Thank for info . i see , this normal , but why reboot , maybe problem read fsb from boot .



Try  kernel_10.10.5_rc2 ! in archive file boot_version 2667 for you . )



Download -->attachicon.gifkernel_10.10.5_rc2.zip

Thanks and this new RC2 kernel works for Phenom 9850 too !

But still lack of prelinkedkernel message during Enoch booting.



Link to comment
Share on other sites

The boot photos for 10.10.5R1 and Bronya's RC1 kernel are attached here for your comparison and reference :

Thanks and this new RC2 kernel works for Phenom 9850 too !

But still lack of prelinkedkernel message during Enoch booting.

Try delete file prelinkedkernel in /s/l/prelinkedkernel . I think that no need this =) .



The last 2 bronya kernels are not working on my pc is restarting and won't boot already try to replaced the boot file and it doesn't work,I guess is something with the amd fx processor because tokenduemon has the exactly same issue!



Thanks for everything



Try only one flag in boot : fsb=200 , if don't works , then only one flag : busratio=17 or other your busratio ... !



I will test's on FX 8150 !

  • Like 1
Link to comment
Share on other sites

i tested on FX - works , but wrong busratio or fsb , is strange =))) need fix this . ))

But you should try flag ... i want know .

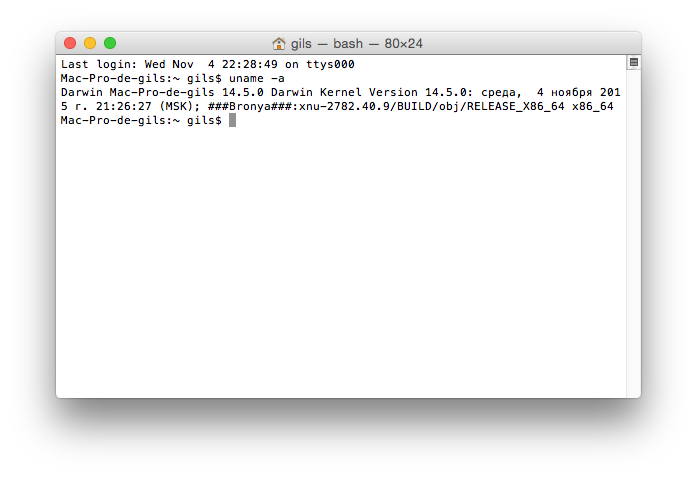

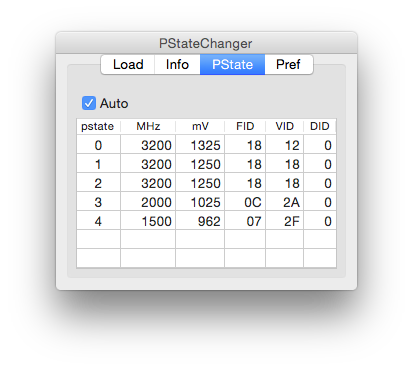

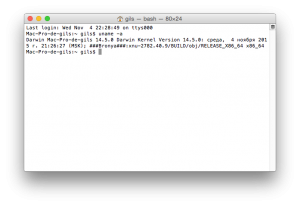

it works with fsb=200 at boot and I screenshot some info to see if it helps to fix the issue and im using chameleon only for booting the osx.

thanks in advance!!!


Link to comment
Share on other sites

What's i do wrong, i used u last kernel(kernel_10.10.5_rc2.zip)?EaAchaTe610.jpg

My PC config:
CPU: AMD-FX6300
Motherboard: Gigabyte 970A-DS3P
GPU:Radeon R7 265
Ram:4gb

kernel flags: -v kext-dev-mode=1 darkwake=0 USBBusFix=Yes npci=0x2000 dart=0, tried used npci=0x3000, GraphicsEnabler=No arch=x86_64

kexts: FakeSMC.kext, NULLCPUPowerManagement.kext, RealtekRTL8111.kext

BIOS Settings: VT-d: disable, OS Type: Other OS, USB3 controller:Disable, Legacy USB: enabled, Sata type: AHCI





  • Like 1
Link to comment
Share on other sites

What's i do wrong, i used u last kernel(kernel_10.10.5_rc2.zip)?EaAchaTe610.jpg



My PC config:

CPU: AMD-FX6300

Motherboard: Gigabyte 970A-DS3P

GPU:Radeon R7 265

Ram:4gb

kernel flags: -v kext-dev-mode=1 darkwake=0 USBBusFix=Yes npci=0x2000 dart=0, tried used npci=0x3000, GraphicsEnabler=No arch=x86_64

kexts: FakeSMC.kext, NULLCPUPowerManagement.kext, RealtekRTL8111.kext

BIOS Settings: VT-d: disable, OS Type: Other OS, USB3 controller:Disable, Legacy USB: enabled, Sata type: AHCI



Boot with flag fsb=200
Link to comment
Share on other sites

 Share

×
×
  • Create New...
