[AMD] Yosemite Kernel Testing (for help use the Help Topic)

Duran Keeley

By Duran Keeley,
in OS X 10.10 (Yosemite)

 Share
1,898 posts in this topic

Recommended Posts

Bronya
Bronya
Posted
Posted

Kernel (AnV-R4 + Bronya-OPEMU-SSEPlus)





I build success



Use your OPEMU



In Function「opemu_utrap」



this is to KP

bytes_skip = ssse3_run(code_buffer, state, longmode, 1);



I changed 1 to 0 Can works



bytes_skip = ssse3_run(code_buffer, state, longmode, 0);





Yes , but should without KP ! If you received KP , because you changed :

if(size_128) ((ssp_m128*)src)->ui = (*(__uint128_t*)address);

to

if(size_128) ((ssp_m128*)src)->i = (*(__m128i*)address); <-- this KP !



Then My opemu NO KP !

Ok , i closed make kernel and xnu_diff .

  • Like 1
Link to comment
Share on other sites
Bronya
Bronya
Posted
Posted

build Error MSG



CC opemu.o

/Volumes/DATA1/1010/xnu-2782.1.97-R4/osfmk/x86_64/opemu.c:1013:44: error: no

      member named 'ui' in 'ssp_m128'

            if(size_128) ((ssp_m128*)src)->ui = (*(__uint128_t*)address);

                         ~~~~~~~~~~~~~~~~  ^

1 error generated.



Yes , you should to be programmer )))

Answer tomorrow .

Link to comment
Share on other sites
Andy Vandijck
Andy Vandijck
Posted
Posted

I created a new revised version based on Bronzovka's tips.

I expanded the union with a __uint128_t ui.

I removed the save and restore XMM code.

I coded all instructions to their REF variants.

I redefined SSP_FORCEINLINE to static inline.

I defined the macros as used by the 3 headers using the real SSE2 macros.

it should now work just fine.

Test please ;):D

EDIT: No feedback? Please post some test results, thx ;)

BSA_YOS_R4C.zip

  • Like 3
Link to comment
Share on other sites
lpukraine
lpukraine
Posted
Posted

I created a new revised version based on Bronzovka's tips.

I expanded the union with a __uint128_t ui.

I removed the save and restore XMM code.

I coded all instructions to their REF variants.

I redefined SSP_FORCEINLINE to static inline.

I defined the macros as used by the 3 headers using the real SSE2 macros.

it should now work just fine.

Test please ;):D

EDIT: No feedback? Please post some test results, thx ;)

My results:

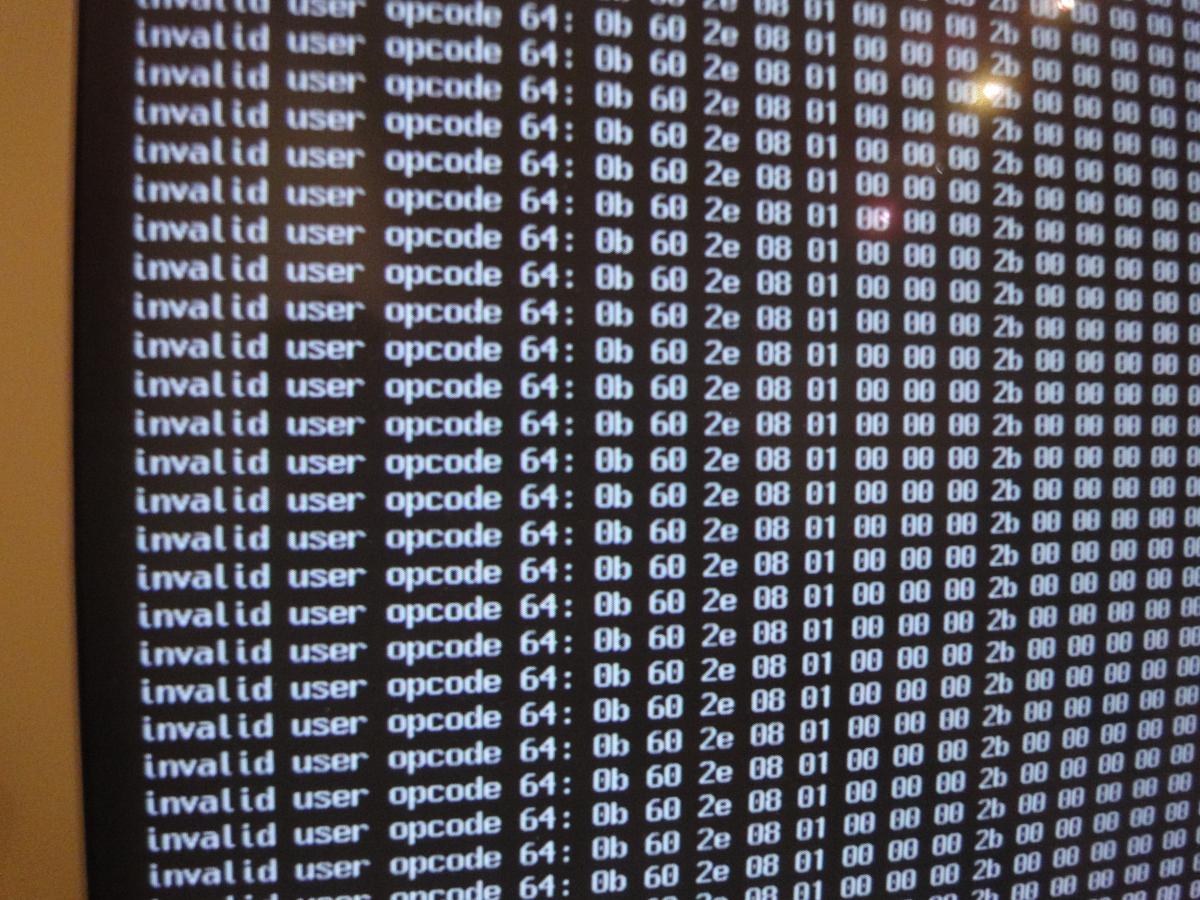

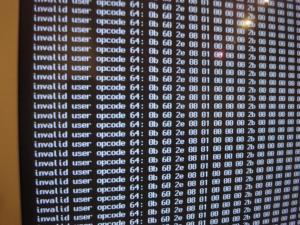

With x86_64 kernel have multiply lines with "invalid user opcode 64" error during boot. Same result with replacing system.kext and without.

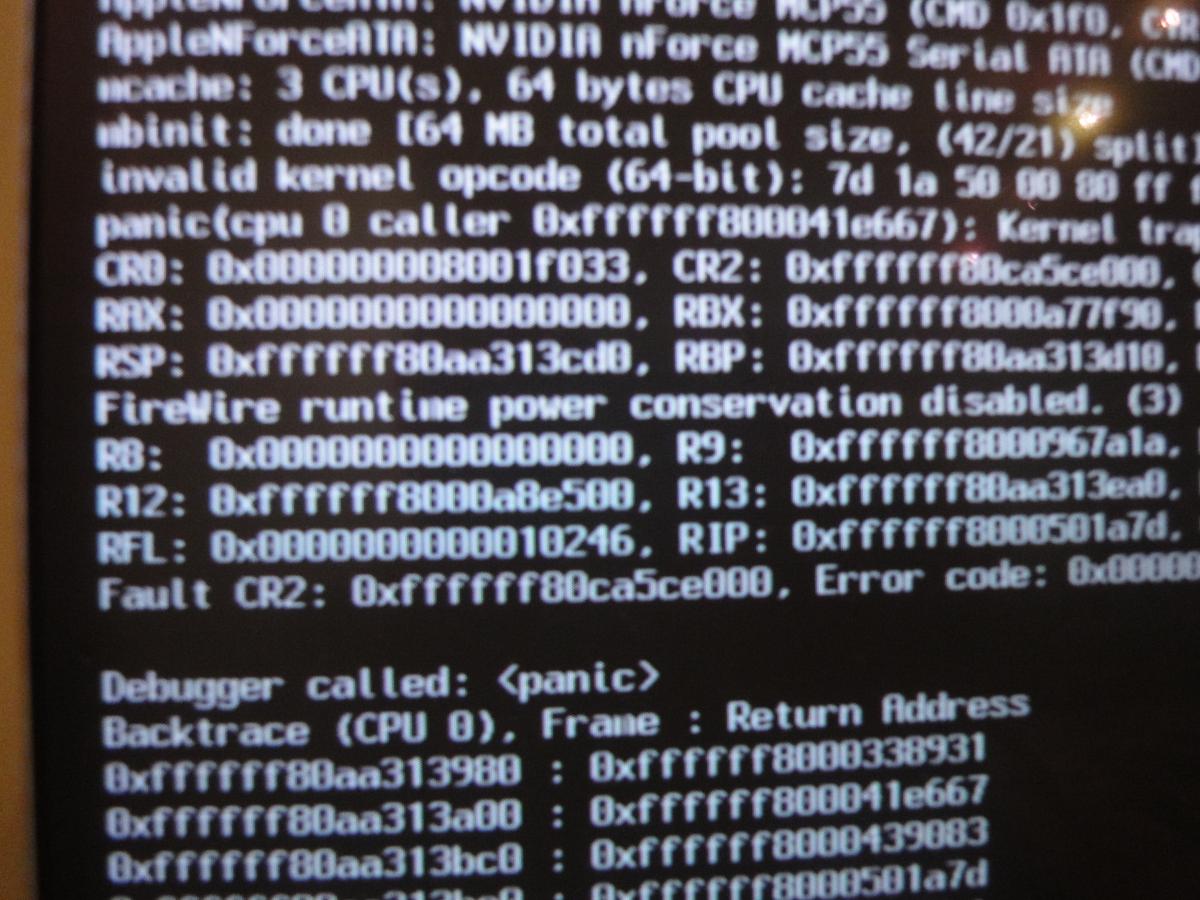

With x86_64H kernel have kernel panic after first line with "invalid user opcode 64" error. Same result with replacing system.kext and without.

Link to comment
Share on other sites
ameris_cyning
ameris_cyning
Posted
Posted

I created a new revised version based on Bronzovka's tips.

I expanded the union with a __uint128_t ui.

I removed the save and restore XMM code.

I coded all instructions to their REF variants.

I redefined SSP_FORCEINLINE to static inline.

I defined the macros as used by the 3 headers using the real SSE2 macros.

it should now work just fine.

Test please ;):D

EDIT: No feedback? Please post some test results, thx ;)



Its hard to provide feedback on something so close to perfection. I can say that because it is the kernel I have used for hours now without hiccups.



Y'all're doing a hell of a good job with these kernels

  • Like 1
Link to comment
Share on other sites
yakei
yakei
Posted
Posted



1010 AnV-R4 + Bronya SSEPlus FIX


Fixed APP Store

TEST Safari 8…



Test result



1010 AnV-R4 + Bronya SSEPlus FIX



fix.rev. 1

app store sometimes functioned

Safari sometimes crashed



fix.rev.2

app store no function

Safari crashed





1010 AnV R4C Fix

app store no function

Safari crashed



Test was accomplished without webkit.

unfortunately no improvement  :(



thanks

Link to comment
Share on other sites
eugmoon
eugmoon
Posted
Posted

I'm finally back at work and tested three kernels:



The two kernels by AnV from #556 and the one kernel from #562.



With the X86_64 kernel from 556, I get the invalid opcode message without end.

With the X86_64H kernel from 556, I get a kernel panic due to invalid opcode.



With the kernel from 562, I can get to the desktop and open maps.google.com in Safari, iTunes store, iBooks store, etc. However, I can only open the App Store by using the "App Store..." link under the Apple menu (because I haven't updated to Safari 8.0.2). If I open the App Store from the Dock, none of the tabs load properly.



Finally, it looks like I may not be posting to this section much longer. I am going to be changing jobs soon. Since this AMD desktop is actually my current work computer, I won't have access to it after a few weeks. It seems to me that this is an exciting time for OS X on AMD, and I'm sorry that I will probably end up missing out on some interesting developments in this area.



That said, I will probably lurk from time-to-time to see how things are progressing.



Good luck!

Link to comment
Share on other sites
Andy Vandijck
Andy Vandijck
Posted
Posted

I forced the SSEPlus emulator fully in software.
In SSEPlus_ref.h:

#ifndef __BASE_H__
#define __BASE_H__

#define __SSEPLUS_LOGICAL_SSE2_H__ 1
#define __SSEPLUS_MEMORY_SSE2_H__ 1
#define __SSEPLUS_CONVERT_SSE2_H__ 1

#include "SSEPlus_platform.h"

#if 0
#include <xmmintrin.h>  // SSE  (Required to use the __m128, and __m128d type)
#include <emmintrin.h>  // SSE2 (Required to use the __m128i type)
#else
typedef struct {
    float f[4];
} __m128;

typedef struct {
    double d[2];
} __m128d;

#ifdef __LP64__
typedef struct {
    unsigned long i[2];
} __m128i;
#else
typedef struct {
    unsigned long long i[2];
} __m128i;
#endif

typedef struct {
    float m64[2];
} __m64;

static __inline__ __m128i __attribute__((__always_inline__, __nodebug__))
_mm_setzero_si128(void)
{
    return (__m128i){ 0LL, 0LL };
}
#endif

//---------------------------------------
// Type Definitions
//---------------------------------------

Meaning they now use my software structured types instead of vector types for the functions.

Which should work.

Kernels and diff attached.

Test please and report back ;)

R4D kernel (damn, already 4th test lol, R4D2 :P).

BSA_YOS_R4D.zip

  • Like 3
Link to comment
Share on other sites
Andy Vandijck
Andy Vandijck
Posted
Posted

Cannot reach desktop, kernel panics with both of them...

I'll test the opemu using a custom VMWare.

Hopefully with success...

  • Like 1
Link to comment
Share on other sites
Andy Vandijck
Andy Vandijck
Posted
Posted

Test result from R4D Kernel











kernel panic ...





thanks

Strange.

Also in VMWare, no reaching the installer gets stuck half way.

Must be that opemu error.

I need a fix for this.

Other than that, no errors.

  • Like 1
Link to comment
Share on other sites
yakei
yakei
Posted
Posted



=================

JPG Image Preview FIX 1st

=================



This is a temporary practice


the files from 10.9.5

Backup Original files

copy ImageIO.framework to /System/Library/Frameworks

copy Preview.app to /Applications




Yes, it functions.  :thumbsup_anim:  :D  :yes:



Thank you for this hint.

Link to comment
Share on other sites
Andy Vandijck
Andy Vandijck
Posted
Posted

I fully revised the instructions.

Now new SSEPlus opemu based on Bronya's idea.

It has Bronya's fix and my new fix for SSE3 based on the same idea.

Test please and report back.

Both arch built.

I labeled this R5.

BSA_YOS_R5.zip

  • Like 4
Link to comment
Share on other sites
Andy Vandijck
Andy Vandijck
Posted
Posted

Hi Andy,



test with or without webkit ?



thanks

Don't know, needs testing.

So test please ;)

  • Like 1
Link to comment
Share on other sites
yakei
yakei
Posted
Posted

quick test result



1.)  x86_64



X86_64 works with my Hardware  :P  :drool:  :yes:

app store, safari works  (with webkit)

I will for a long time test the kernel



Andy, am  I spezial test would drive trough?





2.)  x86_64H



X86_64H, kernel panic



thanks

  • Like 1
Link to comment
Share on other sites
