Slice Posted May 7, 2018 Author Share Posted May 7, 2018 16 hours ago, vector sigma said: Slice's use a fake and really its card doesn't support metal, as well for the Alpha22's "MSI VN240GT-MD1G" (NVidia GT 240). I can keep this as a success? To me return this: DEVICE 0: Name: Intel HD Graphics 4000 Metal version: 2+ Registry ID: 0x3BF Max Threads Per Thread group: MTLSize(width: 512, height: 512, depth: 512) Max Thread group Memory Length: 32768 Recommended Max Working Set Size: 0x60000000 Depth 24 Stencil 8 Pixel Format Supported: false Programmable Sample Positions Supported: true Read-Write Texture Support: MTLReadWriteTextureTier Headless: false Is Low Power: true Removable: false Any supported card to test with? this is the code: import Foundation import Metal if #available(OSX 10.11, *) { let metal = MTLCopyAllDevices() if metal.count > 0 { for i in 0..<metal.count { print("DEVICE \(i):") print("\tName: \(metal[i].name)") if #available(OSX 10.13, *) { print("\tMetal version: 2+") print("\tRegistry ID: \(String(format: "0x%X", metal[i].registryID))") } else { print("\tMetal version: 1") } print("\tMax Threads Per Thread group: \(metal[i].maxThreadsPerThreadgroup)") if #available(OSX 10.13, *) { print("\tMax Thread group Memory Length: \(metal[i].maxThreadgroupMemoryLength)") } if #available(OSX 10.12, *) { print("\tRecommended Max Working Set Size: \(String(format: "0x%X", metal[i].recommendedMaxWorkingSetSize))") } print("\tDepth 24 Stencil 8 Pixel Format Supported: \(metal[i].isDepth24Stencil8PixelFormatSupported)") if #available(OSX 10.13, *) { print("\tProgrammable Sample Positions Supported: \(metal[i].areProgrammableSamplePositionsSupported)") } if #available(OSX 10.13, *) { print("\tRead-Write Texture Support: \(metal[i].readWriteTextureSupport)") } print("\tHeadless: \(metal[i].isHeadless)") print("\tIs Low Power: \(metal[i].isLowPower)") if #available(OSX 10.13, *) { print("\tRemovable: \(metal[i].isRemovable)\n") } else { // Fallback on earlier versions } } } else { print("no devices found that support Metal") } } else { print("This OS doesn't support Metal, 10.11 + required!") } Yes, success. With Intel HD4000 I have same result as you. 1 Link to comment Share on other sites More sharing options...
vector sigma Posted May 7, 2018 Share Posted May 7, 2018 8 hours ago, bronxteck said: DEVICE 0: Name: Intel Iris Pro Graphics Metal version: 2+ Registry ID: 0x3D5 Max Threads Per Thread group: MTLSize(width: 512, height: 512, depth: 512) Max Thread group Memory Length: 32768 Recommended Max Working Set Size: 0x60000000 Depth 24 Stencil 8 Pixel Format Supported: false Programmable Sample Positions Supported: true Read-Write Texture Support: MTLReadWriteTextureTier Headless: false Is Low Power: true Removable: false Intel HD Graphics 4400: Chipset Model: Intel HD Graphics 4400 Type: GPU Bus: Built-In VRAM (Dynamic, Max): 1536 MB Vendor: Intel Device ID: 0x0412 Revision ID: 0x0009 Metal: Supported, feature set macOS GPUFamily1 v3 Another problem: the "registryID" property of Metal framenwork is only available in 10.13, and for what I saw from your log above names mismatch: Intel Iris Pro Graphics vs Intel HD Graphics 4400 This way..... I can't be sure if listed card are the same. Solutions: Print this only in 10.13 + Print this as a separate log, so not among existing GPU information. please, vote ..(or give a better solution). Link to comment Share on other sites More sharing options...
Guest Posted May 7, 2018 Share Posted May 7, 2018 (edited) ciao vector e' un po' che non ci si sente NVARCH =GP100 value(where come from?) HWMonitorSMC2 v2.1.4 GM VIDEO CARD 1: Model: NVIDIA TITAN Xp COLLECTORS EDITION Vendor ID: de 10 00 00 (NVidia) Device ID: 02 1b 00 00 Revision ID: a1 00 00 00 Subsystem Vendor ID: de 10 00 00 Subsystem ID: 10 00 00 00 class-code: 00 00 03 00 IOName: display pcidebug: 1:0:0 built-in: 00 compatible: pci10de,123epci10de,1b02pciclass,030000GFX0 acpi-path: IOACPIPlane:/_SB/PCI0@0/BR3A@30000/GFX0@0 hda-gfx: onboard-2 rm_board_number: 00 00 00 00 NVDA,noEFI: true NVArch: GP100 rom-revision: VBIOS 86.02.4c.00.01 NVCLASS: NVDA NVCAP 05 00 00 00 00 00 ff ff ff ff 00 00 00 00 00 0e 00 00 00 00 pci-aspm-default: 0x0 VRAM,totalMB ff 2f 00 00 device_type: NVDA,Parent NVDA,accel-loaded 01 00 00 00 vbios-revision 01 00 4c 02 86 vNVDA,Features 00 08 00 00 IONVRAMProperty true NVDAinitgl_created yes IOPCIMSIMode true NVDAType Web Additional Properties: AAPL,slot-name: PCI Slot-1 AAPL,ndrv-dev: 1 my GFX chipset is GP102 https://videocardz.net/gpu/nvidia-gp102/ Edited May 7, 2018 by Guest some adjustment Link to comment Share on other sites More sharing options...

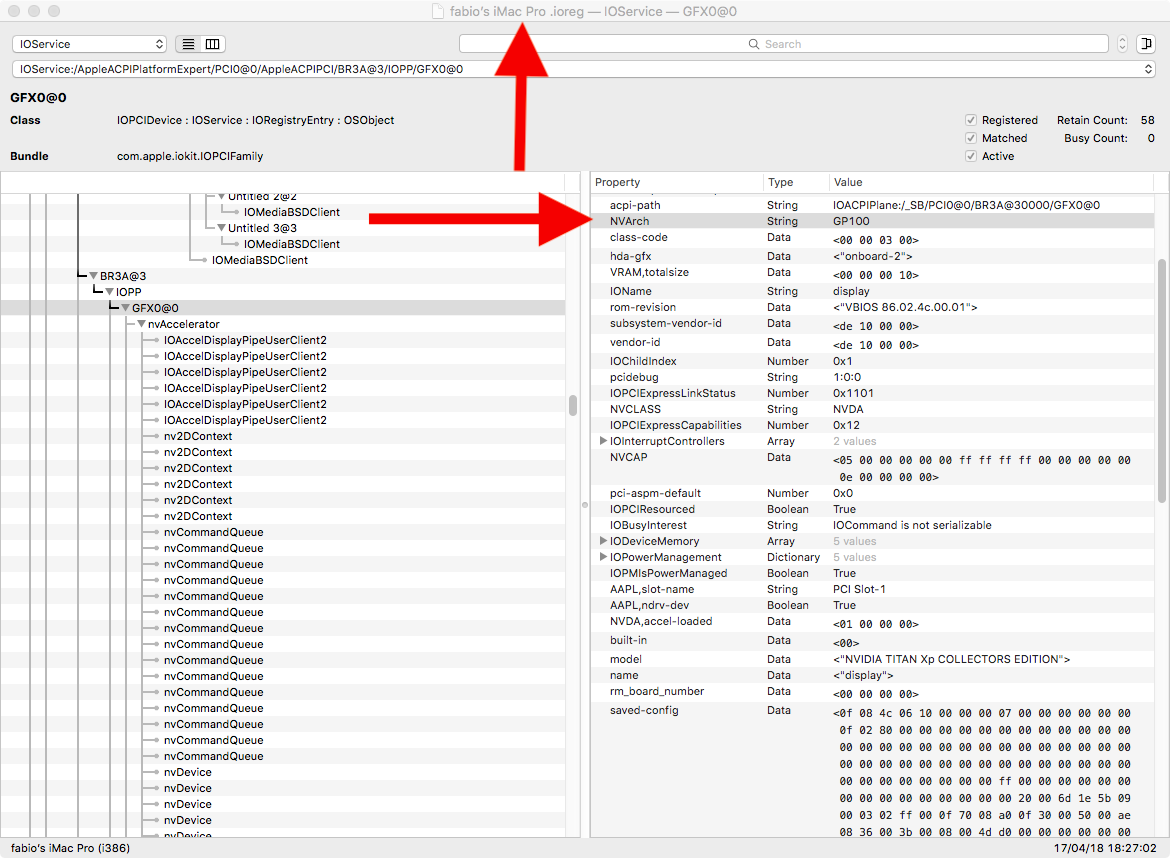

vector sigma Posted May 7, 2018 Share Posted May 7, 2018 (edited) Hi fabiosun, GP100 comes from your ioreg (is your ioreg): .. but don't tell me why. Edited May 7, 2018 by vector sigma Link to comment Share on other sites More sharing options...
bronxteck Posted May 7, 2018 Share Posted May 7, 2018 6 hours ago, vector sigma said: Print this only in 10.13 + Print this as a separate log, so not among existing GPU information. that was from 10.13.5 beta the machine is a haswell HD4400. i have to use rehabman fakepcid and lilu with intelgraphics fixup. i do not know where iris pro is being generated from i also have only inject intel true in clover config no other graphics info in clover. Link to comment Share on other sites More sharing options...
Slice Posted May 7, 2018 Author Share Posted May 7, 2018 6 hours ago, vector sigma said: Another problem: the "registryID" property of Metal framenwork is only available in 10.13, and for what I saw from your log above names mismatch: Intel Iris Pro Graphics vs Intel HD Graphics 4400 This way..... I can't be sure if listed card are the same. Solutions: Print this only in 10.13 + Print this as a separate log, so not among existing GPU information. please, vote ..(or give a better solution). Print only in 10.13+ because older systems don't use metal. Link to comment Share on other sites More sharing options...
vector sigma Posted May 7, 2018 Share Posted May 7, 2018 (edited) 27 minutes ago, bronxteck said: i also have only inject intel true in clover config no other graphics info in clover. 8086 0412 is an HD4600, so that you are deceiving the OS since your is an unsupported HD4400 27 minutes ago, bronxteck said: i do not know where iris pro is being generated from Metal.framenwork is an Apple API, the name comes from Apple! Unfortunately this is the result of your hacking.... 7 minutes ago, Slice said: Print only in 10.13+ because older systems don't use metal. ok then. Edited May 7, 2018 by vector sigma spelling Link to comment Share on other sites More sharing options...
Guest Posted May 7, 2018 Share Posted May 7, 2018 1 hour ago, vector sigma said: Hi fabiosun, GP100 comes from your ioreg (is your ioreg): .. but don't tell me why. Ok Maybe I know why I thought you read data directly from GFX instead of using ioreg which is probably wrong due data passed by Nvidia driver..which supports GP102 but maybe named it GP100 Thank you for your answer and efforts Link to comment Share on other sites More sharing options...
bronxteck Posted May 7, 2018 Share Posted May 7, 2018 metal was introduced in el captain... metal 2 is High Sierra... Link to comment Share on other sites More sharing options...
vector sigma Posted May 8, 2018 Share Posted May 8, 2018 Look at https://support.apple.com/it-it/HT204349, now is clear how Apple naming Intel cards. Not sure but this can depend on the SMBIOS chosen? Link to comment Share on other sites More sharing options...
vector sigma Posted May 12, 2018 Share Posted May 12, 2018 (edited) I thought about answering a question I saw in my inbox, but it's not here .... Ok, @Slice and all, rev 142 contains a modification made by Slice in (r141) where He added a new Nuvoton chip (NTC 6681) in W836x.kext, in HWMonitorSMC2.app I added the ability to read Metal abilities and the Performances Statistics of the GPU(s). Metal stuff is printed only in 10.13 due to the fact that only in the last OS (so starting from High Sierra) is present the registry ID that allow me to ensure that the log print properties for the same GPU and its accelerator since the card name is not enough as demostrated here in the above posts. All is committed but attached you can find my compilation. Should be intresting for me to see a log from NVidia and AMD cards. HWSensors-3_r142.dmg Edited May 12, 2018 by vector sigma typo Link to comment Share on other sites More sharing options...
chris1111 Posted May 12, 2018 Share Posted May 12, 2018 (edited) @ vector sigma Yes I remove the message because I'm wrong, I have a patch DSDT for the Fan Edited May 12, 2018 by chris1111 Link to comment Share on other sites More sharing options...
vector sigma Posted May 12, 2018 Share Posted May 12, 2018 (edited) 4 minutes ago, chris1111 said: Yes I remove the message because I'm wrong, I have a patch DSDT for the Fan You can customize ACPIMonitor.kext->Contents->Info.plist->IOKitPersonalities->ACPI Monitoring Plugin to show what have you done with your ACPI tables.. Anyway I've not even tried this my self Edited May 12, 2018 by vector sigma Link to comment Share on other sites More sharing options...
chris1111 Posted May 12, 2018 Share Posted May 12, 2018 1 minute ago, vector sigma said: You can customize ACPIMonitor.kext->Contents->Info.plist->IOKitPersonalities->ACPI Monitoring Plugin to show what have you done with your ACPI tables.. Anyway I've not even tried this my self I will try and report thank you Link to comment Share on other sites More sharing options...
arminmacx Posted May 12, 2018 Share Posted May 12, 2018 (edited) Ok @vector sigma as you told me to post here. today i wanted to test your HWsensor and download DMG file and from extension folder i copy and paste these kext to my EFI/Clover/Kext/other folder : ACPIMonitor.kext - F718x.kext - FakeSMC.kext - GeforceSensor.kext - IntelCPUMonitor.kext - ITEIT87x.kext - NVClockX.kext - PC8739x.kext - W836x.kext - X3100.kext And reboot the system but when the loading screen comes up its restart - I go with -v for boot and when i try to see whats cause it it restart again very fast. My hack is : z97x-u3d-bk cpu : i5 4th gen macOS : 10.13.4 32 gb RAM clover 4449 GPU ASUS GT 640 2GB I use hwsensor 6.14 right now Edited May 12, 2018 by arminmacx Link to comment Share on other sites More sharing options...
vector sigma Posted May 12, 2018 Share Posted May 12, 2018 (edited) 12 minutes ago, arminmacx said: Ok @vector sigma as you told me to post here. today i wanted to test your HWsensor and download DMG file and from extension folder i copy and paste these kext to my EFI/Clover/Kext/other folder : ACPIMonitor.kext - F718x.kext - FakeSMC.kext - GeforceSensor.kext - IntelCPUMonitor.kext - ITEIT87x.kext - NVClockX.kext - PC8739x.kext - W836x.kext - X3100.kext And reboot the system but when the loading screen comes up its restart - I go with -v for boot and when i try to see whats cause it it restart again very fast. My hack is : z98x-ud3h-bk cpu : i5 4th gen macOS : 10.13.4 32 gb RAM clover 4449 I use hwsensor 6.14 right now You should not install every kexts Lol. Example: NVClockX.kext conflict with GeforceSensor.kext (they are for different classes of the NVidia cards) You have an i5, so surely you don't have the Intel X3100 (so why installing the X3100.kext ?) Or you have an ITEI87x chip, or Windbond836x or else (so why installing PC8739x.kext - W836x.kext - ITEIT87x.kex at same time???) ACPIMonitor.kext is only for who have edited its DSDT/SSDT to work with and is not an easy task. Is normal that you have kernel panics, cannot be otherwise. So I suggest to use the FakeSMC.kext provided (but please don't mix stuff that comes with other projects) and install only PlugIns for your motherboard! P.S. In the Download section were available also the .pkg where is clear what all kexts are for. Edited May 12, 2018 by vector sigma Link to comment Share on other sites More sharing options...
Alpha22 Posted May 12, 2018 Share Posted May 12, 2018 New Nuvoton chip (NTC 6681) in W836x.kext 1 Link to comment Share on other sites More sharing options...
vector sigma Posted May 12, 2018 Share Posted May 12, 2018 1 minute ago, Alpha22 said: New Nuvoton chip (NTC 6681) in W836x.kext Spoiler Thanks, I'm now waiting for someone that have cards that supports Metal Link to comment Share on other sites More sharing options...
arminmacx Posted May 12, 2018 Share Posted May 12, 2018 18 minutes ago, vector sigma said: You should not install every kexts Lol. Example: NVClockX.kext conflict with GeforceSensor.kext (they are for different classes of the NVidia cards) You have an i5, so surely you don't have the Intel X3100 (so why installing the X3100.kext ?) Or you have an ITEI87x chip, or Windbond836x or else (so why installing PC8739x.kext - W836x.kext - ITEIT87x.kex at same time???) ACPIMonitor.kext is only for who have edited its DSDT/SSDT to work with and is not an easy task. Is normal that you have kernel panics, cannot be otherwise. So I suggest to use the FakeSMC.kext provided (but please don't mix stuff that comes with other projects) and install only PlugIns for your motherboard! P.S. In the Download section were available also the .pkg where is clear what all kexts are for. thanks for clarify it. as i have DSDT i use APCIMonitor and i didnt know X3100 is not needed and nvCLOCKX is conflicting with geforce. so i only need geforce.kext - fakesmc - Intelcpu.kext - apci.kext - ITEIT87x.kext (my mobo is gigabyte) right? do i need PC8739x.kext too BTW as im always use hwsensor 6.14 and always use dmg and never had problem i thought its like that and i just exclude AMD kexts Link to comment Share on other sites More sharing options...
vector sigma Posted May 12, 2018 Share Posted May 12, 2018 (edited) 6 minutes ago, arminmacx said: thanks for clarify it. as i have DSDT i use APCIMonitor and i didnt know X3100 is not needed and nvCLOCKX is conflicting with geforce. so i only need geforce.kext - fakesmc - Intelcpu.kext - apci.kext - ITEIT87x.kext (my mobo is gigabyte) right? do i need PC8739x.kext too BTW as im always use hwsensor 6.14 and always use dmg and never had problem i thought its like that and i just exclude AMD kexts Same initial project, different branches, different views. Sorry I don't know the detailed info of your Mobo, but you should have only one LPC chip I guess, install only one of it and see at the kernel log for a match. Geforce.kext enable the reading of the GPU sensors for NVidia 4xx, 5xx, ...10xx Series while NVClock.kext enable the reading of the GPU sensors for NVidia 7xxx-9xxx Series. Edited May 12, 2018 by vector sigma 2 Link to comment Share on other sites More sharing options...
Guest Posted May 13, 2018 Share Posted May 13, 2018 (edited) @vector sigma if could be useful In my system I have this bug right click on OSX version App closes itself IMG_0705.MOV Edited May 13, 2018 by Guest Link to comment Share on other sites More sharing options...
vector sigma Posted May 20, 2018 Share Posted May 20, 2018 (edited) Hi all, this one: HWMonitorSMC2.app.v2.1.6_test.zip has some improvements: Changed the API to sign the app as login item: LSSharedFileListCreate() is deprecated and ther was also a little leak in the existing code, so now I'm using the new reccomended way by Apple, i.e. using the ServiceManagement.framenwork's SMLoginItemSetEnabled(). So now HWMonitorSMC2 use an Helper app that take the step to run the main app at login. In internet many people think that it is required that the app must be sandboxed and code signed, but our isn't.. and in the matter of the fact I cannot found any documentations that this is required, more here is working well. Please confirm this. NOTE: to be sure that is working please remove from the login items the old app by simply going in to the "Preferences" panel and mark as inactive the "load HWMonitorSMC2.app at login" checkbox. Close it and replace with the one attached, open it and again mark as active the "load HWMonitorSMC2.app at login" checkbox. Reboot and see if the app run by it self at the next login. Added a USB watcher so that now all USB devices are listed as "sensors" in the interface. By removing or inserting a device you will see detailed info for it like its name, its vendor/device/sub system ids.. port number etc. Added USB 2.0/3.0 controllers info to the full log. Added LAN/WIFI controllers to the full log. Added SATA/NVMe controllers info to the full log. Added LPBC info to the full log. In r146 I've modified a bit the memory management due to some lakes I saw by Profiling the app. Now is completely memory leaks free, at least here. There is a lot of new code that I want to ensure is working before commit it. As I said I completely profiled it, but this can't assure that there are problems since as demostrated some posts ago, hakintosh(s) can inject properties through DSDT/SSDT in a non Apple-like way (e.g. something that should be bytes instead of a string etc...). So please report back. EDIT some pictures of my tests: ...see performances in the spoiler: Spoiler Quote @vector sigma if could be useful In my system I have this bug right click on OSX version App closes itself Hi @fabiosun, try the above app. If the problem persist you should follow these instructions I made here and show me a pict of the line where the app crash. Edited May 20, 2018 by vector sigma added pictures 2 Link to comment Share on other sites More sharing options...
Mork vom Ork Posted May 20, 2018 Share Posted May 20, 2018 (edited) 3 hours ago, vector sigma said: Hi all, this one: HWMonitorSMC2.app.v2.1.6_test.zip has some improvements: So please report back. Here is my complete log: Spoiler HWMonitorSMC2 v2.1.6 test MACHINE STATUS: CPU: Name: Intel(R) Core(TM) i7-6700K CPU @ 4.00GHz Vendor: GenuineIntel Physical cores: 4 Logical cores: 8 Family: 6 Model: 0x5E Ext Model: 0x5 Ext Family: 0 Stepping: 3 Signature: 0x506E3 Brand: 0 Features: FPU VME DE PSE TSC MSR PAE MCE CX8 APIC SEP MTRR PGE MCA CMOV PAT PSE36 CLFSH DS ACPI MMX FXSR SSE SSE2 SS HTT TM PBE SSE3 PCLMULQDQ DTES64 MON DSCPL VMX EST TM2 SSSE3 FMA CX16 TPR PDCM SSE4.1 SSE4.2 x2APIC MOVBE POPCNT AES PCID XSAVE OSXSAVE SEGLIM64 TSCTMR AVX1.0 RDRAND F16C Ext Features: SYSCALL XD 1GBPAGE EM64T LAHF LZCNT PREFETCHW RDTSCP TSCI Microcode version: 194 Thermal sensors: 1 Thermal APIC timer: 1 System: 2% User: 3% Idle: 93% Nice: 0% LPCB: IOName: pci8086,a2c5 name: 70 63 69 38 30 38 36 2c 61 32 63 35 00 device-id: c5 a2 00 00 vendor-id: 86 80 00 00 revision-id: 00 00 00 00 subsystem-id: c5 a2 00 00 subsystem-vendor-id: 49 18 00 00 MEMORY: Physical size: 32.0GB Free: 26.91GB Wired: 2.22GB Active: 2.04GB Inactive: 814MB Compressed: 0MB SYSTEM: Model: iMac17,1 Sys name: Darwin OS Version: 10.13.5 Node name: iMac.fritz.box Release: 17.6.0 Version: Darwin Kernel Version 17.6.0: Tue May 8 15:33:09 PDT 2018; root:xnu-4570.61.1~2/RELEASE_X86_64 Machine: x86_64 Uptime: 0d 0h 3m 31s Processes: 248 Threads: 1005 Load Average: [1.50, 1.60, 0.79] Mach Factor: [6.8630000000000004, 6.7949999999999999, 6.665] POWER: CPU Speed limit: 100.0% CPUs available: 8 Scheduler limit: 100.0% Thermal level: Not Published VIDEO CARD 1: Model: Radeon RX 480 Vendor ID: 02 10 00 00 (ATI/AMD) Device ID: df 67 00 00 Revision ID: c7 00 00 00 Subsystem Vendor ID: 4b 17 00 00 Subsystem ID: 47 e3 00 00 class-code: 00 00 03 00 IOName: display pcidebug: 3:0:0 built-in: 00 compatible: pci174b,e347pci1002,67dfpciclass,030000GFX0 acpi-path: IOACPIPlane:/_SB/PCI0@0/PEG0@10000/PEGP@0/AMD0@80000/GFX0@0 hda-gfx: onboard-1 pci-aspm-default: 0x0 IOPCIMSIMode true Additional Properties: AAPL,slot-name: 50 43 49 65 20 23 31 00 ATY,PageFlipEnable: 01 00 00 00 ATY,remap-size: 0 ATY,vram_base: 00 00 00 00 00 00 00 00 ATY,SCLK: 300000 ATY,Part#: 113-2E3470U ATY,RevID: 398884337 ATY,TileInfo: 03 00 00 00 00 00 00 00 02 00 00 00 02 00 00 00 03 00 00 00 0c 00 00 00 ATY,memsize: 8589934592 ATY,MCLK: 300000 Metal support: false SCREEN 1: Framebuffer: 0x1B5DD114 EDID contents: Header: 00 ff ff ff ff ff ff 00 Serial number: 86 00 00 00 Version: 01 04 Basic params b5 57 25 78 9f Chroma info: ca 95 a6 55 4e a1 26 0f 50 54 Established: 04 63 80 Standard: 01 01 01 01 01 01 01 01 01 01 01 01 01 01 d1 cf Descriptor 1: 85 cf 00 20 f1 40 74 60 30 20 7a 00 6a 6e 31 00 00 1a Descriptor 2: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Descriptor 3: 00 00 00 fd 00 34 4b 7d 7d 36 01 0a 20 20 20 20 20 20 Descriptor 4: 00 00 00 fc 00 4c 47 20 55 4c 54 52 41 57 49 44 45 0a Extension: 01 Checksum: 13 Manufacturer: 1e6d (4K}}6�) Model: fc76 Serial Number: 134 Resolution: 3840x1600 Made week 9 of 2017 EDID version: 1.4 Digital display Established Timings: 640×480 @ 75 Hz 800×600 @ 75 Hz 832×624 @ 75 H 1024×768 @ 75 Hz 1280×1024 @ 75 Hz Detailed mode (descriptor 1): Pixel Clock: 342.55MHz Horizontal Active: 3840 Horizontal Blanking: 288 Vertical Active: 1600 Vertical Blanking: 116 Horizontal Sync Offset: 48 Horizontal Sync Pulse: 32 Vertical Sync Offset: 7 Vertical Sync Pulse: 10 Interlaced: false Is preferred timing: true Maximum image size: 870mm x 370mm Gamma: 2.20 Model: LG ULTRAWID Checksum: 0x13 (valid) EDID comes from EEPROM SCREEN 2: Framebuffer: 0x7B800E82 EDID contents: Header: 00 ff ff ff ff ff ff 00 Serial number: 04 00 00 00 Version: 01 03 Basic params 80 66 39 78 0a Chroma info: ee 91 a3 54 4c 99 26 0f 50 54 Established: bd ef 80 Standard: 71 4f 81 c0 81 00 81 80 95 00 a9 c0 b3 00 01 01 Descriptor 1: 02 3a 80 18 71 38 2d 40 58 2c 45 00 a0 5a 00 00 00 1e Descriptor 2: 66 21 56 aa 51 00 1e 30 46 8f 33 00 a0 5a 00 00 00 1e Descriptor 3: 00 00 00 fc 00 44 45 4e 4f 4e 2d 41 56 52 48 44 0a 20 Descriptor 4: 00 00 00 fd 00 18 4b 0f 51 0f 00 0a 20 20 20 20 20 20 Extension: 01 Checksum: 90 Manufacturer: 11ee (DENON-AVRHD) Model: 3a00 Serial Number: 4 Resolution: 1920x1080 Made in 2013 EDID version: 1.3 Digital display Established Timings: 720×400 @ 70 Hz 640×480 @ 60 Hz 640×480 @ 67 Hz 640×480 @ 72 Hz 640×480 @ 75 Hz 800×600 @ 60 Hz 800×600 @ 72 Hz 800×600 @ 75 Hz 832×624 @ 75 H 1024×768 @ 60 Hz 1024×768 @ 72 Hz 1024×768 @ 75 Hz 1280×1024 @ 75 Hz Detailed mode (descriptor 1): Pixel Clock: 5.7MHz Horizontal Active: 1920 Horizontal Blanking: 280 Vertical Active: 1080 Vertical Blanking: 45 Horizontal Sync Offset: 88 Horizontal Sync Pulse: 44 Vertical Sync Offset: 4 Vertical Sync Pulse: 5 Interlaced: false Is preferred timing: true Detailed mode (descriptor 2): Pixel Clock: 261.45MHz Horizontal Active: 1366 Horizontal Blanking: 426 Vertical Active: 768 Vertical Blanking: 30 Horizontal Sync Offset: 70 Horizontal Sync Pulse: 143 Vertical Sync Offset: 3 Vertical Sync Pulse: 3 Interlaced: false Is preferred timing: false Maximum image size: 1020mm x 570mm Gamma: 2.20 Model: �K�Q� Checksum: 0x90 (valid) EDID comes from EEPROM Serial ATA controller: Name: pci8086,a282 Vendor ID: 86 80 00 00 Device ID: 82 a2 00 00 Revision ID: 00 00 00 00 Subsystem Vendor ID: 49 18 00 00 Subsystem ID: 82 a2 00 00 class-code: 01 06 01 00 IOName: pci8086,a282 pcidebug: 0:23:0 built-in: 00 compatible: pci1849,a282pci8086,a282pciclass,010601SATA acpi-path: IOACPIPlane:/_SB/PCI0@0/SATA@170000 NVMe controller: Name: pci144d,a804 Vendor ID: 4d 14 00 00 Device ID: 04 a8 00 00 Revision ID: 00 00 00 00 Subsystem Vendor ID: 4d 14 00 00 Subsystem ID: 01 a8 00 00 class-code: 02 08 01 00 IOName: pci144d,a804 pcidebug: 5:0:0 built-in: 00 compatible: pci144d,a801pci144d,a804pciclass,010802PXSX acpi-path: IOACPIPlane:/_SB/PCI0@0/RP17@1b0000/PXSX@0 MEDIA: BSD Name: disk0 Product Name: Samsung SSD 960 EVO 250GB Product Revision Level: 2B7QCXE7 Medium Type: SSD Capacity: 250,06 GB (250059350016 bytes) Physical Interconnect: PCI-Express (NVMe) Physical Interconnect Location: Internal Temperature: 34C° Life: 99% Critical Warning: 0% Available Spare: 100% Available Spare Threshold: 10% Unsafe Shutdowns: 1031 S.M.A.R.T. status: Ok BSD Name: disk1 Product Name: SAMSUNG MZVPV256HDGL-00000 Product Revision Level: BXW7300Q Medium Type: SSD Capacity: 256,06 GB (256060514304 bytes) Physical Interconnect: PCI-Express (NVMe) Physical Interconnect Location: Internal Temperature: 35C° Life: 100% Critical Warning: 0% Available Spare: 100% Available Spare Threshold: 10% Unsafe Shutdowns: 643 S.M.A.R.T. status: Ok BSD Name: disk2 Product Name: Samsung SSD 950 PRO 256GB Product Revision Level: 2B0QBXX7 Medium Type: SSD Capacity: 256,06 GB (256060514304 bytes) Physical Interconnect: PCI-Express (NVMe) Physical Interconnect Location: Internal Temperature: 38C° Life: 99% Critical Warning: 0% Available Spare: 100% Available Spare Threshold: 10% Unsafe Shutdowns: 2566 S.M.A.R.T. status: Ok USB 3.0 controller: Vendor ID: 86 80 00 00 Device ID: af a2 00 00 Revision ID: 00 00 00 00 Subsystem Vendor ID: 49 18 00 00 Subsystem ID: af a2 00 00 class-code: 30 03 0c 00 IOName: pci8086,a2af pcidebug: 0:20:0 built-in: 00 compatible: pci1849,a2afpci8086,a2afpciclass,0c0330XHC acpi-path: IOACPIPlane:/_SB/PCI0@0/XHC@140000 Additional Properties: AAPL,current-available: 34 08 AAPL,current-in-sleep: e8 03 AAPL,current-extra: 80 0c AAPL,clock-id: 00 USB devices: Name: RM-Series C-Link Adapter Vendor: Corsair Memory, Inc. idProduct: c0627 idVendor: 1b1c27 Port Num.: 3 Bus Power Available: 250 Speed: 1 Device Speed: 1 bcdDevice: 3 Serial Number: 0 non-removable: no Name: Integrated USB Bridge Vendor: Corsair Memory, Inc. idProduct: c0427 idVendor: 1b1c27 Port Num.: 2 Bus Power Available: 250 Speed: 1 Device Speed: 1 bcdDevice: 512 Serial Number: 0 non-removable: no Name: H115i Vendor: Corsair Components, Inc. idProduct: c0a27 idVendor: 1b1c27 Port Num.: 1 Bus Power Available: 250 Speed: 1 Device Speed: 1 bcdDevice: 256 Serial Number: 3 non-removable: no Name: ASM107x Vendor: Asmedia idProduct: 207427 idVendor: 103c27 Port Num.: 5 Bus Power Available: 250 Speed: 2 Device Speed: 2 bcdDevice: 1 Serial Number: 1 non-removable: no Name: USB2.0 Hub idProduct: 60827 idVendor: 5e327 Port Num.: 1 Bus Power Available: 250 Speed: 2 Device Speed: 2 bcdDevice: 34102 Serial Number: 0 non-removable: yes Name: USB Receiver Vendor: Logitech idProduct: c52b27 idVendor: 46d27 Port Num.: 4 Bus Power Available: 250 Speed: 1 Device Speed: 1 bcdDevice: 4611 Serial Number: 0 non-removable: yes Name: ASM107x Vendor: Asmedia idProduct: 307427 idVendor: 103c27 Port Num.: 13 Bus Power Available: 450 Speed: 3 Device Speed: 3 bcdDevice: 1 Serial Number: 1 non-removable: no Name: USB audio CODEC Vendor: Burr-Brown from TI idProduct: 291227 idVendor: 8bb27 Port Num.: 4 Bus Power Available: 250 Speed: 1 Device Speed: 1 bcdDevice: 256 Serial Number: 0 non-removable: no Name: USB2.0 Hub idProduct: 61027 idVendor: 5e327 Port Num.: 8 Bus Power Available: 250 Speed: 2 Device Speed: 2 bcdDevice: 12952 Serial Number: 0 non-removable: yes Name: Commander PRO Vendor: Corsair idProduct: c1027 idVendor: 1b1c27 Port Num.: 7 Bus Power Available: 250 Speed: 1 Device Speed: 1 bcdDevice: 7 Serial Number: 128 non-removable: no Name: AppleUSBXHCI Root Hub Simulation Vendor: Apple Inc. idProduct: 800727 idVendor: 5ac27 Speed: 3 Device Speed: 3 Serial Number: 0 non-removable: yes LAN controller: Name: ethernet Vendor ID: 86 80 00 00 Device ID: b8 15 00 00 Revision ID: 00 00 00 00 Subsystem Vendor ID: 49 18 00 00 Subsystem ID: b8 15 00 00 class-code: 00 00 02 00 IOName: ethernet pcidebug: 0:31:6 compatible: pci1849,15b8pci8086,15b8pciclass,020000GLAN acpi-path: IOACPIPlane:/_SB/PCI0@0/GLAN@1f0006 WIFI controller: Name: pci8086,8b3 Vendor ID: 86 80 00 00 Device ID: b3 08 00 00 Revision ID: 83 00 00 00 Subsystem Vendor ID: 86 80 00 00 Subsystem ID: 70 80 00 00 class-code: 00 80 02 00 IOName: pci8086,8b3 pcidebug: 116:0:0 compatible: pci8086,8070pci8086,8b3pciclass,028000 seems to work ok for me, too. Edited May 20, 2018 by Mork vom Ork 1 Link to comment Share on other sites More sharing options...
vector sigma Posted May 20, 2018 Share Posted May 20, 2018 1 hour ago, Mork vom Ork said: Here is my complete log: Reveal hidden contents HWMonitorSMC2 v2.1.6 test MACHINE STATUS: CPU: Name: Intel(R) Core(TM) i7-6700K CPU @ 4.00GHz Vendor: GenuineIntel Physical cores: 4 Logical cores: 8 Family: 6 Model: 0x5E Ext Model: 0x5 Ext Family: 0 Stepping: 3 Signature: 0x506E3 Brand: 0 Features: FPU VME DE PSE TSC MSR PAE MCE CX8 APIC SEP MTRR PGE MCA CMOV PAT PSE36 CLFSH DS ACPI MMX FXSR SSE SSE2 SS HTT TM PBE SSE3 PCLMULQDQ DTES64 MON DSCPL VMX EST TM2 SSSE3 FMA CX16 TPR PDCM SSE4.1 SSE4.2 x2APIC MOVBE POPCNT AES PCID XSAVE OSXSAVE SEGLIM64 TSCTMR AVX1.0 RDRAND F16C Ext Features: SYSCALL XD 1GBPAGE EM64T LAHF LZCNT PREFETCHW RDTSCP TSCI Microcode version: 194 Thermal sensors: 1 Thermal APIC timer: 1 System: 2% User: 3% Idle: 93% Nice: 0% LPCB: IOName: pci8086,a2c5 name: 70 63 69 38 30 38 36 2c 61 32 63 35 00 device-id: c5 a2 00 00 vendor-id: 86 80 00 00 revision-id: 00 00 00 00 subsystem-id: c5 a2 00 00 subsystem-vendor-id: 49 18 00 00 MEMORY: Physical size: 32.0GB Free: 26.91GB Wired: 2.22GB Active: 2.04GB Inactive: 814MB Compressed: 0MB SYSTEM: Model: iMac17,1 Sys name: Darwin OS Version: 10.13.5 Node name: iMac.fritz.box Release: 17.6.0 Version: Darwin Kernel Version 17.6.0: Tue May 8 15:33:09 PDT 2018; root:xnu-4570.61.1~2/RELEASE_X86_64 Machine: x86_64 Uptime: 0d 0h 3m 31s Processes: 248 Threads: 1005 Load Average: [1.50, 1.60, 0.79] Mach Factor: [6.8630000000000004, 6.7949999999999999, 6.665] POWER: CPU Speed limit: 100.0% CPUs available: 8 Scheduler limit: 100.0% Thermal level: Not Published VIDEO CARD 1: Model: Radeon RX 480 Vendor ID: 02 10 00 00 (ATI/AMD) Device ID: df 67 00 00 Revision ID: c7 00 00 00 Subsystem Vendor ID: 4b 17 00 00 Subsystem ID: 47 e3 00 00 class-code: 00 00 03 00 IOName: display pcidebug: 3:0:0 built-in: 00 compatible: pci174b,e347pci1002,67dfpciclass,030000GFX0 acpi-path: IOACPIPlane:/_SB/PCI0@0/PEG0@10000/PEGP@0/AMD0@80000/GFX0@0 hda-gfx: onboard-1 pci-aspm-default: 0x0 IOPCIMSIMode true Additional Properties: AAPL,slot-name: 50 43 49 65 20 23 31 00 ATY,PageFlipEnable: 01 00 00 00 ATY,remap-size: 0 ATY,vram_base: 00 00 00 00 00 00 00 00 ATY,SCLK: 300000 ATY,Part#: 113-2E3470U ATY,RevID: 398884337 ATY,TileInfo: 03 00 00 00 00 00 00 00 02 00 00 00 02 00 00 00 03 00 00 00 0c 00 00 00 ATY,memsize: 8589934592 ATY,MCLK: 300000 Metal support: false SCREEN 1: Framebuffer: 0x1B5DD114 EDID contents: Header: 00 ff ff ff ff ff ff 00 Serial number: 86 00 00 00 Version: 01 04 Basic params b5 57 25 78 9f Chroma info: ca 95 a6 55 4e a1 26 0f 50 54 Established: 04 63 80 Standard: 01 01 01 01 01 01 01 01 01 01 01 01 01 01 d1 cf Descriptor 1: 85 cf 00 20 f1 40 74 60 30 20 7a 00 6a 6e 31 00 00 1a Descriptor 2: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Descriptor 3: 00 00 00 fd 00 34 4b 7d 7d 36 01 0a 20 20 20 20 20 20 Descriptor 4: 00 00 00 fc 00 4c 47 20 55 4c 54 52 41 57 49 44 45 0a Extension: 01 Checksum: 13 Manufacturer: 1e6d (4K}}6�) Model: fc76 Serial Number: 134 Resolution: 3840x1600 Made week 9 of 2017 EDID version: 1.4 Digital display Established Timings: 640×480 @ 75 Hz 800×600 @ 75 Hz 832×624 @ 75 H 1024×768 @ 75 Hz 1280×1024 @ 75 Hz Detailed mode (descriptor 1): Pixel Clock: 342.55MHz Horizontal Active: 3840 Horizontal Blanking: 288 Vertical Active: 1600 Vertical Blanking: 116 Horizontal Sync Offset: 48 Horizontal Sync Pulse: 32 Vertical Sync Offset: 7 Vertical Sync Pulse: 10 Interlaced: false Is preferred timing: true Maximum image size: 870mm x 370mm Gamma: 2.20 Model: LG ULTRAWID Checksum: 0x13 (valid) EDID comes from EEPROM SCREEN 2: Framebuffer: 0x7B800E82 EDID contents: Header: 00 ff ff ff ff ff ff 00 Serial number: 04 00 00 00 Version: 01 03 Basic params 80 66 39 78 0a Chroma info: ee 91 a3 54 4c 99 26 0f 50 54 Established: bd ef 80 Standard: 71 4f 81 c0 81 00 81 80 95 00 a9 c0 b3 00 01 01 Descriptor 1: 02 3a 80 18 71 38 2d 40 58 2c 45 00 a0 5a 00 00 00 1e Descriptor 2: 66 21 56 aa 51 00 1e 30 46 8f 33 00 a0 5a 00 00 00 1e Descriptor 3: 00 00 00 fc 00 44 45 4e 4f 4e 2d 41 56 52 48 44 0a 20 Descriptor 4: 00 00 00 fd 00 18 4b 0f 51 0f 00 0a 20 20 20 20 20 20 Extension: 01 Checksum: 90 Manufacturer: 11ee (DENON-AVRHD) Model: 3a00 Serial Number: 4 Resolution: 1920x1080 Made in 2013 EDID version: 1.3 Digital display Established Timings: 720×400 @ 70 Hz 640×480 @ 60 Hz 640×480 @ 67 Hz 640×480 @ 72 Hz 640×480 @ 75 Hz 800×600 @ 60 Hz 800×600 @ 72 Hz 800×600 @ 75 Hz 832×624 @ 75 H 1024×768 @ 60 Hz 1024×768 @ 72 Hz 1024×768 @ 75 Hz 1280×1024 @ 75 Hz Detailed mode (descriptor 1): Pixel Clock: 5.7MHz Horizontal Active: 1920 Horizontal Blanking: 280 Vertical Active: 1080 Vertical Blanking: 45 Horizontal Sync Offset: 88 Horizontal Sync Pulse: 44 Vertical Sync Offset: 4 Vertical Sync Pulse: 5 Interlaced: false Is preferred timing: true Detailed mode (descriptor 2): Pixel Clock: 261.45MHz Horizontal Active: 1366 Horizontal Blanking: 426 Vertical Active: 768 Vertical Blanking: 30 Horizontal Sync Offset: 70 Horizontal Sync Pulse: 143 Vertical Sync Offset: 3 Vertical Sync Pulse: 3 Interlaced: false Is preferred timing: false Maximum image size: 1020mm x 570mm Gamma: 2.20 Model: �K�Q� Checksum: 0x90 (valid) EDID comes from EEPROM Serial ATA controller: Name: pci8086,a282 Vendor ID: 86 80 00 00 Device ID: 82 a2 00 00 Revision ID: 00 00 00 00 Subsystem Vendor ID: 49 18 00 00 Subsystem ID: 82 a2 00 00 class-code: 01 06 01 00 IOName: pci8086,a282 pcidebug: 0:23:0 built-in: 00 compatible: pci1849,a282pci8086,a282pciclass,010601SATA acpi-path: IOACPIPlane:/_SB/PCI0@0/SATA@170000 NVMe controller: Name: pci144d,a804 Vendor ID: 4d 14 00 00 Device ID: 04 a8 00 00 Revision ID: 00 00 00 00 Subsystem Vendor ID: 4d 14 00 00 Subsystem ID: 01 a8 00 00 class-code: 02 08 01 00 IOName: pci144d,a804 pcidebug: 5:0:0 built-in: 00 compatible: pci144d,a801pci144d,a804pciclass,010802PXSX acpi-path: IOACPIPlane:/_SB/PCI0@0/RP17@1b0000/PXSX@0 MEDIA: BSD Name: disk0 Product Name: Samsung SSD 960 EVO 250GB Product Revision Level: 2B7QCXE7 Medium Type: SSD Capacity: 250,06 GB (250059350016 bytes) Physical Interconnect: PCI-Express (NVMe) Physical Interconnect Location: Internal Temperature: 34C° Life: 99% Critical Warning: 0% Available Spare: 100% Available Spare Threshold: 10% Unsafe Shutdowns: 1031 S.M.A.R.T. status: Ok BSD Name: disk1 Product Name: SAMSUNG MZVPV256HDGL-00000 Product Revision Level: BXW7300Q Medium Type: SSD Capacity: 256,06 GB (256060514304 bytes) Physical Interconnect: PCI-Express (NVMe) Physical Interconnect Location: Internal Temperature: 35C° Life: 100% Critical Warning: 0% Available Spare: 100% Available Spare Threshold: 10% Unsafe Shutdowns: 643 S.M.A.R.T. status: Ok BSD Name: disk2 Product Name: Samsung SSD 950 PRO 256GB Product Revision Level: 2B0QBXX7 Medium Type: SSD Capacity: 256,06 GB (256060514304 bytes) Physical Interconnect: PCI-Express (NVMe) Physical Interconnect Location: Internal Temperature: 38C° Life: 99% Critical Warning: 0% Available Spare: 100% Available Spare Threshold: 10% Unsafe Shutdowns: 2566 S.M.A.R.T. status: Ok USB 3.0 controller: Vendor ID: 86 80 00 00 Device ID: af a2 00 00 Revision ID: 00 00 00 00 Subsystem Vendor ID: 49 18 00 00 Subsystem ID: af a2 00 00 class-code: 30 03 0c 00 IOName: pci8086,a2af pcidebug: 0:20:0 built-in: 00 compatible: pci1849,a2afpci8086,a2afpciclass,0c0330XHC acpi-path: IOACPIPlane:/_SB/PCI0@0/XHC@140000 Additional Properties: AAPL,current-available: 34 08 AAPL,current-in-sleep: e8 03 AAPL,current-extra: 80 0c AAPL,clock-id: 00 USB devices: Name: RM-Series C-Link Adapter Vendor: Corsair Memory, Inc. idProduct: c0627 idVendor: 1b1c27 Port Num.: 3 Bus Power Available: 250 Speed: 1 Device Speed: 1 bcdDevice: 3 Serial Number: 0 non-removable: no Name: Integrated USB Bridge Vendor: Corsair Memory, Inc. idProduct: c0427 idVendor: 1b1c27 Port Num.: 2 Bus Power Available: 250 Speed: 1 Device Speed: 1 bcdDevice: 512 Serial Number: 0 non-removable: no Name: H115i Vendor: Corsair Components, Inc. idProduct: c0a27 idVendor: 1b1c27 Port Num.: 1 Bus Power Available: 250 Speed: 1 Device Speed: 1 bcdDevice: 256 Serial Number: 3 non-removable: no Name: ASM107x Vendor: Asmedia idProduct: 207427 idVendor: 103c27 Port Num.: 5 Bus Power Available: 250 Speed: 2 Device Speed: 2 bcdDevice: 1 Serial Number: 1 non-removable: no Name: USB2.0 Hub idProduct: 60827 idVendor: 5e327 Port Num.: 1 Bus Power Available: 250 Speed: 2 Device Speed: 2 bcdDevice: 34102 Serial Number: 0 non-removable: yes Name: USB Receiver Vendor: Logitech idProduct: c52b27 idVendor: 46d27 Port Num.: 4 Bus Power Available: 250 Speed: 1 Device Speed: 1 bcdDevice: 4611 Serial Number: 0 non-removable: yes Name: ASM107x Vendor: Asmedia idProduct: 307427 idVendor: 103c27 Port Num.: 13 Bus Power Available: 450 Speed: 3 Device Speed: 3 bcdDevice: 1 Serial Number: 1 non-removable: no Name: USB audio CODEC Vendor: Burr-Brown from TI idProduct: 291227 idVendor: 8bb27 Port Num.: 4 Bus Power Available: 250 Speed: 1 Device Speed: 1 bcdDevice: 256 Serial Number: 0 non-removable: no Name: USB2.0 Hub idProduct: 61027 idVendor: 5e327 Port Num.: 8 Bus Power Available: 250 Speed: 2 Device Speed: 2 bcdDevice: 12952 Serial Number: 0 non-removable: yes Name: Commander PRO Vendor: Corsair idProduct: c1027 idVendor: 1b1c27 Port Num.: 7 Bus Power Available: 250 Speed: 1 Device Speed: 1 bcdDevice: 7 Serial Number: 128 non-removable: no Name: AppleUSBXHCI Root Hub Simulation Vendor: Apple Inc. idProduct: 800727 idVendor: 5ac27 Speed: 3 Device Speed: 3 Serial Number: 0 non-removable: yes LAN controller: Name: ethernet Vendor ID: 86 80 00 00 Device ID: b8 15 00 00 Revision ID: 00 00 00 00 Subsystem Vendor ID: 49 18 00 00 Subsystem ID: b8 15 00 00 class-code: 00 00 02 00 IOName: ethernet pcidebug: 0:31:6 compatible: pci1849,15b8pci8086,15b8pciclass,020000GLAN acpi-path: IOACPIPlane:/_SB/PCI0@0/GLAN@1f0006 WIFI controller: Name: pci8086,8b3 Vendor ID: 86 80 00 00 Device ID: b3 08 00 00 Revision ID: 83 00 00 00 Subsystem Vendor ID: 86 80 00 00 Subsystem ID: 70 80 00 00 class-code: 00 80 02 00 IOName: pci8086,8b3 pcidebug: 116:0:0 compatible: pci8086,8070pci8086,8b3pciclass,028000 seems to work ok for me, too. Thanks, is good and full of details. Guys I'll commit the changes soon after a good clean of comments I made in to the source, after that I'll keep a break because of my job. See you all! Link to comment Share on other sites More sharing options...
Alpha22 Posted May 21, 2018 Share Posted May 21, 2018 (edited) Hello vector sigma Quote Hi all, this one: HWMonitorSMC2.app.v2.1.6_test.zip has some improvements: So please report back. Here is my log: MACHINE STATUS: CPU: Name: Intel(R) Core(TM)2 Quad CPU Q9550 @ 2.83GHz Vendor: GenuineIntel Physical cores: 4 Logical cores: 4 Family: 6 Model: 0x17 Ext Model: 0x1 Ext Family: 0 Stepping: 10 Signature: 0x1067A Brand: 0 Features: FPU VME DE PSE TSC MSR PAE MCE CX8 APIC SEP MTRR PGE MCA CMOV PAT PSE36 CLFSH DS ACPI MMX FXSR SSE SSE2 SS HTT TM PBE SSE3 DTES64 MON DSCPL VMX SMX EST TM2 SSSE3 CX16 TPR PDCM SSE4.1 XSAVE Ext Features: SYSCALL XD EM64T LAHF Microcode version: 2571 Thermal sensors: 1 Thermal APIC timer: 0 System: 5% User: 14% Idle: 80% Nice: 0% LPCB: IOName: pci8086,3a16 name: 70 63 69 38 30 38 36 2c 33 61 31 38 00 device-id: 18 3a 00 00 vendor-id: 86 80 00 00 revision-id: 00 00 00 00 subsystem-id: d4 82 00 00 subsystem-vendor-id: 43 10 00 00 MEMORY: Physical size: 8.0GB Free: 3.61GB Wired: 763MB Active: 2.96GB Inactive: 672MB Compressed: 0MB SYSTEM: Model: iMac10,1 Sys name: Darwin OS Version: 10.13.4 Node name: iMac-di-Fabio.local Release: 17.5.0 Version: Darwin Kernel Version 17.5.0: Fri Apr 13 19:32:32 PDT 2018; root:xnu-4570.51.2~1/RELEASE_X86_64 Machine: x86_64 Uptime: 0d 0h 22m 3s Processes: 263 Threads: 983 Load Average: [1.93, 1.87, 1.77] Mach Factor: [2.0899999999999999, 2.1230000000000002, 1.9910000000000001] POWER: CPU Speed limit: 100.0% CPUs available: 4 Scheduler limit: 100.0% Thermal level: Not Published VIDEO CARD 1: Model: nVidia Geforge GT 240 Vendor ID: de 10 00 00 (NVidia) Device ID: a3 0c 00 00 Revision ID: a2 00 00 00 Subsystem Vendor ID: 62 14 00 00 Subsystem ID: 10 00 00 00 class-code: 00 00 03 00 IOName: display pcidebug: 1:0:0 built-in: 00 compatible: pci1462,8041pci10de,ca3pciclass,030000GFX0 acpi-path: IOACPIPlane:/_SB/PCI0@0/PEGP@10000/GFX0@0 hda-gfx: onboard-2 rm_board_number: 00 00 00 00 NVArch: NV50 rom-revision: 70.15.20.00.03 NVCLASS: NVDATesla NVCAP: 04 00 00 00 00 00 03 00 0c 00 00 00 00 00 00 07 00 00 00 00 pci-aspm-default: 0x0 device_type: NVDA,Parent vbios-revision: 03 00 20 15 70 IONVRAMProperty: true NVDAinitgl_created: yes IOPCIMSIMode true NVDAType: Official Additional Properties: AAPL,ndrv-dev: 1 AAPL,slot-name: 53 6c 6f 74 2d 31 00 AAPL,gart-width: 64 Metal support: false SCREEN 1: Framebuffer: 0x745E9144 EDID contents: Header: 00 ff ff ff ff ff ff 00 Serial number: 99 00 00 00 Version: 01 03 Basic params 80 35 1e 78 2e Chroma info: 93 55 a1 58 59 95 23 0f 50 54 Established: a5 6b 80 Standard: 61 c0 81 c0 81 40 81 80 95 00 a9 40 b3 00 d1 c0 Descriptor 1: 02 3a 80 18 71 38 2d 40 58 2c 45 00 13 2b 21 00 00 1e Descriptor 2: 00 00 00 fd 00 32 4c 1e 53 15 00 0a 20 20 20 20 20 20 Descriptor 3: 00 00 00 fc 00 42 65 6e 51 20 56 32 34 32 30 48 0a 20 Descriptor 4: 00 00 00 ff 00 4a 34 41 30 34 34 33 37 30 31 39 0a 20 Extension: 00 Checksum: b8 Manufacturer: 09d1 (BenQ V2420H) Model: 147b Serial Number: 153 Resolution: 1920x1080 Made week 15 of 2010 EDID version: 1.3 Digital display Established Timings: 720×400 @ 70 Hz 640×480 @ 60 Hz 640×480 @ 75 Hz 800×600 @ 60 Hz 800×600 @ 75 Hz 832×624 @ 75 H 1024×768 @ 60 Hz 1024×768 @ 75 Hz 1280×1024 @ 75 Hz Detailed mode (descriptor 1): Pixel Clock: 5.7MHz Horizontal Active: 1920 Horizontal Blanking: 280 Vertical Active: 1080 Vertical Blanking: 45 Horizontal Sync Offset: 88 Horizontal Sync Pulse: 44 Vertical Sync Offset: 4 Vertical Sync Pulse: 5 Interlaced: false Is preferred timing: true Maximum image size: 530mm x 300mm Gamma: 2.20 Model: J4A04437019 Checksum: 0xB8 (valid) EDID comes from EEPROM Serial ATA controller: Name: Intel AHCI Controller Vendor ID: 86 80 00 00 Device ID: 22 3a 00 00 Revision ID: 00 00 00 00 Subsystem Vendor ID: 43 10 00 00 Subsystem ID: d4 82 00 00 class-code: 01 06 01 00 IOName: pci8086,3a22 pcidebug: 0:31:2 built-in: 00 compatible: pci1043,82d4pci8086,3a22pciclass,010601SATA acpi-path: IOACPIPlane:/_SB/PCI0@0/SATA@1f0002 MEDIA: BSD Name: disk0 Product Name: Samsung SSD 840 EVO 120GB Product Revision Level: EXT0AB0Q Medium Type: SSD Capacity: 120,03 GB (120034123776 bytes) Physical Interconnect: SATA Physical Interconnect Location: Internal Temperature: 30C° Life: 98% S.M.A.R.T. status: Ok BSD Name: disk1 Product Name: MAXTOR STM3250310AS Product Revision Level: 3.AAC Medium Type: HDD Capacity: 250,06 GB (250059350016 bytes) Physical Interconnect: SATA Physical Interconnect Location: Internal Temperature: 37C° S.M.A.R.T. status: Ok USB 2.0 controller: Vendor ID: 86 80 00 00 Device ID: 3c 3a 00 00 Revision ID: 00 00 00 00 Subsystem Vendor ID: 43 10 00 00 Subsystem ID: d4 82 00 00 class-code: 20 03 0c 00 IOName: pci8086,3a3c pcidebug: 0:26:7 built-in: 00 compatible: pci1043,82d4pci8086,3a3cpciclass,0c0320EHC2 acpi-path: IOACPIPlane:/_SB/PCI0@0/EHC2@1a0007 Additional Properties: AAPL,current-available: b0 04 AAPL,slot-name: Built In AAPL,current-in-sleep: e8 03 AAPL,current-extra: bc 02 AAPL,clock-id: 02 USB devices: Name: Wired Keyboard 600 Vendor: Microsoft idProduct: 75027 idVendor: 45e27 Port Num.: 1 Bus Power Available: 250 Speed: 0 Device Speed: 0 bcdDevice: 272 Serial Number: 0 non-removable: no Name: USB-PS/2 Optical Mouse Vendor: Logitech idProduct: c04427 idVendor: 46d27 Port Num.: 2 Bus Power Available: 250 Speed: 0 Device Speed: 0 bcdDevice: 10016 Serial Number: 0 non-removable: yes Name: Flash Disk Vendor: 2.0 idProduct: 209527 idVendor: 1e3d27 Port Num.: 5 Bus Power Available: 250 Speed: 2 Device Speed: 2 bcdDevice: 256 Serial Number: 3 non-removable: yes Name: AppleUSBUHCI Root Hub Simulation Vendor: Apple Inc. idProduct: 800527 idVendor: 5ac27 Speed: 1 Device Speed: 1 Serial Number: 0 non-removable: yes Name: AppleUSBEHCI Root Hub Simulation Vendor: Apple Inc. idProduct: 800627 idVendor: 5ac27 Speed: 2 Device Speed: 2 Serial Number: 0 non-removable: yes LAN controller: Name: Ethernet Controller Vendor ID: ab 11 00 00 Device ID: 64 43 00 00 Revision ID: 12 00 00 00 Subsystem Vendor ID: 43 10 00 00 Subsystem ID: f8 81 00 00 class-code: 00 00 02 00 IOName: ethernet pcidebug: 2:0:0 built-in: 00 compatible: pci1043,81f8pci11ab,4364pciclass,020000ETH1 acpi-path: IOACPIPlane:/_SB/PCI0@0/NET1@1c0005/ETH1@0 Edited May 21, 2018 by Alpha22 1 Link to comment Share on other sites More sharing options...
