Intel HD 4600 QE/CI Yosemite

[BiTRiP]

Can you please upload appleintelframebufferAzul.kext ? Thanks!



I think he just uses vanilla kext from DP4.

Which one you need? DP4 or DP2?

[robE]

DP4(beta), thanks a lot

[BiTRiP]

DP4(beta), thanks a lot



Here you go...vanilla kext from DP4

AppleIntelFramebufferAzul.kext.zip

[WinstonAce]

Can you please upload appleintelframebufferAzul.kext ? Thanks!

Yeap, original next from Yosemite beta, same as dp4.

[BiTRiP]

@WinstonAce , Do you have some special Graphics options in your Config.plist in order to have your HD4600 working? Or only the Intel Inject option?

[WinstonAce]

Inject Intel and igplatformid.

[eterea]

Inject Intel and igplatformid.



Hello,

how do you do that?



Thank you.

[WinstonAce]

ig-platform-id

0d220003



Inject



Intel=yes





I'll upload config.plist when I can later.

[Pike R. Alpha]

Let me guess. One of your frame buffers has: "AAPL,DisplayPipe Data <00 00 00 00>" Right?

[WinstonAce]

Just to be clear, I already mentioned i'm using desktop version of HD4600

it's working without framebuffer modification with Yosemite DP4/beta

I use this in my config.plist

<key>Inject</key>
<dict>
<key>ATI</key>
<false/>
<key>Intel</key>
<true/>
<key>NVidia</key>
<false/>
</dict>
<key>ig-platform-id</key>
<string>0d220003</string>
</dict>

all of my gfx framebuffer AAPL,DisplayPipe Data are "AAPL,DisplayPipe Data <ff ff 00 00>"

i'm attaching my config.plist, ioreg and system profiler



Archive.zip

[General11]

OS X 10.10 dp 5 ios OUT!!!



Please Please good news to mobile hd4600

[eterea]

Just to be clear, I already mentioned i'm using desktop version of HD4600

it's working without framebuffer modification with Yosemite DP4/beta

I use this in my config.plist

<key>Inject</key>
<dict>
<key>ATI</key>
<false/>
<key>Intel</key>
<true/>
<key>NVidia</key>
<false/>
</dict>
<key>ig-platform-id</key>
<string>0d220003</string>
</dict>

all of my gfx framebuffer AAPL,DisplayPipe Data are "AAPL,DisplayPipe Data <ff ff 00 00>"

i'm attaching my config.plist, ioreg and system profiler



Archive.zip



Thanks.



But not work for me. Reboot.

[The Real Deal]

Desktop version works fine here...

Z97&4790k

Injection with clover / ssdt (both work)



I'm interested because i can't get it work. I'd like to see the ssdt method.



Despite :

			<key>Intel</key>
			<true/>
			<key>NVidia</key>
			<true/>
		</dict>
		<key>ig-platform-id</key>
		<string>0x0d220003</string>

[WinstonAce]

The ssdt is from toleda/rampagedev

http://rampagedev.wordpress.com/   (haswell dmg)

but it's basically the same - it inject the same IG Platform

[The Real Deal]

Can you please upload appleintelframebufferAzul.kext ? Thanks!





mine is patched

The ssdt is from toleda/rampagedev

http://rampagedev.wordpress.com/   (haswell dmg)

but it's basically the same - it inject the same IG Platform





screenshot of your system profiler?

[WinstonAce]

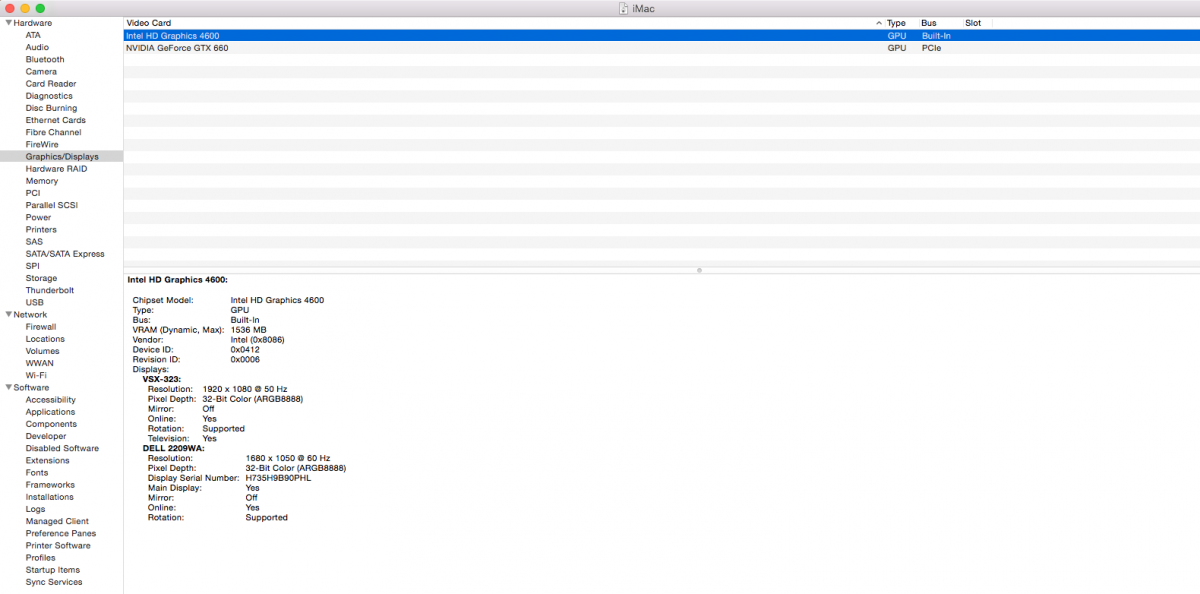

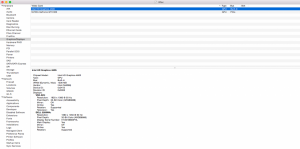

Screenshot+Full dump of system profiler

iMac.zip

By the way, this screenshot is after updating to DP5

[BiTRiP]

Installed DP5 but for me, it's still only working with AppleIntelFrameBufferAzul.kext from DP2.



With DP5 it reboots when loading loginwinow (just like dp3 and dp4), no matter if I use ig-platform-id in config.plist or not.

[toleda]

The ssdt is from toleda/rampagedev

No display connected to HD4600??  What happens when you boot  off the HD4600 as primary?

[Pentahex]

I've been using HD4600 Mobile injected with clover with acceleration on Mavericks on my Asus G750JM using ig-platform-id 02AE0008.   Like others no success with Beta or DP5.

[WinstonAce]

No display connected to HD4600?? What happens when you boot off the HD4600 as primary?

See my last post

[wusa]

Have anyone tried Intel HD 4600 Mobile on DP5 ?

[eterea]

When the final version comes out.

Do you think that we will have to buy a video card or will work with the HD4600?



Thanks.

[Pike R. Alpha]

Just to be clear, I already mentioned i'm using desktop version of HD4600

it's working without framebuffer modification with Yosemite DP4/beta

I use this in my config.plist

<key>Inject</key>
<dict>
<key>ATI</key>
<false/>
<key>Intel</key>
<true/>
<key>NVidia</key>
<false/>
</dict>
<key>ig-platform-id</key>
<string>0d220003</string>
</dict>

all of my gfx framebuffer AAPL,DisplayPipe Data are "AAPL,DisplayPipe Data <ff ff 00 00>"

i'm attaching my config.plist, ioreg and system profiler



Archive.zip

Right. Ok. We here like to solve a "Intel HD 4600 QE/CI Yosemite" problem, but you are using a discrete graphics cards (NVIDIA) and thus your comments here are misleading (not helpful).

[BiTRiP]

When the final version comes out.

Do you think that we will have to buy a video card or will work with the HD4600?



Thanks.

This is a question for all the fortunetellers here?

[eterea]

I was only looking for an opinion from your experience.  Sorry.
