Clover config

Users "List" of working solution.

Help other Clover user, posting your Hardware spec, setting and config.
We will add here in this first topic the link to your reply.

Example
-----
Clover revision 2500 in UEFI
Motherboard: Asus xyz
CPU: i9 5xxx @6 GHz
RAM: 4 GB Vendor: MyVendor
Audio OnBoard: YES Type: ALC9xx with Clover layout injector and patched with Clover shutdown script
Graphics card1: Nvidia 120 activaction method: via Clover Injector
Graphics card2: Onboard Intel HD xxxx activation method: not enabled.
Audio On Graphics Card1: Yes
Audio On Graphics Card2: No
Mac Model: MacPro3,1
config.plist --> config.plist PLS REMOVE YOUR SERIALS FROM config.plist !!!
Patched tables: My custom DSDT + custom SSDT + script for generating xStates.

optional:
Theme used




Asus P8Z77-V LK by k3nny
See Post





Asrock z87 OC Formula by magnifico
See Post

Asrock B85M-ITX by sot_22
See Post






Gigabyte Z68AP-D3 rev1 F8 bios by Maniac10
See Post

Gigabyte GA-B75M-D3H, F12 BIOS by fusion71au
See Post

Gigabyte GA Z87X-UD5H by chris1111
See Post

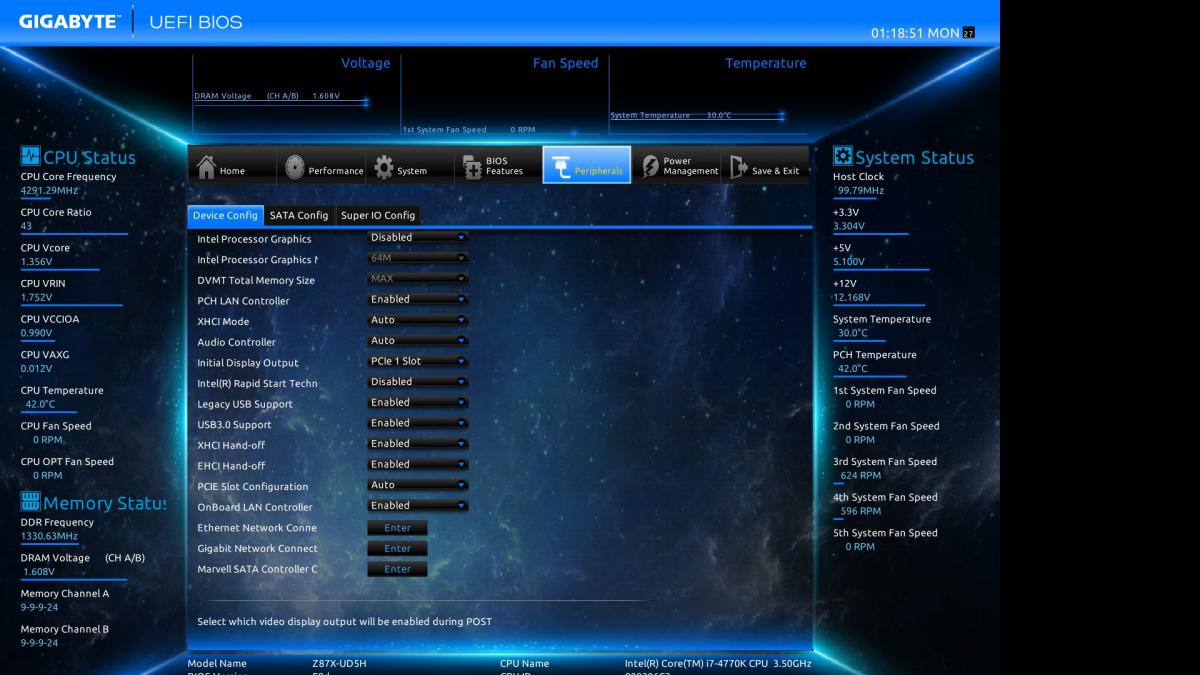

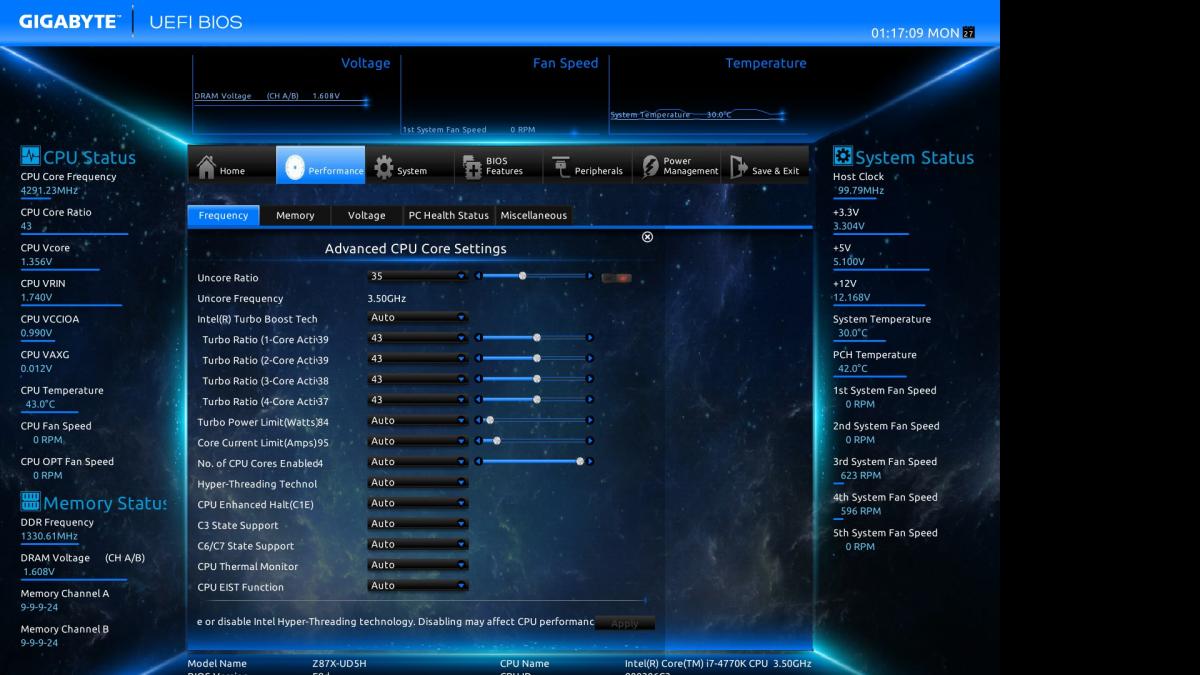

Gigabyte GA-Z87X-UD5H Rev 1.0 Bios F8D Beta Bios by FusselFux
See Post











Dell XPS M1530 A12 BIOS by fusion71au
See Post

















Lenovo G480 by Allan Oliveira
See Post


Edited by ErmaC
Updates

Share this post


Link to post
Share on other sites
Advertisement

Clover revision 2512 in UEFI (hybrid Gigabyte bios)
Motherboard: Gigabyte Z68AP-D3 rev1 F8 bios
CPU: i7 2600k @4.5GHz
RAM: 16 GB Vendor: Gskill
Audio OnBoard: YES Type: ALC889 with Clover layout injector and patched with Clover shutdown script
Graphics card1: ATI Radeon HD 5770 1Gb activation method: via Clover Injector + 4 ports + Vervet framebuffer / Works without too but wrong fb and 1 port
Graphics card2: Onboard Intel HD 3000 activation method: not enabled, not using for output just video hardware acceleration. DSDT: ig-platform-id+device id
Audio On Graphics Card1: Yes
Mac Model: MacBookPro8,3 / iMac12,2 with patched PM



config.plist -->



[<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>ACPI</key>
	<dict>
		<key>DSDT</key>
		<dict>
			<key>DropOEM_DSM</key>
			<false/>
			<key>Name</key>
			<string>DSDT.aml</string>
		</dict>
		<key>SSDT</key>
		<dict>
			<key>DropOem</key>
			<true/>
			<key>EnableC2</key>
			<true/>
			<key>EnableC4</key>
			<true/>
			<key>EnableC6</key>
			<true/>
			<key>EnableC7</key>
			<true/>
			<key>Generate</key>
			<dict>
				<key>CStates</key>
				<false/>
				<key>PStates</key>
				<false/>
			</dict>
		</dict>
	</dict>
	<key>Boot</key>
	<dict>
		<key>Log</key>
		<false/>
		<key>Secure</key>
		<false/>
		<key>Timeout</key>
		<integer>5</integer>
		<key>XMPDetection</key>
		<string>Yes</string>
	</dict>
	<key>Devices</key>
	<dict>
		<key>Audio</key>
		<dict>
			<key>Inject</key>
			<string>2</string>
		</dict>
		<key>USB</key>
		<dict>
			<key>FixOwnership</key>
			<false/>
			<key>Inject</key>
			<false/>
		</dict>
	</dict>
	<key>DisableDrivers</key>
	<array>
		<string>OsxAptioFixDrv</string>
	</array>
	<key>GUI</key>
	<dict>
		<key>Mouse</key>
		<dict>
			<key>Enabled</key>
			<false/>
		</dict>
		<key>Scan</key>
		<dict>
			<key>Entries</key>
			<true/>
			<key>Legacy</key>
			<false/>
			<key>Tool</key>
			<true/>
		</dict>
		<key>ScreenResolution</key>
		<string>1280x1024</string>
	</dict>
	<key>Graphics</key>
	<dict>
		<key>FBName</key>
		<string>Vervet</string>
		<key>Inject</key>
		<dict>
			<key>ATI</key>
			<true/>
			<key>Intel</key>
			<false/>
			<key>NVidia</key>
			<false/>
		</dict>
		<key>PatchVBios</key>
		<true/>
		<key>VideoPorts</key>
		<integer>4</integer>
	</dict>
	<key>KernelAndKextPatches</key>
	<dict>
		<key>AppleRTC</key>
		<true/>
		<key>KextsToPatch</key>
		<array>
			<dict>
				<key>Comment</key>
				<string>HDD as Internal</string>
				<key>Find</key>
				<data>
				RXh0ZXJuYWw=
				</data>
				<key>Name</key>
				<string>AppleAHCIPort</string>
				<key>Replace</key>
				<data>
				SW50ZXJuYWw=
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>Wi-Fi Region to 0x64</string>
				<key>Find</key>
				<data>
				D7eH3AQAAA==
				</data>
				<key>Name</key>
				<string>AirPortAtheros40</string>
				<key>Replace</key>
				<data>
				uGQAAACQkA==
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>Patch_against_assertions</string>
				<key>Find</key>
				<data>
				U291bmQgYXNzZXJ0aW9uIA==
				</data>
				<key>Name</key>
				<string>AppleHDA</string>
				<key>Replace</key>
				<data>
				AAAAAAAAAAAAAAAAAAAAAA==
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>Patch_against_assertions</string>
				<key>Find</key>
				<data>
				U291bmQgYXNzZXJ0aW9uIA==
				</data>
				<key>Name</key>
				<string>AppleHDAController</string>
				<key>Replace</key>
				<data>
				AAAAAAAAAAAAAAAAAAAAAA==
				</data>
			</dict>
		</array>
	</dict>
</dict>
</plist>





shutdown audio patcher: 81.applehda_shutdown_patch.local -->



#!/bin/sh

# Native onboard audio patch for AppleHDA and the Realtek ALC889 chipset.

if [[ `perl -le "print scalar grep /\x8b\x19\xd4\x11/, <>;" "/System/Library/Extensions/AppleHDA.kext/Contents/MacOS/AppleHDA"` > 0 ]]; then

    echo "Patching the AppleHDA extension for native onboard Realtek ALC889 audio support."

cp -R "/System/Library/Extensions/AppleHDA.kext" "/System/Library/Extensions/AppleHDA.orig"

    echo "Backup original AppleHDA extension to /"

# 10.8 patch

# perl -pi -e 's|\x84\x19\xd4\x11|\x89\x08\xec\x10|g' "/System/Library/Extensions/AppleHDA.kext/Contents/MacOS/AppleHDA"

perl -pi -e 's|\x8b\x19\xd4\x11|\x89\x08\xec\x10|g' "/System/Library/Extensions/AppleHDA.kext/Contents/MacOS/AppleHDA"

    echo "Binary patched executable"

cp "/Volumes/EFI/EFI/CLOVER/kexts/Patches/layout1.xml.zlib" "/System/Library/Extensions/AppleHDA.kext/Contents/Resources"
cp "/Volumes/EFI/EFI/CLOVER/kexts/Patches/layout2.xml.zlib" "/System/Library/Extensions/AppleHDA.kext/Contents/Resources"
cp "/Volumes/EFI/EFI/CLOVER/kexts/Patches/layout3.xml.zlib" "/System/Library/Extensions/AppleHDA.kext/Contents/Resources"
cp "/Volumes/EFI/EFI/CLOVER/kexts/Patches/Platforms.xml.zlib" "/System/Library/Extensions/AppleHDA.kext/Contents/Resources"

cp "/Volumes/EFI/EFI/CLOVER/kexts/Patches/Info.plist" "/System/Library/Extensions/AppleHDA.kext/Contents/PlugIns/AppleHDAHardwareConfigDriver.kext/Contents"

    echo "Copied ZLIB and PLIST files into location"

chown -R 0:0 "/System/Library/Extensions/AppleHDA.kext/"
chmod -R 755 "/System/Library/Extensions/AppleHDA.kext/"

    echo "Repaired file permissions"

touch "/System/Library/Extensions"

    echo "Touched extensions folder"

xattr -wx com.apple.FinderInfo 0000000000000000000900000000000000000000000000000000000000000000 /System/Library/Extensions/AppleHDA.kext

    echo "Set Finder label color to blue"

    echo "The AppleHDA extension has been patched! You must restart your system for the changes to take effect"

else

    echo "The AppleHDA extension has already been patched!"

fi

# Copyright (c) 2013 Clover EFI Bootloader. All rights reserved.






Patched tables: DSDT with various patches/injections and SSDT created with Piker's script.

UEFI Drivers: EmuVariableUefi



EDIT: I encourage everyone not to include all UEFI drivers but just the optionals you need from the installer or from an external source. For example: FSInject, OsxFatBinaryDrv and VBoxHFS (or HFSPlus) are mandatory, hence not included as optional in the installer.

config.zip

Share this post


Link to post
Share on other sites

Clover Rev 2489 UEFI

Motherboard:Asrock z87 OC Formula PMPatch to remove 0xE2 MSR lock

CPU: I7 4770 K Haswel @4,6Ghz

RAM: Vendor Crucial

Audio OnBoard: Realtek ALC1150 Audio Codec (Patch by toleda)

Graphics card1: Nvidia Ge force 660 Gtx

Graphics card2: (OnBoard)Intel HD4xxx activation method: via Clover Injector

Mac Model: MacPro6,1

Patched tables: Custom DSDT

config.plist -->

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>ACPI</key>
	<dict>
		<key>DSDT</key>
		<dict>
			<key>Debug</key>
			<false/>
			<key>FixMask</key>
			<string>0x0000</string>
			<key>Name</key>
			<string>DSDT.aml</string>
		</dict>
		<key>DropTables</key>
		<array>
			<dict>
				<key>Signature</key>
				<string>DMAR</string>
			</dict>
			<dict>
				<key>Signature</key>
				<string>SSDT</string>
				<key>TableId</key>
				<string>CpuPm</string>
			</dict>
			<dict>
				<key>Signature</key>
				<string>SSDT</string>
				<key>TableId</key>
				<string>Cpu0Ist</string>
			</dict>
		</array>
		<key>HaltEnabler</key>
		<false/>
		<key>SSDT</key>
		<dict>
			<key>DropOem</key>
			<true/>
			<key>Generate</key>
			<dict>
				<key>CStates</key>
				<false/>
				<key>PStates</key>
				<false/>
			</dict>
		</dict>
	</dict>
	<key>Boot</key>
	<dict>
		<key>Arguments</key>
		<string> npci=0x2000</string>
		<key>DefaultVolume</key>
		<string>OSX+</string>
		<key>Fast</key>
		<false/>
		<key>Legacy</key>
		<string>PBR</string>
		<key>Log</key>
		<true/>
		<key>Timeout</key>
		<integer>5</integer>
	</dict>
	<key>Devices</key>
	<dict>
		<key>Audio</key>
		<dict>
			<key>Inject</key>
			<string>NO</string>
		</dict>
		<key>FakeID</key>
		<dict>
			<key>ATI</key>
			<string>0x0</string>
			<key>IntelGFX</key>
			<string>0x0</string>
			<key>LAN</key>
			<string>0x0</string>
			<key>NVidia</key>
			<string>0x0</string>
			<key>SATA</key>
			<string>0x0</string>
			<key>WIFI</key>
			<string>0x0</string>
			<key>XHCI</key>
			<string>0x0</string>
		</dict>
		<key>Inject</key>
		<false/>
		<key>USB</key>
		<dict>
			<key>AddClockID</key>
			<true/>
			<key>FixOwnership</key>
			<true/>
			<key>Inject</key>
			<true/>
		</dict>
	</dict>
	<key>GUI</key>
	<dict>
		<key>Hide</key>
		<array>
			<string>Windows</string>
			<string>\EFI\BOOT\BOOTX64.EFI</string>
		</array>
		<key>Language</key>
		<string>it:0</string>
		<key>Scan</key>
		<dict>
			<key>Entries</key>
			<true/>
			<key>Legacy</key>
			<true/>
			<key>Tool</key>
			<true/>
		</dict>
		<key>TextOnly</key>
		<false/>
		<key>Theme</key>
		<string>magnifico</string>
	</dict>
	<key>Graphics</key>
	<dict>
		<key>DualLink</key>
		<string>0</string>
		<key>Inject</key>
		<dict>
			<key>Intel</key>
			<true/>
		</dict>
	</dict>
	<key>KernelAndKextPatches</key>
	<dict>
		<key>AppleRTC</key>
		<false/>
		<key>AsusAICPUPM</key>
		<false/>
		<key>KernelCpu</key>
		<false/>
		<key>KernelPM</key>
		<true/>
		<key>KextPatchesAllowed</key>
		<true/>
		<key>KextsToPatch</key>
		<array>
			<dict>
				<key>Comment</key>
				<string>Patch_against_assertions</string>
				<key>Find</key>
				<data>
				U291bmQgYXNzZXJ0aW9uIA==
				</data>
				<key>Name</key>
				<string>AppleHDA</string>
				<key>Replace</key>
				<data>
				AAAAAAAAAAAAAAAAAAAAAA==
				</data>
			</dict>
		</array>
	</dict>
	<key>RtVariables</key>
	<dict>
		<key>LogEveryBoot</key>
		<string>10</string>
		<key>LogLineCount</key>
		<integer>3000</integer>
		<key>MountEFI</key>
		<true/>
	</dict>
	<key>SMBIOS</key>
	<dict>
		<key>BiosReleaseDate</key>
		<string>10/12/2013</string>
		<key>BiosVendor</key>
		<string>Apple Computer, Inc.</string>
		<key>BiosVersion</key>
		<string>MP61.88Z.0116.B02.1311222014</string>
		<key>Board-ID</key>
		<string>Mac-F60DEB81FF30ACF6</string>
		<key>BoardManufacturer</key>
		<string>Apple Computer, Inc.</string>
		<key>BoardSerialNumber</key>
		<string>xxxxxxxxxxxxxxxxx</string>
		<key>BoardType</key>
		<integer>10</integer>
		<key>BoardVersion</key>
		<string>1.0</string>
		<key>ChassisAssetTag</key>
		<string>MacPro</string>
		<key>ChassisManufacturer</key>
		<string>Apple Computer, Inc.</string>
		<key>Family</key>
		<string>MacPro</string>
		<key>LocationInChassis</key>
		<string>Part Component</string>
		<key>Manufacturer</key>
		<string>Apple Computer, Inc.</string>
		<key>ProductName</key>
		<string>MacPro6,1</string>
		<key>SerialNumber</key>
		<string>xxxxxxxxxxxx</string>
		<key>SmUUID</key>
		<string>C30A8AD6-9B07-55EA-A666-9C94FC8984E2</string>
		<key>Trust</key>
		<true/>
		<key>Version</key>
		<string>1.0</string>
	</dict>
	<key>SystemParameters</key>
	<dict>
		<key>InjectKexts</key>
		<true/>
		<key>InjectSystemID</key>
		<true/>
	</dict>
</dict>
</plist>



More info: Tutorial

config.plist 2.zip

Share this post


Link to post
Share on other sites

Clover v2.4 r4392 Legacy boot--->CloverEFI



Motherboard:
Dell XPS M1530 A12 BIOS
CPU: Core 2 Duo T9300 2.49Ghz
RAM: 4GB (2x2GB Hynix DDR2 667MHz)
Audio: Sigmatel 9228 using VoodooHDA.kext 2.9.0d10
Graphics card: Dell GeForce 8600M GT 256 MB
Mac Model:  MacBook Pro 5,1 for SL-El Capitan.  MBP7,2 for Sierra & High Sierra.
Patched tables: Custom DSDT (attached Clover files for XPSm1530.zip)
config.plist--->put into EFI/CLOVER folder
DSDT.aml--->put into EFI/CLOVER/ACPI/patched
FakeSMC.kext--->put into EFI/CLOVER/kexts/Other with VoodooPS2Controller.kext


Useful Keyboard Shortcuts while at Clover GUI



Config.plist




<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple Computer//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>GUI</key>
	<dict>
		<key>ScreenResolution</key>
		<string>1440x900</string>
		<key>Theme</key>
		<string>BGM</string>
		<key>Mouse</key>
		<dict>
			<key>Enabled</key>
			<false/>
		</dict>
		<key>Scan</key>
		<dict>
			<key>Entries</key>
			<true/>
			<key>Tool</key>
			<true/>
			<key>Legacy</key>
			<false/>
		</dict>
	</dict>
	<key>Graphics</key>
	<dict>
		<key>Inject</key>
		<dict>
			<key>Intel</key>
			<false/>
			<key>ATI</key>
			<false/>
			<key>NVidia</key>
			<true/>
		</dict>
	</dict>
	<key>KernelAndKextPatches</key>
	<dict>
		<key>AppleRTC</key>
		<true/>
		<key>KextsToPatch</key>
		<array>
			<dict>
				<key>Name</key>
				<string>AppleAHCIPort</string>
				<key>Find</key>
				<data>
				RXh0ZXJuYWw=
				</data>
				<key>Replace</key>
				<data>
				SW50ZXJuYWw=
				</data>
				<key>Comment</key>
				<string>External icons patch</string>
			</dict>
		</array>
	</dict>
	<key>RtVariables</key>
	<dict>
		<key>MLB</key>
		<string>xxxxxxxxxxx123456</string>
	</dict>
	<key>SMBIOS</key>
	<dict>
		<key>BoardType</key>
		<integer>10</integer>
		<key>ChassisType</key>
		<integer>8</integer>
		<key>SmUUID</key>
		<string>xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx</string>
		<key>BiosReleaseDate</key>
		<string>05/05/09</string>
		<key>Version</key>
		<string>1.0</string>
		<key>SerialNumber</key>
		<string>xxxxxxxxxxx</string>
		<key>Manufacturer</key>
		<string>Apple Computer, Inc.</string>
		<key>BoardManufacturer</key>
		<string>Apple Computer, Inc.</string>
		<key>BoardSerialNumber</key>
		<string>xxxxxxxxxxx123456</string>
		<key>ChassisAssetTag</key>
		<string>MacBook-Aluminum</string>
		<key>BiosVendor</key>
		<string>Apple Computer, Inc.</string>
		<key>ChassisManufacturer</key>
		<string>Apple Computer, Inc.</string>
		<key>BiosVersion</key>
		<string>MBP51.88Z.007E.B05.0905051508</string>
		<key>Board-ID</key>
		<string>Mac-F42D86C8</string>
		<key>Family</key>
		<string>MacBook Pro</string>
		<key>ProductName</key>
		<string>MacBookPro5,1</string>
		<key>Mobile</key>
		<true/>
	</dict>
	<key>ACPI</key>
	<dict>
		<key>DSDT</key>
		<dict>
			<key>Debug</key>
			<false/>
			<key>ReuseFFFF</key>
			<false/>
			<key>Name</key>
			<string>DSDT.aml</string>
			<key>DropOEM_DSM</key>
			<false/>
		</dict>
		<key>SSDT</key>
		<dict>
			<key>DropOem</key>
			<false/>
			<key>Generate</key>
			<dict>
				<key>PStates</key>
				<true/>
				<key>CStates</key>
				<true/>
			</dict>
		</dict>
	</dict>
	<key>Devices</key>
	<dict>
		<key>Audio</key>
		<dict>
			<key>Inject</key>
			<string>No</string>
		</dict>
		<key>USB</key>
		<dict>
			<key>Inject</key>
			<false/>
			<key>FixOwnership</key>
			<false/>
		</dict>
	</dict>
	<key>Boot</key>
	<dict>
		<key>Log</key>
		<false/>
		<key>Timeout</key>
		<integer>5</integer>
		<key>XMPDetection</key>
		<string>Yes</string>
		<key>WhiteList</key>
		<array/>
		<key>BlackList</key>
		<array/>
		<key>Secure</key>
		<false/>
	</dict>
	<key>SystemParameters</key>
	<dict>
		<key>CustomUUID</key>
		<string>xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx</string>
		<key>InjectSystemID</key>
		<true/>
	</dict>
</dict>
</plist>







Updates:

The following config.plist makes use of Clover's dynamic dsdt patching and is an alternative if you don't have a patched dsdt in /EFI/Clover/ACPI/Patched.  Just about everything works, including sleep, but unlike with the manually patched dsdt above, shutdown needs completion with the shutdown button.



Config.plist



<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple Computer//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>ACPI</key>
	<dict>
		<key>DSDT</key>
		<dict>
			<key>Debug</key>
			<false/>
			<key>ReuseFFFF</key>
			<false/>
			<key>Name</key>
			<string>BIOS.aml</string>
			<key>Fixes</key>
			<dict>
				<key>AddDTGP_0001</key>
				<true/>
				<key>AddMCHC_0008</key>
				<false/>
				<key>FakeLPC_0020</key>
				<true/>
				<key>FixAirport_4000</key>
				<true/>
				<key>FixDarwin_0002</key>
				<true/>
				<key>FixDisplay_0100</key>
				<true/>
				<key>FixFirewire_0800</key>
				<true/>
				<key>FixHDA_8000</key>
				<true/>
				<key>FixHPET_0010</key>
				<true/>
				<key>FixIDE_0200</key>
				<true/>
				<key>FixIPIC_0040</key>
				<true/>
				<key>FixLAN_2000</key>
				<true/>
				<key>FixSATA_0400</key>
				<false/>
				<key>FixSBUS_0080</key>
				<true/>
				<key>FixShutdown_0004</key>
				<true/>
				<key>FixUSB_1000</key>
				<true/>
				<key>NewWay_80000000</key>
				<false/>
				<key>FIX_RTC_20000</key>
				<false/>
				<key>FiX_TMR_40000</key>
				<false/>
				<key>AddIMEI_80000</key>
				<false/>
				<key>FIX_INTELGFX_100000</key>
				<false/>
				<key>FiX_WAK_200000</key>
				<false/>
				<key>DeleteUnused_400000</key>
				<false/>
				<key>FIX_ADP1_800000</key>
				<false/>
				<key>AddPNLF_1000000</key>
				<false/>
				<key>FIX_S3D_2000000</key>
				<false/>
				<key>FIX_ACST_4000000</key>
				<false/>
			</dict>
			<key>DropOEM_DSM</key>
			<false/>
		</dict>
		<key>SSDT</key>
		<dict>
			<key>DropOem</key>
			<false/>
			<key>Generate</key>
			<dict>
				<key>PStates</key>
				<true/>
				<key>CStates</key>
				<true/>
			</dict>
		</dict>
	</dict>
	<key>Boot</key>
	<dict>
		<key>Log</key>
		<false/>
		<key>Timeout</key>
		<integer>5</integer>
		<key>XMPDetection</key>
		<string>Yes</string>
		<key>Secure</key>
		<false/>
	</dict>
	<key>Devices</key>
	<dict>
		<key>Audio</key>
		<dict>
			<key>Inject</key>
			<string>No</string>
		</dict>
		<key>USB</key>
		<dict>
			<key>Inject</key>
			<true/>
			<key>FixOwnership</key>
			<true/>
			<key>AddClockID</key>
			<true/>
		</dict>
	</dict>
	<key>GUI</key>
	<dict>
		<key>ScreenResolution</key>
		<string>1440x900</string>
		<key>Theme</key>
		<string>BGM</string>
		<key>Mouse</key>
		<dict>
			<key>Enabled</key>
			<false/>
		</dict>
		<key>Scan</key>
		<dict>
			<key>Entries</key>
			<true/>
			<key>Tool</key>
			<true/>
			<key>Legacy</key>
			<false/>
		</dict>
	</dict>
	<key>Graphics</key>
	<dict>
		<key>Inject</key>
		<dict>
			<key>Intel</key>
			<false/>
			<key>ATI</key>
			<false/>
			<key>NVidia</key>
			<true/>
		</dict>
	</dict>
	<key>KernelAndKextPatches</key>
	<dict>
		<key>AppleRTC</key>
		<true/>
		<key>KextsToPatch</key>
		<array>
			<dict>
				<key>Name</key>
				<string>AppleAHCIPort</string>
				<key>Find</key>
				<data>
				RXh0ZXJuYWw=
				</data>
				<key>Replace</key>
				<data>
				SW50ZXJuYWw=
				</data>
				<key>Comment</key>
				<string>External icons patch</string>
			</dict>
		</array>
	</dict>
	<key>SMBIOS</key>
	<dict>
		<key>BoardType</key>
		<integer>10</integer>
		<key>ChassisType</key>
		<integer>8</integer>
		<key>SmUUID</key>
		<string>XXXXXXXX-XXXX-XXXX-XXXX-XXXXXXXXXXXX</string>
		<key>BiosReleaseDate</key>
		<string>05/05/09</string>
		<key>Version</key>
		<string>1.0</string>
		<key>SerialNumber</key>
		<string>XXXXXXXXXXX</string>
		<key>Manufacturer</key>
		<string>Apple Computer, Inc.</string>
		<key>BoardManufacturer</key>
		<string>Apple Computer, Inc.</string>
		<key>BoardSerialNumber</key>
		<string>XXXXXXXXXXXXXXXXX</string>
		<key>ChassisAssetTag</key>
		<string>MacBook-Aluminum</string>
		<key>BiosVendor</key>
		<string>Apple Computer, Inc.</string>
		<key>ChassisManufacturer</key>
		<string>Apple Computer, Inc.</string>
		<key>BiosVersion</key>
		<string>MBP51.88Z.007E.B05.0905051508</string>
		<key>Board-ID</key>
		<string>Mac-F42D86C8</string>
		<key>Family</key>
		<string>MacBook Pro</string>
		<key>ProductName</key>
		<string>MacBookPro5,1</string>
		<key>Mobile</key>
		<true/>
		<key>Trust</key>
		<false/>
	</dict>
	<key>RtVariables</key>
	<dict>
		<key>MLB</key>
		<string>XXXXXXXXXXXXXXXXX</string>
	</dict>
	<key>SystemParameters</key>
	<dict>
		<key>CustomUUID</key>
		<string>XXXXXXXX-XXXX-XXXX-XXXX-XXXXXXXXXXXX</string>
		<key>InjectSystemID</key>
		<true/>
	</dict>
</dict>
</plist>







Update Aug 13 2015 for Yosemite 10.10.5: Yosemite XPS M1530 Installer Files.zip

Update Sep 21 2015 for El Capitan 10.11 GM1: El Capitan XPS M1530 Installer Files.zip and update to Clover r3259+

Update Sep 26 2017 for Sierra 10.12.6 and High Sierra 10.13.0: XPS M1530_Sierra&HiSierra.zip

Clover files for XPSm150.zip

Yosemite XPS M1530 Installer Files.zip

El Capitan XPS M1530 Installer Files.zip

XPS M1530_Sierra&HiSierra.zip

Clover_v2.4k_r4392.pkg.zip

Share this post


Link to post
Share on other sites

Revision: 2189
Mode: UEFI

Motherboard: Asus P8Z77-V LK
BIOS: 1001 - Upper versions have buggy NVRAM. PMPatch by CodeRush to remove 0xE2 MSR lock.
CPU: i5-3570k @ 4.2 GHz - ssdtPRGen.sh script for power management
RAM: 8 GB Corsair Vengeance LP
Audio on board: Realtek ALC892 - patched AppleHDA.kext and layout-id injection
Ethernet on board: Realtek RTL8168 - RTL8111 driver by Mieze
Foreign USB3 on board: ASMedia AS1042 - GenericUSBXHCI driver by Zenith432
Graphics card 1: XFX HD 7870 DD - custom VBIOS for UEFI mode and custom framebuffer
Graphics card 2: on-board Intel HD 4000 - disabled and never used
Mac Model: iMac13,2 - Ivy Bridge power management
ACPI tables: Dynamically patched DSDT via Clover, SSDT generated via ssdtPRGen.sh by Piker-Alpha
Property injection method: EFI string

Not working: Proper shutdown in UEFI mode. Hangs in about 1/10 times

Config file: Clover_r2189_config.zip

PS:
@ErmaC: Thanks for this topic, I think it's a great idea.

Edited by k3nny

Share this post


Link to post
Share on other sites

Clover v2.3k r3333 UEFI

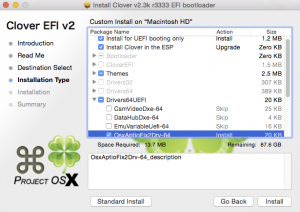

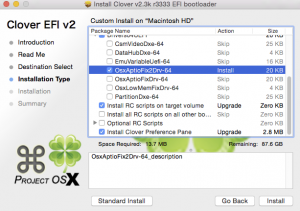

install OsxAptioFix2Drv-64 in Driver64UEFI



Motherboard:
GA-B75M-D3H, F12 BIOS


BIOS set to boot UEFI only, HD mode to AHCI, internal graphics memory 64MB

HD 2TB HD GPT dual boot OSX El Capitan 10.11.3/Win10_X64 UEFI with Clover v2.3k_r3333

CPU: Intel I3 3225 3.3GHz
RAM: 8GB (4GBx2 Kingston DDR3 1600 MHz)
Audio: On board Realtek ALC 887 sound ---> Clover/kext patched Realtek ALC by @toleda/pikeralpha
Graphics:  Intel HD 4000 (ID injected with Clover)
LAN: Onboard Realtek GbE LAN--->Mieze's RealtekRTL8111.kext v1.1.3
Mac Model: MacMini 6,2
Config.plist:



<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
    <key>ACPI</key>
    <dict>
        <key>DSDT</key>
        <dict>
            <key>Debug</key>
            <false/>
            <key>DropOEM_DSM</key>
            <false/>
            <key>Name</key>
            <string>DSDT.aml</string>
            <key>ReuseFFFF</key>
            <false/>
        </dict>
        <key>SSDT</key>
        <dict>
            <key>DropOem</key>
            <true/>
            <key>Generate</key>
            <true/>
        </dict>
    </dict>
    <key>Boot</key>
    <dict>
        <key>Arguments</key>
        <string>dart=0 kext-dev-mode=1</string>
        <key>Debug</key>
        <false/>
        <key>DefaultVolume</key>
        <string>LastBootedVolume</string>
        <key>Secure</key>
        <false/>
        <key>Timeout</key>
        <integer>2</integer>
        <key>XMPDetection</key>
        <string>Yes</string>
    </dict>
    <key>Devices</key>
    <dict>
        <key>Audio</key>
        <dict>
            <key>Inject</key>
            <string>3</string>
        </dict>
        <key>USB</key>
        <dict>
            <key>FixOwnership</key>
            <false/>
            <key>Inject</key>
            <false/>
        </dict>
    </dict>
    <key>GUI</key>
    <dict>
        <key>Custom</key>
        <dict>
            <key>Entries</key>
            <array>
                <dict>
                    <key>Disabled</key>
                    <true/>
                    <key>FullTitle</key>
                    <string>UEFI Internal</string>
                    <key>Hidden</key>
                    <true/>
                    <key>Ignore</key>
                    <false/>
                    <key>InjectKexts</key>
                    <false/>
                    <key>NoCaches</key>
                    <false/>
                    <key>Type</key>
                    <string>Other</string>
                </dict>
            </array>
        </dict>
        <key>Mouse</key>
        <dict>
            <key>DoubleClick</key>
            <integer>500</integer>
            <key>Enabled</key>
            <false/>
            <key>Mirror</key>
            <false/>
            <key>Speed</key>
            <integer>8</integer>
        </dict>
        <key>Scan</key>
        <dict>
            <key>Entries</key>
            <true/>
            <key>Legacy</key>
            <false/>
            <key>Tool</key>
            <true/>
        </dict>
        <key>ScreenResolution</key>
        <string>1920x1080</string>
        <key>Theme</key>
        <string>BGM</string>
    </dict>
    <key>Graphics</key>
    <dict>
        <key>Inject</key>
        <dict>
            <key>ATI</key>
            <false/>
            <key>Intel</key>
            <true/>
            <key>NVidia</key>
            <false/>
        </dict>
        <key>InjectEDID</key>
        <true/>
        <key>NvidiaSingle</key>
        <false/>
    </dict>
    <key>KernelAndKextPatches</key>
    <dict>
        <key>AppleRTC</key>
        <true/>
        <key>AsusAICPUPM</key>
        <false/>
        <key>Debug</key>
        <false/>
        <key>KernelCpu</key>
        <false/>
        <key>KernelHaswellE</key>
        <false/>
        <key>KernelLapic</key>
        <false/>
        <key>KernelPm</key>
        <false/>
        <key>KextsToPatch</key>
        <array>
            <dict>
                <key>Comment</key>
                <string>External icons patch</string>
                <key>Disabled</key>
                <false/>
                <key>Find</key>
                <data>
                RXh0ZXJuYWw=
                </data>
                <key>Name</key>
                <string>External icons patch</string>
                <key>Replace</key>
                <data>
                SW50ZXJuYWw=
                </data>
            </dict>
            <dict>
                <key>Comment</key>
                <string>t1-10.9-10.11-AppleHDA/Realtek ALC887</string>
                <key>Disabled</key>
                <false/>
                <key>Find</key>
                <data>
                ixnUEQ==
                </data>
                <key>Name</key>
                <string>AppleHDA</string>
                <key>Replace</key>
                <data>
                hwjsEA==
                </data>
            </dict>
            <dict>
                <key>Comment</key>
                <string>t1-10.11-AppleHDA/Realtek ALC...</string>
                <key>Disabled</key>
                <false/>
                <key>Find</key>
                <data>
                gxnUEQ==
                </data>
                <key>Name</key>
                <string>AppleHDA</string>
                <key>Replace</key>
                <data>
                AAAAAA==
                </data>
            </dict>
        </array>
    </dict>
    <key>RtVariables</key>
    <dict>
        <key>BooterConfig</key>
        <string>0x28</string>
        <key>CsrActiveConfig</key>
        <string>0x3</string>
        <key>ROM</key>
        <string>UseMacAddr0</string>
    </dict>
    <key>SMBIOS</key>
    <dict>
        <key>BiosReleaseDate</key>
        <string>10/23/12</string>
        <key>BiosVendor</key>
        <string>Apple Inc.</string>
        <key>BiosVersion</key>
        <string>MM61.88Z.0106.B00.1208091121</string>
        <key>Board-ID</key>
        <string>Mac-F65AE981FFA204ED</string>
        <key>BoardManufacturer</key>
        <string>Apple Inc.</string>
        <key>BoardType</key>
        <integer>10</integer>
        <key>ChassisAssetTag</key>
        <string>Mini-Aluminum</string>
        <key>ChassisManufacturer</key>
        <string>Apple Inc.</string>
        <key>ChassisType</key>
        <string>16</string>
        <key>Family</key>
        <string>Mac mini</string>
        <key>Manufacturer</key>
        <string>Apple Inc.</string>
        <key>ProductName</key>
        <string>Macmini6,2</string>
        <key>SerialNumber</key>
        <string>C02######WYN</string>
        <key>Trust</key>
        <false/>
        <key>Version</key>
        <string>1.0</string>
    </dict>
    <key>SystemParameters</key>
    <dict>
        <key>InjectKexts</key>
        <string>Detect</string>
        <key>InjectSystemID</key>
        <true/>
    </dict>
</dict>
</plist>





The kernel flag dart=0 has the same effect as setting VT-d to disabled in BIOS.


Patched Tables: Custom DSDT

applied Pjalm's patch for the B75M-D3H using MaciASL located in his repository (see Pjalm forums).

Everything works including HDMI sound, sleep/wake and USB3 using the files below (attached GA_B75M-D3H OSX files.zip) in /System/Library/Extensions:


FakeSMC.kext from Kozlek's branch

Sound--->AppleHDA887.kext generated by audio_pikeralphaALC-110.command script

LAN--->Mieze's RealtekRTL8111.kext v1.1.3

USB3--->Zenith432's GenericUSBXHCI.kext v1.2.7 (Not required in El Capitan)



Updated 25 Mar 2015: GA_B75M-D3H Yosemite files.zip

Updated 26 Jan 2016: B75M-D3H El Capitan.zip

GA_B75M-D3H OSX files.zip

GA_B75M-D3H Yosemite files.zip

B75M-D3H El Capitan.zip

Share this post


Link to post
Share on other sites

Clover revision 3193 in UEFI
Motherboard: Lenovo G480
CPU: i5 3210M @2.50 - 3.10 GHz
RAM: 8 GB Vendor: SmartModular and Kingston
Audio OnBoard: YES Type: Conexant 20590 with on-the-fly patch.
Graphics card1: Intel HD4000 activaction method: via Clover Injector
Audio On Graphics Card1: Yes
Mac Model: MacBook Pro 10,2
config.plistconfig.plist.zip
Patched tables: My custom DSDT + SSDT generated manually.

Edited by Allan
Add new info.

Share this post


Link to post
Share on other sites



Done





Done



---



Pls guys add your config.plist and shutdown script into a [ code ] [ /code ]



Also REMOVE your SERIALS from config SMBios section...



Fabio

Share this post


Link to post
Share on other sites

REVISION:  Clover 2482  :)

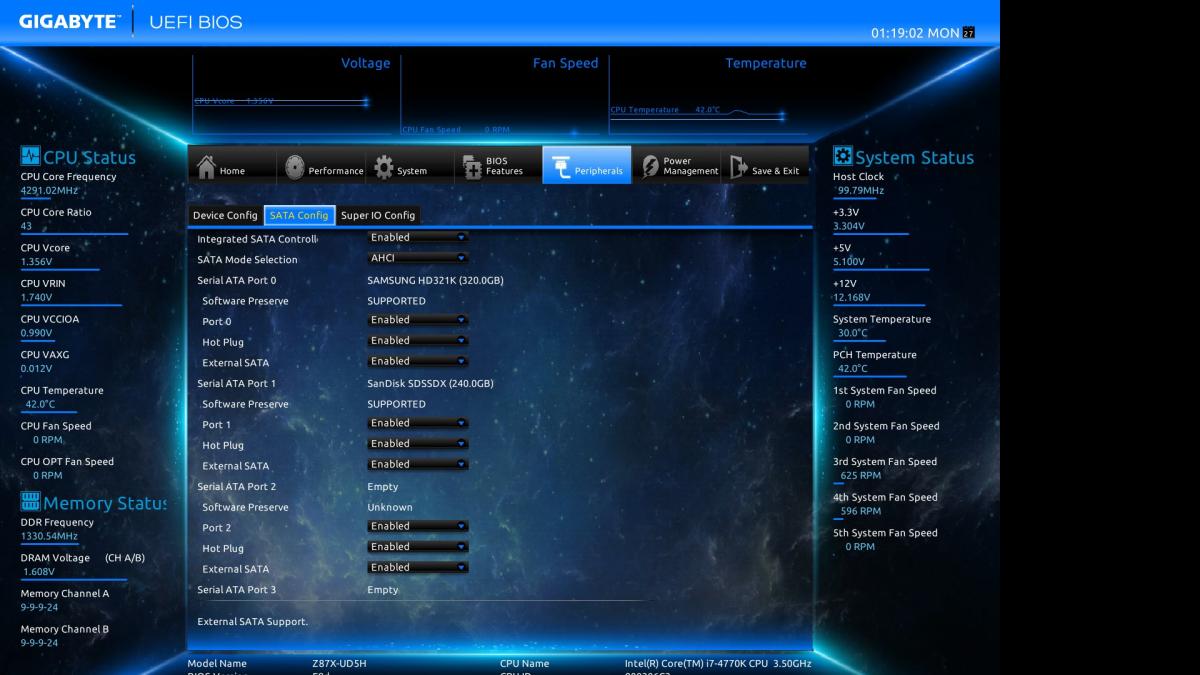

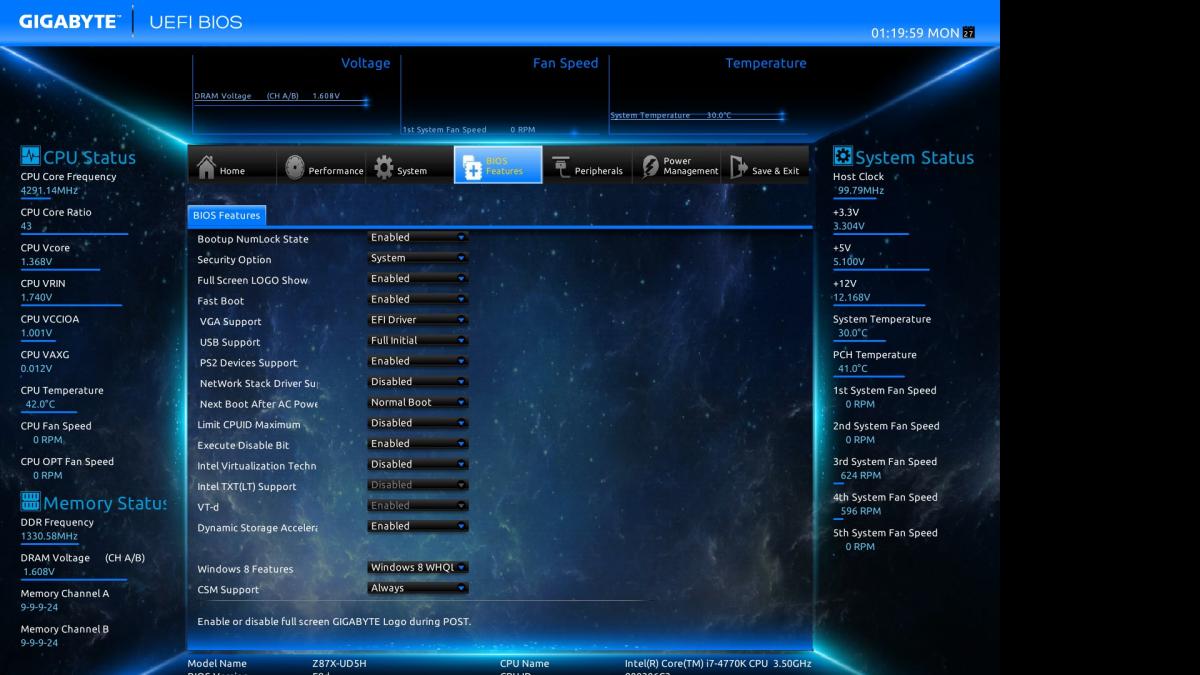

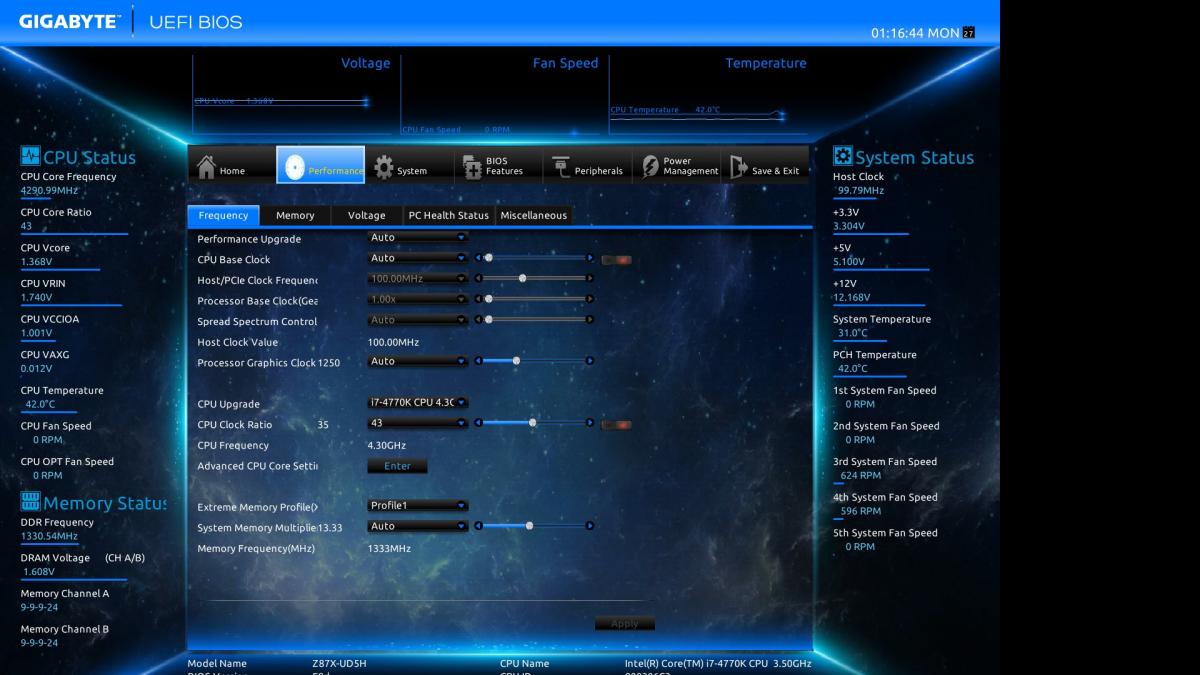

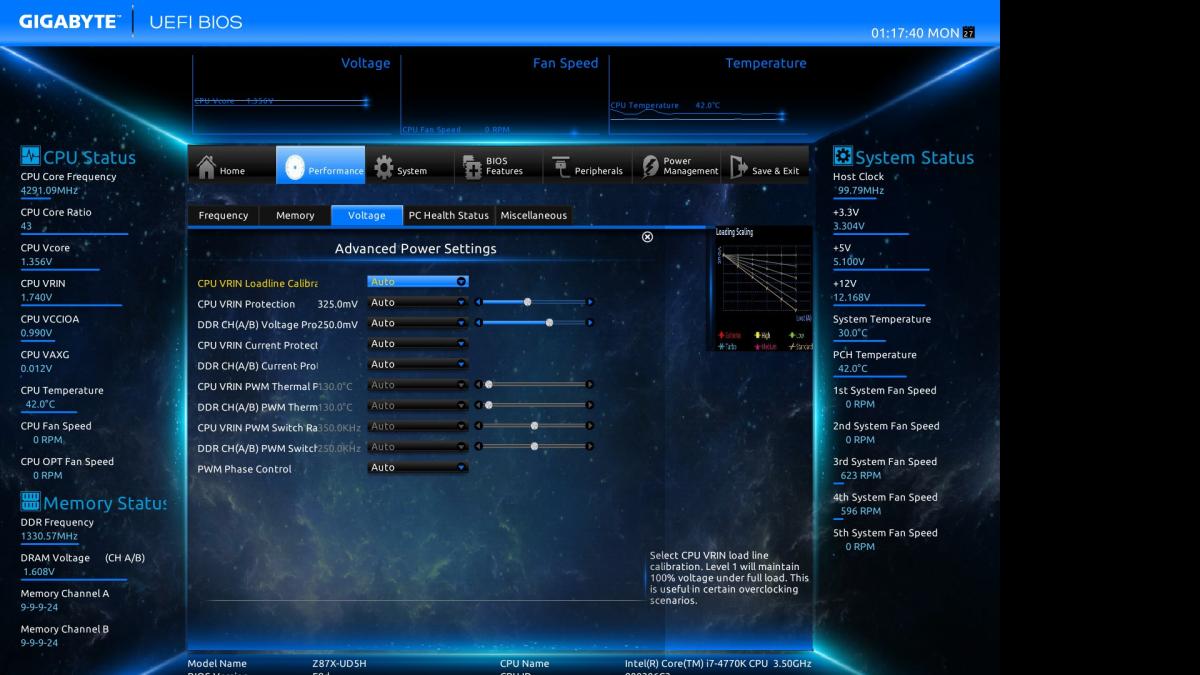

MODE:Only UEFI

Motherboard: GA Z87X-UD5H
CPU: i7 4770k
RAM: 16 GB Vendor: Corsairre Vengences Pro séries 1600 Mhz

SSD: 120gig Kingston
Audio OnBoard: YES : ALC898xx with Clover layout injector and patched with Clover shutdown script
Graphics card1: Nvidia GTX 760 - Clover
Graphics card2: Onboard Intel HD 4600- Desable
Mac Model: iMac 14.2

OS X 10.9.1
config.plist -->

<?xml version="1.0" encoding="UTF-8"?>

<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
<key>ACPI</key>
<dict>
<key>DSDT</key>
<dict>
<key>Debug</key>
<false/>
<key>Fixes</key>
<dict>
<key>AddDTGP_0001</key>
<true/>
<key>AddMCFG_0008</key>
<false/>
<key>FakeLPC_0020</key>
<false/>
<key>FixAirport_4000</key>
<true/>
<key>FixDarwin_0002</key>
<true/>
<key>FixDisplay_0100</key>
<true/>
<key>FixFirewire_0800</key>
<true/>
<key>FixHPET_0010</key>
<true/>
<key>FixIDE_0200</key>
<false/>
<key>FixIPIC_0040</key>
<true/>
<key>FixLAN_2000</key>
<true/>
<key>FixSATA_0400</key>
<false/>
<key>FixSBUS_0080</key>
<true/>
<key>FixShutdown_0004</key>
<true/>
<key>FixUSB_1000</key>
<true/>
</dict>
<key>Name</key>
<string>DSDT.aml</string>
</dict>
<key>DropTables</key>
<array>
<dict>
<key>Signature</key>
<string>DMAR</string>
</dict>
<dict>
<key>Signature</key>
<string>SSDT</string>
<key>TableId</key>
<string>CpuPm</string>
</dict>
<dict>
<key>Signature</key>
<string>SSDT</string>
<key>TableId</key>
<string>Cpu0Ist</string>
</dict>
</array>
<key>HaltEnabler</key>
<false/>
<key>SSDT</key>
<dict>
<key>Generate</key>
<dict>
<key>CStates</key>
<true/>
<key>PStates</key>
<true/>
</dict>
<key>MinMultiplier</key>
<integer>8</integer>
<key>PLimitDict</key>
<integer>0</integer>
<key>UnderVoltStep</key>
<integer>0</integer>
</dict>
</dict>
<key>Boot</key>
<dict>
<key>DefaultVolume</key>
<string>MacHDD</string>
<key>Fast</key>
<false/>
<key>Legacy</key>
<string>PBR</string>
<key>Log</key>
<false/>
<key>Timeout</key>
<integer>2</integer>
<key>XMPDetection</key>
<string>-1</string>
</dict>
<key>Devices</key>
<dict>
<key>Audio</key>
<dict>
<key>Inject</key>
<string>1</string>
</dict>
<key>FakeID</key>
<dict>
<key>ATI</key>
<string>0x0</string>
<key>IntelGFX</key>
<string>0x0</string>
<key>LAN</key>
<string>0x0</string>
<key>NVidia</key>
<string>0x0</string>
<key>SATA</key>
<string>0x0</string>
<key>WIFI</key>
<string>0x0</string>
<key>XHCI</key>
<string>0x0</string>
</dict>
<key>Inject</key>
<false/>
<key>USB</key>
<dict>
<key>AddClockID</key>
<true/>
<key>FixOwnership</key>
<true/>
<key>Inject</key>
<true/>
</dict>
</dict>
<key>DisableDrivers</key>
<array>
<string>Nothing</string>
</array>
<key>GUI</key>
<dict>
<key>Hide</key>
<array>
<string>Windows</string>
<string>\EFI\BOOT\BOOTX64.EFI</string>
</array>
<key>Language</key>
<string>en:0</string>
<key>Mouse</key>
<dict>
<key>Enabled</key>
<false/>
<key>Speed</key>
<integer>0</integer>
</dict>
<key>Scan</key>
<dict>
<key>Entries</key>
<true/>
<key>Legacy</key>
<true/>
<key>Tool</key>
<true/>
</dict>
<key>ScreenResolution</key>
<string>1920x1080</string>
<key>TextOnly</key>
<false/>
<key>Theme</key>
<string>gold_clover</string>
</dict>
<key>Graphics</key>
<dict>
<key>Inject</key>
<dict>
<key>ATI</key>
<false/>
<key>Intel</key>
<true/>
<key>NVidia</key>
<false/>
</dict>
<key>PatchVBios</key>
<false/>
</dict>
<key>KernelAndKextPatches</key>
<dict>
<key>AppleRTC</key>
<true/>
<key>AsusAICPUPM</key>
<true/>
<key>Debug</key>
<false/>
<key>KernelCpu</key>
<false/>
<key>KextsToPatch</key>
<array>
<dict>
<key>Comment</key>
<string>ALC898 Codec</string>
<key>Find</key>
<data>
ixnUEQ==
</data>
<key>Name</key>
<string>AppleHDA</string>
<key>Replace</key>
<data>
mQjsEA==
</data>
</dict>
</array>
</dict>
<key>RtVariables</key>
<dict>
<key>LogEveryBoot</key>
<string>10</string>
<key>LogLineCount</key>
<integer>3000</integer>
<key>MountEFI</key>
<true/>
</dict>
<key>SystemParameters</key>
<dict>
<key>InjectKexts</key>
<string>Detect</string>
<key>InjectSystemID</key>
<true/>
</dict>
</dict>
</plist>






Share this post


Link to post
Share on other sites

PS:

@ErmaC: Thanks for this topic, I think it's a great idea.

Thx & Done





Done



---

Ok for the moment I continue later...



Clover revision 2444 in UEFI

Motherboard: Lenovo

CPU: i5 3210M @2.50 - 3.10 GHz

RAM: 4 GB Vendor: SmartModular

Audio OnBoard: YES Type: Conexant 20590 with Clover layout injector.

Graphics card1: Intel HD4000 activaction method: via Clover Injector

Audio On Graphics Card1: Yes

Mac Model: MacBook Pro 9,2

config.plist --> config.plist

Patched tables: My custom DSDT + SSDT generated via ssdtPRGen.sh by Piker-Alpha.

Your config.plist ???

Share this post


Link to post
Share on other sites

- Clover 2512 -





Drivers64UEFI folder :


EmuVariableUefi-64.efi


FSInject-64.efi


OsxAptioFixDrv-64.efi


OsxFatBinaryDrv-64.efi


HFSPlus-64.efi





MODE: UEFI Only - #3767


Motherboard: Asrock B85M-ITX


BIOS : New version 2.0 BIOS have MSR unlocked http://www.asrock.com/mb/Intel/B85M-ITX/?cat=Download&os=BIOS


 (old 1.90 - patched with excellent pmpatch utility by CodeRush  #1985601)


CPU: i5 4670k - SSDT using ssdtPRGen.sh by Piker-Alpha


RAM: Crucial Ballistix Sport 8GB (2 x 4GB) 240-Pin DDR3 SDRAM DDR3 1600 ( PC3 12800)


Audio OnBoard: ALC892 ,Clover inject layout 1 and patched kext - Download


Graphics : intel HD 4600 - Clover injection or ATI 4850 with Clover ATI injection + FakeID : 0x94401002


LANQualcomm Atheros AR8171 - ALXEthernet-1.0.2.zip - #1


Mac Model: iMac 14,2


OS X 10.9.1





no DSDT just some Clover fixes on config.plist





Config.plist



<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
<key>ACPI</key>
<dict>
<key>DSDT</key>
<dict>
<key>Debug</key>
<false/>
<key>Fixes</key>
<dict>
<key>NewWay_80000000</key>
<true/>
<key>AddDTGP_0001</key>
<true/>
<key>FixDarwin_0002</key>
<true/>
<key>FixUSB_1000</key>
<true/>
</dict>

<key>Name</key>
<string>DSDT.aml</string>
</dict>

<key>DropTables</key>
<array>
<dict>
<key>Signature</key>
<string>SSDT</string>
<key>TableId</key>
<string>CpuPm</string>
</dict>
<dict>
<key>Signature</key>
<string>SSDT</string>
<key>TableId</key>
<string>Cpu0Ist</string>
</dict>
</array>

<key>HaltEnabler</key>
<false/>

<key>SSDT</key>
<dict>
<key>DropOem</key>
<true/>
<key>Generate</key>
<dict>
<key>CStates</key>
<false/>
<key>PStates</key>
<false/>
</dict>
</dict>
</dict>

<key>Boot</key>
<dict>
<key>Arguments</key>
<string>-v slide=0</string>
<key>DefaultVolume</key>
<string>macos</string>
<key>Fast</key>
<false/>
<key>Legacy</key>
<string>Legacy="PBR"</string>
<key>Log</key>
<false/>
<key>Timeout</key>
<integer>8</integer>
</dict>
<key>Devices</key>
<dict>
<key>Audio</key>
<dict>
<key>Inject</key>
<string>1</string>
</dict>
<key>FakeID</key>
<dict>
<key>ATI</key>
<string>0x0</string>
<key>IntelGFX</key>
<string>0x0</string>
<key>LAN</key>
<string>0x0</string>
<key>NVidia</key>
<string>0x0</string>
<key>SATA</key>
<string>0x0</string>
<key>WIFI</key>
<string>0x0</string>
<key>XHCI</key>
<string>0x0</string>
</dict>
<key>Inject</key>
<false/>

<key>USB</key>
<dict>
<key>AddClockID</key>
<true/>
<key>FixOwnership</key>
<true/>
<key>Inject</key>
<true/>
</dict>
</dict>
<key>DisableDrivers</key>
<array>
<string>Nothing</string>
</array>

<key>GUI</key>
<dict>
<key>Language</key>
<string>en:0</string>

<key>Scan</key>
<dict>
<key>Entries</key>
<true/>
<key>Legacy</key>
<true/>
<key>Tool</key>
<true/>
</dict>

<key>Hide</key>
<array>

</array>

<key>Custom</key>
<dict>
<key>Entries</key>
<array>
<dict>
<key>VolumeType</key>
<string>Internal</string>
<key>Hidden</key>
<true/>
</dict>
</array>
</dict>

<key>TextOnly</key>
<false/>

<key>Mouse</key>
<dict>
<key>Enabled</key>
<false/>
<key>Speed</key>
<integer>0</integer>
</dict>

<key>Theme</key>
<string>metal</string>
</dict>

<key>Graphics</key>
<dict>
<key>Inject</key>
<dict>
<key>ATI</key>
<false/>
<key>Intel</key>
<true/>
<key>NVidia</key>
<false/>
</dict>
<key>PatchVBios</key>
<false/>
</dict>

<key>KernelAndKextPatches</key>
<dict>
<key>AppleRTC</key>
<true/>
<key>AsusAICPUPM</key>
<false/>
<key>Debug</key>
<false/>
<key>KernelCpu</key>
<false/>
<key>KextsToPatch</key>
<array>

</array>
</dict>

<key>RtVariables</key>
<dict>
<key>LogEveryBoot</key>
<string>10</string>
<key>LogLineCount</key>
<integer>3000</integer>
<key>MountEFI</key>
<false/>
</dict>

<key>SMBIOS</key>
<dict>
<key>Trust</key>
<true/>
<key>SerialNumber</key>
<string>**********</string>
</dict>

<key>SystemParameters</key>
<dict>
<key>InjectKexts</key>
<string>Detect</string>
<key>InjectSystemID</key>
<false/>
</dict>
</dict>
</plist>


Share this post


Link to post
Share on other sites

Clover revision 2525 in UEFI
Motherboard: Gigabyte GA-Z87X-UD5H Rev 1.0 Bios F8D Beta Bios
CPU: i7 4770K @3,5GHZ (4,3 GHz Turbo)
RAM: 16 GB Vendor: Corsair 1333Mhz
Audio OnBoard: YES Type: ALC898 with Clover layout injector and patched with Clover shutdown script
Graphics card1: Nvidia GTX 650 Ti OC 2GB activaction method: via Clover Injector
Graphics card2: Onboard Intel HD 4600 activation method: Disabled.
Audio On Graphics Card1: No (never tested)
Audio On Graphics Card2: No
Mac Model: iMac14,2
config.plist --> config.plist
Patched tables: My custom DSDT + custom SSDT + script for generating xStates.

optional:
Theme used: applestyle
Links of Sources of Kext are at the Folders at ZIP-File

config.plist

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
    <key>DisableDrivers</key>
    <array>
        <string>Nothing</string>
    </array>
    <key>GUI</key>
    <dict>
        <key>Language</key>
        <string>en:0</string>
        <key>Theme</key>
        <string>applestyle</string>
        <key>Mouse</key>
        <dict>
            <key>DoubleClick</key>
            <integer>500</integer>
            <key>Speed</key>
            <integer>8</integer>
            <key>Enabled</key>
            <true/>
        </dict>
        <key>Scan</key>
        <dict>
            <key>Entries</key>
            <true/>
            <key>Tool</key>
            <true/>
            <key>Legacy</key>
            <string>First</string>
        </dict>
        <key>Hide</key>
        <array>
            <string>Windows</string>
            <string>\EFI\BOOT\BOOTX64.EFI</string>
        </array>
    </dict>
    <key>Graphics</key>
    <dict>
        <key>Inject</key>
        <dict>
            <key>Intel</key>
            <true/>
            <key>ATI</key>
            <false/>
            <key>NVidia</key>
            <false/>
        </dict>
    </dict>
    <key>KernelAndKextPatches</key>
    <dict>
        <key>AppleRTC</key>
        <true/>
        <key>AsusAICPUPM</key>
        <true/>
        <key>KextsToPatch</key>
        <array>
            <dict>
                <key>Name</key>
                <string>AppleAHCIPort</string>
                <key>Find</key>
                <data>
                RXh0ZXJuYWw=
                </data>
                <key>Replace</key>
                <data>
                SW50ZXJuYWw=
                </data>
                <key>Comment</key>
                <string>External icons patch</string>
            </dict>
            <dict>
                <key>Name</key>
                <string>AppleHDA</string>
                <key>Find</key>
                <data>
                hBnUEQ==
                </data>
                <key>Replace</key>
                <data>
                mQjsEA==
                </data>
                <key>Comment</key>
                <string>ALC898 Patch</string>
            </dict>
        </array>
    </dict>
    <key>RtVariables</key>
    <dict>
        <key>LogEveryBoot</key>
        <string>10</string>
        <key>LogLineCount</key>
        <integer>3000</integer>
        <key>MountEFI</key>
        <string>Yes</string>
    </dict>
    <key>SMBIOS</key>
    <dict>
        <key>Trust</key>
        <false/>
    </dict>
    <key>ACPI</key>
    <dict>
        <key>DSDT</key>
        <dict>
            <key>Debug</key>
            <false/>
            <key>ReuseFFFF</key>
            <false/>
            <key>Name</key>
            <string>DSDT.aml</string>
            <key>Patches</key>
            <array>
                <dict>
                    <key>Comment</key>
                    <string>AppleHDA</string>
                    <key>Find</key>
                    <data>
                    hBnUEQ==
                    </data>
                    <key>Replace</key>
                    <data>
                    mQjsEA==
                    </data>
                </dict>
            </array>
            <key>Fixes</key>
            <dict>
                <key>AddDTGP_0001</key>
                <true/>
                <key>AddMCHC_0008</key>
                <false/>
                <key>FakeLPC_0020</key>
                <false/>
                <key>FixAirport_4000</key>
                <true/>
                <key>FixDarwin_0002</key>
                <true/>
                <key>FixDisplay_0100</key>
                <true/>
                <key>FixFirewire_0800</key>
                <true/>
                <key>FixHDA_8000</key>
                <true/>
                <key>FixHPET_0010</key>
                <true/>
                <key>FixIDE_0200</key>
                <false/>
                <key>FixIPIC_0040</key>
                <true/>
                <key>FixLAN_2000</key>
                <true/>
                <key>FixSATA_0400</key>
                <false/>
                <key>FixSBUS_0080</key>
                <true/>
                <key>FixShutdown_0004</key>
                <true/>
                <key>FixUSB_1000</key>
                <true/>
                <key>NewWay_80000000</key>
                <false/>
                <key>FIX_RTC_20000</key>
                <false/>
                <key>FiX_TMR_40000</key>
                <false/>
                <key>AddIMEI_80000</key>
                <false/>
                <key>FIX_INTELGFX_100000</key>
                <false/>
                <key>FiX_WAK_200000</key>
                <false/>
                <key>DeleteUnused_400000</key>
                <false/>
                <key>FIX_ADP1_800000</key>
                <false/>
                <key>AddPNLF_1000000</key>
                <false/>
                <key>FIX_S3D_2000000</key>
                <false/>
                <key>FIX_ACST_4000000</key>
                <false/>
            </dict>
            <key>DropOEM_DSM</key>
            <false/>
        </dict>
        <key>SSDT</key>
        <dict>
            <key>DropOem</key>
            <true/>
            <key>UseSystemIO</key>
            <true/>
            <key>Generate</key>
            <dict>
                <key>PStates</key>
                <true/>
                <key>CStates</key>
                <true/>
            </dict>
            <key>MinMultiplier</key>
            <integer>8</integer>
            <key>PluginType</key>
            <integer>1</integer>
            <key>EnableC6</key>
            <true/>
            <key>EnableC7</key>
            <true/>
        </dict>
    </dict>
    <key>Boot</key>
    <dict>
        <key>DefaultVolume</key>
        <string>Mavericks</string>
        <key>Legacy</key>
        <string>PBR</string>
        <key>Log</key>
        <false/>
        <key>Timeout</key>
        <integer>5</integer>
        <key>XMPDetection</key>
        <string>1</string>
        <key>Secure</key>
        <false/>
    </dict>
    <key>Devices</key>
    <dict>
        <key>Audio</key>
        <dict>
            <key>Inject</key>
            <string>1</string>
        </dict>
        <key>FakeID</key>
        <dict>
            <key>ATI</key>
            <string>0x0</string>
            <key>IntelGFX</key>
            <string>0x0</string>
            <key>NVidia</key>
            <string>0x0</string>
            <key>LAN</key>
            <string>0x0</string>
            <key>SATA</key>
            <string>0x0</string>
            <key>WIFI</key>
            <string>0x0</string>
            <key>XHCI</key>
            <string>0x0</string>
        </dict>
        <key>USB</key>
        <dict>
            <key>Inject</key>
            <true/>
            <key>FixOwnership</key>
            <true/>
            <key>AddClockID</key>
            <true/>
        </dict>
    </dict>
    <key>SystemParameters</key>
    <dict>
        <key>InjectSystemID</key>
        <true/>
        <key>InjectKexts</key>
        <string>Detect</string>
    </dict>
</dict>
</plist>

Edit: added BIOS-Settings










GA-Z87X-UD5H Rev 1.0 Bios F8D.zip

Share this post


Link to post
Share on other sites

Clover v2.4k r4658 Legacy boot--->CloverEFI.




Motherboard:
Gigabyte P55a UD3 F11 BIOS
CPU: Core i5 750 2.67Ghz
RAM: 8GB (2x4GB Kingston DDR3 1333MHz)
Audio: Onboard Realtek ALC888 Lilu.kext v1.2.7AppleALC.kext v1.3.1

Graphics card: XFX ATI Radeon HD 5770 1024MB

LAN: Realtek RTL8111D using Mieze's RealtekRTL8111.kext v1.2.3

Wifi: TL-WN881ND/Atheros 9287 using Clover Airport Fix + FakeID
Mac Model:  MacPro5,1
Patched tables: Clover patched native DSDT (patches specified in config.plist.  Likely to also work with other Gigabyte socket 1156 motherboards)
config.plist--->put into EFI/CLOVER folder

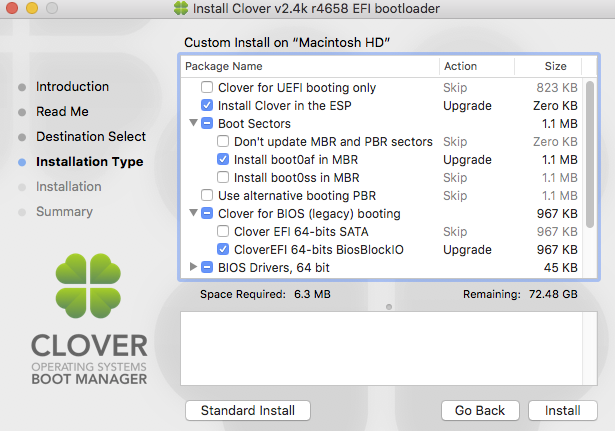

BIOS Drivers to install in EFI/CLOVER/drivers64: HFSPlus-64.efi, ApfsDriverLoader-64.efi

Check "Install RC scripts on target volume" for emulated NVRAM
FakeSMC.kext, RealtekRTL8111.kext -->put into EFI/CLOVER/kexts/Other

Press F1 at Clover Main Menu for useful keyboard shortcuts.  Link to Clover wiki.



Config.plist

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>ACPI</key>
	<dict>
		<key>DSDT</key>
		<dict>
			<key>Debug</key>
			<false/>
			<key>DropOEM_DSM</key>
			<false/>
			<key>Fixes</key>
			<dict>
				<key>AddDTGP</key>
				<true/>
				<key>AddHDMI</key>
				<true/>
				<key>AddIMEI</key>
				<true/>
				<key>AddMCHC</key>
				<true/>
				<key>AddPNLF</key>
				<true/>
				<key>DeleteUnused</key>
				<true/>
				<key>FixAirport</key>
				<true/>
				<key>FixDarwin</key>
				<true/>
				<key>FixDisplay</key>
				<true/>
				<key>FixHDA</key>
				<true/>
				<key>FixHPET</key>
				<true/>
				<key>FixIPIC</key>
				<true/>
				<key>FixLAN</key>
				<true/>
				<key>FixRTC</key>
				<true/>
				<key>FixRegions</key>
				<true/>
				<key>FixS3D</key>
				<true/>
				<key>FixSBUS</key>
				<true/>
				<key>FixShutdown</key>
				<true/>
				<key>FixTMR</key>
				<true/>
				<key>FixUSB</key>
				<true/>
				<key>FixWAK</key>
				<true/>
			</dict>
			<key>Name</key>
			<string>DSDT.aml</string>
			<key>ReuseFFFF</key>
			<false/>
		</dict>
		<key>DropTables</key>
		<array>
			<dict>
				<key>Signature</key>
				<string>DMAR</string>
			</dict>
			<dict>
				<key>Signature</key>
				<string>SSDT</string>
				<key>TableId</key>
				<string>CpuPm</string>
			</dict>
			<dict>
				<key>Signature</key>
				<string>SSDT</string>
				<key>TableId</key>
				<string>Cpu0Ist</string>
			</dict>
		</array>
		<key>HaltEnabler</key>
		<true/>
		<key>SSDT</key>
		<dict>
			<key>DropOem</key>
			<false/>
			<key>Generate</key>
			<dict>
				<key>CStates</key>
				<true/>
				<key>PStates</key>
				<true/>
			</dict>
		</dict>
	</dict>
	<key>Boot</key>
	<dict>
		<key>Arguments</key>
		<string>-nehalem_error_disable no_compat_check dart=0</string>
		<key>Debug</key>
		<false/>
		<key>DefaultVolume</key>
		<string>LastBootedVolume</string>
		<key>Legacy</key>
		<string>LegacyBiosDefault</string>
		<key>Secure</key>
		<false/>
		<key>Timeout</key>
		<integer>3</integer>
		<key>XMPDetection</key>
		<false/>
	</dict>
	<key>CPU</key>
	<dict>
		<key>UseARTFrequency</key>
		<false/>
	</dict>
	<key>Devices</key>
	<dict>
		<key>Audio</key>
		<dict>
			<key>Inject</key>
			<integer>1</integer>
		</dict>
		<key>FakeID</key>
		<dict>
			<key>WIFI</key>
			<string>0x0030168C</string>
		</dict>
		<key>USB</key>
		<dict>
			<key>AddClockID</key>
			<true/>
			<key>FixOwnership</key>
			<true/>
			<key>Inject</key>
			<true/>
		</dict>
	</dict>
	<key>GUI</key>
	<dict>
		<key>Custom</key>
		<dict>
			<key>Entries</key>
			<array>
				<dict>
					<key>Disabled</key>
					<false/>
					<key>Hidden</key>
					<true/>
					<key>Ignore</key>
					<false/>
					<key>InjectKexts</key>
					<true/>
					<key>NoCaches</key>
					<false/>
					<key>Title</key>
					<string>Recovery HD</string>
					<key>Type</key>
					<string>OSXRecovery</string>
				</dict>
			</array>
		</dict>
		<key>EmbeddedThemeType</key>
		<string>Dark</string>
		<key>Hide</key>
		<array>
			<string>bootmgr.efi</string>
			<string>Preboot</string>
		</array>
		<key>Mouse</key>
		<dict>
			<key>DoubleClick</key>
			<integer>500</integer>
			<key>Enabled</key>
			<false/>
			<key>Mirror</key>
			<false/>
			<key>Speed</key>
			<integer>8</integer>
		</dict>
		<key>Scan</key>
		<dict>
			<key>Entries</key>
			<true/>
			<key>Kernel</key>
			<string>MostRecent</string>
			<key>Legacy</key>
			<false/>
			<key>Linux</key>
			<false/>
			<key>Tool</key>
			<true/>
		</dict>
		<key>ScreenResolution</key>
		<string>1920x1080</string>
		<key>Theme</key>
		<string>embedded</string>
	</dict>
	<key>Graphics</key>
	<dict>
		<key>FBName</key>
		<string>Vervet</string>
		<key>Inject</key>
		<dict>
			<key>ATI</key>
			<true/>
			<key>Intel</key>
			<false/>
			<key>NVidia</key>
			<false/>
		</dict>
		<key>NvidiaSingle</key>
		<false/>
		<key>PatchVBios</key>
		<true/>
		<key>VideoPorts</key>
		<integer>4</integer>
	</dict>
	<key>KernelAndKextPatches</key>
	<dict>
		<key>AppleIntelCPUPM</key>
		<true/>
		<key>AppleRTC</key>
		<true/>
		<key>Debug</key>
		<false/>
		<key>KernelCpu</key>
		<false/>
		<key>KernelLapic</key>
		<false/>
		<key>KernelPm</key>
		<false/>
		<key>KernelXCPM</key>
		<false/>
		<key>KextsToPatch</key>
		<array>
			<dict>
				<key>Comment</key>
				<string>External icons patch</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>RXh0ZXJuYWw=</data>
				<key>InfoPlistPatch</key>
				<false/>
				<key>Name</key>
				<string>AppleAHCIPort</string>
				<key>Replace</key>
				<data>SW50ZXJuYWw=</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>ALPM IO Error AppleAHCIPort</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>QGACAA==</data>
				<key>InfoPlistPatch</key>
				<false/>
				<key>Name</key>
				<string>AppleAHCIPort</string>
				<key>Replace</key>
				<data>AAAAAA==</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>TRIM Enabler</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>AEFQUExFIFNTRAA=</data>
				<key>InfoPlistPatch</key>
				<false/>
				<key>Name</key>
				<string>IOAHCIBlockStorage</string>
				<key>Replace</key>
				<data>AAAAAAAAAAAAAAA=</data>
			</dict>
		</array>
	</dict>
	<key>RtVariables</key>
	<dict>
		<key>BooterConfig</key>
		<string>0x28</string>
		<key>CsrActiveConfig</key>
		<string>0x67</string>
		<key>ROM</key>
		<string>UseMacAddr0</string>
	</dict>
	<key>SMBIOS</key>
	<dict>
		<key>ProductName</key>
		<string>MacPro5,1</string>
	</dict>
	<key>SystemParameters</key>
	<dict>
		<key>InjectKexts</key>
		<string>Yes</string>
		<key>InjectSystemID</key>
		<true/>
	</dict>
</dict>
</plist>



P55A-UD3.zip

Edited by fusion71au
Updated config for High Sierra and Mojave

Share this post


Link to post
Share on other sites

Clover revision 2583 on USB
Motherboard: Gigabyte EX58-UD5 (rev 1.0)
CPU: i7-920 @ 3.4 Hz
RAM: 6 GB Vendor: OCZ
Audio OnBoard: YES Type: ALC889A with config.plist inject and patched ALC885.kext as per toledo
Graphics card: AMD Radeon HD 6870 activaction method: None
Mac Model: MacPro11,1

Thanks,

Files for Gigabyte EX58-UD5 (rev 1.0)

config-hack.plist.zip

DSDT.aml.zip

Share this post


Link to post
Share on other sites

Clover revision 2652 in UEFI
Motherboard: Gigabyte GA-Z87X-UD5H Rev 1.0 Bios F8
CPU: i7 4770K @3,5GHZ (4,3 GHz Turbo)
RAM: 16 GB Vendor: Corsair 1333Mhz
Audio OnBoard: YES Type: ALC898 with Clover layout injector and patched with Clover shutdown script
Graphics card1: Nvidia GTX 650 Ti 2GB activaction method: via Clover Injector
Graphics card2: Onboard Intel HD 4600 activation method: Enabled. (slower booting with HD4600 enabled)
Audio On Graphics Card1: No (never tested)
Audio On Graphics Card2: No (never tested)
Mac Model: iMac14,2

optional: GA-Z87X-UD5H Rev 1.0 Bios F8.zip

Links of Sources of Kext are at the Folders at ZIP-File
bios setting file for f8 bios
do not export a F8D beta bios setting and import to a F8 bios. it will damage the bios (press powerbutton 20 sek for biosreset)...



IGFX must be first for a working HD4600

CSM must be disabled

config.plist

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple Computer//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
    <key>Boot</key>
    <dict>
        <key>DefaultVolume</key>
        <string>Mavericks SSD</string>
        <key>Legacy</key>
        <string>PBR</string>
        <key>Log</key>
        <false/>
        <key>Timeout</key>
        <integer>5</integer>
        <key>XMPDetection</key>
        <string>No</string>
        <key>Secure</key>
        <false/>
    </dict>
    <key>Devices</key>
    <dict>
        <key>Audio</key>
        <dict>
            <key>Inject</key>
            <string>1</string>
        </dict>
        <key>FakeID</key>
        <dict>
            <key>ATI</key>
            <string>0x0</string>
            <key>IntelGFX</key>
            <string>0x0</string>
            <key>NVidia</key>
            <string>0x0</string>
            <key>LAN</key>
            <string>0x0</string>
            <key>SATA</key>
            <string>0x0</string>
            <key>WIFI</key>
            <string>0x0</string>
            <key>XHCI</key>
            <string>0x0</string>
        </dict>
        <key>UseIntelHDMI</key>
        <false/>
        <key>USB</key>
        <dict>
            <key>Inject</key>
            <true/>
            <key>FixOwnership</key>
            <true/>
            <key>AddClockID</key>
            <true/>
        </dict>
    </dict>
    <key>DisableDrivers</key>
    <array>
        <string>Nothing</string>
    </array>
    <key>GUI</key>
    <dict>
        <key>Language</key>
        <string>de:0</string>
        <key>Theme</key>
        <string>applestyle</string>
        <key>Mouse</key>
        <dict>
            <key>DoubleClick</key>
            <integer>500</integer>
            <key>Speed</key>
            <integer>8</integer>
            <key>Enabled</key>
            <true/>
        </dict>
        <key>Scan</key>
        <dict>
            <key>Entries</key>
            <true/>
            <key>Tool</key>
            <true/>
            <key>Legacy</key>
            <string>First</string>
        </dict>
        <key>Hide</key>
        <array>
            <string>Windows</string>
            <string>\EFI\BOOT\BOOTX64.EFI</string>
        </array>
    </dict>
    <key>Graphics</key>
    <dict>
        <key>DualLink</key>
        <integer>1</integer>
        <key>VideoPorts</key>
        <integer>3</integer>
        <key>ig-platform-id</key>
        <string>0x0300220D</string>
        <key>InjectEDID</key>
        <true/>
        <key>Inject</key>
        <dict>
            <key>Intel</key>
            <true/>
            <key>ATI</key>
            <false/>
            <key>NVidia</key>
            <false/>
        </dict>
    </dict>
    <key>KernelAndKextPatches</key>
    <dict>
        <key>AppleRTC</key>
        <true/>
        <key>KextsToPatch</key>
        <array>
            <dict>
                <key>Name</key>
                <string>AppleAHCIPort</string>
                <key>Find</key>
                <data>
                RXh0ZXJuYWw=
                </data>
                <key>Replace</key>
                <data>
                SW50ZXJuYWw=
                </data>
                <key>Comment</key>
                <string>External icons patch</string>
            </dict>
            <dict>
                <key>Name</key>
                <string>AppleHDA</string>
                <key>Find</key>
                <data>
                hBnUEQ==
                </data>
                <key>Replace</key>
                <data>
                mQjsEA==
                </data>
                <key>Comment</key>
                <string>AppleHDA/Realtek ALC898</string>
            </dict>
            <dict>
                <key>Name</key>
                <string>AppleHDA</string>
                <key>Find</key>
                <data>
                hBnUEQ==
                </data>
                <key>Replace</key>
                <data>
                mQjsEA==
                </data>
                <key>Comment</key>
                <string>AppleHDA/Realtek ALC898</string>
            </dict>
            <dict>
                <key>Name</key>
                <string>AppleHDAController</string>
                <key>Find</key>
                <data>
                PQwNAAB1Ug==
                </data>
                <key>Replace</key>
                <data>
                PQwMAAB1Ug==
                </data>
                <key>Comment</key>
                <string>10.9/HD4600/HDMI audio 2/2</string>
            </dict>
            <dict>
                <key>Name</key>
                <string>AppleIntelFramebufferAzul</string>
                <key>Find</key>
                <data>
                AQUJAAAEAACHAAAA
                </data>
                <key>Replace</key>
                <data>
                AQUJAAAIAAAGAAAA
                </data>
                <key>Comment</key>
                <string>10.9.2/Azul/Port 05/DP>HDMI</string>
            </dict>
            <dict>
                <key>Name</key>
                <string>AppleIntelFramebufferAzul</string>
                <key>Find</key>
                <data>
                AgQKAAAEAACHAAAA
                </data>
                <key>Replace</key>
                <data>
                AgQKAAAIAAAGAAAA
                </data>
                <key>Comment</key>
                <string>10.9.2/Azul/Port 06/DP>HDMI</string>
            </dict>
            <dict>
                <key>Name</key>
                <string>AppleHDAController</string>
                <key>Find</key>
                <data>
                PQwMAAB1Yesw
                </data>
                <key>Replace</key>
                <data>
                PQwMAAB1YesO
                </data>
                <key>Comment</key>
                <string>10.9/HD4600/HDMI audio 1/2</string>
            </dict>
        </array>
    </dict>
    <key>RtVariables</key>
    <dict>
        <key>LogEveryBoot</key>
        <string>10</string>
        <key>LogLineCount</key>
        <integer>3000</integer>
        <key>MountEFI</key>
        <string>Yes</string>
    </dict>
    <key>SMBIOS</key>
    <dict>
        <key>Trust</key>
        <false/>
    </dict>
    <key>ACPI</key>
    <dict>
        <key>DSDT</key>
        <dict>
            <key>Debug</key>
            <false/>
            <key>ReuseFFFF</key>
            <false/>
            <key>SlpSmiAtWake</key>
            <true/>
            <key>Name</key>
            <string>DSDT.aml</string>
            <key>Fixes</key>
            <dict>
                <key>AddDTGP_0001</key>
                <true/>
                <key>AddMCHC_0008</key>
                <false/>
                <key>FakeLPC_0020</key>
                <false/>
                <key>FixAirport_4000</key>
                <true/>
                <key>FixDarwin_0002</key>
                <true/>
                <key>FixDisplay_0100</key>
                <true/>
                <key>FixFirewire_0800</key>
                <true/>
                <key>FixHDA_8000</key>
                <true/>
                <key>FixHPET_0010</key>
                <true/>
                <key>FixIDE_0200</key>
                <false/>
                <key>FixIPIC_0040</key>
                <true/>
                <key>FixLAN_2000</key>
                <true/>
                <key>FixSATA_0400</key>
                <false/>
                <key>FixSBUS_0080</key>
                <true/>
                <key>FixShutdown_0004</key>
                <true/>
                <key>FixUSB_1000</key>
                <true/>
                <key>NewWay_80000000</key>
                <true/>
                <key>FixRegions_10000000</key>
                <true/>
                <key>FIX_RTC_20000</key>
                <true/>
                <key>FiX_TMR_40000</key>
                <false/>
                <key>AddIMEI_80000</key>
                <false/>
                <key>FIX_INTELGFX_100000</key>
                <false/>
                <key>FiX_WAK_200000</key>
                <true/>
                <key>DeleteUnused_400000</key>
                <false/>
                <key>FIX_ADP1_800000</key>
                <true/>
                <key>AddPNLF_1000000</key>
                <true/>
                <key>FIX_S3D_2000000</key>
                <true/>
                <key>FIX_ACST_4000000</key>
                <false/>
                <key>AddHDMI_8000000</key>
                <true/>
            </dict>
            <key>DropOEM_DSM</key>
            <false/>
        </dict>
        <key>SSDT</key>
        <dict>
            <key>DropOem</key>
            <false/>
            <key>UseSystemIO</key>
            <true/>
            <key>Generate</key>
            <dict>
                <key>PStates</key>
                <true/>
                <key>CStates</key>
                <true/>
            </dict>
            <key>MinMultiplier</key>
            <integer>8</integer>
            <key>PluginType</key>
            <integer>1</integer>
            <key>EnableC6</key>
            <true/>
            <key>EnableC7</key>
            <true/>
        </dict>
    </dict>
    <key>SystemParameters</key>
    <dict>
        <key>InjectSystemID</key>
        <true/>
        <key>InjectKexts</key>
        <string>Detect</string>
    </dict>
</dict>
</plist>


GA-Z87X-UD5H Rev 1.0 Bios F8.zip

Share this post


Link to post
Share on other sites

Clover revision 2636 in UEFI

Motherboard: Asus Z87I-Deluxe Bios 0804

CPU: i7-4770K @3.5GHz, SSDT/Piker-Alpha/ssdtPRGen.sh/Clover Drop Tables

RAM: 8 GB Vendor: Crucial 1600 MHz

Audio OnBoard: Yes Type: ALC1150, toleda/audio_CloverALC

Graphics card1: Sapphire HD 7750 1GB, activation: SSDT/Clover Kext patch

Graphics card2: Intel HD 4600, activation: SSDT/Clover Kext patch

Audio On Graphics Card1: SSDT-1/toleda/audio_CloverHDMI

Audio On Graphics Card2: SSDT-1/toleda/audio_CloverHDMI

WiFi: BCM94352, SSDT-2/toleda/wireless_half-mini/Clover Kext patch

Mac Model: iMac14,2



Patched Tables: native DSDT/Clover sleep fix

1. SSDT/PM, 2. SSDT-1/Graphics/Audio, 3. SSDT-2/WiFi

S/L/E/native + AppleHDA.kext/Resources/

1. layout2.zml.zlib, 2. Platforms.zml.zlib

EFI/Clover/kexts/10.9/

1. AppleIntelE1000e.kext, 2. bcm4352bt.kext, 3. FakeSMC.kext, 4. realtekALC.kext



config.plist

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>ACPI</key>
	<dict>
		<key>DSDT</key>
		<dict>
			<key>Debug</key>
			<false/>
			<key>ReuseFFFF</key>
			<false/>
			<key>Patches</key>
			<array>
				<dict>
					<key>Comment</key>
					<string>Asus/dsdt/sleep fix </string>
					<key>Find</key>
					<data>DAwAAIBcLl9TQl9QSU5YXC5fU0JfSVNNSQqQcA==</data>
					<key>Replace</key>
					<data></data>
				</dict>
			</array>
			<key>DropOEM_DSM</key>
			<false/>
		</dict>
		<key>DropTables</key>
		<array>
			<dict>
				<key>Signature</key>
				<string>SSDT</string>
				<key>TableId</key>
				<string>SaSsdt </string>
			</dict>
			<dict>
				<key>Signature</key>
				<string>SSDT</string>
				<key>TableId</key>
				<string>CpuPm</string>
			</dict>
			<dict>
				<key>Signature</key>
				<string>SSDT</string>
				<key>TableId</key>
				<string>Cpu0Ist</string>
			</dict>
		</array>
		<key>SSDT</key>
		<dict>
			<key>DropOem</key>
			<false/>
			<key>Generate</key>
			<dict>
				<key>PStates</key>
				<false/>
				<key>CStates</key>
				<false/>
			</dict>
			<key>MinMultiplier</key>
			<integer>8</integer>
			<key>PLimitDict</key>
			<integer>0</integer>
			<key>UnderVoltStep</key>
			<integer>0</integer>
		</dict>
	</dict>
	<key>Boot</key>
	<dict>
		<key>Legacy</key>
		<string>PBR</string>
		<key>Log</key>
		<true/>
		<key>Timeout</key>
		<integer>10</integer>
		<key>XMPDetection</key>
		<string>NO</string>
		<key>Secure</key>
		<false/>
	</dict>
	<key>Devices</key>
	<dict>
		<key>USB</key>
		<dict>
			<key>Inject</key>
			<false/>
			<key>FixOwnership</key>
			<false/>
		</dict>
		<key>FakeID</key>
		<dict>
			<key>ATI</key>
			<string>0x0</string>
			<key>IntelGFX</key>
			<string>0x0</string>
			<key>NVidia</key>
			<string>0x0</string>
			<key>LAN</key>
			<string>0x0</string>
			<key>SATA</key>
			<string>0x0</string>
			<key>WIFI</key>
			<string>0x0</string>
			<key>XHCI</key>
			<string>0x0</string>
		</dict>
		<key>UseIntelHDMI</key>
		<false/>
	</dict>
	<key>DisableDrivers</key>
	<array>
		<string>Nothing</string>
	</array>
	<key>Graphics</key>
	<dict>
		<key>Inject</key>
		<dict>
			<key>Intel</key>
			<false/>
			<key>ATI</key>
			<false/>
			<key>NVidia</key>
			<false/>
		</dict>
	</dict>
	<key>GUI</key>
	<dict>
		<key>Language</key>
		<string>en:0</string>
		<key>Theme</key>
		<string>metal</string>
		<key>Mouse</key>
		<dict>
			<key>Enabled</key>
			<false/>
		</dict>
		<key>Scan</key>
		<dict>
			<key>Entries</key>
			<true/>
			<key>Tool</key>
			<true/>
			<key>Legacy</key>
			<string>First</string>
		</dict>
		<key>Hide</key>
		<array>
			<string>Windows</string>
			<string>\EFI\BOOT\BOOTX64.EFI</string>
		</array>
	</dict>
	<key>KernelAndKextPatches</key>
	<dict>
		<key>AppleRTC</key>
		<true/>
		<key>KextsToPatch</key>
		<array>
			<dict>
				<key>Name</key>
				<string>IOAHCIBlockStorage</string>
				<key>Find</key>
				<data>QVBQTEUgU1NE</data>
				<key>Replace</key>
				<data>AAAAAAAAAAAA</data>
				<key>Comment</key>
				<string>TrimEnabler</string>
			</dict>
			<dict>
				<key>Name</key>
				<string>AppleAHCIPort</string>
				<key>Find</key>
				<data>RXh0ZXJuYWw=</data>
				<key>Replace</key>
				<data>SW50ZXJuYWw=</data>
				<key>Comment</key>
				<string>External icons patch</string>
			</dict>
			<dict>
				<key>Name</key>
				<string>AppleHDA</string>
				<key>Find</key>
				<data>ixnUEQ==</data>
				<key>Replace</key>
				<data>AAnsEA==</data>
				<key>Comment</key>
				<string>10.9/ALC1150 Binary</string>
			</dict>
			<dict>
				<key>Name</key>
				<string>AppleHDAController</string>
				<key>Find</key>
				<data>PQwMAAB1Yesw</data>
				<key>Replace</key>
				<data>PQwMAAB1YesO</data>
				<key>Comment</key>
				<string>10.9/8series HDMI Audio 1/2</string>
			</dict>
			<dict>
				<key>Name</key>
				<string>AppleHDAController</string>
				<key>Find</key>
				<data>PQwNAAB1Ug==</data>
				<key>Replace</key>
				<data>PQwMAAB1Ug==</data>
				<key>Comment</key>
				<string>10.9/8series HDMI Audio 2/2 </string>
			</dict>
			<dict>
				<key>Name</key>
				<string>AppleIntelFramebufferAzul</string>
				<key>Find</key>
				<data>AgQKAAAEAACHAAAA</data>
				<key>Replace</key>
				<data>AgQKAAAIAAAGAAAA</data>
				<key>Comment</key>
				<string>10.9.2/Azul/Port 06/DP to HDMI</string>
			</dict>
			<dict>
				<key>Name</key>
				<string>AppleIntelFramebufferAzul</string>
				<key>Find</key>
				<data>AwYIAAAEAAARAAAA</data>
				<key>Replace</key>
				<data>AwYIAAAIAAAGAAAA</data>
				<key>Comment</key>
				<string>10.9.2/Azul/Port 07/DP to HDMI</string>
			</dict>
			<dict>
				<key>Name</key>
				<string>AMD7000Controller</string>
				<key>Find</key>
				<data>AAQAAAQDAAAAAQIAIgUDBQ==</data>
				<key>Replace</key>
				<data>AAgAAAQCAAAAAQIAIgUDBQ==</data>
				<key>Comment</key>
				<string>10.9/Dashimaki/Port 0/DP to HDMI</string>
			</dict>
			<dict>
				<key>Name</key>
				<string>AMD7000Controller</string>
				<key>Find</key>
				<data>AAgAAAQCAAAAAQQAEQIBAQ==</data>
				<key>Replace</key>
				<data>AAQAAAQDAAAAAQQAEQIBAQ==</data>
				<key>Comment</key>
				<string>10.9/Dashimaki/Port 3/HDMI to DP</string>
			</dict>
			<dict>
				<key>Name</key>
				<string>AirPortBrcm4360</string>
				<key>Find</key>
				<data>AVhU</data>
				<key>Replace</key>
				<data>AVhY</data>
				<key>Comment</key>
				<string>10.9/BCM94352/5 GHz</string>
			</dict>
			<dict>
				<key>Name</key>
				<string>AppleHDA</string>
				<key>Find</key>
				<data>eG1sLnps</data>
				<key>Replace</key>
				<data>em1sLnps</data>
				<key>Comment</key>
				<string>10.9/AppleHDA/Resources/xml to zml</string>
			</dict>
		</array>
	</dict>
	<key>RtVariables</key>
	<dict>
		<key>LogEveryBoot</key>
		<string>10</string>
		<key>LogLineCount</key>
		<integer>3000</integer>
		<key>MountEFI</key>
		<string>No</string>
	</dict>
	<key>SMBIOS</key>
	<dict>
		<key>Trust</key>
		<false/>
	</dict>
	<key>SystemParameters</key>
	<dict>
		<key>InjectSystemID</key>
		<true/>
		<key>InjectKexts</key>
		<string>YES</string>
	</dict>
</dict>
</plist>

Share this post


Link to post
Share on other sites
for HTPC



Clover: revision 2652 in UEFI

Motherboard:  Gigabyte H87M-HD3

CPU: i3 4330 @ 3.5 Ghz

RAM: 4 GB Vendor: Kingston

Audio OnBoard: YES Type: ALC887 with ssdt-layout injector, ssdt-3.aml and patched with ALCpatchers_H87M-HD3.zip. layout1 for one Green output & layout3 for 3 outputs, Green/Pink/Blue.

Graphics Card1: Onboard Intel HD 4600 activation method: ssdt platform-id & HDMI audio injector, ssdt-1.aml.

Audio On Graphics Card1: YES, Clover patches on the fly for supporting HDMI audio, see in config.plist. Thanks toleda for patching stuff.

Mac Model: MacBookAir6,2

config.plist: is in H87M-HD3.zip

Patched tables: custom SSDTs are in /H87M-HD3/ACPI/patched/, note: ssdt.aml is only for i3 4330 and was generated by Piker-Alpha’ ssdtPRGen.sh.

OS: OS X 10.9.2 and Android 4.4.2 (android-x86-4.4-RC1.iso)

Sleep/Wake: OK







Update: 2015, FEB 04




minimizing dsdt.aml; based on pikeralpha's guide

and editing config.plist for HD4600-HDMI audio (OS X 10.9 & 10.10); credit to TimeWalker75a & toleda

Share this post


Link to post
Share on other sites

Hi Everyone,

Clover revision 2656 in Legcay..MBR Partition Scheme

Motherboard: GA-H61M-D2H Bios ver F5

CPU: i5 2500k SSDT/Piker-Alpha/ssdtPRGen.sh/Clover Drop Tables

RAM: 8 GB Vendor: Corsair Vengeance 1600 MHz

Audio OnBoard: Yes Type: ALC889 but i'm Using VoodooHDA2.8.5

Graphics card1: Zotac GT210 1GB, Clover

Graphics card2: Intel HD 3000, activation: Disabled

WiFi: TP-LINK TL-WN781ND activation:Dev id edit in Kext.

Mac Model: iMac12,2

OS X 10.9.2


config.plist

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>KernelAndKextPatches</key>
	<dict>
		<key>AppleRTC</key>
		<true/>
		<key>KextsToPatch</key>
		<array>
			<dict>
				<key>Name</key>
				<string>AppleAHCIPort</string>
				<key>Find</key>
				<data>
				RXh0ZXJuYWw=
				</data>
				<key>Replace</key>
				<data>
				SW50ZXJuYWw=
				</data>
				<key>Comment</key>
				<string>External icons patch</string>
			</dict>
		</array>
	</dict>
	<key>RtVariables</key>
	<dict>
		<key>LogEveryBoot</key>
		<string>10</string>
		<key>LogLineCount</key>
		<integer>3000</integer>
		<key>MountEFI</key>
		<string>Yes</string>
	</dict>
	<key>SMBIOS</key>
	<dict>
		<key>BoardType</key>
		<integer>10</integer>
		<key>ChassisType</key>
		<integer>13</integer>
		<key>BiosReleaseDate</key>
		<string>10/17/11</string>
		<key>Version</key>
		<string>1.0</string>
		<key>SerialNumber</key>
		<string>C02J7Z1SDHJP</string>
		<key>Manufacturer</key>
		<string>Apple Computer, Inc.</string>
		<key>BoardManufacturer</key>
		<string>Apple Computer, Inc.</string>
		<key>ChassisAssetTag</key>
		<string>iMac-Aluminum</string>
		<key>BiosVendor</key>
		<string>Apple Computer, Inc.</string>
		<key>ChassisManufacturer</key>
		<string>Apple Computer, Inc.</string>
		<key>BiosVersion</key>
		<string>IM121.88Z.0047.B1D.1110171110</string>
		<key>Board-ID</key>
		<string>Mac-942B59F58194171B</string>
		<key>Family</key>
		<string>iMac</string>
		<key>ProductName</key>
		<string>iMac12,2</string>
		<key>Trust</key>
		<false/>
	</dict>
	<key>ACPI</key>
	<dict>
		<key>DSDT</key>
		<dict>
			<key>Debug</key>
			<false/>
			<key>ReuseFFFF</key>
			<false/>
			<key>Name</key>
			<string>DSDT.aml</string>
			<key>Fixes</key>
			<dict>
				<key>AddDTGP_0001</key>
				<true/>
				<key>AddMCHC_0008</key>
				<false/>
				<key>FakeLPC_0020</key>
				<false/>
				<key>FixAirport_4000</key>
				<false/>
				<key>FixDarwin_0002</key>
				<false/>
				<key>FixDisplay_0100</key>
				<true/>
				<key>FixFirewire_0800</key>
				<false/>
				<key>FixHDA_8000</key>
				<true/>
				<key>FixHPET_0010</key>
				<true/>
				<key>FixIDE_0200</key>
				<false/>
				<key>FixIPIC_0040</key>
				<false/>
				<key>FixLAN_2000</key>
				<true/>
				<key>FixSATA_0400</key>
				<false/>
				<key>FixSBUS_0080</key>
				<false/>
				<key>FixShutdown_0004</key>
				<true/>
				<key>FixUSB_1000</key>
				<false/>
				<key>NewWay_80000000</key>
				<true/>
				<key>FixRegions_10000000</key>
				<true/>
				<key>FIX_RTC_20000</key>
				<true/>
				<key>FiX_TMR_40000</key>
				<true/>
				<key>AddIMEI_80000</key>
				<true/>
				<key>FIX_INTELGFX_100000</key>
				<false/>
				<key>FiX_WAK_200000</key>
				<true/>
				<key>DeleteUnused_400000</key>
				<true/>
				<key>FIX_ADP1_800000</key>
				<true/>
				<key>AddPNLF_1000000</key>
				<true/>
				<key>FIX_S3D_2000000</key>
				<true/>
				<key>FIX_ACST_4000000</key>
				<true/>
				<key>AddHDMI_8000000</key>
				<true/>
			</dict>
			<key>DropOEM_DSM</key>
			<dict>
				<key>ATI</key>
				<false/>
				<key>Firewire</key>
				<false/>
				<key>HDA</key>
				<false/>
				<key>HDMI</key>
				<false/>
				<key>IDE</key>
				<false/>
				<key>IntelGFX</key>
				<false/>
				<key>LAN</key>
				<false/>
				<key>LPC</key>
				<false/>
				<key>NVidia</key>
				<true/>
				<key>SATA</key>
				<false/>
				<key>SmBUS</key>
				<false/>
				<key>USB</key>
				<false/>
				<key>WIFI</key>
				<false/>
			</dict>
		</dict>
		<key>DropTables</key>
		<array>
			<dict>
				<key>Signature</key>
				<string>DMAR</string>
			</dict>
			<dict>
				<key>Signature</key>
				<string>SSDT</string>
				<key>TableId</key>
				<string>CpuPm</string>
			</dict>
			<dict>
				<key>Signature</key>
				<string>SSDT</string>
				<key>TableId</key>
				<string>Cpu0Ist</string>
			</dict>
		</array>
		<key>SSDT</key>
		<dict>
			<key>DropOem</key>
			<true/>
			<key>Generate</key>
			<dict>
				<key>PStates</key>
				<false/>
				<key>CStates</key>
				<false/>
			</dict>
			<key>EnableC6</key>
			<true/>
		</dict>
	</dict>
	<key>Boot</key>
	<dict>
		<key>Arguments</key>
		<string>-v</string>
		<key>DefaultVolume</key>
		<string>System Reserved</string>
		<key>Legacy</key>
		<string>PBR</string>
		<key>Log</key>
		<false/>
		<key>Timeout</key>
		<integer>1</integer>
		<key>XMPDetection</key>
		<string>No</string>
		<key>Secure</key>
		<false/>
	</dict>
	<key>Devices</key>
	<dict>
		<key>Audio</key>
		<dict>
			<key>Inject</key>
			<string>No</string>
		</dict>
		<key>FakeID</key>
		<dict>
			<key>ATI</key>
			<string>0x0</string>
			<key>IntelGFX</key>
			<string>0x0</string>
			<key>NVidia</key>
			<string>0x0</string>
			<key>LAN</key>
			<string>0x0</string>
			<key>SATA</key>
			<string>0x0</string>
			<key>WIFI</key>
			<string>0x0</string>
			<key>XHCI</key>
			<string>0x0</string>
			<key>IMEI</key>
			<string>0x0</string>
		</dict>
		<key>UseIntelHDMI</key>
		<false/>
		<key>USB</key>
		<dict>
			<key>Inject</key>
			<false/>
			<key>FixOwnership</key>
			<false/>
		</dict>
	</dict>
	<key>DisableDrivers</key>
	<array>
		<string>Nothing</string>
	</array>
	<key>GUI</key>
	<dict>
		<key>Language</key>
		<string>en:0</string>
		<key>ScreenResolution</key>
		<string>1366x768</string>
		<key>Theme</key>
		<string>LightUp</string>
		<key>Mouse</key>
		<dict>
			<key>DoubleClick</key>
			<integer>500</integer>
			<key>Speed</key>
			<integer>8</integer>
			<key>Enabled</key>
			<true/>
		</dict>
		<key>Scan</key>
		<dict>
			<key>Entries</key>
			<true/>
			<key>Tool</key>
			<true/>
			<key>Legacy</key>
			<string>First</string>
		</dict>
		<key>Hide</key>
		<array>
			<string>Windows</string>
			<string>\EFI\BOOT\BOOTX64.EFI</string>
			<string>SONGS</string>
			<string>WALLPAPERS</string>
			<string>DOCUMENTS</string>
			<string>SOFTWARES</string>
		</array>
	</dict>
	<key>Graphics</key>
	<dict>
		<key>Inject</key>
		<dict>
			<key>Intel</key>
			<false/>
			<key>ATI</key>
			<false/>
			<key>NVidia</key>
			<true/>
		</dict>
	</dict>
	<key>SystemParameters</key>
	<dict>
		<key>InjectSystemID</key>
		<true/>
		<key>InjectKexts</key>
		<string>Detect</string>
	</dict>
</dict>
</plist>

Note :if you want to make automatically boot Clover into Windows Drive then Ntfs.efi is required in Efi/Clover/Drivera64 download from attachment



PS:I have not found any Config.plist for Legacy Bios System e.g Award or Phoenix ,then i think to post it here ,,



Thank you



Ntfs.efi.zip

config.plist.zip

Share this post


Link to post
Share on other sites

Clover: revision 2652 in UEFI
CPU: I7-4770K @3.5GHz, SSDT/Piker-Alpha/ssdtPRGen.sh/Clover Drop Tables
Motherboard: Asus Z87 Deluxe Bios 1802
Ram: 4x4 GB Corsair Vengeance 1600 MHz
Graphics card1: nVidia GTX 660, EFI/Clover/ACPI/patched/SSDT-1
Graphics card2: Onboard Intel HD4600, activation: Disable
Audio onBoard: Yes Type: ALC1150, toleda/audio_CloverALC / toleda/audio_ALC1150
Wifi: Broadcom BCM4352, EFI/Clover/ACPI/patched/SSDT-2
Mac Model: iMac 14.2
OS X: 10.9.2

Sleep/Wake: OK



Patched tables: native DSDT
1) SSDT/ PM
2) SSDT-1/ Graphics/Audio
3) SSDT-2/ Wifi
EFI/Clover/kext/10.9/RealtekRTL8111.kext, AppleIntelE1000e.kext, bcm4352bt.kext, realtekALC.kext, FakeSMC.kext

config.plist

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>Devices</key>
	<dict>
		<key>USB</key>
		<dict>
			<key>Inject</key>
			<true/>
			<key>FixOwnership</key>
			<false/>
			<key>AddClockID</key>
			<true/>
		</dict>
		<key>FakeID</key>
		<dict>
			<key>ATI</key>
			<string>0x0</string>
			<key>IntelGFX</key>
			<string>0x0</string>
			<key>NVidia</key>
			<string>0x0</string>
			<key>LAN</key>
			<string>0x0</string>
			<key>SATA</key>
			<string>0x0</string>
			<key>WIFI</key>
			<string>0x0</string>
			<key>XHCI</key>
			<string>0x0</string>
			<key>IMEI</key>
			<string>0x0</string>
		</dict>
		<key>UseIntelHDMI</key>
		<false/>
	</dict>
	<key>DisableDrivers</key>
	<array>
		<string>Nothing</string>
	</array>
	<key>GUI</key>
	<dict>
		<key>Language</key>
		<string>it:0</string>
		<key>Theme</key>
		<string>black_green</string>
		<key>Mouse</key>
		<dict>
			<key>Enabled</key>
			<false/>
		</dict>
		<key>Scan</key>
		<dict>
			<key>Entries</key>
			<true/>
			<key>Tool</key>
			<true/>
			<key>Legacy</key>
			<false/>
		</dict>
		<key>Hide</key>
		<array>
			<string>Windows</string>
			<string>\EFI\BOOT\BOOTX64.EFI</string>
		</array>
	</dict>
	<key>Graphics</key>
	<dict>
		<key>Inject</key>
		<dict>
			<key>Intel</key>
			<false/>
			<key>ATI</key>
			<false/>
			<key>NVidia</key>
			<false/>
		</dict>
	</dict>
	<key>KernelAndKextPatches</key>
	<dict>
		<key>AppleRTC</key>
		<true/>
		<key>KextsToPatch</key>
		<array>
			<dict>
				<key>Name</key>
				<string>IOAHCIBlockStorage</string>
				<key>Find</key>
				<data>
				QVBQTEUgU1NE
				</data>
				<key>Replace</key>
				<data>
				AAAAAAAAAAAA
				</data>
				<key>Comment</key>
				<string>TrimEnabler</string>
			</dict>
			<dict>
				<key>Name</key>
				<string>AppleAHCIPort</string>
				<key>Find</key>
				<data>
				RXh0ZXJuYWw=
				</data>
				<key>Replace</key>
				<data>
				SW50ZXJuYWw=
				</data>
				<key>Comment</key>
				<string>External icons patch</string>
			</dict>
			<dict>
				<key>Name</key>
				<string>AppleHDA</string>
				<key>Find</key>
				<data>
				eG1sLnps
				</data>
				<key>Replace</key>
				<data>
				em1sLnps
				</data>
				<key>Comment</key>
				<string>10.9/AppleHDA/Resources/xml>zml</string>
			</dict>
			<dict>
				<key>Name</key>
				<string>AppleHDA</string>
				<key>Find</key>
				<data>
				ixnUEQ==
				</data>
				<key>Replace</key>
				<data>
				AAnsEA==
				</data>
				<key>Comment</key>
				<string>10.9/AppleHDA/Realtek ALC1150</string>
			</dict>
		</array>
	</dict>
	<key>RtVariables</key>
	<dict>
		<key>LogEveryBoot</key>
		<string>10</string>
		<key>LogLineCount</key>
		<integer>3000</integer>
		<key>MountEFI</key>
		<string>Yes</string>
	</dict>
	<key>SMBIOS</key>
	<dict>
		<key>Trust</key>
		<false/>
	</dict>
	<key>ACPI</key>
	<dict>
		<key>DSDT</key>
		<dict>
			<key>Debug</key>
			<false/>
			<key>ReuseFFFF</key>
			<false/>
			<key>DropOEM_DSM</key>
			<false/>
		</dict>
		<key>DropTables</key>
		<array>
			<dict>
				<key>Signature</key>
				<string>SSDT</string>
				<key>TableId</key>
				<string>SaSsdt </string>
			</dict>
			<dict>
				<key>Signature</key>
				<string>SSDT</string>
				<key>TableId</key>
				<string>CpuPm</string>
			</dict>
			<dict>
				<key>Signature</key>
				<string>SSDT</string>
				<key>TableId</key>
				<string>Cpu0Ist</string>
			</dict>
		</array>
		<key>SSDT</key>
		<dict>
			<key>DropOem</key>
			<false/>
			<key>Generate</key>
			<dict>
				<key>PStates</key>
				<false/>
				<key>CStates</key>
				<false/>
			</dict>
			<key>MinMultiplier</key>
			<integer>8</integer>
			<key>PLimitDict</key>
			<integer>0</integer>
			<key>UnderVoltStep</key>
			<integer>0</integer>
		</dict>
	</dict>
	<key>Boot</key>
	<dict>
		<key>DefaultVolume</key>
		<string>MacHD</string>
		<key>Legacy</key>
		<string>PBR</string>
		<key>Log</key>
		<true/>
		<key>Timeout</key>
		<integer>5</integer>
		<key>XMPDetection</key>
		<string>No</string>
		<key>Secure</key>
		<false/>
	</dict>
	<key>SystemParameters</key>
	<dict>
		<key>InjectSystemID</key>
		<true/>
		<key>InjectKexts</key>
		<string>Yes</string>
	</dict>
</dict>
</plist>

Share this post


Link to post
Share on other sites

Hi Dear @ll,



First its nice idea to gather Clover Successful Builds & Config.plist but for me still as i see it isn't a Must to be 100%, but we are here in talks to care and share our ideas  to improve our experiences in clover smile.png

My Rigs Clover Setup AFAIK:



Clover Status: It boots natively faster than my chameleon setup, all suggestions for improving my config are welcome though smile.png
OS X version: 10.9.3 13Dx, for x=latest as always smile.png
Clover version: Latest v2652 Btw, hope Slice & his Team continue overhauling this awesome efi-bootloader smile.png
Theme: Needless for me skipped smile.png
Clover installations: ESP of HDD Btw, hope next time UEFI-boot on my Dell locked Aptio-bios !
CPU: Intel SandyBridge i3 2330M 2.2GHz
RAM: Nanya 1333MHz 2G

Motherboard: Laptop Dell Inspiron N4050 locked motherboard by manufacturers !
Audio-Onboard: IDT 92HD87B1 loaded by latest VoodooHDA for now and does finely cleaner audio. Better to patch AppleHDA. Any Help is welcome smile.png
HDMI Audio: For now not needed till finding an easy way to get it. Any Help is welcome

GPU: Intel HD Graphics 3000 | SwitchResX: 1980x1080 @60Hz | Backlight: natively loaded AppleBacklight | Glitches unknown error origin ! Btw there aren't on Chameleon !

Mac Model(Smbios): Macbook Pro 8.1 or sometimes 8.2 / 8.3 Still no impact on my rig though!
Boot flags(Arguments): -v timeout=0 direct boot not fast one !

Kext Patches: AICPUPM patched loaded
DSDT: MUST to Compile many errors hinder it ! For now i don't have DSDT in my Clover folder ! Any help to compile my patched DSDT is welcome smile.png

SSDT: CStates / P- generated

Config.plist:

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
    <key>ACPI</key>
    <dict>
        <key>DSDT</key>
        <dict>
            <key>Debug</key>
            <false/>
            <key>Fixes</key>
            <dict>
                <key>AddDTGP_0001</key>
                <true/>
                <key>AddHDMI_8000000</key>
                <true/>
                <key>AddIMEI_80000</key>
                <true/>
                <key>AddMCHC_0008</key>
                <true/>
                <key>AddPNLF_1000000</key>
                <true/>
                <key>DeleteUnused_400000</key>
                <true/>
                <key>FIX_ACST_4000000</key>
                <false/>
                <key>FIX_ADP1_800000</key>
                <false/>
                <key>FIX_INTELGFX_100000</key>
                <false/>
                <key>FIX_RTC_20000</key>
                <false/>
                <key>FIX_S3D_2000000</key>
                <false/>
                <key>FIX_TMR_40000</key>
                <false/>
                <key>FIX_WAK_200000</key>
                <false/>
                <key>FakeLPC_0020</key>
                <false/>
                <key>FixAirport_4000</key>
                <false/>
                <key>FixDarwin_0002</key>
                <false/>
                <key>FixDisplay_0100</key>
                <false/>
                <key>FixFirewire_0800</key>
                <false/>
                <key>FixHDA_8000</key>
                <false/>
                <key>FixHPET_0010</key>
                <false/>
                <key>FixIDE_0200</key>
                <false/>
                <key>FixIPIC_0040</key>
                <false/>
                <key>FixLAN_2000</key>
                <false/>
                <key>FixRegions_10000000</key>
                <false/>
                <key>FixSATA_0400</key>
                <false/>
                <key>FixSBUS_0080</key>
                <false/>
                <key>FixShutdown_0004</key>
                <false/>
                <key>FixUSB_1000</key>
                <false/>
                <key>NewWay_80000000</key>
                <true/>
            </dict>
            <key>Name</key>
            <string>DSDT.aml</string>
        </dict>
        <key>DropTables</key>
        <array>
            <dict>
                <key>Signature</key>
                <string>DMAR</string>
            </dict>
            <dict>
                <key>Signature</key>
                <string>SSDT</string>
                <key>TableId</key>
                <string>CpuPm</string>
            </dict>
            <dict>
                <key>Signature</key>
                <string>SSDT</string>
                <key>TableId</key>
                <string>Cpu0Ist</string>
            </dict>
        </array>
        <key>HaltEnabler</key>
        <false/>
        <key>SSDT</key>
        <dict>
            <key>DropOem</key>
            <false/>
            <key>EnableC2</key>
            <false/>
            <key>EnableC4</key>
            <false/>
            <key>EnableC6</key>
            <true/>
            <key>EnableC7</key>
            <false/>
            <key>Generate</key>
            <dict>
                <key>CStates</key>
                <true/>
                <key>PStates</key>
                <true/>
            </dict>
        </dict>
    </dict>
    <key>Boot</key>
    <dict>
        <key>Arguments</key>
        <string>-v</string>
        <key>DefaultVolume</key>
        <string>˙</string>
        <key>Fast</key>
        <false/>
        <key>Legacy</key>
        <string>PBR</string>
        <key>Log</key>
        <false/>
        <key>Timeout</key>
        <integer>0</integer>
        <key>XMPDetection</key>
        <true/>
    </dict>
    <key>Devices</key>
    <dict>
        <key>Audio</key>
        <dict>
            <key>Inject</key>
            <string>12</string>
        </dict>
        <key>FakeID</key>
        <dict>
            <key>IMEI</key>
            <string>0x0</string>
            <key>IntelGFX</key>
            <string>0x0</string>
            <key>LAN</key>
            <string>0x0</string>
            <key>SATA</key>
            <string>0x0</string>
            <key>WIFI</key>
            <string>0x0</string>
            <key>XHCI</key>
            <string>0x0</string>
        </dict>
        <key>Inject</key>
        <false/>
        <key>USB</key>
        <dict>
            <key>AddClockID</key>
            <true/>
            <key>FixOwnership</key>
            <false/>
            <key>Inject</key>
            <false/>
        </dict>
        <key>UseIntelHDMI</key>
        <false/>
    </dict>
    <key>DisableDrivers</key>
    <array>
        <string>Nothing</string>
    </array>
    <key>GUI</key>
    <dict>
        <key>Hide</key>
        <array>
            <string>Windows</string>
            <string>\EFI\BOOT\BOOTX64.EFI</string>
        </array>
        <key>Language</key>
        <string>en:0</string>
        <key>Mouse</key>
        <dict>
            <key>DoubleClick</key>
            <integer>500</integer>
            <key>Enabled</key>
            <false/>
            <key>Speed</key>
            <integer>8</integer>
        </dict>
        <key>Scan</key>
        <dict>
            <key>Entries</key>
            <true/>
            <key>Legacy</key>
            <true/>
            <key>Tool</key>
            <true/>
        </dict>
        <key>ScreenResolution</key>
        <string>1366x768</string>
        <key>TextOnly</key>
        <false/>
        <key>Theme</key>
        <string>bootcamp</string>
    </dict>
    <key>Graphics</key>
    <dict>
        <key>Inject</key>
        <dict>
            <key>Intel</key>
            <false/>
        </dict>
    </dict>
    <key>KernelAndKextPatches</key>
    <dict>
        <key>AppleRTC</key>
        <false/>
        <key>AsusAICPUPM</key>
        <true/>
        <key>Debug</key>
        <false/>
        <key>KernelCpu</key>
        <false/>
        <key>KextsToPatch</key>
        <array>
            <string>Nothing</string>
        </array>
    </dict>
    <key>RtVariables</key>
    <dict>
        <key>LogEveryBoot</key>
        <string>10</string>
        <key>LogLineCount</key>
        <integer>3000</integer>
        <key>MountEFI</key>
        <true/>
    </dict>
    <key>SystemParameters</key>
    <dict>
        <key>InjectKexts</key>
        <true/>
        <key>InjectSystemID</key>
        <true/>
    </dict>
</dict>
</plist>

Share this post


Link to post
Share on other sites

Clover revision: 2675 in UEFI
Motherboard: Gigabyte Z68x-Ud4-B3 Rev.1
CPU: i5-2500K
RAM: 16 GB Vendorddr3 1600 corsair vengeance blue edition

Audio OnBoard: YES Type: ALC889 patched by Toleda-Clover
Graphics card1: Asus EN9800gt 1gb vram

Graphics card2: Onboard Intel HD 3000 activation method: not enabled.
Audio On Graphics Card1: No
Mac Model: iMac 12,2
Patched tables: My custom DSDT + custom SSDT

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
<key>ACPI</key>
<dict>
<key>DSDT</key>
<dict>
<key>Debug</key>
<false/>
<key>DropOEM_DSM</key>
<false/>
<key>Fixes</key>
<dict>
<key>AddDTGP_0001</key>
<false/>
<key>AddHDMI_8000000</key>
<false/>
<key>AddIMEI_80000</key>
<false/>
<key>AddMCHC_0008</key>
<false/>
<key>AddPNLF_1000000</key>
<false/>
<key>DeleteUnused_400000</key>
<false/>
<key>FIX_ACST_4000000</key>
<false/>
<key>FIX_ADP1_800000</key>
<false/>
<key>FIX_INTELGFX_100000</key>
<false/>
<key>FIX_RTC_20000</key>
<false/>
<key>FIX_S3D_2000000</key>
<false/>
<key>FakeLPC_0020</key>
<false/>
<key>FiX_TMR_40000</key>
<false/>
<key>FiX_WAK_200000</key>
<false/>
<key>FixAirport_4000</key>
<false/>
<key>FixDarwin_0002</key>
<false/>
<key>FixDisplay_0100</key>
<false/>
<key>FixFirewire_0800</key>
<false/>
<key>FixHDA_8000</key>
<false/>
<key>FixHPET_0010</key>
<false/>
<key>FixIDE_0200</key>
<false/>
<key>FixIPIC_0040</key>
<false/>
<key>FixLAN_2000</key>
<false/>
<key>FixRegions_10000000</key>
<true/>
<key>FixSATA_0400</key>
<false/>
<key>FixSBUS_0080</key>
<false/>
<key>FixShutdown_0004</key>
<false/>
<key>FixUSB_1000</key>
<false/>
<key>NewWay_80000000</key>
<true/>
</dict>
<key>Name</key>
<string>DSDT.aml</string>
<key>ReuseFFFF</key>
<false/>
</dict>
<key>SSDT</key>
<dict>
<key>DropOem</key>
<true/>
<key>Generate</key>
<dict>
<key>CStates</key>
<false/>
<key>PStates</key>
<false/>
</dict>
</dict>
</dict>
<key>Boot</key>
<dict>
<key>Arguments</key>
<string>nvda_drv=1</string>
<key>DefaultVolume</key>
<string>Macintosh HD</string>
<key>Legacy</key>
<string>PBR</string>
<key>Log</key>
<false/>
<key>Secure</key>
<false/>
<key>Timeout</key>
<integer>0</integer>
<key>XMPDetection</key>
<string>No</string>
</dict>
<key>CPU</key>
<dict>
<key>QPI</key>
<integer>0</integer>
</dict>
<key>Devices</key>
<dict>
<key>Audio</key>
<dict>
<key>Inject</key>
<string>1</string>
</dict>
<key>FakeID</key>
<dict>
<key>ATI</key>
<string>0x0</string>
<key>IntelGFX</key>
<string>0x0</string>
<key>LAN</key>
<string>0x0</string>
<key>NVidia</key>
<string>0x0</string>
<key>SATA</key>
<string>0x0</string>
<key>WIFI</key>
<string>0x0</string>
<key>XHCI</key>
<string>0x0</string>
</dict>
<key>USB</key>
<dict>
<key>FixOwnership</key>
<false/>
<key>Inject</key>
<false/>
</dict>
<key>UseIntelHDMI</key>
<false/>
</dict>
<key>DisableDrivers</key>
<array>
<string>Nothing</string>
</array>
<key>GUI</key>
<dict>
<key>Hide</key>
<array>
<string>xxxxxxxx</string>
<string>xxxxxxxx</string>
<string>xxxxxxxx</string>
<string>xxxxxxxx</string>
</array>
<key>Language</key>
<string>es:0</string>
<key>Mouse</key>
<dict>
<key>Enabled</key>
<false/>
</dict>
<key>Scan</key>
<dict>
<key>Entries</key>
<true/>
<key>Legacy</key>
<false/>
<key>Tool</key>
<false/>
</dict>
<key>Theme</key>
<string>black_green</string>
</dict>
<key>Graphics</key>
<dict>
<key>Inject</key>
<dict>
<key>ATI</key>
<false/>
<key>Intel</key>
<false/>
<key>NVidia</key>
<true/>
</dict>
<key>LoadVBios</key>
<true/>
<key>PatchVBios</key>
<true/>
</dict>
<key>KernelAndKextPatches</key>
<dict>
<key>AppleRTC</key>
<false/>
<key>KextsToPatch</key>
<array>
<dict>
<key>Comment</key>
<string>External icons patch</string>
<key>Find</key>
<data>
RXh0ZXJuYWw=
</data>
<key>Name</key>
<string>AppleAHCIPort</string>
<key>Replace</key>
<data>
SW50ZXJuYWw=
</data>
</dict>
<dict>
<key>Comment</key>
<string>10.9/AppleHDA/Resources/xml>zml</string>
<key>Find</key>
<data>
eG1sLnps
</data>
<key>Name</key>
<string>AppleHDA</string>
<key>Replace</key>
<data>
em1sLnps
</data>
</dict>
<dict>
<key>Comment</key>
<string>10.9/AppleHDA/Realtek ALC889</string>
<key>Find</key>
<data>
ixnUEQ==
</data>
<key>Name</key>
<string>AppleHDA</string>
<key>Replace</key>
<data>
iQjsEA==
</data>
</dict>
<dict>
<key>Comment</key>
<string>Fix_trim</string>
<key>Find</key>
<data>
QVBQTEUgU1NEAA==
</data>
<key>Name</key>
<string>IOAHCIBlockStorage</string>
<key>Replace</key>
<data>
AAAAAAAAAAAAAA==
</data>
</dict>
<dict>
<key>Comment</key>
<string>Patch_against_assertions</string>
<key>Find</key>
<data>
U291bmQgYXNzZXJ0aW9uIA==
</data>
<key>Name</key>
<string>AppleHDA</string>
<key>Replace</key>
<data>
AAAAAAAAAAAAAAAAAAAAAA==
</data>
</dict>
</array>
</dict>
<key>SMBIOS</key>
<dict>
<key>BiosReleaseDate</key>
<string>01/24/12</string>
<key>BiosVendor</key>
<string>Apple Inc.</string>
<key>BiosVersion</key>
<string>IM121.88Z.0047.B1F.1201241648</string>
<key>Board-ID</key>
<string>Mac-942B59F58194171B</string>
<key>BoardManufacturer</key>
<string>Apple Inc.</string>
<key>BoardSerialNumber</key>
<string>xxxxxxxxxxxxx</string>
<key>BoardType</key>
<integer>10</integer>
<key>BoardVersion</key>
<string>1.0</string>
<key>ChassisAssetTag</key>
<string>iMac-Aluminum</string>
<key>ChassisManufacturer</key>
<string>Apple Inc.</string>
<key>ChassisType</key>
<integer>13</integer>
<key>Family</key>
<string>iMac</string>
<key>FirmwareFeatures</key>
<string>0xc001f537</string>
<key>LocationInChassis</key>
<string>Part Component</string>
<key>Manufacturer</key>
<string>Apple Inc.</string>
<key>ProductName</key>
<string>iMac12,2</string>
<key>SerialNumber</key>
<string>xxxxxxxxxxx</string>
<key>SmUUID</key>
<string>F8143210-5766-xxxx-xxxx-xxxxxxxxxxxx</string>
<key>Trust</key>
<false/>
<key>Version</key>
<string>1.0</string>
</dict>
<key>SystemParameters</key>
<dict>
<key>CustomUUID</key>
<string>F8143210-5766-xxxx-xxxx-xxxxxxxxxxx</string>
<key>InjectKexts</key>
<string>No</string>
<key>InjectSystemID</key>
<true/>
</dict>
</dict>
</plist>

Share this post


Link to post
Share on other sites

Clover version: 3050 UEFI

Motherboard: ASRock Z97 extreme6 BIOS works out of the box

CPU: Intel core i7 4770k 3.5 Ghz

RAM: G-Skill 8x4 32GB

Audio: Onboard Realtek ALC1150 with toleda https://github.com/toleda/audio_CloverALC

Video1: Onboard intel HD 4600 detected via clover injected running 2560x1440 @ 60 Hz using 1536MB connect monitor1 27" IPS via HDMI

Video2:  AMD Radeon R9 270 2048MB work by edit AMD7000Controller.kext and AMDRadeonX4000.kext  http://www.insanelymac.com/forum/topic/294315-radeon-r9-270x-framebuffer-issue/page-14?hl=%2Br9+%2B270#entry2084046

connect to monitor2 27" IPS via Dual DVI running 2560x1440 @ 60Hz

SSD: Samsung 840 EVO 500GB 2 partitions Windows8.1/Mac Yosemite

HD: Seagate 3GB/WD 500GB

DVD/Blueray: ASUS BC-12B1ST Blueray/DVD

Network1: Intel i218v works with Hackintosh vietname tool http://www.insanelymac.com/forum/files/file/210-hackintosh-vietnam-ultimate-aio-tool/

Network2: Realtek RTL8111G work with Hackintosh vietname tool

WiFi: Broadcom BCM94352 802.11/a/b/g/n/ac with Hackintosh vietname tool

Bluetooth: 4.0 with Hackintosh vietname tool



Config.plist:


<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>ACPI</key>
	<dict>
		<key>DSDT</key>
		<dict>
			<key>Debug</key>
			<false/>
			<key>DropOEM_DSM</key>
			<false/>
			<key>ReuseFFFF</key>
			<false/>
		</dict>
		<key>DropTables</key>
		<array>
			<dict>
				<key>Signature</key>
				<string>DMAR</string>
			</dict>
		</array>
		<key>SSDT</key>
		<dict>
			<key>DropOem</key>
			<true/>
			<key>Generate</key>
			<dict>
				<key>CStates</key>
				<false/>
				<key>PStates</key>
				<false/>
			</dict>
		</dict>
	</dict>
	<key>Boot</key>
	<dict>
		<key>Arguments</key>
		<string>-v kext-dev-mode=1</string>
		<key>Legacy</key>
		<string>LegacyBiosDefault</string>
		<key>Log</key>
		<false/>
		<key>NeverHibernate</key>
		<true/>
		<key>Secure</key>
		<false/>
		<key>Timeout</key>
		<integer>5</integer>
		<key>XMPDetection</key>
		<string>Yes</string>
	</dict>
	<key>Devices</key>
	<dict>
		<key>Audio</key>
		<dict>
			<key>Inject</key>
			<string>1</string>
		</dict>
		<key>USB</key>
		<dict>
			<key>AddClockID</key>
			<true/>
			<key>FixOwnership</key>
			<false/>
			<key>Inject</key>
			<true/>
		</dict>
	</dict>
	<key>GUI</key>
	<dict>
		<key>Custom</key>
		<dict>
			<key>Entries</key>
			<array>
				<dict>
					<key>Disabled</key>
					<false/>
					<key>FullTitle</key>
					<string>UEFI Internal</string>
					<key>Hidden</key>
					<string>Always</string>
					<key>Ignore</key>
					<false/>
					<key>NoCaches</key>
					<false/>
					<key>Type</key>
					<string>Other</string>
				</dict>
			</array>
		</dict>
		<key>Mouse</key>
		<dict>
			<key>Enabled</key>
			<false/>
			<key>Mirror</key>
			<false/>
		</dict>
		<key>Scan</key>
		<dict>
			<key>Entries</key>
			<true/>
			<key>Legacy</key>
			<false/>
			<key>Tool</key>
			<true/>
		</dict>
		<key>Theme</key>
		<string>applestyle</string>
	</dict>
	<key>Graphics</key>
	<dict>
		<key>DualLink</key>
		<integer>1</integer>
		<key>FBName</key>
		<string>Hamachi</string>
		<key>Inject</key>
		<dict>
			<key>ATI</key>
			<true/>
			<key>Intel</key>
			<true/>
			<key>NVidia</key>
			<false/>
		</dict>
		<key>LoadVBios</key>
		<true/>
		<key>NVCAP</key>
		<string>0000000</string>
		<key>VRAM</key>
		<real>-281474976710656</real>
		<key>VideoPorts</key>
		<integer>4</integer>
		<key>display-cfg</key>
		<string>ff00000000000000</string>
		<key>ig-platform-id</key>
		<string>0x0c260000</string>
	</dict>
	<key>KernelAndKextPatches</key>
	<dict>
		<key>AppleRTC</key>
		<true/>
		<key>KernelPm</key>
		<true/>
		<key>KextsToPatch</key>
		<array>
			<dict>
				<key>Comment</key>
				<string>Enable Trim on SSD</string>
				<key>Find</key>
				<data>QVBQTEUgU1NE</data>
				<key>Name</key>
				<string>IOAHCIBlockStorage</string>
				<key>Replace</key>
				<data>AAAAAAAAAAAA</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>Patch audio HDMI HD4400/4600 laptop</string>
				<key>Find</key>
				<data>AgAAADAAAAABBQkAAAQAAIcAAAACBAkAAAQAAIcAAAD/AAAAAQAAAEAAAAAPAAAAAQEAAAQAAAA=</data>
				<key>Name</key>
				<string>AppleIntelFramebufferAzul</string>
				<key>Replace</key>
				<data>AgAAADAAAAABBQkAAAQAAIcAAAACBAkAAAgAAIcAAAD/AAAAAQAAAEAAAAAPAAAAAQEAAAQAAAA=</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>Still waiting for root 2</string>
				<key>Find</key>
				<data>dA5IjT2lkAAA</data>
				<key>Name</key>
				<string>IOAHCIBlockStorage</string>
				<key>Replace</key>
				<data>v8gAAACQkJCQ</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>t1-10.9-10.10-AppleHDA/Resources/xml>zml</string>
				<key>Find</key>
				<data>eG1sLnps</data>
				<key>Name</key>
				<string>AppleHDA</string>
				<key>Replace</key>
				<data>em1sLnps</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>Still waiting for root 1</string>
				<key>Find</key>
				<data>60wAAOoD</data>
				<key>Name</key>
				<string>IOAHCIBlockStorage</string>
				<key>Replace</key>
				<data>60wAAOgB</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>BCM94352 5GHz Patch</string>
				<key>Find</key>
				<data>AVhU</data>
				<key>Name</key>
				<string>AirPortBrcm4360</string>
				<key>Replace</key>
				<data>AVhY</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>t1-10.9-10.10-AppleHDA/Realtek ALC1150</string>
				<key>Find</key>
				<data>ixnUEQ==</data>
				<key>Name</key>
				<string>AppleHDA</string>
				<key>Replace</key>
				<data>AAnsEA==</data>
			</dict>
		</array>
	</dict>
	<key>SMBIOS</key>
	<dict>
		<key>BiosReleaseDate</key>
		<string>09/03/13</string>
		<key>BiosVendor</key>
		<string>Apple Inc.</string>
		<key>BiosVersion</key>
		<string>IM142.88Z.0118.B00.1309031249</string>
		<key>Board-ID</key>
		<string>Mac-27ADBB7B4CEE8E61</string>
		<key>BoardManufacturer</key>
		<string>Apple Inc.</string>
		<key>BoardSerialNumber</key>
		<string>EWN6VE5MDVL4UC3LB</string>
		<key>BoardType</key>
		<integer>10</integer>
		<key>ChassisAssetTag</key>
		<string>iMac-Aluminum</string>
		<key>ChassisManufacturer</key>
		<string>Apple Inc.</string>
		<key>ChassisType</key>
		<string>13</string>
		<key>Family</key>
		<string>iMac</string>
		<key>Manufacturer</key>
		<string>Apple Inc.</string>
		<key>Mobile</key>
		<false/>
		<key>ProductName</key>
		<string>iMac14,2</string>
		<key>SerialNumber</key>
		<string>C02LHTK3FLHH</string>
		<key>Trust</key>
		<false/>
		<key>Version</key>
		<string>1.0</string>
	</dict>
	<key>SystemParameters</key>
	<dict>
		<key>InjectKexts</key>
		<string>YES</string>
	</dict>
</dict>
</plist>



Share this post


Link to post
Share on other sites

Clover revision 3094 in Legacy mode (better results, the EFI hybrid system is buggy)

Built with CloverGrowerPro, disabled USB detection (long boot delay due to Bluetooth dongle), enabled VBios patch for full res, and integrated AppleHFS driver instead of VBox.

Motherboard: Gigabyte Z68AP-D3 rev1 F8 bios

CPU: i7 2600k @4.5GHz

RAM: 16 GB Vendor: Gskill

Audio OnBoard: YES Type: ALC889 with Clover layout injection, with Toleda's patching method

Graphics card1: AMD Radeon R9 270X 2Gb activation method: via Clover Injector + 4 ports + Radeon framebuffer

Graphics card2: Onboard Intel HD 3000 activation method: not enabled

Audio On Graphics Card1: Yes

Other PCI Devices: PCI-Express WiFi Atheros AR9287 (dev id 002E masked as 002A via DSDT — works with Clover's "DSDT AirPort Fix" too)

Mac Model: MacPro6,1 with PM patch for Sandy Bridge CPU. Selected model due to the new graphics card



config.plist -->



<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>ACPI</key>
	<dict>
		<key>DSDT</key>
		<dict>
			<key>Fixes</key>
			<dict>
				<key>FixRegions_10000000</key>
				<true/>
				<key>NewWay_80000000</key>
				<true/>
			</dict>
			<key>Name</key>
			<string>DSDT-hybrid-270x.aml</string>
		</dict>
		<key>SSDT</key>
		<dict>
			<key>DropOem</key>
			<true/>
			<key>EnableC2</key>
			<true/>
			<key>EnableC4</key>
			<true/>
			<key>EnableC6</key>
			<true/>
			<key>EnableC7</key>
			<true/>
			<key>Generate</key>
			<dict>
				<key>CStates</key>
				<false/>
				<key>PStates</key>
				<false/>
			</dict>
		</dict>
	</dict>
	<key>Boot</key>
	<dict>
		<key>Timeout</key>
		<integer>5</integer>
		<key>XMPDetection</key>
		<integer>1</integer>
	</dict>
	<key>CPU</key>
	<dict>
		<key>C2</key>
		<true/>
		<key>C4</key>
		<true/>
		<key>C6</key>
		<true/>
		<key>QPI</key>
		<integer>100</integer>
	</dict>
	<key>Devices</key>
	<dict>
		<key>Audio</key>
		<dict>
			<key>Inject</key>
			<string>3</string>
		</dict>
		<key>USB</key>
		<dict>
			<key>FixOwnership</key>
			<false/>
			<key>Inject</key>
			<false/>
		</dict>
	</dict>
	<key>GUI</key>
	<dict>
		<key>Custom</key>
		<dict>
			<key>Entries</key>
			<array>
				<dict>
					<key>Arguments</key>
					<string>kext-dev-mode=1 slide=0 -fakesmc-use-nvram</string>
					<key>Disabled</key>
					<false/>
					<key>FullTitle</key>
					<string>Yosemite HD</string>
					<key>Hidden</key>
					<false/>
					<key>Ignore</key>
					<false/>
					<key>InjectKexts</key>
					<true/>
					<key>NoCaches</key>
					<false/>
					<key>Type</key>
					<string>OSX</string>
					<key>Volume</key>
					<string>F6BDE7CF-0200-4231-803A-5AEC5D747368</string>
				</dict>
				<dict>
					<key>Arguments</key>
					<string>kext-dev-mode=1 slide=0 -fakesmc-use-nvram</string>
					<key>Disabled</key>
					<false/>
					<key>FullTitle</key>
					<string>Recovery HD</string>
					<key>Hidden</key>
					<true/>
					<key>Ignore</key>
					<false/>
					<key>InjectKexts</key>
					<true/>
					<key>NoCaches</key>
					<false/>
					<key>Type</key>
					<string>OSXRecovery</string>
					<key>Volume</key>
					<string>D45A2926-9600-438E-86B8-21FBE6CBB061</string>
				</dict>
				<dict>
					<key>Arguments</key>
					<string>kext-dev-mode=1 slide=0 -fakesmc-use-nvram</string>
					<key>Disabled</key>
					<false/>
					<key>FullTitle</key>
					<string>Yosemite Installer</string>
					<key>Hidden</key>
					<true/>
					<key>Ignore</key>
					<false/>
					<key>InjectKexts</key>
					<true/>
					<key>NoCaches</key>
					<false/>
					<key>Type</key>
					<string>OSXInstaller</string>
					<key>Volume</key>
					<string>DD3F2692-7C14-4B32-8600-62E0D9268048</string>
				</dict>
				<dict>
					<key>Disabled</key>
					<false/>
					<key>FullTitle</key>
					<string>Windows 7</string>
					<key>Hidden</key>
					<false/>
					<key>Ignore</key>
					<false/>
					<key>Type</key>
					<string>Windows</string>
					<key>Volume</key>
					<string>5148B030-E155-4B37-A23C-74EF4CAFDACA</string>
				</dict>
			</array>
		</dict>
		<key>Hide</key>
		<array>
			<string>BOOTX64.efi</string>
		</array>
		<key>Language</key>
		<string>es:0</string>
		<key>Mouse</key>
		<dict>
			<key>Enabled</key>
			<false/>
			<key>Mirror</key>
			<false/>
			<key>Speed</key>
			<integer>8</integer>
		</dict>
		<key>Scan</key>
		<dict>
			<key>Entries</key>
			<true/>
			<key>Legacy</key>
			<false/>
			<key>Tool</key>
			<false/>
		</dict>
		<key>ScreenResolution</key>
		<string>1920x1080</string>
	</dict>
	<key>Graphics</key>
	<dict>
		<key>FBName</key>
		<string>Radeon</string>
		<key>Inject</key>
		<dict>
			<key>ATI</key>
			<true/>
			<key>Intel</key>
			<false/>
			<key>NVidia</key>
			<false/>
		</dict>
		<key>VideoPorts</key>
		<integer>4</integer>
	</dict>
	<key>KernelAndKextPatches</key>
	<dict>
		<key>AppleRTC</key>
		<true/>
		<key>KextsToPatch</key>
		<array>
			<dict>
				<key>Comment</key>
				<string>Patch MSI or pin interrupts 2</string>
				<key>Find</key>
				<data>
				QcdHCAAAQAA=
				</data>
				<key>Name</key>
				<string>AppleUSBXHCI</string>
				<key>Replace</key>
				<data>
				QcdHCAAAAAA=
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>TRIM Enabler</string>
				<key>Find</key>
				<data>
				QVBQTEUgU1NE
				</data>
				<key>Name</key>
				<string>IOAHCIBlockStorage</string>
				<key>Replace</key>
				<data>
				AAAAAAAAAAAA
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>Disable Intel & Fresco USB3.0 10.10</string>
				<key>Find</key>
				<data>
				9oDUAAAAgHU0
				</data>
				<key>Name</key>
				<string>AppleUSBXHCI</string>
				<key>Replace</key>
				<data>
				9oDUAAAAgOs0
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>Enable PCI power management</string>
				<key>Find</key>
				<data>
				dU1Ii7voAQAA
				</data>
				<key>Name</key>
				<string>AppleUSBXHCI</string>
				<key>Replace</key>
				<data>
				601Ii7voAQAA
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>Patch MSI or pin interrupts 1</string>
				<key>Find</key>
				<data>
				gUkIAABAAA==
				</data>
				<key>Name</key>
				<string>AppleUSBXHCI</string>
				<key>Replace</key>
				<data>
				gUkIAAAAAA==
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>Fix Orange Disk</string>
				<key>Find</key>
				<data>
				RXh0ZXJuYWw=
				</data>
				<key>Name</key>
				<string>AppleAHCIPort</string>
				<key>Replace</key>
				<data>
				SW50ZXJuYWw=
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>Wi-Fi Region to RoW</string>
				<key>Find</key>
				<data>
				D7eH3AQAAA==
				</data>
				<key>Name</key>
				<string>AirPortAtheros40</string>
				<key>Replace</key>
				<data>
				uGoAAACQkA==
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>ALC889 Codec</string>
				<key>Find</key>
				<data>
				ixnUEQ==
				</data>
				<key>Name</key>
				<string>AppleHDA</string>
				<key>Replace</key>
				<data>
				iQjsEA==
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>AppleHDA xml>zml</string>
				<key>Find</key>
				<data>
				eG1sLnps
				</data>
				<key>Name</key>
				<string>AppleHDA</string>
				<key>Replace</key>
				<data>
				em1sLnps
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>Disable sleep code</string>
				<key>Find</key>
				<data>
				xoDIAAAAAQ==
				</data>
				<key>Name</key>
				<string>AppleUSBXHCI</string>
				<key>Replace</key>
				<data>
				xoDIAAAAAA==
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>Disable XHCI 1.0 10.10</string>
				<key>Find</key>
				<data>
				QbzHAgDgPQABAAA=
				</data>
				<key>Name</key>
				<string>AppleUSBXHCI</string>
				<key>Replace</key>
				<data>
				QbzHAgDgPQAAAAA=
				</data>
			</dict>
		</array>
	</dict>
	<key>RtVariables</key>
	<dict>
		<key>MLB</key>
		<string>XXX</string>
		<key>ROM</key>
		<string>XXX</string>
	</dict>
	<key>SMBIOS</key>
	<dict>
		<key>BiosReleaseDate</key>
		<string>29/08/2014</string>
		<key>BiosVersion</key>
		<string>MP61.88Z.0116.B07.1408291655</string>
		<key>Board-ID</key>
		<string>Mac-F60DEB81FF30ACF6</string>
		<key>Family</key>
		<string>Mac Pro</string>
		<key>ProductName</key>
		<string>MacPro6,1</string>
		<key>SerialNumber</key>
		<string>XXX</string>
		<key>SmUUID</key>
		<string>XXX</string>
		<key>Trust</key>
		<true/>
	</dict>
	<key>SystemParameters</key>
	<dict>
		<key>InjectSystemID</key>
		<true/>
	</dict>
</dict>
</plist>







Patched tables: DSDT with various patches/injections and SSDT created with Pike's script.



A little update on my hardware (5770 ded, 270X in) and the new config.plist for the latest Clover revision and Yosemite 10.10.4.



config.plist.zip

DSDT.aml.zip



And this is the DSDT with the UEFI bios beta update I'm experimenting with now (works fine but lacks auto fan control):



UEFI.aml.zip



As for kexts, I'm using FakeSMC and plugins (CPU-GPU-LPC Sensors), the RealtekRTL8111 ethernet driver from Mieze and the realtekALC kext for Toleda's patch.



As I'm using the MacPro6,1 profile I've patched the AICPUPM kext to add Sandy Bridge support to the MacPro6,1 profile. I did that to get proper PM for my new graphics without losing CPU PM but I believe it's not actually necessary. Just choose a Mac with Sandy Bridge CPUs like iMac12, MacBookPro8 or MacMini5 model and then block/edit the AGPM for your graphics.

Edited by Maniac10

Share this post


Link to post
Share on other sites

Gigabyte GA-EX58-UD5 Fusion Drive

Clover 2976, legacy EFI, no new version

Gigabyte GA-EX58-UD5, Bios F12

Intel i7/920

Geforce GTX 660ti

Fusion Drive w. OWC Mercury Accelsior PCIe SSD

Handoff

iMessage



Clover is installed at any EFI-Partition: ESP/ boot0af/CloverEFI 64Bit BiosBlockIO with dsdt.aml and config.plist, Kexts 10.10: RealtekRTL81xx.kext, NullCPUPowerManagement.kext, IOHCIBlockStorageInjector.kext and FakeSMC.kext

All running clear vanilla system

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>ACPI</key>
	<dict>
		<key>DSDT</key>
		<dict>
			<key>Debug</key>
			<false/>
			<key>DropOEM_DSM</key>
			<false/>
			<key>Name</key>
			<string>dsdt.aml</string>
			<key>ReuseFFFF</key>
			<false/>
		</dict>
		<key>SSDT</key>
		<dict>
			<key>DropOem</key>
			<false/>
			<key>Generate</key>
			<dict>
				<key>CStates</key>
				<false/>
				<key>PStates</key>
				<false/>
			</dict>
		</dict>
	</dict>
	<key>Boot</key>
	<dict>
		<key>Arguments</key>
		<string>nvda_drv=1 kext-dev-mode=1</string>
		<key>Debug</key>
		<false/>
		<key>DefaultVolume</key>
		<string>FusionDrive</string>
		<key>Legacy</key>
		<string>PBRtest</string>
		<key>Secure</key>
		<false/>
		<key>Timeout</key>
		<integer>3</integer>
		<key>XMPDetection</key>
		<string>Yes</string>
	</dict>
	<key>CPU</key>
	<dict>
		<key>Type</key>
		<string>1281</string>
	</dict>
	<key>Devices</key>
	<dict>
		<key>USB</key>
		<dict>
			<key>FixOwnership</key>
			<false/>
			<key>Inject</key>
			<false/>
		</dict>
		<key>UseIntelHDMI</key>
		<true/>
	</dict>
	<key>GUI</key>
	<dict>
		<key>Custom</key>
		<dict>
			<key>Entries</key>
			<array>
				<dict>
					<key>Disabled</key>
					<true/>
					<key>Hidden</key>
					<false/>
					<key>Ignore</key>
					<false/>
					<key>InjectKexts</key>
					<true/>
					<key>NoCaches</key>
					<false/>
					<key>Type</key>
					<string>OSXRecovery</string>
					<key>Volume</key>
					<string>1588A624-CF6C-3E23-xxxx-xxxxxxxxxxxxx</string>
				</dict>
				<dict>
					<key>CustomLogo</key>
					<string>Apple</string>
					<key>Disabled</key>
					<false/>
					<key>FullTitle</key>
					<string>FusionDrive</string>
					<key>Hidden</key>
					<false/>
					<key>Ignore</key>
					<false/>
					<key>InjectKexts</key>
					<true/>
					<key>NoCaches</key>
					<false/>
					<key>Type</key>
					<string>OSX</string>
					<key>Volume</key>
					<string>EF42C644-C1FD-4001-xxxx-xxxxxxxxxxxxx</string>
					<key>VolumeType</key>
					<string>Internal</string>
				</dict>
			</array>
		</dict>
		<key>Hide</key>
		<array>
			<string>\EFI\BOOT\BOOTIA32.efi</string>
			<string>Windows</string>
			<string>\EFI\CLOVER\CLOVERIA32.efi</string>
			<string>\EFI\BOOT\BOOTX64.efi</string>
		</array>
		<key>Language</key>
		<string>de:0</string>
		<key>Mouse</key>
		<dict>
			<key>DoubleClick</key>
			<integer>500</integer>
			<key>Enabled</key>
			<false/>
			<key>Mirror</key>
			<false/>
			<key>Speed</key>
			<integer>8</integer>
		</dict>
		<key>Scan</key>
		<dict>
			<key>Entries</key>
			<true/>
			<key>Legacy</key>
			<false/>
			<key>Tool</key>
			<false/>
		</dict>
		<key>ScreenResolution</key>
		<string>1920x1080</string>
		<key>Theme</key>
		<string>applestyle</string>
	</dict>
	<key>Graphics</key>
	<dict>
		<key>Inject</key>
		<dict>
			<key>ATI</key>
			<false/>
			<key>Intel</key>
			<false/>
			<key>NVidia</key>
			<false/>
		</dict>
		<key>LoadVBios</key>
		<true/>
	</dict>
	<key>KernelAndKextPatches</key>
	<dict>
		<key>AppleRTC</key>
		<true/>
		<key>KextsToPatch</key>
		<array>
			<dict>
				<key>Comment</key>
				<string>Handoff Fix</string>
				<key>Find</key>
				<data>
				i4eMAQAA
				</data>
				<key>Name</key>
				<string>IOBluetoothFamily</string>
				<key>Replace</key>
				<data>
				uA8AAACQ
				</data>
			</dict>
		</array>
	</dict>
	<key>RtVariables</key>
	<dict>
		<key>MLB</key>
		<string>xxxxxxxxxxxxx</string>
		<key>ROM</key>
		<string>xxxxxxxxxxxxx</string>
	</dict>
	<key>SMBIOS</key>
	<dict>
		<key>BiosReleaseDate</key>
		<string>01/22/10</string>
		<key>BiosVendor</key>
		<string>Apple Inc.</string>
		<key>BiosVersion</key>
		<string>MP41.88Z.0081.B08.1001221313</string>
		<key>Board-ID</key>
		<string>Mac-F221BEC8</string>
		<key>BoardManufacturer</key>
		<string>Apple Inc.</string>
		<key>BoardSerialNumber</key>
		<string>G8xxxx602U5FWxxxx</string>
		<key>BoardType</key>
		<integer>11</integer>
		<key>ChassisAssetTag</key>
		<string>Pro-Enclosure</string>
		<key>ChassisManufacturer</key>
		<string>Apple Inc.</string>
		<key>ChassisType</key>
		<string>06</string>
		<key>Family</key>
		<string>Mac Pro</string>
		<key>Manufacturer</key>
		<string>Apple Inc.</string>
		<key>Mobile</key>
		<false/>
		<key>ProductName</key>
		<string>MacPro4,1</string>
		<key>SerialNumber</key>
		<string>G8xxxxxx4PC</string>
		<key>Trust</key>
		<false/>
		<key>Version</key>
		<string>1.0</string>
	</dict>
	<key>SystemParameters</key>
	<dict>
		<key>InjectKexts</key>
		<string>Yes</string>
		<key>InjectSystemID</key>
		<true/>
	</dict>
</dict>
</plist>

All Clover-Versions since 2990 do not show my Fusion Drives by Name, but it is still running with MacOS X 10.6.8 (no Fusion Drives shown, not this Graphics) - 10.10.2

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

  • Recently Browsing   0 members

    No registered users viewing this page.

  • Similar Content

    • By shinho73
      Hello everyone. I managed to install AMD Sierra V5(10.12.6) on my old AMD A8 7600 PC(Mother Board-A58M-E, GPU- Palit Geforce GT730 DDR3). Everything is working except the GPU. The GT730 DDR3 GF108 is natively supported on Sierra, but for some reason, it is not working. On Clover Config, "Inject Nvidia" is selected, no Nvidia Web, and nv_disable=1. On "About This Mac" it just says " NVIDIA Chip Model 3 MB".
      I have attached config.plist. Can someone look at it please? Any help will be greatly appreciated. Thank you.





      config.plist
    • By fusion71au
      Clover r5050 ISO compiled with GCC and minimal config.plist compatible for use in VMWare Workstation.

      Tested with unlocked Workstation 15 running OSX 10.9 -->10.15 guest in Windows X64 host.

      Installation
      1. Download and unzip "EFI_Clover_r5050 for VMware.zip". Mount Clover-v2.5k-5050-X64.iso by double clicking on it.
      2. Mount your VM's EFI System Partition eg in terminal
      sudo diskutil mount disk0s1   3. Copy EFI folder from step 1 into the EFI partition
      4. Shutdown the VM, add bios.bootDelay = "3000" to your VM's vmx file
      5. Reboot your VM, press <F2> to access the VMware Boot Manager and add CLOVERX64.efi to the boot menu.

      Substitute your own unique and valid MLB and ROM variables in the /EFI/CLOVER/config.plist (Rt Variables section) to activate iMessage/Facetime on your VM.
    • By MaLd0n
      ---TUTORIAL---

      https://olarila.com/forum/viewtopic.php?f=50&t=8685

      --Original Post--

      https://olarila.com/forum/viewtopic.php?f=97&t=11237

      --Bios/UEFI Settings--

      *Update bios/uefi to F7+*
      1- Go to M.I.T./Advanced Frequency Settings tab

      Extreme Memory Profile (X.M.P.) - Profile 1

      2- Go to BIOS tab

      CSM Support - Disabled

      3- Go to Peripherals/Thunderbolt(TM) Configuration tab

      Security Level - No Security
      Thunderbolt USB Support - Enabled
      GPIO3 Force Pwr - Enabled

      4- Go to Chipset tab

      Internal Graphics - Enable

      ---CLOVER FOLDER---
      *Use this folder with FULL DSDT PATCHED
      EFI CLOVER Z390 DESIGNARE.zip

      ---OPENCORE FOLDER---
      *Use this folder with FULL DSDT PATCHED
      EFI OPENCORE Z390 DESIGNARE.zip

      ---DSDT patch requests is here---

      https://olarila.com/forum/viewtopic.php?f=19&t=1131

      ---HARDWARE---

      --MOBO

      GIGABYTE Z390 DESIGNARE
      -Link
      https://www.amazon.com/Z390-DESIGNARE-Gigabyte-Thunderbolt-Motherboard/dp/B07K8RJZRG/ref=sr_1_1?keywords=Z390+DESIGNARE&qid=1565492390&s=electronics&sr=1-1

      --PROCESSOR

      Intel Core i9-9900K
      -Link
      https://www.amazon.com/Intel-i9-9900K-Desktop-Processor-Unlocked/dp/B005404P9I/ref=sr_1_1_sspa?keywords=Intel+Core+i9-9900K&qid=1553358099&s=gateway&sr=8-1-spons&psc=1

      --COOLER

      CORSAIR H100i RGB PLATINUM AIO Liquid CPU Cooler
      -Link
      https://www.amazon.com/CORSAIR-H100i-PLATINUM-Liquid-Cooler/dp/B07JWB5BSN/ref=sr_1_4?keywords=WATER+COOLER+CPU&qid=1565492509&s=gateway&sr=8-4

      --MEMORY

      Corsair CMW32GX4M2C3200C16 Vengeance RGB PRO 32GB (2x16GB) DDR4 3200 (PC4-25600)
      -Link
      https://www.amazon.com/Corsair-CMW32GX4M2C3200C16-Vengeance-PC4-25600-Desktop/dp/B07GTG2T7L/ref=sr_1_15?keywords=memory+ddr4+32&qid=1553358238&s=gateway&sr=8-15

      --GPU

      MSI RX Vega 64 AIR Boost 8G OC
      -Link
      https://www.amazon.com/MSI-RX-64-AIR-8G/dp/B07DH7S1X1/ref=sr_1_2?keywords=vega+64+gigabyte&qid=1565492819&s=electronics&sr=1-2

      --SSD

      Samsung 970 EVO 1TB SSD (MZ-V7E1T0BW) NVMe M.2 V-NAND
      -Link
      https://www.amazon.com/Samsung-970-EVO-1TB-MZ-V7E1T0BW/dp/B07BN217QG/ref=sr_1_1?keywords=s+samsung+970+evo+1tb&qid=1565493002&s=electronics&sr=1-1

      --POWER SUPPLY

      EVGA Supernova 1000 P2 80+ Platinum, 1000W ECO Mode Fully Modular
      -Link
      https://www.amazon.com/EVGA-Supernova-Platinum-Crossfire-220-P2-1000-XR/dp/B00EKJQM5E/ref=sr_1_3?keywords=power+supply+1000w&qid=1565493196&s=gateway&sr=8-3

      --WIRELESS

      TP-Link Archer T9E
      -Link
      https://www.amazon.com/TP-Link-Archer-T9E-Beamforming-Technology/dp/B00TQEX7AQ/ref=sr_1_1?keywords=TP-Link+Archer+T9E&qid=1553358397&s=gateway&sr=8-1

      --CASE

      Thermaltake Core P5 Tempered Glass Black Edition ATX Open Frame Panoramic Viewing
      -Link
      https://www.amazon.com/Thermaltake-Tempered-Panoramic-Certified-CA-1E7-00M1WN-03/dp/B01N4IGVSC/ref=sr_1_2?keywords=Thermaltake+Core+P5&qid=1565493567&s=gateway&sr=8-2

      --DSDT Patches--
      -FIX ACPI ERRORS -FIX OEM SSDTs to AVOID ERRORS AND WARNINGS -REMOVE UNUSED SCOPES / DEVICES -HIGH PRECISION EVENT TIMER -SATA -DMAC -REMOVE PROBLEMATIC AND UNUSED DEVICES -FIX K.P in REBOOT -SLPB -DARWIN / WINDOWS 2015 -XHCI -PLUGIN TYPE -HDAS to HDEF -HDEF -REAL TIME CLOCK -ARTC -IRQs -SBUS -BUS1 -MCHC -ALS0 -SHUTDOWN -LAN -FWHD -USBX -PMCR -PPMC -XSPI -CNVW -GMM -IMEI -EC -PNLF -ARPT -GFX0 -NVME -DTGP -ACQUIRE MUT0 0XFFFF -MUTEX MUT0 0x00 -EXTERNAL REFERENCES -UNKNOWNOBJ -HDMI / HDAU -FULL RENAMED DEVICES ---SCREENSHOTs---




















      -Credits and thanks to the old and new people in the community who developed patches, kexts and bootloaders!
      Thanks to KGP for SSDT Thunderbolt
      Slice, Kabyl, usr-sse2, jadran, Blackosx, dmazar, STLVNUB, pcj, apianti, JrCs, pene, FrodoKenny, skoczy, ycr.ru, Oscar09, xsmile, SoThOr, RehabMan, Download-Fritz, Zenit432, cecekpawon, Intel, Apple, Oracle, Chameleon Team, crazybirdy, Mieze, Mirone, Oldnapalm, netkas, Elconiglio, artut-pt, ErmaC, Pavo, Toleda, Master Chief and family, bcc9, The King, PMheart, Sherlocks, Micky1979, vit9696, vandroiy2013, Voodoo Team, Pike R. Alpha, lvs1974, Austere.J, CVad, Sampath007, onemanosx, erroruser, Jenny David, Olarila Facebook Community, Hackintosh Facebook Community and many others!
      We're all here to have fun and learn from each other!
    • By kylon
      Cloud Clover Editor is an open source application that allows you to manage various Hackintosh Bootloaders configs everywhere.

      Open Cloud Clover Editor

      Cloud Clover Editor Wiki
      Cloud Clover Editor Sources


      Features
      Supports Clover EFI, Ozmosis, Chameleon, OpenCore GUI and Text Editor Mode CCE Bank Mobile friendly
      Officially supported browsers
      Chrome 42+ Microsoft Edge 14+ Firefox 39+ Safari 10+ Opera 29+ Opera Mobile 12+ Chrome for Android 75+ Firefox for Android 67+

      Credits
      mackie100 - took some ideas from his app Clover EFI dev team Eric Slivka - new serial number Virtual1 - new serial number cecekpawon - PHP 5.3.3 patch, , help with the ACPI Loader Mode flag and more Micky1979 - Clover flying editor  (Discontinued) crusher. - Help with the ACPI Loader Mode flag Download-Fritz - Help with the ACPI Loader Mode flag Pavo - Ozmosis fields and values stehor - Ozmosis fields and values Sherlocks - General help and support gujiangjiang - General help and support
      Please let me know if i forgot you!
×
