toleda Posted March 8, 2014 Author Share Posted March 8, 2014 but where is procedure 10? It is in the pdf, 10. 2x HD3000/HD4000 HDMI Audio/Delete Audio Output Device is i missing something ? Attach S/L/E/AppleHDA.kext and IOReg. In my case it seems like after waking from sleep, sound works but will stop shortly after. If I wait long enough it eventually comes back. I do not see 10.9.2 no audio after wake problems with 6 series/892, 7 series/898 or 8 series/1150. Link to comment Share on other sites More sharing options...
sultangetin Posted March 9, 2014 Share Posted March 9, 2014 I did all the steps correctly of the Clover Method and i am having working audio too with the native AppleHDA. Then i Configured the "Audio MIDI Setup" for creating the "Aggregate Device" for the 6-Channel (5.1) output, but there's no audio from the centre/subwoofer and the rear speakers. Please help. Link to comment Share on other sites More sharing options...
Sonic-NKT Posted March 9, 2014 Share Posted March 9, 2014 It is in the pdf, 10. 2x HD3000/HD4000 HDMI Audio/Delete Audio Output Device Found it, it was 9. in my pdf, maybe old version online at https://github.com/toleda/audio_ALCInjection well im still stuck, i tried this now several times and always end up with headphones working, speaker only if headphones unplugged, Front Mic Port not working. I used your pdf and did exactly the steps detailed in 3. Manual Internal Speaker and Headphone Selection and 9. 2x HD3K/HD4K HDMI Audio/Delete Audio Output Device. I deleted item 4 (blackport) or in my case this would be item 5 because i duplicated another item right? Then searched for every hex string and replaced all those in the info.plist of the HardwareConfigDriver.kext (8-9 if i remember correctly). Put everything back together and installed it using Kext Utility. After the manually patched kext i end up with this: Output Devices: Headphones, Headphones, Line-Out, Digital Out Input Devices: Line-In, internal Mic The first headphones device works fine, all other dont (didnt tried optical out). both mic ports dont work as well (worked beforce manual patch). When i unplug my headphones the first headphone device turns into internal speaker and the speaker works fine as well. My stereo speakers are connected to the rear green port. My headphones+mic are connected to the internal/front ports. Can someone help me here? im really stuck and dont know what else to try. Link to comment Share on other sites More sharing options...
toleda Posted March 9, 2014 Author Share Posted March 9, 2014 but there's no audio from the centre/subwoofer and the rear speakers. 5.1 sound only works when the source/player are 5.1. Stereo only plays on front/green speakers. If you want all channel stereo for 2 channel sources, configure a Multi-Output Aggregate device in Audio MIDI Setup. See M-Realtek_ALC_AppleHDA_Screenshots.pdf in toleda/audio_ALCInjection. After the manually patched kext i end up with this: Output Devices: Headphones, Headphones, Line-Out, Digital Out Pathmap is wrong. 1. Edit Platforms.xml, step 6 was not done correctly. Link to comment Share on other sites More sharing options...
Sonic-NKT Posted March 10, 2014 Share Posted March 10, 2014 Pathmap is wrong. 1. Edit Platforms.xml, step 6 was not done correctly. Ok tried it again, but with the same results as before. I did exactly whats described in the pdf. checked everything twice but still same result. Two Headphones as Devices, one works and switches to internal speaker if headphones unplugged. Front Mic not working anymore. Can someone try this for me? I dont know what else to try.... Its in ALC892, Audio_ID-1, PathMapID 892. Using a modified 10.9.2 AppleHDA.kext patched using this. Black Audio Port or Digital could be removed as substitute. Link to comment Share on other sites More sharing options...
chayanne Posted March 10, 2014 Share Posted March 10, 2014 Hi Toleda, i try to upload ioreg file request but i have this message "Error You aren't permitted to upload this kind of file " how could i send you the file ? thanks AppleHDA.kext.zip Mac Pro de chayanne.rar Link to comment Share on other sites More sharing options...
toleda Posted March 10, 2014 Author Share Posted March 10, 2014 how could i send you the file ? Compress it like you did with the AppleHDA.kext Link to comment Share on other sites More sharing options...
chayanne Posted March 12, 2014 Share Posted March 12, 2014 i have edit my post with update attach file, i have modifie extension file *.ioreg > *.rar, it's not a real rar file thanks Link to comment Share on other sites More sharing options...
toleda Posted March 12, 2014 Author Share Posted March 12, 2014 I have modifie extension file *.ioreg > *.rar, it's not a real rar file OS X compresses files natively: Finder/File/Compress Your dsdt has no HDEF, see Post #1, 4. Audio_ID Injection Edit the dsdt to add HDEF or use the kext enabler. Link to comment Share on other sites More sharing options...
chayanne Posted March 12, 2014 Share Posted March 12, 2014 i'm lost . . . sorry for my not understand, i look your guide : https://github.com/toleda/audio_ALCInjection and sorry , i'm so lost or may be could you post a video youtube to explain how do with ALC898 editing file? Link to comment Share on other sites More sharing options...
skuseberg Posted March 12, 2014 Share Posted March 12, 2014 I'm currently running CloverALC on an 898 (Z87X-UD4H). I've got no issues other than the following exception: After waking the computer, if I plug in my headphones in the front panel they are not detected, and sound still plays through the speakers. Restarting fixes the issue, and they will work as intended (plug in headphones to front audio, and output will switch to front audio. If I unplug, output returns to speakers). Is this a known issue? Link to comment Share on other sites More sharing options...
toleda Posted March 12, 2014 Author Share Posted March 12, 2014 i'm lost . . . sorry for my not understand, i look your guide : https://github.com/toleda/audio_ALCInjection and sorry , i'm so lost or may be could you post a video youtube to explain how do with ALC898 editing file? There is no problem with the ALC898 AppleHDA.kext. See Post #184; two choices, pick one. Is this a known issue? No. 10.9.2 wake issues usually manifest as no audio. There is an 8 Series headphone pin detect sensitivity problem, however, that occurs without a headphone plugged in. Only suggestion is use a previous version that performs as you expect. Link to comment Share on other sites More sharing options...
chayanne Posted March 12, 2014 Share Posted March 12, 2014 i'm using kext enabler : 1 - download : audio_ALCInjection-master : toleda/audio_ALCInjection 2 - open [Guide]-Add_HDEF-kext.pdf 3 - audio_kext_enabler/HDAEnabler1.kext.zip at master · toleda/audio_kext_enabler 4 - i run kext wizard 5 - install : HDAEnabler1.kext 6 - enter root password 7 - reboot 8 - open ioreg file 9 - search HDEF 10 - no sound excuse me when i attach file, i forget i was format my system and forget to put again kext enabler again Link to comment Share on other sites More sharing options...
toleda Posted March 13, 2014 Author Share Posted March 13, 2014 8 - open ioreg file 9 - search HDEF 10 - no sound An IOReg screenshot is useless. IOReg/File/Save a Copy As..., compress and attach. Link to comment Share on other sites More sharing options...
chayanne Posted March 13, 2014 Share Posted March 13, 2014 please find new attach file, many thanks for your help with my sound Mac Pro chayanne.ioreg.zip AppleHDA.kext.zip Link to comment Share on other sites More sharing options...
toleda Posted March 13, 2014 Author Share Posted March 13, 2014 please find new attach file No audio codec; Is HD audio enabled in the BIOS? Is sound working in any other OS? What motherboard? Link to comment Share on other sites More sharing options...
chayanne Posted March 13, 2014 Share Posted March 13, 2014 i'm using SSDT file of rampage, maybe there is a conflict ? my description and need some help here perfect work sound with Win7 Link to comment Share on other sites More sharing options...
toleda Posted March 14, 2014 Author Share Posted March 14, 2014 i'm using SSDT file of rampage, maybe there is a conflict ? perfect work sound with Win7 Win7 is not relevant, OS X does not see the codec. Attach the ssdt. Link to comment Share on other sites More sharing options...
Sonic-NKT Posted March 15, 2014 Share Posted March 15, 2014 Ok tried it again, but with the same results as before. I did exactly whats described in the pdf. checked everything twice but still same result. Two Headphones as Devices, one works and switches to internal speaker if headphones unplugged. Front Mic not working anymore. Can someone try this for me? I dont know what else to try.... Its in ALC892, Audio_ID-1, PathMapID 892. Using a modified 10.9.2 AppleHDA.kext patched using this. Black Audio Port or Digital could be removed as substitute. Ok i now tried to use the xcode plist edtior but still the same results: only Speaker output with headphones unplugged, no front mic anymore. Can some help me out? Link to comment Share on other sites More sharing options...
toleda Posted March 15, 2014 Author Share Posted March 15, 2014 only Speaker output with headphones unplugged, no front mic anymore. Useless to post a problem and not attach files you changed. Attach the edited platforms.xml and info.plist files. Link to comment Share on other sites More sharing options...
Sonic-NKT Posted March 15, 2014 Share Posted March 15, 2014 Useless to post a problem and not attach files you changed. Attach the edited platforms.xml and info.plist files. sorry, you are right the attached zip contains: - Info.plist_patched (AppleHDAHardwareConfigDriver.kext) - modified, Black-Lineout removed as substitude - Platforms.xml_patched (AppleHDA.kext/Resources) - infalted and modified to have manual selection Front/Rear Audio, Black Lineout removed - Info.plist_orig (AppleHDAHardwareConfigDriver.kext) - original from auto patched AppleHDA - Platforms.xml.zlib_orig - original from auto patched AppleHDA With the autopatched version everyhtings works fine, but i really need to select Front/Headphones and Rear Lineout manually, atm it only works with unplugging the headphones. After the manual patch it just adds another headphone device as output option but not functional, default (rear Green) Lineout still only works if i unplug my headphones from the front Audio Ports. Also my Front Mic Port wont work anymore after the manual patch. after getting stuck with the ports reconfiguration on osx i found a work arround, using front output and rear black output on OSX and then remapping the main lineout on windows to the black port. This works for now because i only have stereo speakers, but i would love to figure it out on OSX so i can use surround sound in the future ALC892_modified-originals.zip Link to comment Share on other sites More sharing options...
toleda Posted March 15, 2014 Author Share Posted March 15, 2014 After the manual patch it just adds another headphone device as output option but not functional, default (rear Green) Lineout still only works if i unplug my headphones from the front Audio Ports. Also my Front Mic Port wont work anymore after the manual patch. The edits are wrong. You split the inputs and deleted front mic. Did not split the outputs, however, added a 2nd headphone. Exactly what you see in System Preferences. Best to start over. Do not touch NodeIDs 24, 25 and 26. Split NodeIDs 20 and 27, modify 27/38/37. If you are interested in 5.1, don't delete NodeID 21, delete NodeID 30. Link to comment Share on other sites More sharing options...
Sonic-NKT Posted March 15, 2014 Share Posted March 15, 2014 Thanks for the info... strange, edited it exactly like its described in the pdf, well as far as i can tell. Could you send me the correctly modified Platforms.xml (digital audio removed) as reference? i want to really understand what i did wrong... Link to comment Share on other sites More sharing options...

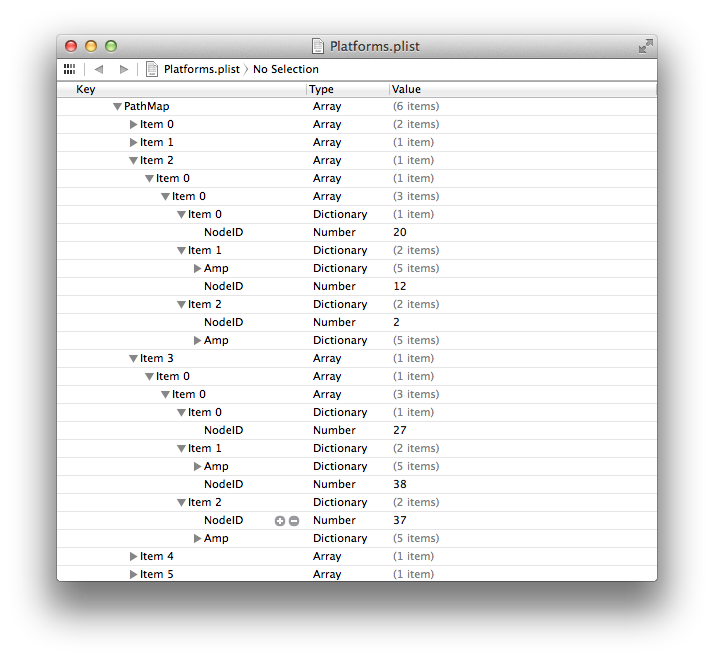

toleda Posted March 15, 2014 Author Share Posted March 15, 2014 strange, edited it exactly like its described in the pdf, well as far as i can tell. Could you send me the correctly modified Platforms.xml (digital audio removed) as reference? i want to really understand what i did wrong... With yours, open PathMap, see Item 0 has 1 item, wrong; untouched, shows 2 items. Item 2 is opposite of what it should be. Screenshot of correct edits (ignore amp configuration) Link to comment Share on other sites More sharing options...
naonweh Posted March 18, 2014 Share Posted March 18, 2014 how to get ALC662 work? I don't see this codec support one first post Link to comment Share on other sites More sharing options...
