toleda Posted July 9, 2014 Author Share Posted July 9, 2014 I wonder if older kext with 5GHz patched can work for the bcm94352 card under dp2 or dp3? Do not know, try it. Link to comment https://www.insanelymac.com/forum/topic/292542-airport-pcie-half-mini/page/4/#findComment-2038691 Share on other sites More sharing options...
Skvo Posted July 11, 2014 Share Posted July 11, 2014 For OS X 10.10 DP3. Cosmetic Fix "Unknown -> AirPort " (optional) Name: AirPortBrcm4360Find: 6B 10 00 00 75 0DReplace: 6B 10 00 00 90 90 5 GHz Fix for BCM94352HMB with XT country: Name: AirPortBrcm4360Find: 58 54 00 25 18 2B 21 00 20Replace: 58 54 08 0A 32 1B 43 00 0A 8 Link to comment https://www.insanelymac.com/forum/topic/292542-airport-pcie-half-mini/page/4/#findComment-2039281 Share on other sites More sharing options...
artur_pt Posted July 11, 2014 Share Posted July 11, 2014 hello working good in DP3 thanks Link to comment https://www.insanelymac.com/forum/topic/292542-airport-pcie-half-mini/page/4/#findComment-2039289 Share on other sites More sharing options...

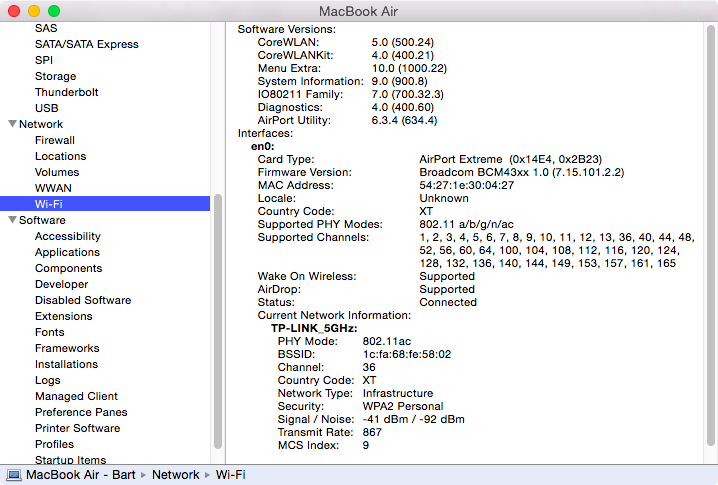

lisai9093 Posted July 11, 2014 Share Posted July 11, 2014 For OS X 10.10 DP3. Cosmetic Fix "Unknown -> AirPort " (optional) Name: AirPortBrcm4360 Find: 6B 10 00 00 75 0D Replace: 6B 10 00 00 90 90 5 GHz Fix for BCM94352HMB with XT country: Name: AirPortBrcm4360 Find: 58 54 00 25 18 2B 21 00 20 Replace: 58 54 08 0A 32 1B 43 00 0A Снимок экрана 2014-07-11 в 06.24.54.png Works great. Thx! Link to comment https://www.insanelymac.com/forum/topic/292542-airport-pcie-half-mini/page/4/#findComment-2039346 Share on other sites More sharing options...
AREOS Posted July 11, 2014 Share Posted July 11, 2014 For OS X 10.10 DP3. Cosmetic Fix "Unknown -> AirPort " (optional) Name: AirPortBrcm4360 Find: 6B 10 00 00 75 0D Replace: 6B 10 00 00 90 90 5 GHz Fix for BCM94352HMB with XT country: Name: AirPortBrcm4360 Find: 58 54 00 25 18 2B 21 00 20 Replace: 58 54 08 0A 32 1B 43 00 0A Снимок экрана 2014-07-11 в 06.24.54.png Thanks Skvo, this works for me too. Do you have Hand off and Continuity working??? Good Luck Link to comment https://www.insanelymac.com/forum/topic/292542-airport-pcie-half-mini/page/4/#findComment-2039636 Share on other sites More sharing options...
mr. west Posted July 15, 2014 Share Posted July 15, 2014 Having some issues with this kext. Wifi is pretty reliable. Bluetooth won't recognize my trackpad, particularly in Yosemite. Similar thing happened in Mavericks but I was able to get it to work by loading each kext one at a time and building the caches. Once Mavericks saw the trackpad it was good forever No such luck in Yosemite. Just can't get the damn fool thing loaded. IOREG attached. FWIW I still *see* Bluetooth. And when I remove the kext bluetooth disappears. But it just won't recgonize any devices. Update: AFTER I tooled around in Yosemite my trackpad would also no longer work in Mavericks. Strange. I am able to pair it with my MBP. Any ideas? Admin’s iMac no BT.zip Link to comment https://www.insanelymac.com/forum/topic/292542-airport-pcie-half-mini/page/4/#findComment-2040761 Share on other sites More sharing options...
mr. west Posted July 15, 2014 Share Posted July 15, 2014 Having some issues with this kext. Wifi is pretty reliable. Bluetooth won't recognize my trackpad, particularly in Yosemite. Similar thing happened in Mavericks but I was able to get it to work by loading each kext one at a time and building the caches. Once Mavericks saw the trackpad it was good forever No such luck in Yosemite. Just can't get the damn fool thing loaded. IOREG attached. FWIW I still *see* Bluetooth. And when I remove the kext bluetooth disappears. But it just won't recgonize any devices. Update: AFTER I tooled around in Yosemite my trackpad would also no longer work in Mavericks. Strange. I am able to pair it with my MBP. Any ideas? I solved my issue by using the BT Firmware Uploader + Your wifi kext. Both are functional now with no issues. Link to comment https://www.insanelymac.com/forum/topic/292542-airport-pcie-half-mini/page/4/#findComment-2040871 Share on other sites More sharing options...
turnandtaxis Posted July 19, 2014 Share Posted July 19, 2014 I have the Broadcom BCM4352 Azurewave AW-CE123H Wifi+BT installed on a DC3217BY NUC running 10.9.3. I'd like to enable the wifi and bluetooth on it. Please excuse the newb question, but I downloaded the package from toleda's github, read through the README and this thread, but I still sincerely have no idea where to start. Can some kind soul please assist? Link to comment https://www.insanelymac.com/forum/topic/292542-airport-pcie-half-mini/page/4/#findComment-2041949 Share on other sites More sharing options...
artur_pt Posted July 19, 2014 Share Posted July 19, 2014 hello that is wizard .. this is good guide how to.. several links to useful information about this issue.. u can enable the card by dsdt or by kext.. u should read a little more and focus.. good hack Link to comment https://www.insanelymac.com/forum/topic/292542-airport-pcie-half-mini/page/4/#findComment-2041969 Share on other sites More sharing options...

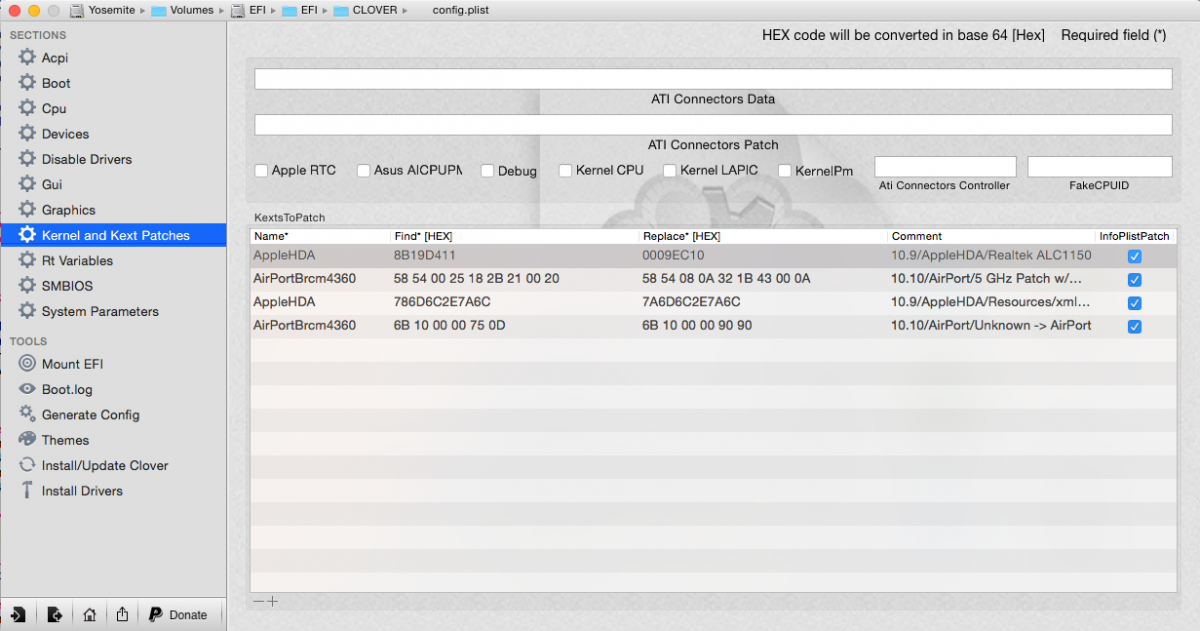

treyboy484 Posted July 19, 2014 Share Posted July 19, 2014 For OS X 10.10 DP3. Cosmetic Fix "Unknown -> AirPort " (optional) Name: AirPortBrcm4360 Find: 6B 10 00 00 75 0D Replace: 6B 10 00 00 90 90 5 GHz Fix for BCM94352HMB with XT country: Name: AirPortBrcm4360 Find: 58 54 00 25 18 2B 21 00 20 Replace: 58 54 08 0A 32 1B 43 00 0A I'm not sure how to patch the AirPortBrcm4360 file. Can anyone explain to me how to do this? I tried using Clover's KextsToPatch feature, but it doesn't seem to be working. Link to comment https://www.insanelymac.com/forum/topic/292542-airport-pcie-half-mini/page/4/#findComment-2042010 Share on other sites More sharing options...
Maniac10 Posted July 19, 2014 Share Posted July 19, 2014 I'm not sure how to patch the AirPortBrcm4360 file. Can anyone explain to me how to do this? I tried using Clover's KextsToPatch feature, but it doesn't seem to be working. None of those patches are for plists so deactivate the InfoPlistPatch option. Link to comment https://www.insanelymac.com/forum/topic/292542-airport-pcie-half-mini/page/4/#findComment-2042057 Share on other sites More sharing options...
treyboy484 Posted July 19, 2014 Share Posted July 19, 2014 Okay thanks! Will that make the patches work then? EDIT: Works now. Thanks Maniac10! Link to comment https://www.insanelymac.com/forum/topic/292542-airport-pcie-half-mini/page/4/#findComment-2042059 Share on other sites More sharing options...
turnandtaxis Posted July 20, 2014 Share Posted July 20, 2014 I have the Broadcom BCM4352 Azurewave AW-CE123H Wifi+BT installed on a DC3217BY NUC running 10.9.3. I'd like to enable the wifi and bluetooth on it. Please excuse the newb question, but I downloaded the package from toleda's github, read through the README and this thread, but I still sincerely have no idea where to start. Can some kind soul please assist? figured it! all i needed to do was to install the kext. no dsdt edits needed. Link to comment https://www.insanelymac.com/forum/topic/292542-airport-pcie-half-mini/page/4/#findComment-2042164 Share on other sites More sharing options...
lisai9093 Posted July 21, 2014 Share Posted July 21, 2014 Just notice formatting is messed up..... I wonder if the 5ghz patch still work on dp4. Wifi firmware is updated again. And I found airdrop no longer works properly between my hackintosh and iPhone. It worked fine on dp3 after 5ghz patch. Link to comment https://www.insanelymac.com/forum/topic/292542-airport-pcie-half-mini/page/4/#findComment-2042655 Share on other sites More sharing options...
oSxFr33k Posted July 26, 2014 Share Posted July 26, 2014 For OS X 10.10 DP3. Cosmetic Fix "Unknown -> AirPort " (optional) Name: AirPortBrcm4360 Find: 6B 10 00 00 75 0D Replace: 6B 10 00 00 90 90 5 GHz Fix for BCM94352HMB with XT country: Name: AirPortBrcm4360 Find: 58 54 00 25 18 2B 21 00 20 Replace: 58 54 08 0A 32 1B 43 00 0A Снимок экрана 2014-07-11 в 06.24.54.png Working great in Yosemite Beta 1, Thanks Link to comment https://www.insanelymac.com/forum/topic/292542-airport-pcie-half-mini/page/4/#findComment-2044555 Share on other sites More sharing options...

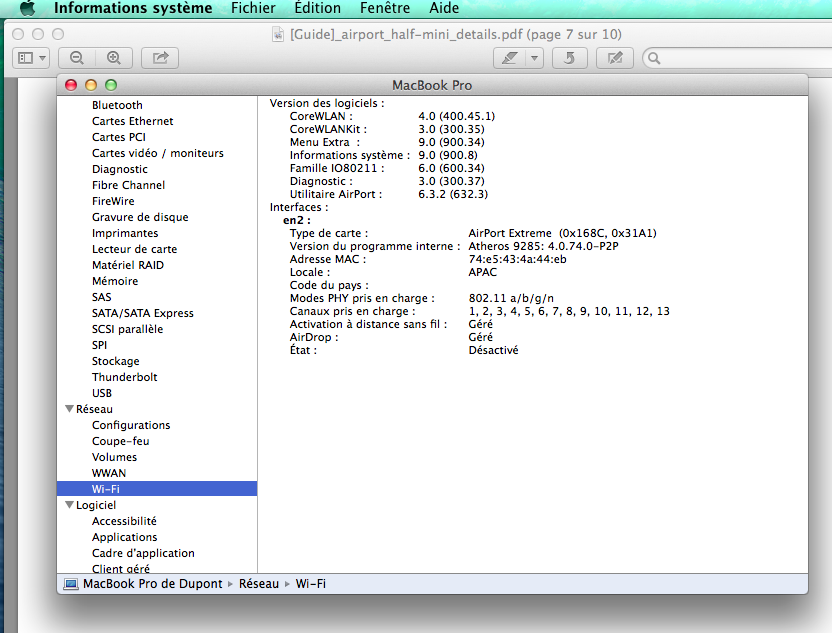

Martoni Posted July 31, 2014 Share Posted July 31, 2014 Hello, 1st thx for your work toledo, because of you now my wifi card is recognize.But the weird stuff is that it s never able to detect any network.I see all the networks with it when I boot under ubuntu.So I wonder I some people already had this problem.So my card is an Atheros 9285.I follow the guide and edit the : S/L/E/IO80211Family.kext/Contents/Plugins/AirPortAtheros40.kext/ Contents/Info.plist and I Add the string : <string>pci168c,2b</string> So after that it s recognize, appear in the top bar and in network options.in my system the card is well recognize, just didn't see any networksThx if you can help Link to comment https://www.insanelymac.com/forum/topic/292542-airport-pcie-half-mini/page/4/#findComment-2047000 Share on other sites More sharing options...
toleda Posted August 1, 2014 Author Share Posted August 1, 2014 So after that it s recognize, appear in the top bar and in network options. in my system the card is well recognize, just didn't see any networks See post #1, Problem Reporting, reply with requested files. What it the model number for your 9285? Link to comment https://www.insanelymac.com/forum/topic/292542-airport-pcie-half-mini/page/4/#findComment-2047424 Share on other sites More sharing options...
mr. west Posted August 5, 2014 Share Posted August 5, 2014 Working great in Yosemite Beta 1, Thanks This patch is still fine on DP5 10.10. Link to comment https://www.insanelymac.com/forum/topic/292542-airport-pcie-half-mini/page/4/#findComment-2048728 Share on other sites More sharing options...
nmano Posted August 10, 2014 Share Posted August 10, 2014 Can I use this adapter to my x58a-ud7 m.board with BCM94352HMB full+ half bracket mini pci-e to 1x 16x adapter for wireless wifi bluetooth card http://www.ebay.ca/itm/111397720884?ssPageName=STRK:MEWNX:IT&_trksid=p3984.m1439.l2649 Link to comment https://www.insanelymac.com/forum/topic/292542-airport-pcie-half-mini/page/4/#findComment-2050318 Share on other sites More sharing options...
toleda Posted August 11, 2014 Author Share Posted August 11, 2014 Can I use this adapter to my x58a-ud7 m.board with BCM94352HMB WiFi only, need USB for BT. Link to comment https://www.insanelymac.com/forum/topic/292542-airport-pcie-half-mini/page/4/#findComment-2050832 Share on other sites More sharing options...
nmano Posted August 16, 2014 Share Posted August 16, 2014 WiFi only, need USB for BT. thanks I recived card I am waiting for the adapter then I replay. Link to comment https://www.insanelymac.com/forum/topic/292542-airport-pcie-half-mini/page/4/#findComment-2052208 Share on other sites More sharing options...
kode54 Posted August 18, 2014 Share Posted August 18, 2014 WiFi only, need USB for BT. Why yes, I do believe that is what the included cable is for. Link to comment https://www.insanelymac.com/forum/topic/292542-airport-pcie-half-mini/page/4/#findComment-2052859 Share on other sites More sharing options...
toleda Posted August 18, 2014 Author Share Posted August 18, 2014 I do believe that is what the included cable is for. Look again, cable is power. Required cable for BT must be 4 pin USB to motherboard USB 2.0 header. Mini PCIe adapters do not put USB signals on PCIe. Link to comment https://www.insanelymac.com/forum/topic/292542-airport-pcie-half-mini/page/4/#findComment-2053067 Share on other sites More sharing options...
disneydoxies Posted August 18, 2014 Share Posted August 18, 2014 if the mobo supported mini pcie could i use a apple airport module from a iMac ? trying to do a build using the in tell duo2 core 2.66 processor , airport card, and hdd from a iMac with a bad logic board Link to comment https://www.insanelymac.com/forum/topic/292542-airport-pcie-half-mini/page/4/#findComment-2053075 Share on other sites More sharing options...
toleda Posted August 20, 2014 Author Share Posted August 20, 2014 if the mobo supported mini pcie could i use a apple airport module from a iMac ? Verify the connector, only macpro uses standard mini pcie. If you find the correct adapter, likely to work. Link to comment https://www.insanelymac.com/forum/topic/292542-airport-pcie-half-mini/page/4/#findComment-2053529 Share on other sites More sharing options...
