Pike R. Alpha Posted December 11, 2014 Share Posted December 11, 2014 Am I the only person with a native working 4360CD on a PCIe X1 adapter that is slow with AirDrop? Link to comment Share on other sites More sharing options...
toleda Posted December 12, 2014 Author Share Posted December 12, 2014 With the card does not start, go to KP 4352 WiFi requires device id injection, see Airport Injection Methods, Post #1 4352 BT requires firmware update, see BCM94352 BT, Post #1. Am I the only person with a native working 4360CD on a PCIe X1 adapter that is slow with AirDrop? Don't use PCIe X1; no AirDrop issues with PCIe HM. Link to comment Share on other sites More sharing options...

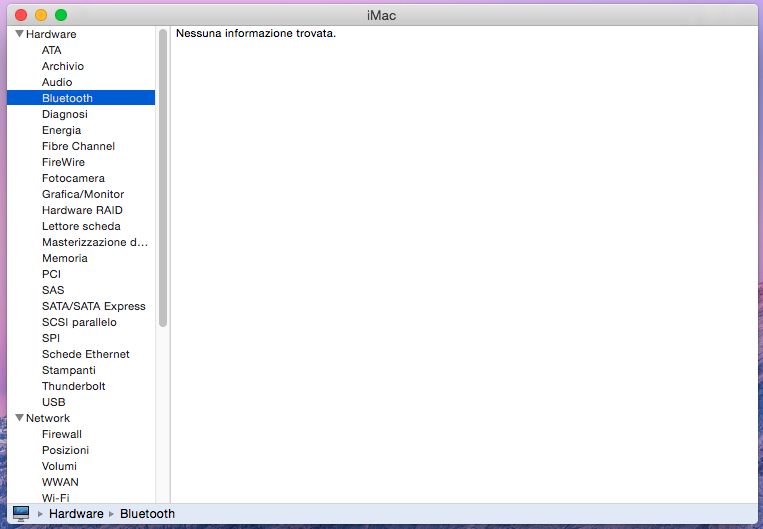

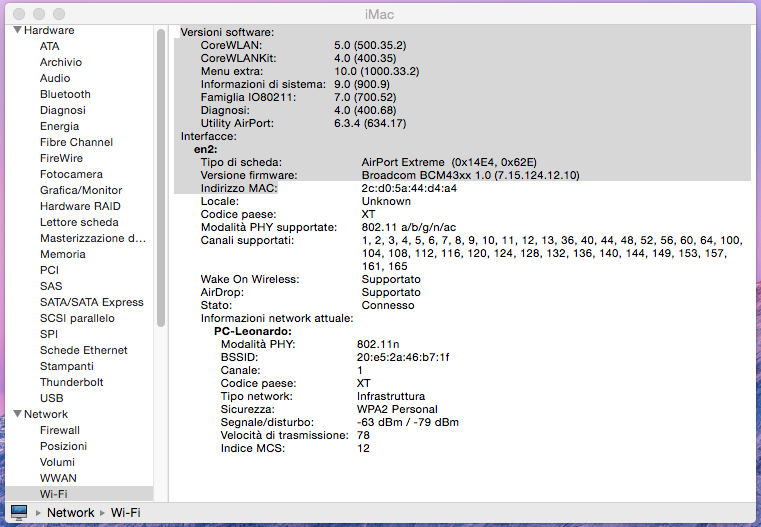

@Leo@ Posted December 12, 2014 Share Posted December 12, 2014 4352 WiFi requires device id injection, see Airport Injection Methods, Post #1 4352 BT requires firmware update, see BCM94352 BT, Post #1. Then a step forward was made, I installed these kext: http://www.hackintoshosx.com/files/file/4352-mini-pci-bcm4352-fully-working-with-handoff/ the result is this: BT not found and Wi-Fi working I include photos Link to comment Share on other sites More sharing options...
toleda Posted December 12, 2014 Author Share Posted December 12, 2014 I installed these kext Why? Which BT solution? Link to comment Share on other sites More sharing options...
@Leo@ Posted December 12, 2014 Share Posted December 12, 2014 Why? suggested by the seller of the card Which BT solution? I do not understand what you mean Link to comment Share on other sites More sharing options...
toleda Posted December 12, 2014 Author Share Posted December 12, 2014 suggested by the seller of the card I do not understand what you mean See Post #203/@Leo@ Link to comment Share on other sites More sharing options...
@Leo@ Posted December 12, 2014 Share Posted December 12, 2014 See Post #203/@Leo@With 4352 BT firmware update the BT work Now WiFi work AirDrop extreme but the BT can not get it to work Link to comment Share on other sites More sharing options...
@Leo@ Posted December 14, 2014 Share Posted December 14, 2014 The card does not work and I returned to the seller Thanks for all If you purchase this works OOB? http://www.ebay.it/itm/390959657091?ssPageName=STRK:MEWAX:IT&_trksid=p3984.m1423.l2649 Link to comment Share on other sites More sharing options...
toleda Posted December 14, 2014 Author Share Posted December 14, 2014 this works OOB? Likely, no guarantee. Link to comment Share on other sites More sharing options...
Ciccio91 Posted December 14, 2014 Share Posted December 14, 2014 Hi guyz! Someone can help me to fix non-recognize BT on Yosemite 10.10.1? I have an Asus Rampage V (X99) My bluetooth is BCM4360 Vendor 14E4, Device 43A0 is a WIFI/BT Combo, i don't have a DSDT and SSDT, simply [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] and Chimera, only WIFI works (without 5Ghz) Please help me!! =) Thanks a lot Link to comment Share on other sites More sharing options...
toleda Posted December 15, 2014 Author Share Posted December 15, 2014 fix non-recognize BT on Yosemite 10.10.1? Post #1, Notes, 2. Determine WiFi Card/Bluetooth ProductID/VendorID Link to comment Share on other sites More sharing options...
Ciccio91 Posted December 15, 2014 Share Posted December 15, 2014 Post #1, Notes, 2. Determine WiFi Card/Bluetooth ProductID/VendorID Hi master toleda, the method does not work for me, i have a 4360 bcm not 4360CD, Link to comment Share on other sites More sharing options...
toleda Posted December 15, 2014 Author Share Posted December 15, 2014 the method does not work for me, The method works for any installed BT device. OS X does not see an installed BT device. Link to comment Share on other sites More sharing options...
abdouoi Posted December 18, 2014 Share Posted December 18, 2014 Any 10.10.2(14C81f) 5GHz patch ? Link to comment Share on other sites More sharing options...
toleda Posted December 20, 2014 Author Share Posted December 20, 2014 Any 10.10.2(14C81f) 5GHz patch ? Post #185. Link to comment Share on other sites More sharing options...
abdouoi Posted December 20, 2014 Share Posted December 20, 2014 Post #185. Already tried that but it doesn't work Link to comment Share on other sites More sharing options...
Skvo Posted December 22, 2014 Share Posted December 22, 2014 Any 10.10.2(14C81f) 5GHz patch ?For OS X 10.10.2 public beta (14C81f) 5 GHz Fix for BCM94352HMB with XT country: Name: AirPortBrcm4360 Find: 58 54 00 5D 19 54 21 00 00 Replace: 58 54 00 8D A8 5E B6 00 09 2 Link to comment Share on other sites More sharing options...
abdouoi Posted December 22, 2014 Share Posted December 22, 2014 For OS X 10.10.2 beta (14C81f)5 GHz Fix for BCM94352HMB with XT country:Name: AirPortBrcm4360Find: 58 54 00 5D 19 54 21 00 00Replace: 58 54 00 8D A8 5E B6 00 09 Thanks Skvo Link to comment Share on other sites More sharing options...
tom.bridges Posted December 23, 2014 Share Posted December 23, 2014 Has anyone got the Asus PCE-AC68 working? I can only get a mac link of 300 in osx but I get 1300 in windows. Link to comment Share on other sites More sharing options...
toleda Posted December 23, 2014 Author Share Posted December 23, 2014 Has anyone got the Asus PCE-AC68 working? I can only get a mac link of 300 in osx but I get 1300 in windows. Half mini? Off topic. Link to comment Share on other sites More sharing options...
Pike R. Alpha Posted December 24, 2014 Share Posted December 24, 2014 Don't use PCIe X1; no AirDrop issues with PCIe HM. I installed this card in my Gigabyte X87MX-D3H based hack and the only problem I have left to solve is that iOS8-to-PC connections are a bit slow. PC-to-PC connections are much quicker. Note: Someone said that this card wouldn't work on this motherboard, but it does. Link to comment Share on other sites More sharing options...
howoarang Posted January 4, 2015 Share Posted January 4, 2015 Hi, I have Mavericks 10.9.5 and now I bought half-mini PCIe card - BCM94352 HMB - 2.4/5 GHz, ac+abgn, 2 stream, 867 Mbs + BT (4.0). I edited plist in AirPortBrcm4360 and WLAN now works, but only in 2,4GHz mode and it supports channels 1-14. If I use method to fix 5GHz, then my card supports channels 1-11 in 2,4GHz and other in 5GHz. But AccessPoint in my work has 13th channel and I can't to joint. So how to fix this card to support 2,4 + 5 GHz and with channels 1-13 or 1-14 ? thanks Link to comment Share on other sites More sharing options...
Skvo Posted January 5, 2015 Share Posted January 5, 2015 Hi, I have Mavericks 10.9.5 and now I bought half-mini PCIe card - BCM94352 HMB - 2.4/5 GHz, ac+abgn, 2 stream, 867 Mbs + BT (4.0). I edited plist in AirPortBrcm4360 and WLAN now works, but only in 2,4GHz mode and it supports channels 1-14. If I use method to fix 5GHz, then my card supports channels 1-11 in 2,4GHz and other in 5GHz. But AccessPoint in my work has 13th channel and I can't to joint. So how to fix this card to support 2,4 + 5 GHz and with channels 1-13 or 1-14 ? New 5GHz Fix for OS X 10.9.5: Name: AirPortBrcm4360 Find: 58 54 00 20 17 27 20 00 00 Replace: 58 54 00 1B 67 31 95 00 09 After patch supported channels: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140 Link to comment Share on other sites More sharing options...
Jake Lo Posted January 11, 2015 Share Posted January 11, 2015 Driver AirPortBrcm4360.kext in OS X 10.10 has a "whitelist" of compatible models of computers... For Wi-Fi modules with DeviceID=0x4353 (series Broadcom BCM943224xx), whitelist contains: Mac-66F35F19FE2A0D05 - MacBookAir5,1 -(11-inch Mid 2012) Mac-2E6FAB96566FE58C - MacBookAir5,2 - (13-inch Mid 2012) BCM943224HMS in OS X 10.10 work natively, only used model MacBookAir5,1 and MacBookAir5,2. Clover knows about MacBookAir 5,2, enough to specify in the config: Снимок экрана 2014-08-24 в 15.56.13.png If you do not want to rename the model, you need a patch driver AirPortBrcm4360.kext For details, see the post #1 Thanks Skvo, My DW1520 BCM943224HMS works using MacBookAir5.2, could get to internet, but AirDrop doesn't work. I've tried patching so that it reads Airport Extreme, but doesn't resolve. Am I missing some other patch? Link to comment Share on other sites More sharing options...
vanquybn Posted January 15, 2015 Share Posted January 15, 2015 Hi all, I am using half-mini PCIe card - BCM94352 HMB - 2.4/5 GHz, ac+abgn, 2 stream, 867 Mbs + BT (4.0). For bluetooth 4, it work with vallina kext, just edit info.split as below: <key>Bluetooth 4.0 USB BCM943225HMB</key> <dict> <key>CFBundleIdentifier</key> <string>com.apple.iokit.BroadcomBluetoothHostControllerUSBTransport</string> <key>IOClass</key> <string>BroadcomBluetoothHostControllerUSBTransport</string> <key>IOProviderClass</key> <string>IOUSBDevice</string> <key>idProduct</key> <integer>12949</integer> <key>idVendor</key> <integer>5075</integer> </dict> <key>Bluetooth 4.0 USB BCM94352</key> <dict> <key>CFBundleIdentifier</key> <string>com.apple.iokit.BroadcomBluetoothHostControllerUSBTransport</string> <key>IOClass</key> <string>BroadcomBluetoothHostControllerUSBTransport</string> <key>IOProviderClass</key> <string>IOUSBDevice</string> <key>idProduct</key> <integer>8699</integer> <key>idVendor</key> <integer>2652</integer> </dict> Link to comment Share on other sites More sharing options...
