[Matgen84]

Hi @Jief_Machak @Slice Developer's Team,

Sorry if i seem for those remarks as i know you already put a lot of effort.

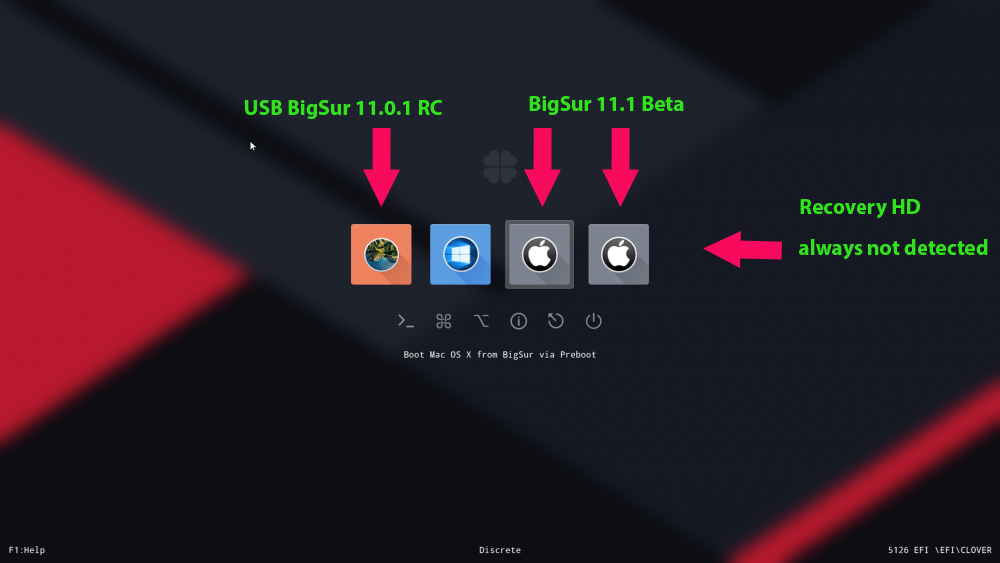

But Big Sur partition recovery is not detected, and since BS 11.1 Beta, Clover GUI does not recognize os_bigsur.icns on affected volumes.
Hope you will have time to find a solution. Thank you in advance.



[Matgen84]

Hi @Jief_Machak @Slice Developer's team,



Sorry Again, if i seem for those remarks as i know you already put a lot of effort.



Clover r5126 latest commit - macOS Big Sur 11.1 Beta:

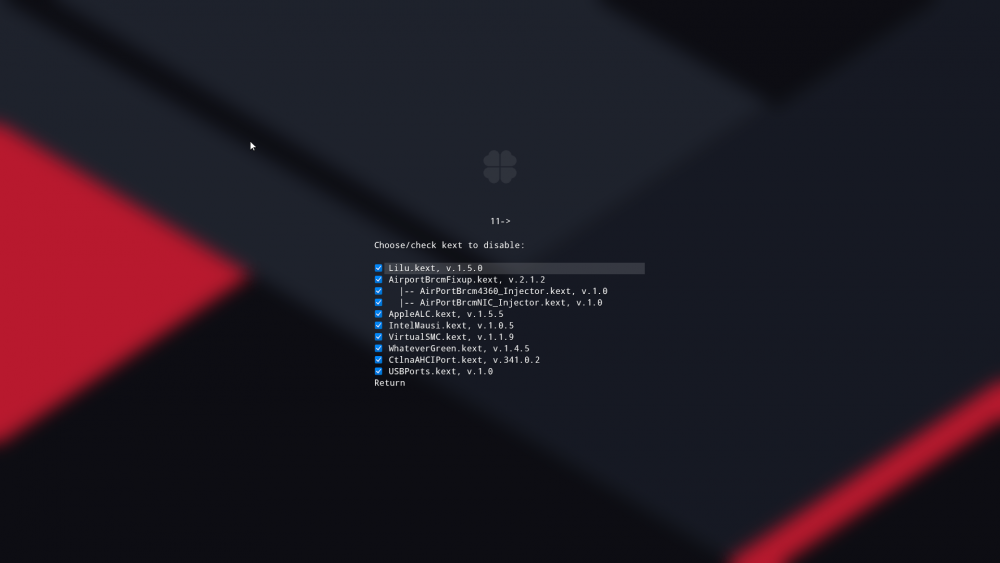

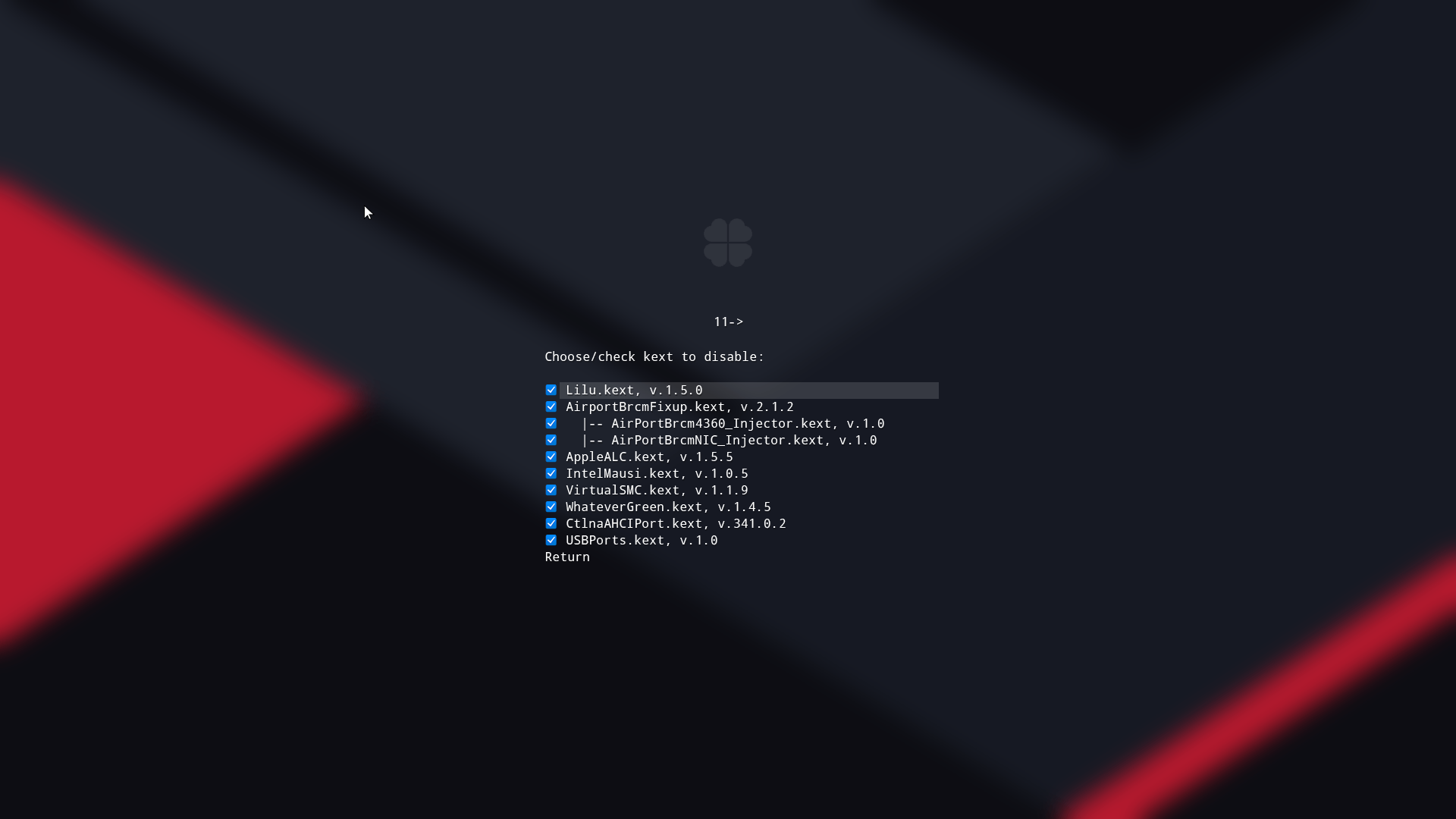

There is a problem of the order of the kexts in the Other folder: Lilu is not in first while it is the case in 11 folder. Maybe, it is the reason why there is a panic, "can't perform kext scan no kext summary" when kexts are duplicates.

Other folder



Spoiler





11 folder



Spoiler



[Jief_Machak]

The order in the menu doesn't reflect the link order. You'll see real order in debug.log.

[Matgen84]

11 minutes ago, Jief_Machak said:

The order in the menu doesn't reflect the link order. You'll see real order in debug.log.



Why the order in the menu doesn't reflect the real order. I don't understand.



In debug log, there is the same problem of order with Big Sur 11.1 Beta (Other folder vs 11 folder) as Clover menu

debug.log

Edited November 19, 2020 by Matgen84

[Jief_Machak]

I guess the order in the menu is the order the low level file system driver gives us. Which could depend on a lot of thing. The order they were copied, for example.

If you rename 11 to Other and Other to 11, menu order might be swapped.

Clover takes care of a proper injection order (currently hard coded) just before it delegate to OC.

[Matgen84]

3 minutes ago, Jief_Machak said:

I guess the order in the menu is the order the low level file system driver gives us. Which could depend on a lot of thing. The order they were copied, for example.

If you rename 11 to Other and Other to 11, menu order might be swapped.

Clover takes care of a proper injection order (currently hard coded) just before it delegate to OC.

Sorry because of my bad English, I don't understand well. I see that the proper injection of Clover is hard coded.

If I only use Other folder to boot Big Sur 11.1: Lilu is not in first position. In Mojave with Clover 5126 same commit, Lilu is the first kext. Why?

Mojave:

8:110  0:000  AddKextsInArray from Other
8:110  0:000  ->Extra kext: Other\Lilu.kext (v.1.5.0)
8:110  0:000  ->Extra kext: Other\AirportBrcmFixup.kext (v.2.1.2)
8:110  0:000      |-- PlugIn kext: Other\AirportBrcmFixup.kext\Contents\PlugIns\AirPortBrcm4360_Injector.kext (v.1.0)
8:110  0:000      |-- PlugIn kext: Other\AirportBrcmFixup.kext\Contents\PlugIns\AirPortBrcmNIC_Injector.kext (v.1.0)
8:110  0:000  ->Extra kext: Other\AppleALC.kext (v.1.5.5)
8:110  0:000  ->Extra kext: Other\IntelMausiEthernet.kext (v.2.5.1d1)
8:110  0:000  ->Extra kext: Other\WhateverGreen.kext (v.1.4.5)
8:110  0:000  ->Extra kext: Other\USBInjectAll.kext (v.0.7.5)
8:110  0:000  ->Extra kext: Other\EFICheckDisabler.kext (v.0.5)
8:110  0:000  ->Extra kext: Other\FakeSMC.kext (v.3.5.3)



[Jief_Machak]

1 minute ago, Matgen84 said:

If I only use Other folder to boot Big Sur 11.1: Lilu is not in first position

That is still not the order of injection. Look at the bottom of the debug.log. In the log that comes from OC. You'll find some lines saying "prelinked success" or something like that.

[Matgen84]

7 minutes ago, Jief_Machak said:

That is still not the order of injection. Look at the bottom of the debug.log. In the log that comes from OC. You'll find some lines saying "prelinked success" or something like that.



Ok. Clover delegate the kext injection to OC, only for Big Sur. Right !

[Jief_Machak]

1 minute ago, Matgen84 said:

Clover delegate the kext injection to OC

No. We delegate for all versions now.

These kind of lines will tell you the injection order

OC: Prelinked injection Kexts\Other/VirtualSMC.kext (SMC) - Success



[chris1111]

@Jief_Machak Interesting  bdmesg also gives the kexts patch info but differently if I understand



Spoiler

13:660  0:000  Finally: ExternalClock=25MHz BusSpeed=100000kHz CPUFreq=3300MHz PIS: hw.busfrequency=100000000Hz
13:660  0:000  Beginning OC
13:660  0:000  OCST: Missing vault data, ignoring...
13:669  0:008  config-oc.plist isn't use at all
13:669  0:000  AddKextsInArray from Other
13:669  0:000  ->Extra kext: Other\Lilu.kext (v.1.4.9)
13:669  0:000  ->Extra kext: Other\AirportBrcmFixup.kext (v.2.1.1)
13:669  0:000  ->Extra kext: Other\AppleALC.kext (v.1.5.4)
13:669  0:000  ->Extra kext: Other\IntelMausi.kext (v.1.0.3)
13:669  0:000  ->Extra kext: Other\SMCSuperIO.kext (v.1.1.8)
13:669  0:000  ->Extra kext: Other\WhateverGreen.kext (v.1.4.4)
13:669  0:000  ->Extra kext: Other\SMCProcessor.kext (v.1.1.8)
13:669  0:000  ->Extra kext: Other\Marvell-Injector.kext (v.1.1)
13:669  0:000  ->Extra kext: Other\VirtualSMC.kext (v.1.1.8)
13:669  0:000  ->Extra kext: Other\USBMap.kext (v.1.0)
13:669  0:000  AddKextsInArray from Off
13:669  0:000  AddKextsInArray from 11
13:669  0:000  AddKextsInArray from 11_normal
13:669  0:000  AddKextsInArray from 11.1
13:669  0:000  AddKextsInArray from 11.1_normal
13:669  0:000  AddKextsInArray from 11.1.0
13:669  0:000  AddKextsInArray from 11.1.0_normal
13:669  0:000  Bridge kext to OC : Path=Lilu.kext
13:675  0:006  info plist path: Kexts\Other\Lilu.kext\Contents\Info.plist
13:680  0:004  assign executable as 'Contents\MacOS\Lilu'
13:680  0:000  Bridge kext to OC : Path=VirtualSMC.kext
13:680  0:000  info plist path: Kexts\Other\VirtualSMC.kext\Contents\Info.plist
13:686  0:006  assign executable as 'Contents\MacOS\VirtualSMC'
13:686  0:000  Bridge kext to OC : Path=WhateverGreen.kext
13:686  0:000  info plist path: Kexts\Other\WhateverGreen.kext\Contents\Info.plist
13:690  0:004  assign executable as 'Contents\MacOS\WhateverGreen'
13:690  0:000  Bridge kext to OC : Path=AppleALC.kext
13:690  0:000  info plist path: Kexts\Other\AppleALC.kext\Contents\Info.plist
13:709  0:019  assign executable as 'Contents\MacOS\AppleALC'
13:709  0:000  Bridge kext to OC : Path=IntelMausi.kext
13:709  0:000  info plist path: Kexts\Other\IntelMausi.kext\Contents\Info.plist
13:712  0:003  assign executable as 'Contents\MacOS\IntelMausi'
13:712  0:000  Bridge kext to OC : Path=SMCProcessor.kext
13:712  0:000  info plist path: Kexts\Other\SMCProcessor.kext\Contents\Info.plist
13:717  0:005  assign executable as 'Contents\MacOS\SMCProcessor'
13:717  0:000  Bridge kext to OC : Path=SMCSuperIO.kext
13:717  0:000  info plist path: Kexts\Other\SMCSuperIO.kext\Contents\Info.plist
13:721  0:003  assign executable as 'Contents\MacOS\SMCSuperIO'
13:721  0:000  Bridge kext to OC : Path=AirportBrcmFixup.kext
13:721  0:000  info plist path: Kexts\Other\AirportBrcmFixup.kext\Contents\Info.plist
13:725  0:003  assign executable as 'Contents\MacOS\AirportBrcmFixup'
13:725  0:000  Bridge kext to OC : Path=Marvell-Injector.kext
13:725  0:000  info plist path: Kexts\Other\Marvell-Injector.kext\Contents\Info.plist
13:728  0:002  Bridge kext to OC : Path=USBMap.kext
13:728  0:000  info plist path: Kexts\Other\USBMap.kext\Contents\Info.plist
13:748  0:020  Load OpenRuntime.efi : Status Success
13:748  0:000  Start OpenRuntime.efi : Status Success
13:748  0:000  OC: OcMiscEarlyInit...
13:757  0:008  OC: Watchdog status is 1
13:759  0:002  OC: OpenCore DBG-061-2020-11-19 is loading in Optional mode (0/0)...
13:762  0:002  OC: Boot timestamp - 2020.11.19 14:58:23
13:764  0:002  OCCPU: MP services threads 4 (enabled 4) - Success
13:766  0:002  OCCPU: MP services Pkg 1 Cores 4 Threads 1 - Success
13:771  0:004  OCCPU: Found Intel(R) Core(TM) i5-4590 CPU @ 3.30GHz
13:773  0:002  OCCPU: Signature 306C3 Stepping 3 Model 3C Family 6 Type 0 ExtModel 3 ExtFamily 0 uCode 28
13:775  0:002  OCCPU: EIST CFG Lock 1
13:778  0:002  OCCPU: Discovered CpuFamily 6 CpuModel 60 CpuStepping 3 CpuGeneration 6
13:780  0:002  OCCPU: Ratio Min 8 Max 33 Current 33 Turbo 37 37 36 35
13:883  0:102  TscFrequency 3292371801
13:885  0:002  OCCPU: Detected Apple Processor Type: 06 -> 0605
13:888  0:002  OCCPU: CPUFrequencyFromTSC  3292371801Hz  3292MHz
13:892  0:004  OCCPU: CPUFrequency  3292371801Hz  3292MHz
13:895  0:002  OCCPU: FSBFrequency    99768842Hz    99MHz
13:897  0:002  OCCPU: Pkg 1 Cores 4 Threads 4
13:899  0:002  OC: OcLoadNvramSupport...
13:901  0:002  OC: Current version is DBG-061-2020-11-19
13:904  0:002  OC: OcMiscMiddleInit...
13:906  0:002  OC: LoadHandle 0 with BootProtect in  mode - Unsupported
13:908  0:002  OC: OcLoadUefiSupport...
13:911  0:002  OcAppleEventInstallProtocol
13:913  0:002  InternalCreateQueueEvent
13:918  0:004  EventCreateSimplePointerInstallNotifyEvent
13:920  0:002  InternalSimplePointerInstallNotifyFunction
13:923  0:002  InternalRegisterSimplePointerInterface
13:925  0:002  InternalRegisterSimplePointerInterface
13:927  0:002  InternalRegisterSimplePointerInterface
13:930  0:002  OcOSInfoInstallProtocol
13:932  0:002  OCRTC: OcAppleRtcRamInstallProtocol
13:934  0:002  OCRTC: Wake log is 0x00 0x00   0 0x00
13:937  0:002  OcAppleFbInfoInstallProtocol
13:939  0:002  OC: Loading Apple Secure Boot with Disabled (level 0)
13:944  0:004  OCABC: RTDFRG 1 DEVMMIO 0 NOSU 0 NOVRWR 0 NOSB 0 NOHBMAP 0 SMSLIDE 1 WRUNPROT 1
13:946  0:002  OCABC: FEXITBS 0 PRMRG 0 CSLIDE 1 MSLIDE 0 PRSRV 0 RBMAP 1 VMAP 1 APPLOS 0 RTPERMS 1
13:948  0:002  OCABC: Got rendezvous with OpenRuntime r11
13:950  0:002  OCABC: MAT support is 0
13:953  0:002  OC: RBVR 0 DDBR 0
13:955  0:002  OC: Got 0 drivers
13:958  0:002  OCC: Installing GOP (Unsupported) on ConsoleOutHandle...
13:960  0:002  OC: Requested resolution is 1366x768@0 (max: 0) from 1366x768
13:964  0:004  OCC: Requesting 1366x768@0 (max: 0) resolution, curr 0, total 10
13:967  0:002  OCC: Mode 0 - 1920x1080:1
13:969  0:002  OCC: Mode 1 - 640x480:1
13:971  0:002  OCC: Mode 2 - 800x600:1
13:974  0:002  OCC: Mode 3 - 1024x768:1
13:976  0:002  OCC: Mode 4 - 1280x720:1
13:978  0:002  OCC: Mode 5 - 1280x800:1
13:981  0:002  OCC: Mode 6 - 1280x1024:1
13:983  0:002  OCC: Mode 7 - 1440x900:1
13:985  0:002  OCC: Mode 8 - 1400x1050:1
13:990  0:004  OCC: Mode 9 - 1680x1050:1
13:992  0:002  OCC: No compatible mode for 1366x768@0 (max: 0) resolution
13:994  0:002  OC: Changed resolution to 1366x768@0 (max: 0) from 1366x768 - Not Found
13:997  0:002  OCC: Using builtin text renderer with 1 scale
14:005  0:007  OCC: Install console control (B6075A70/0/0), current - Success
14:007  0:002  OCC: Setup ASCII Output - Success
14:009  0:002  OC: Requested console mode is 0x0 (max: 0) from
14:012  0:002  OC: Requested not to use audio
14:016  0:004  OC: OcLoadPlatformSupport...
14:019  0:002  OC: OcLoadDevPropsSupport...
14:021  0:002  OC: OcMiscLateInit...
14:023  0:002  OC: Invalid HibernateMode:
14:025  0:002  OC: Translated HibernateMode  to 0
14:028  0:002  OC: Hibernation detection status is Not Found
14:030  0:002  OC: Panic log does not exist
14:032  0:002  OC: OcLoadKernelSupport...
14:035  0:002  OC: All green, starting boot management...
14:037  0:002  DevicePath = PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x0,0xFFFF,0x0)/HD(2,GPT,D3B12EBB-E7A0-4AD6-9784-98CB674EDFB6,0x64028,0x1FFB4D00)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,D3386EEE9BA5904FB52C5ACF72DF87B2)/\4BB9C21C-8F09-3F39-BD5F-A151864A2A72\System\Library\CoreServices\boot.efi
14:040  0:003  OCB: Arch filtering B8E8A018(723512)->B8E8A018(723512) caps 4 - Success
14:064  0:024  GetOSVersion: 11.1 (20C5048k)
14:064  0:000  Will not patch boot.efi
14:064  0:000  === [ PatchSmbios ] =============================
14:064  0:000  insert table 9 for dev 0:0
14:064  0:000  insert table 9 for dev 0:1
14:064  0:000  insert table 9 for dev 19:0
14:064  0:000  insert table 9 for dev 0:0
14:064  0:000  Table 11 present, but rewritten for us
14:065  0:000  Not trusting SMBIOS because it's being sneaky...
14:065  0:000  Detected alternating SMBIOS channel banks
14:065  0:000  Channels: 2
14:065  0:000  Interleave: 0 2 1 3 4 6 5 7 8 10 9 11 12 14 13 15 16 18 17 19 20 22 21 23
14:065  0:000  SPD data in use:
14:065  0:000  SmbiosTable.Type17->Vendor = Micron Technology
14:065  0:000  SmbiosTable.Type17->SerialNumber = 0EFA7382
14:065  0:000  SmbiosTable.Type17->PartNumber = 16JTF1G64AZ-1G6E1E1
14:065  0:000  SMBIOS Type 17 Index = 0 => 0 0:
14:065  0:000  BANK 0 DIMM0 1600MHz 8192MB(Ext:0MB)
14:065  0:000  SPD data in use:
14:065  0:000  SmbiosTable.Type17->Vendor = Micron Technology
14:065  0:000  SmbiosTable.Type17->SerialNumber = 0EFA73AC
14:065  0:000  SmbiosTable.Type17->PartNumber = 16JTF1G64AZ-1G6E1E1
14:065  0:000  SMBIOS Type 17 Index = 1 => 1 2:
14:065  0:000  BANK 1 DIMM0 1600MHz 8192MB(Ext:0MB)
14:065  0:000  SMBIOS Type 17 Index = 2 => 2 1:
14:065  0:000  BANK 0 DIMM1 EMPTY
14:065  0:000  SMBIOS Type 17 Index = 3 => 3 3:
14:065  0:000  BANK 1 DIMM1 EMPTY
14:065  0:000  mTotalSystemMemory = 16384
14:065  0:000  NumberOfMemoryDevices = 4
14:065  0:000  Type20[0]->End = 0x7FFFFF, Type17[0] = 2000
14:065  0:000  Type20[1]->End = 0xFFFFFF, Type17[1] = 6000
14:065  0:000  Table 131 is present, CPUType=35
14:065  0:000  Change to: 605
14:065  0:000  === [ PatchACPI ] ===============================
14:065  0:000  Xsdt reallocation done
14:065  0:000  old FADT length=10C
14:065  0:000   SignatureFixup: 0xE35F0827 -> 0x0
14:065  0:000  Found OperationRegion(GNVS, SystemMemory, C9A00C18, ...)
14:065  0:000  Found OperationRegion(MCHT, SystemMemory, FED10000, ...)
14:065  0:000  Found OperationRegion(RCRB, SystemMemory, FED1C000, ...)
14:065  0:000  Found OperationRegion(MCA1, SystemMemory, F7FE0000, ...)
14:065  0:000  Found OperationRegion(MCA1, SystemMemory, F7FE0000, ...)
14:065  0:000  Found OperationRegion(CPSB, SystemMemory, C98F4E18, ...)
14:065  0:000  Found OperationRegion(TMMB, SystemMemory, FED40000, ...)
14:065  0:000  Found OperationRegion(TVID, SystemMemory, FED40F00, ...)
14:065  0:000  Found OperationRegion(TPMR, SystemMemory, FED40000, ...)
14:065  0:000  Found OperationRegion(VECT, SystemMemory, C9F64018, ...)
14:068  0:003  DSDT found in Clover volume: \EFI\CLOVER\ACPI\patched\DSDT.aml
14:069  0:000  Apply DsdtFixMask=0x10000000
14:069  0:000  === [ FixBiosDsdt ] =============================
14:069  0:000  OperationRegion (GNVS...) corrected from 0xD9A00C18 to addr=0xC9A00C18
14:069  0:000    indirect name=SRCB
14:069  0:000    indirect name=SRMB
14:069  0:000    indirect name=SRMB
14:069  0:000  OperationRegion (CPSB...) corrected from 0xD98F5E18 to addr=0xC98F4E18
14:070  0:000  OperationRegion (VECT...) corrected from 0xD9F64018 to addr=0xC9F64018
14:070  0:000  PreCleanup XSDT: count=13, length=140
14:070  0:000  PreCleanup XSDT, corrected XSDT: count=13, length=140
14:070  0:000  === [ ACPIPatchedAML ] ==========================
14:070  0:000  AutoMerge pass 1
14:070  0:000  Unsorted
14:070  0:000  Inserting SSDT.AML from \EFI\CLOVER\ACPI\patched: ignore on pass 1
14:070  0:000  Inserting SSDT-ARPT.aml from \EFI\CLOVER\ACPI\patched: ignore on pass 1
14:070  0:000  === [ ACPIDropTables ] ==========================
14:070  0:000  === [ DropSSDT ] ================================
14:070  0:000  Drop tables from XSDT, SIGN=SSDT TableID= Length=0
14:070  0:000   Table[3]: SSDT  Cpu0Ist  1337 dropped
14:070  0:000   Table[4]: SSDT  CpuPm  2776 dropped
14:070  0:000   Table[5]: SSDT  LakeTiny  455 dropped
14:070  0:000   Table[8]: SSDT  SataTabl  877 dropped
14:070  0:000   Table[9]: SSDT  SaSsdt   13452 dropped
14:070  0:000   Table[10]: SSDT  WMI  26255 dropped
14:070  0:000  === [ ACPIPatchedAML ] ==========================
14:070  0:000  AutoMerge pass 2
14:070  0:000  Unsorted
14:070  0:000  Inserting SSDT.AML from \EFI\CLOVER\ACPI\patched: size=1827 ... Success
14:071  0:001  Inserting SSDT-ARPT.aml from \EFI\CLOVER\ACPI\patched: size=190 ... Success
14:072  0:000  ApicCPUNum=4
14:072  0:000  Cleanup XSDT: count=15, length=156
14:072  0:000  corrected XSDT count=9, length=108
14:072  0:000  === [ RestSetup macOS ] =========================
14:072  0:000  NVidia GFX injection not set
14:072  0:000  Intel HD Graphics 4600 [8086:0412] :: PciRoot(0x0)\Pci(0x2,0x0)
14:072  0:000    ig-platform-id = 0x0d220003
14:072  0:000  Intel GFX revision  = 0x6
14:072  0:000  stringlength = 2160
14:072  0:000  CurrentMode: Width=1920 Height=1080
14:075  0:003  Use origin smbios table type 1 guid.
14:080  0:004  Custom boot screen not used because entry has unset use graphics





[ameenjuz]

why i m booting successfully from preboot volume

but do not boot Big Sur volume

can't we boot actual volume of big sur?

i attached my EFI folder

EFI.zip

[Jief_Machak]

The preboot volume does something about root hash (don't know what that is)/ Booting from Preboot is the only way.

[jlrycm]

On 11/17/2020 at 7:52 PM, iCanaro said:

from ioreg with usb mapped with my ACPI, it is immediately apparent that USPorts.kext adversely affected the USB 3.1 asmedia PXSX



using USBPorts.kext



using my ACPI

@iCanaro, for Haswell the ACPI method you are using has to be done differently according to the guide you mentioned.

https://www.macos86.it/topic/597-guide-how-to-usb-port-mapping/

I’m not a developer, only an enthusiast that has built hackintoshes since 2012. If I share with you the OEM dsdt of my mobo, would you do this method for me? I really want to fix the USB 3.1 ASmedia PSXS that for some reason is not working natively and perhaps this USB mapping method could serve well. Maybe I’m wrong but I believe that the change made in Big Sur AppleUSBXHCIPCI plug-in broke the native support for my USB 3.1 PCIe card.





[naiclub]

Hello Jief_Machak I need your help Can a little or not
Sensor reader How to do it, read in How can bigsur be?
Thank you

Spoiler



[Matgen84]

21 minutes ago, naiclub said:

Hello Jief_Machak I need your help Can a little or not
Sensor reader How to do it, read in How can bigsur be?
Thank you

  Reveal hidden contents





Hi @naiclub

@Slice and users can help you In Hwsensor3 Topic, if you want





[naiclub]

15 minutes ago, Matgen84 said:



Hi @naiclub

@Slice and users can help you In Hwsensor3 Topic, if you want





Spoiler

Thank you Matgen84

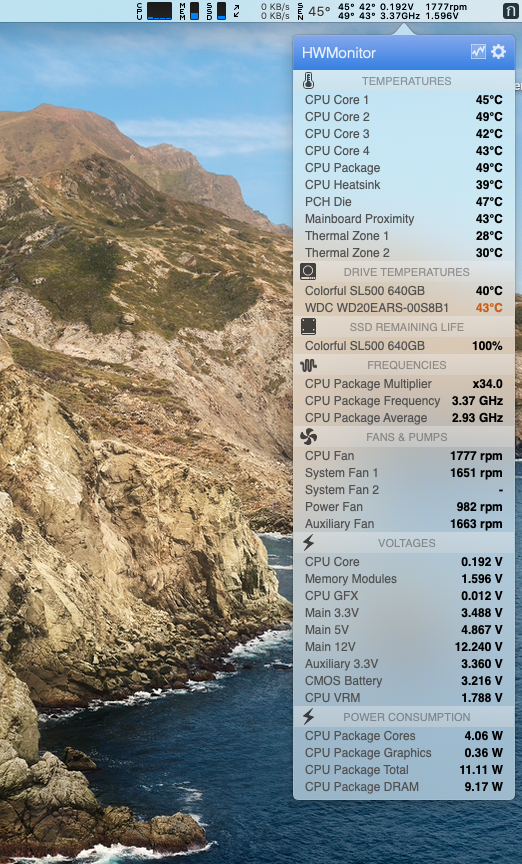

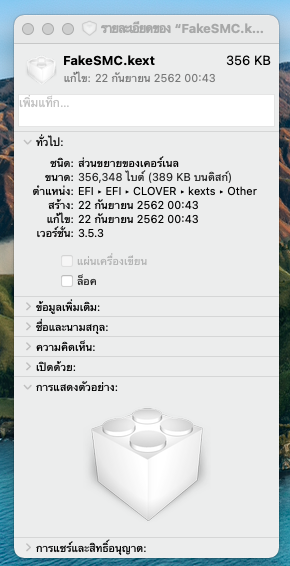

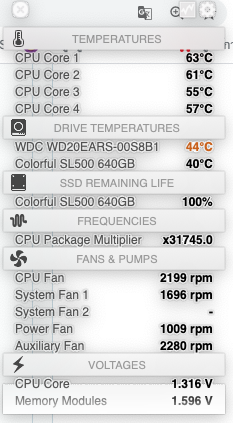

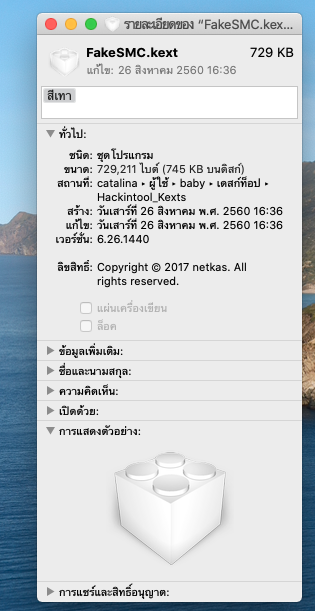

Well, if I use @Slice's kext, it will be the same as the picture you see.
If there is a way to help me or not I can't do it.

[Matgen84]

6 minutes ago, naiclub said:

  Reveal hidden contents

Thank you Matgen84
Well, if I use @Slice's kext, it will be the same as the picture you see.
If there is a way to help me or not I can't do it.

I can't help you because I don't use it. I just want to tell you that there is a specific topic about this. Users or Slice will be able to help you: this topic is made for that.

This thread is for Clover discussion, so I think this problem is Off-Topic, Bro.

[naiclub]

59 minutes ago, Matgen84 said:

I can't help you because I don't use it. I just want to tell you that there is a specific topic about this. Users or Slice will be able to help you: this topic is made for that.

This thread is for Clover discussion, so I think this problem is Off-Topic, Bro.

It looks like ... he would let me help myself more. Vague talk I don't know how to start.

thanks you Matgen84

I must have left it like that. No one can help

Edited November 20, 2020 by naiclub

[Jief_Machak]

For information : OpenCore set a limit of 127 chars for path. For me, this limit was reach for VoodooPS2Keyboard.kext, because it's a plugin, inside a kext, in an OEM folder, so it makes a pretty long path.

And because OpenCore just silently truncate (really ??? in 2020, there is still programmers that just doesn't check about string length), which ends up, in that case, in a silent fail.

Silent fail are so bad... Remember that if you have a kext not loaded.

[MICKHAEL]

hello to all,
who had updated to 5126 on x99 systems?
I need a model EFI
Thanks

[iCanaro]

5 hours ago, jlrycm said:

for Haswell the ACPI method you are using has to be done differently according to the guide you mentioned.

https://www.macos86.it/topic/597-guide-how-to-usb-port-mapping/

I’m not a developer, only an enthusiast that has built hackintoshes since 2012. If I share with you the OEM dsdt of my mobo, would you do this method for me? I really want to fix the USB 3.1 ASmedia PSXS that for some reason is not working natively and perhaps this USB mapping method could serve well. Maybe I’m wrong but I believe that the change made in Big Sur AppleUSBXHCIPCI plug-in broke the native support for my USB 3.1 PCIe card.

OK well, having you Haswell, I just need to know what are the HS and SS ports to disable, I'll create it for you SSDT.
To be precise, I'm a simple fan

[jlrycm]

1 hour ago, iCanaro said:

OK well, having you Haswell, I just need to know what are the HS and SS ports to disable, I'll create it for you SSDT.
To be precise, I'm a simple fan

Thanks a lot @iCanaro. Attached you will find the ACPI tables I extracted, the SSDT-UIAC.aml and USBMaps kext that I have created and tried over time (within those you can see the HS and SS ports that I want enabled) and for reference the DSDT that with the help of MaLd0n was created for my mobo for fixes and patches.

SSDT-UIAC.aml.zip

ACPI Tables.zip

USBMap.kext2.zip

DSDT MaLd0n.aml

Edited November 20, 2020 by jlrycm

[iCanaro]

@jlrycm I retrieved the port data to disable, based on the one enabled in the USBPorts plist



insert SSDT-DisableUSB-Haswell-9Series.aml in EFI/CLOVER/ACPI/patched
remove SSDT-UIAC.aml
remove USBPorts.kest

remove USBinjectall.kext

add sorted order SSDT-DisableUSB-Haswell-9Series.aml to the ACPI config.plist
restart and attach ioreg





SSDT-DisableUSB-Haswell-9Series.aml.zip

Edited November 20, 2020 by iCanaro

[jlrycm]

1 hour ago, iCanaro said:

@jlrycm I retrieved the port data to disable, based on the one enabled in the USBPorts plist



insert SSDT-DisableUSB-Haswell-9Series.aml in EFI/CLOVER/ACPI/patched
remove SSDT-UIAC.aml
remove USBPorts.kest

remove USBinjectall.kext

add sorted order SSDT-DisableUSB-Haswell-9Series.aml to the ACPI config.plist
restart and attach ioreg





SSDT-DisableUSB-Haswell-9Series.aml.zip

Thanks a lot @iCanaro.  Attached you will find the ioreg file generated from Big Sur. I still don’t see that the USB 3.1 ASmedia2142 based PCIe card is not loaded properly.

Jorge’s iMac Big Sur112020.zip

Edited November 20, 2020 by jlrycm

[iCanaro]

@jlrycm from ioreg I see that SSDT does its job and for USB you're good to go
about PXSX actually has no outputs, but it's strange asmedia is native on macOS, try making a boot attempt without DSDT
