liujianwei
liujianwei
Posted
Posted

Find out another problem,plug in installer usb flash drive,install clover in ESP in SSD and USB Flash drive,mount EFI partition in SSD first and mount USB flash drive second that contain config.plist,open USB flash drive config.plist with TextEdit,it will not open it,instead of,it will open SSD config.plist.Like a partition name conflict.But copy and paste config.plist from one to another is OK.Only mount one partition edit is OK.

Also I cannot shutdown without unplug usb drive.Instead of shutdown it restart.

Link to comment
Share on other sites
Slice
Slice
Posted
Posted

The error is:



error1: boot

\5

This message may appears if partition table is broken or not read

    ;
    ; Look for the booter partition in the MBR partition table,
    ; which is at offset kMBRPartTable.
    ;
    mov     si, kMBRPartTable       ; pointer to partition table
    call    find_boot               ; will not return on success

error:
    LogString(boot_error_str)

Use recommended methods for install Clover.

  • Like 1
Link to comment
Share on other sites
artur_pt
artur_pt
Posted
Posted

hello Slice



i can't build any clover rev since 3142 and after



the gui don't load .. strange is ur pkg is working 3142 from the rep



i upload some log from clover builder.. can u see if anything is wrong ?



i use biosblockio uefi boot insyde from lenovo



Clover Builder Output_3147.txt.zip



boot.log.zip



thanks



Link to comment
Share on other sites
Slice
Slice
Posted
Posted

hello Slice



i can't build any clover rev since 3142 and after



the gui don't load .. strange is ur pkg is working 3142 from the rep



i upload some log from clover builder.. can u see if anything is wrong ?



i use biosblockio uefi boot insyde from lenovo



attachicon.gifClover Builder Output_3147.txt.zip



attachicon.gifboot.log.zip



thanks

Hello!



I didn't reproduce your bug like this

================= Making all in boot1-install =================
	[XCODE] boot1-install
2015-01-29 19:20:27.878 xcodebuild[9981:361154] [MT] DVTAssertions: Warning in /SourceCache/IDEFrameworks/IDEFrameworks-6611/IDEFoundation/SourceControl/Model/IDESourceControlManager.m:423
Details:  Error Domain=com.apple.dt.IDESourceControlErrorDomain Code=-1 "Missing extension: public.vcs.subversion" UserInfo=0x7fe555573860 {NSLocalizedDescription=Missing extension: public.vcs.subversion}
Object:   <IDESourceControlManager: 0x7fe552c210f0>
Method:   -loadRepositories
Thread:   <NSThread: 0x7fe552c2e200>{number = 1, name = main}
Please file a bug at http://bugreport.apple.com with this warning message and any useful information you can provide.

What system and XCode do you have.

I successfully compile in two enviroments:

1. 10.9.5 + XCode 6.1.1

2. 10.7.5 + XCode 4.4.1





But I see no the action in your builder log

cp -R Clover/Patches_for_EDK2/* ./

Link to comment
Share on other sites
artur_pt
artur_pt
Posted
Posted

hello Slice



i have try with clovergropro and same thing



i'm using 10.10.2 and last Xcode 6.1.1



Captura de ecrã 2015-01-29, Ã s 22.39.01.png





update



is something related with make pkg



if i use the files from here edk2/Clover/CloverPackage/CloverV2



no problem



thanks

Link to comment
Share on other sites
isaII
isaII
Posted
Posted

 i have some quiestion.



 why asrock board can not scan clover automatically?



 UEFI BIOS can scan 'windows boot manager' automatically. right?

 so after nvram wipe not have to setup it by bcfg..



 what is diffrence between clover and 'windwos boot manager'



 i am qurious.. is it possible that make asrock UEFI bios scan clover automatically by bios moding??

Link to comment
Share on other sites
Slice
Slice
Posted
Posted

hello Slice



the files in EFi/BOOT /BOOTX64.efi



EFI/CLOVER/CLOVERX64.efi



this ones from there are working good.. the ones install from the installer pkg, don't work .. don't reach the GUI



attachicon.gifboot.log.zip



thanks

Sorry again, I don't understand. You say that your compilation rev3147 works good while CloverX64.efi from installer rev3142 not working?

Yes, there were bugs corrected later.



 i have some quiestion.



 why asrock board can not scan clover automatically?



 UEFI BIOS can scan 'windows boot manager' automatically. right?

 so after nvram wipe not have to setup it by bcfg..



 what is diffrence between clover and 'windwos boot manager'



 i am qurious.. is it possible that make asrock UEFI bios scan clover automatically by bios moding??

UEFI BIOS can see /EFI/BOOT/BOOTX64.EFI if this is a Clover.

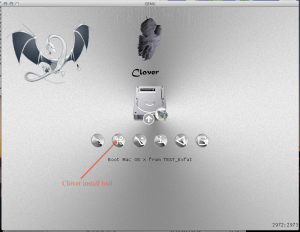

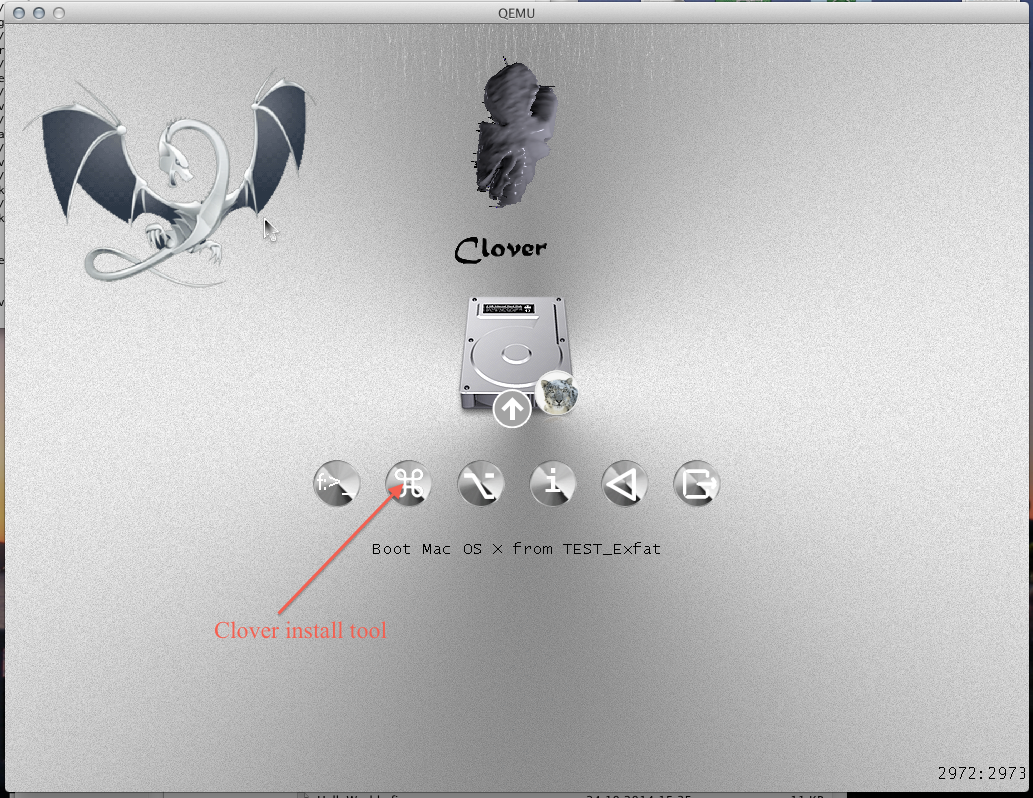

Once you started Clover you may see tool to install Clover into UEFI BIOS.


Link to comment
Share on other sites
artur_pt
artur_pt
Posted
Posted



Hello good morning



No .. what i'm trying to say



if i make the installer pkg .. and use it .. to install clover



the files from the installer pkg don't work .. the boot hangs before Clover GUI



if i copy the files from EDK2 .. the ones i post before



it works without problems .. if u remember from the builder log the errors come from stage to make the pkg



thanks
Link to comment
Share on other sites
intzepatorii
intzepatorii
Posted
Posted

hi, I'm having two annoying issues...



- I don't know what i've done to make to countdown timer disappear and now I have to press enter after selection in order to boot. it's not done automatically any more.

- if I restart Windows7 and want to enter Yosemite, I can see only a cursor and can't get to Clover.



can you help pls? I don't have the EFI partition, clover is installed on the Mac OS drive as I was lacking primary partitions.

Link to comment
Share on other sites
guimenez
guimenez
Posted
Posted

hi, I'm having two annoying issues...



- I don't know what i've done to make to countdown timer disappear and now I have to press enter after selection in order to boot. it's not done automatically any more.

- if I restart Windows7 and want to enter Yosemite, I can see only a cursor and can't get to Clover.



can you help pls? I don't have the EFI partition, clover is installed on the Mac OS drive as I was lacking primary partitions.

You must put two option in your config.plist



<key>DefaultVolume</key>

<string>MAC</string>       -> MAC is the name of your MAC OS partition.

<key>Timeout</key>

<integer>2</integer>        -> 0 it's for booting directly to MAC, but if you have dualboot it's not a good idea

Link to comment
Share on other sites
fusion71au
fusion71au
Posted
Posted

@takeawaydave,

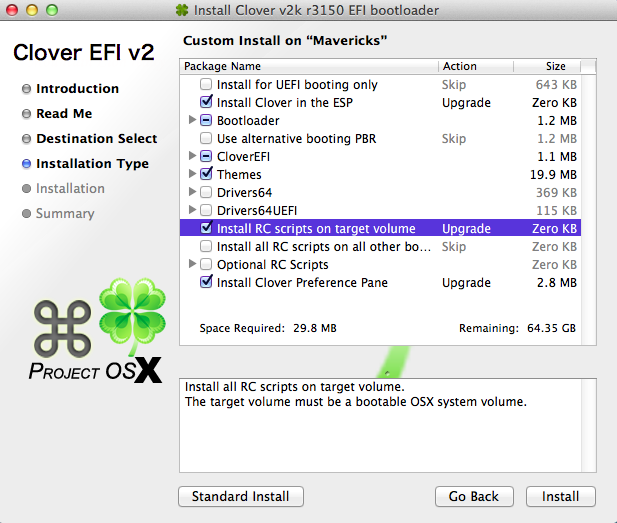

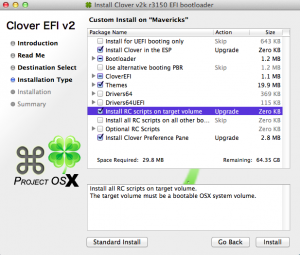

Did you install Clover with the "Install RC scripts" option?






This option enables installation of Clover's launchd scripts, necessary to save NVRAM variables on legacy machines that don't have real (hardware) NVRAM ---> saved to NVRAM.plist file on disk.  I would recommend checking this since NVRAM is required for proper iMessage/Facetime functioning (MLB/ROM vars are saved to NVRAM).



Look at Clover's boot log and see if nvram.plist is being loaded eg

bdmesg | grep nvram
2:511  0:037  Loading nvram.plist from Vol 'OSX Yosemite' - loaded, size=2050
2:516  0:005  PutNvramPlistToRtVars ...

Also did you save your config.plist properly?  If you use Clover configurator, you need to click the icon on the bottom left to "Export Configuration" to save any changes made to MLB & ROM in RtVariables.



Check the syntax/spelling of the RtVariables section by opening the config.plist in a text editor and confirm it looks something like below...

<key>RtVariables</key>
<dict>
    <key>MLB</key>
    <string>CK118014DJN1G</string>
    <key>ROM</key>
    <string>6C3E6D1129f2</string>
</dict>

NB ROM can also be entered as data (instead of a hex string) but this then needs conversion to a Base64 value - see post #161.

Link to comment
Share on other sites
takeawaydave
takeawaydave
Posted
Posted

@takeawaydave,



Did you install Clover with the "Install RC scripts" option?



Hi fusion71au,



Yes I believe I did select "Install RC scripts" option during install as I was using this guide:

http://skylineosx.com/installation/switching-from-chameleonchimera-to-clover/

copying the selections shown on "Settings for non-UEFI" .

Thanks.

Link to comment
Share on other sites
jamiethemorris
jamiethemorris
Posted
Posted

I'm having a weird problem, my Fusion drive is now labeled "recovery hd" after installing Yosemite. Looking at diskutil list, the UUID of the entry does match my recovery hd. Before updating, Boot OS X was shown instead, with the correct UUID. What it should be using is the UUID of the Fusion drive. It still boots my Fusion drive just fine though. What can I do to fix this?

Link to comment
Share on other sites
liujianwei
liujianwei
Posted
Posted

How do I install windows to GPT SSD while there is a clover exist here?including OS X and Microsoft Windows on x86, only support booting from GPT partitions on systems with EFI firmware, but FreeBSD and most Linux distributions can boot from GPT partitions on systems with either legacy BIOS firmware interface or EFI. https://en.wikipedia.org/wiki/GUID_Partition_Table ,is it possible to install windows EFI to SSD with clover?I cannot do this cause when I use clover boot windows 7 DVD clover said CDBoot cannot boot CD error code 4,and install windows 7 directly get Microsoft error code.And if I don't use GPT install windows 7 will destroy Clover MBR.Unplug SSD SATA port,install windows 7 to HDD maybe works.

Link to comment
Share on other sites
jamiethemorris
jamiethemorris
Posted
Posted

Okay, now I've got a much bigger problem. I can't boot into Yosemite at all. I get the dreaded "requested memory exceeds our allocated relocation block" error. The system was working find through several reboots and all of a sudden this happens. It still boots into Mavericks. I tried AptioFixDrv2 but that won't let me boot into either Mavericks or Yosemite.

Link to comment
Share on other sites
liujianwei
liujianwei
Posted
Posted

I got another problem,I plug in usb storage like usb flash drive or mp3 player,computer cannot shutdown,instead of,it restart,when I unplug it,problem solved,how to fix this problem with clover when I don't need unplug the usb storage?

Link to comment
Share on other sites
