valv Posted June 19, 2010 Author Share Posted June 19, 2010 yep, the second one load the dsdt oblivioulsy.do you need to know something specific? it seem to me it works like the old version did already thanks. I don't follow here, do u mean same as 06/04 versions? does it load the dsdt file? did it fix those issues u've been having? what about fsb and cpu model, does it show up correctly? Thanks, My Core i7 860 went from being recognized as an Intel Xeon to simply "Unknown". would u provide me with a dump of cpu family and model please! Link to comment Share on other sites More sharing options...

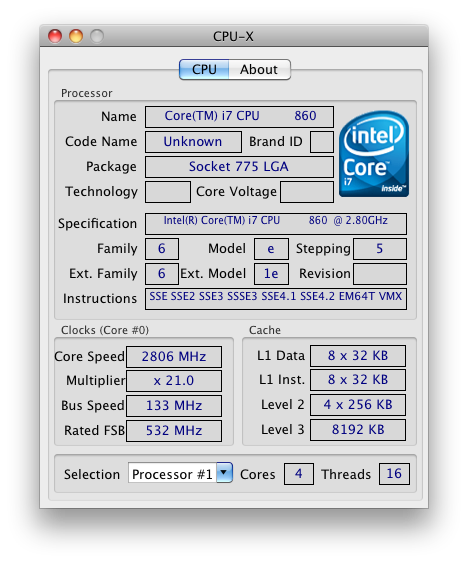

spyguy007 Posted June 19, 2010 Share Posted June 19, 2010 would u provide me with a dump of cpu family and model please! Here's what CPU-X says. Link to comment Share on other sites More sharing options...
valv Posted June 19, 2010 Author Share Posted June 19, 2010 i've tested now your boot file...Dsdt load doesn't work (my pc doesn't turn off, doesn't restart) and i've problem with usb (my usb wireless adapter was not recognize)... received your pm, and yes it confirms what nobb1x stated. thank u for providing time to test this. it helps me improve things. the issues u are having are due to boot-loader actually neglecting your edited dsdt file. gonna have a look into this, don't panic, it is test phase, and am going to remediate to all this mess very quickly (I hope so ). Here's what CPU-X says. do this on terminal sudo sysctl -a | grep cpu, and provide me with the dump. thanks Link to comment Share on other sites More sharing options...
spyguy007 Posted June 19, 2010 Share Posted June 19, 2010 do this on terminal sudo sysctl -a | grep cpu, and provide me with the dump. thanks hw.ncpu = 8 hw.cpufrequency = 2806000000 hw.availcpu = 8 hw.ncpu: 8 hw.activecpu: 8 hw.physicalcpu: 4 hw.physicalcpu_max: 4 hw.logicalcpu: 8 hw.logicalcpu_max: 8 hw.cputype: 7 hw.cpusubtype: 4 hw.cpu64bit_capable: 1 hw.cpufamily: 1801080018 hw.cpufrequency: 2806000000 hw.cpufrequency_min: 2806000000 hw.cpufrequency_max: 2806000000 hw.cputhreadtype: 1 machdep.cpu.max_basic: 11 machdep.cpu.max_ext: 2147483656 machdep.cpu.vendor: GenuineIntel machdep.cpu.brand_string: Intel(R) Core(TM) i7 CPU 860 @ 2.80GHz machdep.cpu.family: 6 machdep.cpu.model: 30 machdep.cpu.extmodel: 1 machdep.cpu.extfamily: 0 machdep.cpu.stepping: 5 machdep.cpu.feature_bits: 3219913727 10019837 machdep.cpu.extfeature_bits: 672139520 1 machdep.cpu.signature: 67301 machdep.cpu.brand: 0 machdep.cpu.features: FPU VME DE PSE TSC MSR PAE MCE CX8 APIC SEP MTRR PGE MCA CMOV PAT PSE36 CLFSH DS ACPI MMX FXSR SSE SSE2 SS HTT TM SSE3 MON DSCPL VMX SMX EST TM2 SSSE3 CX16 TPR PDCM SSE4.1 SSE4.2 POPCNT machdep.cpu.extfeatures: SYSCALL XD RDTSCP EM64T LAHF TSCI machdep.cpu.logical_per_package: 16 machdep.cpu.cores_per_package: 8 machdep.cpu.microcode_version: 3 machdep.cpu.mwait.linesize_min: 64 machdep.cpu.mwait.linesize_max: 64 machdep.cpu.mwait.extensions: 3 machdep.cpu.mwait.sub_Cstates: 4384 machdep.cpu.thermal.sensor: 1 machdep.cpu.thermal.dynamic_acceleration: 1 machdep.cpu.thermal.invariant_APIC_timer: 0 machdep.cpu.thermal.thresholds: 2 machdep.cpu.thermal.ACNT_MCNT: 1 machdep.cpu.arch_perf.version: 3 machdep.cpu.arch_perf.number: 4 machdep.cpu.arch_perf.width: 48 machdep.cpu.arch_perf.events_number: 7 machdep.cpu.arch_perf.events: 68 machdep.cpu.arch_perf.fixed_number: 3 machdep.cpu.arch_perf.fixed_width: 48 machdep.cpu.cache.linesize: 64 machdep.cpu.cache.L2_associativity: 6 machdep.cpu.cache.size: 256 machdep.cpu.tlb.inst.small: 64 machdep.cpu.tlb.inst.large: 7 machdep.cpu.tlb.data.small: 64 machdep.cpu.tlb.data.large: 32 machdep.cpu.tlb.shared: 512 machdep.cpu.address_bits.physical: 36 machdep.cpu.address_bits.virtual: 48 machdep.cpu.core_count: 4 machdep.cpu.thread_count: 8 Link to comment Share on other sites More sharing options...
DariosF Posted June 19, 2010 Share Posted June 19, 2010 i've tested now your boot file...Dsdt load doesn't work (my pc doesn't turn off, doesn't restart) and i've problem with usb (my usb wireless adapter was not recognize)... EDIT: i've this problem only with original kernel...if i use legacy kernel no problem, for now... Link to comment Share on other sites More sharing options...
valv Posted June 19, 2010 Author Share Posted June 19, 2010 @spyguy007, ok, would u mind trying this one and looking if it reverts to xeon whoever could look at ioregexplorer>iodevicetree>efi>configuration-table and tell me what it shows there, would be much appreciated, thanks. Link to comment Share on other sites More sharing options...
spyguy007 Posted June 19, 2010 Share Posted June 19, 2010 @spyguy007,ok, would u mind trying this one and looking if it reverts to xeon whoever could look at ioregexplorer>iodevicetree>efi>configuration-table and tell me what it shows there, would be much appreciated, thanks. Nope, still says Unknown. Link to comment Share on other sites More sharing options...
valv Posted June 19, 2010 Author Share Posted June 19, 2010 Nope, still says Unknown. Ok, this one should fix dsdt issues + cpu detection (unlikely) alpha4.zip As u can see, I renamed that one just to be sure about which one u'd be giving feedback. Greetz, Link to comment Share on other sites More sharing options...
spyguy007 Posted June 20, 2010 Share Posted June 20, 2010 That fixed it! My CPU is now showing up as a 2.81GHz Intel Core i7. Link to comment Share on other sites More sharing options...
valv Posted June 20, 2010 Author Share Posted June 20, 2010 That fixed it! My CPU is now showing up as a 2.81GHz Intel Core i7. That's good news, and what about the dsdt issue ? Link to comment Share on other sites More sharing options...
rednous Posted June 20, 2010 Share Posted June 20, 2010 valv, I'm reading this thread since some time and would like to say you're very helpful and friendly person Until today I was using AsereBLN's booter 1.1.9 but i decided to give it a go to your booter cause Asere's isn't updated since February 2010 and also I would like to contribute to this one which obviously has a great development and support. So i updated to the stable version dated 06-04-2010 and it seems to work fine for me. Memory is detected and reported correctly (just missing the manufacturer part, but i can live without this ). I'll try now sleep, restart, shutdown and will report further more. ...whoever could look at ioregexplorer>iodevicetree>efi>configuration-table and tell me what it shows there, would be much appreciated, thanks. here's mine IORegistryExplorer screen shots Link to comment Share on other sites More sharing options...
valv Posted June 20, 2010 Author Share Posted June 20, 2010 valv, I'm reading this thread since some time and would like to say you're very helpful and friendly person Until today I was using AsereBLN's booter 1.1.9 but i decided to give it a go to your booter cause Asere's isn't updated since February 2010 and also I would like to contribute to this one which obviously has a great development and support. So i updated to the stable version dated 06-04-2010 and it seems to work fine for me. Memory is detected and reported correctly (just missing the manufacturer part, but i can live without this ). I'll try now sleep, restart, shutdown and will report further more. Thank u Asere made a really good work. @Asere, if u read me, hope u'll be back soon. As u should know, this work here involves too many people like (all the guyz in the voodooteam, and notably zef) you and me: we are the scene. btw, thank u for giving time to test it out, it just makes the work go in a better direction. Greetz what about your dsdt, does it stick-in? I need to know this is working before committing to the branch. Thanks, Link to comment Share on other sites More sharing options...
rednous Posted June 20, 2010 Share Posted June 20, 2010 yep, Asere's missing the scene... dunno what's up with him... I just tested the restart, works fine, sleep works too, but when i wake the PC my desktop appears little bit semitransparent, stays at this stage for a 4-5 seconds and then becomes fully visible. When restarted i decided to go for a verbose mode and when Chameleon loads before the Apple logo there's a fast scrolling text saying ACPI table not found, SSDT not found, and similar. But I can't stop the screen to write down the given info. Maybe I'm missing something... My DSDT is OK as fas as I know (used the Blackosx thread for the DSDT patching and building). What do you mean by stick-in? Link to comment Share on other sites More sharing options...
valv Posted June 20, 2010 Author Share Posted June 20, 2010 When restarted i decided to go for a verbose mode and when Chameleon loads before the Apple logo there's a fast scrolling text saying ACPI table not found, SSDT not found, and similar. But I can't stop the screen to write down the given info. Maybe I'm missing something... If u don't mind, try rebooting with Wait key (value: Yes) into boot.plist. Forgot to say, alpha4 is intended to get rid of those messages, and it needs testers. If u could give it a try, it'd be nice Link to comment Share on other sites More sharing options...
rednous Posted June 20, 2010 Share Posted June 20, 2010 ok those messages were with v06-04-2010, i'll test alpha4 after a while and report back Screen shot with the Wait=Yes: Link to comment Share on other sites More sharing options...
aznracer Posted June 20, 2010 Share Posted June 20, 2010 How do you save 32 bit mode into the boot.plist? Link to comment Share on other sites More sharing options...
rednous Posted June 20, 2010 Share Posted June 20, 2010 How do you save 32 bit mode into the boot.plist? <key>Kernel Flags</key> <string>arch=i386</string> If u don't mind, try rebooting with Wait key (value: Yes) into boot.plist.Forgot to say, alpha4 is intended to get rid of those messages, and it needs testers. If u could give it a try, it'd be nice i'm now with alpha4 those messages are there , but if this isn't vital for our systems, im OK with them. now my desktop is OK when woke from sleep. hah, a very strange bug appeared ) when i open a new browser tab or refresh the current one, preview files on the desktop, open Illustrator or Photoshop, the sound form iTunes becomes noisy and hissing, stops for a 2-10 seconds. Link to comment Share on other sites More sharing options...
kup Posted June 20, 2010 Share Posted June 20, 2010 Right, I think I'm going to give this Booter a test tonight. I've followed and used the work of Asere for a long time (cheers dude!) but I need something that will be updated and fixed as and when issues arise. Should I stick to the 06-04-2010 Booter or try the Alpha4 Booter for you? Specs are in my sig. Link to comment Share on other sites More sharing options...
valv Posted June 20, 2010 Author Share Posted June 20, 2010 Right, I think I'm going to give this Booter a test tonight. I've followed and used the work of Asere for a long time (cheers dude!) but I need something that will be updated and fixed as and when issues arise. Should I stick to the 06-04-2010 Booter or try the Alpha4 Booter for you? Specs are in my sig. As u appear to have an i7, i'd suggest u start with 06/04, and then replace the boot file with the one from alpha4, thanks hah, a very strange bug appeared )when i open a new browser tab or refresh the current one, preview files on the desktop, open Illustrator or Photoshop, the sound form iTunes becomes noisy and hissing, stops for a 2-10 seconds. That is really strange. look if some messages show up on the console.app at that time, and what about cpu/fsb values? Link to comment Share on other sites More sharing options...
rednous Posted June 20, 2010 Share Posted June 20, 2010 As u appear to have an i7, i'd suggest u start with 06/04, and then replace the boot file with the one from alpha4, thanks That is really strange. look if some messages show up on the console.app at that time, and what about cpu/fsb values? Yep it's really strange this behavior , i reverted to 06-04-2010 and now the sound is OK. Looked at the Console logs - no strange messages or anything i can relate to this problem. How to report you CPU/FSB values? Using this command: sudo sysctl -a | grep cpu? Link to comment Share on other sites More sharing options...
valv Posted June 20, 2010 Author Share Posted June 20, 2010 Yep it's really strange this behavior , i reverted to 06-04-2010 and now the sound is OK.Looked at the Console logs - no strange messages or anything i can relate to this problem. How to report you CPU/FSB values? Using this command: sudo sysctl -a | grep cpu? just tell me if "about this mac"/"system profiler" are showing the right values for u. anyone else confirming the same behavior with alpha4? Link to comment Share on other sites More sharing options...
rednous Posted June 20, 2010 Share Posted June 20, 2010 just tell me if "about this mac"/"system profiler" are showing the right values for u. yes, they're shown correctly with both 06-04-2010 and alpha4 Link to comment Share on other sites More sharing options...
Aivarz Posted June 20, 2010 Share Posted June 20, 2010 With alpha4: sh-3.2# sysctl -a | grep busfrequency hw.busfrequency = 800000000 hw.busfrequency: 800000000 hw.busfrequency_min: 800000000 hw.busfrequency_max: 800000000 Should be: sh-3.2# sysctl -a | grep busfrequency hw.busfrequency = 1332000000 hw.busfrequency: 1332000000 hw.busfrequency_min: 1332000000 hw.busfrequency_max: 1335810932 CPU and RAM frequencies are detected correctly. Link to comment Share on other sites More sharing options...
valv Posted June 20, 2010 Author Share Posted June 20, 2010 I was about to post one other alpha, but as this showed up, Should be: sh-3.2# sysctl -a | grep busfrequency hw.busfrequency = 1332000000 hw.busfrequency: 1332000000 hw.busfrequency_min: 1332000000 hw.busfrequency_max: 1335810932 CPU and RAM frequencies are detected correctly. I'll need to go into more investigation. ok, can I get a more complete dump with sysctl -a | grep cpu Link to comment Share on other sites More sharing options...
Aivarz Posted June 20, 2010 Share Posted June 20, 2010 sysctl -a | grep cpu hw.ncpu = 2 hw.cpufrequency = 3172000000 hw.availcpu = 2 hw.ncpu: 2 hw.activecpu: 2 hw.physicalcpu: 2 hw.physicalcpu_max: 2 hw.logicalcpu: 2 hw.logicalcpu_max: 2 hw.cputype: 7 hw.cpusubtype: 4 hw.cpu64bit_capable: 1 hw.cpufamily: 2028621756 hw.cpufrequency: 3172000000 hw.cpufrequency_min: 3172000000 hw.cpufrequency_max: 3172000000 machdep.cpu.max_basic: 13 machdep.cpu.max_ext: 2147483656 machdep.cpu.vendor: GenuineIntel machdep.cpu.brand_string: Intel® Core(tm)2 Duo CPU E8500 @ 3.16GHz machdep.cpu.family: 6 machdep.cpu.model: 23 machdep.cpu.extmodel: 1 machdep.cpu.extfamily: 0 machdep.cpu.stepping: 10 machdep.cpu.feature_bits: 3219913727 67691517 machdep.cpu.extfeature_bits: 537921536 1 machdep.cpu.signature: 67194 machdep.cpu.brand: 0 machdep.cpu.features: FPU VME DE PSE TSC MSR PAE MCE CX8 APIC SEP MTRR PGE MCA CMOV PAT PSE36 CLFSH DS ACPI MMX FXSR SSE SSE2 SS HTT TM SSE3 MON DSCPL VMX SMX EST TM2 SSSE3 CX16 TPR PDCM SSE4.1 machdep.cpu.extfeatures: SYSCALL XD EM64T LAHF machdep.cpu.logical_per_package: 2 machdep.cpu.cores_per_package: 2 machdep.cpu.microcode_version: 2567 machdep.cpu.mwait.linesize_min: 64 machdep.cpu.mwait.linesize_max: 64 machdep.cpu.mwait.extensions: 3 machdep.cpu.mwait.sub_Cstates: 139808 machdep.cpu.thermal.sensor: 1 machdep.cpu.thermal.dynamic_acceleration: 0 machdep.cpu.thermal.invariant_APIC_timer: 0 machdep.cpu.thermal.thresholds: 2 machdep.cpu.thermal.ACNT_MCNT: 1 machdep.cpu.arch_perf.version: 2 machdep.cpu.arch_perf.number: 2 machdep.cpu.arch_perf.width: 40 machdep.cpu.arch_perf.events_number: 7 machdep.cpu.arch_perf.events: 0 machdep.cpu.arch_perf.fixed_number: 3 machdep.cpu.arch_perf.fixed_width: 40 machdep.cpu.cache.linesize: 64 machdep.cpu.cache.L2_associativity: 8 machdep.cpu.cache.size: 6144 machdep.cpu.tlb.inst.small: 128 machdep.cpu.tlb.inst.large: 8 machdep.cpu.tlb.data.small: 16 machdep.cpu.tlb.data.small_level1: 256 machdep.cpu.tlb.data.large: 16 machdep.cpu.tlb.data.large_level1: 32 machdep.cpu.address_bits.physical: 36 machdep.cpu.address_bits.virtual: 48 machdep.cpu.core_count: 2 machdep.cpu.thread_count: 2 Link to comment Share on other sites More sharing options...
