michal.dobrzynski Posted January 4, 2015 Share Posted January 4, 2015 Looks like shopping for the Intel CT Gigabit is in my immediate future. Anyone know what happens to the Windows compatibility of the card if you edit the id's? I dual boot so if it messes with Windows support then I'd rather inject the changes using Clover. Link to comment https://www.insanelymac.com/forum/topic/205771-appleintele1000ekext-for-108107106105/page/30/#findComment-2100509 Share on other sites More sharing options...
tarasis Posted January 4, 2015 Share Posted January 4, 2015 I've been running a Hackintosh a few days now but only hit the collapsing network stack problem tonight. I tend to be flitting back and forth between Windows 7 and OS X 10.10.1, and haven't yet done much heavy network traffic on the OS X side but tons on the Windows side. I have an Asus Z97-A motherboard with the Intel Gigabit I218-V and had used the AppleIntelE1000e v3.1.0 driver from Multicast 7.1.1. Earlier today I noticed the "e1000_x_map: failed to getphyiscalsegment" errors in the console around the time I started installing Star Trek Online (about a 10GB install), and had been streaming music from iTunes on another machine. Then about an hour ago the network just disappeared and the console was filling up with "kernel[0]: AppleIntelE1000e(Err): Detected Hardware Unit Hang", which after various bits of searching lead me here. (I did have problems accessing an SMB share last night from my Mackintosh to my MacBook Pro where I was getting Finder error -36 coping a 2mb file onto the MBP, I'm curious if it was related) I'm pleased and hopeful that Mieze's new driver will do the trick when he finishes it though I'm tempted to get one of those USB 3 -> Ethernet adapters if I can find one in Cyberport that supports Macs. Thanks for your hard work! Link to comment https://www.insanelymac.com/forum/topic/205771-appleintele1000ekext-for-108107106105/page/30/#findComment-2100731 Share on other sites More sharing options...
tarasis Posted January 8, 2015 Share Posted January 8, 2015 I have occasionally seen oddness with the Intel Gigabit I218-V on the Asus Z97-A under Windows 7. A couple of times now I've had multi gigabyte copies across the network start at 100+MB/s and then from about half way through drop to 20MB/s, or simply fail. The subsequent attempt works perfectly. Link to comment https://www.insanelymac.com/forum/topic/205771-appleintele1000ekext-for-108107106105/page/30/#findComment-2101681 Share on other sites More sharing options...
manta Posted January 10, 2015 Share Posted January 10, 2015 I've just built a new machine with Z87X-D3H - everything works great but the network is really slow and sometimes will time out during a long transfer. For some idea of the speed - it takes around 10+ mins to transfer a 7GB file. The device ID is 153b which should be supported ok with this driver, I've tried multiple versions in 10.8 and 10.9 with the same results. Anyone have any idea what could be wrong? Link to comment https://www.insanelymac.com/forum/topic/205771-appleintele1000ekext-for-108107106105/page/30/#findComment-2102172 Share on other sites More sharing options...
gilby101 Posted January 10, 2015 Share Posted January 10, 2015 I have Z87X-UD3H with ethernet device id 153b - no problems with 10.9 or 10.10. But, have you turned TSO off? If not, see some pages back as to how to do this. Link to comment https://www.insanelymac.com/forum/topic/205771-appleintele1000ekext-for-108107106105/page/30/#findComment-2102175 Share on other sites More sharing options...
manta Posted January 10, 2015 Share Posted January 10, 2015 Yes, just got to that page in this epic thread and tried it! But sadly there is no change. It's getting to the point now where I think I should check the entire network chain to see if there's a bottleneck somewhere. I do have a Windows 7 box which I can drag out to verify this. edit- OK so I think this might be related to my ethernet cables. I am going to try some new ones next week and report back. edit 2 - I managed to find 2 decent ethernet cables for the Mac and the NAS to test file copying, and it's now fine and everything is running at Gigabit (I realised things were at 100mbit before). Sorry for the false alarm, I lost most of today trying to figure this one out Let this be a lesson to always check the basics first Thank you to hnak and other contributors for all the hard work on this driver! Link to comment https://www.insanelymac.com/forum/topic/205771-appleintele1000ekext-for-108107106105/page/30/#findComment-2102181 Share on other sites More sharing options...
hackaro Posted January 11, 2015 Share Posted January 11, 2015 I've been fighting with this issue since moving to Yosemite. Sucked. I regularly backup my Final Cut and Logic projects to a hackintosh server... needless to say, it's been painful to do. I happened to have a couple Intel CT Gigabit adaptors (82574L) sitting around. I put one in the server and one in my HackPro then used linux to change the Device ID's (as mentioned on the last page). Problem solved. So much better!!!! Thanks a ton for that tip folks. Speeds are up to 75 mb/sec (upload) according to activity monitor. Yes... I can confirm that with Intel CT Gigabit adaptors (82574L everything is working perfectly .... I've transfered more than 2TB ... and I ~80MB/s constantly. Link to comment https://www.insanelymac.com/forum/topic/205771-appleintele1000ekext-for-108107106105/page/30/#findComment-2102341 Share on other sites More sharing options...
Mieze Posted January 18, 2015 Share Posted January 18, 2015 I'm pleased and hopeful that Mieze's new driver will do the trick when he finishes it though I'm tempted to get one of those USB 3 -> Ethernet adapters if I can find one in Cyberport that supports Macs. Thanks for your hard work! Although I'm slowly making progress, I still haven't managed to finish work on the new driver. As these Intel NIC's are very complex, there are a lot of pitfalls you'll have to get around. It's not working stable on the 82574L I used for the first tests. This evening I tried with an i217 and it worked almost perfectly but unfortunately when Yung Raj tested it on his board, which is equipped with the i217 too, it turned out to be unstable. Maybe there is still a power management issue or the chip's configuration isn't correct. I'll have to dig a little bit deeper before I can make it publicly available. Mieze 4 Link to comment https://www.insanelymac.com/forum/topic/205771-appleintele1000ekext-for-108107106105/page/30/#findComment-2103790 Share on other sites More sharing options...
Mieze Posted February 2, 2015 Share Posted February 2, 2015 For your information: I released a first development version of my new driver last weekend. Please see: http://www.insanelymac.com/forum/topic/304235-intelmausiethernetkext-for-intel-onboard-lan/?p=2107186 Mieze 4 Link to comment https://www.insanelymac.com/forum/topic/205771-appleintele1000ekext-for-108107106105/page/30/#findComment-2108150 Share on other sites More sharing options...
tluck Posted February 3, 2015 Share Posted February 3, 2015 @Mieze - Great news!!! Your new version is working on my T420. (device 1502). I have only been using it for a few hours. before I was using the 2.4.14 version as that was the only version that did not hang in a short time when transferring large files. i will keep you posted if i see any issues. Thank you. 1 Link to comment https://www.insanelymac.com/forum/topic/205771-appleintele1000ekext-for-108107106105/page/30/#findComment-2108212 Share on other sites More sharing options...
Marius_rg Posted July 29, 2015 Share Posted July 29, 2015 I have a weird issue today...after installing Windows 10 on another HDD, I cannot get an IP on my Yosemite hacks!!! I have 2 installs (2 HDDs) and on both I cannot get an IP now, after the Win install. Also, during the Windows install, also there I could not get an IP, only after installing manually a driver from asus (I have maximus formula VI MB). But here, on the OS X......nothing Link to comment https://www.insanelymac.com/forum/topic/205771-appleintele1000ekext-for-108107106105/page/30/#findComment-2156320 Share on other sites More sharing options...
iStigPL Posted December 11, 2015 Share Posted December 11, 2015 I've just updated hnak kext with the newest linux driver 3.3.1, which gives i219-LM support. It still doesn't work with i219-v (which was added in previous version) Edit: new version of the file uploaded - working i219v - all credits goes to alreadystarted http://www.insanelymac.com/forum/files/file/505-appleintele1000ekext/ 4 Link to comment https://www.insanelymac.com/forum/topic/205771-appleintele1000ekext-for-108107106105/page/30/#findComment-2195842 Share on other sites More sharing options...
vonmolk Posted December 11, 2015 Share Posted December 11, 2015 I've just updated hnak kext with the newest linux driver 3.3.1, which gives i219-LM support. It still doesn't work with i219-v (which was added in previous version) Edit: new version of the file uploaded - working i219v - all credits goes to alreadystarted CFBundleIdentifier missing/invalid type in kext EFI\CLOVER\kexts\10.11\AppleIntelE1000e.kext - Not loading for me. Easy enough fix, but looks like it doesn't have the CFBundleIdentifier set correctly. Thank you iStigPL and alreadystarted! After a little edit kext is working fine and working i219-v! Link to comment https://www.insanelymac.com/forum/topic/205771-appleintele1000ekext-for-108107106105/page/30/#findComment-2195848 Share on other sites More sharing options...
zxv Posted December 11, 2015 Share Posted December 11, 2015 CFBundleIdentifier missing/invalid type in kext EFI\CLOVER\kexts\10.11\AppleIntelE1000e.kext - Not loading for me. Easy enough fix, but looks like it doesn't have the CFBundleIdentifier set correctly. Thank you iStigPL and alreadystarted! After a little edit kext is working fine and working i219-v! What edit did you do? I'm getting that error as well. Link to comment https://www.insanelymac.com/forum/topic/205771-appleintele1000ekext-for-108107106105/page/30/#findComment-2195875 Share on other sites More sharing options...
vonmolk Posted December 11, 2015 Share Posted December 11, 2015 I added a new string called Bundle Identifier with the value com.insanelymac.driver.AppleIntelE1000e to the info.plist 1 Link to comment https://www.insanelymac.com/forum/topic/205771-appleintele1000ekext-for-108107106105/page/30/#findComment-2195879 Share on other sites More sharing options...
zxv Posted December 11, 2015 Share Posted December 11, 2015 I added a new string called Bundle Identifier with the value com.insanelymac.driver.AppleIntelE1000e to the info.plist Awesome, it works now. Link to comment https://www.insanelymac.com/forum/topic/205771-appleintele1000ekext-for-108107106105/page/30/#findComment-2195882 Share on other sites More sharing options...
iStigPL Posted December 11, 2015 Share Posted December 11, 2015 CFBundleIdentifier missing/invalid type in kext EFI\CLOVER\kexts\10.11\AppleIntelE1000e.kext - Not loading for me. Easy enough fix, but looks like it doesn't have the CFBundleIdentifier set correctly. Thank you iStigPL and alreadystarted! After a little edit kext is working fine and working i219-v! oops ;-) thanks for information. new file uploaded - please redownload :-) now all should be ok Link to comment https://www.insanelymac.com/forum/topic/205771-appleintele1000ekext-for-108107106105/page/30/#findComment-2195891 Share on other sites More sharing options...
cecekpawon Posted December 11, 2015 Share Posted December 11, 2015 oops ;-) thanks for information. new file uploaded - please redownload :-) now all should be ok Sorry, not ok here Change: > CFBundleIdentifier: "com.iStig.driver" to "com.iStig.driver.AppleIntelE1000e" work Change both: > CFBundleIdentifier & > IOKitPersonalities > e1000e > CFBundleIdentifier to original "com.insanelymac.driver.AppleIntelE1000e" should work Link to comment https://www.insanelymac.com/forum/topic/205771-appleintele1000ekext-for-108107106105/page/30/#findComment-2195936 Share on other sites More sharing options...

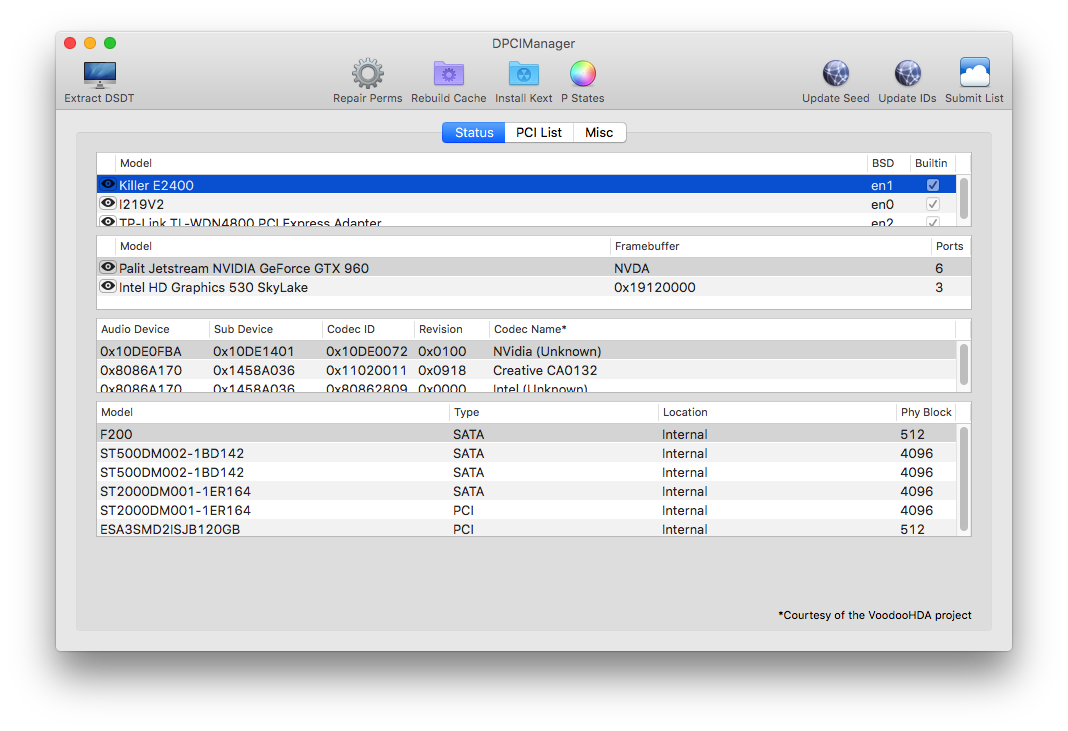

iStigPL Posted December 11, 2015 Share Posted December 11, 2015 Sorry, not ok here it was wrong versions of the file. I checked once again and it is ok now. I also dis test and here it is: 2 Link to comment https://www.insanelymac.com/forum/topic/205771-appleintele1000ekext-for-108107106105/page/30/#findComment-2195953 Share on other sites More sharing options...
Andres ZeroCross Posted December 12, 2015 Share Posted December 12, 2015 it was wrong versions of the file. I checked once again and it is ok now. I also dis test and here it is: How can you activate Intel HD 530?? Can you give me a clue? Link to comment https://www.insanelymac.com/forum/topic/205771-appleintele1000ekext-for-108107106105/page/30/#findComment-2196407 Share on other sites More sharing options...
iStigPL Posted December 12, 2015 Share Posted December 12, 2015 How can you activate Intel HD 530?? Can you give me a clue? Clover Inject Intel True and <key>ig-platform-id</key> <string>0x19120000</string> but it is so buggy (artifacts) you won't use it :-) Link to comment https://www.insanelymac.com/forum/topic/205771-appleintele1000ekext-for-108107106105/page/30/#findComment-2196462 Share on other sites More sharing options...
Andres ZeroCross Posted December 12, 2015 Share Posted December 12, 2015 Clover Inject Intel True and <key>ig-platform-id</key> <string>0x19120000</string> but it is so buggy (artifacts) you won't use it :-) Thanks I try to inject via DSDT Link to comment https://www.insanelymac.com/forum/topic/205771-appleintele1000ekext-for-108107106105/page/30/#findComment-2196481 Share on other sites More sharing options...
Arkanis Posted December 16, 2015 Share Posted December 16, 2015 Hello everyone, I'm currently running a supermicro board (X9DAi) on 10.9.5, on my side AppleIGB is terribly unstable, and produces 90% of the time kernel panics.Has anyone here experienced that too ? If so, how did you circumvent that problem ? the nics are Intel's i350.I've tried using the IntelE1000.kext and adding the devices ID's from the AppleIGB, and strangely the NIC seems to be recognized, but is unable to do DHCP or to effectively send information. I tried setting a manual IP and pinging outside doesn't work (not even the router).Any ideas ? I have a screenshot of the KP if needed. Link to comment https://www.insanelymac.com/forum/topic/205771-appleintele1000ekext-for-108107106105/page/30/#findComment-2197784 Share on other sites More sharing options...
mrjayviper Posted April 25, 2016 Share Posted April 25, 2016 anyone using this driver for an Intel i340? thanks! Link to comment https://www.insanelymac.com/forum/topic/205771-appleintele1000ekext-for-108107106105/page/30/#findComment-2234322 Share on other sites More sharing options...
davicon Posted January 11, 2017 Share Posted January 11, 2017 AppleIntelE100e.kext not working version 2.4.14, 2.7.3, 3 and 3.2 Im use myHack and install Maverick Note on Lion work perfectly that is the screen verbose thanks Only run on verbose AppleIntelE1000e (info): Interrupt Trottling Rate (ints/sec) set to dynamic conserva.... AppleIntelE1000e (info): changing MTU fron 0 to 1500 But no show address and not connect on maverick need some hand 1 Link to comment https://www.insanelymac.com/forum/topic/205771-appleintele1000ekext-for-108107106105/page/30/#findComment-2347697 Share on other sites More sharing options...
