[GUIDE] Scripted Yosemite/Mavericks Install on Gigabyte Mobos


4,696 posts in this topic

Recommended Posts

I use this Apple HDA patcher 1.5 wich is about the same method as Toleda

https://github.com/toleda/audio_CloverALC



attachicon.gifAppleHDA Patcher.app_v1.5.zip



inject audio 1 in Clover (config.plist)



Good luck



What is the codec you choose?

I remember GA-EX59-UD5 is 889 so I choose that then on the second prompt I choose 885. After that for the layout ID I only have 5, 7 or 9 to select.

I tried with 7 and inject 1, it doesn't work, neither if Inject 7.





Link to comment
Share on other sites

What is the codec you choose?

I remember GA-EX59-UD5 is 889 so I choose that then on the second prompt I choose 885. After that for the layout ID I only have 5, 7 or 9 to select.

I tried with 7 and inject 1, it doesn't work, neither if Inject 7.



Attached is my config.plist.

I will be glad if you could check and compare with yours.

GA EX58-UD5 has 889A audio codec wich=  885 !



Using the audio_cloverALC-120_v1.0b0.command     from Toleda's latest audio_CloverALC-master.zip

you get this: (mount your EFI before ! ) the text in blue is what you enter, green is what's been installed ....

AgreementThe audio_cloverALC-120 script is for personal use only. Do not distributethe patch, any or all of the files or the resulting patched AppleHDA.kextfor any reason without permission. The audio_cloverALC-120 script isprovided as is and without any kind of warranty.File: audio_cloverALC-120.command_v1.0b0Release ModePassword:"your password"EFI partition is mountedSystem Integrity Protection status: disabled.OK to patchConfirm Realtek ALC885 (y/n): yClover Audio ID Injection (y/n): yUse Audio ID: 1 (y/n): yDownload ALC885 files ...% Total % Received % Xferd Average Speed Time Time Time CurrentDload Upload Total Spent Left Speed100 22419 100 22419 0 0 46771 0 --:--:-- --:--:-- --:--:-- 46803Edit config.plist/Devices/Audio/Inject/1Edit config.plist/SystemParameters/InjectKexts/YESDownload kext patches% Total % Received % Xferd Average Speed Time Time Time CurrentDload Upload Total Spent Left Speed100 1418 100 1418 0 0 3871 0 --:--:-- --:--:-- --:--:-- 3874Download config kext and install ...% Total % Received % Xferd Average Speed Time Time Time CurrentDload Upload Total Spent Left Speed100 3665 100 3665 0 0 9961 0 --:--:-- --:--:-- --:--:-- 9986Install /Library/Extensions/realtekALC.kextInstall System/Library/Extensions/AppleHDA.kext/ALC885 zml filesFix permissions ...Kernel cache...rebuilding //System/Library/PrelinkedKernels/prelinkedkernelkext file:///System/Library/Extensions/Terminus.kext/ is in hash exception list, allowing to loadkext-dev-mode allowing invalid signature -67062 0xFFFFFFFFFFFEFA0A for kext Soundflower.kextkext-dev-mode allowing invalid signature -67062 0xFFFFFFFFFFFEFA0A for kext NullCPUPowerManagement.kextkext-dev-mode allowing invalid signature -67013 0xFFFFFFFFFFFEFA3B for kext AppleMobileDevice.kextkext-dev-mode allowing invalid signature -67054 0xFFFFFFFFFFFEFA12 for kext AppleHDA.kextKernelCache ID: 9B81F1BEBE23A255CC00BFCC06C59E56symlink("/System/Library/PrelinkedKernels/prelinkedkernel", "/System/Library/Caches/com.apple.kext.caches/Startup/kernelcache") failed 17 (File exists) kextcache updated critical boot files, requesting launchd rebootInstall finished, restart required.To save a Copy of this Terminal session: Terminal/Shell/Export Text As ...logoutSaving session......copying shared history......saving history...truncating history files......completed.Deleting expired sessions...79 completed.

You wil find my config.plist here by ; DSDT.aml (put it in EFI/CLOVER/ACPI/patched) and all my 10.12 kexts.

For your specific graphic card get latest Nvidia webdrivers and Webdriversapp.

http://www.insanelymac.com/forum/files/file/474-nvidia%C2%AE-webdriver-updaterapp/

http://www.insanelymac.com/forum/topic/312525-nvidia-web-driver-updates-for-macos-sierra-update-09202016/

Nvidia Web Driver - 367.15.10.05f01



Change in my config.plist only for your use :

  • Boot: default boot volume and nv_disable=1( after Nvidia webdrivers install you can check nvda_drv=1 !)
  • CPU: fréquency 2660; QPI:4800
  • Gui:your language;screen resolution ? and Theme
  • SMBIOS: Your Board Serial Number and Serialnumber

Archive.zip



Good luck !



edit: some color problems  !  3x yes and 1 kext is installed and zml....

  • Like 2
Link to comment
Share on other sites

Don't worry about motherboard audio ... i've spent a lot of time with no luck :wallbash:

Go with a cheap USB audio adapter ... and enjoy your mobo! :thumbsup_anim:

Facility solution! Everyone knows that

No need to consult this blog for this kind of comment ....

Very nice kind of respect for all the developers....!

Link to comment
Share on other sites

Facility solution! Everyone knows that

No need to consult this blog for this kind of comment ....

Very nice kind of respect for all the developers....!

I agree. It is like installing another tire when you have a flat tire.

So I managed to repair the audio using the toleda audio_cloverALC-120_v1.0b0.command

It is not truly vanilla, but at least I don't have to use weird id 0 as before, and the USB mic for Siri seems stable.

Merci bcp @ROBASFR



UPDATE:

It seems the Logitech USB webcam (don't remember the model) microphone is not responding after resuming the system from sleep. I just found out this morning, the speaker is still functioning :(

Need more investigation on this.

But I am quite happy with the sound output works 100%,

  • Like 1
Link to comment
Share on other sites

UPDATE:

It seems the Logitech USB webcam (don't remember the model) microphone is not responding after resuming the system from sleep. I just found out this morning, the speaker is still functioning :(

Need more investigation on this.

But I am quite happy with the sound output works 100%,

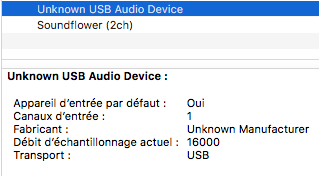

Well I tried mine (logitech quickcam pro 9000 ) wich is on USB 3, and No problem here after sleep !



post-305243-0-27507600-1475007483_thumb.png post-305243-0-23317400-1475007706_thumb.png

Link to comment
Share on other sites

Well I tried mine (logitech quickcam pro 9000 ) wich is on USB 3, and No problem here after sleep !



attachicon.gifCapture d'écran 2016-09-27 22.18.14.png attachicon.gifCapture d'écran 2016-09-27 22.24.22.png

Mine is Logitech HD Webcam 270, connected to a USB2 port.

Did you try it with Siri after resume from sleep?

I just tried and it works this time, so it is intermittent, I need to check some of the USB parameters in Clover which I saw you have it but I don't.



When it didn't work, the device is still listed in System Information and System Preferences, only it doesn't responding. I notice also there was a lag on System Preferences that time.

Link to comment
Share on other sites

  • 2 months later...

I Love this mobo. Yesterday i'm upgrade from Yosemite to El Capitan. Today to Sierra. Simply update from Appstore. Without any combinations. Everything working fine for Me.

Only one thing, realtekALC.kext i must patched again by Toleda method.








EDIT: Buuuu sleep wont working. Any ideas?

  • Like 2
Link to comment
Share on other sites

  • 2 months later...



BTW, you can explain for what is each kext in the zip?



greetings



When looking around a bit in this site you could find this info...



-RealtekRTL8111.kext- support for the LAN (Ethernet) (RTL8111D)

-ApplePCIIDE.kext  - IDE –P(ATA) support

-FakeSMC.kext  (with plugins inside) – for general Hackintosh support ; absolutely mandatory kext and is required for booting the system !

-FakePCIID.kext  with ( DummyUSBXHCIPCO.kext and DummyUSBEHCIPCI.kext) - USB support

-USBInjextAll.kext- USB support

-aDummyHDA.kext – better AudioHDA support

-AHCIPortInjector.kext – inject id device for most Sata chips ( support my thirdparty SATA III PCI card)

-GenericUSBXHCI.kext (third party USB-3  card support)

-RealtekALC.kext – add Audio (ALC 889a -885) support

Link to comment
Share on other sites

thanks! some kext I know it , but others not






-aDummyHDA.kext – better AudioHDA support

-FakePCIID.kext  with ( DummyUSBXHCIPCO.kext and DummyUSBEHCIPCI.kext) - USB support





can you explain (a little) what inprove make this? and where found/how install it (if need a special steps)?





in other hand. i'm not sure if I can post this here.



I have several problem with my graphic card (9800GT). always get "blue screen" and inmediately reboot the machine (-nvda_driver=1 or enable nvidia web option in clover (r4012))



if enable fakenvidia injector, gets a KP in the nvidiaweb driver



also add in the properties the efi string I get with this: https://giuliomac.wordpress.com/tag/efistudio/



but not works (or KP if inject is enable or bluescreen/reboot if disable inject)



tested also with AGDPfix. no sucess



only works with nv_disable=1



using this plist (https://www.dropbox.com/s/m5ftz39ph8y7hpt/config.plist?dl=0) and you DSDT (untouch)



the display is a asus PB287Q (4K) and is connected by DVI-> HDMI adapter, because  using HDMI->HDMI, in Vesa mode, i have less resolution than DVI-> HDMI (?)



i'm out of ideas, only I lack reinstall the system



any help?



greetings

Link to comment
Share on other sites

thanks! some kext I know it , but others not







can you explain (a little) what inprove make this? and where found/how install it (if need a special steps)? No install and no special steps and don't bother they do are harmless !





in other hand. i'm not sure if I can post this here.



I have several problem with my graphic card (9800GT). always get "blue screen" and inmediately reboot the machine (-nvda_driver=1 or enable nvidia web option in clover (r4012))



if enable fakenvidia injector, gets a KP in the nvidiaweb driver



also add in the properties the efi string I get with this: https://giuliomac.wordpress.com/tag/efistudio/



but not works (or KP if inject is enable or bluescreen/reboot if disable inject)



tested also with AGDPfix. no sucess



only works with nv_disable=1



using this plist (https://www.dropbox.com/s/m5ftz39ph8y7hpt/config.plist?dl=0) and you DSDT (untouch)



the display is a asus PB287Q (4K) and is connected by DVI-> HDMI adapter, because  using HDMI->HDMI, in Vesa mode, i have less resolution than DVI-> HDMI (?)



i'm out of ideas, only I lack reinstall the system



any help?



greetings



First I think you don't have to use the latest Clover version ! (latest is not the best for everyone !...)  Beside OS improvement and compatiblety, Developers don't improve Clover for our MOBOS !



Install this one:

https://sourceforge.net/projects/cloverefiboot/files/Installer/Clover_v2.3k_r3974.zip/download



About kexts in EFI/CLOVER/KEXTS/10.12  they are installed there and not elsewhere !



They get injected because you say so in clover.plist  !



About your NVidia 9800GT it should work without webdrivers !  So just  inject Nvida in Clover and get rid of your webdrivers !



Use my config.plist and my DSDT.aml and it should work ( for me it does since 2009). Use first only the files from one person with a rig wich is OK , Then you can explore for your self ..



Sorry to say so, but your 4K screen is not very adapted to your graphic card....



Try first VGA and then go step by step to fix things thurder on...

Nvidia 9800GT specs:

Maximum Digital Resolution
2560x1600
Maximum VGA Resolution
2048x1536



Good luck !

Link to comment
Share on other sites

yes, i know my 4k is not suitable for the 9800GT, but is because the display used by other machine (the display is shared between 2 machines, one my main machine and other is the hackintosh machine).I would be happy if the output is 1920x1080, not 1280x1024 (or 1024x756 if use HDMI) like now


ok, then i'm going tried with older clover and without webdrivers (but i'm completely sure the webdrivers working like charm with my old (10.10.2) Yosemite installation (before update to sierra)

I don't touch the hackintoch rig since 2 yars ago





you still no explain what inprovements make these 3kext



greetings



EDIT: nope



- Install clover r3974 (full reinstall)

- Remove Nvidia webdrivers and unset in clover nv_driver=1 or NvidiaWeb

- Inject NVIDIA in the grapics option

- boot arguments: -v darkwake=0

- DVI adapter to HDMI (my display dont't have DVI input)



now gets 'No signal' (blue screen) display , but the restart after this, and the KP is gone. now need hard reboot by panic button



only works again if set nv_disable=1



:(

Link to comment
Share on other sites



yes, i know my 4k is not suitable for the 9800GT, but is because the display used by other machine (the display is shared between 2 machines, one my main machine and other is the hackintosh machine).I would be happy if the output is 1920x1080, not 1280x1024 (or 1024x756 if use HDMI) like now


ok, then i'm going tried with older clover and without webdrivers (but i'm completely sure the webdrivers working like charm with my old (10.10.2) Yosemite installation (before update to sierra)

I don't touch the hackintoch rig since 2 yars ago





you still no explain what inprovements make these 3kext



greetings



EDIT: nope



- Install clover r3974 (full reinstall)

- Remove Nvidia webdrivers and unset in clover nv_driver=1 or NvidiaWeb

- Inject NVIDIA in the grapics option

- boot arguments: -v darkwake=0

- DVI adapter to HDMI (my display dont't have DVI input)



now gets 'No signal' (blue screen) display , but the restart after this, and the KP is gone. now need hard reboot by panic button



only works again if set nv_disable=1



:(





Concerning your Nvidia 9800GT:



Like me you can search on several sites and they all confirm that it should work without webdrivers (some times even OOB ! )



Cleaning up caches and rebuiding kernelcache, Kexts, NVRAM can help sometimes in desperate situations ....



Concerning the FakePCIID.kext  and associated DummyUSBXHCIPCO.kext and DummyUSBEHCIPCI.kext from OSX  > 10.11  "using the dummy kexts route USB2 devices on XHC to EHCI" for older MOBOS (without UEFI) I changed my DSDT also in the same intention and perhaps it is double employed. But it doesn't harm...



More info on this : https://github.com/RehabMan/OS-X-Fake-PCI-ID



Nevertheless, I don't have USB problems with this config any more  !



;)

Link to comment
Share on other sites

ok. tested with EVGA GTX770 2GB via HDMI (force 1080p30 HiDPI with switchresx, because native 4K gets dammsmall icons/UI, my display, ASUS PB287Q, is a NON-HiDPI panel (157x161dpi)



the problem is fixed. no NVIDIA injection, no efistring in properties, no webdrivers, all OOTB



seems the 9800gt is now unsupported in sierra



change NVDASTARTUP.kext by El Capitan version don't work



Greetings

Link to comment
Share on other sites

ok. tested with EVGA GTX770 2GB via HDMI (force 1080p30 HiDPI with switchresx, because native 4K gets dammsmall icons/UI, my display, ASUS PB287Q, is a NON-HiDPI panel (157x161dpi)



the problem is fixed. no NVIDIA injection, no efistring in properties, no webdrivers, all OOTB



seems the 9800gt is now unsupported in sierra



change NVDASTARTUP.kext by El Capitan version don't work



Greetings



Yes, Your graphic card problems intrigued me so I did some digging and it apears that there is a problem with this card since OSX  SIERRA ...



I found this solution nevertheless:



"I've just overwritten /System/Library/Extensions/NVDAStartup.kext in a fresh Sierra installation with NVDAStartup.kext from El Capitan, then rebuilt the kernel cache as described in kextcache man page (sudo touch /System/Library/Extensions; kextcache -update-volume /Volumes/Sierra)."



You'll find the NVDAStartup.kext from El Capitan here by to use



NVDAStartup.kext.zip



Seems you tried it already ..



Success !

Link to comment
Share on other sites

  • 5 weeks later...

Hello,

after security update to Sierra 10.12.4 (16E195) broke my network connections. System not see any ethernet adapters. Anybody knows something about it?

System seeng card, but kext not working.


Realtek 8168/8101E Gigabit Ethernet:

  Name: ethernet

  Type: Ethernet

  Driver Installed: No

  MSI: No

  Bus: PCI

  Slot: Ethernet

  Vendor ID: 0x10ec

  Device ID: 0x8168

  Subsystem Vendor ID: 0x1458

  Subsystem ID: 0xe000

  Revision ID: 0x0003

  Link Width: x1

  Link Speed: 2.5 GT/s





This is strange, but i fix it manually install realtek kext to SLE.

Edited by max00r
