Superhai Posted October 30, 2008 Author Share Posted October 30, 2008 I have a T7300 too. When running with the kext and the app set to displaying freq I see it jump back and forth between 600 and 1000 quite a lot. For instans just by typing this message in safari it switches all the time. When I in a former version got 800-1200-1600-2000 it was very stable in 800 except when doing something heavy. You can set the threshold for when it will switch the p-states in Info.plist in the kext. Link to comment Share on other sites More sharing options...
Victor Gil Posted October 30, 2008 Share Posted October 30, 2008 Thank you very much, testing it right know... Link to comment Share on other sites More sharing options...
Wiwi Posted October 30, 2008 Share Posted October 30, 2008 Your kext works very well now for me, also detection of energy source (AC or battery) works with Chun Nan (Now named Eureka) ACPIBattery kext....!!!!! Thanks, now my hack is almost complete... (Next step is sleep, perhaps with pc_efi 9 !) Link to comment Share on other sites More sharing options...
FavleX Posted October 30, 2008 Share Posted October 30, 2008 I have chmoded it and all but when loaded FavleX:~ ema$ sudo kextload /Users/ema/Desktop/superhai/GenericCPUPowerManagement.kext kextload: extension /Users/ema/Desktop/superhai/GenericCPUPowerManagement.kext is not authentic (check ownership and permissions; run with -t for details) ?? Link to comment Share on other sites More sharing options...
mitch_de Posted October 30, 2008 Share Posted October 30, 2008 I have chmoded it and all but when loaded FavleX:~ ema$ sudo kextload /Users/ema/Desktop/superhai/GenericCPUPowerManagement.kext kextload: extension /Users/ema/Desktop/superhai/GenericCPUPowerManagement.kext is not authentic (check ownership and permissions; run with -t for details) ?? 1. recursive owner/group needed : sudo chown -R root:wheel /Users/ema/Desktop/superhai/GenericCPUPowerManagement.kext 2. also do recursive : sudo chmod -R 755 /Users/ema/Desktop/superhai/GenericCPUPowerManagement.kext This may needed after DL or if you change something in the .plist Link to comment Share on other sites More sharing options...
FavleX Posted October 30, 2008 Share Posted October 30, 2008 1. recursive owner/group needed : sudo chown -R root:wheel /Users/ema/Desktop/superhai/GenericCPUPowerManagement.kext 2. also do recursive : sudo chmod -R 755 /Users/ema/Desktop/superhai/GenericCPUPowerManagement.kext This may needed after DL or if you change something in the .plist Thanks. Just did it before but no way [Edit] My fault.I'm dumb.Mistake on typing Then , the kext is loaded correctly , the app is working but when using it on manual the cpu freq doesn't change at all Link to comment Share on other sites More sharing options...
Superhai Posted October 30, 2008 Author Share Posted October 30, 2008 Then , the kext is loaded correctly , the app is working but when using it on manual the cpu freq doesn't change at all You have a gigabyte board right? Link to comment Share on other sites More sharing options...
r0987 Posted October 30, 2008 Share Posted October 30, 2008 I have a Gigabyte GA-P965-DS3 desktop computer as well and Speed Step is controlled by the BIOS. Speed Step should already have been working out of the box and undervolting can be controlled in the BIOS too.. Link to comment Share on other sites More sharing options...
naztech Posted October 30, 2008 Share Posted October 30, 2008 It is stuck at 798MHz. "CPU Status" = {"Auto Throttle"=Yes,"Load"=0xc8,"Temperature"=0x25,"Current profile"=0x0,"High jump"=0x12c,"Voltage"=0x4ee,"Timer"=0x64,"Low jump"=0x96,"Frequency"=0x31e,"Kext Timer"=0x2e7e,"Kext Online"=Yes,"Current state"=0x3,"Voltage ID"=0x2c,"Frequency ID"=0x6} "CPU Init" = {"CTL max"=0xd2c,"FSB frequency min"=0x214,"Signature"=0x6e8,"FSB frequency max"=0x214,"CTL min"=0x62c,"Kext unlock"=No,"Kext version"=0x10011,"Brand string"="Genuine Intel® CPU T2250 @ 1.73GHz","Voltage max"=0x4ee,"Frequency min"=0x31e,"Frequency max"=0x6c1,"Voltage min"=0x4ee} Link to comment Share on other sites More sharing options...

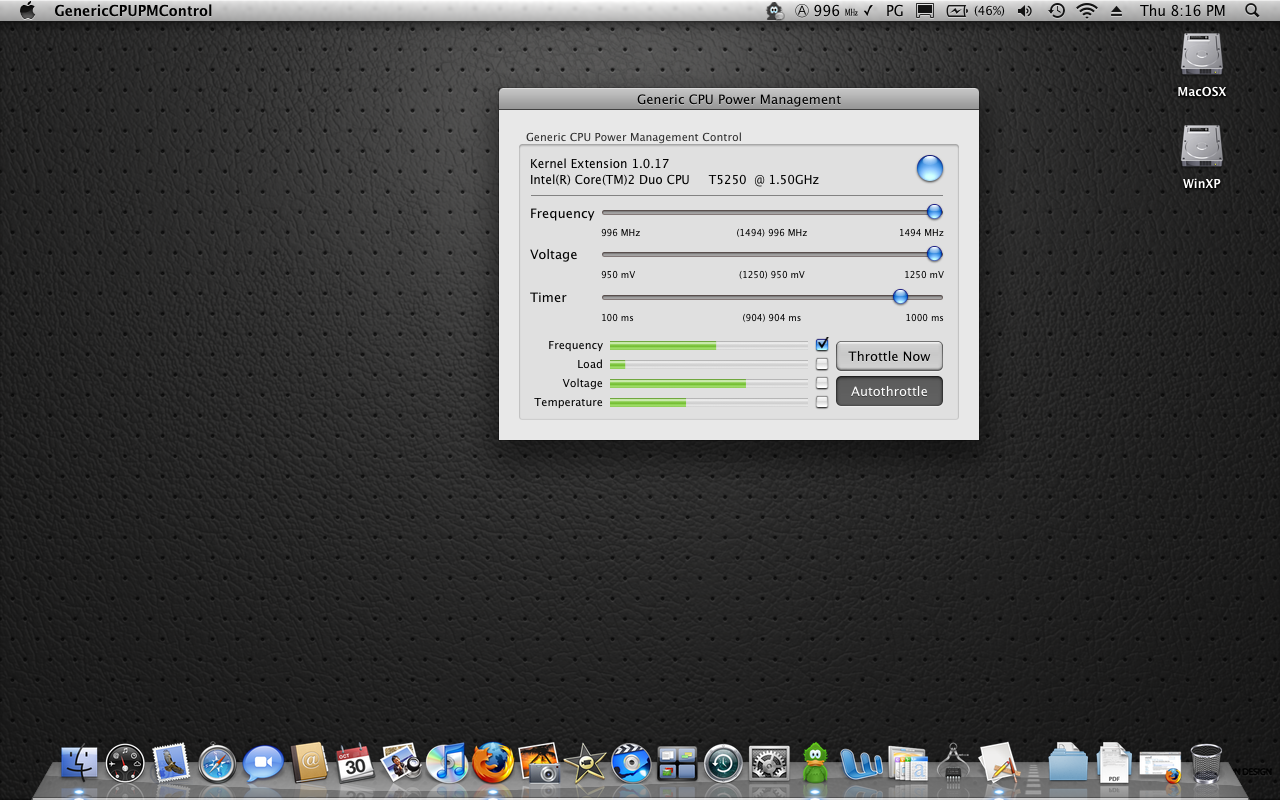

CharredPC Posted October 31, 2008 Share Posted October 31, 2008 Appears to work wonderful here on my Acer Extensa 5620 laptop. I've attached a screenshot of the latest driver/app install. Let me know if providing any more info would help... really appreciate the continuing effort and work! Many thanks! Link to comment Share on other sites More sharing options...
FavleX Posted October 31, 2008 Share Posted October 31, 2008 Tried last version on Msi Wind emanueles-u-183:SuperHai emanuele$ ioreg -lxw0 -r -c GenericCPUPowerManagement | grep "CPU " "CPU Status" = {"Auto Throttle"=No,"Load"=0x6e,"Temperature"=0x1f,"Current profile"=0x1,"High jump"=0xfa,"Voltage"=0x384,"Timer"=0xfa,"Low jump"=0x96,"Frequency"=0xc7e,"Kext Timer"=0x2a8,"Kext Online"=Yes,"Current state"=0x3,"Voltage ID"=0xf,"Frequency ID"=0x6} "CPU Init" = {"CTL max"=0xc23,"FSB frequency min"=0x854,"Signature"=0x106c2,"FSB frequency max"=0x854,"CTL min"=0x60f,"Kext unlock"=No,"Kext version"=0x10011,"Brand string"="Intel(R) Atom(TM) CPU N270 @ 1.60GHz","Voltage max"=0x47e,"Frequency min"=0xc7e,"Frequency max"=0x835,"Voltage min"=0x384} emanueles-u-183:SuperHai emanuele$ The Frequency cursor doesn't move on the GUI interface You have a gigabyte board right? Yes a DS4 and the Wind indeed. Now I must remember how to change FSB as u mentioned before.. Link to comment Share on other sites More sharing options...
frauhottelmann Posted October 31, 2008 Share Posted October 31, 2008 Mh it's working now, but it still displays the wrong frequency. I also get a KP when the voltage is too far down. I don't think it happens on auto mode, but I tried manual mode on 925 mV and the computer crashed. Untitled.doc Link to comment Share on other sites More sharing options...
Korrupted Posted October 31, 2008 Share Posted October 31, 2008 I overclocked my Q9550 to 3.4Ghz and the frequency is no longer recognized correctly: Daxs-Apple-Mizuki:~ dax$ ioreg -lxw0 -r -c GenericCPUPowerManagement | grep "CPU " "CPU Status" = {"Auto Throttle"=Yes,"Load"=0x0,"Temperature"=0x15,"Current profile"=0x0,"High jump"=0x12c,"Voltage"=0x3db,"Timer"=0xfa,"Low jump"=0x96,"Frequency"=0x96,"Kext Timer"=0xb56,"Kext Online"=Yes,"Current state"=0x3,"Voltage ID"=0x16,"Frequency ID"=0x6} "CPU Init" = {"CTL max"=0x481d,"FSB frequency min"=0x64,"Signature"=0x1067a,"FSB frequency max"=0x64,"CTL min"=0x616,"Kext unlock"=No,"Kext version"=0x10010,"Brand string"="Intel® Core2 Quad CPU Q9550 @ 2.83GHz","Voltage max"=0x433,"Frequency min"=0x96,"Frequency max"=0xd4,"Voltage min"=0x3db} It shows up as: Did I miss something basic? Edit: Hmm, it seems like sysctl isn't recognizing my CPU speed very well. It also says 150mhz. Link to comment Share on other sites More sharing options...
rhyguy Posted October 31, 2008 Share Posted October 31, 2008 Is there a way of having the menbar display, but not the icon in the dock? Link to comment Share on other sites More sharing options...
Superhai Posted October 31, 2008 Author Share Posted October 31, 2008 If you have wrong frequency, tell me if you use pc_efi, chameleon, what mods for smbios etc. Link to comment Share on other sites More sharing options...
Korrupted Posted October 31, 2008 Share Posted October 31, 2008 Chameleon from Munky's EFI partition method, and SMBIOSResolver[no changes]. Link to comment Share on other sites More sharing options...
Superhai Posted October 31, 2008 Author Share Posted October 31, 2008 Is there a way of having the menbar display, but not the icon in the dock? I will work on the app when all quirks from the kext are fixed. Link to comment Share on other sites More sharing options...
nipah Posted October 31, 2008 Share Posted October 31, 2008 Tried last version on Msi Wind The Frequency cursor doesn't move on the GUI interface Likewise, looks like it's because the CPU is detected as having a minimum frequency greater than the maximum Here's the dmesg output when using the debug build: GenericCPUPowerManagement: 31:0(XE) GenericCPUPowerManagement: 32-37:24(MVID) 38:0 39:0 GenericCPUPowerManagement: 40-44:0C(MFID) 45:0 46:0(N2) 47:0 GenericCPUPowerManagement: 48-53:0F(XVID) 54:0 55:0 GenericCPUPowerManagement: 56-60:06(XFID) 61:0 62:0(N2) 63:0(DFSB) GenericCPUPowerManagement: -- MSR_IA32_PERF_CTL MSR 00000C24 00000000 GenericCPUPowerManagement: 00-05:24(TVID) 06:0 07:0 GenericCPUPowerManagement: 08-12:0C(TFID) 13:0 14:0(N2) 15:0(DFSB) GenericCPUPowerManagement: 16-31:0000 GenericCPUPowerManagement: 32:0(IDA-D) GenericCPUPowerManagement: -- MSR_IA32_THERM_INTERRUPT MSR 00000000 00000000 GenericCPUPowerManagement: -- MSR_IA32_THERM_STATUS MSR 88330000 00000000 GenericCPUPowerManagement: 16-22:33(DREAD) GenericCPUPowerManagement: 27-30:1(RES) GenericCPUPowerManagement: 31:1(VALID) GenericCPUPowerManagement: Probe result: mVID = 24 mFID = 0C GenericCPUPowerManagement: [Debug] ACPI suggested states Max-Min FID 0C-06 VID 24-0F GenericCPUPowerManagement: [Debug] Our suggested states Max-Min FID 0C-06 VID 24-0F GenericCPUPowerManagement: [Debug] Actual states Max-Min FID 0C-06 VID 24-0F GenericCPUPowerManagement: [Debug] Thermal Junction Max is 90 C current temperature is 37 C GenericCPUPowerManagement: [Debug] CPU low 712 mV step 12 mV mobile 1 GenericCPUPowerManagement: [Debug] CPU bus frequency is 533 MHz GenericCPUPowerManagement: [Debug] CPU Max frequency 2101 MHz MSR ratio 12.0 voltage 1162 mV GenericCPUPowerManagement: [Debug] CPU Min frequency 3198 MHz MSR ratio 6.0 voltage 900 mV GenericCPUPowerManagement: [Debug] --- GenericCPUPowerManagement: Generic CPU Power Management Driver 1.0 <snip long line> GenericCPUPowerManagement: For internal use only. <snip long line> GenericCPUPowerManagement: [Debug] --- GenericCPUPowerManagement: [Debug] P-state 0 -> fid 12 (2101032704), vid 24 (1162) GenericCPUPowerManagement: [Debug] P-state 1 -> fid 134 (1599000000), vid 1d (1075) GenericCPUPowerManagement: [Debug] P-state 2 -> fid 8 (4264000000), vid 16 (987) GenericCPUPowerManagement: [Debug] P-state 3 -> fid 6 (3198000000), vid f (900) GenericCPUPowerManagement: [Debug] EIST Enabled and Locked GenericCPUPowerManagement: [Debug] Clock rate: CPU 2101 MHz - Bus 2132 MHz - Dec 1000 MHz GenericCPUPowerManagement: [Debug] Bus clock rate 100000000 - den 1 GenericCPUPowerManagement: [Debug] Bus/CPU rate 12 - den 2 GenericCPUPowerManagement: [Debug] Bus/dec rate 1 - den 0 GenericCPUPowerManagement: [Debug] Timebase frequency 1000000000 hz GenericCPUPowerManagement: [Debug] CPU min/max (3198 MHz - 2101 MHz) GenericCPUPowerManagement: [Debug] Bus min/max (2132 MHz - 2132 MHz) GenericCPUPowerManagement: [Debug] Auto timeout 250, high 300, low 150 GenericCPUPowerManagement: [Debug] Requested new p-state 0C24 GenericCPUPowerManagement: [Debug] Requested new p-state 060F GenericCPUPowerManagement: [Debug] We are on A/C GenericCPUPowerManagement: [Debug] Current p-state 3 with fid 6 p-state fid 6 pos 1 GenericCPUPowerManagement: [Debug] We have loaded completely and ready for action Chip in the MSI Wind is the Intel Atom N270, normal speedstep range is 900MHz to 1600MHz (ignoring overclock settings). Let me know if you need any extra info. Link to comment Share on other sites More sharing options...
Wiwi Posted October 31, 2008 Share Posted October 31, 2008 Just to say... With modified dsdt, that kext and Apple's intelcpupm i've won one hour of battery ! Link to comment Share on other sites More sharing options...
FavleX Posted October 31, 2008 Share Posted October 31, 2008 Likewise, looks like it's because the CPU is detected as having a minimum frequency greater than the maximum Here's the dmesg output when using the debug build: GenericCPUPowerManagement: 31:0(XE) GenericCPUPowerManagement: 32-37:24(MVID) 38:0 39:0 GenericCPUPowerManagement: 40-44:0C(MFID) 45:0 46:0(N2) 47:0 GenericCPUPowerManagement: 48-53:0F(XVID) 54:0 55:0 GenericCPUPowerManagement: 56-60:06(XFID) 61:0 62:0(N2) 63:0(DFSB) GenericCPUPowerManagement: -- MSR_IA32_PERF_CTL MSR 00000C24 00000000 GenericCPUPowerManagement: 00-05:24(TVID) 06:0 07:0 GenericCPUPowerManagement: 08-12:0C(TFID) 13:0 14:0(N2) 15:0(DFSB) GenericCPUPowerManagement: 16-31:0000 GenericCPUPowerManagement: 32:0(IDA-D) GenericCPUPowerManagement: -- MSR_IA32_THERM_INTERRUPT MSR 00000000 00000000 GenericCPUPowerManagement: -- MSR_IA32_THERM_STATUS MSR 88330000 00000000 GenericCPUPowerManagement: 16-22:33(DREAD) GenericCPUPowerManagement: 27-30:1(RES) GenericCPUPowerManagement: 31:1(VALID) GenericCPUPowerManagement: Probe result: mVID = 24 mFID = 0C GenericCPUPowerManagement: [Debug] ACPI suggested states Max-Min FID 0C-06 VID 24-0F GenericCPUPowerManagement: [Debug] Our suggested states Max-Min FID 0C-06 VID 24-0F GenericCPUPowerManagement: [Debug] Actual states Max-Min FID 0C-06 VID 24-0F GenericCPUPowerManagement: [Debug] Thermal Junction Max is 90 C current temperature is 37 C GenericCPUPowerManagement: [Debug] CPU low 712 mV step 12 mV mobile 1 GenericCPUPowerManagement: [Debug] CPU bus frequency is 533 MHz GenericCPUPowerManagement: [Debug] CPU Max frequency 2101 MHz MSR ratio 12.0 voltage 1162 mV GenericCPUPowerManagement: [Debug] CPU Min frequency 3198 MHz MSR ratio 6.0 voltage 900 mV GenericCPUPowerManagement: [Debug] --- GenericCPUPowerManagement: Generic CPU Power Management Driver 1.0 <snip long line> GenericCPUPowerManagement: For internal use only. <snip long line> GenericCPUPowerManagement: [Debug] --- GenericCPUPowerManagement: [Debug] P-state 0 -> fid 12 (2101032704), vid 24 (1162) GenericCPUPowerManagement: [Debug] P-state 1 -> fid 134 (1599000000), vid 1d (1075) GenericCPUPowerManagement: [Debug] P-state 2 -> fid 8 (4264000000), vid 16 (987) GenericCPUPowerManagement: [Debug] P-state 3 -> fid 6 (3198000000), vid f (900) GenericCPUPowerManagement: [Debug] EIST Enabled and Locked GenericCPUPowerManagement: [Debug] Clock rate: CPU 2101 MHz - Bus 2132 MHz - Dec 1000 MHz GenericCPUPowerManagement: [Debug] Bus clock rate 100000000 - den 1 GenericCPUPowerManagement: [Debug] Bus/CPU rate 12 - den 2 GenericCPUPowerManagement: [Debug] Bus/dec rate 1 - den 0 GenericCPUPowerManagement: [Debug] Timebase frequency 1000000000 hz GenericCPUPowerManagement: [Debug] CPU min/max (3198 MHz - 2101 MHz) GenericCPUPowerManagement: [Debug] Bus min/max (2132 MHz - 2132 MHz) GenericCPUPowerManagement: [Debug] Auto timeout 250, high 300, low 150 GenericCPUPowerManagement: [Debug] Requested new p-state 0C24 GenericCPUPowerManagement: [Debug] Requested new p-state 060F GenericCPUPowerManagement: [Debug] We are on A/C GenericCPUPowerManagement: [Debug] Current p-state 3 with fid 6 p-state fid 6 pos 1 GenericCPUPowerManagement: [Debug] We have loaded completely and ready for action Chip in the MSI Wind is the Intel Atom N270, normal speedstep range is 900MHz to 1600MHz (ignoring overclock settings). Let me know if you need any extra info. Ok.It's supposed to be 800Mhz to 1600Mhz. So In ur opinion what can I do for having it correctly recognised ? I got it tested with vanilla and voodoo_beta2 kernels as well. Just to say...With modified dsdt, that kext and Apple's intelcpupm i've won one hour of battery ! What ? could you be a bit more detailed please ? Very interested ! Link to comment Share on other sites More sharing options...
mega Posted October 31, 2008 Share Posted October 31, 2008 any way to add fan control to this too? PS, I'm using a lenovo s10, it is an atom 270, my frequency shows 300-600, but it's a 1.6 ghz chip, probably the same issue the MSI wind poster had, same chip & chipset Before loading kext, about this mac shows 1.6 ghz after loading kext it shows 600mhz and the control gui only lets me go up to 600 mhz hw.busfrequency shows the same before and after loading the kext Link to comment Share on other sites More sharing options...
mega Posted October 31, 2008 Share Posted October 31, 2008 Hardware Overview: Model Name: Mac Model Identifier: Lenovo Processor Name: Intel® Atom CPU N270 @ Processor Speed: 1.6 GHz Number Of Processors: 1 Total Number Of Cores: 1 CPU Features: FPU VME DE PSE TSC MSR PAE MCE CX8 APIC SEP MTRR PGE MCA CMOV PAT CLFSH DS ACPI MMX FXSR SSE SSE2 SS HTT TM SSE3 MON DSCPL EST TM2 SSSE3 TPR PDCM Memory: 2.5 GB Bus Speed: 200 MHz L2 Cache: 256 KB after kextload Model Name: Mac Model Identifier: Lenovo Processor Name: Intel® Atom CPU N270 @ Processor Speed: 600 MHz Number Of Processors: 1 Total Number Of Cores: 1 CPU Features: FPU VME DE PSE TSC MSR PAE MCE CX8 APIC SEP MTRR PGE MCA CMOV PAT CLFSH DS ACPI MMX FXSR SSE SSE2 SS HTT TM SSE3 MON DSCPL EST TM2 SSSE3 TPR PDCM Memory: 2.5 GB Bus Speed: 200 MHz L2 Cache: 256 KB lenovo:downloads mega$ ioreg -lwxo -r -c GenericCPUPowerManagement | grep "CPU" +-o GenericCPUPowerManagement <class GenericCPUPowerManagement, registered, matched, active, busy 0, retain 4> "CFBundleIdentifier" = "com.superhai.driver.GenericCPUPowerManagement" "IOMatchCategory" = "GenericCPUPowerManagement" "CPU Status" = {"Auto Throttle"=Yes,"Load"=40,"Temperature"=39,"Current profile"=0,"High jump"=300,"Voltage"=900,"Timer"=250,"Low jump"=150,"Frequency"=300,"Kext Timer"=147,"Kext Online"=Yes,"Current state"=3,"Voltage ID"=15,"Frequency ID"=6} "IOClass" = "GenericCPUPowerManagement" "CPU Init" = {"CTL max"=3105,"FSB frequency min"=200,"Signature"=67266,"FSB frequency max"=200,"CTL min"=1551,"Kext unlock"=No,"Kext version"=65553,"Brand string"="Intel® Atom CPU N270 @ 1.60GHz","Voltage max"=1125,"Frequency min"=300,"Frequency max"=600,"Voltage min"=900} lenovo:downloads mega$ Link to comment Share on other sites More sharing options...
FavleX Posted October 31, 2008 Share Posted October 31, 2008 Before loading kext, about this mac shows 1.6 ghz after loading kext it shows 600mhz and the control gui only lets me go up to 600 mhz hw.busfrequency shows the same before and after loading the kext Weird.IN my case ,tried on battery , the cpu and freq changed Link to comment Share on other sites More sharing options...
Superhai Posted October 31, 2008 Author Share Posted October 31, 2008 any way to add fan control to this too? No, that is out if this scope... unless you have a fan inside your cpu PS, I'm using a lenovo s10, it is an atom 270, my frequency shows 300-600, but it's a 1.6 ghz chip, probably the same issue the MSI wind poster had, same chip & chipsetBefore loading kext, about this mac shows 1.6 ghz after loading kext it shows 600mhz and the control gui only lets me go up to 600 mhz hw.busfrequency shows the same before and after loading the kext You have wrong fsb as well. The Atom CPU should show around 533 MHz. Fix that. GenericCPUPowerManagement: [Debug] CPU bus frequency is 533 MHzChip in the MSI Wind is the Intel Atom N270, normal speedstep range is 900MHz to 1600MHz (ignoring overclock settings). Let me know if you need any extra info. If you had correct fsb reported from OSX it would have showed 133 MHz not 533. Tell me if you use pc_efi, what smbios etc. Mh it's working now, but it still displays the wrong frequency. I also get a KP when the voltage is too far down. I don't think it happens on auto mode, but I tried manual mode on 925 mV and the computer crashed. Post the output of ioreg -lxw0 -r -c GenericCPUPowerManagement | grep "CPU " If you undervolt with high frequencies the cpu becomes unstable. Therefore you get a kp. Link to comment Share on other sites More sharing options...
mega Posted October 31, 2008 Share Posted October 31, 2008 is it possible to fix it with vanilla kernel? I've got fsb=133 in the com.apple.boot.plist it seems to ignore that Link to comment Share on other sites More sharing options...
