FavleX
FavleX
Posted
Posted

I'm Back Superhai



Everything was working well till 720mv , when I setted value less than that the app. has started to display wrong values (superior..).

The console displayed always correct message



08/11/2008 15:52:45 kernel GenericCPUPowerManagement: [Debug] Current p-state 3 with fid 6 p-state fid 6 pos 1
  08/11/2008 15:52:46 kernel GenericCPUPowerManagement: [Debug] We are on Battery with normal state
  08/11/2008 15:52:46 kernel GenericCPUPowerManagement: [Debug] Current p-state 3 with fid 6 p-state fid 6 pos 1
  08/11/2008 15:52:47 kernel GenericCPUPowerManagement: [Debug] We are on Battery with normal state
  08/11/2008 15:52:47 kernel GenericCPUPowerManagement: [Debug] Current p-state 3 with fid 6 p-state fid 6 pos 1
  08/11/2008 15:52:48 kernel GenericCPUPowerManagement: [Debug] We are on Battery with normal state
  08/11/2008 15:52:48 kernel GenericCPUPowerManagement: [Debug] Current p-state 3 with fid 6 p-state fid 6 pos 1



I used the .18 debug version.If You need more I'm here.



p.s. the test was executed with vanilla kernel and the FSB=133 memoryType=19 memorySpeed=667 at the prompt.



debug_mesg (9 KB)

Link to comment
Share on other sites
Superhai
Superhai
Posted
  • Author
Posted
I'm Back Superhai



Everything was working well till 720mv , when I setted value less than that the app. has started to display wrong values (superior..).

The console displayed always correct message



Well that is kind of obvious, because that is the lowest value it is possible to set. And if you are able to use your cpu at that voltage that is kind of impressive!

I will add a check so it rejects values that are out of the bounds.

Link to comment
Share on other sites
Alex HQuest
Alex HQuest
Posted
Posted

Running on my super old P4 (check sig for more info):



GenericCPUPowerManagement: [Debug] Starting probe...
GenericCPUPowerManagement: [Debug] No PowerSource defined, assuming on A/C
GenericCPUPowerManagement: [Debug] Got I/O Kit CPU 0 (0) named CPU0
GenericCPUPowerManagement: [Debug] Got I/O Kit CPU 1 (1) named CPU1
GenericCPUPowerManagement: [Debug] Got ACPI CPU 0 named CPU0
GenericCPUPowerManagement: [Debug] ACPI Machine type 0 IntelR
GenericCPUPowerManagement: [Debug] Pass p-control from BIOS, writing 0 to port b2
GenericCPUPowerManagement: [Warning] No ACPI p-states in table
GenericCPUPowerManagement: [Debug] Got ACPI CPU 1 named CPU1
GenericCPUPowerManagement: [Warning] No ACPI p-states in table
GenericCPUPowerManagement: [Debug] Great we have intel cpu
GenericCPUPowerManagement: CPU Vendor: Intel [Intel(R) Pentium(R) 4 CPU 3.00GHz]
GenericCPUPowerManagement: CPU Signature: f41
GenericCPUPowerManagement: Mobile: 0 (0) Latency: 0 TjMax: [Fill in]
GenericCPUPowerManagement: -- MSR_IA32_PLATFORM_ID MSR	 00000000 000A0000
GenericCPUPowerManagement: 00-05:00(MVID) 06:0 07:0
GenericCPUPowerManagement: 08-12:00(MFID) 13:0 14:0(N2) 15:0
GenericCPUPowerManagement:	16:0 17:0 18:0 19:0 20:0 21:0 22:0
GenericCPUPowerManagement:	23:0(N2) 24:0 25:0 26:0 27:0
GenericCPUPowerManagement:	28:0(MBL) 29:0 30:0 31:0
GenericCPUPowerManagement: 32-49:20000
GenericCPUPowerManagement:	50:0(MBL) 51:0(PF2) 52:1(PF3)
GenericCPUPowerManagement: 53-63:000
GenericCPUPowerManagement: -- MSR_IA32_EBL_CR_POWERON MSR  00000000 00000000
GenericCPUPowerManagement:	18:0(N2)
GenericCPUPowerManagement: 22-26:00(FID)
GenericCPUPowerManagement: -- MSR_IA32_PERF_STS MSR		00000F2D 00000F2D
GenericCPUPowerManagement: 00-05:2D(CVID) 06:0 07:0
GenericCPUPowerManagement: 08-12:0F(CFID) 13:0 14:0(N2) 15:0(DFSB)
GenericCPUPowerManagement: 16-21:00(mVID) 22:0 23:0
GenericCPUPowerManagement: 24-28:00(mFID) 29:0 30:0
GenericCPUPowerManagement:	31:0(XE)
GenericCPUPowerManagement: 32-37:2D(MVID) 38:0 39:0
GenericCPUPowerManagement: 40-44:0F(MFID) 45:0 46:0(N2) 47:0
GenericCPUPowerManagement: 48-53:00(XVID) 54:0 55:0
GenericCPUPowerManagement: 56-60:00(XFID) 61:0 62:0(N2) 63:0(DFSB)
GenericCPUPowerManagement: -- MSR_IA32_PERF_CTL MSR		00000F2D 00000000
GenericCPUPowerManagement: 00-05:2D(TVID) 06:0 07:0
GenericCPUPowerManagement: 08-12:0F(TFID) 13:0 14:0(N2) 15:0(DFSB)
GenericCPUPowerManagement: 16-31:0000
GenericCPUPowerManagement:	32:0(IDA-D)
GenericCPUPowerManagement: -- MSR_IA32_THERM_INTERRUPT MSR 00000000 00000000
GenericCPUPowerManagement: -- MSR_IA32_THERM_STATUS MSR	00000000 00000000
GenericCPUPowerManagement: 16-22:00(DREAD)
GenericCPUPowerManagement: 27-30:0(RES)
GenericCPUPowerManagement:	31:0(VALID)
GenericCPUPowerManagement: Probe result: mVID = 2D mFID = 0F
GenericCPUPowerManagement: [Debug]  Our suggested states Max-Min FID 0F-0E VID 2D-2A
GenericCPUPowerManagement: [Debug]		 Actual states Max-Min FID 0F-0E VID 2D-2A
GenericCPUPowerManagement: [Debug] Thermal Junction Max is 0 C current temperature is 0 C
GenericCPUPowerManagement: [Debug] CPU low 712 mV step 12 mV mobile 0
GenericCPUPowerManagement: [Debug] CPU bus frequency is 200 MHz
GenericCPUPowerManagement: [Debug] We will use 2 of max 16 P-states
GenericCPUPowerManagement: [Debug] CPU Max frequency 3000 MHz MSR ratio 15.0 voltage 1275 mV
GenericCPUPowerManagement: [Debug] CPU Min frequency 2800 MHz MSR ratio 14.0 voltage 1237 mV
GenericCPUPowerManagement: [Debug] ---
GenericCPUPowerManagement: Generic CPU Power Management Driver 1.0 (C) 2008 Superhai Development Co, based on works by mercurysquad
GenericCPUPowerManagement: For internal use only. All Rights Reserved. Support and documentaion http://www.superhai.com/
GenericCPUPowerManagement: [Debug] ---
GenericCPUPowerManagement: [Debug] P-state 0 -> fid 15 (3000000000), vid 2d (1275)
GenericCPUPowerManagement: [Debug] P-state 1 -> fid 14 (2800000000), vid 2a (1237)
GenericCPUPowerManagement: [Debug] Clock rate: CPU 3000 MHz - Bus 800 MHz - Dec 1000 MHz
GenericCPUPowerManagement: [Debug] Bus clock rate 100000000 - den 1
GenericCPUPowerManagement: [Debug] Bus/CPU rate 15 - den 2
GenericCPUPowerManagement: [Debug] Bus/dec rate 1 - den 0
GenericCPUPowerManagement: [Debug] Timebase frequency 1000000000 hz
GenericCPUPowerManagement: [Debug] CPU min/max (2800 MHz - 3000 MHz)
GenericCPUPowerManagement: [Debug] Bus min/max (800 MHz - 800 MHz)
GenericCPUPowerManagement: [Debug] Auto timeout 250, high 300, low 150
GenericCPUPowerManagement: [Debug] Requested new p-state 0F2D
GenericCPUPowerManagement: [Debug] EIST Off
GenericCPUPowerManagement: [Error] Failure on throttling to max
GenericCPUPowerManagement: [Debug] Freeing
GenericCPUPowerManagement: Unloading

Link to comment
Share on other sites
Superhai
Superhai
Posted
  • Author
Posted
:wacko:   Thanks in advance!!!



If you can try the new 1.0.19 kext and post me the output from the debug version... and if it panics of course a picture of the kp will be nice as usual.

I need to check some final values, then i think this will be live very soon.

Link to comment
Share on other sites
macita
macita
Posted
Posted
may disable the possibility to see the shared folders?



just a question coz i cant see via lan no1 other pc connected in my router....



Wonder if is this the problem, just asking if somebody having the same problem or its only me...





Nope is ok.... false allarm!

Link to comment
Share on other sites
javum
javum
Posted
Posted
If you can try the new 1.0.19 kext and post me the output from the debug version... and if it panics of course a picture of the kp will be nice as usual.

I need to check some final values, then i think this will be live very soon.



Ok. I have tried it.

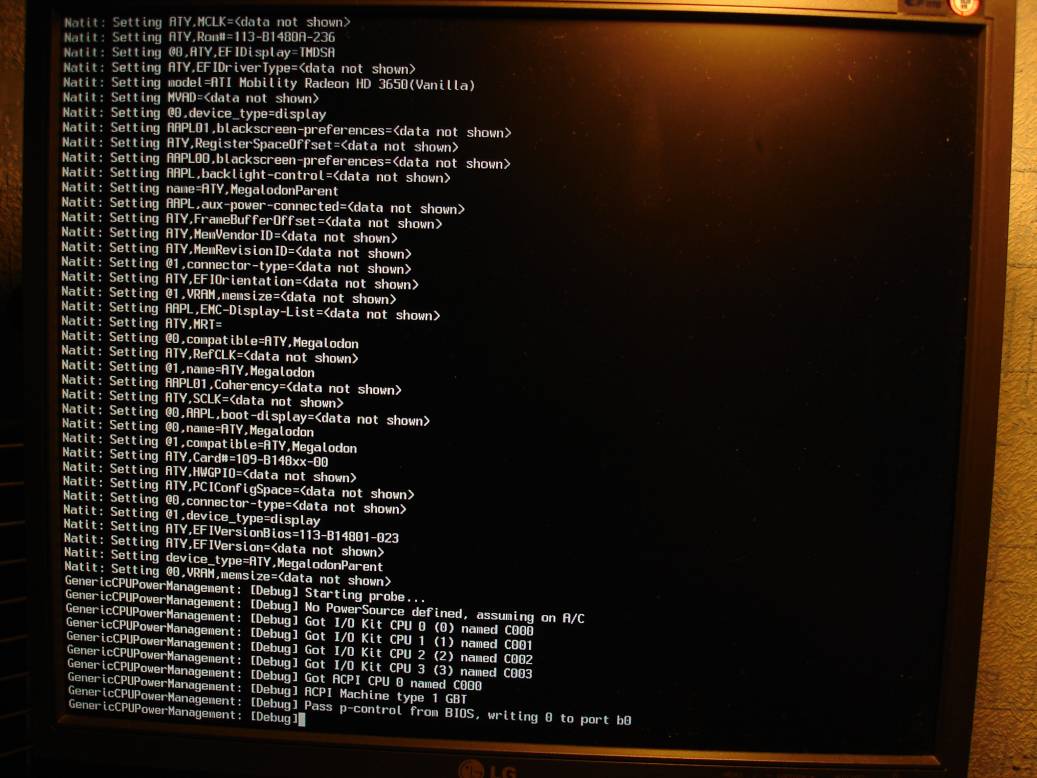

Three times I've got such freezes:

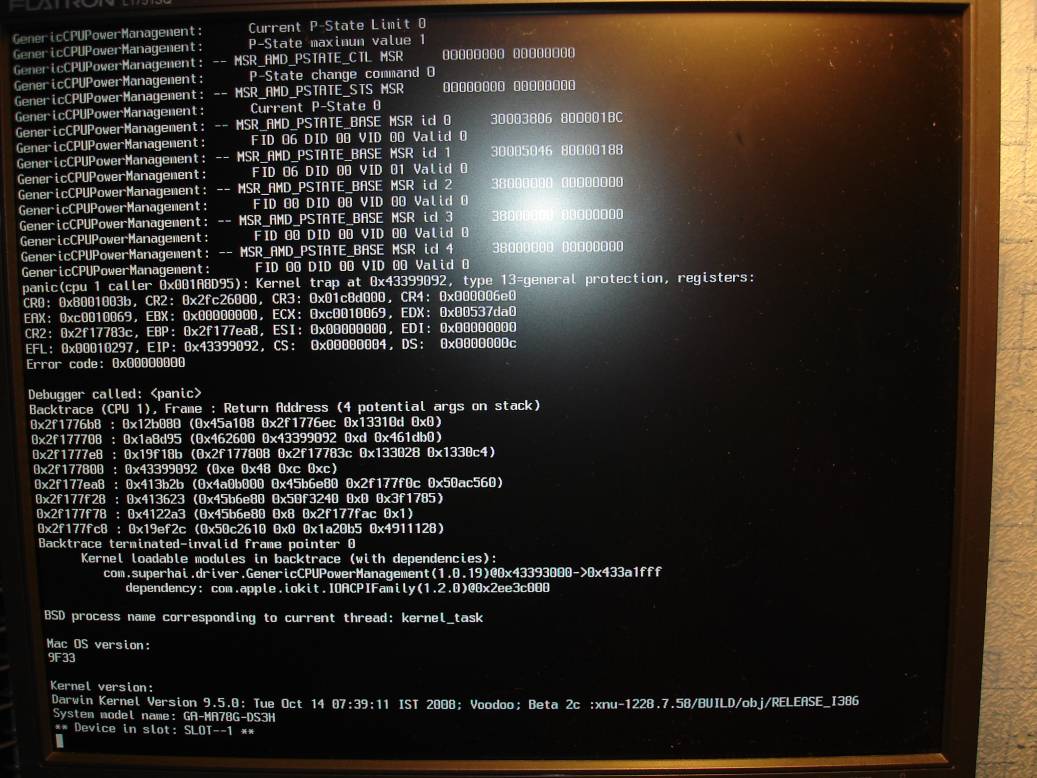

And on fourth start I've got panic:




Link to comment
Share on other sites
benos
benos
Posted
Posted

Hi, Thanks for this great speedstep app, Im keen on it since my Dell Inspiron 6400 runs so hot it burns my legs... I expect the cpu to run between 40-50celcius by your app's display. The question I have is this:

I tried the latest app but it crashes with both an older kernel module and the latest... My report is this:

Process: GenericCPUPMControl [263]

Path: /Users/malpheus/Downloads/GenericCPUPMControl.app/Contents/MacOS/GenericCPUPMControl

Identifier: com.superhai.GenericCPUPMControl

Version: ??? (???)

Code Type: X86-64 (Native)

Parent Process: launchd [62]



Date/Time: 2008-11-09 22:32:57.002 +1100

OS Version: Mac OS X 10.5.4 (9E17)

Report Version: 6



Exception Type: EXC_BREAKPOINT (SIGTRAP)

Exception Codes: 0x0000000000000002, 0x0000000000000000

Crashed Thread: 0



Dyld Error Message:

Library not loaded: /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/ImageIO.framework/Versions/A/Resources/libJPEG.dylib

Referenced from: /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/ImageIO.framework/Versions/A/ImageIO

Reason: no suitable image found. Did find:

/System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/ImageIO.framework/Versions/A/Resources/libJPEG.dylib: no matching architecture in universal wrapper

---------------------------------------------------

Does it crash because I am running a 32bit MacOSX?

Thanks for the help.

-Benos.

Link to comment
Share on other sites
mitch_de
mitch_de
Posted
Posted
Hi, Thanks for this great speedstep app, Im keen on it since my Dell Inspiron 6400 runs so hot it burns my legs... I expect the cpu to run between 40-50celcius by your app's display. The question I have is this:

---

Does it crash because I am running a 32bit MacOSX?

Thanks for the help.

-Benos.



What OS X do you use ?

Leopard=10.5 is an 64/32 Bit Version (automatic 64 Bit switch/usage).

Older ones (Tiger=10.4) have also 64 Bit but many of system files arent 64 Bit already.

Link to comment
Share on other sites
eisblubb
eisblubb
Posted
Posted

First of all thanks for the effort :)



I'm having a little trouble with the program. I have the new macbook aluminium with a P7350 @2ghz. According to sysctl after loading the kext (.19 debug) it's capabilities are



sh-3.2# sysctl -a | grep cpu

kern.exec: unknown type returned

hw.ncpu = 2

hw.cpufrequency = 1596000000

hw.availcpu = 2

hw.ncpu: 2

hw.activecpu: 2

hw.cpufrequency_max: 1995000000

hw.cpufrequency_min: 798000000

hw.cpufrequency: 1596000000

hw.cpufamily: 2028621756

hw.cpu64bit_capable: 1

hw.cpusubtype: 4

hw.cputype: 7

hw.logicalcpu_max: 2

hw.logicalcpu: 2

hw.physicalcpu_max: 2

hw.physicalcpu: 2

machdep.cpu.thread_count: 2

machdep.cpu.core_count: 2

machdep.cpu.address_bits.virtual: 48

machdep.cpu.address_bits.physical: 36

machdep.cpu.tlb.data_large: 32

machdep.cpu.tlb.inst_large: 8

machdep.cpu.tlb.data_small: 256

machdep.cpu.tlb.inst_small: 128

machdep.cpu.cache.size: 3072

machdep.cpu.cache.L2_associativity: 6

machdep.cpu.cache.linesize: 64

machdep.cpu.arch_perf.fixed_width: 40

machdep.cpu.arch_perf.fixed_number: 3

machdep.cpu.arch_perf.events: 0

machdep.cpu.arch_perf.events_number: 7

machdep.cpu.arch_perf.width: 40

machdep.cpu.arch_perf.number: 2

machdep.cpu.arch_perf.version: 2

machdep.cpu.thermal.ACNT_MCNT: 1

machdep.cpu.thermal.thresholds: 2

machdep.cpu.thermal.dynamic_acceleration: 0

machdep.cpu.thermal.sensor: 1

machdep.cpu.mwait.sub_Cstates: 51520032

machdep.cpu.mwait.extensions: 3

machdep.cpu.mwait.linesize_max: 64

machdep.cpu.mwait.linesize_min: 64

machdep.cpu.microcode_version: 0

machdep.cpu.cores_per_package: 2

machdep.cpu.logical_per_package: 2

machdep.cpu.extfeatures: XD EM64T

machdep.cpu.features: FPU VME DE PSE TSC MSR PAE MCE CX8 APIC SEP MTRR PGE MCA CMOV PAT PSE36 CLFSH DS ACPI MMX FXSR SSE SSE2 SS HTT TM SSE3 MON DSCPL VMX EST TM2 SSSE3 CX16 TPR PDCM SSE4.1

machdep.cpu.brand: 0

machdep.cpu.signature: 67190

machdep.cpu.extfeature_bits: 537919488 1

machdep.cpu.feature_bits: -1075053569 582589

machdep.cpu.stepping: 6

machdep.cpu.extfamily: 0

machdep.cpu.extmodel: 1

machdep.cpu.model: 23

machdep.cpu.family: 6

machdep.cpu.brand_string: Intel® Core2 Duo CPU P7350 @ 2.00GHz

machdep.cpu.vendor: GenuineIntel



DEBUG LOG



Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] Starting probe...

Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] A/C Connected

Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] Got I/O Kit CPU 0 (0) named CPU0

Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] Got I/O Kit CPU 1 (1) named CPU1

Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] Got ACPI CPU 0 named CPU0

Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] ACPI Machine type 2 APPLE

Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] Pass p-control from BIOS, writing 80 to port 52e

Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] Found 3 p-states in ACPI table

Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] Got ACPI CPU 1 named CPU1

Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] Great we have intel cpu

Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] CPU Mobile 0xEE: 0

Nov 9 10:39:27: --- last message repeated 1 time ---

Nov 9 10:39:27: --- last message repeated 1 time ---

Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] EIST Enabled and Locked

Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] Enhanced Intel Speedstep is supported and enabled

Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: CPU Vendor: Intel [intel® Core2 Duo CPU P7350 @ 2.00GHz]

Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: CPU Signature: 10676

Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: Mobile: 1 (0) Latency: 10 TjMax: [Fill in]

Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: State 0 [4721] State X [617]

Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: -- MSR_IA32_PLATFORM_ID MSR B9F4C721 001C0000

Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: 00-05:21(MVID) 06:0 07:0

Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: 08-12:07(MFID) 13:0 14:0(N2) 15:0

Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: 16:0 17:0 18:0 19:0 20:1 21:0 22:0

Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: 23:1(N2) 24:0 25:1 26:0 27:0

Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: 28:1(MBL) 29:0 30:1 31:0

Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: 32-49:00000

Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: 50:1(MBL) 51:0(PF2) 52:1(PF3)

Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: 53-63:000

Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: -- MSR_IA32_EBL_CR_POWERON MSR 41880000 00000000

Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: 18:0(N2)

Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: 22-26:06(FID)

Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: -- MSR_IA32_PERF_STS MSR 06000617 06174721

Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: 00-05:17(CVID) 06:0 07:0

Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: 08-12:06(CFID) 13:0 14:0(N2) 15:0(DFSB)

Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: 16-21:00(mVID) 22:0 23:0

Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: 24-28:06(mFID) 29:0 30:0

Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: 31:0(XE)

Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: 32-37:21(MVID) 38:0 39:0

Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: 40-44:07(MFID) 45:0 46:0(N2) 47:0

Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: 48-53:17(XVID) 54:0 55:0

Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: 56-60:06(XFID) 61:0 62:0(N2) 63:0(DFSB)

Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: -- MSR_IA32_PERF_CTL MSR 00000617 00000001

Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: 00-05:17(TVID) 06:0 07:0

Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: 08-12:06(TFID) 13:0 14:0(N2) 15:0(DFSB)

Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: 16-31:0000

Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: 32:1(IDA-D)

Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: -- MSR_IA32_THERM_INTERRUPT MSR 00000000 00000000

Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: -- MSR_IA32_THERM_STATUS MSR 88290000 00000000

Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: 16-22:29(DREAD)

Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: 27-30:1(RES)

Nov 9 10:39:27 eisbook kernel[0]: GenericCPUPowerManagement: 31:1(VALID)

Nov 9 10:39:28 eisbook kernel[0]: GenericCPUPowerManagement: Probe result: mVID = 14 mFID = 07

Nov 9 10:39:28 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] ACPI suggested states Max-Min FID 47-06 VID 21-17

Nov 9 10:39:28 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] Our suggested states Max-Min FID 47-86 VID 21-11

Nov 9 10:39:28 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] Actual states Max-Min FID 47-86 VID 21-11

Nov 9 10:39:28 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] Thermal Junction Max is 105 C current temperature is 59 C

Nov 9 10:39:28 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] CPU low 712 mV step 12 mV mobile 1

Nov 9 10:39:28 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] CPU bus frequency is 266 MHz

Nov 9 10:39:28 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] We will use 4 of max 16 P-states

Nov 9 10:39:28 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] CPU Max frequency 1995 MHz MSR ratio 7.5 voltage 1125 mV

Nov 9 10:39:28 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] CPU Min frequency 798 MHz MSR ratio 6.0 voltage 925 mV

Nov 9 10:39:28 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] ---

Nov 9 10:39:28 eisbook kernel[0]: GenericCPUPowerManagement: Generic CPU Power Management Driver 1.0 © 2008 Superhai Development Co, based on works by mercurysquad

Nov 9 10:39:28 eisbook kernel[0]: GenericCPUPowerManagement: For internal use only. All Rights Reserved. Support and documentaion http://www.superhai.com/

Nov 9 10:39:28 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] ---

Nov 9 10:39:28 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] P-state 0 -> fid 71 (1995000000), vid 21 (1125)

Nov 9 10:39:28 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] P-state 1 -> fid 6 (1596000000), vid 1b (1050)

Nov 9 10:39:28 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] P-state 2 -> fid 137 (1197000000), vid 16 (987)

Nov 9 10:39:28 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] P-state 3 -> fid 134 (798000000), vid 11 (925)

Nov 9 10:39:28 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] Clock rate: CPU 1596 MHz - Bus 1064 MHz - Dec 1000 MHz

Nov 9 10:39:28 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] Bus clock rate 100000000 - den 1

Nov 9 10:39:28 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] Bus/CPU rate 6 - den 2

Nov 9 10:39:28 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] Bus/dec rate 1 - den 0

Nov 9 10:39:28 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] Timebase frequency 1000000000 hz

Nov 9 10:39:28 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] CPU min/max (798 MHz - 1995 MHz)

Nov 9 10:39:28 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] Bus min/max (532 MHz - 1064 MHz)

Nov 9 10:39:28 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] Auto timeout 250, high 300, low 150

Nov 9 10:39:28 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] Requested new p-state 4721

Nov 9 10:39:29 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] Requested new p-state 8611

Nov 9 10:39:29 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] We are on A/C

Nov 9 10:39:29 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] Current p-state 3 with fid 134 p-state fid 134 pos 1

Nov 9 10:39:29 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] We have loaded completely and ready for action

Nov 9 10:39:31 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] We are on A/C

Nov 9 10:39:31 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] Current p-state 1 with fid 6 p-state fid 6 pos 1

Nov 9 10:39:34 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] We are on A/C

Nov 9 10:39:34 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] Current p-state 1 with fid 6 p-state fid 6 pos 1

Nov 9 10:39:36 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] We are on A/C

Nov 9 10:39:36 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] Current p-state 1 with fid 6 p-state fid 6 pos 1

Nov 9 10:39:39 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] We are on A/C

Nov 9 10:39:39 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] Current p-state 1 with fid 6 p-state fid 6 pos 1

Nov 9 10:39:41 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] We are on A/C

Nov 9 10:39:41 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] Current p-state 1 with fid 6 p-state fid 6 pos 1

Nov 9 10:39:44 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] We are on A/C

Nov 9 10:39:44 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] Requested new p-state 4721

Nov 9 10:39:44 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] Current p-state 0 with fid 71 p-state fid 71 pos 1

Nov 9 10:39:46 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] We are on A/C

Nov 9 10:39:46 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] Current p-state 1 with fid 6 p-state fid 6 pos 1

Nov 9 10:39:49 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] We are on A/C

Nov 9 10:39:49 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] Requested new p-state 4721

Nov 9 10:39:49 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] Current p-state 1 with fid 6 p-state fid 6 pos 1

Nov 9 10:39:51 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] We are on A/C

Nov 9 10:39:51 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] Requested new p-state 4721

Nov 9 10:39:51 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] Current p-state 0 with fid 71 p-state fid 71 pos 1

Nov 9 10:39:54 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] We are on A/C

Nov 9 10:39:54 eisbook kernel[0]: GenericCPUPowerManagement: [Debug] Current p-state 1 with fid 6 p-state fid 6 pos 1



however according to the gui it never goes below 1596mhz and 1075mv. As you can see in the log the only p-states used are 0 and 1 even though there's no load on the cpu. I've tried setting override to yes and modifying the voltage settings in the info.plist file but no luck. Has anyone else run into this problem?



And another thing, how do i define custom p-states in the Info.plist file? I couldn't find a description anywhere.

Link to comment
Share on other sites
Superhai
Superhai
Posted
  • Author
Posted
Ok. I have tried it.

Three times I've got such freezes:

And on fourth start I've got panic:



Well, the amd documents was a bit misleading, but I think I found the correct now. I have to ask you to try the debug version I just uploaded and post the output from the kext before it unloads. I think I have all sorted out now. I really hope it is not panicing while reading the msr's now.

Link to comment
Share on other sites
ferywu
ferywu
Posted
Posted

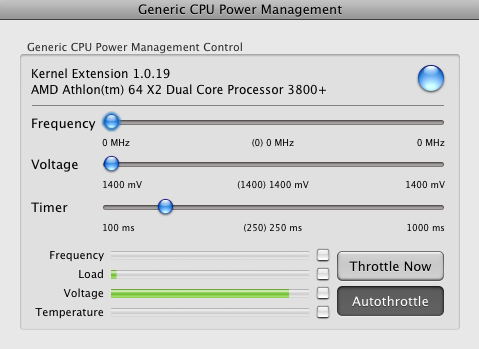

Thank with 1.0.19 now it didn't crash my amd

But no any state of clock or voltage being assigned

using voodoo_beta2c kernel + AnV AppleSMBIOS + AppleACPIPlatform 1.0.3 + AnV IOPCIFamily

on ACPICPUThrottle for AMD by obsidianX everything run fine



the annoying is bus speed detected by voodoo kernel , incorrect when displayed at System Profiler



kernel[0]: TSC: Frequency = 2000.75660MHz, bus frequency = 200.7566MHz, multiplier = 10



Hardware Overview:



Model Name: MacBook Pro

Model Identifier: MacBookPro4,1

Processor Speed: 2 GHz

Number Of Processors: 1

Total Number Of Cores: 2

L2 Cache: 1 MB

Memory: 1 GB

Bus Speed: 100 MHz

Boot ROM Version: MBP41.00C1.B03

Serial Number: W88261E7YP4



GenericCPUPowerManagement: [Debug] No PowerSource defined, assuming on A/C

GenericCPUPowerManagement: [Debug] Got I/O Kit CPU 0 (0) named CPU1

GenericCPUPowerManagement: [Debug] Got I/O Kit CPU 1 (1) named CPU2

GenericCPUPowerManagement: [Debug] Got ACPI CPU 0 named CPU1

GenericCPUPowerManagement: [Debug] ACPI Machine type 0 A M I

GenericCPUPowerManagement: [Debug] Pass p-control from BIOS, writing 0 to port b1

GenericCPUPowerManagement: [Debug] Found 3 p-states in ACPI table

GenericCPUPowerManagement: [Debug] Got ACPI CPU 1 named CPU2

GenericCPUPowerManagement: [Debug] AMD found!

GenericCPUPowerManagement: [Debug] Table signature 30ff2 cpu 20fb1

GenericCPUPowerManagement: [Debug] Table signature 20fb1 cpu 20fb1

GenericCPUPowerManagement: [Debug] Table signature 20f32 cpu 20fb1

GenericCPUPowerManagement: [Debug] Table signature 40fb2 cpu 20fb1

GenericCPUPowerManagement: [Debug] Table signature 20ff2 cpu 20fb1

GenericCPUPowerManagement: [Debug] Table signature 20f42 cpu 20fb1

GenericCPUPowerManagement: CPU Vendor: AMD [AMD Athlon 64 X2 Dual Core Processor 3800+]

GenericCPUPowerManagement: CPU Signature: 20fb1

GenericCPUPowerManagement: Mobile: 0 Latency: 100

GenericCPUPowerManagement: State 0 [2a0c] State X [2c82]

GenericCPUPowerManagement: -- ACPI CTL 0 E0202A0C

GenericCPUPowerManagement: 00-05:FID 0C 06-10:VID 08 11-17:VST 05 18-19:MVS 0 20-26:PLL 02 27:EXT 0 28-29:RVO 2 30-31:IRT 3

GenericCPUPowerManagement: -- ACPI CTL X E0202C82

GenericCPUPowerManagement: 00-05:FID 02 06-10:VID 12 11-17:VST 05 18-19:MVS 0 20-26:PLL 02 27:EXT 0 28-29:RVO 2 30-31:IRT 3

GenericCPUPowerManagement: -- MSR_AMD_FIDVID_CTL MSR 0000080C 00000001

GenericCPUPowerManagement: 00-04:FID 0C 08-12:VID 00

GenericCPUPowerManagement: 16:FIDC 0 17:VIDC 0 20:FIDCHGRATIO 0

GenericCPUPowerManagement: 32-51:SGTC 00001

GenericCPUPowerManagement: -- MSR_AMD_FIDVID_STS MSR 060C0C0C 12060808

GenericCPUPowerManagement: 00-05:CFID 0C 08-13:SFID 00 16-21:MFID 0C

GenericCPUPowerManagement: 32-37:CVID 08 40-45:SVID 00 48-53:MVID 08

GenericCPUPowerManagement: [Debug] ACPI suggested states Max-Min FID 2A-2C VID 0C-82

GenericCPUPowerManagement: [Debug] Our suggested states Max-Min FID 0C-02 VID 06-12

GenericCPUPowerManagement: [Debug] Actual states Max-Min FID 0C-02 VID 06-12

GenericCPUPowerManagement: [Debug] We will use 4 of max 16 P-states

GenericCPUPowerManagement: [Debug] CPU Max frequency 0 MHz voltage 1400 mV

GenericCPUPowerManagement: [Debug] CPU Min frequency 0 MHz voltage 1400 mV

GenericCPUPowerManagement: [Debug] ---

GenericCPUPowerManagement: Generic CPU Power Management Driver 1.0 © 2008 Superhai Development Co, based on works by mercurysquad

GenericCPUPowerManagement: For internal use only. All Rights Reserved. Support and documentaion http://www.superhai.com/

GenericCPUPowerManagement: [Debug] ---

GenericCPUPowerManagement: [Debug] P-state 0 -> fid 12 (2000), vid 6 (1400)

GenericCPUPowerManagement: [Debug] P-state 1 -> fid 12 (2000), vid 6 (1400)

GenericCPUPowerManagement: [Debug] P-state 2 -> fid 12 (2000), vid 6 (1400)

GenericCPUPowerManagement: [Debug] P-state 3 -> fid 12 (2000), vid 6 (1400)

GenericCPUPowerManagement: [Debug] Clock rate: CPU 0 MHz - Bus 100 MHz - Dec 1000 MHz

GenericCPUPowerManagement: [Debug] Bus clock rate 100000000 - den 1

GenericCPUPowerManagement: [Debug] Bus/CPU rate 40 - den 2

GenericCPUPowerManagement: [Debug] Bus/dec rate 1 - den 0

GenericCPUPowerManagement: [Debug] Timebase frequency 1000000000 hz

GenericCPUPowerManagement: [Debug] CPU min/max (0 MHz - 0 MHz)

GenericCPUPowerManagement: [Debug] Bus min/max (100 MHz - 100 MHz)

GenericCPUPowerManagement: [Debug] Auto timeout 250, high 300, low 150

GenericCPUPowerManagement: [Debug] Requested new p-state 0C06

GCPM-AMD-M: I Voltage IGCnit PhPMas-Ae,MD N-M: I ew Volt FagIDe In0Cit V PIDha se06, CNeurw reFIntD FID 0C VID 0C08 V MaID x FID 06 0C CuVIrrenDt 06FID 0C VID 08 Max FID 0C VID 06GCPM-AMD-M: II Frequency Adjust Phase, New FID GCP0CM- VAMIDD- M: II06 Cur reFrnteque ncy FID Ad0Cju Vst PIhaD se, Ne06w MFIaxD FID 0C0C V VIDID 0606GC CPMurre-AMD-ntM: III VoFIltD age Final 0CPh VasIDe, New FID 060C Max F VIDID 0C06 V CIDur re06nt FID GC0CPM V-AMDID-M 06: MaxII FIDI Volt ag0Ce VFiIDnal Ph as06eGC, New FID PM-AMD0C-M V: IDIV 06En Cd urPhase, Newre FIDnt FID 0C0C V VIDID 06 Cur06rent FID M ax0C V FID ID 0C VID 0606 MGCPax FM-ID AM0CD- VM:ID IV E nd06 PGCPM-hase, AMNeD-w M:FI TD hrottl0Ce VsuIDcc ess.06 Current FID 0C VID 06 Max FID 0C VID 06GCPM-AMD-M: Throttle success.GenericCPUPowerManagement: [Debug] Requested new p-state 0C06

GCPM-AMD-M: I Voltage InitGCPM Phase-A, MDNe-Mw FID : 0C VIDI 06Vo Currltent FIagD e 0C VIDIn it06 P Mhaaxse, Ne FID w 0CFID VID 06GCPM-AMD-M: II Fre0C VquIDen cy06 A Cdjurusrentt FPhID ase, N0Cew V FIDID 0C06 VID M ax06 Cur FreIDnt F0CID V0CID VID 06 06 MGCaxPM FID-A MD0C-M V: IIID Fr06equenGCcyPM A-AdjMD-M: IIusI Vot ltPhage asFie, Newna Fl ID Ph0Cas Ve,ID N ew06 FID Curr0Cen Vt FID ID 0C V06ID C urren06t MaxFI FD ID 0C0C V VIDID 0606 MaxGCPM FID-AMD -M0C: VIDII I 06VoGCltage FiPMna-Al MD-M: IVPh asEnd e,Ph New FIDas e,0C New VIDFI 06D C0Cur VreIDnt F06ID C ur0Crent F VID 06ID M0C VaxID FID 060C M VIDax FID 0C06 VGCIDPM -A06MD-M:GCPM- IAMV D-M : End PhasThe,ro Nttle sewuc FceIDss .0C VID 06 Current FID 0C VID 06 Max FID 0C VID 06GCPM-AMD-M: Throttle success.GenericCPUPowerManagement: [Debug] Requested new p-state 0C06

GCPM-AMD-M: I Voltage Init Phase, New FID GC0CPM V-AMDID-M 06: I CVourltage rentInit FPhIDas e,0C VID N ew06 M Fax FID ID 0C VID0C V ID06 06 CGCurPM-ArMDen-Mt FID : II0C VIDFr eq06 Mueaxncy FID Adju0Cst V PIDha se06, GCNePMw -AFIMD-M: IID 0CFr VIDequen 06cy Curre Antdj FIDust Phas 0e,C NVIewD FID 060C M VaxID F ID06 0C VID C06urGCrePMnt FID -A0CMD-M : VID II06 MI axVo FltIDage Fi0Cnal VPhID ase,06 NGCewPM-AMD-M FID: I0CII V VIDol 06ta Cgeur Frenti FnaIDl Phase, N0Cew V FIDID 0C VID 0606 M Caxurre FntID F ID0C V0CID V 06ID GC06PM M-AMDa-Mx FI: D IV 0EnC d VIPhase, D Ne06w GCFIPM-AMDD -M0C: VIVID En06d CPhurasree,nt N FewID F ID0C VID0 C 06VID Max06 F CurIDre 0C VIDnt FID 0C06 VGCIDPM -A06MD-M : MaThx FID rott0leC sVID ucce06GssCP.M-AMD-M: Throttle success.GenericCPUPowerManagement: [Debug] Current p-state 3 with fid 12 p-state fid 12 pos 1

GenericCPUPowerManagement: [Debug] We have loaded completely and ready for action

GenericCPUPowerManagement: [Debug] Current p-state 3 with fid 12 p-state fid 12 pos 1

GenericCPUPowerManagement: [Debug] Current p-state 3 with fid 12 p-state fid 12 pos 1

GenericCPUPowerManagement: [Debug] Current p-state 3 with fid 12 p-state fid 12 pos 1


Link to comment
Share on other sites
Superhai
Superhai
Posted
  • Author
Posted
Thank with 1.0.19 now it didn't crash my amd

But no any state of clock or voltage being assigned



It didn't look too well. But I now have at least something to work from. You should check back for a new version.



Can you list what version of kernel, AppleSMBIOS(+BIOSdata Injector) and AppleACPIPlatform to managed it work on your AMD?

Thank you.

His AMD uses entirely different way of throttling. And the FSB is not important for display of frequency on AMD as opposed to it is on Intel.

Link to comment
Share on other sites
ferywu
ferywu
Posted
Posted

OK we wait for good news

Thank after all



It didn't look too well. But I now have at least something to work from. You should check back for a new version.

His AMD uses entirely different way of throttling. And the FSB is not important for display of frequency on AMD as opposed to it is on Intel.

Link to comment
Share on other sites
ferywu
ferywu
Posted
Posted
voodoo_beta2c kernel + AnV AppleSMBIOS + AppleACPIPlatform 1.0.3

Ok then

we use the same version on that file

so like superhai said it's not depend on what version of any file mentioned we use

You have great phenom proc

I have to wait for my X2 3800+







It didn't look too well. But I now have at least something to work from. You should check back for a new version.



I see your code based on mercurysquad xnu-speedstep, now his code support autothrottle without external app.

Even his kext still always crashing my AMD.

Could this internal autothrottle also being adapt to your version ?

Thank you.

Link to comment
Share on other sites
Superhai
Superhai
Posted
  • Author
Posted
I see your code based on mercurysquad xnu-speedstep, now his code support autothrottle without external app.

Even his kext still always crashing my AMD.

Could this internal autothrottle also being adapt to your version ?



This kext has always had autothrottle without requiring external app.

Link to comment
Share on other sites
Guest
This topic is now closed to further replies.
 Share
Go to topic listing
×
×
  • Create New...
