[Help] Core i7-720QM Power Management & Speedstep

i7 720QM Clarksfield Power Management Speedstep Generic Scope _PR i7-720QM Nehalem

  • Please log in to reply
25 replies to this topic

#1
yehia Amer

yehia Amer

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 255 posts
  • Gender:Male
  • Location:egypt

the Problem: I am trying to enable Power Management & Speedstep in i7-720QM CPU



Speed stepping used to work in previous versions of OS X, using old ver of ssdtPRGen.sh but after Mavericks it don't work





i tried to use the newest ver of ssdtPRGen.sh but it don't support my processor, i even tried to contact with Piker but he confirmed that he don't support this CPU



My DSDT & SSDT: Attached File  DSDT & SSDT for i7-720QM.zip   16.81KB   30 downloads


I would greatly appreciate any help


#2
Allan

Allan

    V.I.P. Member

  • Supervisors
  • 11,606 posts
  • Gender:Male

You don't need SSDT.



Just use Generate P e C states.



#3
yehia Amer

yehia Amer

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 255 posts
  • Gender:Male
  • Location:egypt

You don't need SSDT.



Just use Generate P e C states.



when i try to use only clover, the Multiplier became always "7" or 931MHZ which is the min Frequency

but when i use the current SSDT it always use the highest Multiplier "12" or 1.2GHZ (Static) no change in Frequency and no Turbo boost !

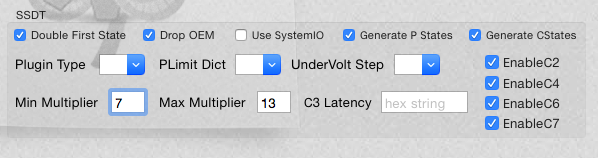

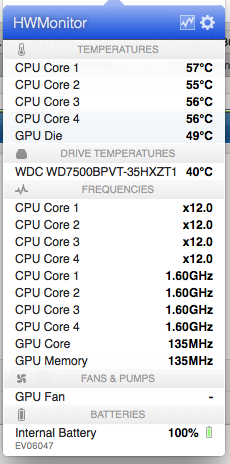

using SSDT :
Attached File  Screenshot 2014-09-06 21.35.38.png   66.66KB   10 downloads

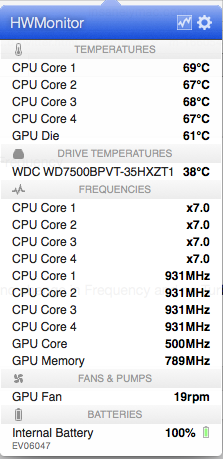

without SSDT (Clover only):


Attached File  Screenshot 2014-09-07 13.43.12.png   67.33KB   13 downloads



Attached File  Screenshot 2014-09-07 13.43.33.png   29.67KB   10 downloads



Attached File  Screenshot 2014-09-07 13.51.42.png   62.51KB   9 downloads



#4
Allan

Allan

    V.I.P. Member

  • Supervisors
  • 11,606 posts
  • Gender:Male

Please, send me your config.plist



#5
yehia Amer

yehia Amer

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 255 posts
  • Gender:Male
  • Location:egypt

Please, send me your config.plist





Attached File  config.plist.zip   1.59KB   19 downloads



Sorry for my late answer



#6
Allan

Allan

    V.I.P. Member

  • Supervisors
  • 11,606 posts
  • Gender:Male

try this: Attached File  config.plist.zip   1.75KB   37 downloads



#7
yehia Amer

yehia Amer

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 255 posts
  • Gender:Male
  • Location:egypt

try this: attachicon.gifconfig.plist.zip



The Same result the Multiplier is always "7" or 931MHZ which is the min Frequency !



#8
Allan

Allan

    V.I.P. Member

  • Supervisors
  • 11,606 posts
  • Gender:Male

try this: Attached File  config.plist.zip   1.75KB   18 downloads



#9
yehia Amer

yehia Amer

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 255 posts
  • Gender:Male
  • Location:egypt

try this: attachicon.gifconfig.plist.zip



nothing changed :(



#10
Allan

Allan

    V.I.P. Member

  • Supervisors
  • 11,606 posts
  • Gender:Male

What SMBios you use?



#11
artur_pt

artur_pt

    InsanelyMac V.I.P.

  • Moderators
  • 6,418 posts
  • Gender:Male
  • Location:Portugal
  • Interests:TechManiaco

hello



should use macbookpro6,2 smbios...



try this extract all ur bios tables with clover



Fn + F4



is gonna be saved in CLOVER/ACPI/Original



copy from there all ssdt tables to CLOVER/ACPI/patched folder..



then in clover set



DropOEMSSDT=True



Generate P-States=False



Generate C-States=False



is just a test



good hack



#12
yehia Amer

yehia Amer

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 255 posts
  • Gender:Male
  • Location:egypt

What SMBios you use?


i tried macbookpro6,2 and macbook air but it don't change anything !

hello

should use macbookpro6,2 smbios...

try this extract all ur bios tables with clover

Fn + F4

is gonna be saved in CLOVER/ACPI/Original

copy from there all ssdt tables to CLOVER/ACPI/patched folder..

then in clover set

DropOEMSSDT=True

Generate P-States=False

Generate C-States=False

is just a test

good hack

The Same result the Multiplier is always "7" or 931MHZ which is the min Frequency !
so i reverted back to my edited SSDT.aml

but i noticed accedently that when my hackintinosh go to sleep and wake up again, speedstep works perfectly :)

so what could be the problem !!!

#13
Allan

Allan

    V.I.P. Member

  • Supervisors
  • 11,606 posts
  • Gender:Male

What SSDT you use? Is using the recommended Artur?



#14
yehia Amer

yehia Amer

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 255 posts
  • Gender:Male
  • Location:egypt

What SSDT you use? Is using the recommended Artur?



No the one attached in the first post !



#15
Allan

Allan

    V.I.P. Member

  • Supervisors
  • 11,606 posts
  • Gender:Male

Try the Artur's tips.



#16
yehia Amer

yehia Amer

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 255 posts
  • Gender:Male
  • Location:egypt

Try the Artur's tips.



I Already did, and reported that nothing happened :(



#17
maromi

maromi

    InsanelyMac Protégé

  • Members
  • Pip
  • 31 posts

using clover

works for up to yosemite(works in el capitan too but sleep and shutdown don't seem to be working)

use smbios macbookpro6,2

don't generate c-states

don't generate p-states

don't drop oemssdt

should only have DSDT in the patched folder(if patched)



#18
Codinger

Codinger

    InsanelyMac Legend

  • Donators
  • 716 posts
  • Gender:Male
  • Location:Germany
  • Interests:Coding : Java
    ...

    Languages : BG, DE, GB/US

using clover
works for up to yosemite(works in el capitan too but sleep and shutdown don't seem to be working)
use smbios macbookpro6,2
don't generate c-states
don't generate p-states
don't drop oemssdt
should only have DSDT in the patched folder(if patched)

This wouldnt work always because the power management is done by BIOS and some laptops do not support bios pwm.

#19
griftopia

griftopia

    InsanelyMac Protégé

  • Members
  • PipPip
  • 60 posts

Sorry to wake up this thread. I have same CPU and therefore unsupported by Piker.

So I have copied all 5 SSDTs generated using Clover into patched folder and then added them in the list in config.plist

I'm using MPB6.2



I've seen my CPU x multiplier in HWMonitor all over the place. From 7 to 15. So I think turbo working fine. I also see perceptible performance increase especially as soon as I login, screen renders much faster with tray icons.



My real issue is instant wake on sleep. Since the original poster here seems to have had the same issue, was wondering if he solved it.



#20
macq

macq

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 242 posts

can you explain what you mean by this highlighted part, how you did this?



and then added them in the list in config.plist

Sorry to wake up this thread. I have same CPU and therefore unsupported by Piker.

So I have copied all 5 SSDTs generated using Clover into patched folder and then added them in the list in config.plist

I'm using MPB6.2



I've seen my CPU x multiplier in HWMonitor all over the place. From 7 to 15. So I think turbo working fine. I also see perceptible performance increase especially as soon as I login, screen renders much faster with tray icons.



My real issue is instant wake on sleep. Since the original poster here seems to have had the same issue, was wondering if he solved it.
