ATI Framebuffer development

Ztardust · November 26, 2008

It's not sure it will work... I've read that the Wormy framebuffer was compatible only with X1600 and above. Have you tried adding "Graphics Mode" value in com.apple.Boot.plist ?

Anyway, give it a try, and report. If it works, lucky you!

The "Graphics Mode" only works for resolutions lower than 1024x768 for me...

But thanks for your suggestion.

asstastic · December 3, 2008

Using ATI Tray Tools in windows I was able to get a lot of possibly useful info on my card including register locations and output info. I am guessing this info is read from the card bios.

ATT_SysInfo.txt

Ztardust · December 4, 2008

It's not sure it will work... I've read that the Wormy framebuffer was compatible only with X1600 and above. Have you tried adding "Graphics Mode" value in com.apple.Boot.plist ?

Anyway, give it a try, and report. If it works, lucky you!

Correct.

The wormy framebuffer is not compatible with my card. I didn´t get this to work.

I really don´t see many options, I´ll try to modify the RadeonHD kext, as well as looking at trying to get ATI.kext + ATILead.kext working for my card... but I really don´t know what I am doing...

-Ztardust-

Ztardust · December 5, 2008

Try a solution by lebidou
http://forum.insanelymac.com/index.php?sho...91042&st=74

One question... the solution lebidou applies here, is not using the new framebuffer is it?

He is using the wormy driver/framebuffer, not the ATIPC one?

Or perhaps am I misunderstanding something..?

- Ztardust -

lebidou · December 5, 2008

One question... the solution lebidou applies here, is not using the new framebuffer is it?
He is using the wormy driver/framebuffer, not the ATIPC one?

Ypu're right, I use Wormy

Ztardust · December 6, 2008

Ypu're right, I use Wormy

So, your solution doesn´t really have anything to do with the framebuffer development, I guess? That´s what made me a bit confused here... :blink:

But at least you got your card working...

Bandes · December 8, 2008

Hey Developer Guys!

Just a small technical question.

We know that the only Ati X1x00 driver which detects LVDS port is the Wormy (Ati X1600).

Once back in a while i checked in that driver what strings i can find about with LVDS.

These might be function names which are in ATY_Wormy:

_CheckLVDSConnection

_HW_InitLVDS

_HW_LVDSDither

_HW_LVDSOnOff

None of these are in ATY_Caretta (and in the rest of them too).

If you already made some disassemling, how hard it would be to get these functions out from the Wormy driver and stick them into the Caretta ?

Or you need this whole framebuffer-development either way ?

There might be some other functions too related to this, and probably the signal story needs some more, but what if this could work alone ?

Thanx &

Keep up the good work :thumbsup_anim:

dong · December 9, 2008

Not only we don't know if these functions will work in Caretta or not, also you need the whole Caretta source to do the compiling thing. I did try to reverse engineer the Caretta driver, but found out it much more complicated than what I think.

Anybody who's interested could take a look at the source code I got so far here: Caretta.zip

And as a warning to you, the code contains quite a lot mistakes in it.

These might be function names which are in ATY_Wormy:
_CheckLVDSConnection

_HW_InitLVDS

_HW_LVDSDither

_HW_LVDSOnOff

None of these are in ATY_Caretta (and in the rest of them too).

Ztardust · December 9, 2008

Not only we don't know if these functions will work in Caretta or not, also you need the whole Caretta source to do the compiling thing. I did try to reverse engineer the Caretta driver, but found out it much more complicated than what I think.
Anybody who's interested could take a look at the source code I got so far here: Caretta.zip

And as a warning to you, the code contains quite a lot mistakes in it.

Hey Dong... Most unsupported cards can boot up in the default resolution 1024x768... Could there be some way of changing that default resolution(in the bootloader?), to 1280x800 for an example?

-Ztardust

dong · December 9, 2008

Ztardust,

What you mean depends on the VESA modes that bootloader can support, until now I have no knowledge of it yet.

ridgeline · December 9, 2008

I don't get VESA I get ATI Atombios??????

Slice · December 9, 2008

I don't get VESA I get ATI Atombios??????

Please, be more correct. Why you think that VESA has a relation to ATOMBIOS?

OK. We need to continue a development of the driver. Without knowning of C++ it is empty talking.

Dong! You are our last hope!

Bandes · December 10, 2008

Not only we don't know if these functions will work in Caretta or not, also you need the whole Caretta source to do the compiling thing. I did try to reverse engineer the Caretta driver, but found out it much more complicated than what I think.
Anybody who's interested could take a look at the source code I got so far here: Caretta.zip

And as a warning to you, the code contains quite a lot mistakes in it.

Well, this is quite an achievement! What did you use ? IDA Pro ?

By the way it looks really tough.. Drivers are the most technical things for development. If disassembling would be fully automated, and we could check out other X1x00 ones too, like Alopias, Sphyrna, and there would be noticable differences in all of them compared to the Wormy one, then maybe, this LVDS thing would be easier. Otherwise, we would a need an ATI mac driver developer right now !

That would make things faster for sure..

I have Xcode and stuff now, if i could help something. But i am quite new into this objective-c thing too, i think all i can do about now is to press the Build button

I miss some diagnostic tools for the mac, and programs like Atitool. That would give some more control for sure..

The bad thing is, even if you guys manage to build this laptop-screen driver, then there is still another tiny problem for our laptops : powerplay. Now i think the chips are running on high performance clock rates all the time, which is not a good news for battery usage..

Anyway, that would be easier to fix at that point for sure ...

Cyntek · December 10, 2008

Hey guys, how's the development comming along?.

Well, Im running iDeneb V.1.3-10.5.5 release AMD Athlon 64 2800 MSI K8M Neo-V, and VIA 8237 Chipset, with AGP ATI 9600 SE 128MB Card., Wanted to ask, How do you apply these test builds to leo?. I would like to help out with this test, if possible. It would be really greate if there was some kind Tut, on how to implement the configuration and what needs to edited, to what file and such if you can help me out with it. Thanks.

dong · December 11, 2008

Well, this is quite an achievement! What did you use ? IDA Pro ?

yes, IDA Pro on WinXP.

I have Xcode and stuff now, if i could help something. But i am quite new into this objective-c thing too, i think all i can do about now is to press the Build button

No, it's not objective-C, it's C++.

Bandes · December 13, 2008

yes, IDA Pro on WinXP.

No, it's not objective-C, it's C++.

I C !

And how does it compile ? That would be a good thing, if it would get compiled with gcc, and then it would work..

Ztardust · December 18, 2008

I modified a couple of kexts, and used ATIinject, and managed to get my x1300 mobility graphics card recognised as ATI x1600 mobility in the system profiler, but it was still not able to use the wormy framebuffer, so I was stuck at 1024x768.

I found an interesting blog where someone was saying they had managed to get the x1400 working perfectly in linux by using a driver made for x700, just by changing the devideID. Perhaps a x700 driver in OSX can be modified to work with the x1300 and x1400...(I´ve tried but not managed to get it working myself). Another alternative could perhaps be modifying the hd2300 drivers.

-Ztardust

ultrahang · December 20, 2008

Guys,

I replaced my laptop therefore I don't have any test machine for X1400, but I can share the ati kexts from 10.6_10a222 with the opengl and quartz frameworks. There is a separate kext for the X1300 controller and there is a separate kext for the atifb with a very interesting info.plist, maybe it is worth to give a shot with this as well.

atigfx_snowleo.tar.bz2

However I am not interested but still curious so please share the results

uh

leopard127 · December 20, 2008

Guys,

I replaced my laptop therefore I don't have any test machine for X1400, but I can share the ati kexts from 10.6_10a222 with the opengl and quartz frameworks. There is a separate kext for the X1300 controller and there is a separate kext for the atifb with a very interesting info.plist, maybe it is worth to give a shot with this as well.

atigfx_snowleo.tar.bz2

However I am not interested but still curious so please share the results

uh

My laptop use ati mobility radeon x1300,only I can do is open QE/CI,but there is serious mouse tearing,the resolution is locked to 1024*768!I have close widescreen in bios so as to see clearly!I will try your kext and report results

Insane? · December 27, 2008

Hello there,

I've read this whole thread and im interested in helping getting this driver working. I have an ATI Mobility X1250 in my laptop, thus facing all of these problems aswell. First I will try and get you some information your tools are returning.

Here's my PCI information:

 | | | +-o [email="VGA@5"]VGA@5[/email] <class IOPCIDevice, registered, matched, active, busy 0, retain 167>
| | | | {
| | | | "@0,display-link-component-bits" = <06000000>
| | | | "IOName" = <4d79526164656f6e00>
| | | | "ATY,Copyright" = <436f707972696768742041544920546563686e6f6c6f6769657320496e632e203230303500>
| | | | "IODeviceMemory" = (({"address"=0xffffffffd0000000,"length"=0x8000000}),({"address"=0xfffffffffd7f0000,"length"=0x10000}),{"parent"=({"address"=0x0,"length"=0x10000}),"offset"=0x8800,"length"=0x100},({"address"=0xfffffffffd600000,"length"=0x100000}))
| | | | "@0,display-connect-flags" = <00000000>
| | | | "built-in" = <00>
| | | | "AAPL,iokit-ndrv" = <e022ce31>
| | | | "acpi-device" = "IOACPIPlatformDevice is not serializable"
| | | | "name" = <4d79526164656f6e00>
| | | | "acpi-path" = "IOACPIPlane:/_SB/PCI0@180000/P0P1@10000/VGA@50000"
| | | | "subsystem-vendor-id" = <43100000>
| | | | "AAPL,RegEntryID" = <80e075037f1f8afc656d69537a6c7552>
| | | | "IOHibernateState" = <00000000>
| | | | "compatible" = <706369313034332c3134663200706369313030322c3739316600706369636c6173732c3033303
303000>
| | | | "@0,address" = <000000d0>
| | | | "@0,model" = <4154492041544f4d42494f5300>
| | | | "@0,depth" = <20000000>
| | | | "@0,width" = <00040000>
| | | | "@0,compatible" = <4154492c415449504300>
| | | | "LCD,EDID" = <00ffffffffffff000610609c0000000004100103802216780a1cf59758508e272750540000000
0101010101010101010101010101019f25a04051840c30402033004bcf1000001900000001000610
000000000000000000a20000000fe0042313534505730312056300a20000000fc00436f6c6f72204
43440a20202000bc>
| | | | "AAPL,gart-width" = <20000000>
| | | | "F8,size" = <00003000>
| | | | "IOInterruptSpecifiers" = (<1200000007000000>,<0700000000000100>)
| | | | "vendor-id" = <02100000>
| | | | "device_type" = <4d79526164656f6e00>
| | | | "VRAM,memsize" = <00000100>
| | | | "chipset-model" = <4154592c525333303000>
| | | | "ATY,VendorID" = <02100000>
| | | | "IOPCIResourced" = Yes
| | | | "IOInterruptControllers" = ("io-apic-0","IOPCIMessagedInterruptController")
| | | | "subsystem-id" = <f2140000>
| | | | "display-connect-flags" = <00000000>
| | | | "class-code" = <00000300>
| | | | "@0,built-in" = <>
| | | | "revision-id" = <00000000>
| | | | "assigned-addresses" = <102801c200000000000000d00000000000000008182801820000000000007ffd0000000000000
0020280181000000000088000000000000000100002428018200000000000060fd00000000000010
0>
| | | | "IOChildIndex" = 0x1
| | | | "@0,device_type" = <646973706c617900>
| | | | "AAPL,gray-page" = <01000000>
| | | | "@0,display-type" = <4c434400>
| | | | "reg" = <00280100000000000000000000000000000000001028014200000000000000000000000000000
08182801020000000000000000000000000000010020280101000000000000000000000000000100
02428010200000000000000000000000000001000>
| | | | "CRT,EDID" = <00ffffffffffff004dd9005c01010101280f0103080000780ad9ada35546982410474a2dc8006
4f010101010101010101010101010164190040410026301d8836000000000000180e1f008051001e
04080370000000000001c000000fd003a3e1e3208000a202020202020000000fc004b444c2d53333
413132550a2000cb>
| | | | "IOPMIsPowerManaged" = Yes
| | | | "@0,name" = <4154492c415449504300>
| | | | "IOPowerManagement" = {"ChildrenPowerState"=0x2,"CurrentPowerState"=0x2}
| | | | "device-id" = <1f790000>
| | | | "@0,linebytes" = <00100000>
| | | | "AAPL,gray-value" = <c38c6400>
| | | | "ATY,EFIVersion" = <30312e30302e30363800>
| | | | "AAPL,ndrv-dev" = Yes
| | | | "@0,height" = <00030000>
| | | | }
| | | |
| | | +-o .Display_boot <class IONDRVFramebuffer, registered, matched, active, busy 0, retain 10>
| | | | {
| | | | "IOProbeScore" = 0x4e20
| | | | "IOGeneralInterest" = "IOCommand is not serializable"
| | | | "IOFBWaitCursorFrames" = 0xf
| | | | "IOFBGammaHeaderSize" = 0xc
| | | | "CFBundleIdentifier" = "com.apple.iokit.IONDRVSupport"
| | | | "IOPMStrictTreeOrder" = Yes
| | | | "graphic-options" = 0x0
| | | | "IOMatchCategory" = "IOFramebuffer"
| | | | "IOFBConfig" = {"dims"=<ffffffffffffffff0000000000000000>,"IODisplayConnectFlags"=0x0,"IOFBModes"=({"AID"=0x32556b1c,"DM"=<000400000003000000000000000000000300000000000000000000000000000000000000>,"DF"=0x3,"ID"=0x64}),"IOFB0Hz"=Yes}
| | | | "IOPowerManagement" = {"ChildrenPowerState"=0x2,"CurrentPowerState"=0x2,"DriverChangePowerState"=0x1}
| | | | "IOFBGammaWidth" = 0x8
| | | | "IOProviderClass" = "IOPCIDevice"
| | | | "IOFBTransform" = 0x0
| | | | "IOFramebufferOpenGLIndex" = 0x0
| | | | "IOFBWaitCursorPeriod" = 0x1fca055
| | | | "IODisplayParameters" = "IOFramebufferParameterHandler is not serializable"
| | | | "IOFBMemorySize" = 0x8000000
| | | | "IONDRVFramebufferGeneration" = <0100000001000000>
| | | | "IONameMatched" = "display"
| | | | "IOClass" = "IONDRVFramebuffer"
| | | | "IONameMatch" = "display"
| | | | "IOFBGammaCount" = 0x100
| | | | "IOFBCursorInfo" = ()
| | | | }
| | | |
| | | +-o display0 <class IODisplayConnect, registered, matched, active, busy 0, retain 5>
| | | | | {
| | | | | }
| | | | |
| | | | +-o AppleDisplay <class AppleDisplay, registered, matched, active, busy 0, retain 6>
| | | | {
| | | | "IOProbeScore" = 0x7d0
| | | | "IOProviderClass" = "IODisplayConnect"
| | | | "DisplayProductID" = 0x717
| | | | "IODisplayPrefsKey" = "IOService:/AppleACPIPlatformExpert/PCI0@180000/AppleACPIPCI/P0P1@1/IOPCI2PCIBridge/VGA@5/.Display_boot/display0/AppleDisplay-756e6b6e-717"
| | | | "CFBundleIdentifier" = "com.apple.iokit.IOGraphicsFamily"
| | | | "DisplayVendorID" = 0x756e6b6e
| | | | "IOMatchCategory" = "IODefaultMatchCategory"
| | | | "IODisplayConnectFlags" = <00000000>
| | | | "IOClass" = "AppleDisplay"
| | | | "IOPowerManagement" = {"CurrentPowerState"=0x3,"DeviceChangePowerState"=0x3}
| | | | }
| | | |
| | | +-o IOFramebufferUserClient <class IOFramebufferUserClient, !registered, !matched, active, busy 0, retain 5>
| | | {
| | | }

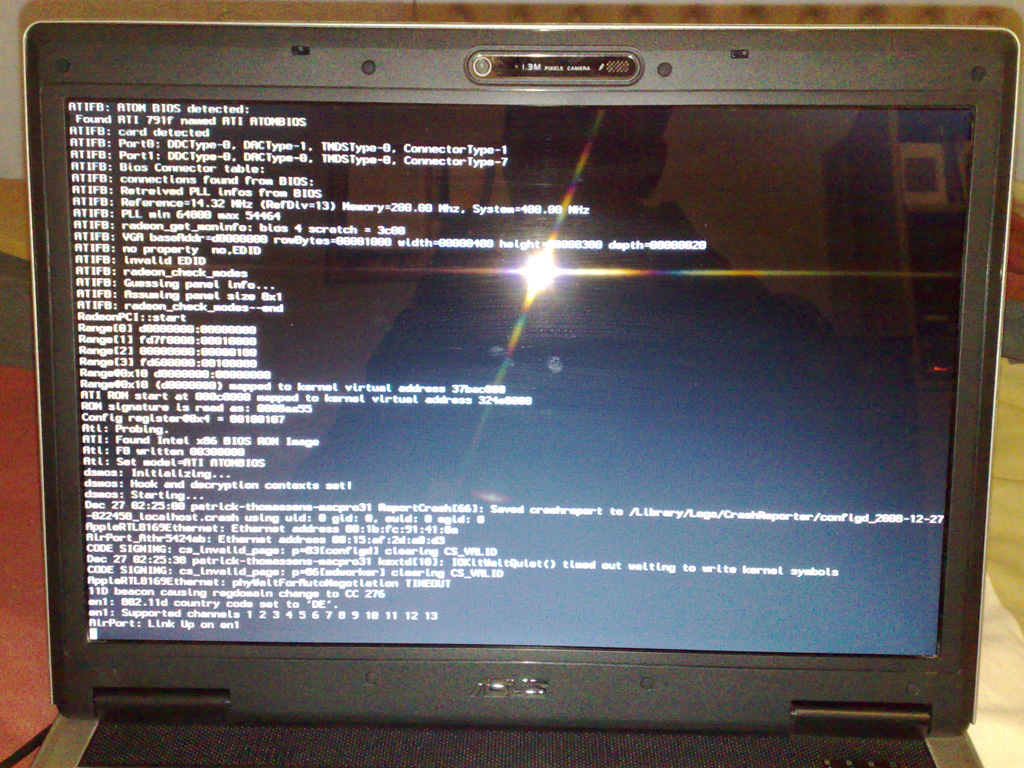

And see attachment for my information (hope its readable). Currently causes crash at login screen, but maybe I just put a wrong setting in the info.plist.

Slice · December 27, 2008

Hello there,

I've read this whole thread and im interested in helping getting this driver working. I have an ATI Mobility X1250 in my laptop, thus facing all of these problems aswell. First I will try and get you some information your tools are returning.

| | | | "CRT,EDID" =

4f010101010101010101010101010164190040410026301d8836000000000000180e1f008051001e

04080370000000000001c000000fd003a3e1e3208000a202020202020000000fc004b444c2d53333

413132550a2000cb>

And see attachment for my information (hope its readable). Currently causes crash at login screen, but maybe I just put a wrong setting in the info.plist.

I see on your screen

no property no,EDID

invalid EDID

so you need to change

CRT, EDID to no,EDID

Yes, it is driver mistake.

Hope it helps you

Insane? · December 27, 2008

I see on your screen
no property no,EDID

invalid EDID

so you need to change

CRT, EDID to no,EDID

Yes, it is driver mistake.

Hope it helps you

You are right, changed it and now I got rich information. See attachment once again, will see if i can get any logfile.

From my logfile:

Dec 27 11:37:45 my-macpro31 kernel[0]: Ati: Probing.
Dec 27 11:37:45 my-macpro31 ReportCrash[69]: Formulating crash report for process configd[33]
Dec 27 11:37:45 my-macpro31 kernel[0]: ATI: Found Intel x86 BIOS ROM Image
Dec 27 11:37:45 my-macpro31 kernel[0]: Ati: F8 written 00300000
Dec 27 11:37:45 my-macpro31 kernel[0]: Ati: Set model=ATI ATOMBIOS
Dec 27 11:37:45 my-macpro31 kernel[0]: ATIFB: fb_phys_base=d0000000 fb_local_base=00000000
Dec 27 11:37:45 my-macpro31 kernel[0]: ATI: Found Intel x86 BIOS ROM Image
Dec 27 11:37:45 my-macpro31 kernel[0]: ATIFB: ATOM BIOS detected:
Dec 27 11:37:45 my-macpro31 kernel[0]: Found ATI 791f named ATI ATOMBIOS
Dec 27 11:37:45 my-macpro31 kernel[0]: ATIFB: card detected
Dec 27 11:37:45 my-macpro31 kernel[0]: ATIFB: Port0: DDCType-0, DACType-1, TMDSType-0, ConnectorType-1
Dec 27 11:37:45 my-macpro31 kernel[0]: ATIFB: Port1: DDCType-0, DACType-0, TMDSType-0, ConnectorType-7
Dec 27 11:37:45 my-macpro31 kernel[0]: ATIFB: Bios Connector table:
Dec 27 11:37:45 my-macpro31 kernel[0]: ATIFB: connections found from BIOS:
Dec 27 11:37:45 my-macpro31 kernel[0]: ATIFB: Retreived PLL infos from BIOS
Dec 27 11:37:45 my-macpro31 kernel[0]: ATIFB: Reference=14.32 MHz (RefDiv=13) Memory=200.00 Mhz, System=400.00 MHz
Dec 27 11:37:45 my-macpro31 kernel[0]: ATIFB: PLL min 64800 max 54464
Dec 27 11:37:45 my-macpro31 kernel[0]: ATIFB: radeon_get_moninfo: bios 4 scratch = 3c00
Dec 27 11:37:45 my-macpro31 kernel[0]: ATIFB: VGA baseAddr=d0000000 rowBytes=00001000 width=00000400 height=00000300 depth=00000020
Dec 27 11:37:45 my-macpro31 kernel[0]: ATIFB: no,EDID injected
Dec 27 11:37:45 my-macpro31 kernel[0]: ATIFB: radeon_check_modes
Dec 27 11:37:45 my-macpro31 kernel[0]: ATIFB: Parsing EDID data for panel info
Dec 27 11:37:45 my-macpro31 kernel[0]: ATIFB: Setting up default mode based on panel info
Dec 27 11:37:45 my-macpro31 kernel[0]: fb_edid_to_monspecs
Dec 27 11:37:45 my-macpro31 kernel[0]: edid_checksum OK
Dec 27 11:37:45 my-macpro31 kernel[0]: edid_check_header OK
Dec 27 11:37:45 my-macpro31 kernel[0]: ========================================
Dec 27 11:37:45 my-macpro31 kernel[0]: Display Information (EDID)
Dec 27 11:37:45 my-macpro31 kernel[0]: ========================================
Dec 27 11:37:45 my-macpro31 kernel[0]: EDID Version 1.3
Dec 27 11:37:45 my-macpro31 kernel[0]: Manufacturer: @@@
Dec 27 11:37:45 my-macpro31 kernel[0]: Model: 00000000
Dec 27 11:37:45 my-macpro31 kernel[0]: Serial#: 00000000
Dec 27 11:37:45 my-macpro31 kernel[0]: Year: 1990 Week 0
Dec 27 11:37:45 my-macpro31 kernel[0]: Display Characteristics:
Dec 27 11:37:45 my-macpro31 kernel[0]: Monitor Operating Limits:    Detailed Timings
Dec 27 11:37:45 my-macpro31 kernel[0]: 96 MHz 1440 1504 1536 1760 900 903 906 912 -HSync -VSync
Dec 27 11:37:45 my-macpro31 kernel[0]: Supported VESA Modes
Dec 27 11:37:45 my-macpro31 kernel[0]: Manufacturer's mask: 0
Dec 27 11:37:45 my-macpro31 kernel[0]: Standard Timings
Dec 27 11:37:45 my-macpro31 kernel[0]: Detailed Timings
Dec 27 11:37:45 my-macpro31 kernel[0]: Extrapolated
Dec 27 11:37:45 my-macpro31 kernel[0]: H: 30-56KHz V: 60-60Hz DCLK: 96MHz
Dec 27 11:37:45 my-macpro31 kernel[0]: Digital Display Input
Dec 27 11:37:45 my-macpro31 kernel[0]: Sync:
Dec 27 11:37:45 my-macpro31 kernel[0]: Max H-size in cm: 34
Dec 27 11:37:45 my-macpro31 kernel[0]: Max V-size in cm: 22
Dec 27 11:37:45 my-macpro31 kernel[0]: Gamma: 2.20
Dec 27 11:37:45 my-macpro31 kernel[0]: DPMS: Active no, Suspend no, Standby no
Dec 27 11:37:45 my-macpro31 kernel[0]: RGB Color Display
Dec 27 11:37:45 my-macpro31 kernel[0]: Chroma
Dec 27 11:37:45 my-macpro31 kernel[0]: RedX:     0.590 RedY:     0.345
Dec 27 11:37:45 my-macpro31 kernel[0]: GreenX:   0.315 GreenY:   0.555
Dec 27 11:37:45 my-macpro31 kernel[0]: BlueX:    0.155 BlueY:    0.155
Dec 27 11:37:45 my-macpro31 kernel[0]: WhiteX:   0.313 WhiteY:   0.329
Dec 27 11:37:45 my-macpro31 kernel[0]: First DETAILED Timing is preferred
Dec 27 11:37:45 my-macpro31 kernel[0]: Detailed Timings
Dec 27 11:37:45 my-macpro31 kernel[0]: 96 MHz 1440 1504 1536 1760 900 903 906 912 -HSync -VSync
Dec 27 11:37:45 my-macpro31 kernel[0]: Supported VESA Modes
Dec 27 11:37:45 my-macpro31 kernel[0]: Manufacturer's mask: 0
Dec 27 11:37:45 my-macpro31 kernel[0]: Standard Timings
Dec 27 11:37:45 my-macpro31 kernel[0]: Detailed Timings
Dec 27 11:37:45 my-macpro31 kernel[0]: modes from EDID extracted
Dec 27 11:37:45 my-macpro31 kernel[0]: ========================================
Dec 27 11:37:45 my-macpro31 kernel[0]: RadeonPCI::start
Dec 27 11:37:45 my-macpro31 kernel[0]: Range[0] d0000000:08000000
Dec 27 11:37:45 my-macpro31 kernel[0]: Range[1] fd7f0000:00010000
Dec 27 11:37:45 my-macpro31 kernel[0]: Range[2] 00008800:00000100
Dec 27 11:37:45 my-macpro31 kernel[0]: Range[3] fd600000:00100000
Dec 27 11:37:45 my-macpro31 kernel[0]: Range@0x10 d0000000:08000000
Dec 27 11:37:45 my-macpro31 kernel[0]: Range@0x10 (d0000000) mapped to kernel virtual address 37779000
Dec 27 11:37:45 my-macpro31 kernel[0]: ATI ROM start at 000c0000 mapped to kernel virtual address 3238a000
Dec 27 11:37:45 my-macpro31 kernel[0]: ROM signature is read as: 0000aa55
Dec 27 11:37:45 my-macpro31 kernel[0]: Config register@0x4 = 00100107
Dec 27 11:37:45 my-macpro31 kernel[0]: Ati: Probing.
Dec 27 11:37:45 my-macpro31 kernel[0]: ATI: Found Intel x86 BIOS ROM Image
Dec 27 11:37:45 my-macpro31 kernel[0]: Ati: F8 written 00300000
Dec 27 11:37:45 my-macpro31 kernel[0]: Ati: Set model=ATI ATOMBIOS

And the RadeonDump results.

Regs:

Found a device of class RadeonPCI: IOService:/AppleACPIPlatformExpert/PCI0@180000/AppleACPIPCI/P0P1@1/IOPCI2PCIBridge/VGA@5/RadeonPCI
it matched on name "display"
0x0000:  00000000 00000000 000000A8 00000016 00040000 0128C000 00000003 00000002
0x0020:  00003C00 00000002 00001000 41230109 6FC02000 00070132 00010000 00010000
0x0040:  00000000 00080000 00000000 00000000 00000000 0F080018 00000000 00000000
0x0060:  00000000 00000000 00000000 00000000 00000000 00000000 00000100 7FFF7800
0x0080:  00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
0x00A0:  00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
0x00C0:  00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
0x00E0:  00020100 00000000 00000000 0000444F 00000000 00000000 08000000 00000000
0x0100:  D0000000 00000000 04000000 FD7F0000 00000000 00010000 00000000 00000000
0x0120:  00000000 00000000 00000000 00000000 00800000 00007800 00000000 00000000
0x0140:  00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
0x0160:  00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
0x0180:  00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
0x01A0:  00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
0x01C0:  00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
0x01E0:  00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
0x0200:  00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
0x0220:  00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
0x0240:  00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
0x0260:  00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
0x0280:  00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
0x02A0:  00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
0x02C0:  00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
0x02E0:  00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
0x0300:  0201000F 00000000 00000101 00000002 78000000 00000000 00000000 00000000
0x0320:  00500000 00000000 00000001 00000000 00000000 00000000 00000400 00000000
0x0340:  0000000E 00000000 00000000 00000000 00000218 00010000 00000000 0000031F
0x0360:  00000000 00000002 00000000 00000002 00000000 00000003 009A0000 00A60000
0x0380:  00820000 00000000 0000002C 00000000 0000002A 00000000 0000001C 00120704
0x03A0:  00120704 00120704 00000000 00000000 00000000 0000D30F 00010000 00000000
0x03C0:  88000013 00FF0101 00000740 FF080067 00000000 0000D30F 00000000 00000000
0x03E0:  00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
0x0400:  00000001 00000003 00000000 00010000 00000000 00000007 00000000 00000000

Btw. EDID information in RadeonDump lead to segfault. I will test other versions of it aswell.

And last but not least, an Xbench score (GL tests were performed, however I only saw a black window).

Results 77.16
System Info
 Xbench Version  1.3
 System Version  10.5.4 (9E17)
 Physical RAM  2048 MB
 Model  MacPro3,1
 Drive Type  ST9120822AS ST9120822AS
CPU Test 62.58
 GCD Loop 98.51 5.19 Mops/sec
 Floating Point Basic 71.00 1.69 Gflop/sec
 vecLib FFT 36.33 1.20 Gflop/sec
 Floating Point Library 82.23 14.32 Mops/sec
Thread Test 103.36
 Computation 82.10 1.66 Mops/sec, 4 threads
 Lock Contention 139.46 6.00 Mlocks/sec, 4 threads
Memory Test 75.62
 System 67.47
  Allocate 136.39 500.87 Kalloc/sec
  Fill 61.31 2981.26 MB/sec
  Copy 48.03 991.94 MB/sec
 Stream 86.00
  Copy 88.87 1835.48 MB/sec
  Scale 86.69 1790.91 MB/sec
  Add 84.24 1794.59 MB/sec
  Triad 84.37 1804.78 MB/sec
Quartz Graphics Test 92.02
 Line 75.37 5.02 Klines/sec [50% alpha]
 Rectangle 86.93 25.95 Krects/sec [50% alpha]
 Circle 76.24 6.21 Kcircles/sec [50% alpha]
 Bezier 85.01 2.14 Kbeziers/sec [50% alpha]
 Text 213.46 13.35 Kchars/sec
OpenGL Graphics Test 31.15
 Spinning Squares 31.15 39.52 frames/sec
User Interface Test 67.25
 Elements 67.25 308.65 refresh/sec
Disk Test 30.12
 Sequential 79.53
  Uncached Write 74.95 46.02 MB/sec [4K blocks]
  Uncached Write 69.10 39.10 MB/sec [256K blocks]
  Uncached Read 97.00 28.39 MB/sec [4K blocks]
  Uncached Read 82.17 41.30 MB/sec [256K blocks]
 Random 18.58
  Uncached Write 6.05 0.64 MB/sec [4K blocks]
  Uncached Write 65.84 21.08 MB/sec [256K blocks]
  Uncached Read 44.38 0.31 MB/sec [4K blocks]
  Uncached Read 80.92 15.02 MB/sec [256K blocks]

791F.0000.0000.vga.rom.txt

Slice · December 27, 2008

1. How did you run XBench if you can't enter GUI?

2. Black window in OpenGL test means you have bad Accelerator and GLDriver.bundle. What did you use ATIRadeonX1000 or ATIRadeonX2000?

3. Probably you can't obtain EDID by RadeonDump. Try to do that from other operating system, WinXP for example. And then inject it into no,EDID section.

Insane? · December 27, 2008

1. How did you run XBench if you can't enter GUI?
2. Black window in OpenGL test means you have bad Accelerator and GLDriver.bundle. What did you use ATIRadeonX1000 or ATIRadeonX2000?

3. Probably you can't obtain EDID by RadeonDump. Try to do that from other operating system, WinXP for example. And then inject it into no,EDID section.

1. I had to disable Ati.kext (or ATILead.kext, dont know, just disabled both). Probably some error in my info.plist. Will try XBench after I got that working. I got this screen:

Update - confirmed, ATILead.kext causes the crash. Is this due to the EDID part? I currently have "no,EDID" on 2 places, followed by the EDID that was present.

2. They both did not exist on my system. I did not know though, so I will try putting ATIRadeonX1000.kext and reboot. Is there anything I need to change? I expected something like bad accelerator/gl driver. Just odd it did not mention that.

Update - adding my device id to ATIRadeonX1000.kext was a bad idea, instant freeze .

Dec 27 23:17:01 macpro31 Xbench[254]: No OpenGL pixel format
Dec 27 23:17:14 macpro31 Xbench[254]: *** -[NSConditionLock unlockWithCondition:]: lock (<NSConditionLock: 0x2ea49e0> '(null)') unlocked when not locked
Dec 27 23:17:14 macpro31 Xbench[254]: *** Break on _NSLockError() to debug.

3. Is there any boot CD or something to get that? Maybe I can extract it from my bios somehow? Cause I would have to install XP completely as I have only OSX Leopard on my laptop for now.

I will play around a bit with the files/kexts, but i dont know exactly what which file does. I always have them backed up, so no worries.

Update - my kextstat

ash-3.2# kextstat
Index Refs Address Size Wired Name (Version) <Linked Against>
1 1 0x0 0x0 0x0 com.apple.kernel (9.4.0)
2 35 0x0 0x0 0x0 com.apple.kpi.bsd (9.4.0)
3 3 0x0 0x0 0x0 com.apple.kpi.dsep (9.4.0)
4 50 0x0 0x0 0x0 com.apple.kpi.iokit (9.4.0)
5 52 0x0 0x0 0x0 com.apple.kpi.libkern (9.4.0)
6 48 0x0 0x0 0x0 com.apple.kpi.mach (9.4.0)
7 28 0x0 0x0 0x0 com.apple.kpi.unsupported (9.4.0)
8 1 0x0 0x0 0x0 com.apple.iokit.IONVRAMFamily (9.4.0)
9 1 0x0 0x0 0x0 com.apple.driver.AppleNMI (9.4.0)
10 1 0x0 0x0 0x0 com.apple.iokit.IOSystemManagementFamily (9.4.0)
11 1 0x0 0x0 0x0 com.apple.iokit.ApplePlatformFamily (9.4.0)
12 19 0x0 0x0 0x0 com.apple.kernel.6.0 (7.9.9)
13 1 0x0 0x0 0x0 com.apple.kernel.bsd (7.9.9)
14 1 0x0 0x0 0x0 com.apple.kernel.iokit (7.9.9)
15 1 0x0 0x0 0x0 com.apple.kernel.libkern (7.9.9)
16 1 0x0 0x0 0x0 com.apple.kernel.mach (7.9.9)
17 13 0x2b9b4000 0x10000 0xf000 com.apple.iokit.IOPCIFamily (2.4.1) <7 6 5 4>
18 10 0x2b9ca000 0x4000 0x3000 com.apple.iokit.IOACPIFamily (1.2.0) <12>
19 5 0x2ba18000 0x3d000 0x3c000 com.apple.driver.AppleACPIPlatform (1.1.0) <18 17 12 7 4>
20 0 0x2baaf000 0x5000 0x4000 com.apple.BootCache (30) <7 6 5 4 2>
21 3 0x2bb73000 0x39000 0x38000 com.apple.iokit.IOHIDFamily (1.5.2) <7 6 5 4 2>
22 0 0x2bbde000 0x3000 0x2000 com.apple.security.TMSafetyNet (3) <7 6 5 3 2>
23 0 0x2bbf8000 0x8000 0x7000 com.apple.nke.applicationfirewall (1.0.77) <7 6 5 4 2>
24 0 0x2cc38000 0x18000 0x17000 com.apple.security.seatbelt (107.1) <7 6 5 3 2>
25 0 0x316e1000 0x3000 0x2000 com.apple.driver.AppleAPIC (1.2.0) <12>
26 1 0x31748000 0x3000 0x2000 com.apple.iokit.IOSMBusFamily (1.1) <6 5 4>
27 0 0x317a4000 0x5000 0x4000 com.apple.driver.AppleACPIEC (1.1.0) <26 19 18 12>
28 0 0x317c0000 0x5000 0x4000 com.apple.driver.AppleSMBIOS (1.0.13) <12>
30 0 0x3193b000 0x5000 0x4000 com.apple.driver.AppleRTC (1.0.5) <18 6 5 4 2>
31 0 0x319f6000 0x3000 0x2000 com.apple.driver.AppleHPET (1.1) <18 7 6 5 4>
32 0 0x3184d000 0x2000 0x1000 org.tgwbd.driver.ACPIPS2Nub (1.0.0d1) <19 18 12>
33 2 0x31b17000 0x5000 0x4000 com.apple.driver.ApplePS2Controller (1.1.0) <12>
34 0 0x31cea000 0x3000 0x2000 com.apple.driver.ApplePS2Keyboard (1.1.0) <33 21 12>
35 0 0x31ca0000 0x4000 0x3000 com.apple.driver.AppleACPIButtons (1.1.0) <21 19 18 7 6 5 4 2>
36 1 0x31cb2000 0x3000 0x2000 com.apple.driver.AppleEFIRuntime (1.1.0) <7 5 4>
37 0 0x31ea9000 0x3000 0x2000 com.apple.driver.AppleACPIPCI (1.1.0) <19 18 17 12>
38 9 0x31f0f000 0x18000 0x17000 com.apple.iokit.IOStorageFamily (1.5.2) <7 6 5 4 2>
40 0 0x31f4d000 0x6000 0x5000 com.apple.driver.AppleEFINVRAM (1.1.0) <36 7 6 5 4>
41 4 0x3205b000 0xd000 0xc000 com.apple.iokit.IOATAFamily (1.7.1f4) <6 5 4 2>
42 0 0x320ed000 0x6000 0x5000 com.apple.driver.AppleGenericPCATA (1.3) <41 17 12>
43 0 0x321f0000 0x6000 0x5000 com.apple.driver.AppleVIAATA (1.0.2) <41 17 12>
44 5 0x32211000 0x28000 0x27000 com.apple.iokit.IOUSBFamily (3.1.5) <7 6 5 4>
45 0 0x3242e000 0xb000 0xa000 com.apple.driver.AppleUSBOHCI (3.1.0) <44 17 6 5 4>
46 0 0x324c9000 0x12000 0x11000 com.apple.driver.AppleUSBEHCI (3.1.5) <44 17 7 6 5 4>
47 0 0x32544000 0x2000 0x1000 com.apple.iokit.IOUSBUserClient (3.0.7) <44 6 5 4>
48 0 0x325c6000 0xb000 0xa000 com.apple.driver.AppleUSBHub (3.1.5) <44 6 5 4>
49 4 0x3268a000 0x19000 0x18000 com.apple.iokit.IOSCSIArchitectureModelFamily (2.0.3) <6 5 4 2>
50 0 0x326bf000 0x4000 0x3000 com.apple.iokit.IOATAPIProtocolTransport (1.5.0) <49 41 12>
51 2 0x32813000 0x3f000 0x3e000 com.apple.iokit.IOFireWireFamily (3.4.4) <6 5 4 2>
52 0 0x32887000 0x20000 0x1f000 com.apple.driver.AppleFWOHCI (3.4.4) <51 17 7 6 5 4 2>
53 0 0x3295d000 0xe000 0xd000 com.apple.iokit.IOATABlockStorage (2.0.3) <41 38 6 5 4 2>
54 0 0x329cb000 0x5000 0x4000 com.apple.driver.XsanFilter (2.7.91) <38 12>
55 0 0x32a22000 0x4000 0x3000 com.apple.driver.AppleUSBComposite (3.0.0) <44 5 4>
56 0 0x32a92000 0x6000 0x5000 com.apple.iokit.SCSITaskUserClient (2.0.3) <49 38 6 5 4 2>
57 3 0x32b72000 0x8000 0x7000 com.apple.iokit.IOCDStorageFamily (1.5) <38 6 5 4 2>
58 2 0x32bb2000 0x6000 0x5000 com.apple.iokit.IODVDStorageFamily (1.5) <57 38 6 5 4 2>
59 1 0x32bdb000 0x16000 0x15000 com.apple.iokit.IOSCSIBlockCommandsDevice (2.0.3) <49 38 6 5 4 2>
60 1 0x32bff000 0x5000 0x4000 com.apple.iokit.IOBDStorageFamily (1.5) <58 57 38 6 5 4 2>
61 0 0x32c31000 0x16000 0x15000 com.apple.iokit.IOSCSIMultimediaCommandsDevice (2.0.3) <60 59 58 57 49 38 6 5 4 2>
62 0 0x31b1c000 0xb000 0xa000 com.apple.filesystems.autofs (2.0.1) <7 6 5 4 2>
63 1 0x31b27000 0x1c000 0x1b000 com.apple.iokit.IOGraphicsFamily (1.5.2) <17 7 6 5 4>
65 2 0x31b43000 0x9000 0x8000 com.apple.driver.AppleSMC (2.0.1d2) <18 7 6 5 4>
66 1 0x31eac000 0xe000 0xd000 com.apple.driver.IOPlatformPluginFamily (3.1.6d0) <12>
67 0 0x31eba000 0xc000 0xb000 com.apple.driver.ACPI_SMC_PlatformPlugin (3.1.6d0) <66 65 18 17 12 7 6 5 4>
68 2 0x31940000 0x5000 0x4000 com.apple.iokit.IOHDAudioFamily (1.0.0d1) <6 5 4 2>
69 0 0x319f9000 0x6000 0x5000 com.apple.driver.AppleAzaliaController (1.0.0d1) <68 17 6 5 4 2>
70 4 0x31ec6000 0x16000 0x15000 com.apple.iokit.IONetworkingFamily (1.6.0) <7 6 5 4 2>
71 0 0x31b4c000 0x6000 0x5000 com.apple.driver.AppleRTL8169Ethernet (1.0.3) <70 17 6 5 4 2>
72 0 0x31c42000 0x4000 0x3000 com.apple.driver.AppleACPIPowerSource (1.0.5) <19 18 12>
73 1 0x31f53000 0x1f000 0x1e000 com.apple.iokit.IO80211Family (211.1) <70 7 6 5 4 2>
74 0 0x32249000 0x90000 0x8f000 com.apple.driver.AirPort.Atheros (314.43.1) <73 70 17 7 6 5 4 2>
75 0 0x31f82000 0xe000 0xd000 com.apple.iokit.IONDRVSupport (1.5.2) <63 17 7 6 5 4>
76 0 0x31e05000 0x9000 0x8000 com.apple.iokit.IOFireWireIP (1.7.1) <70 51 6 5 4 2>
77 0 0x31c4a000 0x3000 0x2000 com.x86dev.driver.lspcidrv (1.0) <12>
78 0 0x31ca4000 0x3000 0x2000 com.apple.driver.ApplePS2Mouse (1.2.0) <33 21 12>
79 1 0x31f39000 0x3000 0x2000 com.apple.kext.OSvKernDSPLib (1.1) <6 5>
80 2 0x31fe6000 0x17000 0x16000 com.apple.iokit.IOAudioFamily (1.6.4b7) <79 6 5 4 2>
81 0 0x321f6000 0xc000 0xb000 com.apple.driver.AppleAzaliaAudio (1.0.0d1) <80 68 6 5 4 2>
82 0 0x31ffd000 0x3000 0x2000 com.dong.driver.RadeonPCI (1.0.0d1) <6 5 4>
83 0 0x323a0000 0x10000 0xf000 com.apple.driver.DiskImages (195) <38 7 6 5 4 2>
84 0 0x32202000 0x4000 0x3000 com.apple.driver.AudioIPCDriver (1.0.4) <80 6 5 4 2>
85 0 0x319ff000 0x2000 0x1000 com.apple.dsmos (1.0.0d1) <7 5 4 2>
86 0 0x32206000 0x3000 0x2000 com.apple.Dont_Steal_Mac_OS_X (6.0.2) <65 7 5 4 2>
87 0 0x325f9000 0x30000 0x2f000 com.apple.filesystems.smbfs (1.4.3) <7 6 5 4 2>

tomtefar · January 11, 2009

Maybe this is of importance for this development: AMD AtomBIOS dumper/disassembler.

ATI Framebuffer development

Recommended Posts

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites
