0x71C1 - 0x71C7 ATi X1650 Pro fix (QE/CI/Rotation Enabled)

[dall]

Ok, followed you's guide, result - kernel panic! (71c3)

[Denicio]

Hi, I have a Gecube Ati x1650 256mb AGP Device ID:0x71c7, and this thing doesn't work, cause the codes you tell to replace are missing.Do you have any suggestions?thanks in advance

If you install modbin's package first, the codes are there.

Ok, followed you's guide, result - kernel panic! (71c3)

Can you state the full specs of this card?

[dall]

SAPPHIRE RADEON X1600 PRO, 512MB, 128BIT, HDTV

[Denicio]

SAPPHIRE RADEON X1600 PRO, 512MB, 128BIT, HDTV



You cannot fix your card using this? Have you tried?



http://forum.insanelymac.com/index.php?sho...p;hl=natitx1600

[dall]

tryed didnt work!

[Denicio]

tryed didnt work!



OK I have modified tha package files for cards with Device ID's 0x71C3 & 0x71C7, people give it a try (1st Post Updated).

[dall]

Also kernel panic ;(

[afxkenny]

i tried 0x71C7 and the system went in kernel panic =( i'm losing hopes

[Denicio]

i tried 0x71C7 and the system went in kernel panic =( i'm losing hopes









dall & afxkenny, are you sure your card's vendor is 1002 (ATi)?



It should be some code like: 100271C3 or 100271C7 in your cases.

[FrostBite]

dall & afxkenny, are you sure your card's vendor is 1002 (ATi)?



It should be some code like: 100271C3 or 100271C7 in your cases.



And im again... ALL METHOD NOT WORK! fixes, cange id myself - NOT WORK! kernel panic...

[afxkenny]

dall & afxkenny, are you sure your card's vendor is 1002 (ATi)?



It should be some code like: 100271C3 or 100271C7 in your cases.



yes, pretty sure. Maybe there is something else to change because mine is an AGP card type. I really don't know...

[dall]

I have PCI-E

[blackb]

read kowlosky post about hexediting binary



for 71c3: search 81 FA C2 71 and change it to 81 FA C3 71

for 71c7: search 81 FA C6 71 and change it to 81 FA C7 71



note:"81 FA" is just to make sure that u didnt edit the wrong adress

[FrostBite]

read kowlosky post about hexediting binary



for 71c3: search 81 FA C2 71 and change it to 81 FA C3 71

for 71c7: search 81 FA C6 71 and change it to 81 FA C7 71



note:"81 FA" is just to make sure that u didnt edit the wrong adress





Okey. Im starting use macos, and may be you can make this changes for me. I dont know how to use HEX editor. Mr Kozlowsky was try to help me, you can see this trying in first post. But i test this - NOT WORK. I dont know what with my card, but no more can help include Modbin. All trying - kernel panic!

[equinox]

Just a heads up guys.

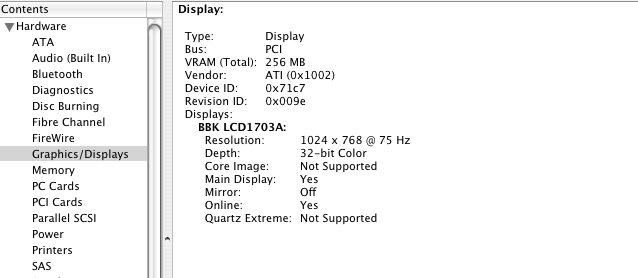

I have a 0x71c7 x1650

pcie and 256megs



None of the methods available allowed it to work.



Downloaded a x1600 pro bios 0x71c2 and flashed it with that



Installed natit and put the device id in atiradeonx1000.kext and it came right up with qe/ci.



Have fun



Make sure to use atiflash in dos.. Tried atiwinflash and it didnt enable qe/ci. I dont know why, but I could try to change my device id with atiwinflash and it would stay c7. So just use the dos flasher.



Would be a good idea to keep a pci video card handy lol.

[FrostBite]

Just a heads up guys.



I have a 0x71c7 x1650

pcie and 256megs



None of the methods available allowed it to work.



Downloaded a x1600 pro bios 0x71c2 and flashed it with that



Installed natit and put the device id in atiradeonx1000.kext and it came right up with qe/ci.



Have fun



Make sure to use atiflash in dos.. Tried atiwinflash and it didnt enable qe/ci. I dont know why, but I could try to change my device id with atiwinflash and it would stay c7. So just use the dos flasher.



Would be a good idea to keep a pci video card handy lol.



Can you post this bios file here or send me to das_boot@mail.ru? Please! I want try this! And your natit installer + kext file! Please send or post here!

[equinox]

Yeah, Ill do that in a few hours when I get home.



Keep in mind. I have a pci express card.

[equinox]

It was one of these two bios's. I cant remember which. If it shows your dev id as c6 reflash with the other one.

As for kexts. I just used the x1600 installer of diaboliks site. Took all the dev ids out of atiradeonx1000.kext but one and changed it to 0x71c2.



Take zip off the end of the file names. It wouldnt let me upload .bin files

msi.bin.zip

msi.bin.zip

sapph.bin.zip

[Denicio]

Just a heads up guys.



I have a 0x71c7 x1650

pcie and 256megs



None of the methods available allowed it to work.



Downloaded a x1600 pro bios 0x71c2 and flashed it with that



Installed natit and put the device id in atiradeonx1000.kext and it came right up with qe/ci.



Have fun



Make sure to use atiflash in dos.. Tried atiwinflash and it didnt enable qe/ci. I dont know why, but I could try to change my device id with atiwinflash and it would stay c7. So just use the dos flasher.



Would be a good idea to keep a pci video card handy lol.



Yeah it's a good method, but still risky.

Btw, I need to clarify to the other people, "PCI Video Card" that equinox mentions is used in case something goes really bad on flashing, then you boot up in DOS with the PCI Card and correct the flashing problem again on your AGP/PCIe Video Card.



I'm just clarifying that because I'm sure some people will give it a go. I had success in the past with a X800GTO doing the same thing.

[equinox]

Yes, It is very risky. At first I tried a x1600xt bios. It was for gdd3, my card has gddr2. Needless to say the screen was garbled.

Had to break out my trusty voodoo 3 lol.

[Denicio]

Yes, It is very risky. At first I tried a x1600xt bios. It was for gdd3, my card has gddr2. Needless to say the screen was garbled.

Had to break out my trusty voodoo 3 lol.





Voodoo3!!! I just got a flashback of 10 years ago or so! Nice, hehehe.

[equinox]

Yeah, about crapped my self when it actually posted with it.

Had the video bios post screen and all.

[blackb]

yes it's too risky,what happened if the bios didn't compatible with the card eg core clock,temperature etc.because i think 1600 and 1650 use diferent engine.& think about the warranty

better play with mac os kext files;the worst case you just need to reinstall your os.

i have 71c7 pcie 256mb using atiinject.kext and hexediting the binary;and now qe/ci,rotation,resolution change,dvi(i use this) no mouse tearing all work execpt mirror(what is this for??)dual display not tested

[equinox]

Yeah, The first thing I did was make sure the core and memory were the same. If not I would have changed them. I am pretty sure that the only difference between x1600 and x1650 is a die shrink.

[blackb]

fix for 71c7(mine,working),71c1,71c3

note:this just enable qe/ci;the rest is up to you.you can use kozlowsky method,natit,boris,.. etc or your own way.hope it help

ATIRadeonX1000.kext.zip
