hey all



i installed the pkg on my asus p5q pro added all the device id into the info.plist and stuff like that but on boot it says ERROR: mac address from SPI is invalid.

i was thinking mabe if there was a way to add the Mac addres sinto the info.plist would this fix the issue.

Link to comment
Share on other sites

hey all



i installed the pkg on my asus p5q pro added all the device id into the info.plist and stuff like that but on boot it says ERROR: mac address from SPI is invalid.

i was thinking mabe if there was a way to add the Mac addres sinto the info.plist would this fix the issue.





Write the VENDOR ID of your Ethernet card.

I have P5Q with Attansic L1 Ethernet ID 1026x1969 and have same problem. Correct driver for my ethernet does not exists for Mac OSX !!!

Link to comment
Share on other sites

Hi, Here is a 10.5.6 version of the Attansic L1 Ethernet Kext, fixed some dependencies, therefore it works with the vanilla IONetworkingFamily.kext :blink:

This pkg includes a simple script for bringing back the Attansic L1 NIC after sleep: Type " attansic " in the terminal

Huge thanks to DaemonES & MadInt





AttansicL1Ethernet_10.5.6.zip

Link to comment
Share on other sites

I've got an old 3com eth card that works perfectly, but it could be even good having that onboard lan kext working.



I definetely don't know how is possible porting driver from a freeBSD or linux kernel module, but that module ATL1E does exist in freebsd and linux kernel, so the source is available, I posted it in another thread, maybe someone could help me telling me the way to do it.



For example, how can I have the ATL1 kext source maybe editing it, with ATL1E source can reach something working...

Link to comment
Share on other sites

So, I thing, you need buy a other ethernet card, because driver (kext) for your ethernet with ID 1969x1026 does not exist.

I have bought PCI ethernet Realtek 8139 a working perfect.



Yes but the shops around here dont have any nics that work with mac osx so therea another issue :S

Link to comment
Share on other sites

I got Acer Aspire 6920G notebook with Atheros Attansic ethernet card:



code from lcpi.txt:



02:00.0 Ethernet controller [0200]: Attansic Technology Corp. L1 Gigabit Ethernet Adapter [1969:1026] (rev b0)





maybe someone got solution to get this Asus motherboard driver to work on never versions?

Link to comment
Share on other sites

02:00.0 Ethernet controller [0200]: Attansic Technology Corp. L1 Gigabit Ethernet Adapter [1969:1026] (rev b0)





maybe someone got solution to get this Asus motherboard driver to work on never versions?



There is no kext for that device and nobody wants do develope a kext driver for that 1969:1026 I've got too...

Link to comment
Share on other sites

try booting in safe mode (-x) or boot with verbose(-v) and tell us the error that you see







I have done installation procedure all over again whit different kernel, whit or without sound/graphic kext...

































same error after restarting...



you need to restart your computer. hold down the power button for several second or press restart button





It looks like there is a problem whit my network card :)



I will try to disable my network card in BIOS and try to install OS again.



-v










hmmm..if I disable my network card in bios...can I instal kext for that card after instaling ideneb? hm...fubar :)

Link to comment
Share on other sites

ну что, адаптер вообще не пашет или что ? у меня p5k se

i dont understand , does this adapter work in iDeneb 10.5.5 , my motherboard is p5k se



You have a ATL1E [1969:1026] that is not the same device of this thread, and there is no kext for 1969:1026 device.

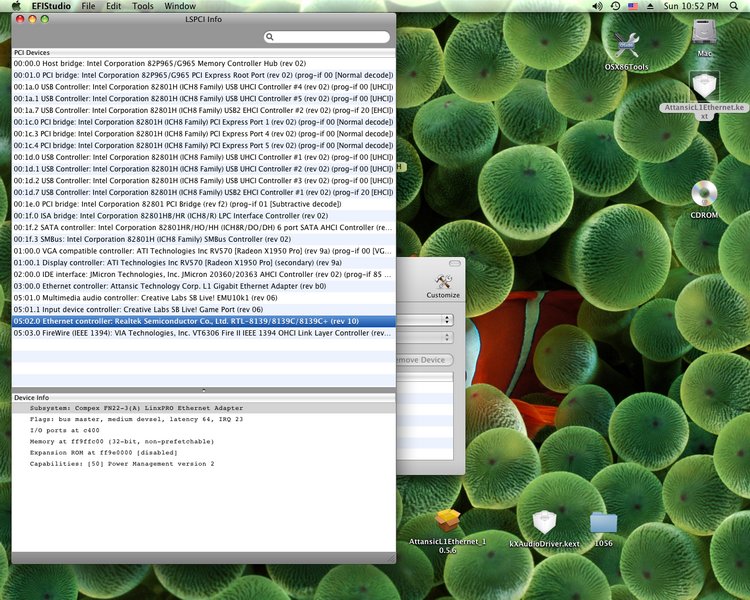

Check your Attansic device ID with DPCIManager.

Link to comment
Share on other sites

i install kext to retail version 10.5.4

id lan PCI\VEN_1969&DEV_1048&SUBSYS_82261043&REV_B0\4&935E26E&0&00E3

kext for Atlantic nice work on iDeneb, but on retail version Mac OSX 10.5.4 istalled with help boot 132 , my lan cards RTL 8139 and Atlantiс doest work status "not plug in cabel"

how i can resolve it ?

Link to comment
Share on other sites

This happens because IONetworking is incompatible... If you update to 10.5.6, you will have no problems with the installer I have posted (my signature)

Or, you could edit the Info.plist for both kexts, to match your system...





i install kext to retail version 10.5.4

id lan PCI\VEN_1969&DEV_1048&SUBSYS_82261043&REV_B0\4&935E26E&0&00E3

kext for Atlantic nice work on iDeneb, but on retail version Mac OSX 10.5.4 istalled with help boot 132 , my lan cards RTL 8139 and Atlantiс doest work status "not plug in cabel"

how i can resolve it ?

Link to comment
Share on other sites
