ATI Mobility X1600, X1700 and others

[torpie13]

Can Any One post different atiradeonx1000.kext versions (from different MacOSX tiger versions)

I think it's the one that impact on QE/CI. I'll try different possibility to activate the QE/CI thing.

thanx for ure help



----------------------------------------------------------

ATI Mobility X1700 256 (512 Hypermemory) (0x71d5)

Mac OS x 10.4.9 Uphuck 1.3

[sylvanus]

Unfortunately I don't know what you mean sayin "backlit still fails", maybe you can post screenshot?

BTW: have you edited ATIinkect to match your display EDID?



For me sometimes it happens that loginwindow hangs or display shows some rubbish, so I have to do restart (hard reset, Enter+PowerButton doesn't work).



Hi



It means that there is no backlight for my laptop, I need a strong light to see my desktop.

I have replaced the EDID.



Thanks

[fingerr]

Hi



It means that there is no backlight for my laptop, I need a strong light to see my desktop.

I have replaced the EDID.



Thanks



Sorry Sylvanus, but I can't help you with this one, I haven't had this problem before...

[torpie13]

As I've noticed we are numerous persons to have the x1700 mobility (0x71d5 ID) QE/CI problem. Should we create a new Topic for this ?? are u OK ?

[torpie13]

No one Interested ?

[righteye]

As I've noticed we are numerous persons to have the x1700 mobility (0x71d5 ID) QE/CI problem. Should we create a new Topic for this ?? are u OK ?



Yes i thought that to but i belive there is no developer to help us ... After trying almost every solution sugested for my x1700 i end up only getting the good resolution an my internal display but never Qe/Ci. So ... lets start a Topic for x1700 !

[Piro_kun]

Piro_kun - you have the Qe and Ci enabled after using the driver ? Without is just the generic mac os driver so nothing about acceleration or res change but i do not know why is faster than the patched driver. If you have Qe and Ci than is possible that something else can fix the isue you have. Look for ... netkas AppleSMBIOS.kext or AppleACPIPlatform.kext from 10.4.8 ...





I installed leopard over tiger and put netkas applesmbios (i dunno where i took the original one) and works perfectly. Thankees

[lemnisk8]

Ati x1700 works... with complete qe & ci



kozlowski method...

[nothinghr]

what about ati mobility x600 under leopard? it says me no kext loaded

[JKervinen]

Hello!



I've read this whole thread thru and I couldn't find any info how to get this EDID and where to get it and so on..

I have mobility x1600 and i'm curious to get it working



so, i've downloaded property list editor, what's next?

cheers,

- Jani

[thehuan]

Hello!



I've read this whole thread thru and I couldn't find any info how to get this EDID and where to get it and so on..

I have mobility x1600 and i'm curious to get it working



so, i've downloaded property list editor, what's next?

cheers,

- Jani



I write a guide on X1700 topic included some basic information . In short , you need phoenix editor for windows to get EDID . About how to group it to use in plist read my guide .

[JKervinen]

Okay, I managed to get EDID info from windows.. (had to install it on different HDD)..

My second laptop is Acer Aspire 5110 (5112WLMi) with X1600 graphics.



If someone could paste this in a right place, would be awesome.

I tried few times myself, but it won't boot. Crashed everytime it loaded LoginWindow..



00FFFFFF FFFFFF00 4CA34538 00000000

00100103 80211578 0A87F594 574F8C27

27505400 00000101 01010101 01010101

01010101 0101EE1A 00805020 10301030

13004BCF 10000019 0000000F 00000000

00000000 00238702 64000000 00FE0053

414D5355 4E470A20 20202020 000000FE

004C544E 31353458 412D4C30 310A0054



This is what phoenix outputted in windows



Many thanks to everyone!

cheers,

- Jani



p.s. I tried to attach this to sheriff's x1600 package but no boot.

I'm not sure if I need to change vendor id's or anything else...?

devid: 71c5 venid: 1002

[harcker]

SUCCESS!!!!! Many months of trying, kexts, injectors, EDIDs, bios settings...



FireGL5200 256 MB 71c4 ThinkPad T60p 1400x1050



This gives me hardware mouse, Switching into OpenGL doesn't "shatter" it all over the screen...



I can change the display brightness and calibrate it. It shows my two displays.



better performance xbench



Two issues:

1. I get a bios security error upon coming out of sleep? Is this a kernel, bios, or driver issue? (TPM is disabled on my device), or type of sleep setting.



2. Some displayed resolutions, like 680x680 create a black screen necessitating a clearing of all reslution files /preferences/byhost

I have the same notebook with U! can U send me your driver to me?

May I was 2 stupid I have tried twice and all failed...

[brenter]

i got my x1700 on my F3JP to work with these kexts: http://forum.insanelymac.com/index.php?sho...rt=#entry510147



but now i got a problem. 50% of the time, after i boot, i got full resolution and QE/CI with my internal display. perfect.

but the other 50% of the time, after the white apple bootscreen, i get weid pink boxes, freaky colors and stuff.

Can anyone help?



Cheers so far.



ps.: i would also like to use my external monitor and my tv (not at the same time of course but at different times) together with my internal display. any change thatll work? and if so how?

[OSO]

Okay, I managed to get EDID info from windows.. (had to install it on different HDD)..

My second laptop is Acer Aspire 5110 (5112WLMi) with X1600 graphics.



If someone could paste this in a right place, would be awesome.

I tried few times myself, but it won't boot. Crashed everytime it loaded LoginWindow..



00FFFFFF FFFFFF00 4CA34538 00000000

00100103 80211578 0A87F594 574F8C27

27505400 00000101 01010101 01010101

01010101 0101EE1A 00805020 10301030

13004BCF 10000019 0000000F 00000000

00000000 00238702 64000000 00FE0053

414D5355 4E470A20 20202020 000000FE

004C544E 31353458 412D4C30 310A0054



This is what phoenix outputted in windows



Many thanks to everyone!

cheers,

- Jani



p.s. I tried to attach this to sheriff's x1600 package but no boot.

I'm not sure if I need to change vendor id's or anything else...?

devid: 71c5 venid: 1002



That doesn't look like a phoenix output to me at all... Usually it should be like following



EDID BYTES:



0x 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F



------------------------------------------------



00 | 00 FF FF FF FF FF FF 00 06 AF 74 19 00 00 00 00



10 | 01 0F 01 03 80 21 15 78 0A 85 A5 99 57 4F 8F 26



20 | 1D 50 54 00 00 00 01 01 01 01 01 01 01 01 01 01



30 | 01 01 01 01 01 01 EA 1A 00 80 50 20 10 30 15 20



40 | 44 00 4B CF 10 00 00 18 00 00 00 0F 00 00 00 00



50 | 00 00 00 00 00 00 00 00 00 02 00 00 00 FE 00 41



60 | 55 4F 0A 20 20 20 20 20 20 20 20 20 00 00 00 FE



70 | 00 42 31 35 34 45 57 30 31 20 56 39 20 0A 00 CC



you must turn them to 4 in a group one line then enter it in the LVDS section

[harcker]

Okay now I have made my FireGL V5200 work perfectly under Leopard.

This is how I do:

1. Edit the ATIRadonX1000.kext 's info.plist, add the model number x71C41002 into the PCIMatch list

2. Edit the EDID info in the ATIinject.kext download form this thread, then put it in the exenstion folder.

this is my Thinkpad T60p's EDID (1400x1050):

00FFFFFF FFFFFF00 30AE2240 00000000 000F0103 801D1578 EA2D0597 57518A27 23505421 08008180 01010101 01010101 01010101 0101302A 7820511A 10403070 13001ED6 10000019 25237820 511A1040 30701300 1ED61000 00190000 000F0090 43329043 280F0100 4CA35034 000000FE 004C544E 31343150 342D4C30 320A0019



3. change the permission and owner.

4. reboot, all now perfect.

[netchainer]

I have extracted my EDID



EDID BYTES:

0x 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F

------------------------------------------------

00 | 00 FF FF FF FF FF FF 00 06 AF 44 21 00 00 00 00

10 | 01 0F 01 03 80 1E 13 78 0A 87 C5 94 57 4F 8C 27

20 | 25 50 54 00 00 00 01 01 01 01 01 01 01 01 01 01

30 | 01 01 01 01 01 01 C7 1B 00 A0 50 20 17 30 30 20

40 | 36 00 30 BE 10 00 00 18 00 00 00 0F 00 00 00 00

50 | 00 00 00 00 00 00 00 00 00 20 00 00 00 FE 00 41

60 | 55 4F 0A 20 20 20 20 20 20 20 20 20 00 00 00 FE

70 | 00 42 31 34 31 45 57 30 32 20 56 31 20 0A 00 DD





in what part of ATIinject have i to paste it?

Ciao

Roberto

[harcker]

I have extracted my EDID



EDID BYTES:

0x 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F

------------------------------------------------

00 | 00 FF FF FF FF FF FF 00 06 AF 44 21 00 00 00 00

10 | 01 0F 01 03 80 1E 13 78 0A 87 C5 94 57 4F 8C 27

20 | 25 50 54 00 00 00 01 01 01 01 01 01 01 01 01 01

30 | 01 01 01 01 01 01 C7 1B 00 A0 50 20 17 30 30 20

40 | 36 00 30 BE 10 00 00 18 00 00 00 0F 00 00 00 00

50 | 00 00 00 00 00 00 00 00 00 20 00 00 00 FE 00 41

60 | 55 4F 0A 20 20 20 20 20 20 20 20 20 00 00 00 FE

70 | 00 42 31 34 31 45 57 30 32 20 56 31 20 0A 00 DD

in what part of ATIinject have i to paste it?

Ciao

Roberto

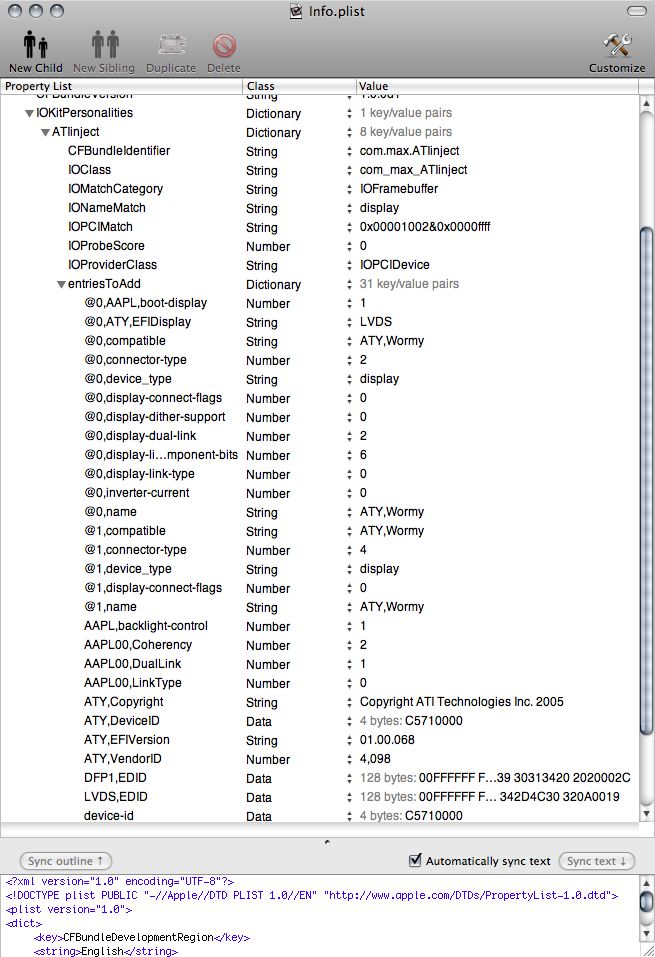

insert into LVDS,EDID and DFP1,EDID

[sliva]

Hello every body!



I have Asus a6j with x1600.

I downloaded all drivers and write edid.

After boot system my display split for 4 areas with wary dark image.

Please help me any solution.





P.S. Sorry for my english

[sliva]

after long agony, I achieved that would be loaded desktop, but the picture is very dark (the impression that does not work lamp illumination), the resolution can be changed. but work is not possible. I will be grateful for any solution to the problem

[netchainer]

insert into LVDS,EDID and DFP1,EDID



harcker, which software have you used... installed XCode 3 but i was unable to have that view.

Thanks for replay however

ciao

[Flashlab]

Hello total newbie here! I have been reading this forum for a few days now and managed to install MacOS 10.5.0 on my Acer 5672 with dual boot. So far so good but installing the correct driver for my X1600 video card proves to be difficult. I have the EDID:



00FFFFFF FFFFFF00 44934100 00000000

000F0103 80211578 0A4DC093 5C518827

21505400 00000101 01010101 01010101

01010101 0101EA1A 00805020 10301520

44004BCF 10000018 0000000F 0008002A

00010004 00324A04 19010000 00FE0051

55414E54 41444953 504C4159 000000FE

00514431 35544C30 37320A20 20200089



But I can't find the Apple PList editor anywhere and don't really know what I need to do when I do find that precious editor...



Searching the forum gives me such a lot of hits reading all of them takes a LONG time! So I hope someone can give me some spot on advice!



Thanks!

[riley]

it can make my acer5595 work at 1280*800 with QC/EI enabled. But due to my video card x1600mobility is 64bit not the standard 128bit, my LCD flickered irregularly. Could someone help me modify the ATIinject to suit for the 64bit version of x1600 mobility? thank you very much

[LZeppelinJ0]

Augh I'm getting so frustrated but I think I'm really close. I used the files from this thread:http://forum.insanelymac.com/index.php?showtopic=77685

With the files on my Leopard Desktop, I edited the atiinject.kext plist using plist editor and added my EDID to the LVDS for the CMO1523 Hardware ID which is:





 <00FF FFFF FFFF FF00 0DAF 2315 0000 0000 0000 0103 8021 1478 0A77 F1A0 5A4B 9624 184F 5400 0000 0101 0101 0101 0101 0101 0101 0101 0101 7C2E 90A0 601A 1E40 3020 3600 4BCF 1000 0018 0000 00FE 004E 3135 345A 312D 4C30 320A 2020 0000 00FE 0043 4D4F 0A20 2020 2020 2020 2020 0000 00FE 004E 3135 345A 312D 4C30 320A 2020 00F8>



Not touching anything else I save the file, move the atiinject.kext and atindrv.kext to /system/library/extensions.



From there I go to Terminal:

sudo -s

chmod -R 755 ATIinject.kext ATINDRV.kext

chown -R root:wheel ATIinject.kext ATINDRV.kext

rm -R /System/Library/Extensions.mkext

Repair Permissions



The system boots through Darwin loader, gets to the mac screen, then everything goes bright pink and white and makes the screen unviewable, or sometimes just goes right to a blank screen and nothing happens. I've tried rebooting a couple times and changing the IOPCI ID to 0x71c51002 just in case but still all I get is garbage or nothing.



I've followed exactly what others have done, using my own info. I'm running an ASUS Z96J ATI Mobility x1600, and I'm oh so close!! Anyone that can provide any help at all, I'm begging

[shaybc]

Augh I'm getting so frustrated but I think I'm really close. I used the files from this thread:http://forum.insanelymac.com/index.php?showtopic=77685

With the files on my Leopard Desktop, I edited the atiinject.kext plist using plist editor and added my EDID to the LVDS for the CMO1523 Hardware ID which is:

 <00FF FFFF FFFF FF00 0DAF 2315 0000 0000 0000 0103 8021 1478 0A77 F1A0 5A4B 9624 184F 5400 0000 0101 0101 0101 0101 0101 0101 0101 0101 7C2E 90A0 601A 1E40 3020 3600 4BCF 1000 0018 0000 00FE 004E 3135 345A 312D 4C30 320A 2020 0000 00FE 0043 4D4F 0A20 2020 2020 2020 2020 0000 00FE 004E 3135 345A 312D 4C30 320A 2020 00F8>



Not touching anything else I save the file, move the atiinject.kext and atindrv.kext to /system/library/extensions.



From there I go to Terminal:

sudo -s

chmod -R 755 ATIinject.kext ATINDRV.kext

chown -R root:wheel ATIinject.kext ATINDRV.kext

rm -R /System/Library/Extensions.mkext

Repair Permissions



The system boots through Darwin loader, gets to the mac screen, then everything goes bright pink and white and makes the screen unviewable, or sometimes just goes right to a blank screen and nothing happens. I've tried rebooting a couple times and changing the IOPCI ID to 0x71c51002 just in case but still all I get is garbage or nothing.



I've followed exactly what others have done, using my own info. I'm running an ASUS Z96J ATI Mobility x1600, and I'm oh so close!! Anyone that can provide any help at all, I'm begging



hi,



trust me i know your frustration been there, but stay patient you will get there eventually.



try using my post: http://forum.insanelymac.com/index.php?sho...=0&p=571627

i have ATI X1600 mobility in LG and i got it to work, this thread have all the attachments needed and very detailed explanations.



please note that even after i succeeded sometimes it boots into a black screen or black and white stripes and then black screens, the only thing i can do for that is reboot and again until it boots correctly, that said there is a voodoo remedy: when booting press one or more key (any key will do) on the keyboard during gray apple screen.



if it doesn't help use verbose and/or fix permission load mode (at startup press F8 in the prompt write: -v -f and press enter) this will load somewhat slower causing the ATI driver to be ready and the inject to work properly.



hope you will get there, tell me if i can help more.





Enjoy your Mac.
