[Release] macOS Sequoia 15.4

[nmano]

13 hours ago, Max.1974 said:

@nmano are you using this processor ? Core Intel i9-13900K?

It's because in your  plist is mention it. So you need use more kexts and different boot arg.

I wil wait you answer to keep continuing fix for you.









So sorry @Anto65 my bad ! 😆

Yes I used i9 13900K

When I was  update OS 15.3 then sleep also not work.back to home I try your EFI.Thanks.

[Anto65]

??? You should correct your signature then... it comes out as an Intel Core i9-9980XE

[nmano]

23 hours ago, nmano said:













Edited April 13 by nmano

[nmano]

6 minutes ago, nmano said:

@Max.1974 I test your EFI folder missing driver AudioDxe.efi I add that.

I change Bios information same to USBPorts.kext check  images.

still boot with recovery mode.Reset Nvram same result.

please fix sleep for me. Thanks Max.







7 minutes ago, nmano said:









[Max.1974]

4 hours ago, nmano said:

Yes I used i9 13900K

When I was  update OS 15.3 then sleep also not work.back to home I try your EFI.Thanks.

Hi my friend, so will necessary add CpuTopolgy kext and some boot args. I will try change. It’s probably that previous EFI doesn’t work for you. I will back soon.

Opcore Simplify os better to make your EFI but my base EFI will help you. I think you are using a Asus motherboard if I’m not wrong. So it’s complex working from usb ports. Please inform your hardware complete with Aida64 from Windows or post here your specs. Including Gpu and mobo.

[Max.1974]

Here all fine with my Coffe Lake 9th i5-9600K intel

Clover 5161 // Opencore 1.0.5



https://github.com/maxpicelli/Aorus-B360-Gaming-3-Hackintosh-i5-13900k



Enjoy it 😀





🇧🇷







Edited April 13 by Max.1974

[Craig Hazan]

Good to see the correct APU name in the ATM window without having to add any dependencies in the config.plist. OpenCore 1.0.4

[Max.1974]

1 hour ago, Craig Hazan said:

Good to see the correct APU name in the ATM window without having to add any dependencies in the config.plist. OpenCore 1.0.4



Nice @Craig Hazan maybe are you have in Nvram lines the arg: revcpu=1.

[nmano]

7 hours ago, Max.1974 said:

Hi my friend, so will necessary add CpuTopolgy kext and some boot args. I will try change. It’s probably that previous EFI doesn’t work for you. I will back soon.

Opcore Simplify os better to make your EFI but my base EFI will help you. I think you are using a Asus motherboard if I’m not wrong. So it’s complex working from usb ports. Please inform your hardware complete with Aida64 from Windows or post here your specs. Including Gpu and mobo.

I update Device info motherboard and GPU from AIDA64 please check

Gigabyte Z790.rar



[Max.1974]

@nmano i prepare your EFI to test, please backup your old EFI



You need after boot and install, fix Bluetooth Wireless and remap your USB ports.

For a while not add any Bluetooth or Wireless kexts, just for Ethernet.

Use one EFI to boot, reset Nvram



 Opencore 1.0.5



EFI Raptor Lake - NMANO.zip

This EFI is ready to OCLP build.

[Craig Hazan]

7 hours ago, Max.1974 said:

maybe are you have in Nvram lines the arg: revcpu=1.



I just realized I posted the wrong ATM window. in that 1st image the entry revcpu=1 was in the NVRAM section. But in this screenshot you can see there's no revcpu=1 in the config and the ATM window displays the full name. Lilu 1.7.0 received AMD iGPU detection and thanks to NootedRed, the full correct name is displayed.







Edited April 14 by Craig Hazan

[Craig Hazan]

Also, Intel BT still working with 'IntelBluetoothFirmaware' and 'BlueToolFixup'. HackinDROM doesn't line up the listed kexts with the version number.



[Max.1974]

Very nice. I need know this tool

thanks 🙏🏻

[Craig Hazan]

4 minutes ago, Max.1974 said:

Very nice. I need know this tool

thanks 🙏🏻

It's called HackinDROM, here's a link.



https://github.com/Inqnuam/HackinDROM

[Max.1974]

2 hours ago, Craig Hazan said:

It's called HackinDROM, here's a link.



https://github.com/Inqnuam/HackinDROM

Thanks my friend, I will check this program!!



[nmano]

8 hours ago, nmano said:

I update Device info motherboard and GPU from AIDA64 please check

Gigabyte Z790.rar 61.77 kB · 3 downloads



I test your latest EFI

Check ioreg still sleep not work.

Thanks Max.

navaratnam’s iMac Pro.ioreg









Edited April 14 by nmano

[Max.1974]

Hi @nmano are you mapping your USB ports?



So prepare your EFI to sleep but are you modified or add some Bluetooth Kexts?

You can get update Sequoia?



You need disable all on energy to fix sleep (without bash)



Test my tool to sleep is bash command



Double click and tested your Sleep





USBFIX_SLEEP.zip



Need check with Hackintool your USB menu and see if you mapping everything ok, internal, external, 2.0, 3.0...



Print HT menu and posted here, please like that:









Check your CPU Power Management





https://dortania.github.io/Getting-Started-With-ACPI/Universal/plug-methods/manual.html#dsdt







Edited April 14 by Max.1974

[Max.1974]

You need mapping your USB ports to sleep well



Check my video sleeping my Desktop now.



Spoiler













Run this command to see if you SMBUS is correctly :



kextstat | grep -E "AppleSMBusController|AppleSMBusPCI"



Need back two lines like print





You need check your DSDT and fix your CPU Power Management see this post and SSDTS to add



https://github.com/jsassu20/OpenCore-HotPatching-Guide/blob/master/05-Injection equipment/05-1-Inject X86/README.md



Try add this SSDT using OCAT or use ProperTree to get OC Clean Snapshot in your EFI:



SSDT-PLUG-SB.PR00.zip



Edited April 14 by Max.1974

[nmano]

5 hours ago, Max.1974 said:

You need mapping your USB ports to sleep well



Check my video sleeping my Desktop now.



  Reveal hidden contents















Run this command to see if you SMBUS is correctly :



kextstat | grep -E "AppleSMBusController|AppleSMBusPCI"



Need back two lines like print





You need check your DSDT and fix your CPU Power Management see this post and SSDTS to add



https://github.com/jsassu20/OpenCore-HotPatching-Guide/blob/master/05-Injection equipment/05-1-Inject X86/README.md



Try add this SSDT using OCAT or use ProperTree to get OC Clean Snapshot in your EFI:



SSDT-PLUG-SB.PR00.zip 911 B · 2 downloads



I test SSDT-PLUG-SB.PR00 not boot

this one can boot SSDT-PLUG-ALT.aml

SSDT-PLUG-ALT.aml







[camillionario]

I had a CPU performance issue with Geekbench, so I had to use CPUFriend and CPUFriendDataProvider, which gave me better CPU performance and allowed me to watch 8K videos without lag. I think these kexts are necessary in the Raptor Lake configuration.

the right image without CPU kexts and the left one with the CPU kexts





[Max.1974]

Hi my friend @nmano oh nice! I hope you fixed that! Important is read about patchers and choose the better for your machine.



@camillionario my dear friend, I get better than without any Cpufriend kexts, even little bit lass.





Edited April 15 by Max.1974

[camillionario]

28 minutes ago, Max.1974 said:

Hi my friend @nmano oh nice! I hope you fixed that! Important is read about patchers and choose the better for your machine.



@camillionario my dear friend, I get better than without any Cpufriend kexts, even little bit lass.





If you're not using kexts, you're probably using ssdt.
I'm using Opencore and I've chosen to use kexts instead of ssdt.

[Max.1974]

Yes maybe my SSDTs can do it but Clover get Intel CPUPM.



[panosru]

For me, 15.4 introduced a new headache, not only iOS Simulator not working, but now whenever I try to do something that requires a password I get the window with "Enter your password to allow this" message when I enter my password and press enter, it takes like 2 - 3 minutes to get processed. Additionally, the continuity camera does not work, once I try to connect my iPhone's camera, my Hackintosh freezes instantly (that has been happening since Sequoia release). For anyone interested, I have attached my EFI, I used to run on MacPro7,1 for a long time, but now I switched to iMacPro1,1. The main reason was that I wanted to try maybe it will somehow help with the issues described above, but, in terms of performance and stability, I could say that I don't see any difference so far.



I read that iMacPro1,1 is better compared to MacPro7,1 because it is cleaner, has no fake T2 SSD patching, no weird GPU bus ID remapping, no secure boot conflicts, sleep works more reliably etc. but, frankly speaking, I see no difference since I kept the same EFI as I had with MacPro7,1. I'm also using OCLP patcher for WiFi since I'm on a Broadcom chipset.

efi.7z

[Slice]

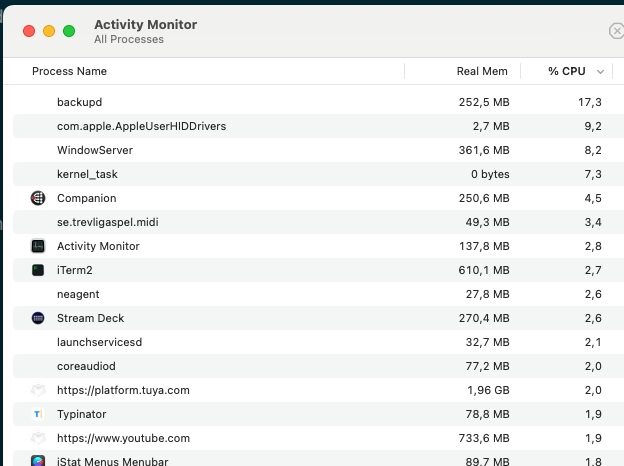

Check CPU load in System Monitor. It looks like standard problem already discussed and resolved in the thread.
