[SUCCESS] AMD Radeon Pro WX 4100 4GB in Big Sur


13 posts in this topic

Recommended Posts

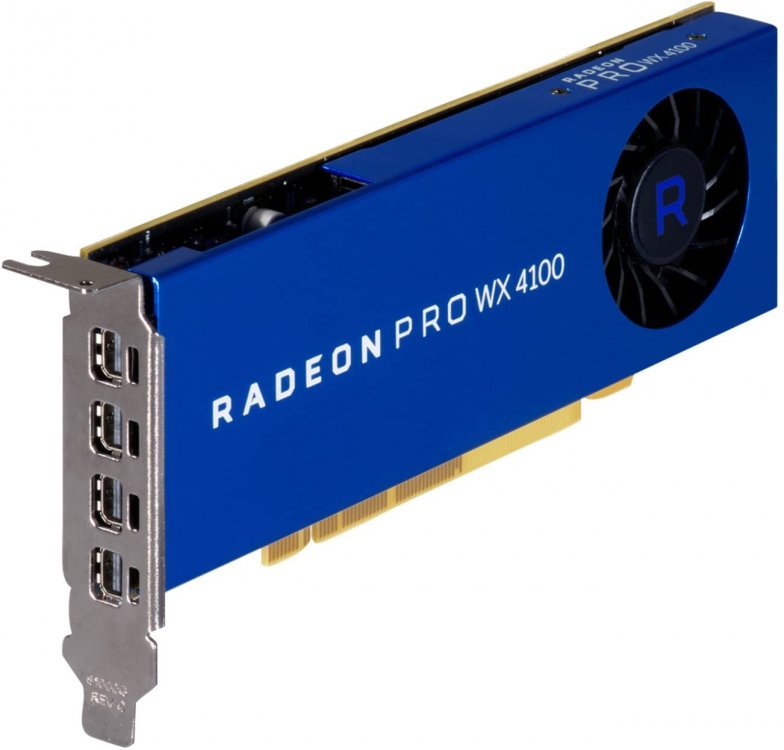

I have tested a Radeon Pro WX 4100 graphics card on macOS Big Sur 11.2.3. These are its main characteristics:


  • 4GB of 128-bit GDDR5 memory
  • GPU architecture: Polaris
  • PCIe x16 bus with 50W TBP
  • 4x Mini-DisplayPort 1.4
  • card width: single slot
  • card length: 168mm
  • release date: july 2016.


It is a small card with low power consumption so it does not need an additional power connector. It comes with 2 adapters, one low profile and one high profile, to be used in different types of boxes


In Big Sur it has worked perfectly. I have tried it with and without WhateverGreen:


  • with WEG: all 4 miniDP ports work
  • without WEG: only the 2 miniDP ports closest to the motherboard work, the other 2 show the boot screen but, when reaching the desktop, they show a black screen.


Except for this problem with 2 miniDP ports, the card seems to work just as well with and without WEG. The desktop in 4K monitor with 2560x1440 resolution has a fluid behavior and high quality images.

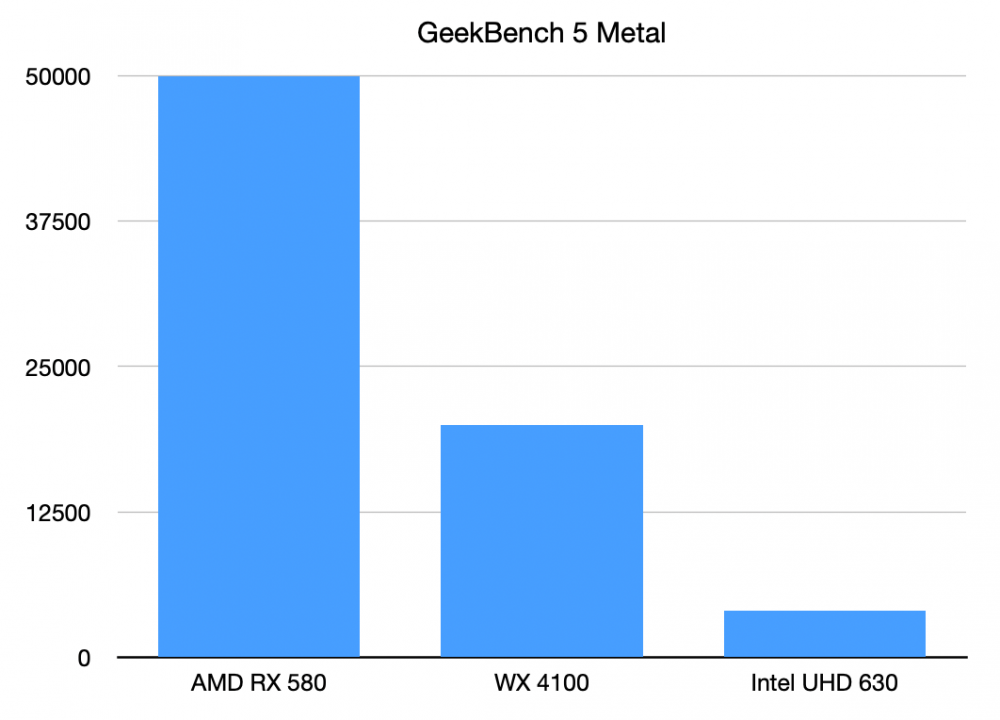

Its performance is higher than that of Intel iGPUs in recent CPU families. For example, GeekBench 4 Metal has scores around 20.000. For comparison, my RX 580 8GB typically scores 48.000-50.000 points and the Intel 630 iGPU of my i9-9900K CPU scores 4.000 points.





In short: It is a perfectly valid graphics card for Big Sur, with good performance except for demanding tasks. Due to its size, it is suitable for small boxes. It does not need extra power supply. The little fan is always on but is very quiet.


Disadvantages: Like all graphics cards today, it is expensive and difficult to find.




Edited by miliuco
  • Like 5
  • Thanks 2
Link to comment
Share on other sites

The information is already in Dortania's buying guide, although the WX 7100 is misclassified: All Radeon Pro WX from 4100 onwards work out of the box.

The low to mid-range, single slot, Polaris-based WX 4100 (PCIe x8 electrical), WX 5100, WX 7100 are supported from OS X Sierra; the high-end WX 8200 (Vega 56) and WX 9100 (Vega 64), from High Sierra. I've used all these except the WX 9100 with Mojave.



Lexa-based WX 2100, WX 3100 and WX 3200 do NOT work.

  • Like 1
Link to comment
Share on other sites

@Allan @Hervé @MaLd0n @Shaneee ... one of you to please change my post from DSDT and SSDT > Graphics Cards > AMD/AT to Hardware Components and Drivers > Graphics Cards or wherever you see it more appropriate.
I see that I was not attentive when I posted it and it is in a forum that is not correct.
Thanks a lot!!!

  • Like 1
Link to comment
Share on other sites

2 hours ago, miliuco said:

@Allan @Hervé @MaLd0n @Shaneee ... one of you to please change my post from DSDT and SSDT > Graphics Cards > AMD/AT to Hardware Components and Drivers > Graphics Cards or wherever you see it more appropriate.
I see that I was not attentive when I posted it and it is in a forum that is not correct.
Thanks a lot!!!

Moved to Tutorials (The Genius Bar) :)

Link to comment
Share on other sites

16 hours ago, miliuco said:



Talking about your hardware, how well does the C246 and C621 server boards work with macOS? Are you using them with Big Sur? With MacPro7,1 SMBIOS?

Wow, what machines!!!

Thanks. So, at risk of being off-topic here:

The C246-WU4 and C246N-WU2 are actually "workstation" boards, not servers, and they work… just like ordinary Z370 desktops (iMac19,1 SMBIOS). They boot straight into OS X (tested Mojave, Catalina, Big Sur) with any OpenCore version I have tested. No SSDT-AWAC, no MAT (use WriteUnprotector, as in default config.plist), no custom slide needed. In some ways, these boards are possibly even easier to set up than Z390 (which is understandable as the C246 chipset is merely a conservative, enterprise-minded, version of Z370, or rather Q370, with ECC RAM support).



The C621-SU8, despite its name, is actually designed for mixed use as server (it has a BMC) or workstation (… and an audio codec). It took me some months to have it boot. I use iMacPro1,1 SMBIOS because I still use 32-bit apps under Mojave—and I'm no fan of the iOS-inspired Big Sur look, to put it mildly. But the C621-SU8 can boot, install and update Big Sur: With its own SSDT-PMC it has native NVRAM! Frustratingly for me, it can boot an existing Mojave or Catalina installation but I have not yet managed to install or update Mojave or Catalina in place, the installer always gets stuck at or around "IOHDIX Controller: NOTE: administrator is creating non-ejectable disk image".

I have to write up a full guide for it, but I'd like to get to the bottom of the remaining issues.

  • Like 2
Link to comment
Share on other sites

1 hour ago, yapan4 said:

Hi @miliuco.

Do you have the ability to check the dual monitor configuration?
What do you say about the problem (or not?) described in this topic https://www.insanelymac.com/forum/topic/346539-gpuvmem-stuck-to-full-speed-when-2nd-display-connected/

Thank you.

Sorry, currently I haven't a second monitor to check this feature.



But with my usual RX 580 card I have tried 2 monitors and 2 monitors + 1 TV and everything has worked well, without observing the problem that they comment on in the link that you have put.



4 hours ago, etorix said:

Thanks. So, at risk of being off-topic here:

The C246-WU4 and C246N-WU2 are actually "workstation" boards, not servers, and they work… just like ordinary Z370 desktops (iMac19,1 SMBIOS). They boot straight into OS X (tested Mojave, Catalina, Big Sur) with any OpenCore version I have tested. No SSDT-AWAC, no MAT (use WriteUnprotector, as in default config.plist), no custom slide needed. In some ways, these boards are possibly even easier to set up than Z390 (which is understandable as the C246 chipset is merely a conservative, enterprise-minded, version of Z370, or rather Q370, with ECC RAM support).



The C621-SU8, despite its name, is actually designed for mixed use as server (it has a BMC) or workstation (… and an audio codec). It took me some months to have it boot. I use iMacPro1,1 SMBIOS because I still use 32-bit apps under Mojave—and I'm no fan of the iOS-inspired Big Sur look, to put it mildly. But the C621-SU8 can boot, install and update Big Sur: With its own SSDT-PMC it has native NVRAM! Frustratingly for me, it can boot an existing Mojave or Catalina installation but I have not yet managed to install or update Mojave or Catalina in place, the installer always gets stuck at or around "IOHDIX Controller: NOTE: administrator is creating non-ejectable disk image".

I have to write up a full guide for it, but I'd like to get to the bottom of the remaining issues.



Thanks for the info!!!

Edited by miliuco
  • Like 1
Link to comment
Share on other sites

  • 8 months later...

I know this post is a little old, but I thought to be relevant . I just bought on EBAY a Refurbished WX4100 Refurbished for $220. I added the GPU on my RIG to help the Load of my RX580SE and BAM! :thumbsup_anim:

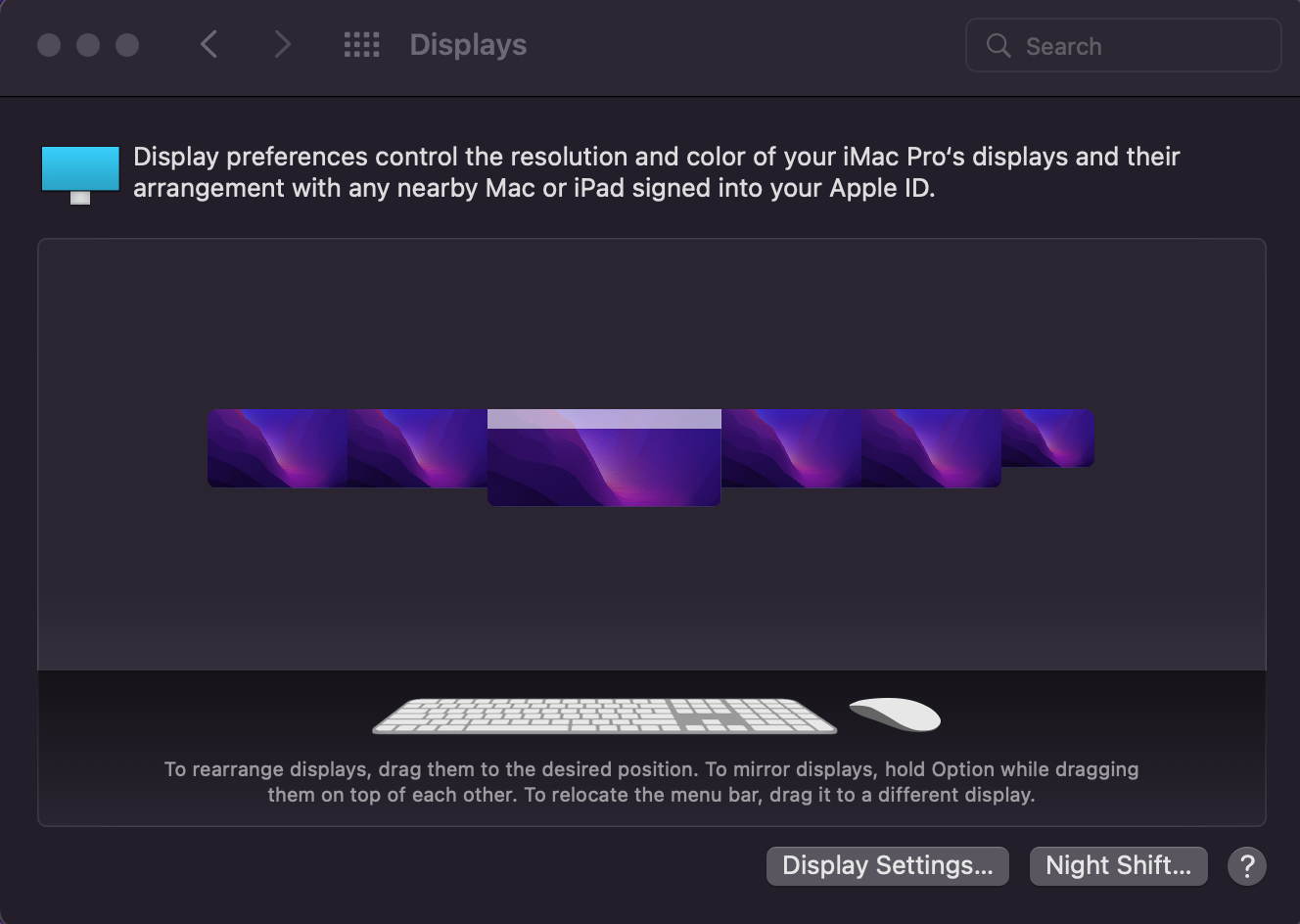

Running 6 Monitors on Mojave, big Sur & Monterey.  No extra Patch needed.

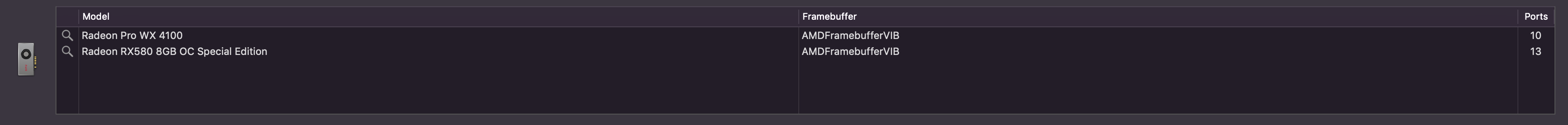

.302836976_ScreenShot2021-12-09at7_27_11PM.thumb.png.d8f839d8692df7e63b0c93cb3cf63114.png



767816338_ScreenShot2021-12-09at22_55_12.thumb.png.f0a28314d7798a80fda6db4ed7309d33.png

Edited by Ellybz
  • Like 1
Link to comment
Share on other sites

  • 5 months later...
Posted (edited)

For those who have this card but what I observed probably also applies to all Polaris Cards, I just wanted to report a couple of things from my testing on Monterey:

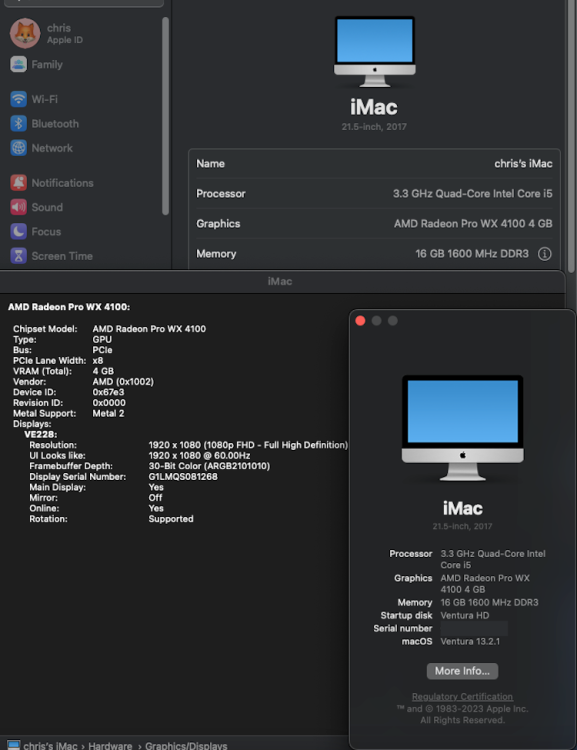

The card indeed works out of the box and for me was a path to improved DRM support.



1. Out of the box the temperature and power consumption appeared to be on the high side: about 45-50C at idle, and reporting 25-35W on SMC,

2. There is what I believe to be a MacOS/AMD driver issue causing a drop in GB5 metal scores from ~21K to ~13K under certain situations.





Temperature

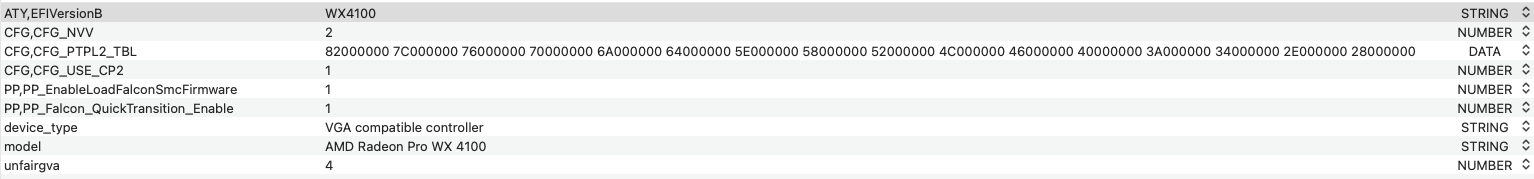

This all got me interested in Radeonboost.kext and after quite a bit of testing, I have injected the following device properties from Radeonboost into my config.plist and compared to the polarisboost section to the default entries of the relevant AMD9500Controller.kext and AMDRadeonX4000.kext:




  • The CFG,CFG_PTPL2_TBL entry is an addition and alone appears to increase the GB5 metal scores by 2-3K. (I now see ~25K or 15K, more details below)
  • All the other entries (except unfairgva which is for WEG and is the topic of another thread I started) appear to be identical to the default settings in the S,L,E files but for some reason I don't quite understand, adding them causes the power profile of the card to change dramatically, dropping temperatures by >10C (SMC now reports 30-35C at idle and my box is noticeably cooler) and power by 10W at idle.

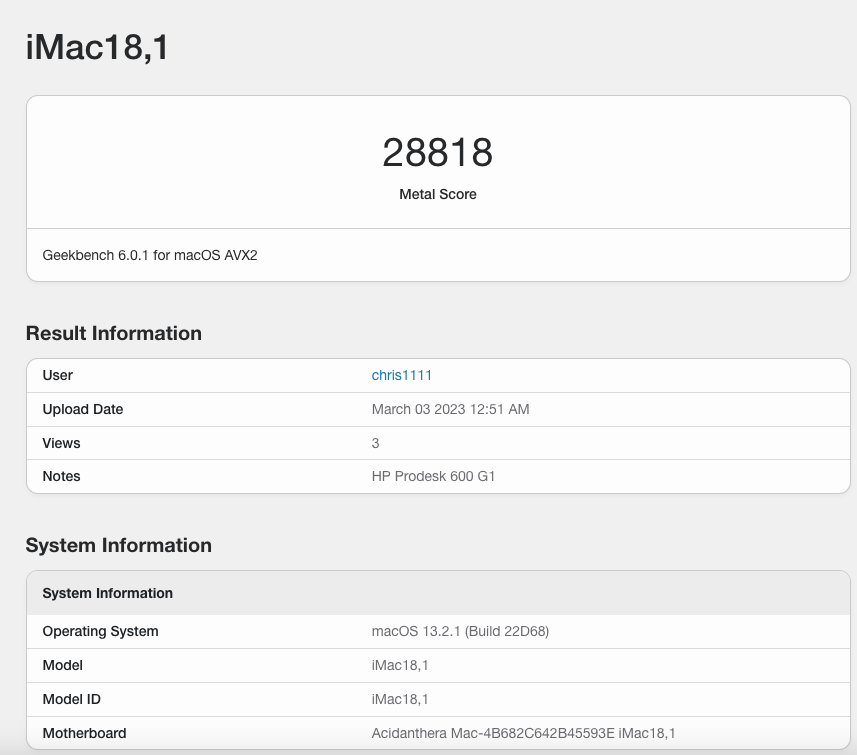

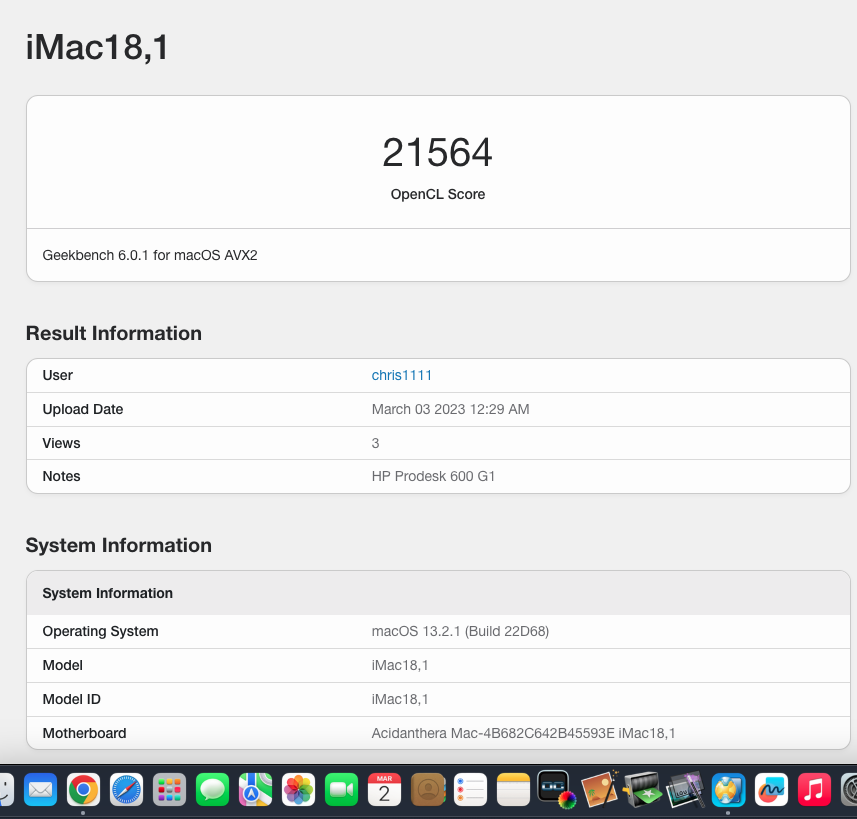

GB5 Metal

  • I initially found people that it was SMBIOS related: iMacPro1,1 and MacPro7,1 causes this drop in performance. This applies also on other AMD GPUs.
  • I am also observing this problem on all other SMBIOS when I use the unfairgva=4 property which patches the board-id to an iMacPro1,1 board to move DRM decoding to the AMD card.
  • Finally discovered that this problem can also be reproduced on my iMac20,2 SMBIOS after we force the video decoding to the AMD GPU through a command line and have used the dGPU decoding at least once. The only recovery path I found in this situation is to sleep and wake or to reboot.
Edited by rafale77
  • Like 1
Link to comment
Share on other sites
