[pre-release] macOS Big Sur

[Max.1974]

5 minutes ago, iCanaro said:

when it got to the point that to edit the plist uses opencore configurator.... I closed the video and good night!



Did you see what they do? He dropped that kext and uncheck 4360 line at Kernal config. Works very nice....good night!!





[sonicthehedgehog2]

54 minutes ago, Max.1974 said:

Hi guys, im watch a good video tutorial to make wireless work. Im my case, my Lenovo with Brcm card.



Sorry if not could post link here, im deleted if not...



This guy use OpencoreConfigurator and work like a charm!!! Im not need deleted Snapshot



Fix Wireless Big Sur



How to make wifi broadcom work in MacOS Big Sur Beta 2 on Hackintosh OpenCore



credits: Luis Martinez



Works fine with BS B4

LOL - the OC install guide warns against using OC configurator



[Badruzeus]

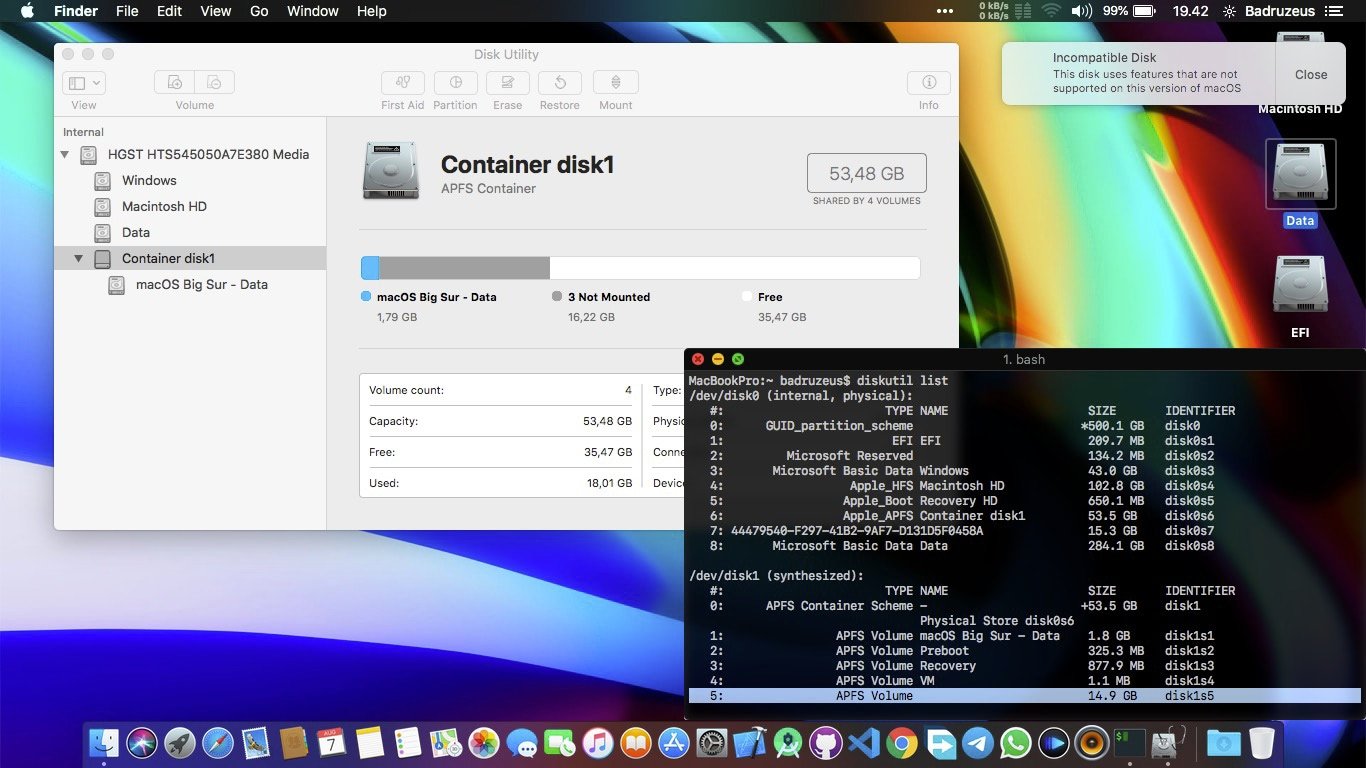

Hmmb, no longer able to mount BS Public Beta Root ( / ) partition under HighSierra 10.13.6, but - Data only from APFS Container.

Edited August 7, 2020 by Badruzeus

[manmo71]

Spoiler



@SavageAUS see if you can get hold of @MaLd0n, he is an expert in the area of DSDT & SSDT. He might be able to help you out...

Edited August 7, 2020 by manmo71

[manmo71]

Even though I have BS Developer Beta 4 installed, I downloaded recently released Public Beta created a USB installer and managed to install it onto a separate m.2 SSD drive.



The installation went on until the final boot (where it is supposed to complete the installation, Keyboard, AppleID)

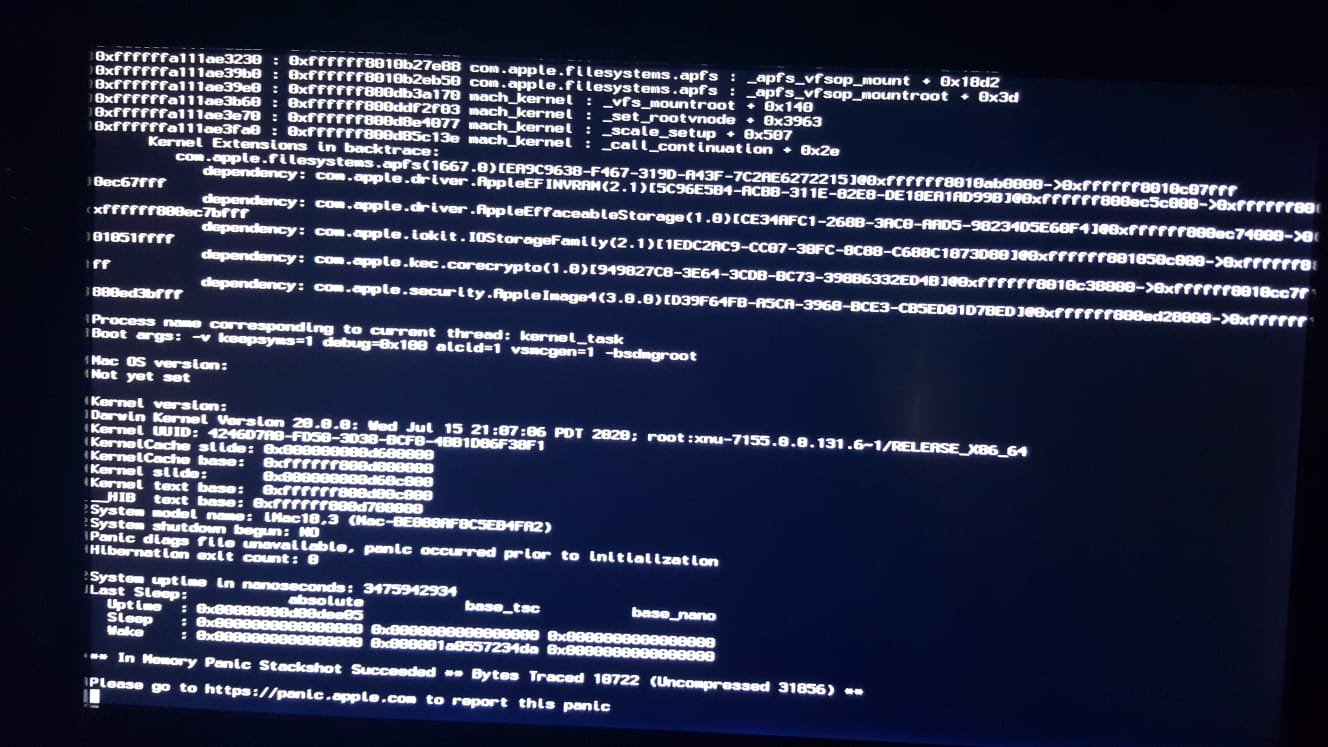

But during the boot it throws up KP, the same EFI boots BS Developer B4.



Spoiler



Anyone have any pointers as to what might be the issue?

I have already tried resetting the NVRAM.

I am posting this from BS DB4.

Edited August 7, 2020 by manmo71

[Max.1974]

40 minutes ago, sonicthehedgehog2 said:

LOL - the OC install guide warns against using OC configurator



I have no choice to install wireless, that works in B1, B2 and B3, but in B4 not.

Use with carefully, last update and will work nice...use with your EFI closed. Just compile and another folder

Works fine without error to me in my EFI from boot HD, because im had backup on my pen drives...

After run and set kexts works nice!!!



[Max.1974]

32 minutes ago, manmo71 said:

Even though I have BS Developer Beta 4 installed, I downloaded recently released Public Beta created a USB installer and managed to install it onto a separate m.2 SSD drive.



The installation went on until the final boot (where it is supposed to complete the installation, Keyboard, AppleID)
But during the boot it throws up KP, the same EFI boots BS Developer B4.



  Reveal hidden contents



Anyone have any pointers as to what might be the issue?

I have already tried resetting the NVRAM.

I am posting this from BS DB4.

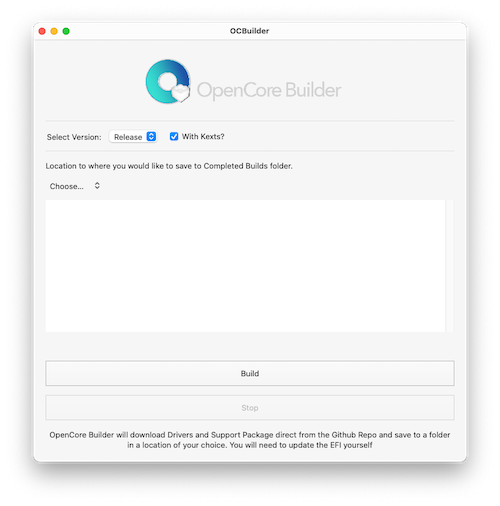

Im get this erros, im fix that using OCBuilder app from @Pavo (need Xcode installed) and change all drivers, folders, except my config plist, and update especially my kexts. Not use audios because its to much big, deleted. So im run nice install from BS B4.

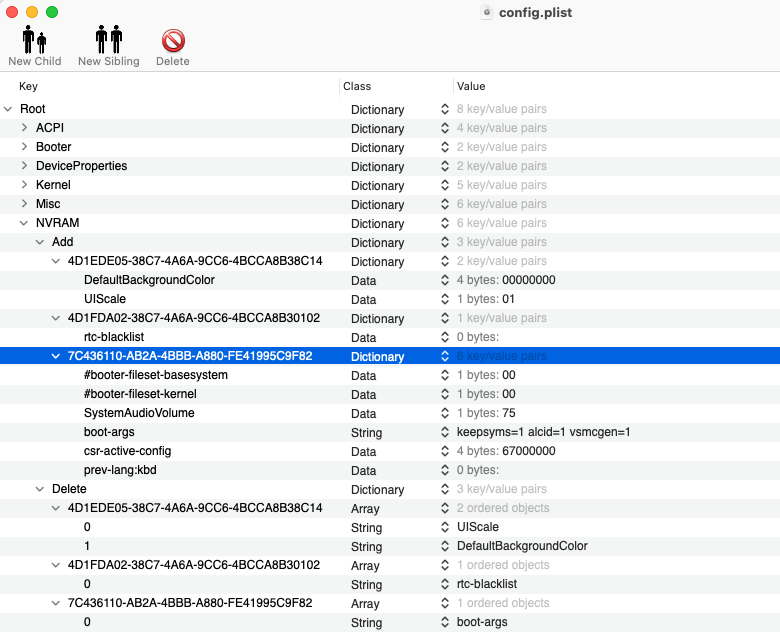

But im notice that im use Nvram with this settings on boot args... for fresh install AND for final boot...

BACKUP yours files first!!!

Enjoy!!!







https://github.com/Pavo-IM/ocbuilder/releases/tag/7.4.4



Use Release ... good luck





Edited August 7, 2020 by Max.1974

[rubenpp]

2 hours ago, Max.1974 said:





Thanks my friends, @rubenpp its a hidden file, need type "shift + command + . (comma)" to see hidden files.



Thanks @eSaF my friend, im not will install the new beta, im was read your comments in another site  so im decide wait  now, for the updates... good day to all!!!



You're most welcome @Max.1974 ! Sorry still no sign of the file after enabling show hidden files.

[d5aqoep]

2 hours ago, Max.1974 said:

Hi guys, im watch a good video tutorial to make wireless work. In my case, my Lenovo with Brcm card.



Sorry if not could post link here, im will delete if not my friends MODS...



This guy use OpencoreConfigurator and work like a charm!!! Im not need deleted Snapshot



Fix Wireless Big Sur



How to make wifi broadcom work in MacOS Big Sur Beta 2 on Hackintosh OpenCore



credits: Luis Martinez



Works fine with BS B4



You need these 4 kexts to make BRCM NGFF cards like BCM94352Z to work in Big Sur

1. AirportBrcmFixup.kext
2. BrcmBluetoothInjector.kext
3. BrcmFirmwareData.kext
4. BrcmPatchRAM3.kext



Download latest AirportBrcmFixup kext from here (Release version)

https://github.com/acidanthera/airportbrcmfixup/releases



Other 3 kexts download from here (Release version)

https://github.com/acidanthera/BrcmPatchRAM/releases



AirportBrcmFixup.kext contains 2 kext injectors AirPortBrcmNIC and AirPortBrcm4360.

Make sure you just add AirportBrcmFixup.kext & AirPortBrcmNIC and uncheck AirPortBrcm4360 if using Opencore Configurator. Latest version released yesterday has many fixes for OC 0.6.1 compatibility. OR do your own thing with Plist editor Pro / Xcode to make sure only AirPortBrcmNIC is loaded.



Reboot and you should get Wifi back. I assume you are using latest versions of Opencore and Lilu.



Link to latest Lilu

https://github.com/acidanthera/Lilu/releases



Link to Latest OpenCore

https://github.com/acidanthera/OpenCorePkg/releases



Link to latest VirtualSMC

https://github.com/acidanthera/virtualsmc/releases



Link to latest WhateverGreen

https://github.com/acidanthera/whatevergreen/releases



Link to latest IntelMausi Onboard Intel LAN

https://github.com/acidanthera/IntelMausi/releases











Edited August 7, 2020 by d5aqoep

[sonicthehedgehog2]

4 minutes ago, d5aqoep said:



You need these 4 kexts to make BRCM NGFF cards to work in Big Sur

1. AirportBrcmFixup.kext
2. BrcmBluetoothInjector.kext
3. BrcmFirmwareData.kext
4. BrcmPatchRAM3.kext



Download latest AirportBrcmFixup kext from here (Release version)

https://github.com/acidanthera/airportbrcmfixup/releases



Other 3 kexts download from here (Release version)

https://github.com/acidanthera/BrcmPatchRAM/releases



AirportBrcmFixup.kext contains 2 kext injectors AirPortBrcmNIC and AirPortBrcm4360.

Make sure you just add AirportBrcmFixup.kext & AirPortBrcmNIC and uncheck AirPortBrcm4360 if using Opencore Configurator. Latest version released yesterday has many fixes for OC 0.6.1 compatibility. OR do your own thing with Plist editor Pro / Xcode to make sure only AirPortBrcmNIC is loaded.



Reboot and you should get Wifi back. I assume you are using latest versions of Opencore and Lilu.



Thanks d5aqoep, I'v just started collecting my kexts in preparation to create a USB

[DarkNeptune0]

Anyone has trouble starting BigSur without the verbose mode and show picker turned off?

[Alex HQuest]

3 hours ago, manmo71 said:

  Reveal hidden contents



@SavageAUS see if you can get hold of @MaLd0n, he is an expert in the area of DSDT & SSDT. He might be able to help you out...

If you are still talking about dual boot with OC, while I do recognize and respect MaLd0n’s effort in helping the community with the immense amount of ACPI fixes he does, I doubt his approach would be beneficial to SavageAUS needs: He strips things down to the point “it only works on macOS”, instead of adding the right selections for each particular OS as a unified, single table. Which therefore causes these common ACPI_BIOS_ERROR blue screen and inability of OC to perform as natural as expected.

Edited August 7, 2020 by Alex HQuest

[Jake Lo]

7 hours ago, d5aqoep said:

A question for everyone: The itlwm itlwmx Intel kexts developed by some awesome dev spoofs the Intel AX200 as ethernet. Is it possible to make his kext work as native Apple Wifi and use Apple’s own Wifi picker?

This might be what you need, but it seems to be for Catalina for now.

https://github.com/usr-sse2/Black80211-Catalina

[Max.1974]

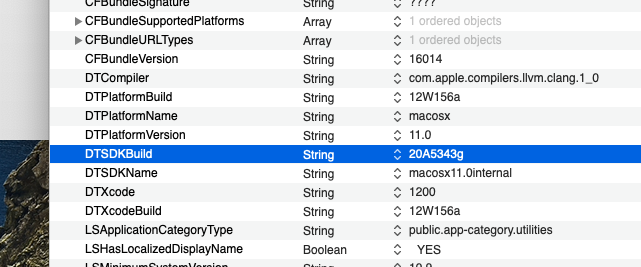

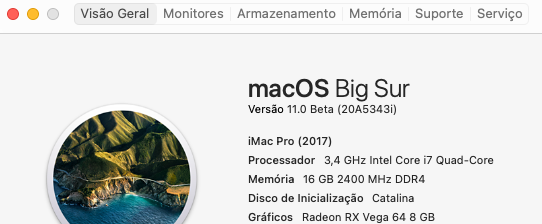

Hi Guys, info.plist from App Store when we enroll Mac from Catalina show another image with final "g".







But when update shows up " i " at the Installation...





20 min to install and not issues with OC update and kexts...!!!



Best Regards at all...



Thanks my friend @rubenpp don't worry, its happens when change systems, is because my job depends 110% from e-token signature...

God bless you are...

[markl18]

7 hours ago, dannyboy9 said:

He is currently working on it. There is another script that gives you a Wifi picker but that has to be activated every single time. So might as well live with what the itlwm guy has to offer.

it is in my Big Sur ver 4 setup works 70 mbs in g mode not 400 but baggers can't be choosy

[Streets]

23 hours ago, bisdak4920 said:

Public Beta



@bisdak4920

I have one ASUS H97M-E with OpenCore 061 works well with Catalina but I can't intall from usb.

It always stop the instal when there are 12 minutes left.

Could you help me with my EFI?

Thanks a lot



Edited August 8, 2020 by Streets

[bisdak4920]

1 hour ago, Streets said:

@bisdak4920

I have one ASUS H97M-E with OpenCore 061 works well with Catalina but I can't intall from usb.

It always stop the instal when there are 12 minutes left.

Could you help me with my EFI?

Thanks a lot

EFI.zip

We have the same problem. My installation is is by VMWARE using @ludufre method which is very fast and easy. Sorry I can't help you on USB install.

[TrickyHunter]

13 hours ago, Alex HQuest said:

@TrickyHunter It better be: the 2020 iMac 27" comes with a 5700XT card, so Apple will give this card a white glove treatment

Well, there's slight difference here haha. The new 5700 XT is a Radeon Pro (16GB memory) and ours are Radeon (8GB memory). But agree it's a good indication!



One issue I had on Catalina (with the same OC build/kexts/config) was that my mouse cursor had sudden small jumps, a couple of pixels every time. And it's fixed in Catalina. So it's promising that there'll be better support for the 5700 XT.

[SavageAUS]

13 hours ago, Alex HQuest said:

If you are still talking about dual boot with OC, while I do recognize and respect MaLd0n’s effort in helping the community with the immense amount of ACPI fixes he does, I doubt his approach would be beneficial to SavageAUS needs: He strips things down to the point “it only works on macOS”, instead of adding the right selections for each particular OS as a unified, single table. Which therefore causes these common ACPI_BIOS_ERROR blue screen and inability of OC to perform as natural as expected.

Yeah I have an open thread about my laptops sleep issue that MaLdOn is helping with and the dsdt he created for me works great, no sleep though and I think usb power isn’t working either but yeah also causes windows 10 to stop booting with the ACPI error. I am awaiting his reply in the thread. Would be great if the OC team brought back the EnableForAll (or what ever it was) quirk that only enables OC’s patches etc in macOS and leaves other OS’s alone.


Sent from my iPhone using Tapatalk

[d5aqoep]

7 hours ago, Jake Lo said:

This might be what you need, but it seems to be for Catalina for now.

https://github.com/usr-sse2/Black80211-Catalina

Thanks but 2 problems with that one

1. Does not support itlwmx (AX200)
2. Does not support Big Sur

[diskeeper]

5 hours ago, Streets said:

@bisdak4920

I have one ASUS H97M-E with OpenCore 061 works well with Catalina but I can't intall from usb.

It always stop the instal when there are 12 minutes left.

Could you help me with my EFI?

Thanks a lot



Make sure You have only the necessary files in Your Drivers folder and in the config.plist UEFI/Drivers section. I struggled with the same thing.



Spoiler



[manmo71]

@SavageAUS @Alex HQuest @Max.1974  Thank you for all your assistance.



I finally managed to get BS Public Beta installed on my system (onto a separate m.2 SSD) from a USB.



Things that I did



1. Replaced the USB drive with a newly purchased one.
2. Did a fresh download of the public beta installer.
3. Created installer and did the install.
4. Kexts and config.plist file was unchanged from the previous install.



I noticed that this time that the drive sealing stage went through a bit slower and showed success message (previously I suspect there were errors, the verbose mode scrolls so fast that it is difficult to read) and the boot went through successfully.

I think in my previous installs the sealing phase had failed, and thats what caused the KP as reported in my earlier posts.



Is there a boot-arg or some hotkey that can enable a log of all that shows up on the -v (verbose screen during boot) up until the point we get to the desktop?



I would like to see that and evaluate, to see if there are areas or error which can be eliminated.



[Alex HQuest]

@manmo71 you could use the “show log” CLI command - or use a tool like Hackintool that has ways to show you your system logs since the last boot. These includes from the kernel load up to “where you are”. Then for “next logs” you can always use native Console app.

[Alex HQuest]

@SavageAUS I would not wait on OC team: they already stated this is not the intended use case for their loader. The intent of OC is to be as much similar to the real Apple boot loader. Therefore it is on us (end users) to fix ACPI tables (amongst other things) so the system boots under OS A or B. Might sound unfortunate but I understand now their rationale in such move and I too agree it make sense.

[Riley Freeman]

Way back when I used Ozmosis on my Z68 I had to make all of my DSDT device injections conditional so they wouldn't interfere with Windows. Here's the relevant sections from my DSDT patch. Hopefully this helps a bit.



Spoiler

# ********************************************************************************
#   Add method DTGP
# ********************************************************************************
into method label DTGP remove_entry;
into definitionblock code_regex . insert
begin
Method (DTGP, 5, NotSerialized)\n
{\n
    If (LEqual (Arg0, Buffer (0x10)\n
        {\n
            /* 0000 */    0xC6, 0xB7, 0xB5, 0xA0, 0x18, 0x13, 0x1C, 0x44,\n
            /* 0008 */    0xB0, 0xC9, 0xFE, 0x69, 0x5E, 0xAF, 0x94, 0x9B\n
        }))\n
    {\n
        If (LEqual (Arg1, One))\n
        {\n
            If (LEqual (Arg2, Zero))\n
            {\n
                Store (Buffer (One)\n
                    {\n
                        0x03\n
                    }, Arg4)\n
                Return (One)\n
            }\n
            If (LEqual (Arg2, One))\n
            {\n
                Return (One)\n
            }\n
        }\n
    }\n
    Store (Buffer (One)\n
    {\n
        0x00\n
    }, Arg4)\n
    Return (Zero)\n
}
end;
# ********************************************************************************
#   Add method OSDW
# ********************************************************************************
into method label OSDW remove_entry;
into definitionblock code_regex . insert
begin
    Method (OSDW, 0, NotSerialized)\n
    {\n
        If (LEqual (OSYS, 0x2710))\n
        {\n
            Return (One)\n
        }\n
        Else\n
        {\n
            Return (Zero)\n
        }\n
    }
end;
# ********************************************************************************
#   Add Darwin to OS list
# ********************************************************************************
into method label _INI replace_content
begin
            Store (0x07D0, OSYS)\n
            If (CondRefOf (_OSI, Local0))\n
            {\n
                If (_OSI ("Darwin"))\n
                {\n
                    Store (0x2710, OSYS)\n
                }\n
                If (_OSI ("Windows 2001"))\n
                {\n
                    Store (0x07D1, OSYS)\n
                }\n
                If (_OSI ("Windows 2001 SP1"))\n
                {\n
                    Store (0x07D1, OSYS)\n
                }\n
                If (_OSI ("Windows 2001 SP2"))\n
                {\n
                    Store (0x07D2, OSYS)\n
                }\n
                If (_OSI ("Windows 2001.1"))\n
                {\n
                    Store (0x07D3, OSYS)\n
                }\n
                If (_OSI ("Windows 2006"))\n
                {\n
                    Store (0x07D6, OSYS)\n
                }\n
                If (_OSI ("Windows 2009"))\n
                {\n
                    Store (0x07D9, OSYS)\n
                }\n
            }\n
end;
# ********************************************************************************
#   Inject HDEF device (Layout ID 1)
# ********************************************************************************
into method label _DSM parent_adr 0x001B0000 remove_entry;
into device name_adr 0x001B0000 insert
begin
Method (_DSM, 4, NotSerialized)\n
{\n
    Store (Package (0x04)\n
        {\n
            "layout-id",\n
            Buffer (0x04)\n
            {\n
                0x01, 0x00, 0x00, 0x00\n
            },\n
            "PinConfigurations",\n
            Buffer (Zero) {}\n
        }, Local0)\n
    DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))\n
    If (OSDW ())\n
	 {\n
	   Return (Local0)\n
	 }\n
	 Else\n
	 {\n
	   Return (Zero)\n
	 }\n
}
end;
