AudioGod's Aorus Z390 Pro Patched DSDT Mini Guide and Discussion

AudioGod

By AudioGod,
in Installation Guides

 Share
5539 posts in this topic

Recommended Posts

kiko89
kiko89
Posted
Posted (edited)

Hi guys,

thanks for yours forum and specially @AudioGod, my hackintosh is perfect!

A doubt came to me. I noticed that there are Port-Limit Removal Patches in the config.plist. They're necessary? If the ports are mapped they shouldn't be needed. Am I wrong?



thanks for support!

Edited by kiko89
  • Like 1
AudioGod
AudioGod
Posted
  • Author
Posted
1 minute ago, kiko89 said:

Hi guys,

thanks for yours forum and specially @AudioGod, my hackintosh is perfect!

A doubt came to me. I noticed that there are Port-Limit Removal Patches in the config.plist. They're necessary? If the ports are mapped they shouldn't be needed. Am I wrong?



thanks for support!

Hi guys,

thanks for yours forum and specially @AudioGod, my hackintosh is perfect!

A doubt came to me. I noticed that there are Port-Limit Removal Patches in the config.plist. They're necessary? If the ports are mapped they shouldn't be needed. Am I wrong?



thanks for support!


Hi,

if your using clover then leave everything as is,I have no port limits on the usb via clover and all ports are enabled and native via the ssdt. :)

kiko89
kiko89
Posted
Posted
15 minutes ago, AudioGod said:


Hi,

if your using clover then leave everything as is,I have no port limits on the usb via clover and all ports are enabled and native via the ssdt. :)

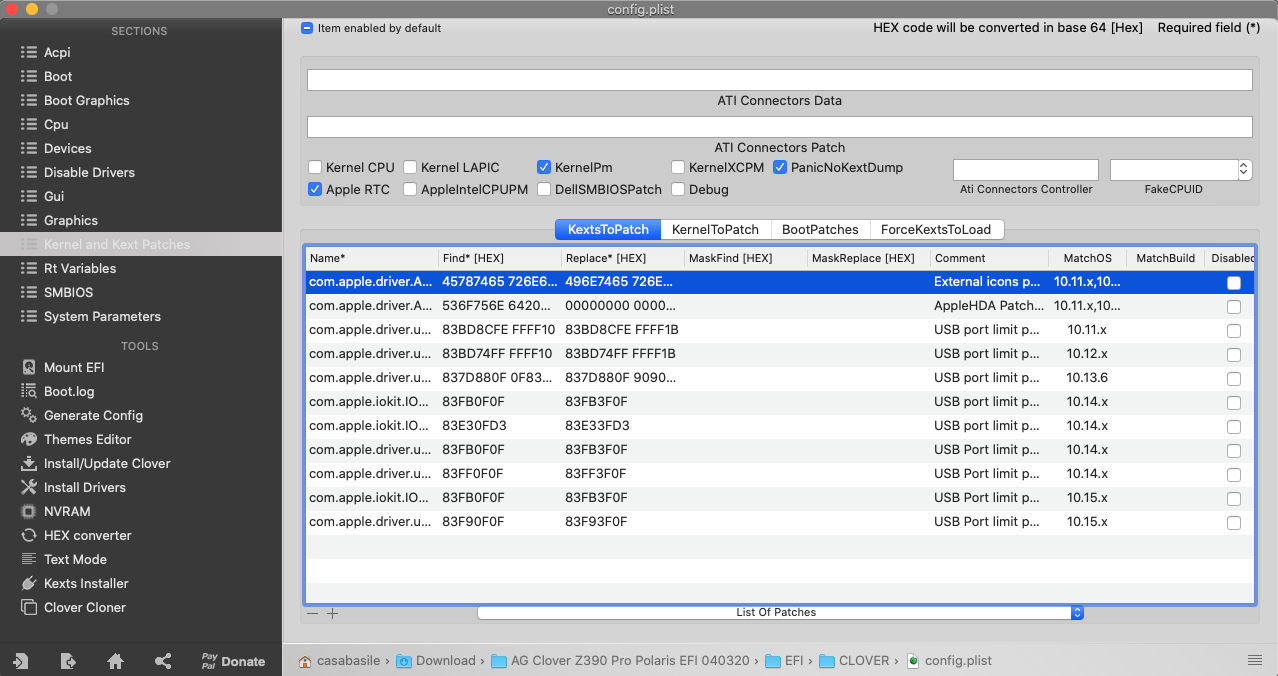

Sorry @AudioGod but when I download AG Clover Z390 Pro Polaris EFI 040320.zip e then open config.plist, I see this:



Schermata 2020-03-25 alle 16.54.51.png

AudioGod
AudioGod
Posted
  • Author
Posted
2 minutes ago, kiko89 said:

Sorry @AudioGod but when I download AG Clover Z390 Pro Polaris EFI 040320.zip e then open config.plist, I see this:



Schermata 2020-03-25 alle 16.54.51.png

If you look in the ACPI folder your find the ssdt for usb that working in conjunction with the patches.

only the relative one is needed depending on what version os your using but there’s no harm leaving them all in. It’s all correct as is trust me :)

kiko89
kiko89
Posted
Posted
2 minutes ago, AudioGod said:

If you look in the ACPI folder your find the ssdt for usb that working in conjunction with the patches.

only the relative one is needed depending on what version os your using but there’s no harm leaving them all in. It’s all correct as is trust me :)

Perfect was just a doubt!
I totally trust you :thumbsup_anim:
Thanks so much

  • Like 1
laxattack
laxattack
Posted
Posted

I am currently trying to get OC N-D-K 0.5.6 to work on my system with a Vega 64 and for some reason I can only get one of my Display Port monitors to work. They all worked with my previous setup using the 0.5.5 version that was post here previously, anyone know of a solution?

ghozy
ghozy
Posted
Posted
19 hours ago, AudioGod said:


My DSDT is no good for your motherboard buddy so the best thing you can do really is use the link I provide you with and put in a request with MaLD0n and get yourself a new DSDT made up for your board.



To Create Your Own Patched DSDT Message @MaLd0n using the link bellow

https://www.olarila.com/forum/17-dsdt-patch-requests/

(If you want a perfect setup then getting your own patched DSDT made would be the best thing to do, Mine will work perfectly fine but different hardware no matter how small a change it is can tend to have some sort of effect on the DSDT and your setup)



Also using the latest posted version of OCQuirks will help with your boot failures.





OcQuirks Revision 19 & FwRunTimeServices Latest Versions (I am Now using the plist too)

Please include the plist in the drivers folder, I have made some changes to the plist that should make it play a lot more friendly now with the IGPU enabled.



OcQuirks R19.zip





It worked! Thank you! So I was wondering why I would need the DSDT for? Im a bit new to this and I want to learn as much as I can.

  • Like 1
AudioGod
AudioGod
Posted
  • Author
Posted
40 minutes ago, pl4n__b said:

@AudioGod did you just swap your board from master to pro ? I quite remember that your thread is about Aorus Master buddy.

:hysterical: other way around bro, I had a pro and flipped to the Master but have a thread for both separately on here and kept the pro thread going. :thumbsup_anim:

iamthekey
iamthekey
Posted
Posted
On 3/25/2020 at 5:23 AM, ghozy said:

I have a Z390 Ultra, i5 9600k, and a Sapphire 5700 XT.  When I first booted up everything worked fine but after I turned off the computer and turend it back on i got a prohibited symbol and I can't do anything.

Photo on 3-24-20 at 8.21 PM.jpg

I updated today newest efi and got same thing and have z390 pro, any idea thanks.

AudioGod
AudioGod
Posted
  • Author
Posted (edited)
6 minutes ago, iamthekey said:

sorry, error allocating 0x1196d pagest at 0x0000000006c0e000 alloc type 2 Couldnt allocate runtime area


update OCQuirks and try again buddy.

you may need to reset the cmos fully to clear the fault but try the below drivers first.  :)



OcQuirks Revision 19 & FwRunTimeServices Latest Versions (I am Now using the plist too)

Please include the plist in the drivers folder, I have made some changes to the plist that should make it play a lot more friendly now with the IGPU enabled.



OcQuirks R19.zip





Edited by AudioGod
iamthekey
iamthekey
Posted
Posted (edited)
26 minutes ago, AudioGod said:


update OCQuirks and try again buddy.

you may need to reset the cmos fully to clear the fault but try the below drivers first.  :)



OcQuirks Revision 19 & FwRunTimeServices Latest Versions (I am Now using the plist too)

Please include the plist in the drivers folder, I have made some changes to the plist that should make it play a lot more friendly now with the IGPU enabled.



OcQuirks R19.zip





 iam totally lost how to use this :{ ,





Edited by iamthekey
AudioGod
AudioGod
Posted
  • Author
Posted
18 minutes ago, iamthekey said:

 iam totally lost how to use this :{ ,



nwm iam booting now



Give me 10mins and il post a clover update EFI.

Im doing it now, Hold Tight!!!!!

AudioGod
AudioGod
Posted
  • Author
Posted

Clover EFI Updates (10.15.4 Ready), 26th March 2020

(Use With Bios Revision F12d)





The EFIs and DSDTs have now been updated to the my latest versions.

Changes made include,

OcQuirks Revision 20 (I have made some changes to the plist that should make it play a lot more friendly now with the IGPU enabled)

AppleALC-1.4.7

Lilu 1.4.2

WhateverGreen 1.3.7

Clover Updated to Revision 5107

Plus other minor tweaks and changes to all of the configs



Clover EFI Update - 26/03/2020 - Use with Bios revision F12d Only or Replace with the older F11 DSDT if you don't want to update the bios

Clover Z390 Pro Vega Navi EFI 260320.zip - Vega, Navi (5700, 5700XT), Radeon VII DSDT EFI

Clover Z390 Pro Polaris EFI 260320.zip - R5XX Polaris DSDT EFI



PLEASE NOTE - You MUST update to the latest EFI before updating to 10.15.4 or you may find your unable to update.



OpenCore 0.5.7 19,1 Coming Soon (Awaiting Release)

NDK OpenCore 0.5.7 Coming Soon (Awaiting Release)

  • Like 2
Tiem
Tiem
Posted
Posted
On 3/25/2020 at 4:17 AM, AudioGod said:

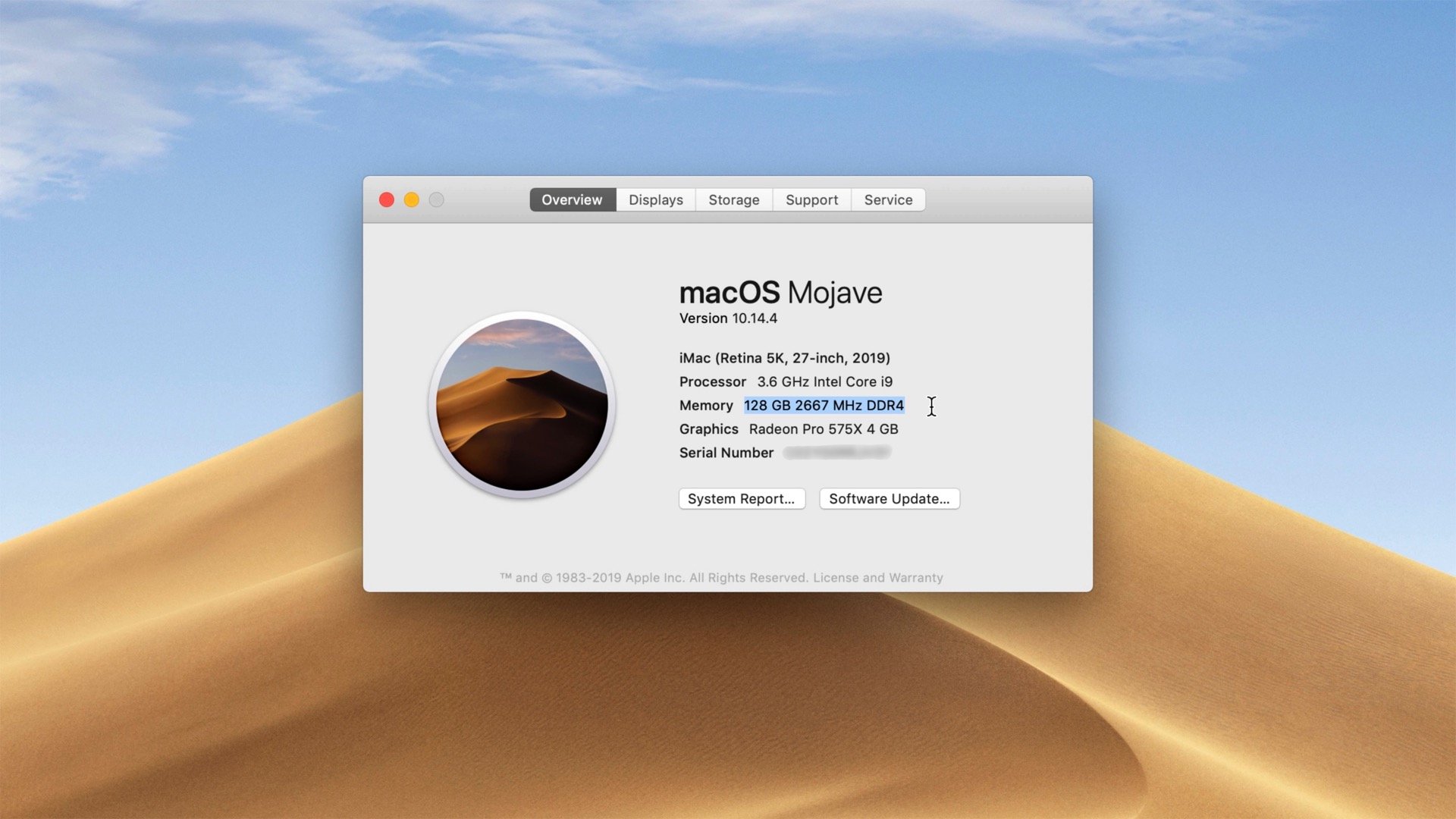

@AlexeyNikitin Fun Fact, A real 19,1 iMac doesn't have a memory tab so not having it is actually correct for the smbios but using the above method brings it back into play. :thumbsup_anim:

A real iMac19,1 most certainly has the memory tab.

Tiem
Tiem
Posted
Posted
7 minutes ago, AudioGod said:

Nope



@WizeMan ?

They do. Apple fixed this in 10.14.5. I checked one at the Apple Store. Running on Catalina, you should have a tab. That's why it's there in OC but just not Clover. OC is listing the tabs correctly, Clover not so much.
