Nizzlay

Stuck before getting into installer

31 posts in this topic

Recommended Posts

First time trying an hackintosh, and I've been stuck like this for days now, nothing I try seems to have any effect. I can't even get the installer to launch..

My build:



  • Intel i7 8700K
  • Gigabyte Aorus Z370 Ultra Gaming 2.0-OP
  • Gigabyte Aorus Radeon RX570 4G
  • Corsair Vengeance LPX 32GB (2x 16GB)
  • Samsung 970 Evo 500GB
  • be quiet! Silent Base 600
  • be quiet! Dark Rock Pro 4
  • be quiet! Dark Power Pro 11 550W

I've tried creating an install USB using this vanilla guide: https://hackintosh.gitbook.io/-r-hackintosh-vanilla-desktop-guide/
I seem to get to about 50% loading the installer. Then it will get kernel panic.

Trying with macos 10.14.2.

Here's a video of what happens: https://nizzlay.stackstorage.com/s/4r71CXWCenNCgX9

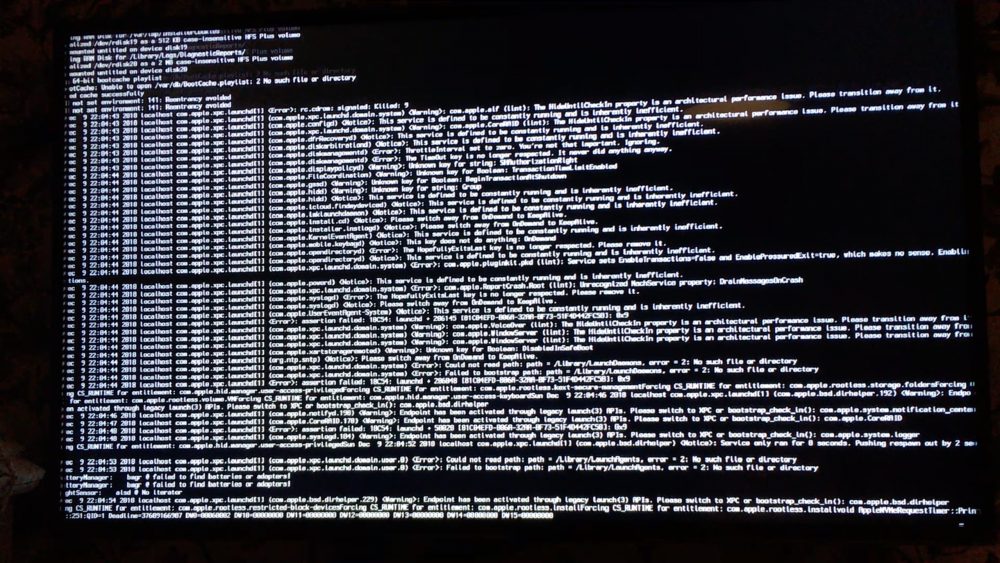

1309284928_Screenshot2018-12-10at20_36_46.thumb.png.8d31dd945cc1e956223e7761d5bb7a74.png

Any advice would be greatly appreciated!

Edited by Nizzlay
Clickable links.

Share this post


Link to post
Share on other sites
Advertisement

Thanks. I have updated my profile and signature. Also have updated opening post to include clickable links.



Will upload clover folder when I get home. Also I will check which settings I've changed in BIOS, to provide some more information about that.

Edited by Nizzlay

Share this post


Link to post
Share on other sites

Attached is my EFI folder from USB stick.



As for BIOS I've done this:

  • Save & Exit >Load Optimized Defaults
  • M.I.T. >Advanced Memory Settings Extreme Memory Profile (X.M.P.) : Profile1
  • BIOS > FastBoot: Disabled
  • BIOS > LAN PXE Boot Option ROM: Disabled
  • BIOS > Storage Boot Option Control: UEFI

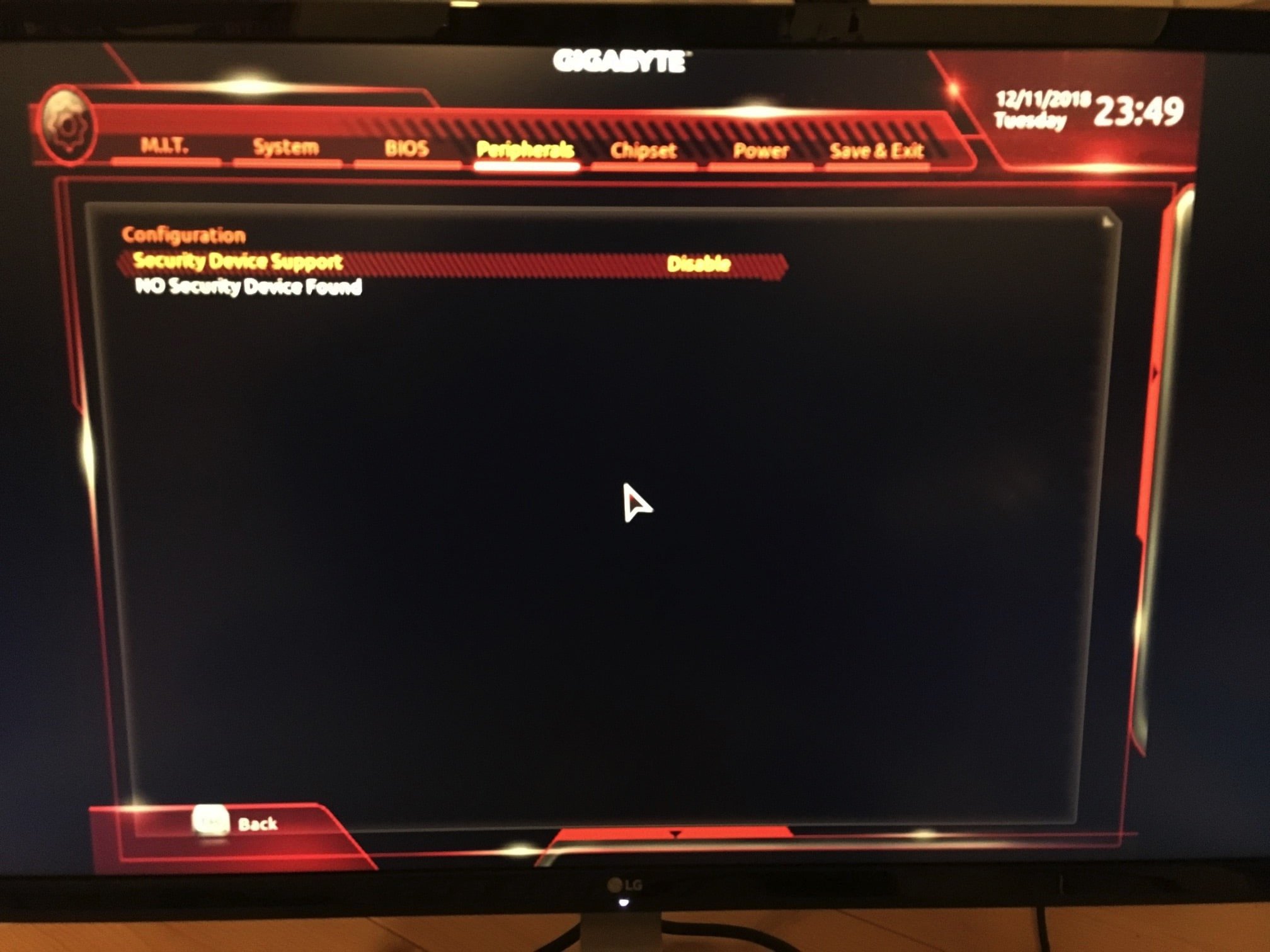

  • Peripherals > TrustedComputing > Security Device Support: Disabled

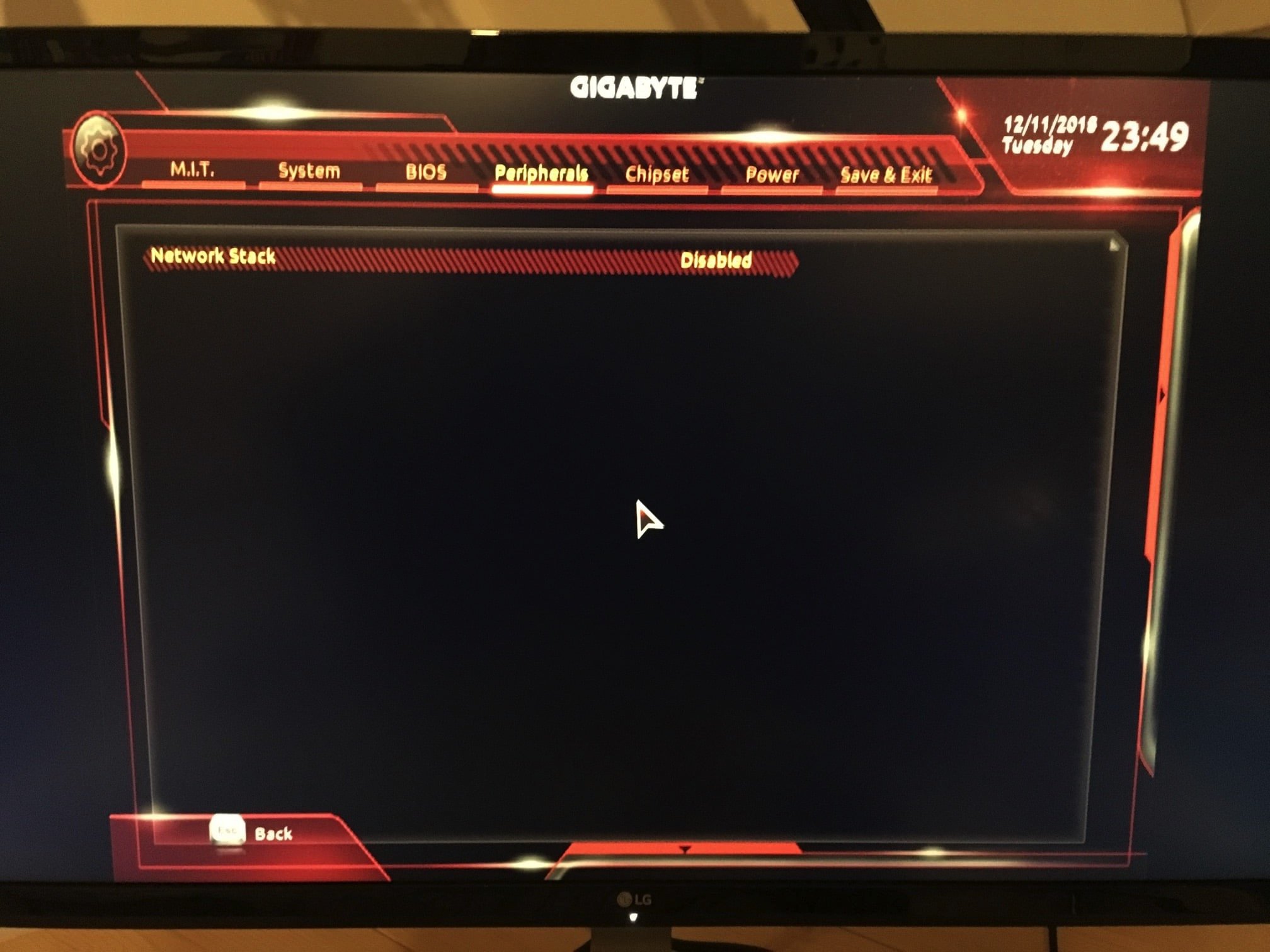

  • Peripherals > Network Stack Configuration > Network Stack: Disabled

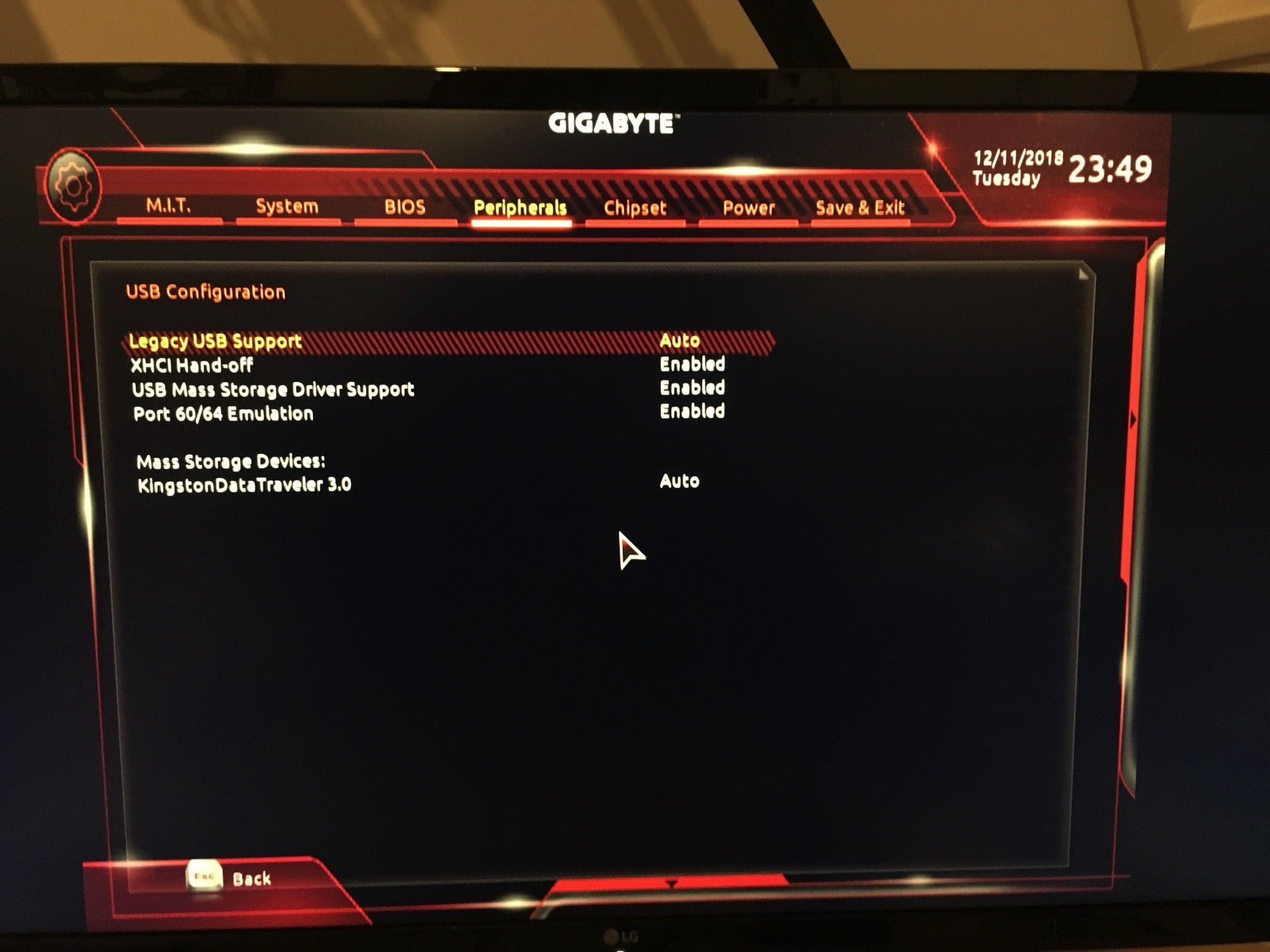

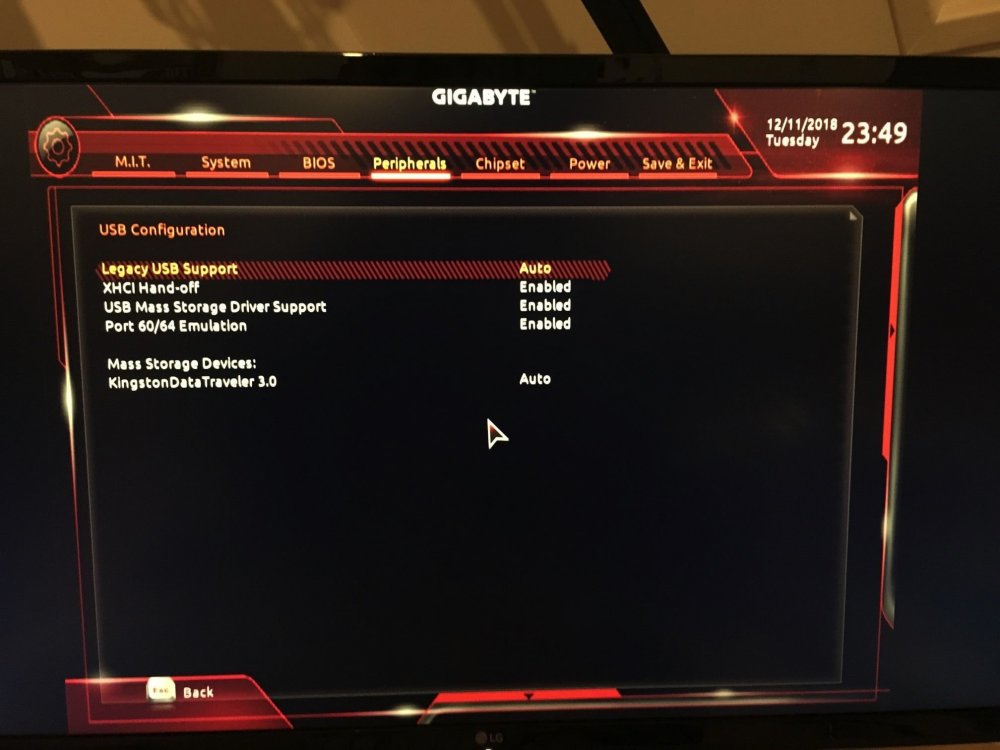

  • Peripherals > USB Configuration > Legacy USB Support: Auto
  • Peripherals > USB Configuration > XHCI Hand-off: Enabled
  • Chipset > Vt-d: Disabled

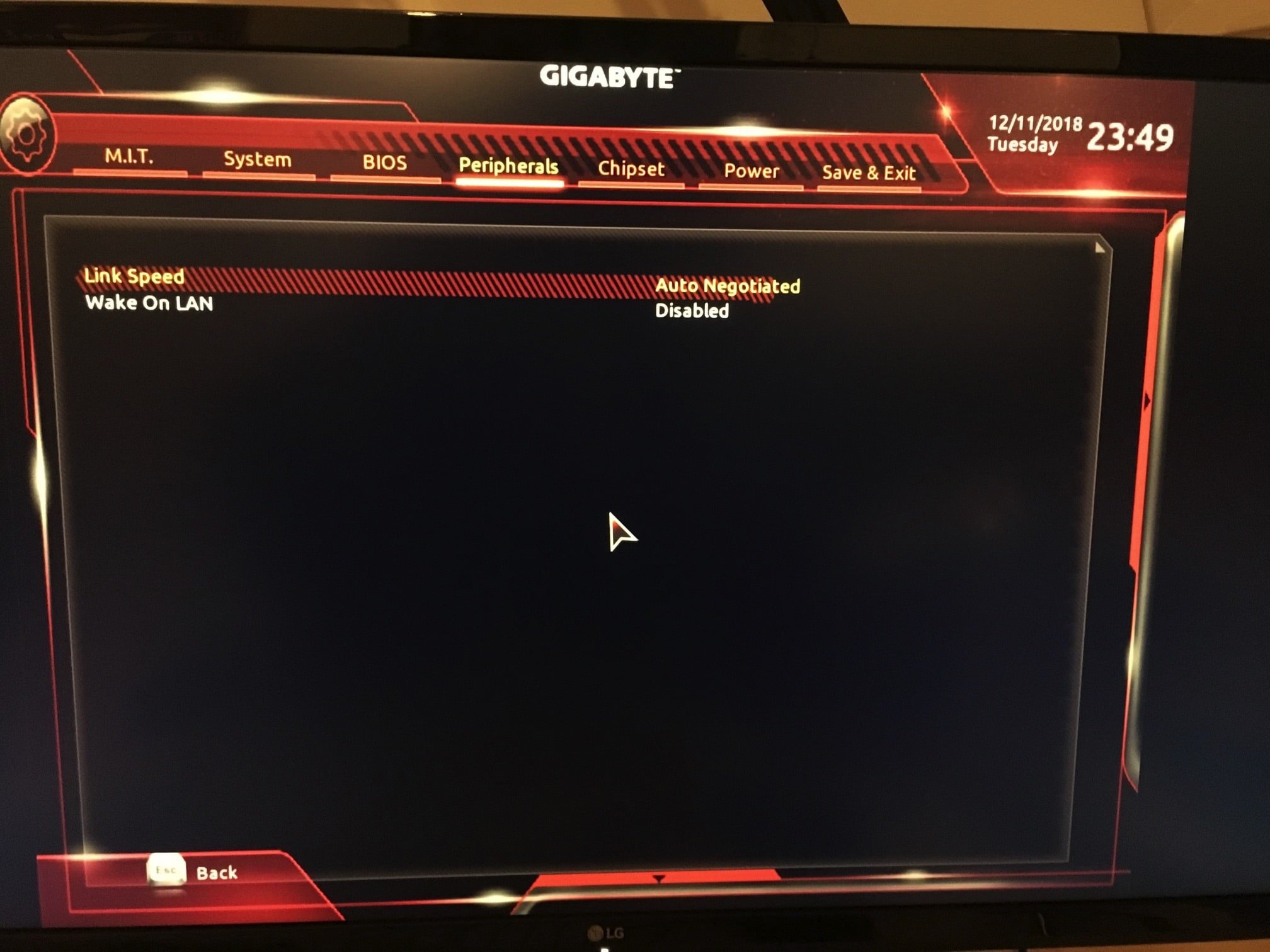

  • Chipset > Wake on LAN Enable: Disabled
  • Chipset > IOAPIC 24-119 Entries: Enabled

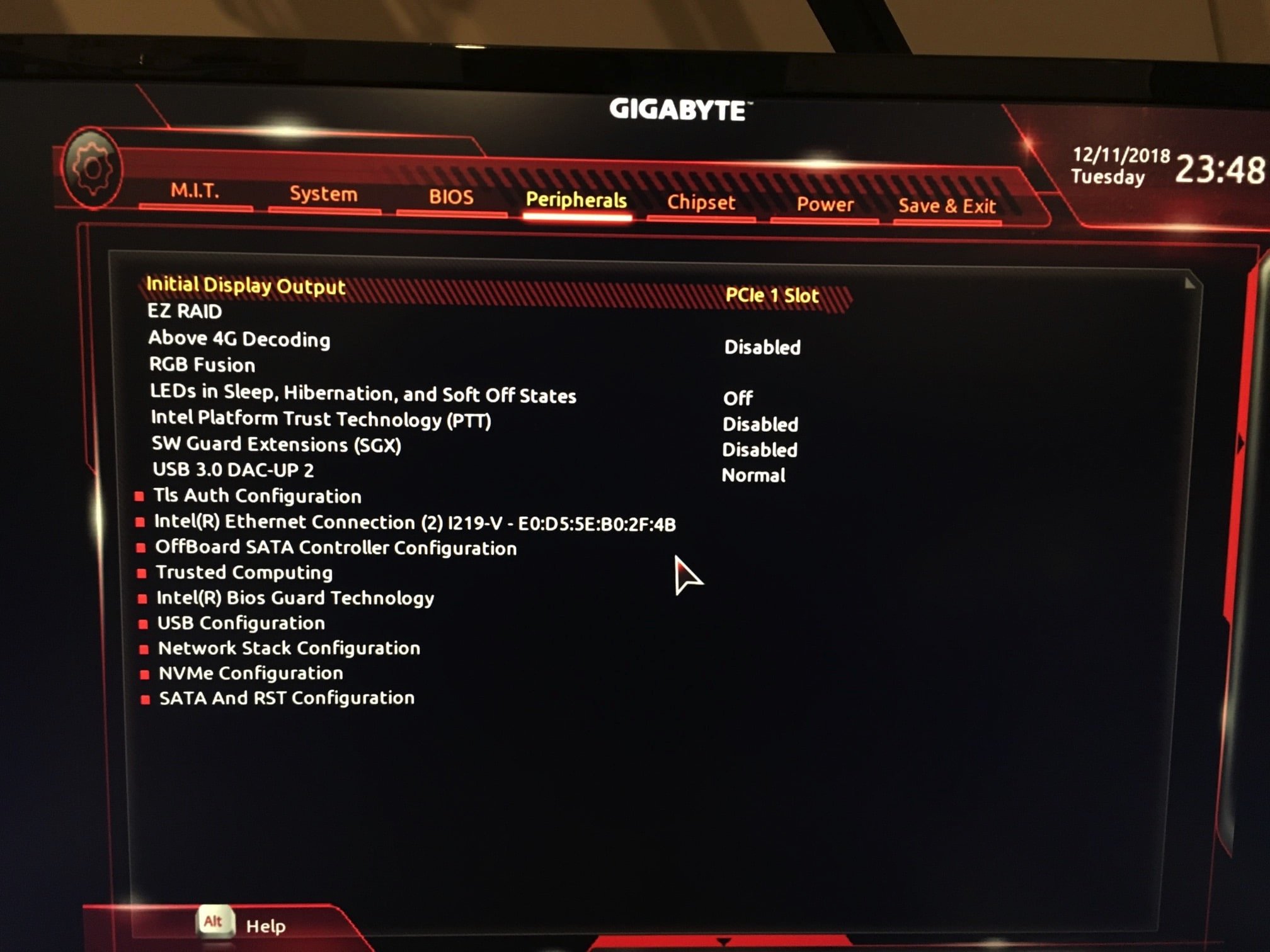

  • Peripherals > Initial Display Output: PCIe 1 Slot
  • Chipset > Integrated Graphics: Disabled

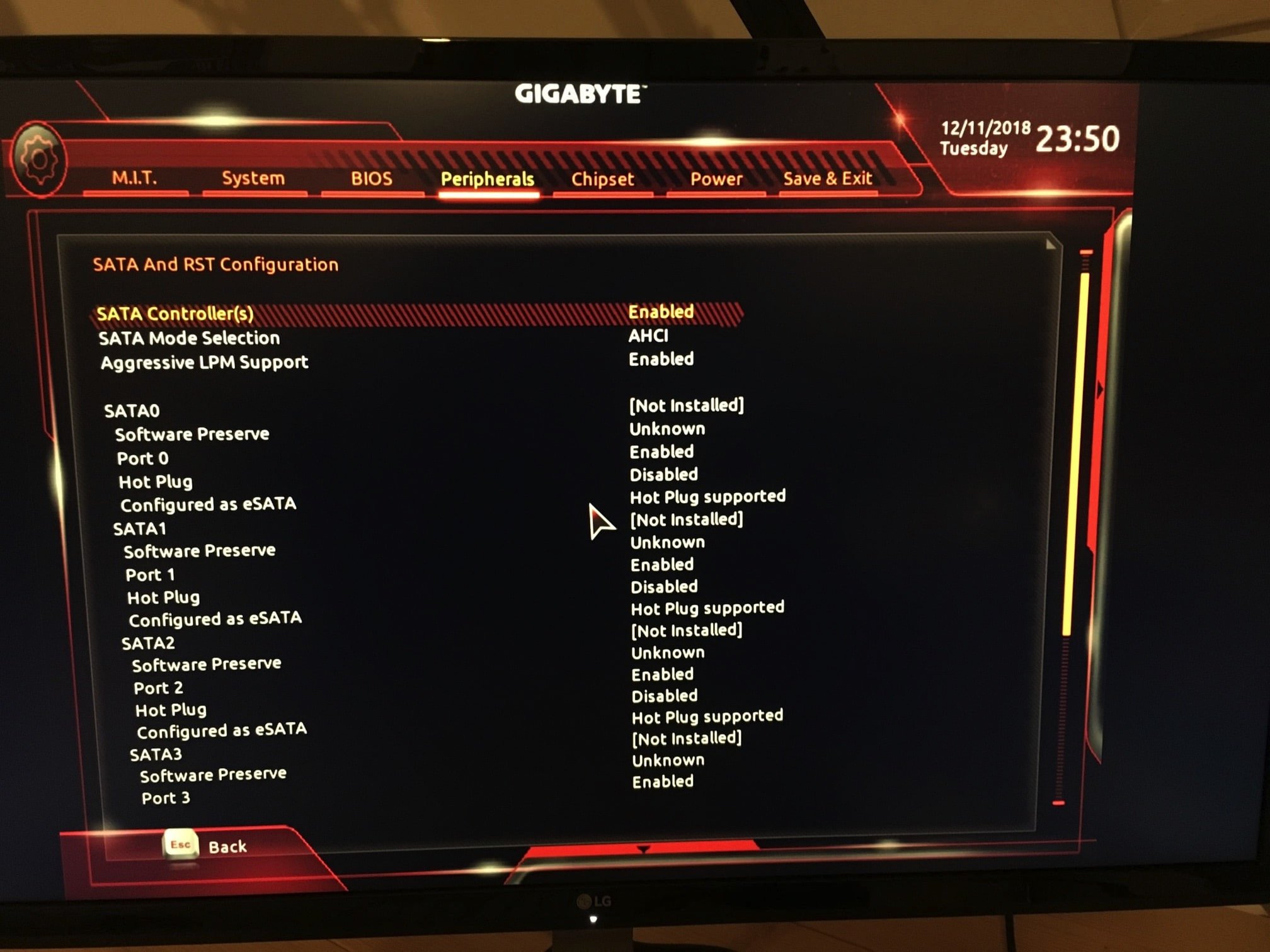

All of that was what Google-fu told me. As an extra I disabled SATA, because I don't have anything attached to that anyway. But with either SATA enabled or disabled, didn't make any diffrence in booting.



EFI.zip

Edited by Nizzlay

Share this post


Link to post
Share on other sites
Attached is my EFI folder from USB stick.

As for BIOS I've done this:
  • Save & Exit >Load Optimized Defaults
  • M.I.T. >Advanced Memory Settings Extreme Memory Profile (X.M.P.) : Profile1
  • BIOS > FastBoot: Disabled
  • BIOS > LAN PXE Boot Option ROM: Disabled
  • BIOS > Storage Boot Option Control: UEFI
  • Peripherals > TrustedComputing > Security Device Support: Disabled
  • Peripherals > Network Stack Configuration > Network Stack: Disabled
  • Peripherals > USB Configuration > Legacy USB Support: Auto
  • Peripherals > USB Configuration > XHCI Hand-off: Enabled
  • Chipset > Vt-d: Disabled
  • Chipset > Wake on LAN Enable: Disabled
  • Chipset > IOAPIC 24-119 Entries: Enabled
  • Peripherals > Initial Display Output: PCIe 1 Slot
  • Chipset > Integrated Graphics: Disabled

All of that was what Google-fu told me. As an extra I disabled SATA, because I don't have anything attached to that anyway. But with either SATA enabled or disabled, didn't make any diffrence in booting.

EFI.zip

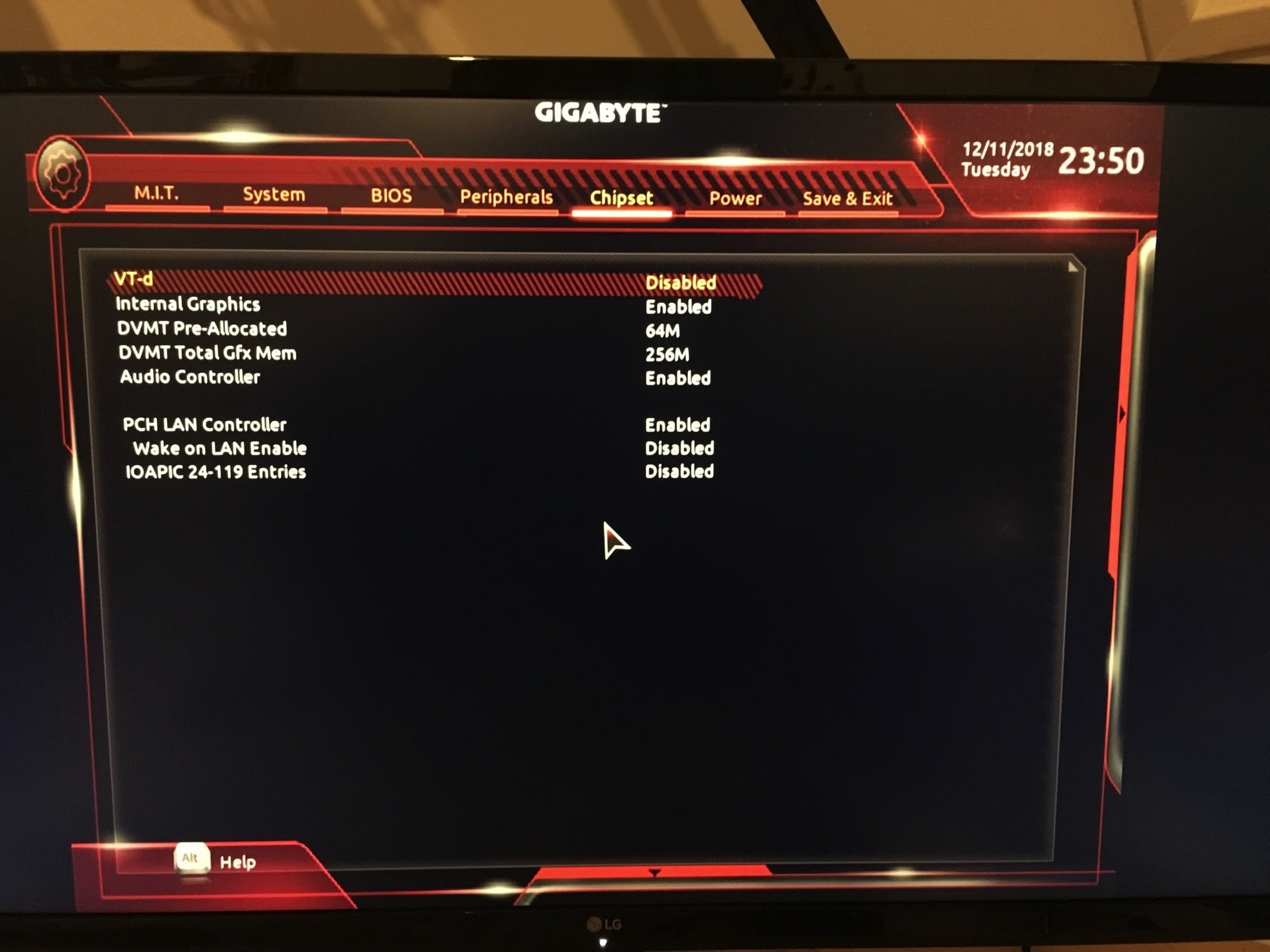

Try

IOAPIC 24-119 Entries: Disabled
Integrated Graphics: Enabled
The second one will help fix quicklook and preview once you get it installed.
I’ll take a look at your EFI when I can if the above doesn’t work.


Sent from my iPhone using Tapatalk

Share this post


Link to post
Share on other sites

Thanks! This EFI is to be used in combination with the BIOS settings change? Or are they 2 seperate things to try?

Share this post


Link to post
Share on other sites

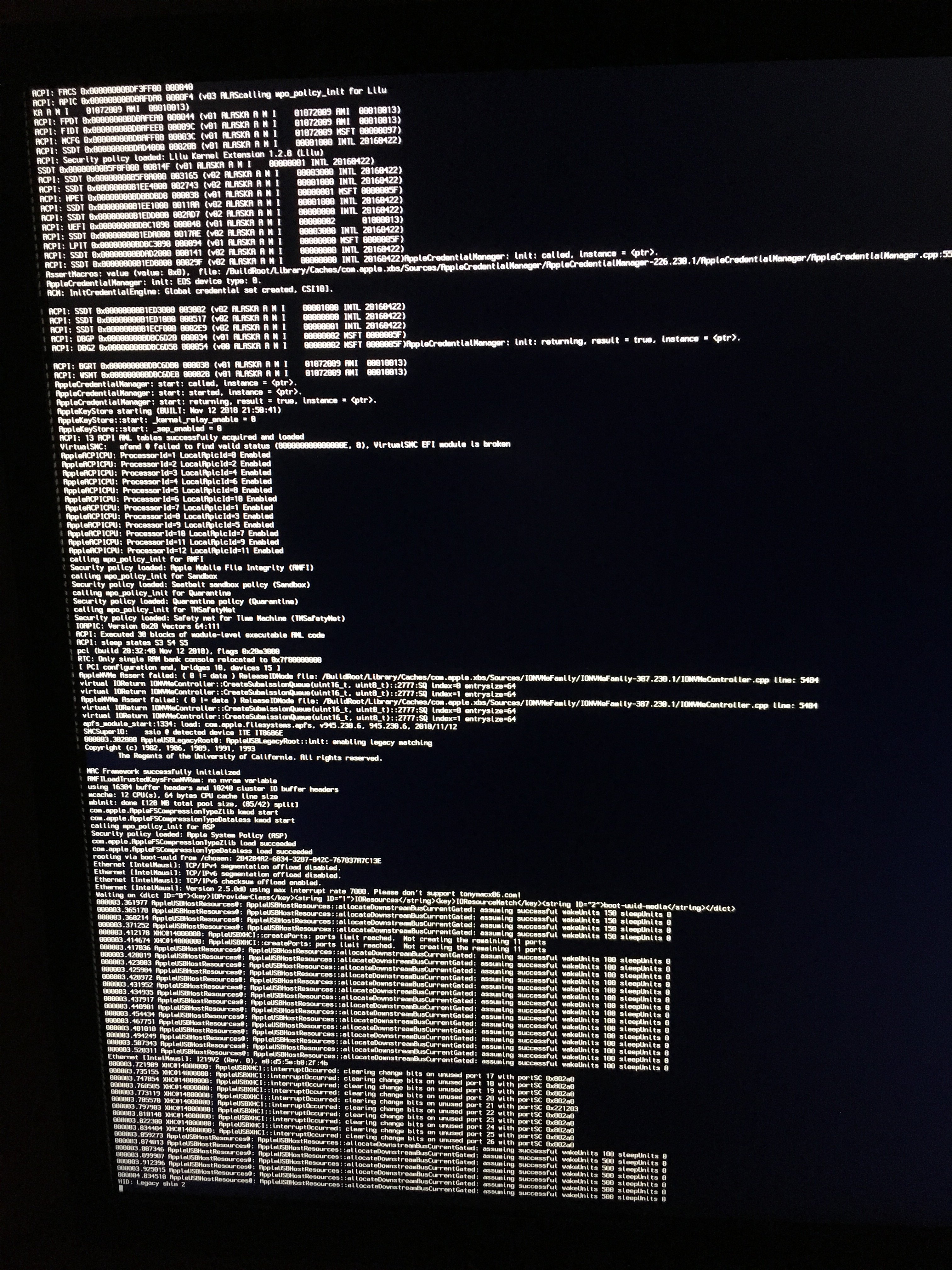

Not sure it's a diffrent error now, but still stuck before even getting into the installer.



All I changed is boot option to include debug=0x100, to get better photo of error.

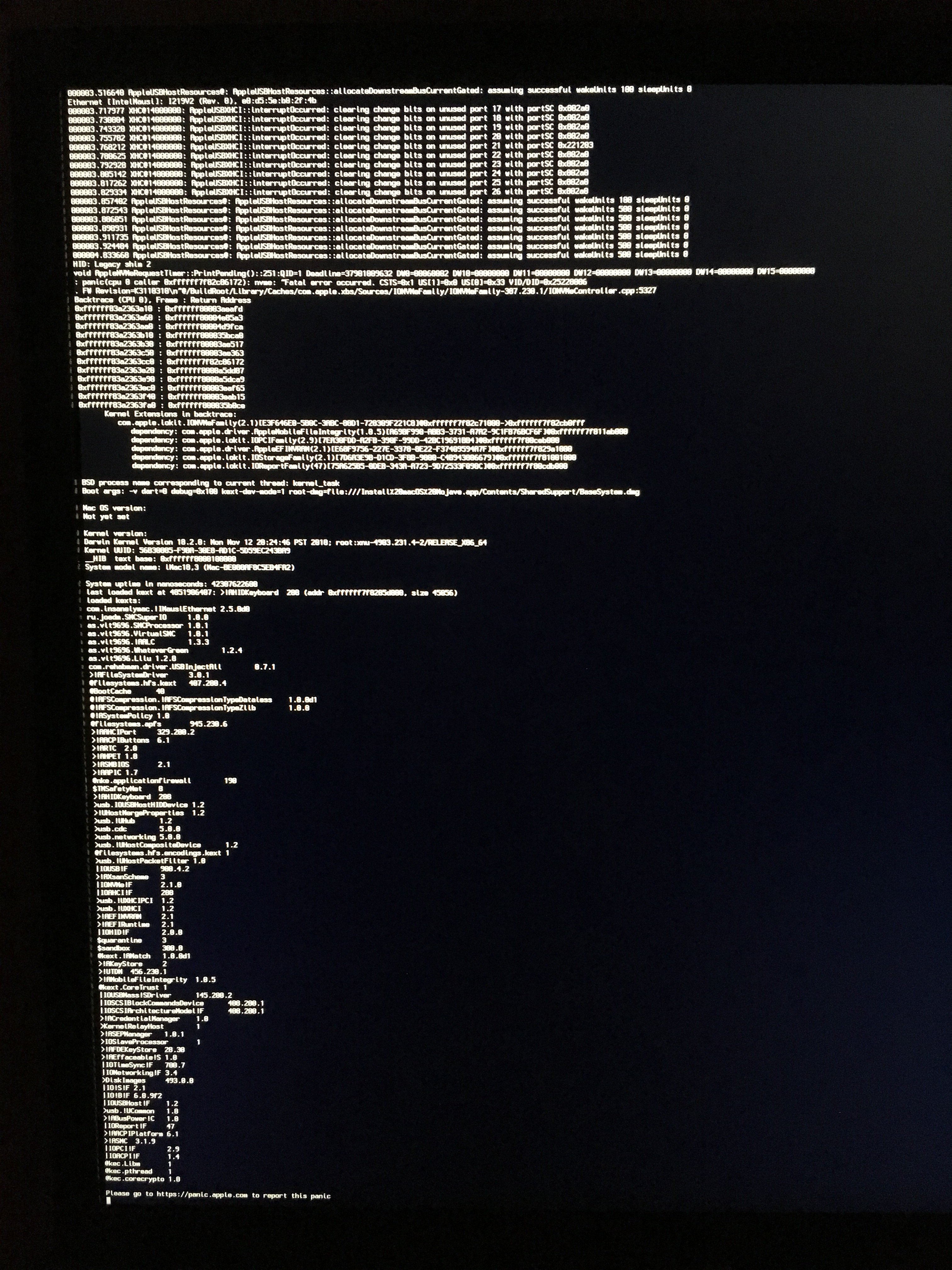

IMG_0932.thumb.JPG.e6eb9eef1f3b384f730003c4a92cf042.JPGIMG_0935.thumb.JPG.20586338402478a255cc6165e1054450.JPG



Edit: I noticed it says VirtualSMC EFI module is broken. Could that be the problem?

Edited by Nizzlay
Better photo

Share this post


Link to post
Share on other sites
2 hours ago, Nizzlay said:

Not sure it's a diffrent error now, but still stuck before even getting into the installer.



All I changed is boot option to include debug=0x100, to get better photo of error.



IMG_0932.thumb.JPG.e6eb9eef1f3b384f730003c4a92cf042.JPGIMG_0935.thumb.JPG.20586338402478a255cc6165e1054450.JPG



Edit: I noticed it says VirtualSMC EFI module is broken. Could that be the problem?

Keep my EFI but replace config.plist with this one.

config.plist

Share this post


Link to post
Share on other sites

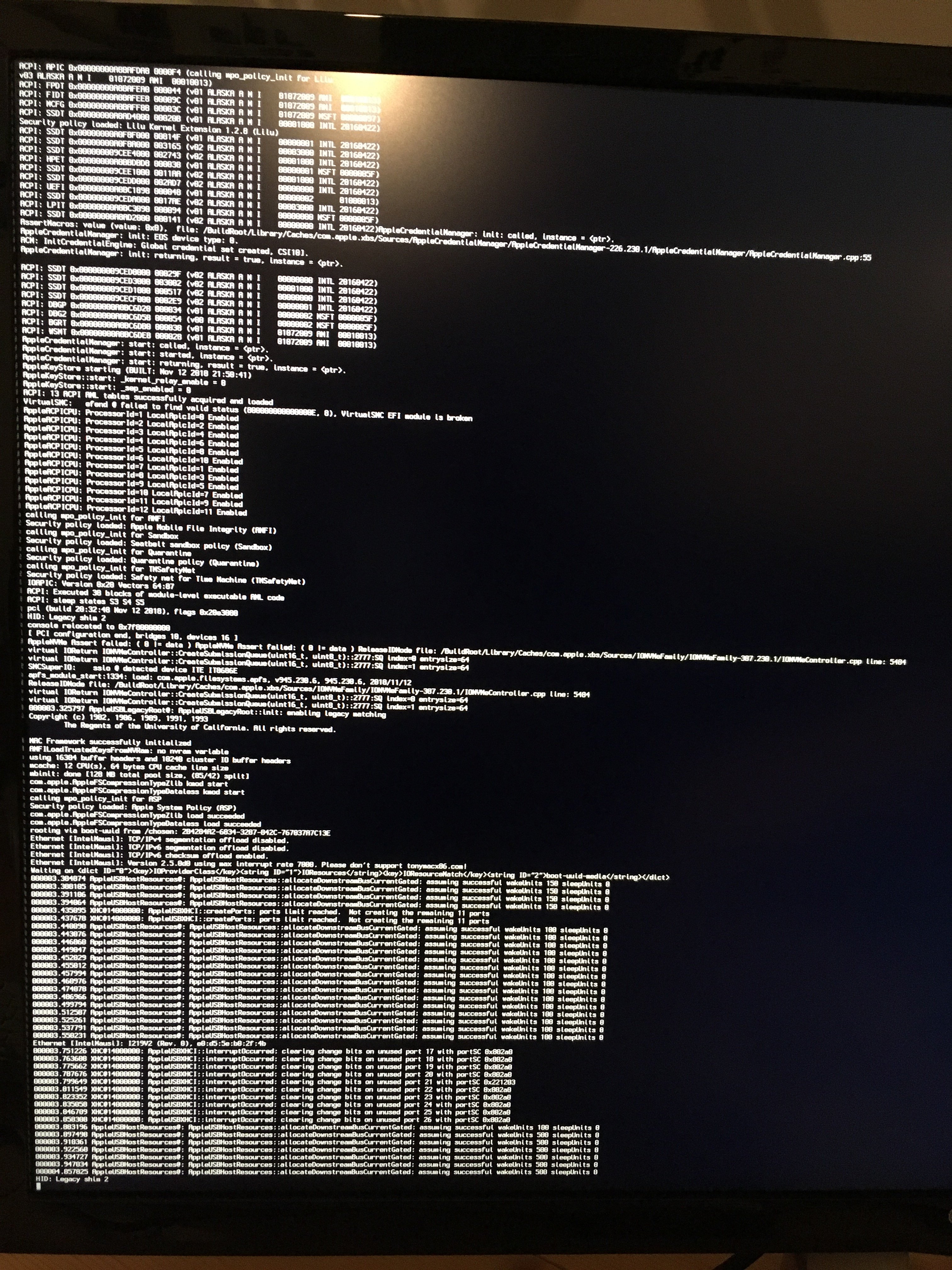

Same problem still.



I can still see it says VirtualSMC EFI module is broken.

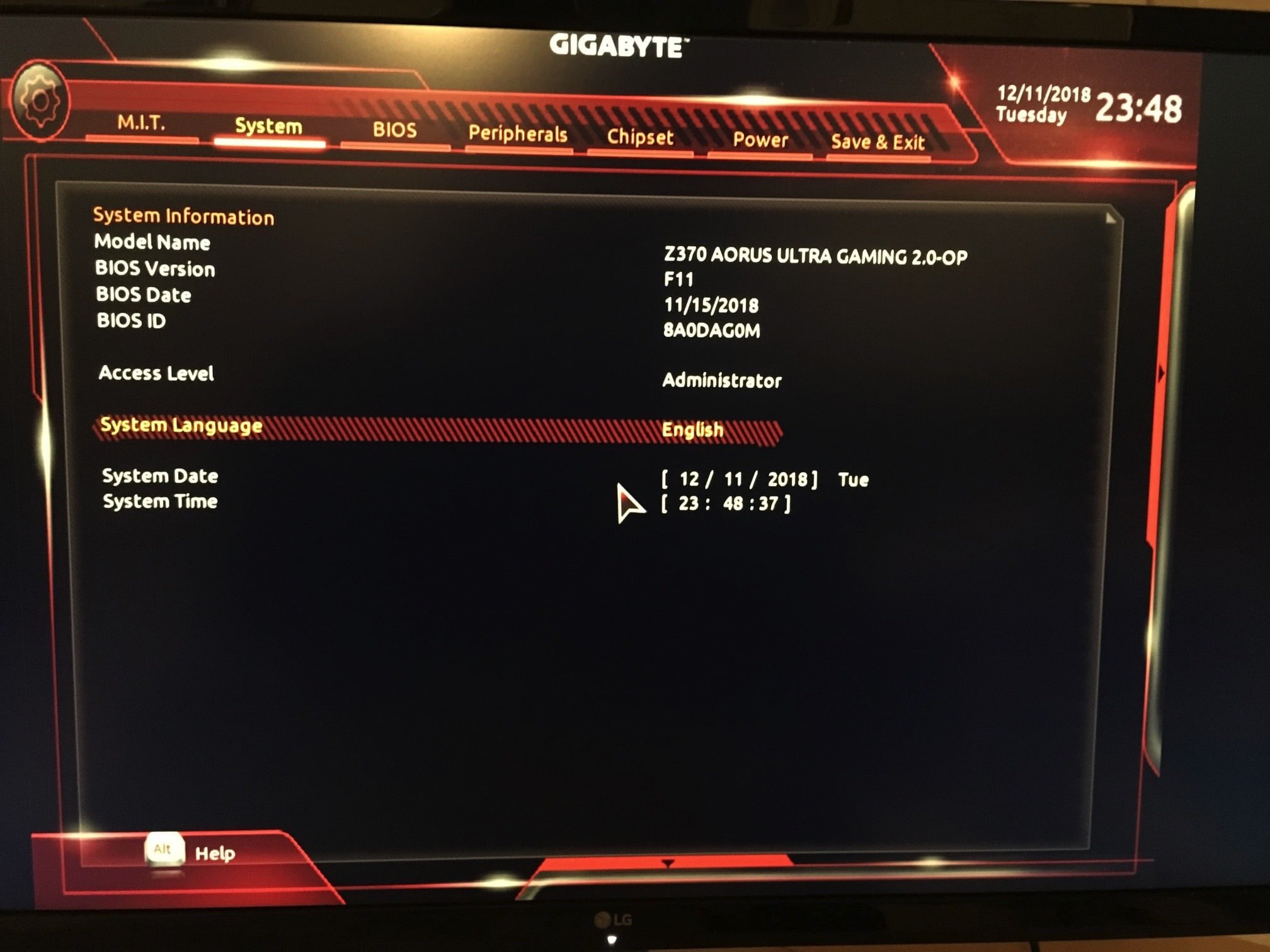

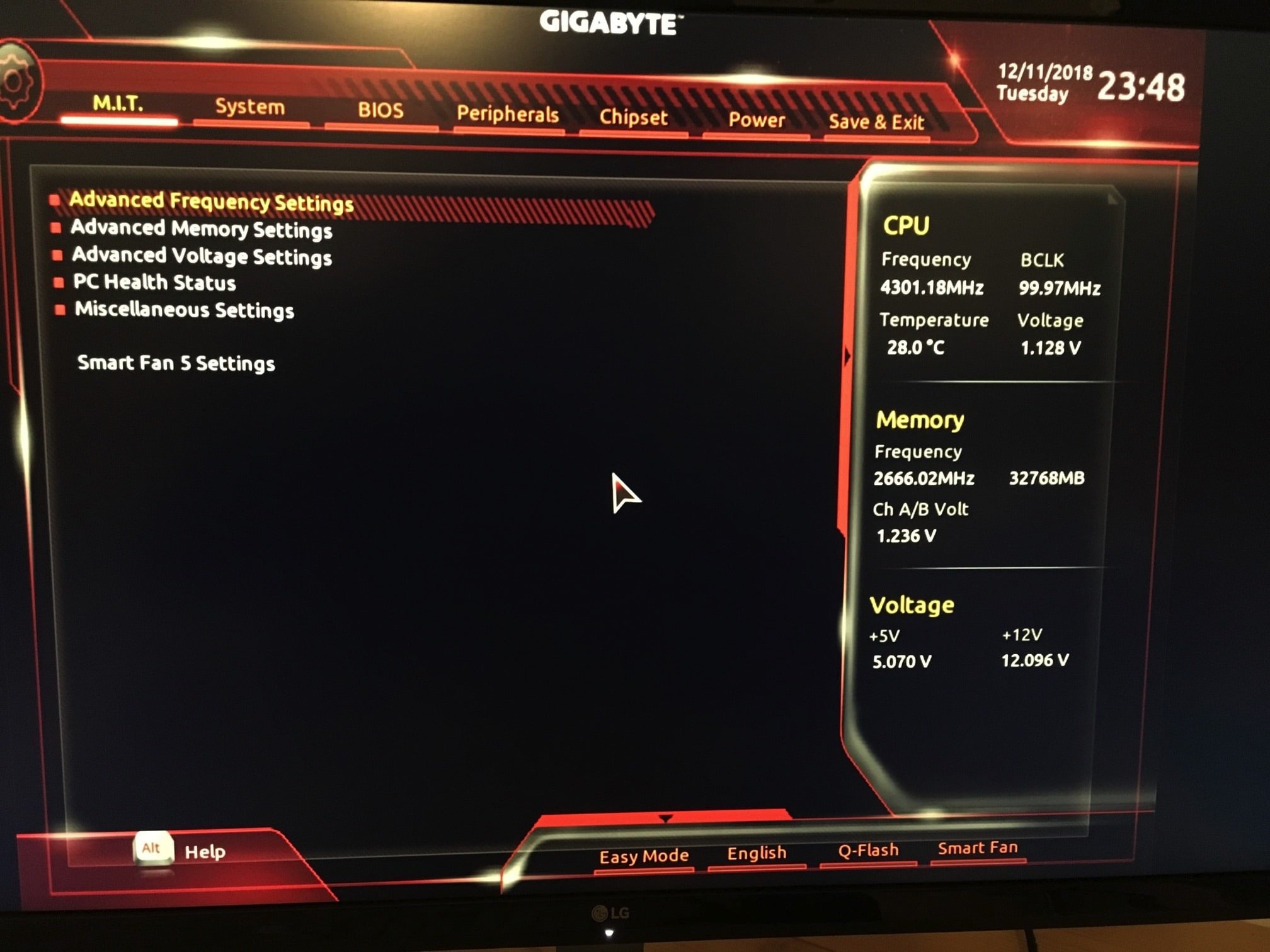

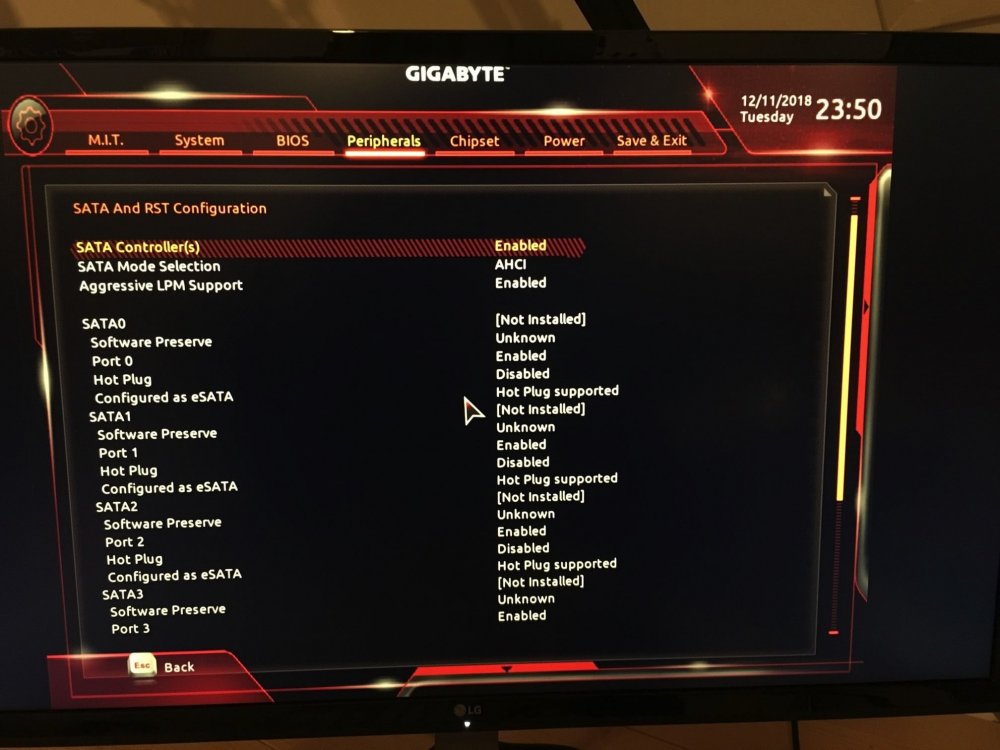

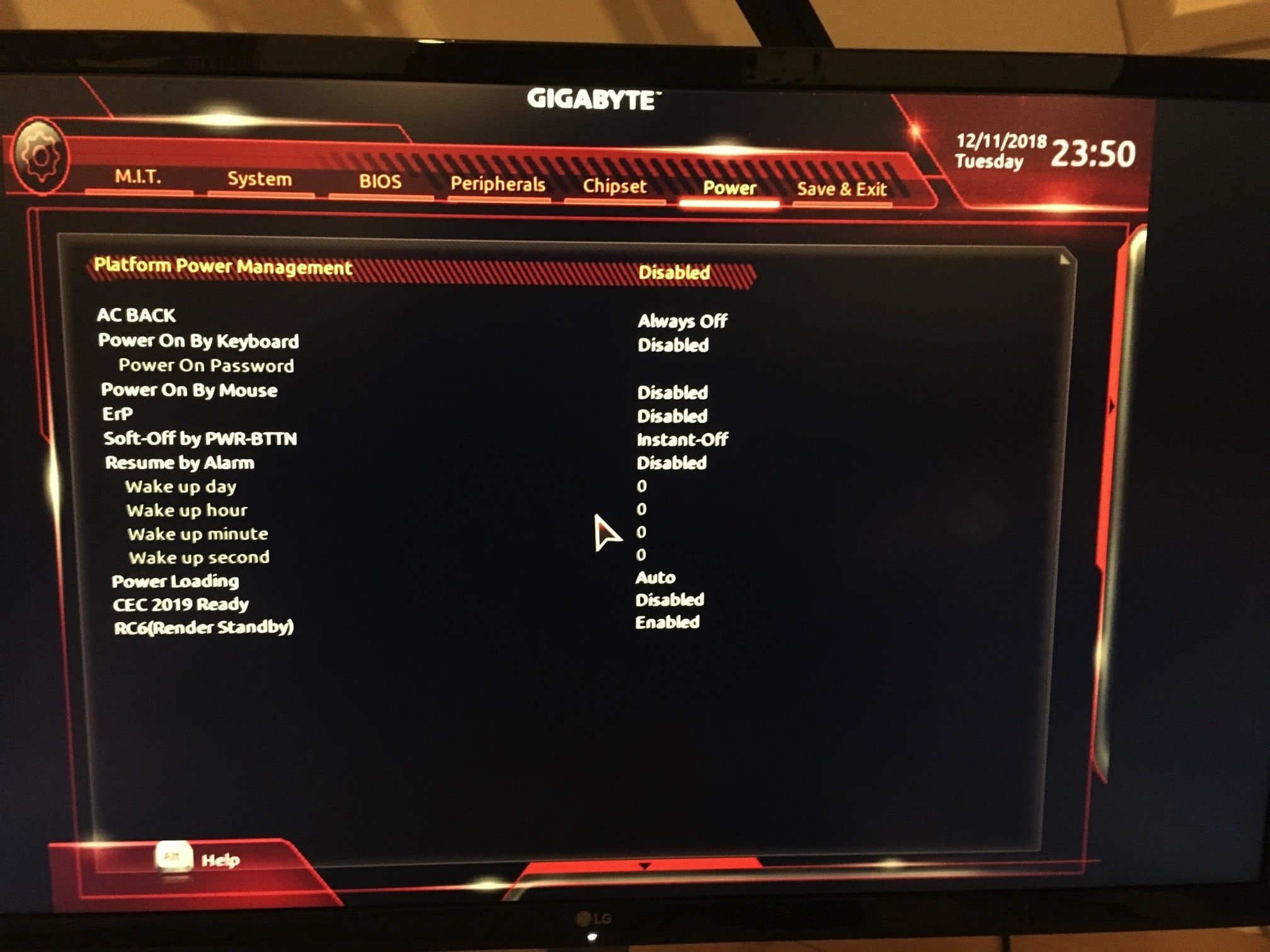

Not sure what else you want to see. These are some photos:

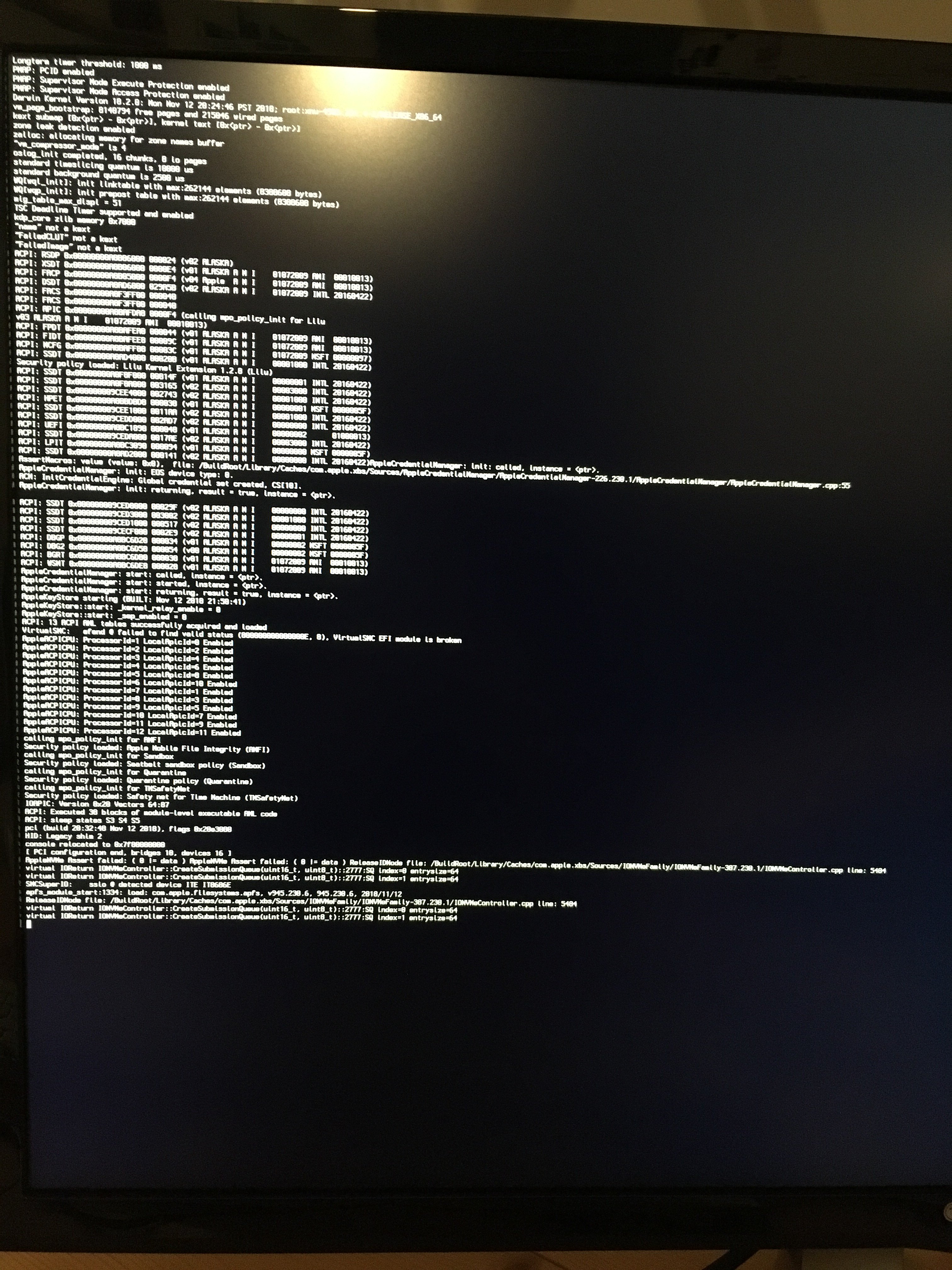

IMG_0937.thumb.JPG.0d8ae26ef79a135cb52828ab752ac3f1.JPGIMG_0938.thumb.JPG.450fa1e38c01236683704e4863bcb5f1.JPGIMG_0941.thumb.JPG.ac800cf6e3965717abce9fe4dbf5a8e4.JPG





Share this post


Link to post
Share on other sites

Do you have access to a Mac or hack to replace virtualsmc with FakeSMC? Don’t worry about sensors l. Make sure you also remove the other SMC related kexts (I think there’s 2).


Sent from my iPhone using Tapatalk

Share this post


Link to post
Share on other sites

Yes I have access to my old MacBookPro9,2.



Replaced VirtualSMC with FakeSMC. No sensors. New EFI attached.



Still error :(

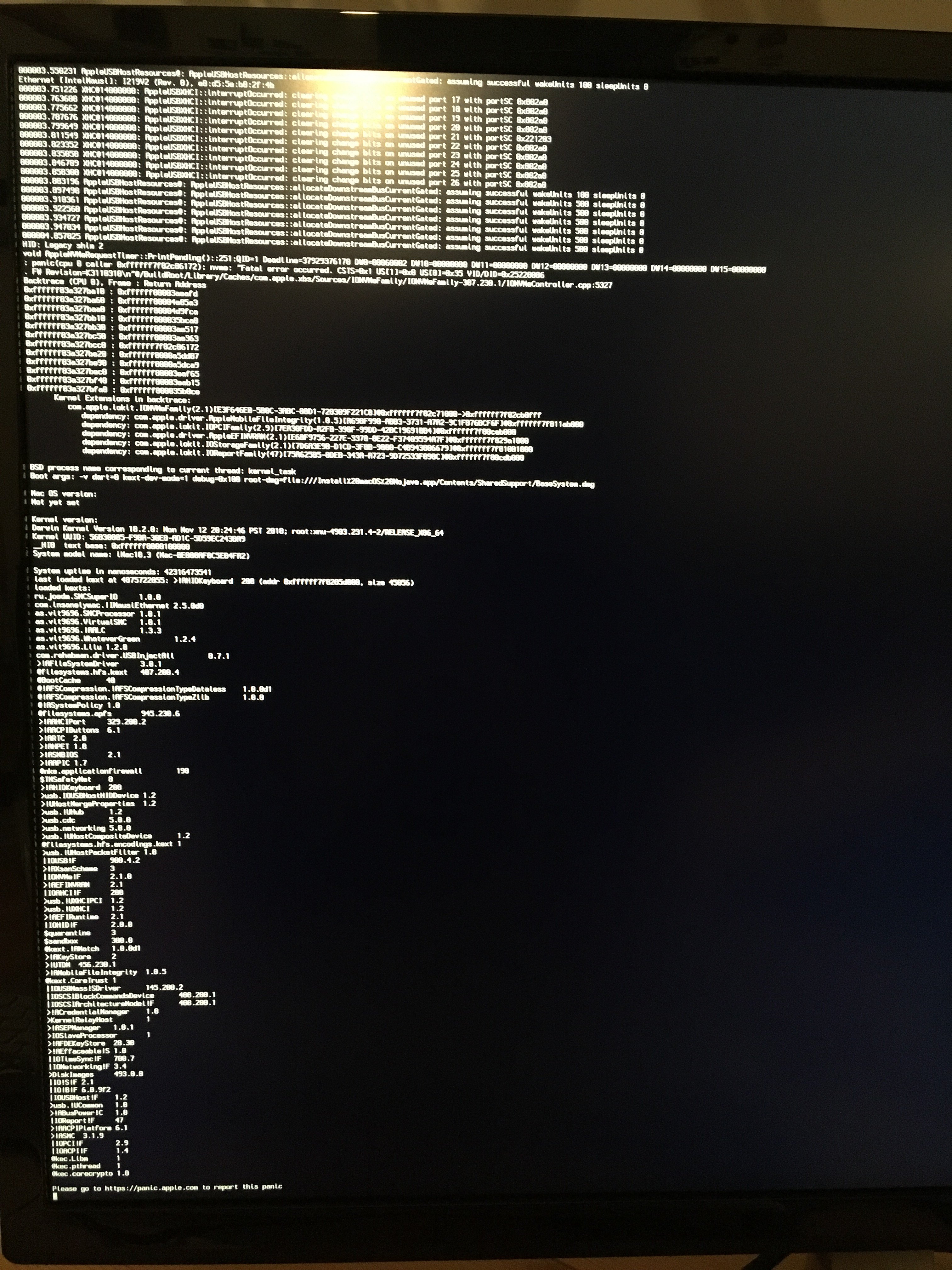

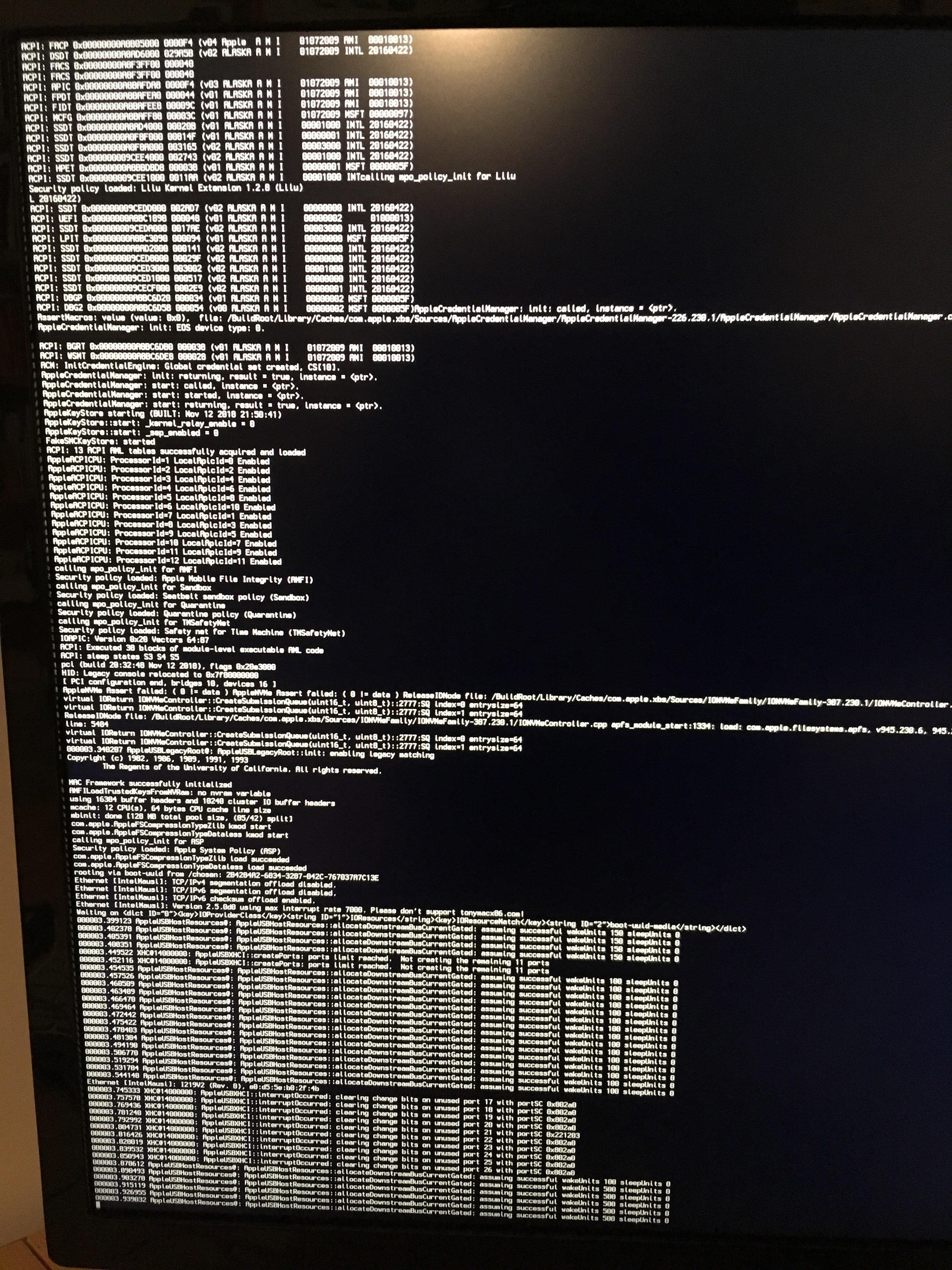

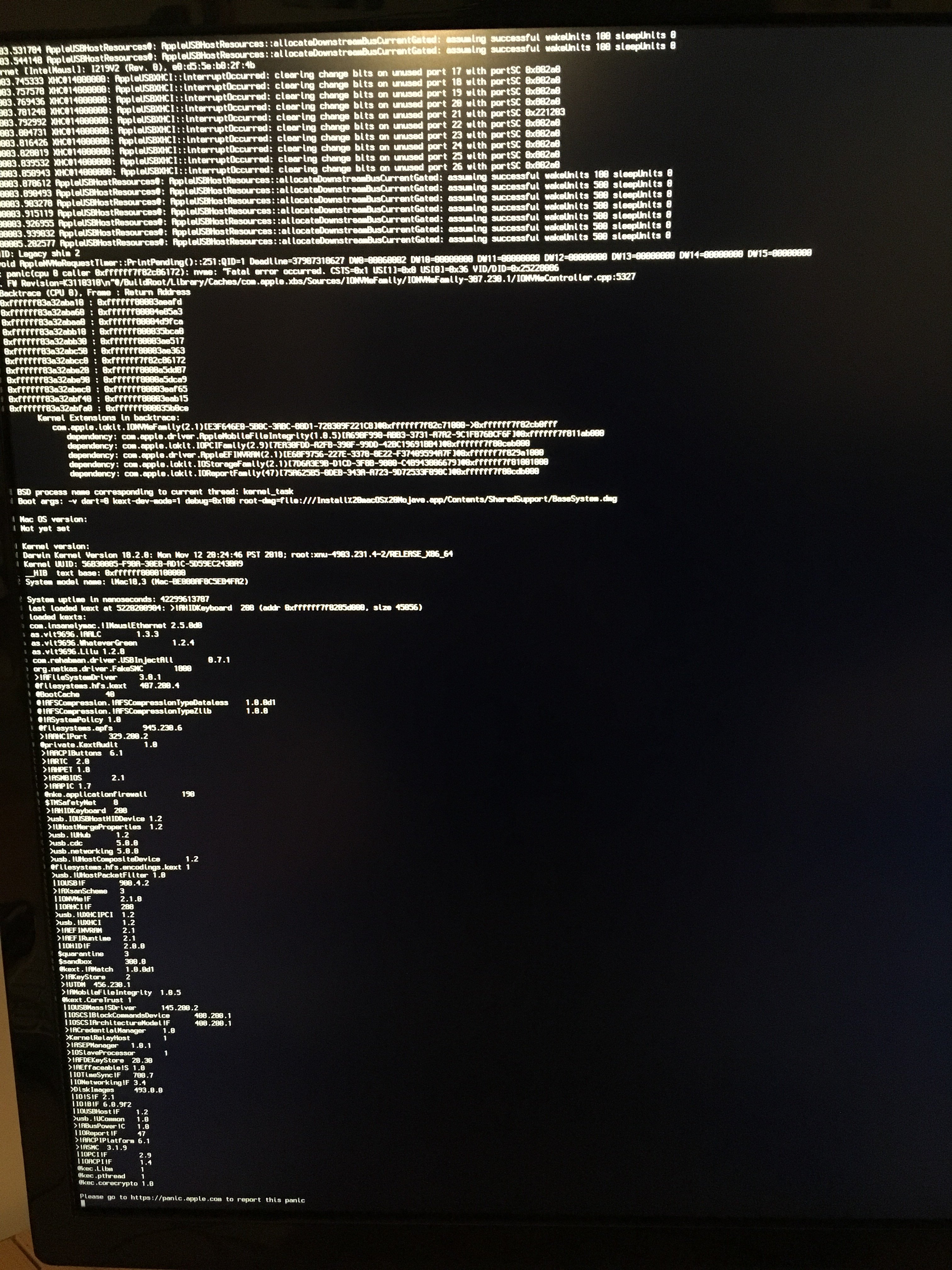

IMG_0942.thumb.JPG.e3931cf1ff6693879befc8efff84a94a.JPGIMG_0944.thumb.JPG.a51e93b96d735ac414cff97ca1158dd9.JPG

EFI.zip

Share this post


Link to post
Share on other sites

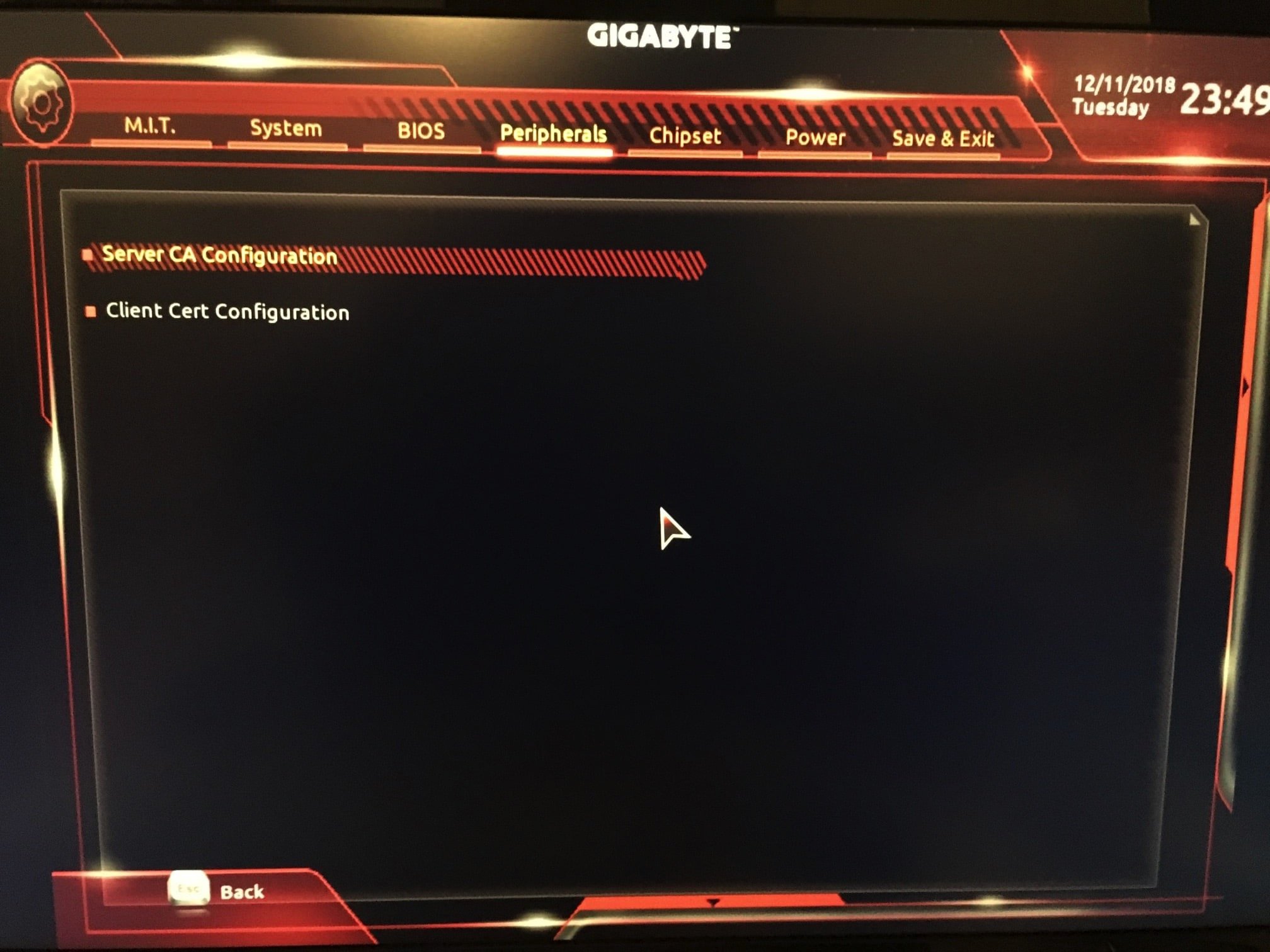

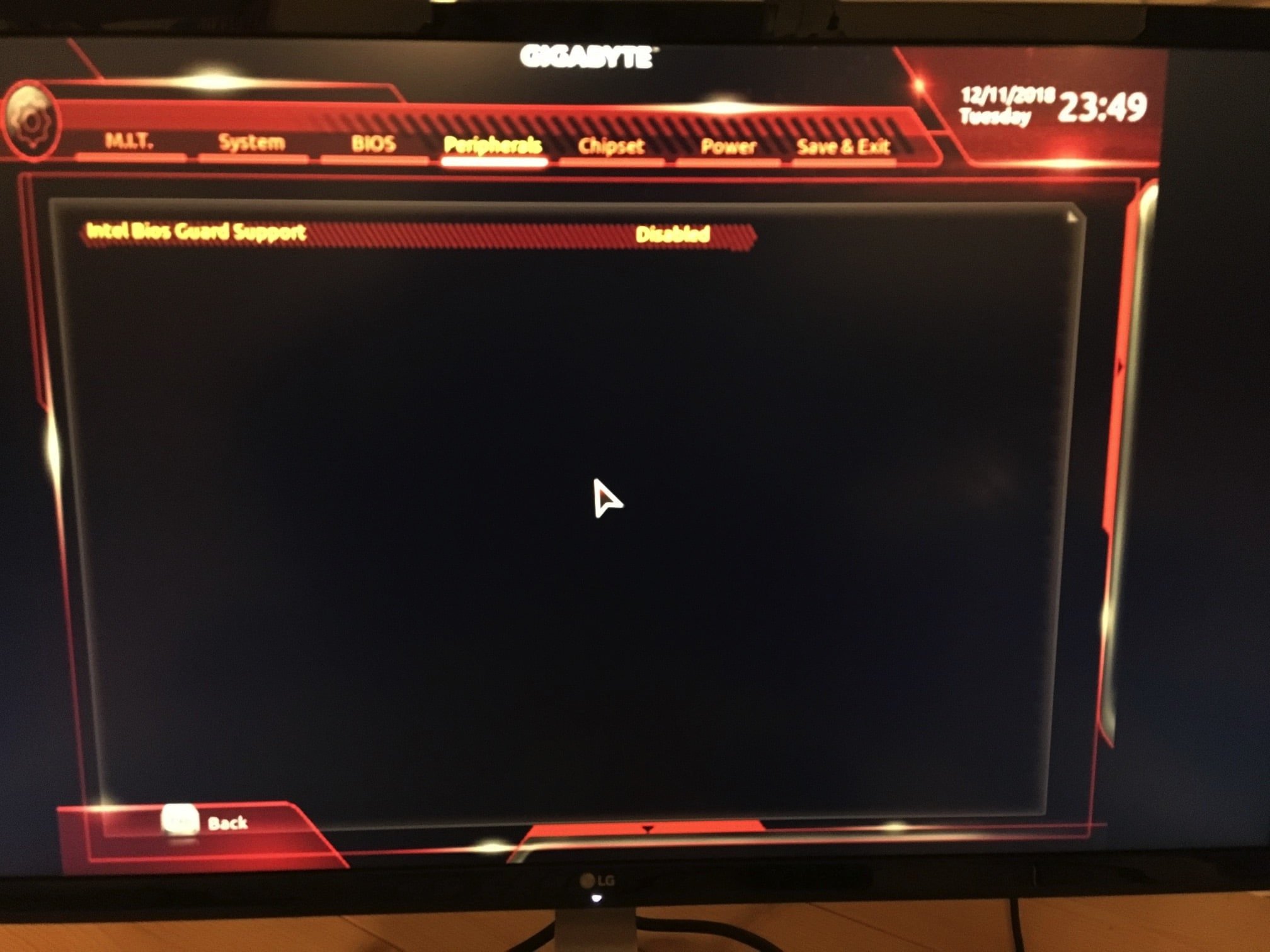

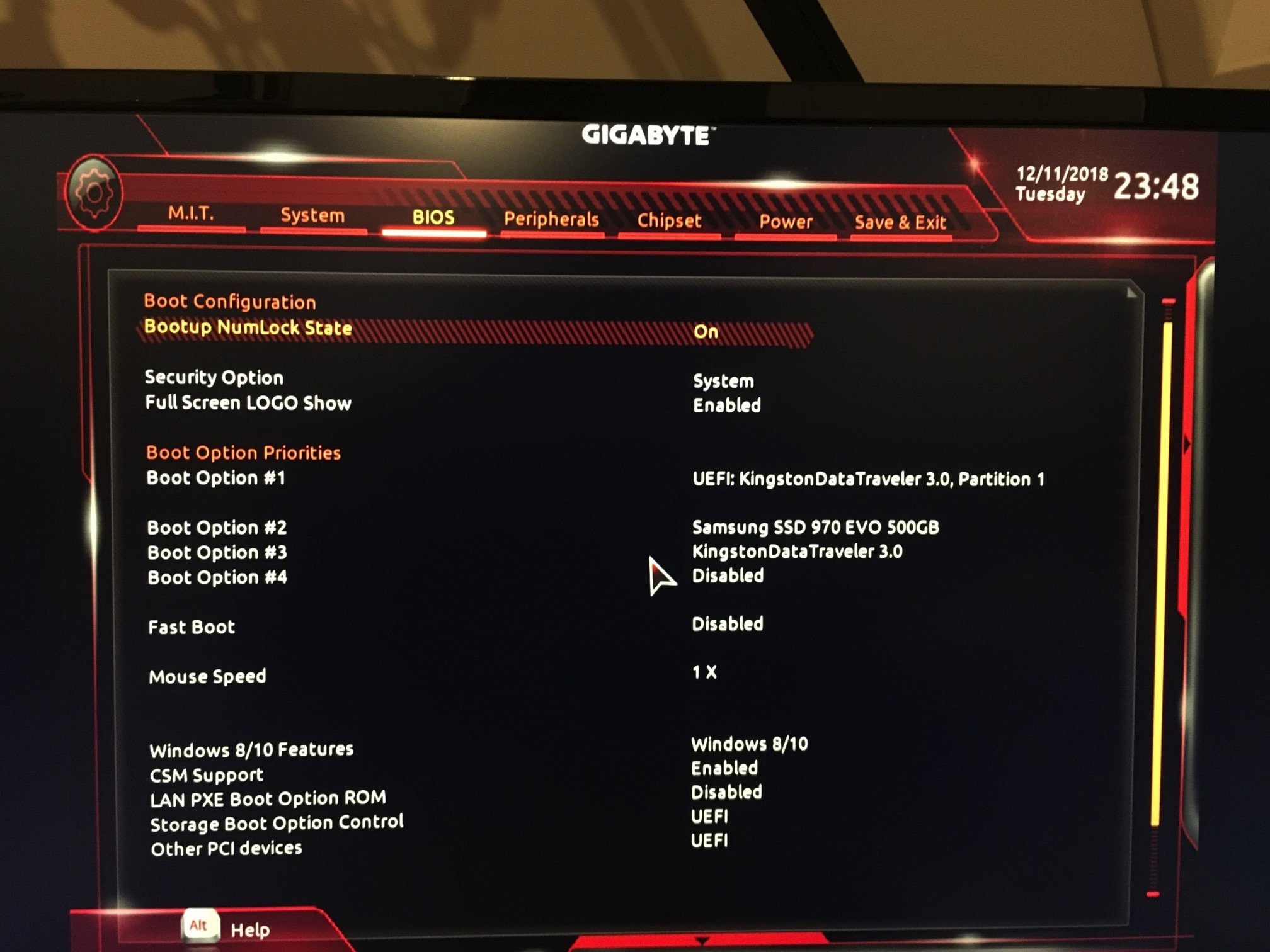

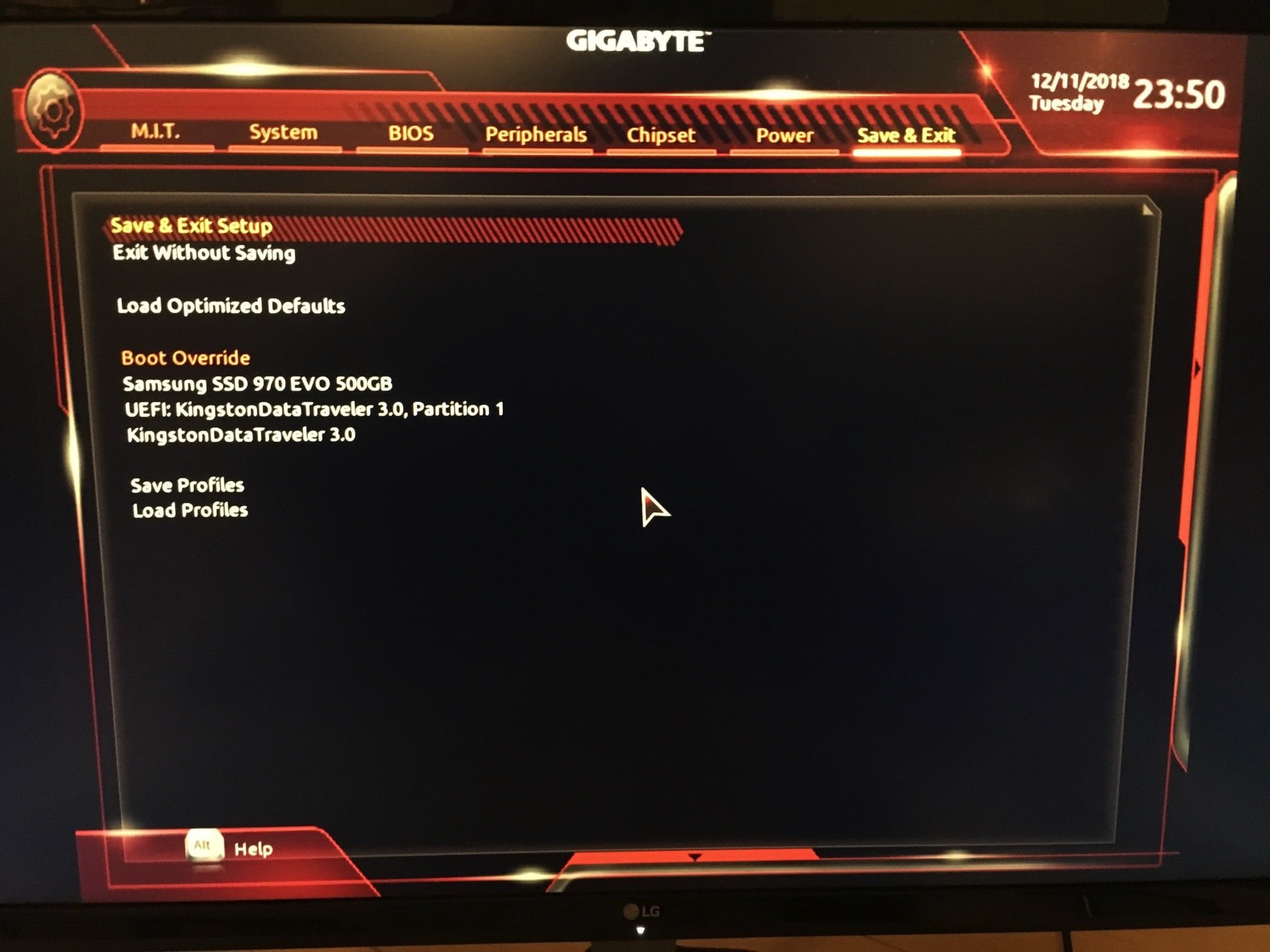

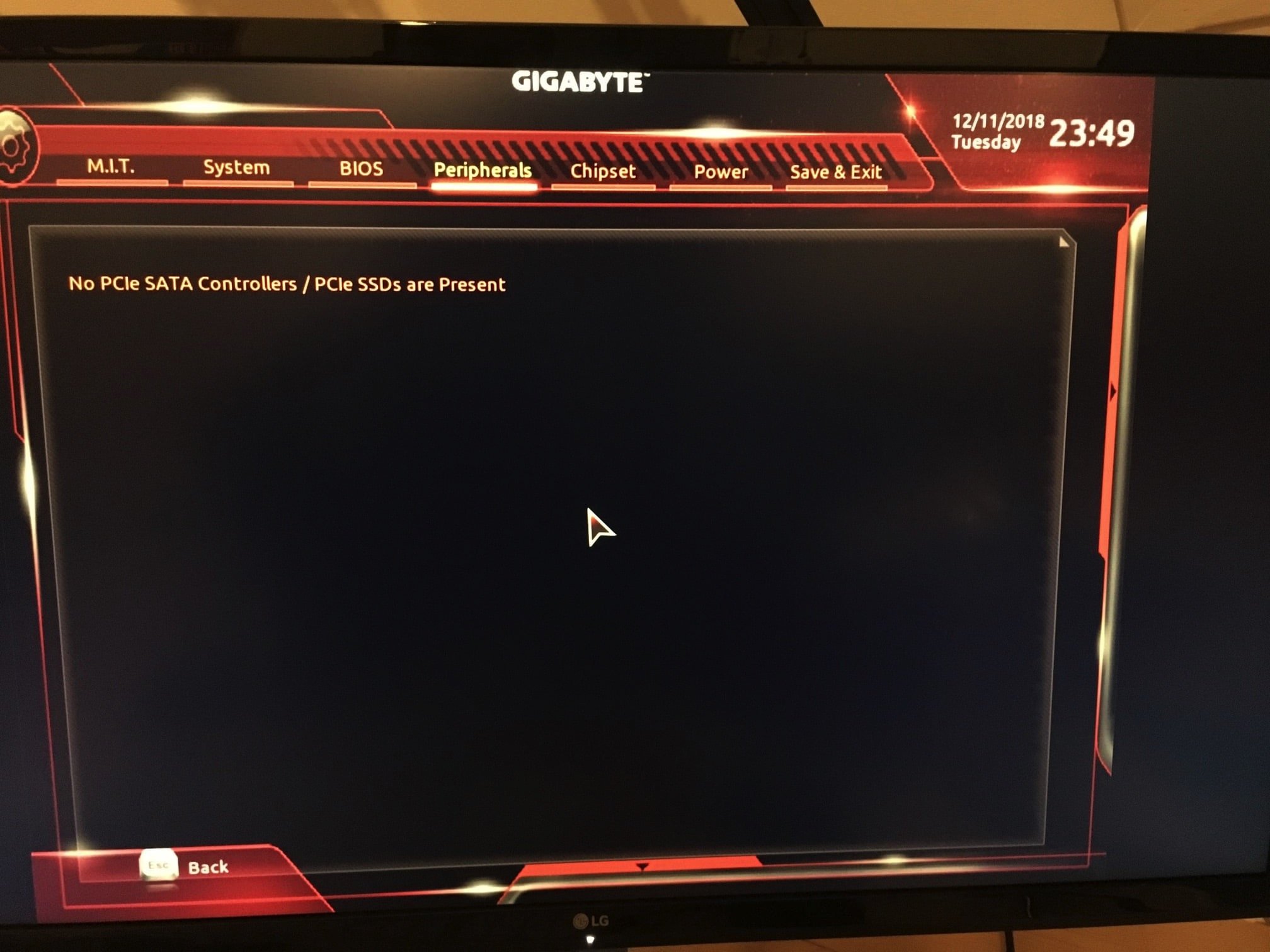

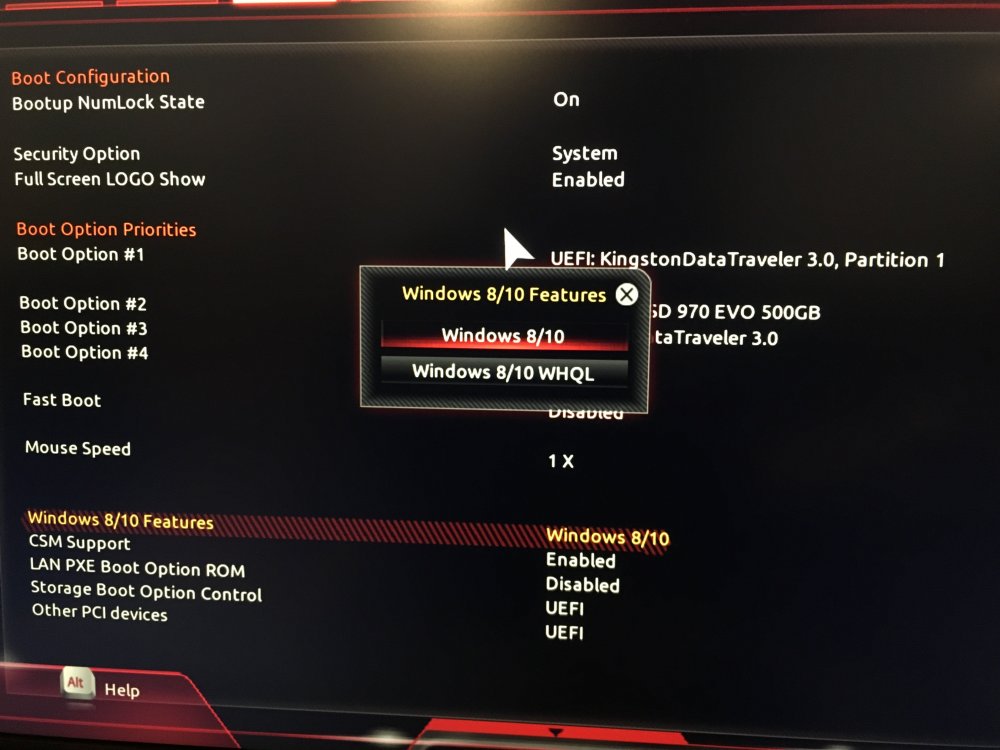

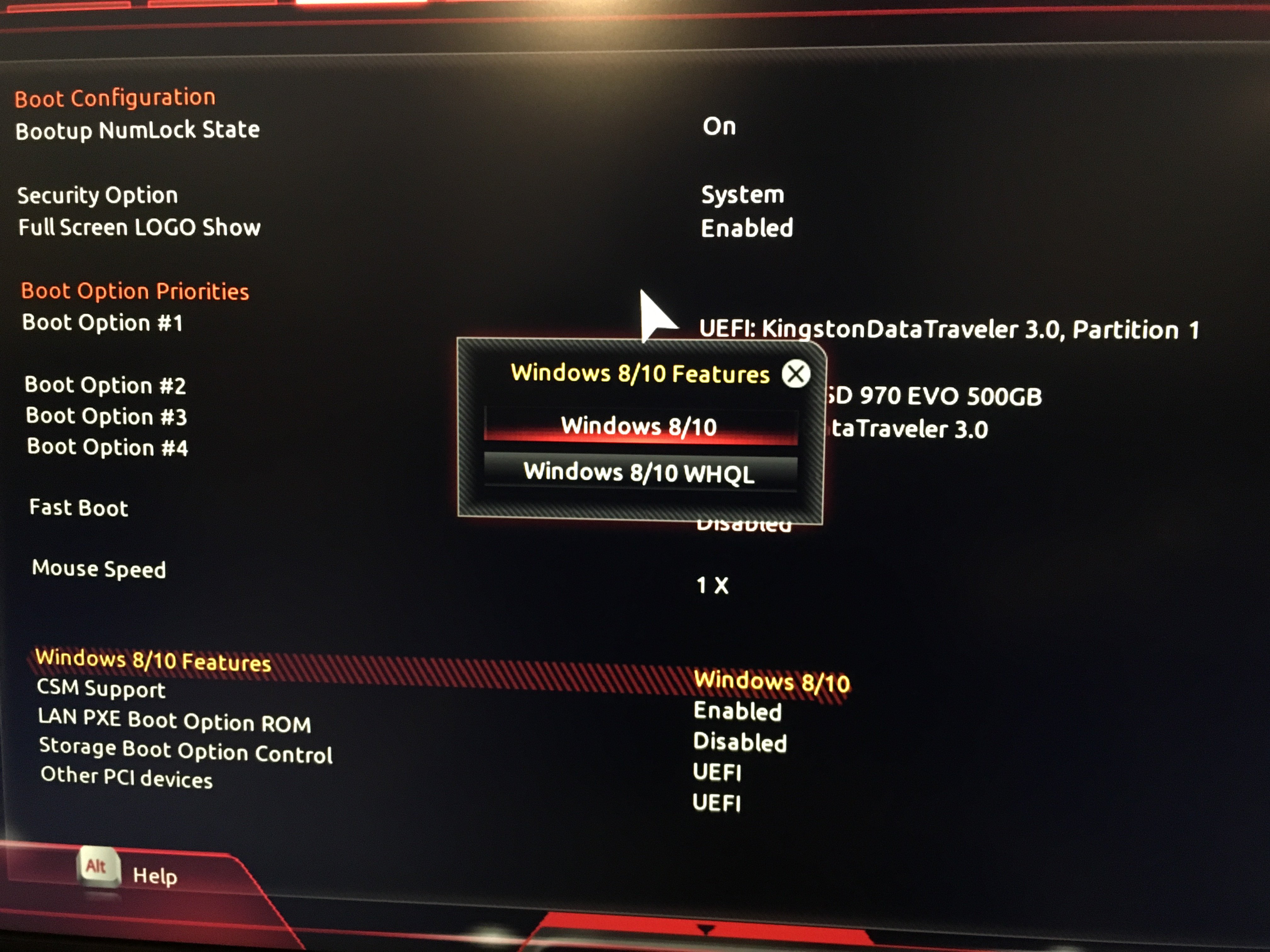

I've read that before somewhere, but the option isn't available :(



Tried both of these options, didn't change anything.

I've also tried to disable CSM Support, didn't change anything either.


Share this post


Link to post
Share on other sites

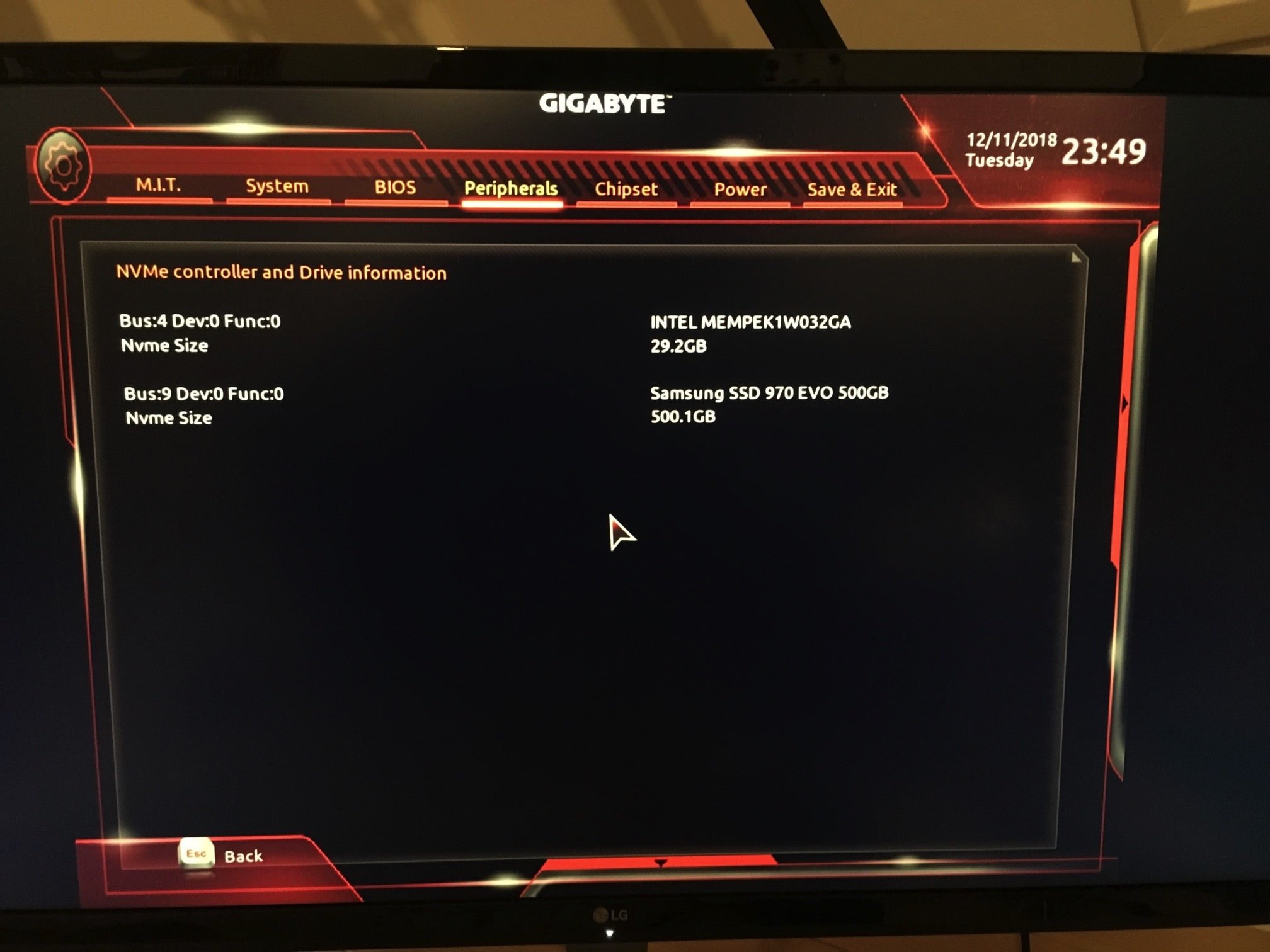

I've read somewhere that Intel Optane is not compatible with hackintosh. The only way to get hackintosh working would be to remove it physically from your motherboard.



Is that something I should try?



And if I remove it. Should I put my Samsung 970 NVME in that slot?

Share this post


Link to post
Share on other sites
5 minutes ago, Nizzlay said:

I've read somewhere that Intel Optane is not compatible with hackintosh. The only way to get hackintosh working would be to remove it physically from your motherboard.



Is that something I should try?



And if I remove it. Should I put my Samsung 970 NVME in that slot?

I'm unsure of compatibility of optane. Yes you could try physically removing it.

Changing slots for the nvme drive shouldn't be necessary but you never know.

Then try this one.

Nizzlay.zip

Edited by SavageAUS

Share this post


Link to post
Share on other sites

It seems Optane really might be the issue.



I have changed boot arguments to include: nvme=-1

Now I got into the installer!



Ofcourse I can't install anything yet because my actual storage is NVME also, so Disk Utility doesn't have anything useful to show.



I will go unscrew everything, and get that Optane thing removed. Will try again without it, and without the boot argument.

Share this post


Link to post
Share on other sites

Intel Optane has been removed from motherboard.



Used my own original EFI. Installer seems to work flawlessly so far.

Share this post


Link to post
Share on other sites
Intel Optane has been removed from motherboard.

Used my own original EFI. Installer seems to work flawlessly so far.

That’s good news. Once your all installed you will need to work out what works and what does not and optimise as needed.


Sent from my iPhone using Tapatalk

Share this post


Link to post
Share on other sites

Is installed now. Everything works.



Waiting for my Fenvi card for bluetooth and wifi, but I've read that one should work natively :)



Thanks for your help!

Share this post


Link to post
Share on other sites
Is installed now. Everything works.

Waiting for my Fenvi card for bluetooth and wifi, but I've read that one should work natively

Thanks for your help!

That’s what we’re here for.
Can you post link to that card?


Sent from my iPhone using Tapatalk

Share this post


Link to post
Share on other sites
