SavageAUS Posted August 17, 2018 Share Posted August 17, 2018 Ok so I’m getting tired of waiting for nvidia to release drivers for macOS so I’m debating on picking up a Gigabyte RX580 8gb Gaming for AU$399. Will this work oob with high Sierra and Mojave? I already use WEG and Lilu. Will I see a performance gain from my current 4gb gtx960? Link to comment https://www.insanelymac.com/forum/topic/335216-amd-rx580-or/ Share on other sites More sharing options...
Cyberdevs Posted August 17, 2018 Share Posted August 17, 2018 1 hour ago, SavageAUS said: Ok so I’m getting tired of waiting for nvidia to release drivers for macOS so I’m debating on picking up a Gigabyte RX580 8gb Gaming for AU$399. Will this work oob with high Sierra and Mojave? I already use WEG and Lilu. Will I see a performance gain from my current 4gb gtx960? The best choice would be the brands that Apple has introduced when they announced the support of eGPU in macOS 10.13.4 like Sapphire because the model ID is present in the macOS's drivers, however you can make any other GPU to work using WEG, RadeonDeInit or using a SSDT or patching the DSDT. I have two ASUS GPUs (RX 560 and RX 580) they perform ok but sometimes they will produce a reddish artifact on the menu bar specially when thy go under load so I suggest you stay away from Asus. Sapphire and PowerColor are the best choices in my view. About Gigabyte I'm not sure though I remember there were some issues with Gigabyte as well not sure though. check the documentation on 10.13.4 release for more info. Link to comment https://www.insanelymac.com/forum/topic/335216-amd-rx580-or/#findComment-2630468 Share on other sites More sharing options...
SavageAUS Posted August 17, 2018 Author Share Posted August 17, 2018 The best choice would be the brands that Apple has introduced when they announced the support of eGPU in macOS 10.13.4 like Sapphire because the model ID is present in the macOS's drivers, however you can make any other GPU to work using WEG, RadeonDeInit or using a SSDT or patching the DSDT. I have two ASUS GPUs (RX 560 and RX 580) they perform ok but sometimes they will produce a reddish artifact on the menu bar specially when thy go under load so I suggest you stay away from Asus. Sapphire and PowerColor are the best choices in my view. About Gigabyte I'm not sure though I remember there were some issues with Gigabyte as well not sure though. check the documentation on 10.13.4 release for more info.So one of these would be better?http://www.msy.com.au/amd/19052-sapphire-11265-01-20g-8gb-rx-580-nitro-oc-pci-e-vga-card.htmlSent from my iPhone using Tapatalk Link to comment https://www.insanelymac.com/forum/topic/335216-amd-rx580-or/#findComment-2630495 Share on other sites More sharing options...
Cyberdevs Posted August 17, 2018 Share Posted August 17, 2018 7 hours ago, SavageAUS said: So one of these would be better?http://www.msy.com.au/amd/19052-sapphire-11265-01-20g-8gb-rx-580-nitro-oc-pci-e-vga-card.html Yeah that one seems to be fine Link to comment https://www.insanelymac.com/forum/topic/335216-amd-rx580-or/#findComment-2630537 Share on other sites More sharing options...
SavageAUS Posted August 18, 2018 Author Share Posted August 18, 2018 Yeah that one seems to be fineDo you think it’s worth the upgrade from the 960?Sent from my iPhone using Tapatalk Link to comment https://www.insanelymac.com/forum/topic/335216-amd-rx580-or/#findComment-2630563 Share on other sites More sharing options...
Cyberdevs Posted August 18, 2018 Share Posted August 18, 2018 3 hours ago, SavageAUS said: Do you think it’s worth the upgrade from the 960? Yes! definitely! You'll have a better performance and no more waiting for nVidia Web Drivers, no more lags or other web driver related issues. You can easily install and update the new macOS versions as they get release. 1 Link to comment https://www.insanelymac.com/forum/topic/335216-amd-rx580-or/#findComment-2630573 Share on other sites More sharing options...
SavageAUS Posted August 18, 2018 Author Share Posted August 18, 2018 Yes! definitely! You'll have a better performance and no more waiting for nVidia Web Drivers, no more lags or other web driver related issues. You can easily install and update the new macOS versions as they get release. That’s what I like to hear. I have already picked it up along with a fractal define R5 case for my home server to be transplanted into. Sent from my iPhone using Tapatalk Link to comment https://www.insanelymac.com/forum/topic/335216-amd-rx580-or/#findComment-2630584 Share on other sites More sharing options...

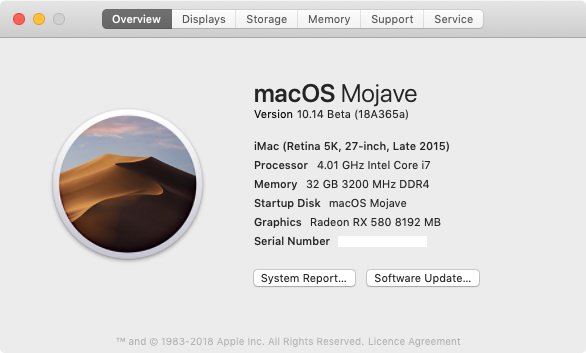

SavageAUS Posted August 18, 2018 Author Share Posted August 18, 2018 So much better, removed nvidia drivers, shut down, swapped cards and booted up. Instantly detected without any edit and fully woking in Mojave and High Sierra. 1 Link to comment https://www.insanelymac.com/forum/topic/335216-amd-rx580-or/#findComment-2630588 Share on other sites More sharing options...
Cyberdevs Posted August 18, 2018 Share Posted August 18, 2018 1 hour ago, SavageAUS said: So much better, removed nvidia drivers, shut down, swapped cards and booted up. Instantly detected without any edit and fully woking in Mojave and High Sierra. Congrats man! You save yourself from many unnecessary headaches and troubles! Link to comment https://www.insanelymac.com/forum/topic/335216-amd-rx580-or/#findComment-2630600 Share on other sites More sharing options...
sandokan71 Posted October 16, 2018 Share Posted October 16, 2018 On 8/17/2018 at 7:59 AM, Cyberdevs said: I have two ASUS GPUs (RX 560 and RX 580) they perform ok but sometimes they will produce a reddish artifact on the menu bar specially when thy go under load so I suggest you stay away from Asus. Sapphire and PowerColor are the best choices in my view. I have no "reddish artifacts on the menu bar" when using an ASUS rx570 4G, so I do not agree about your comment on Asus.. Also, it is recognised perfectly without any change, no special kexts, working OOB. You can find RX570-4G at less than 200€... Link to comment https://www.insanelymac.com/forum/topic/335216-amd-rx580-or/#findComment-2641132 Share on other sites More sharing options...
tikizondo94 Posted November 12, 2018 Share Posted November 12, 2018 (edited) On 8/18/2018 at 4:02 AM, SavageAUS said: So much better, removed nvidia drivers, shut down, swapped cards and booted up. Instantly detected without any edit and fully woking in Mojave and High Sierra. I made the same change. Came from a GTX970 and went to the RX580 8GB model. Using the Gigabyte Auros model. No issues at all. Love it. Attached is something to try with your card. This kext changes your RX580 to an AMDRadeonPro. Which is what's in the iMacPro. Allows for full support for H264 and H265:) Just add the kext in Clover/Kexts/Other. I cant claim any credit for this kext. AMDRadeonPro.kext.zip Edited November 12, 2018 by tikizondo94 1 Link to comment https://www.insanelymac.com/forum/topic/335216-amd-rx580-or/#findComment-2647284 Share on other sites More sharing options...

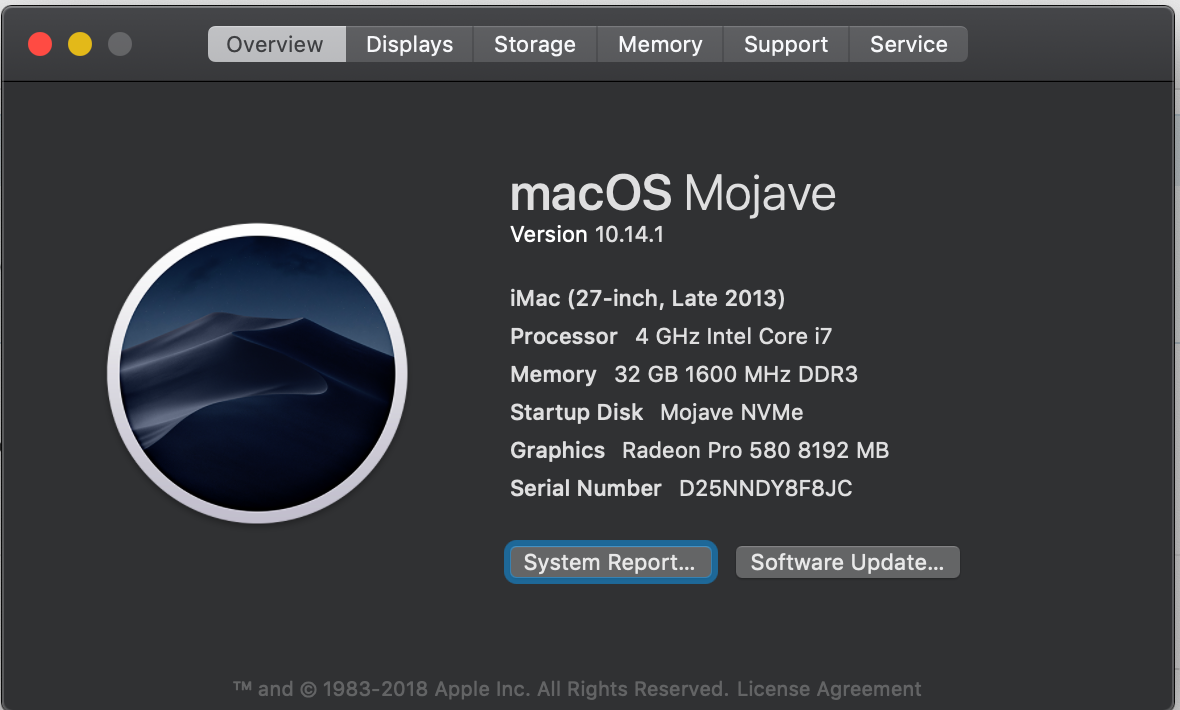

SavageAUS Posted November 12, 2018 Author Share Posted November 12, 2018 2 hours ago, tikizondo94 said: I made the same change. Came from a GTX970 and went to the RX580 8GB model. Using the Gigabyte Auros model. No issues at all. Love it. Attached is something to try with your card. This kext changes your RX580 to an AMDRadeonPro. Which is what's in the iMacPro. Allows for full support for H264 and H265:) Just add the kext in Clover/Kexts/Other. I cant claim any credit for this kext. AMDRadeonPro.kext.zip With this kext do you get the bright white flash on bootup? between first and second stage? Link to comment https://www.insanelymac.com/forum/topic/335216-amd-rx580-or/#findComment-2647299 Share on other sites More sharing options...
tikizondo94 Posted November 12, 2018 Share Posted November 12, 2018 2 minutes ago, SavageAUS said: With this kext do you get the bright white flash on bootup? between first and second stage? Not that i have noticed? Im running dual monitors so the apple logo starts on my main monitor than switches to my second monitor, then my screens both come into the OS. Link to comment https://www.insanelymac.com/forum/topic/335216-amd-rx580-or/#findComment-2647300 Share on other sites More sharing options...
SavageAUS Posted November 12, 2018 Author Share Posted November 12, 2018 Not that i have noticed? Im running dual monitors so the apple logo starts on my main monitor than switches to my second monitor, then my screens both come into the OS. I’ll give it a try when I get home. S/L/E or Clover -> kexts? Never mind you said it before. EFI it is. Sent from my iPhone using Tapatalk Link to comment https://www.insanelymac.com/forum/topic/335216-amd-rx580-or/#findComment-2647302 Share on other sites More sharing options...
tikizondo94 Posted December 3, 2018 Share Posted December 3, 2018 (edited) On 11/12/2018 at 6:42 PM, SavageAUS said: I’ll give it a try when I get home. S/L/E or Clover -> kexts? Never mind you said it before. EFI it is. Sent from my iPhone using Tapatalk I've made some more progress with getting hevc and h.264 working with our rx580s. -Try the attached text in Clover/Kexts/Other. -Remove the above AMDRadeonPro.kext -Clear all caches and repair permissions. -Disable your iGPU in BIOS. I've got Netflix working in safari again, and HEVC and H.264 encode/decode working and reporting in IOregistry. (I claim no credit for this kext) AMDRadeonEllesmereGVA.kext.zip Edited December 3, 2018 by tikizondo94 1 Link to comment https://www.insanelymac.com/forum/topic/335216-amd-rx580-or/#findComment-2651633 Share on other sites More sharing options...
FernandoCoverdale Posted December 10, 2018 Share Posted December 10, 2018 Hello friends, I take this thread for a doubt I have, I have an Nvidia 1060 6gb and I am tired of waiting for the webdrivers to mojave, I will definitely sell my graphics and I was thinking about the RX Vega 56 8Gb, what do you think about this model? ? I understand that it would work without problems in a native way, someone with this model that can tell me if it is a good buy ?, the rx580 model works perfectly but I think it is inferior to the rx56 correct me if I'm wrong. Greetings to all. Link to comment https://www.insanelymac.com/forum/topic/335216-amd-rx580-or/#findComment-2653056 Share on other sites More sharing options...
C.Frio Posted December 10, 2018 Share Posted December 10, 2018 hi... there're some comments, here too, about the RX 590.. (or the new..RX 3080 , only next year and no Mac reference...) you can take a look and compare with the Vega one... c.frio Link to comment https://www.insanelymac.com/forum/topic/335216-amd-rx580-or/#findComment-2653081 Share on other sites More sharing options...
xAyiDe Posted January 8, 2019 Share Posted January 8, 2019 On 12/3/2018 at 3:21 PM, tikizondo94 said: I've made some more progress with getting hevc and h.264 working with our rx580s. -Try the attached text in Clover/Kexts/Other. -Remove the above AMDRadeonPro.kext -Clear all caches and repair permissions. -Disable your iGPU in BIOS. I've got Netflix working in safari again, and HEVC and H.264 encode/decode working and reporting in IOregistry. (I claim no credit for this kext) AMDRadeonEllesmereGVA.kext.zip would it be possible for you to attached your EFI-folder. I cannot get the radeonpro.kext to load and show any difference nor do I get HEVC/H264 to work in either encode or decode with the AMDRadeonEllesmereGVA.kext. I am on 10.14.2 with rx580 nitro+ flashed to native card 113-4E353BU-O4E. Link to comment https://www.insanelymac.com/forum/topic/335216-amd-rx580-or/#findComment-2657978 Share on other sites More sharing options...
tikizondo94 Posted January 9, 2019 Share Posted January 9, 2019 53 minutes ago, xAyiDe said: would it be possible for you to attached your EFI-folder. I cannot get the radeonpro.kext to load and show any difference nor do I get HEVC/H264 to work in either encode or decode with the AMDRadeonEllesmereGVA.kext. I am on 10.14.2 with rx580 nitro+ flashed to native card 113-4E353BU-O4E. This is my current clover im using. Im currently setup using Intel Qsync with my RX 580. "iGPU enabled in BIOS and using a headless connector ID". Now, when i have Qsync enabled i cannot view Netflix in safari. Only when i disable my iGPU in BIOS and using only my RX580 can i view DRM content in safari. CLOVER.zip Link to comment https://www.insanelymac.com/forum/topic/335216-amd-rx580-or/#findComment-2657986 Share on other sites More sharing options...
SavageAUS Posted January 9, 2019 Author Share Posted January 9, 2019 would it be possible for you to attached your EFI-folder. I cannot get the radeonpro.kext to load and show any difference nor do I get HEVC/H264 to work in either encode or decode with the AMDRadeonEllesmereGVA.kext. I am on 10.14.2 with rx580 nitro+ flashed to native card 113-4E353BU-O4E.What was the reason to flash the card? Mine is the same 8Gb version and works oob. If I use the radeonpro kext it’s shows as a Radeon pro. Haven’t tested h264 or the new kext yet. Sent from my iPhone using Tapatalk Link to comment https://www.insanelymac.com/forum/topic/335216-amd-rx580-or/#findComment-2657994 Share on other sites More sharing options...
xAyiDe Posted January 9, 2019 Share Posted January 9, 2019 5 hours ago, SavageAUS said: What was the reason to flash the card? Mine is the same 8Gb version and works oob. If I use the radeonpro kext it’s shows as a Radeon pro. Haven’t tested h264 or the new kext yet. Sent from my iPhone using Tapatalk The reason was that I wanted to have the right orinoco framebuffer without edits. So I added the right BIOS serial/Partnumber but still it wouldnt give the right amount of ports so the edit was of no use actualy. I still need to inject orinoco and 5 ports to get it to work with 4-5 screens and sleepmode. Link to comment https://www.insanelymac.com/forum/topic/335216-amd-rx580-or/#findComment-2658014 Share on other sites More sharing options...
xAyiDe Posted January 9, 2019 Share Posted January 9, 2019 7 hours ago, tikizondo94 said: This is my current clover im using. Im currently setup using Intel Qsync with my RX 580. "iGPU enabled in BIOS and using a headless connector ID". Now, when i have Qsync enabled i cannot view Netflix in safari. Only when i disable my iGPU in BIOS and using only my RX580 can i view DRM content in safari. CLOVER.zip Aha, that must be it. I have no iGPU. Forgott to add my signature with my build but I have Xeon E5 so no iGpu. I guess thats what makes this a bit harder with HEVC/H264. Link to comment https://www.insanelymac.com/forum/topic/335216-amd-rx580-or/#findComment-2658018 Share on other sites More sharing options...
SavageAUS Posted January 9, 2019 Author Share Posted January 9, 2019 7 hours ago, tikizondo94 said: This is my current clover im using. Im currently setup using Intel Qsync with my RX 580. "iGPU enabled in BIOS and using a headless connector ID". Now, when i have Qsync enabled i cannot view Netflix in safari. Only when i disable my iGPU in BIOS and using only my RX580 can i view DRM content in safari. CLOVER.zip ** Off topic NvmExpressDxe - i dont think this is needed anymore? EFICheckDisabler - What is this for? Link to comment https://www.insanelymac.com/forum/topic/335216-amd-rx580-or/#findComment-2658019 Share on other sites More sharing options...
tikizondo94 Posted January 9, 2019 Share Posted January 9, 2019 2 hours ago, SavageAUS said: ** Off topic NvmExpressDxe - i dont think this is needed anymore? EFICheckDisabler - What is this for? Yeah your right, I probably dont need NvmExpressDxe anymore. Its been in there since Sierra. EfiCheckDisabler is just for precaution. I probably dont need it anymore either lol. Link to comment https://www.insanelymac.com/forum/topic/335216-amd-rx580-or/#findComment-2658043 Share on other sites More sharing options...

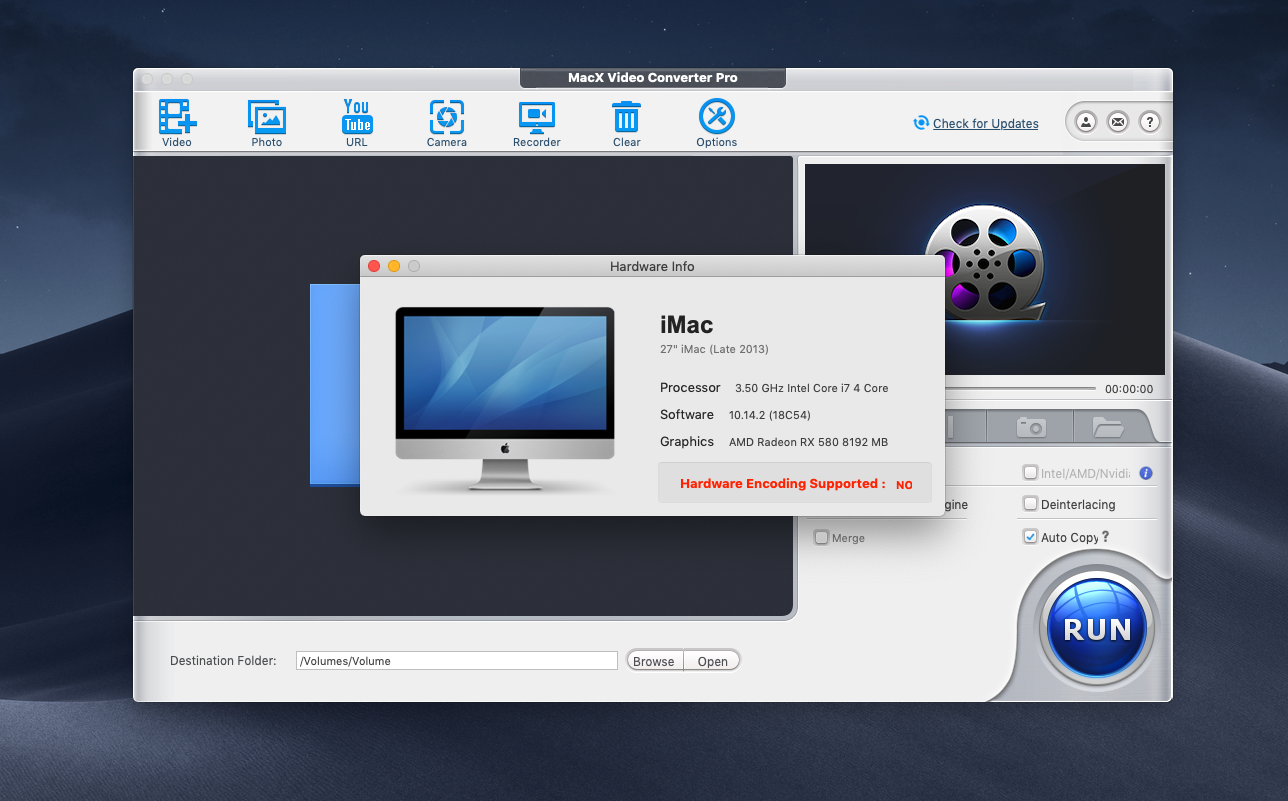

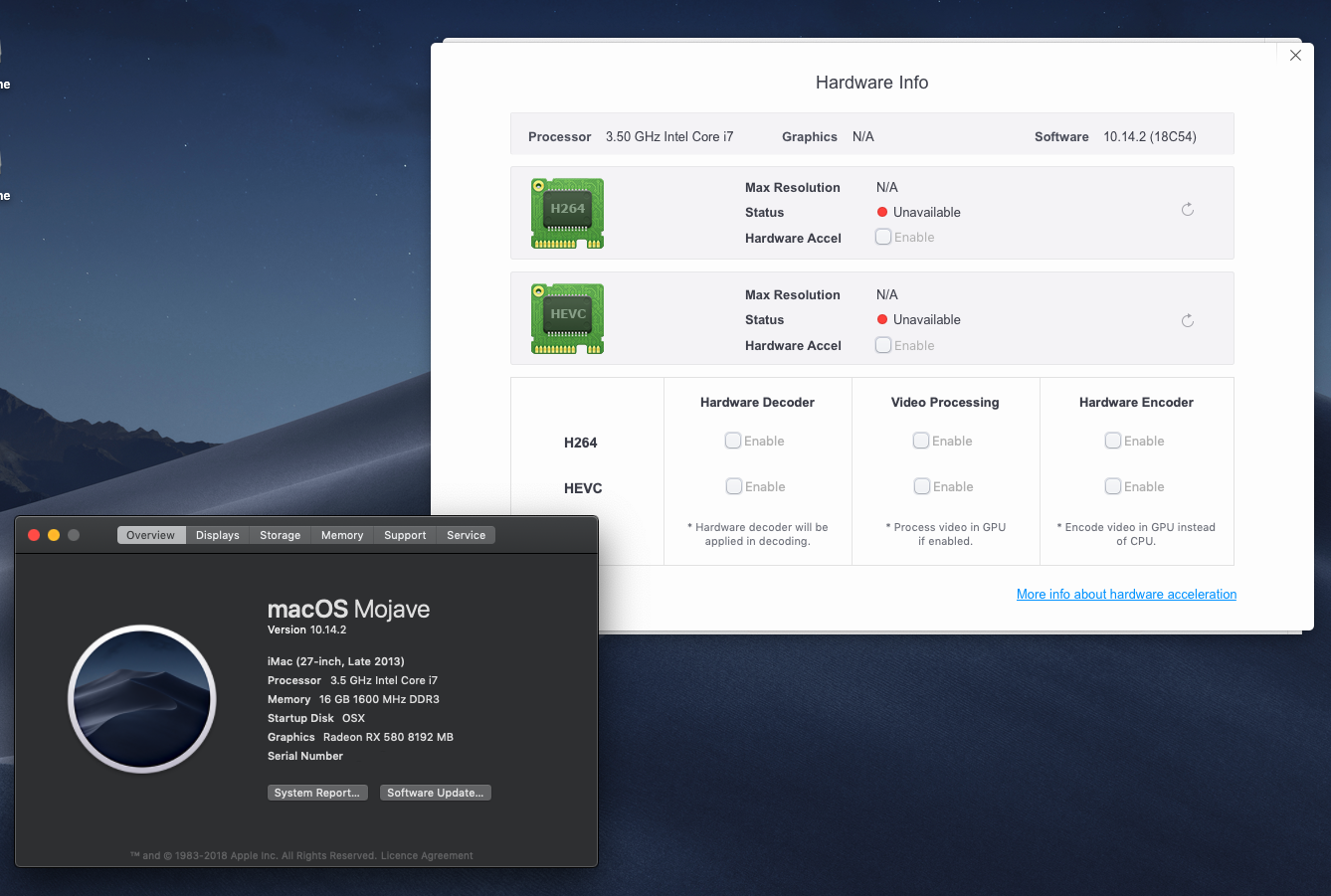

Apple Hunter Posted January 22, 2019 Share Posted January 22, 2019 Till now I have done lots of setting, edit config, adding whatevergreen and lilu kext still I cant fix hardware encoding on FCP, Premier Pro are Getting Very poor Performance on AMD RX 580. Even Enable both dGPU & iGPU same issues No hardware encoding. In IGPU HD 4000 QS encoding works Fine. I have attached my EFI Please check whether that settings are wrong and help me How to fix it ? will be more appreciate. My system:- OS MOJAVE 10.14.2 Z77 with i7 3770k 16G RAMSAPPHIRE Pulse RX 580 8GB (PEG) Primary Display HD4000 Secondary Display. EFI.zip Link to comment https://www.insanelymac.com/forum/topic/335216-amd-rx580-or/#findComment-2660559 Share on other sites More sharing options...
