Hackintool v3.x.x


headkaze
1,057 posts in this topic

Recommended Posts

@5T33Z0, Not sure if this is going to help you but... I suspected that the problems had something to do with the device ID being injected in the device properties so I took out that entry and sure enough... problem fixed on the iGPU.



I was assuming that the device ID should be a hex transposition of the framebuffer as it had been on my previous hack. It's not the case: Device ID:0x9BC5 for framebuffer 0x9BC800003.



Link to comment
Share on other sites

Guest 5T33Z0

@rafale77 The device-id is provided by the CPU. You can find it in the Specs for your CPU on Intel's site. For the 10th Gen Intel Core i9 it's 0x9BC5 and if you change the "endianess" for OpenCore, then it's C59B0000.

I disabled it now and rebooted.  Performance is still the same. I'm going to try different Framebuffers from the list.

Link to comment
Share on other sites

Guest 5T33Z0

@headkaze Could you maybe extend the list with Framebuffer patches so it shows more entries at once? It's really small compared to the amount of entries it has:



333945124_Bildschirmfoto2022-04-24um19_16_14.png.2eedac48dda501a4a2b8cd417be8ed88.png+



Thanks

Link to comment
Share on other sites



can this tool dump these variables?



Debugger called: </Library/Caches/com.apple.xbs/Sources/GPUDriversIntel/GPUDriversIntel-16.0.31/IONDRV/IVB/AppleIntelFramebuffer/AppleIntelController.cpp:14147 Assertion failed: (0 == i) || ((pfbInfo->rangeStolen.physBase - pfbInfoPrev->r

(0 == i) || ((pfbInfo->rangeStolen.physBase - pfbInfoPrev->rangeStolen.physBase) == fFramebufferMemorySize)



thx

Link to comment
Share on other sites

  • 2 months later...

@headkaze how are you?



I'm using the Lenovo Gamming 3i as my main Hackintoh, and it's screen resolution is 1920x1080, but all the itens is soo terrible small.


And I wanna use Hackintool to add more resolution options, but before that I want to understand the options available at the app, such as:



Spoiler

Screen Shot 2022-06-28 at 14.08.25.png



  • HiDPI 1, 2 and etc...
  • Non Scaled
  • Auto

Wich I need to use?


I've made some tests, and add the .kext generated by the Hackintool with OpenCore, but after a reboot, the options that I want won't appears.



Thank you 😃

Link to comment
Share on other sites

46 minutes ago, Allan said:

but all the itens is soo terrible small.

Hi Buddy - Are you sure it's not down to old age and bad eye sight? :) - Sorry for the levity pal I couldn't resist, please don't be harsh with me ---and yes I was the class clown at school. :graduated:

That aside hope you get it sorted.

  • Like 1
  • Haha 3
Link to comment
Share on other sites

2 hours ago, eSaF said:

Hi Buddy - Are you sure it's not down to old age and bad eye sight? :) - Sorry for the levity pal I couldn't resist, please don't be harsh with me ---and yes I was the class clown at school. :graduated:

That aside hope you get it sorted.

lol!



I was so worried about it, that I've put some glasses hehehe 🤓

But still the same

  • Like 2
  • Haha 2
Link to comment
Share on other sites

Look how it looks, and I hope it helps.



I was using the one-key-hidpi script by @xzhih, but I have problems with sleep.



1600x900



Spoiler




1920x1080





Spoiler






At Windows I feel more comfortable with 1080p, but at the macOS all the thing is much smaller.

  • Like 1
Link to comment
Share on other sites

21 hours ago, Allan said:

@headkaze how are you?



I'm using the Lenovo Gamming 3i as my main Hackintoh, and it's screen resolution is 1920x1080, but all the itens is soo terrible small.


And I wanna use Hackintool to add more resolution options, but before that I want to understand the options available at the app, such as:



  • HiDPI 1, 2 and etc...
  • Non Scaled
  • Auto

Wich I need to use?


I've made some tests, and add the .kext generated by the Hackintool with OpenCore, but after a reboot, the options that I want won't appears.



Thank you 😃

I believe the structure of each item in the scale-resolutions array is described in Apple open source IOKitUser/IOKitUser-1445.71.1/graphics.subproj/IOGraphicsLib.c

The latest version of this source file is for macOS 10.13.16 but I think IOGraphicsLib was replaced by CoreDisplay.framework (or it is part of CoreDisplay.framework now). Anyway, it might not be the latest info.

The structure can be Number or Data.



Number (32 bit): v << 16 | h.



Data (between one and five 32 bit numbers) : h, v, flags, setModeFlags, clrModeFlags



Only h is required. If v is zero or not specified then it is calculated from h using the native aspect ratio of the display.



flags can be one of these:

    // skips all the various checks and always installs
    kScaleInstallAlways         = 0x00000001,
    // disables the install of a stretched version if the aspect is different
    kScaleInstallNoStretch      = 0x00000002,
    // install resolution untransformed
    kScaleInstallNoResTransform = 0x00000004,
    // install resolution on mirror dependents of this display
    kScaleInstallMirrorDeps     = 0x00000008

setModeFlags and clrModeFlags can be any of these:


    kDisplayModeValidFlag               = 0x00000001,
    kDisplayModeSafeFlag                = 0x00000002,
    kDisplayModeDefaultFlag             = 0x00000004

    kDisplayModeSafetyFlags             = 0x00000007,

    kDisplayModeAlwaysShowFlag          = 0x00000008,
    kDisplayModeNeverShowFlag           = 0x00000080,
    kDisplayModeNotResizeFlag           = 0x00000010,
    kDisplayModeRequiresPanFlag         = 0x00000020,
    kDisplayModeInterlacedFlag          = 0x00000040,
    kDisplayModeSimulscanFlag           = 0x00000100,
    kDisplayModeBuiltInFlag             = 0x00000400,
    kDisplayModeNotPresetFlag           = 0x00000200,
    kDisplayModeStretchedFlag           = 0x00000800,
    kDisplayModeNotGraphicsQualityFlag  = 0x00001000,
    kDisplayModeValidateAgainstDisplay  = 0x00002000,
    kDisplayModeTelevisionFlag          = 0x00100000,
    kDisplayModeValidForMirroringFlag   = 0x00200000,
    kDisplayModeAcceleratorBackedFlag   = 0x00400000,
    kDisplayModeValidForHiResFlag       = 0x00800000,
    kDisplayModeValidForAirPlayFlag     = 0x01000000,
    kDisplayModeNativeFlag              = 0x02000000

    kMirrorOnlyFlags = (kDisplayModeValidForMirroringFlag),
    kAddSafeFlags = (kDisplayModeValidFlag | kDisplayModeValidateAgainstDisplay)

The options shown in Hackintool are probably supposed to be various combos of the above flags.



The Hackintool source code has this comment:

// https://comsysto.github.io/Display-Override-PropertyList-File-Parser-and-Generator-with-HiDPI-Support-For-Scaled-Resolutions/
// https://gist.github.com/ejdyksen/8302862
// https://github.com/xzhih/one-key-hidpi
// ---------------------------------------------
// 1. 1080p Display
//    - HiDPI1: 1920x1080 1680x945 1440x810 1280x720 1024x576
// 2. 2K Display
//    - HiDPI1: 2048x1152 1920x1080 1680x945 1440x810 1280x720
//    - HiDPI2: 1024x576
//    - HiDPI3: 960x540
//    - HiDPI4: 2048x1152
// 3. Manual Input Resolution
//    - Auto (HiDPI3 / HiDPI2)
// ---------------------------------------------
// - HiDPI2: 1280x720 960x540 640x360
// - HiDPI3: 840x472 720x405 640x360 576x324 512x288 420x234 400x225 320x180
// - HiDPI4: 1920x1080 1680x945 1440x810 1280x720 1024x576 960x540 640x360
// ---------------------------------------------
// - NonScaled: <xxxxxxxx yyyyyyyy>
// - HiDPI1: <xxxxxxxx yyyyyyyy 00>
// - HiDPI2: <xxxxxxxx yyyyyyyy 00000001 00200000>
// - HiDPI3: <xxxxxxxx yyyyyyyy 00000001>
// - HiDPI4: <xxxxxxxx yyyyyyyy 00000009 00a00000>
// ---------------------------------------------



HiDPI1 seems strange since the last 32 bit number is only 8 bits.



The other numbers probably translate to these:

00000001 = kScaleInstallAlways
00000009 = kScaleInstallAlways | kScaleInstallMirrorDeps
00200000 = kDisplayModeValidForMirroringFlag
00a00000 = kDisplayModeValidForMirroringFlag | kDisplayModeValidForHiResFlag

Using this info, it seems like it would be best to always select HiDPI4.



SwitchResX appears to always use flags: kScaleInstallAlways, modeFlags: kDisplayModeValidForMirroringFlag which corresponds to HIDPI2.



Edited by joevt
  • Like 2
  • Thanks 1
Link to comment
Share on other sites

1 hour ago, Allan said:

Look how it looks, and I hope it helps.



I was using the one-key-hidpi script by @xzhih, but I have problems with sleep.



1600x900



1920x1080



At Windows I feel more comfortable with 1080p, but at the macOS all the thing is much smaller.

I don't see how scaled modes can cause sleep issues but I rarely put my computer to sleep; just the display.



Have you tried using SwitchResX to create the 3200x1800 scaled mode? It should be able to give you the desired 1600x900 HiDPI mode.

SwitchResX uses the display override method instead of the kext method.

The display override goes in the /Library/Displays/Contents/Resources/Overrides/DisplayVendorID-x folder.

SwitchResX uses this naming format: DisplayYearManufacture-*-DisplayWeekManufacture-*

instead of the usual naming format DisplayProductID-*



  • Like 3
  • Thanks 1
Link to comment
Share on other sites

Wow! Man that's a perfect explanation, thank you so much



I've create the .kext with Hackintool and put it on OC/kext folder + address it on config.plist, but nothing changes at the System Preferences > Displays



31 minutes ago, joevt said:

Have you tried using SwitchResX to create the 3200x1800 scaled mode? It should be able to give you the desired 1600x900 HiDPI mode.

Hmmm that's nice, I'll give it a try

  • Like 2
Link to comment
Share on other sites

9 hours ago, Allan said:

Wow! Man that's a perfect explanation, thank you so much



I've create the .kext with Hackintool and put it on OC/kext folder + address it on config.plist, but nothing changes at the System Preferences > Displays



Hmmm that's nice, I'll give it a try

How was it specified in the config.plist? The kext doesn't have an executable. I've never tried the kext method. If it's loaded correctly, then the properties in the info.plist should appear in the IORegistry of all AppleDisplay class items. Hmm - I don't see how that can work properly when there are multiple displays - shouldn't there by some matching criteria in the info.plist? Or is that done by the IOProviderClass using the DisplayVendorID and DisplayProductID? I don't see any Apple open source code that describes this kext method. But you're saying it doesn't work for any display which is a different problem.

Link to comment
Share on other sites

On 6/29/2022 at 10:43 PM, joevt said:

How was it specified in the config.plist?

Here is:

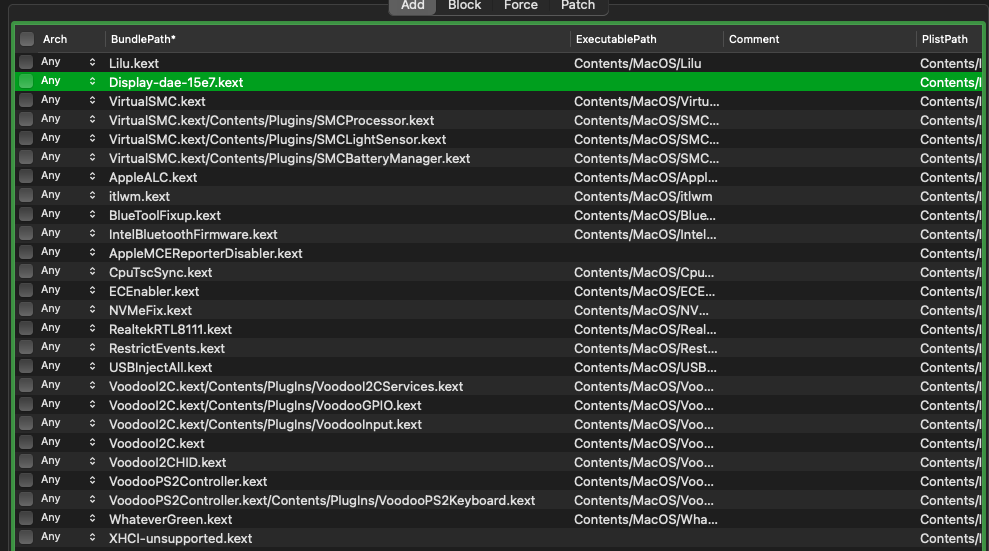

Screen Shot 2022-07-01 at 10.28.57.png



On 6/29/2022 at 10:43 PM, joevt said:

But you're saying it doesn't work for any display which is a different problem.

I'm using only for my built-in display.

Link to comment
Share on other sites

On 7/1/2022 at 6:36 AM, Allan said:

In a nutshell something that I want is to increase/decrease scaling on macOS like Windows. :wacko:



Screen Shot 2022-07-01 at 10.34.32.png





The ability to choose arbitrary UI scaling factors in macOS was removed after Mac OS X 10.5. It's possible the code still exists in macOS, but I haven't tried making a patch to create a mode that is not 1x or 2x to test this.



Now you have to combine a UI scaling factor of 200% (per dimension) with an arbitrary resolution scale factor.



On the Windows side, you need to determine if the scale % that you want is referring to area (two dimensions) or length (single dimension) before you can translate this to macOS.



  • Like 2
  • Thanks 1
Link to comment
Share on other sites

1 hour ago, LockDown said:

Does motherboad LGA775 ICH10 have 15-Port limit?

ICH10 doesn't support XHCI so it probably doesn't have 15 port limit.

ICH10 has multiple USB UHCI and EHCI controllers so while it can have more than 15 USB 1.1 or USB 2.0 ports, they are spread out among multiple USB controllers so that no single controller has more than 2 or 4 or 6 or 8 ports.



Intel® ICH10 Features

USB 2.0
— Six UHCI Host Controllers, supporting up to

    twelve external ports
— Two EHCI Host Controllers, supporting up

    to twelve external ports
— Two Configuration Options for EHCI

    Controllers 6+6 and 8+4




  • Like 2
  • Thanks 1
Link to comment
Share on other sites

  • 5 months later...

I am using Hackintool 3.9.1 on multiple hacks without any issues.  It works great for me.  Most recently, I used Hackintool to generate USBPorts.kext for my HackBookPro6,2 (Dell Latitude E6410) here.  The resulting USBPorts.kext is attached to this post.  I am not having any USB functionality issues with my hack. I am only reporting this in case it helps to diagnose/debug issues with Hackintool.

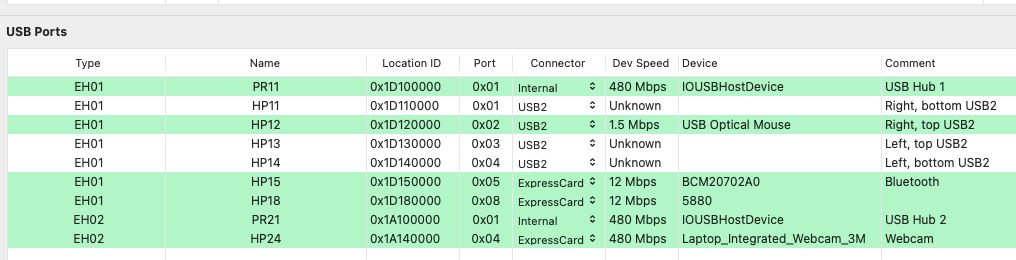

When my hack is running macOS Big Sur and Monterey, Hackintool displays USBPorts as would be expected.

Spoiler

1342890127_ScreenShot2022-12-05at4_59_46PM.thumb.png.d46d9c325c45f7af6c82642378bb60d0.png

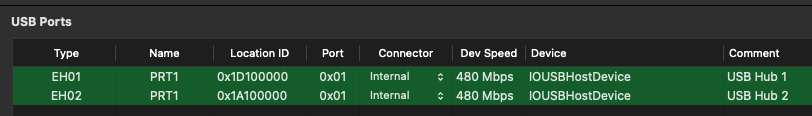

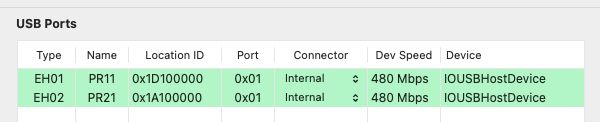

However, when running Ventura 13.0.1, Hackintool displays only the USB Hubs EH01 and EH02 (none of the USB Ports):

Spoiler




Despite this display issue in Hackintool, USB ports are working normally on my hack and USB ports are displayed as would be expected in IORegistryExplorer:

Spoiler

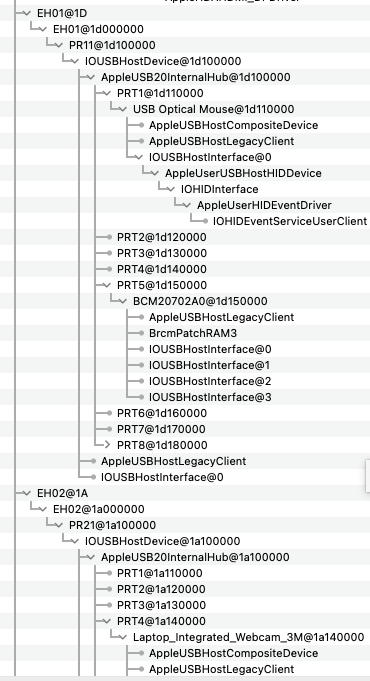

When a USB thumb drive is inserted into one of my hack's USB ports, the port status updates in IORegistry explorer, but Hackintool continues to show only the USB  hubs (even when Hackintool USB screen is manually cleared and refreshed.



Spoiler




I am only observing this Hackintool USB display issue when running Ventura.  This issue does not occur when running Big Sur and Monterey.  This is not a problem for me - I'm only reporting in case this helps @headkaze diagnose/debug issues.



Thank you for a great tool, @headkaze!

USBPorts.kext.zip

Edited by deeveedee
Added screenshot of Hackintool USB listing in Big Sur
  • Like 2
Link to comment
Share on other sites

1 hour ago, deeveedee said:

When a USB thumb drive is inserted into one of my hack's USB ports, the port status updates in IORegistry explorer, but Hackintool continues to show only the USB  hubs (even when Hackintool USB screen is manually cleared and refreshed.

I can only suspect yet another means of reading/enumerating the ports on Ventura that Hackintool hasn't caught up yet...

What is important @deeveedee is that the generated USBPorts (on Monterey I assume, and you kept using it) is working on Ventura OS well.

Could that be it @headkaze?  (and thanks from me too, once more, for the great tool!)

  • Like 1
Link to comment
Share on other sites

@MacKonsti I ran Hackintool in Big Sur to generate USBPorts.kext.  It was a little tricky, because the Internal Port Type 255 works only for the Hub.  Assigning Internal Port Type 255 to any of the USB ports (children of the Hub) would break USB patching.  I had to go back to a Rehabman post (not sure which one) which assigned Port Type 2.  Note in my USBPorts.kext/Contents/Info.plist that the Hub uses UsbConnector while the Ports use PortType.

Edited by deeveedee
  • Like 1
  • Thanks 1
Link to comment
Share on other sites

I used Hackintool 3.9.1 to assist with my installation of VoodooHDA.kext 2.9.8 in Big Sur (OC 0.8.7) as described here.  After installation of VoodooHDA.kext 2.9.8 and rebooting my hack, sound is working perfectly with internal laptop speakers.  However, when I attempt to view audio properties (Pin Configuration and Audio info) with Hackintool, audio properties are not displayed.  Hackintool did display audio properties when I was using AppleALC.  Is this intentional?  It's not a problem for me - just curious.

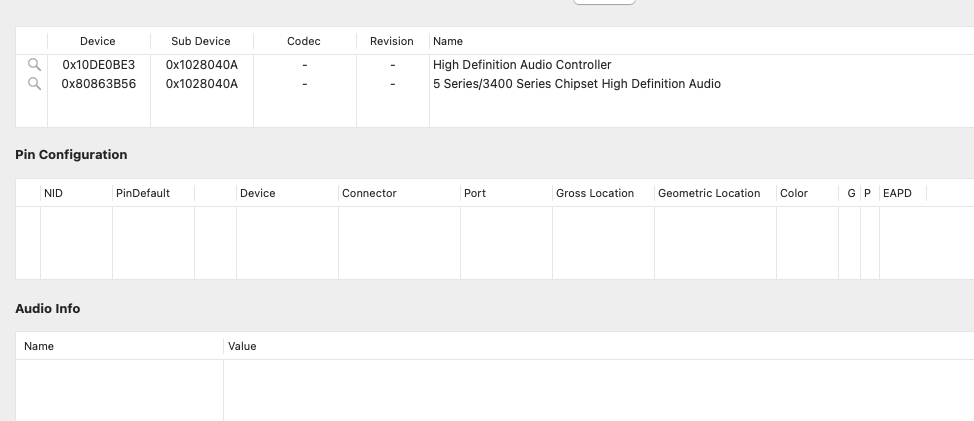

Hackintool 3.9.1 audio properties when using VoodooHDA.kext

Spoiler




Link to comment
Share on other sites

Hi @deeveedee I can suspect that the IORegistry is not created the same way when VoodooHDA is used thus Hackintool may not detect the right branches or devices etc. But as you say, I am also curious to know, if it was ever attempted to code it to detect VoodooHDA (not used as much as AppleALC I guess?)
Why don't you post a screenshot of your IORegistry Explorer or better, a sanitised export of IORegistryExplorer (without S/Ns if possible?) so that @headkaze can comment?  (just a tip ;) )

Link to comment
Share on other sites

11 hours ago, deeveedee said:

I used Hackintool 3.9.1 to assist with my installation of VoodooHDA.kext 2.9.8 in Big Sur (OC 0.8.7) as described here.  After installation of VoodooHDA.kext 2.9.8 and rebooting my hack, sound is working perfectly with internal laptop speakers.  However, when I attempt to view audio properties (Pin Configuration and Audio info) with Hackintool, audio properties are not displayed.  Hackintool did display audio properties when I was using AppleALC.  Is this intentional?  It's not a problem for me - just curious.



Hackintool 3.9.1 audio properties when using VoodooHDA.kext

  Reveal hidden contents



I already reported to @headkaze that Hackintool will not see VoodooHDA.

  • Like 1
  • Thanks 2
Link to comment
Share on other sites

On 12/7/2022 at 3:06 PM, MacKonsti said:

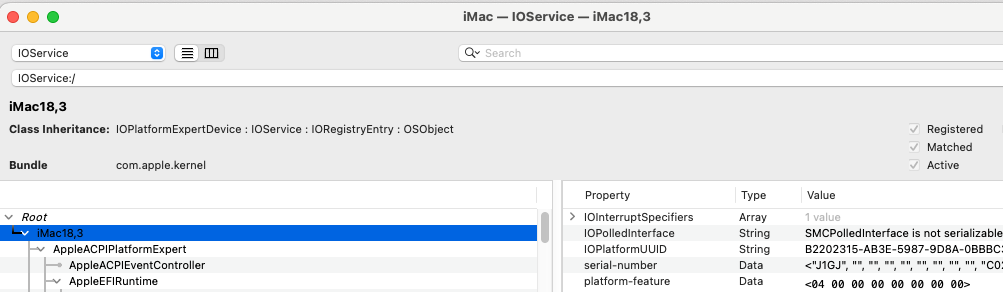

Why don't you post a screenshot of your IORegistry Explorer or better, a sanitised export of IORegistryExplorer (without S/Ns if possible?) so that @headkaze can comment?  (just a tip ;) )



I've never thought about sanitizing my posted IORegistry Explorer dumps before.  Where in IORegistry Explorer dumps do the S/Ns appear?  Thanks!

Link to comment
