MaLd0n Posted May 16, 2017 Author Share Posted May 16, 2017 in Clover boot screen press O key, go toi acpi, name, changed dsdt.aml to dsdt02.aml boot into system and run kext utility Kext Utility.app.zip try boot again without rename 1 Link to comment Share on other sites More sharing options...
Donw35 Posted May 16, 2017 Share Posted May 16, 2017 doesn't like the dsdt.aml, will boot without it 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted May 16, 2017 Author Share Posted May 16, 2017 try it without USB patch DSDT.aml.zip the problem is not DSDT, is a bios version with kabylake support, EFI, Clover Apple Changed many things in 10.12.4 +, if u use a fresh install with 10.12, no problem, the problem is after 10.12.4 and clover versions if u have a time use a fresh install, install Clover UEFI, Replace folder like here http://www.insanelymac.com/forum/topic/321872-guide-sierra-on-mobos-serie-200-kabylake-dsdt/?p=2423169 and many other cases 1 Link to comment Share on other sites More sharing options...
geeti Posted May 17, 2017 Share Posted May 17, 2017 Hi, I have posted my "run me" results and clover configs. Could you please take a look? What did I miss for a full DSDT/SSDT patch. The main issue seems native PM. Cpu freq seems not tuned well. Thank you so much. The system specs are: Intel Xeon E3-1240 v3 Asrock H97 Nvidia 750 Ti Send me Calamari.zip CLOVER.zip 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted May 17, 2017 Author Share Posted May 17, 2017 Hi, I have posted my "run me" results and clover configs. Could you please take a look? What did I miss for a full DSDT/SSDT patch. The main issue seems native PM. Cpu freq seems not tuned well. Thank you so much. The system specs are: Intel Xeon E3-1240 v3 Asrock H97 Nvidia 750 Ti CLOVER.zip Send me ioreg after reboot, use it for extract IORegistryExplorer.app.zip 2 Link to comment Share on other sites More sharing options...
geeti Posted May 17, 2017 Share Posted May 17, 2017 CLOVER.zip Send me ioreg after reboot, use it for extract IORegistryExplorer.app.zip Hi, Do you mean using the clover files you uploaded? If so, here it is. Also, does this CPU frequency look right? I thought it could go much lower when idling. Calamari.ioreg.zip 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted May 17, 2017 Author Share Posted May 17, 2017 u use only DSDT, try with full Clover folder ioreg is good, need check frequencys 2 Link to comment Share on other sites More sharing options...
geeti Posted May 17, 2017 Share Posted May 17, 2017 u use only DSDT, try with full Clover folder ioreg is good, need check frequencys I did copy the entire CLOVER folder into EFI(original one moved way). Something looking weird? How to check freqs? Need anything? 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted May 17, 2017 Author Share Posted May 17, 2017 kexts dont load, etc back up ur old folder and put new ill need check ioreg 1 Link to comment Share on other sites More sharing options...
geeti Posted May 17, 2017 Share Posted May 17, 2017 I double checked. I did backed up my old CLOVER folder, and put your new ones in EFI. Rebooted again and saved ioreg. Checked md5, identical to last time. Which kexts were not loaded? Thank you I was accessing my computer via VNC, not directly from it. But I don't think it matters, does it? kexts dont load, etc back up ur old folder and put new ill need check ioreg 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted May 17, 2017 Author Share Posted May 17, 2017 fakesmc mod, lilu, applealc, dont load 2 Link to comment Share on other sites More sharing options...
geeti Posted May 17, 2017 Share Posted May 17, 2017 fakesmc mod, lilu, applealc, dont load I have all the fakesmc, sensors kexts in /Library/Extensions. Maybe a conflict. I'll disable the /library/extensions ones. Not sure why lilu not loaded. I used toleda's script to modify onboard audio stuff. Does that conflict with AppleALC? I saw with the new clover configs, onboard audio not working. 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted May 17, 2017 Author Share Posted May 17, 2017 dont need script, s/l/e and l/e 2 Link to comment Share on other sites More sharing options...
geeti Posted May 17, 2017 Share Posted May 17, 2017 dont need script, s/l/e and l/e Is the fakeSMC you added same as the official release? Or you added some mod into info.plist? I saw some changes, but not sure if it's version different. 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted May 17, 2017 Author Share Posted May 17, 2017 add only mod for LMU load, nothing more 1 Link to comment Share on other sites More sharing options...
geeti Posted May 17, 2017 Share Posted May 17, 2017 Thanks! Based on this, do you know what might be a reason for the CPU not going to lower freq? 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted May 18, 2017 Author Share Posted May 18, 2017 need check drop tables, kernel PM if u use Pike SSDT, the best is drop PM tables if u use Clover PM, dont drop PM tables nees test 2 Link to comment Share on other sites More sharing options...
geeti Posted May 18, 2017 Share Posted May 18, 2017 need check drop tables, kernel PM if u use Pike SSDT, the best is drop PM tables if u use Clover PM, dont drop PM tables nees test By clover PM, do you mean "KernelPm" patch in KernelAndKextPatch section? 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted May 18, 2017 Author Share Posted May 18, 2017 No Generate P and C States in Acpi Tab 2 Link to comment Share on other sites More sharing options...

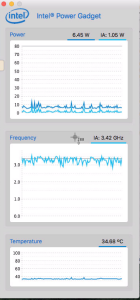

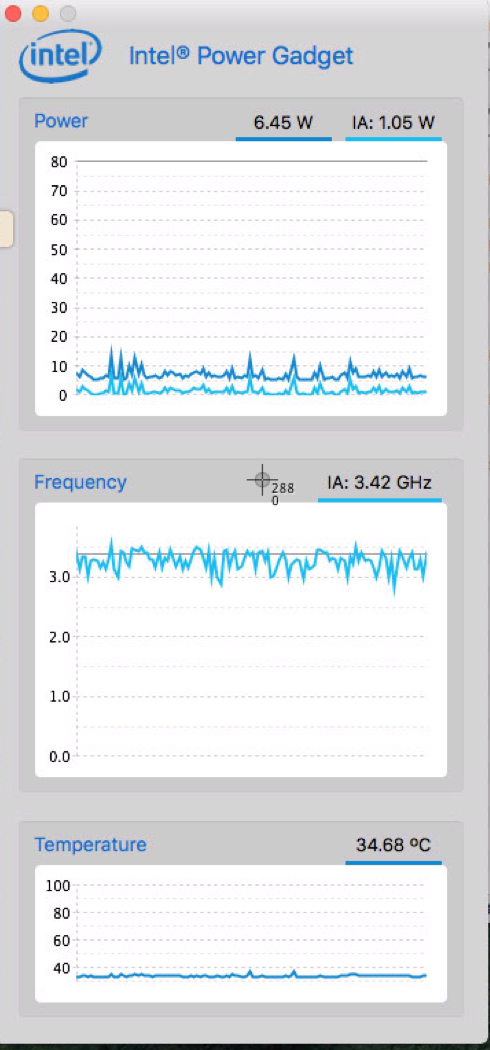

geeti Posted May 19, 2017 Share Posted May 19, 2017 cal.zip I have uploaded the ioreg that uses your entire CLOVER configs. Those kext not loading the other day was because "inject kexts" is "detect" in system parameter. I changed it to "Yes" and now the kexts are loaded. Could you please take a look at the new ioreg and let me know if they are in good shapes? The CPU have lots of p-state according to AppleIntelInfo. But from intel gadget app, the freqs doesn't change much. No Generate P and C States in Acpi Tab 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted May 19, 2017 Author Share Posted May 19, 2017 looks good, audio hdmi, audio onboard, all patches what not work? 2 Link to comment Share on other sites More sharing options...
geeti Posted May 19, 2017 Share Posted May 19, 2017 looks good, audio hdmi, audio onboard, all patches what not work? All visible functionalities work. I was just not sure anything missed. Do you have a tutorial on how the DSDT was patched? As I have other 2 PCs, and I'd like to make them patched. 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted May 19, 2017 Author Share Posted May 19, 2017 the base is old time, apple tables and ioreg, acpi specs http://www.insanelymac.com/forum/topic/235523-dsdt-auto-patcher/ post here and tel me what mobo and GPU 2 Link to comment Share on other sites More sharing options...
geeti Posted May 20, 2017 Share Posted May 20, 2017 Second PC is Asus H110M-A-D3 + i5 6500 + EVGA 1070. It has been steadily working for 1.5 years, but I just want to make everything perfect. the base is old time, apple tables and ioreg, acpi specs http://www.insanelymac.com/forum/topic/235523-dsdt-auto-patcher/ post here and tel me what mobo and GPU 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted May 20, 2017 Author Share Posted May 20, 2017 Second PC is Asus H110M-A-D3 + i5 6500 + EVGA 1070. It has been steadily working for 1.5 years, but I just want to make everything perfect. post files here -Post ur full Clover folder with original tables, press F4 in Clover Boot Screen, files generate in Clover/Acpi/origin -Post Ioreg, extract with Ioreg Explorer http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=235412 -Run it, post files generate in ur desktop http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=222609 2 Link to comment Share on other sites More sharing options...
