MaLd0n

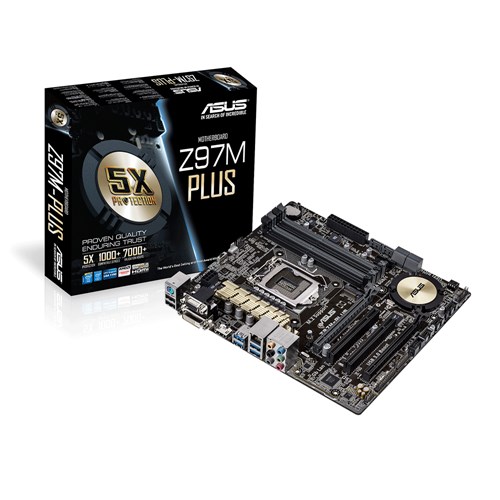

[Guide] Asus Z97M-PLUS on Mavericks / Yosemite / El Capitan / Sierra / DSDT

85 posts in this topic

Recommended Posts

Now have a Olarila app, just download app and clover folder for your Chipset!


Install MacOS with Olarila Image, Step by Step, Install and Post Install



https://olarila.com/forum/viewtopic.php?f=50&t=8685


Create a bootable copy of macOS Sierra
Check out the link

--Install Clover in USB stick UEFI mode

--Replace Folder

--Install System and boot with USB STICK!beachball.gif

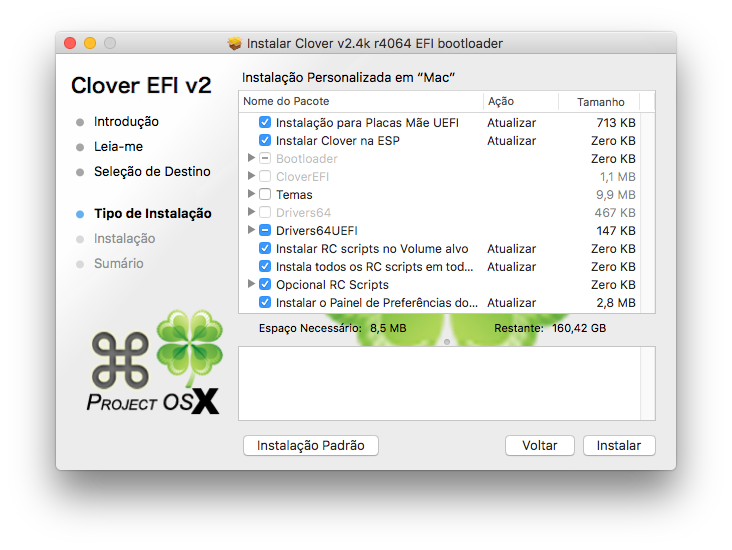

--Install Clover in UEFI mode and replace with my folder
Mavericks / Yosemite
El Capitan / Sierra

--Reboot and activate video!

Bingo!

Now you need a fine tune! I prefer DSDT way, apply all patches in one file, many people prefer many SSDTs or Clover patches!boxing.gif
If you need DSDT edit...
-Post your full Clover folder with original tables in Origin folder(Extract with F4 in Clover boot screen)
-Post Ioreg, extract with Ioreg Explorer
-Run it, post files generate in your desktop

--DSDT
My DSDT

Patches
-FIX ERRORS AND WARNINGS
-HPET
-SATA
-SLPB
-EHCx
-DARWIN
-LPC
-XHCI
-HDEF
-RTC
-IRQs
-SBUS
-BUS1
-MCHC
-HDMI
-ALS0
-SHUTDOWN
-LAN
-PNLF

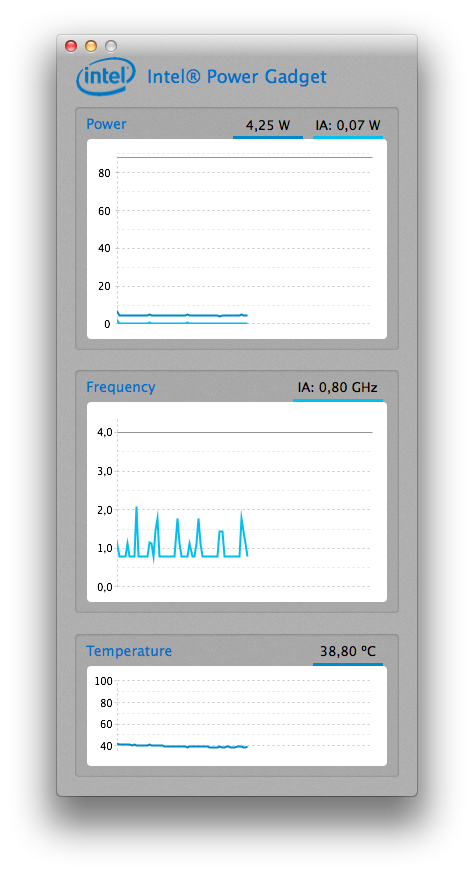

--SSDT
Generate your SSDT Power Management, use ssdtPRGen Piker-Alpha
run in terminal
curl -o ~/ssdtPRGen.sh https://raw.githubusercontent.com/Piker-Alpha/ssdtPRGen.sh/Beta/ssdtPRGen.sh
chmod +x ~/ssdtPRGen.sh
sudo ~/ssdtPRGen.sh

ssdtPRGen.command.zip



--SSDT i74790K

SSDT.i7 4790K.zip

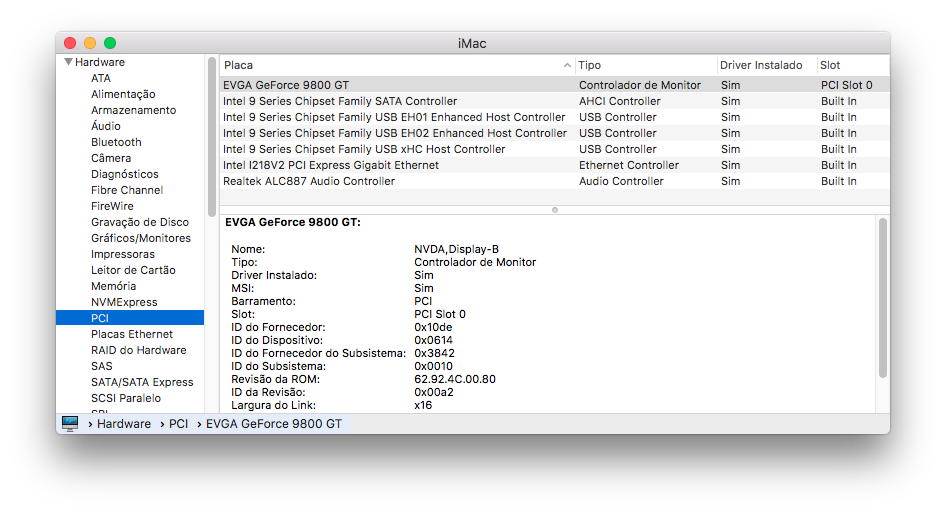

--IOREG

iMac.ioreg.zip



Clear NVRAM, Purge and Kextcache

stock coolerdente.pngand Rio 40ºthumbsdown_anim.gif

--FakeSMC
--Audio
--USB
--LAN

Credits and thanks to the old and new people in the community who developed patches, kexts and bootloaders!

Share this post


Link to post
Share on other sites
Advertisement

That’s a great topic. Followed your guide and managed to install, and run, Sierra. I’ll come back very soon in the next days to ask for help in fine tuning, if you don’t mind!



Thanks again for sharing!



Francesco

Share this post


Link to post
Share on other sites

Hi MaLd0n,
I’m really not capable of doing the SSDT “thing”. I’ve tried with PikerAlpha script several time before, but I don’t have the knowledge to understand what I’m doing.

Could you help me generating It?

The file you requested are attached.

Thank you very much!!


iOREG.zip

origin.zip

Send me.zip

Share this post


Link to post
Share on other sites

Hello MaldOn. First of all, thanks for the great job you do !

Here is the case : I Have a MB asus z97m-plus with a i3 4330 processor. I succeed to install OS X el capitan, everything works perfectly, but I would like to have a dsdt and ssdt. I tried to use your dsdt file for the MB, but it doesn't work, the forbidden sign appears when booting.And I am really not good with dsdt and ssdt editing...Could you help me a bit to do that ?

Here are all my files.

Thanks again !



CLOVER.zip



Lorenz’s iMac.zip



Send me Lorenz’s iMac.zip

Share this post


Link to post
Share on other sites

Hello MaldOn. First of all, thanks for the great job you do !

Here is the case : I Have a MB asus z97m-plus with a i3 4330 processor. I succeed to install OS X el capitan, everything works perfectly, but I would like to have a dsdt and ssdt. I tried to use your dsdt file for the MB, but it doesn't work, the forbidden sign appears when booting.And I am really not good with dsdt and ssdt editing...Could you help me a bit to do that ?

Here are all my files.

Thanks again !

dont need ssdt, try it, replace full folder, reboot and send me new ioreg

CLOVER.zip

Share this post


Link to post
Share on other sites

Thanks. I just tried to replace with your folder, doesn't work. Same as before, very long for booting, and next appears the forbidden sign.


And here is my new Ioreg when booting without the dsdt.aml.





Lorenz’s iMac.zip

Share this post


Link to post
Share on other sites
