[Guide] Asus Z97M-PLUS on Mavericks / Yosemite / El Capitan / Sierra / DSDT

[Lorenzoo]

ok I do that now

[MaLd0n]

we need a test, many cases now in 10.12.4 and 10.12.5

[Lorenzoo]

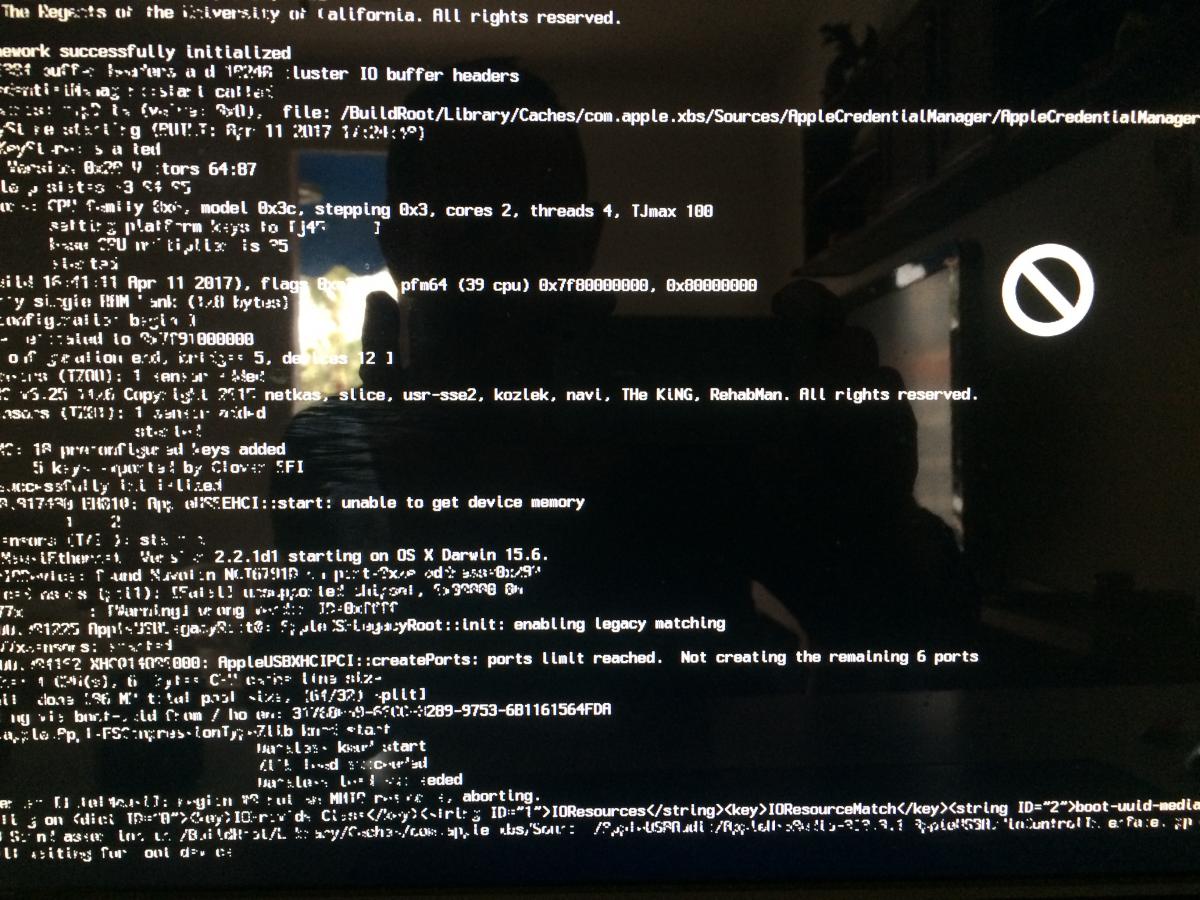

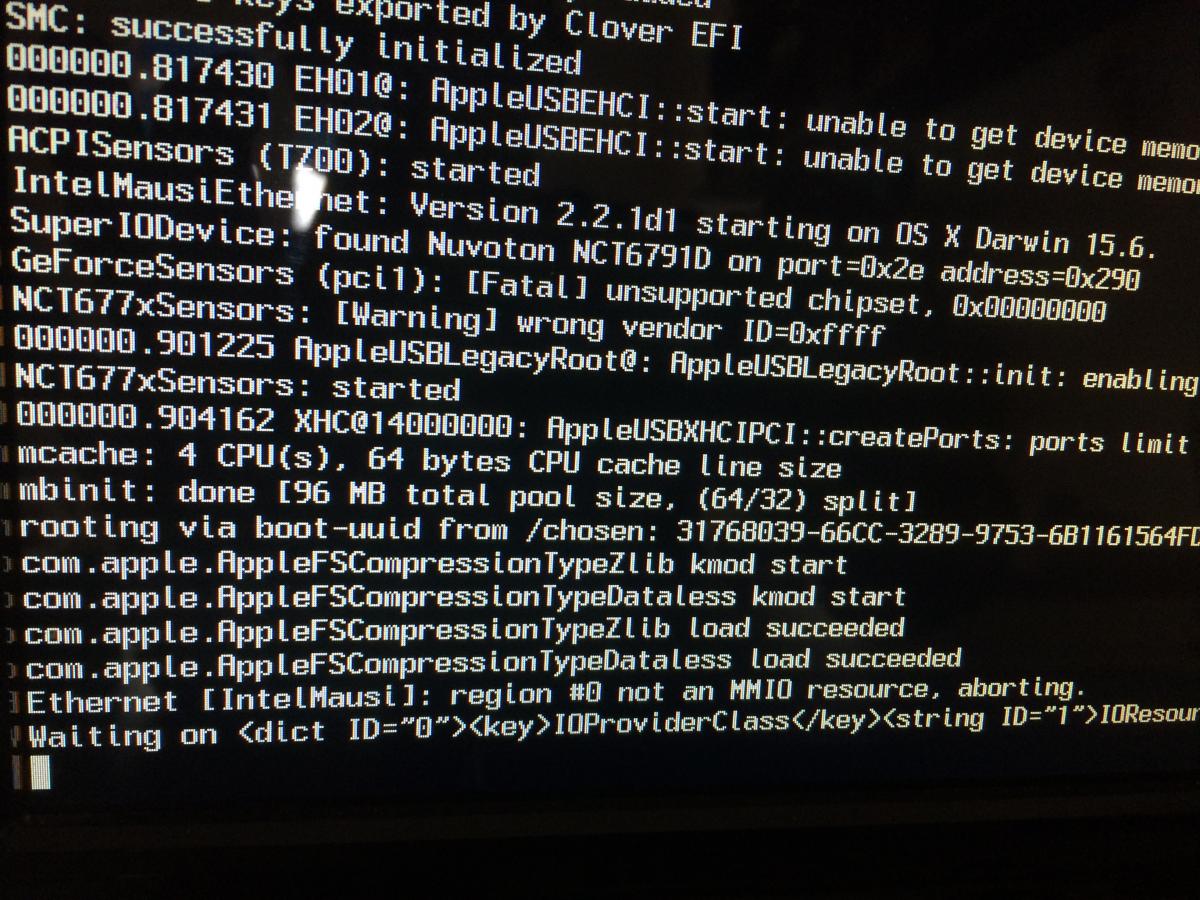

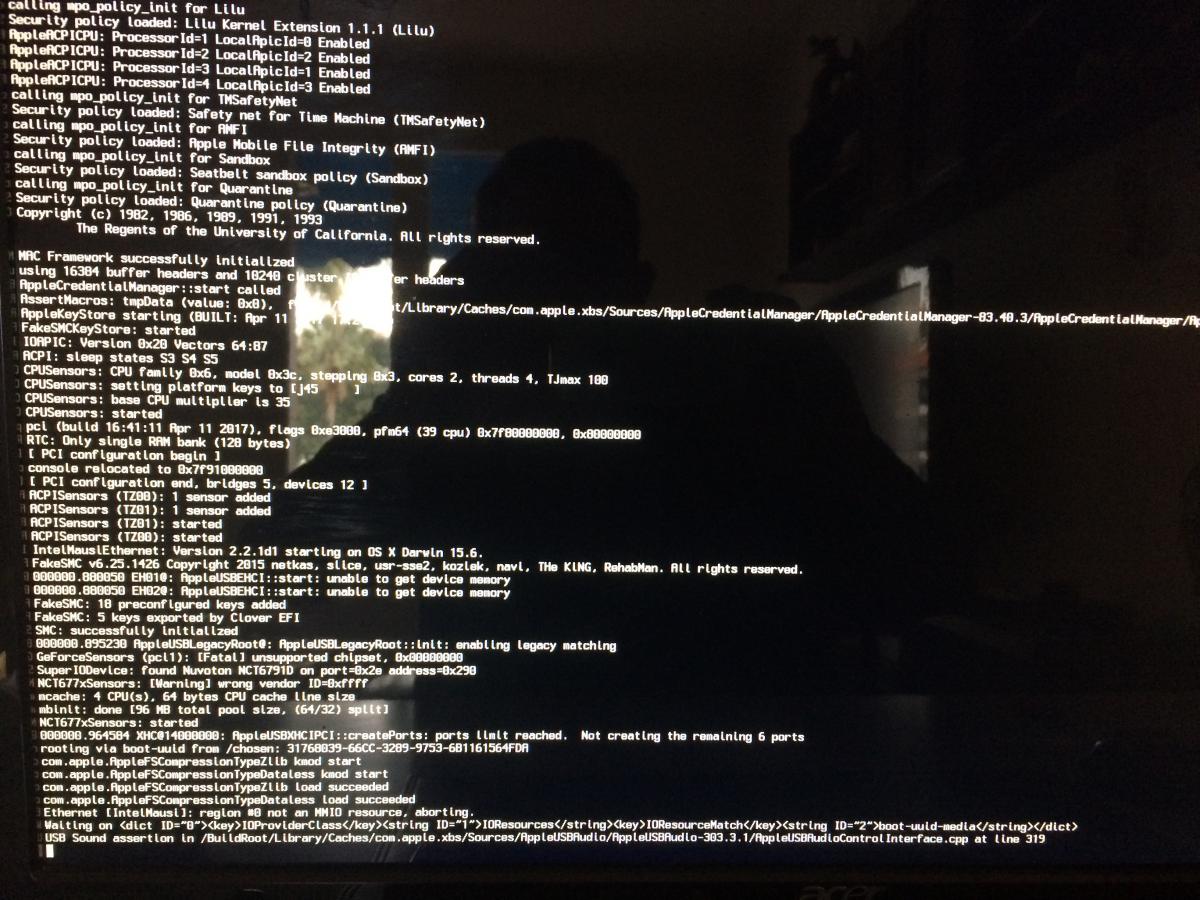

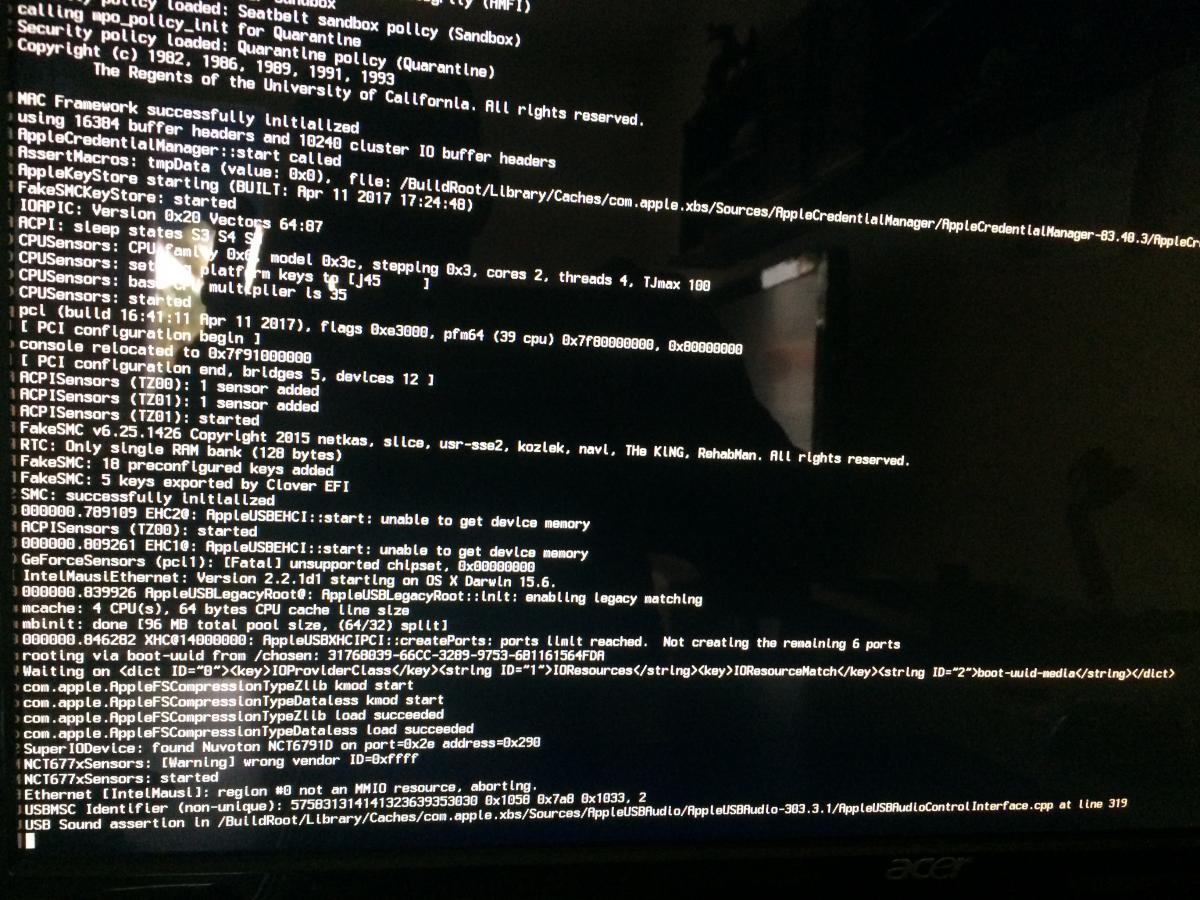

ok just tested, still the same. I put some pics if it can help.



And I am running with 10.11.6, not Sierra.





[MaLd0n]

ok, disable patches in config.plist in acpi tab, EHC1 to EH01 and EHC2 to EH02



if dont work, remove applealc and lilu kext

[Lorenzoo]

Still the same after booting without the api patches and without the two kexts you said. I only let the dsdt file.

Here is what I have









[MaLd0n]

Use it

CLOVER.zip

ill check it, many cases after 10.12.4 and 10.12.5 fail, new Clover dont solve, i think is a USB problem. need check

i dont have any problem, same DSDT first post and Clover_v2.4k_r4076

[Lorenzoo]

ok I try that right now.

[MaLd0n]

its a full clover patches



ill create SSDTs for serie 9

[Lorenzoo]

Always the same. And if I boot without the dsdt, it works. I can't understand. I made my usb installer with a new clover version, maybe I should try to make a new with and older version ?

[MaLd0n]

what version u use?

U can try a 4035 or 4049

https://sourceforge.net/projects/cloverefiboot/files/Installer/Clover_v2.4k_r4035.zip/download

[Lorenzoo]

If I remember well, it was the 4070.

[MaLd0n]

try 4035 and 4049 with DSDT, full clover

[Lorenzoo]

Ok, so I put the DSDT file in the USB before installation, right ? and what do you mean by full clover ?

[MaLd0n]

Ok, so I put the DSDT file in the USB before installation, right ? and what do you mean by full clover ?

use clover 4035 and it

http://www.insanelymac.com/forum/index.php?app=core&module=attach&section=attach&attach_id=239553

[Lorenzoo]

So I installed Clover v4035 on my system, and I replaced the folder you sent me. And still not boot, appears the forbidden sign after a while.





I will try a fresh install, it is the best I think ! I will post when done.

[MaLd0n]

ok

ill check it later

run it and test

Olarila.command.zip

[Lorenzoo]

Ok. Thanks again for your help !

[MaLd0n]

use it without DSDT

http://www.insanelymac.com/forum/topic/322457-guide-asus-z97m-plus-on-mavericks-yosemite-el-capitan-sierra-dsdt/?p=2427275

test audio, etc

[Lorenzoo]

Ok just finished the new install with clover 4035. I changed clover EFI folder with yours, without dsdt, updated OSX, installed nvidia web driver, everything works, except the sound. The device is recognised , I can choose some options, but no sound.

[MaLd0n]

in config.plist, inject id 5

[Lorenzoo]

Ok i'll try that. I tell you tomorrow.

[MaLd0n]

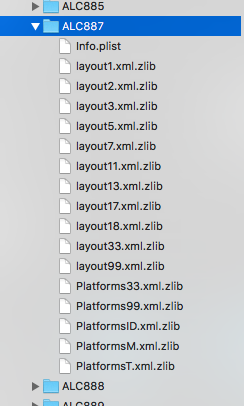

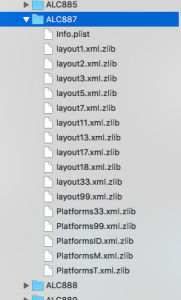

U can check ids for ur codec inside AppleAlc

[Lorenzoo]

How do I do that ?

[MaLd0n]

ALC 887

[Lorenzoo]

oh ok I got it !  I can't do that now, I'll try later and tell you. Thanks a lot.
