new links added.  :)

Check

u need only it

CLOVER.zip

Ur i3 have 2 cores and 4 Threads, i add correct number in voodookext

i think ur GPU dont need web drivers, work with native system drivers, ;)

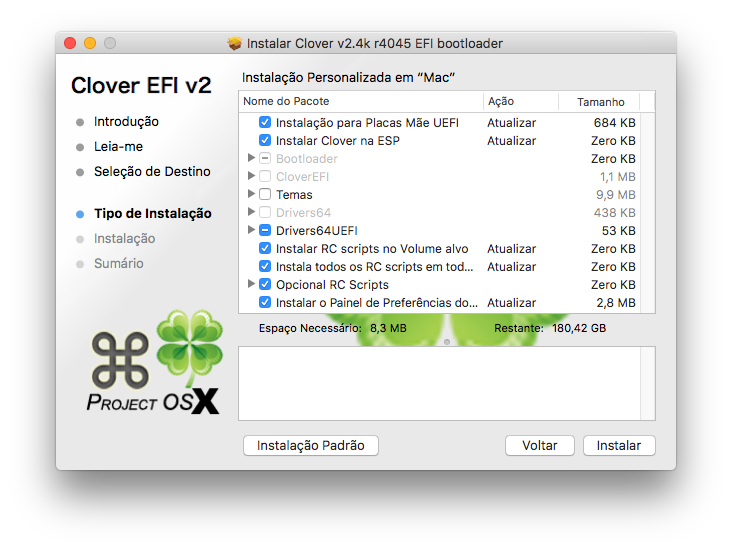

Clover Installation

Use these options

MaLd0n 2017-03-29 às 11.18.03.png

after replace full Clover folder

run it

Olarila.command.zip

reboot and send me ioreg, extract with ioreg explorer

IORegistryExplorer 3.app.zip



Remove Voodoohda and applehdaDisable if u use

  • Like 1

i think ur GPU dont need web drivers, work with native system drivers, ;)

 yes, you are right! After I uninstalled NVIDIA drivers, I boot the system with native resolution.



I re-install Clover like you said. Delete my clover folder and replace with your send. System is boot but black screen. Then I reboot again and boot with nvda_drv=0 option.  I put the NvidiaGraphicsFixup.kext into Clover>kexts>Other folder and get the native resolution without additonal parameters.



Ethernet is working. Sound is still not work.



ioreg file is attached.

phase’s iMac.ioreg.zip

  • Like 1

run kextutility by CVad

Kext Utility.app.zip

just run and wait

reboot

if dont work, we back to old AppleAlc



Video

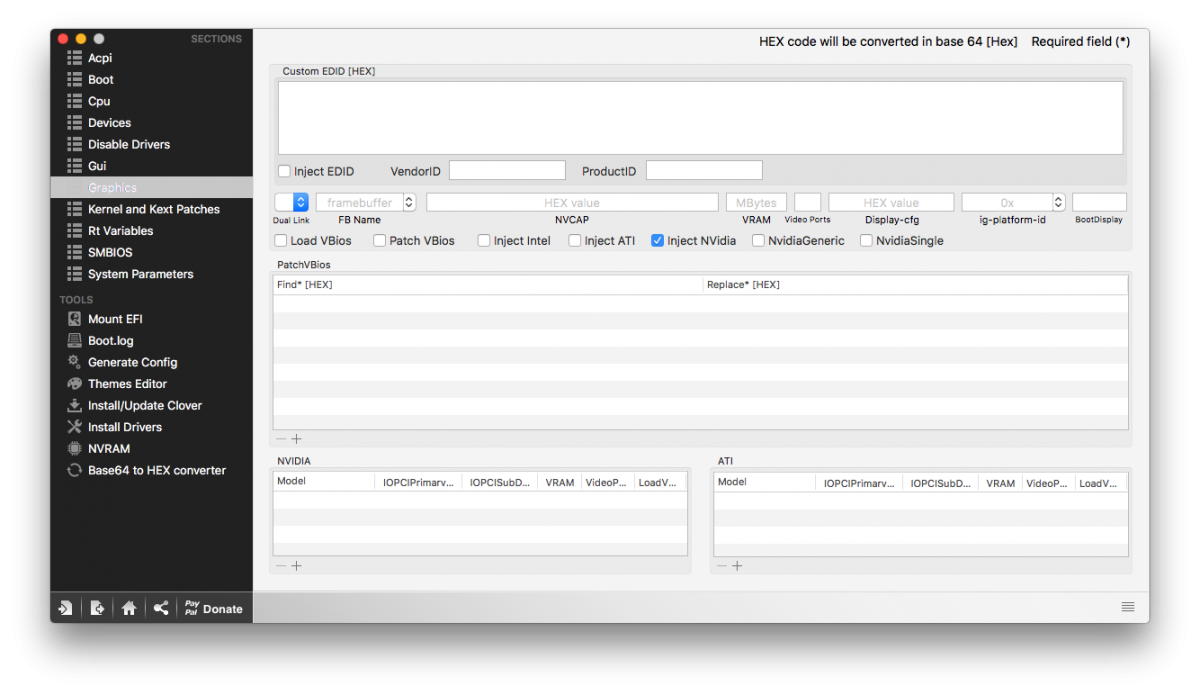

try InjectNvidia=Yes

MaLd0n 2017-03-29 às 17.57.41.png

  • Like 1

run kextutility by CVad

attachicon.gifKext Utility.app.zip

just run and wait

reboot

if dont work, we back to old AppleAlc





nothing has changed  :(

what shall we do?

u dont use my full folder, fakesmc is other version, LMU dont load

I suspected and fresh installed OS. Clover installation is successfull as you said. Sound is ok :) , but display has still problem :(. The system report recognizes the graphic card correctly. I tried too many options, I could not open native resolution. I'm at work right now. I will try again when I go home.

  • Like 1

try it

-Check nvda_drv=1 in boot section and Nvidia Web in system parameters in ur config.plist, no problem if u have both check

-Install Web Drivers

-Boot with nv_disable=1

-Use agdp fix

http://www.insanelymac.com/forum/files/file/424-agdpfix/

  • Like 1

Hey MaLd0n,



Finally figured out what my problem was...stale(old) installation image. Downloaded 10.12.4...No problem. Thank you for all of your help earlier.



Got everything going except #1 audio (through Nvidia DP) and #2 unable to boot into OS w/o nv_disable=1. Would a customized DSDT be of any help, do you think?



Thanx again



ioreg attached







tstc’s iMac.zip

  • Like 1

extract with ioreg explorer

IORegistryExplorer 3.app.zip

if u have check Generate P and C States and c6 in ur config.plist, remove

just use SSDT.aml by Pike script

Well you're not gonna believe this but that just left me to a 100% fan and black screen. Just need to figure out a way to remove the SSDT file, hopefully.

  • Like 1

press bar space in clover boot screen, go to acpi section drop SSDT.aml

u need remove generate p and c states, post ur config.plist here

@MaLd0n
I never checked the sound after clean installation. Audio device has no sound. Do you have any idea what happened?

(NVIDIA > OK!. install web drivers and it works.)

  • Like 1
×
×
