Check-IN Posted March 26, 2018 Share Posted March 26, 2018 30 minutes ago, MaLd0n said: CLOVER.zip no...everytime panic i've changed sometime in bios, this is the new sendme i have problems with usb3 and i dont know if i need dsdt or not for PM http://www.terminalstrip.net/FABIO/Sendmenew.zip 1 Link to comment Share on other sites More sharing options...
alex9440 Posted March 26, 2018 Share Posted March 26, 2018 MaLd0n hello, I connected my monitor via DVI-D-VGA to the GTX650 and I lost the ability to adjust the refresh rate of the screen, tell me what is it connected with? And how to understand correctly whether all the graphics are started, because when testing with BruceX-5K in FCP, the time spent on this test is 4 times higher for me than for a computer with i3! Help me to understand! Link to comment Share on other sites More sharing options...
MaLd0n Posted March 26, 2018 Author Share Posted March 26, 2018 1 hour ago, gigibatt said: no...everytime panic i've changed sometime in bios, this is the new sendme i have problems with usb3 and i dont know if i need dsdt or not for PM http://www.terminalstrip.net/FABIO/Sendmenew.zip Send me K.P photo u need a 10.12.6 + for native support, put bios in default, disable only serial port 1 hour ago, alex9440 said: MaLd0n hello, I connected my monitor via DVI-D-VGA to the GTX650 and I lost the ability to adjust the refresh rate of the screen, tell me what is it connected with? And how to understand correctly whether all the graphics are started, because when testing with BruceX-5K in FCP, the time spent on this test is 4 times higher for me than for a computer with i3! Help me to understand! no idea, bro, no more nvidia Link to comment Share on other sites More sharing options...
Check-IN Posted March 26, 2018 Share Posted March 26, 2018 44 minutes ago, MaLd0n said: Send me K.P photo u need a 10.12.6 + for native support, put bios in default, disable only serial port no idea, bro, no more nvidia OK, now i have a PM support with a SSDT (my own pr_gen) the only problem is USB3, whun i have my hd usb connected to usb and i shutdown the pc reboot and not shutdown i re-attach a send me files if you are able to help me, thanx friend http://www.terminalstrip.net/FABIO/Send_me_3.zip Link to comment Share on other sites More sharing options...
MaLd0n Posted March 26, 2018 Author Share Posted March 26, 2018 54 minutes ago, gigibatt said: OK, now i have a PM support with a SSDT (my own pr_gen) the only problem is USB3, whun i have my hd usb connected to usb and i shutdown the pc reboot and not shutdown i re-attach a send me files if you are able to help me, thanx friend http://www.terminalstrip.net/FABIO/Send_me_3.zip DSDT.aml.zip Link to comment Share on other sites More sharing options...
ashman1970 Posted March 26, 2018 Share Posted March 26, 2018 Hey MaLd0n thanks for the files. When testing this machine with just one monitor it was fine, when I plug in my three it froze when I was viewing movie covers in plex. Do you think maybe I need a custom DSDT for my three monitors? I am just using one monitor now plugged into DP, but I use two more usually, one in HDMI and one in DVI. Link to comment Share on other sites More sharing options...
MaLd0n Posted March 26, 2018 Author Share Posted March 26, 2018 14 minutes ago, ashman1970 said: Hey MaLd0n thanks for the files. When testing this machine with just one monitor it was fine, when I plug in my three it froze when I was viewing movie covers in plex. Do you think maybe I need a custom DSDT for my three monitors? I am just using one monitor now plugged into DP, but I use two more usually, one in HDMI and one in DVI. no, dont need try enable csm in bios Link to comment Share on other sites More sharing options...
ashman1970 Posted March 26, 2018 Share Posted March 26, 2018 Thanks I will try this, hopefully it fixes the problem. Have you also heard that enabling onboard GPU can fix this problem too? It was recommended in another forum, I have not tried it. Link to comment Share on other sites More sharing options...
MaLd0n Posted March 26, 2018 Author Share Posted March 26, 2018 31 minutes ago, ashman1970 said: Thanks I will try this, hopefully it fixes the problem. Have you also heard that enabling onboard GPU can fix this problem too? It was recommended in another forum, I have not tried it. solve a hardware acceleration about dual monitor+ i think no, is a csm and whatevergreen Link to comment Share on other sites More sharing options...

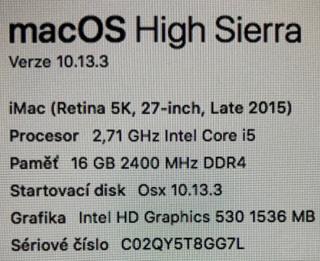

petr Posted March 26, 2018 Share Posted March 26, 2018 hi how do i switch to GTX950A i can not install it? config.plist Link to comment Share on other sites More sharing options...
MaLd0n Posted March 27, 2018 Author Share Posted March 27, 2018 2 hours ago, petr said: hi how do i switch to GTX950A i can not install it? config.plist forget it if is a optimus Link to comment Share on other sites More sharing options...
petr Posted March 27, 2018 Share Posted March 27, 2018 5 hours ago, MaLd0n said: Zapomeňte na to, zda je optimální but the GTX 950A will be more powerful than the intel 530 :-( Link to comment Share on other sites More sharing options...
Check-IN Posted March 27, 2018 Share Posted March 27, 2018 12 hours ago, MaLd0n said: DSDT.aml.zip work perfect thanx a lot! Link to comment Share on other sites More sharing options...
MaLd0n Posted March 27, 2018 Author Share Posted March 27, 2018 5 hours ago, petr said: but the GTX 950A will be more powerful than the intel 530 :-( optimus dont work 5 hours ago, gigibatt said: work perfect thanx a lot! welcome Link to comment Share on other sites More sharing options...
bogdanw Posted March 27, 2018 Share Posted March 27, 2018 (edited) Hello @MaLd0n , can you please help me with a new DSDT? I have switched from nvidia to AMD RX 560 4GB I have attached the Send me zip for my system (Gigabyte GA-Z170X-UD3 motherboard, Intel i5-7400 CPU, ASUS RX 560 4GB graphics card). Thank you! Edited March 27, 2018 by bogdanw Link to comment Share on other sites More sharing options...
MaLd0n Posted March 27, 2018 Author Share Posted March 27, 2018 58 minutes ago, bogdanw said: Hello @MaLd0n , can you please help me with a new DSDT? I have switched from nvidia to AMD RX 560 4GB I have attached the Send me zip for my system (Gigabyte GA-Z170X-UD3 motherboard, Intel i5-7400 CPU, ASUS RX 560 4GB graphics card). Thank you! Send me iMac.zip CLOVER.zip 1 Link to comment Share on other sites More sharing options...
zzmadd Posted March 28, 2018 Share Posted March 28, 2018 (edited) On 3/23/2018 at 6:14 PM, MaLd0n said: Yes, install clover and replace folder in usb stick Hi there, this is the link to the output from "RunMe.app" for this system: ASUS Prime H270-PRO, i3-7100, 8GB Ram, 250GB SSD, Nvidia GT 1030 https://mab.to/YejZwZWU8 (updated the files) I've run through all the checklist you created on Page 1 of this Thread: Install, Post Install, Video, Patched, Created SSDT, Brightness. Can you help with DSDT, so I learn...?? I have an ISSUE with "Shut Down" that leads to Reboot. Confirm: Shut Down doesn't work no matter what config.plist I use, with the one downloaded from here too. So Shut Down leads to Reboot. Thanks Edited March 28, 2018 by zzmadd Link to comment Share on other sites More sharing options...
MaLd0n Posted March 28, 2018 Author Share Posted March 28, 2018 2 hours ago, zzmadd said: Hi there, this is the link to the output from "RunMe.app" for this system: ASUS Prime H270-PRO, i3-7100, 8GB Ram, 250GB SSD, Nvidia GT 1030 https://mab.to/YejZwZWU8 (updated the files) I've run through all the checklist you created on Page 1 of this Thread: Install, Post Install, Video, Patched, Created SSDT, Brightness. Can you help with DSDT, so I learn...?? I have an ISSUE with "Shut Down" that leads to Reboot. Confirm: Shut Down doesn't work no matter what config.plist I use, with the one downloaded from here too. So Shut Down leads to Reboot. Thanks DSDT.aml.zip Link to comment Share on other sites More sharing options...
zzmadd Posted March 28, 2018 Share Posted March 28, 2018 31 minutes ago, MaLd0n said: DSDT.aml.zip Thanks a lot! The machine doesn't boot once I drop DSDT.aml in the patched folder. Link to comment Share on other sites More sharing options...
MaLd0n Posted March 28, 2018 Author Share Posted March 28, 2018 11 minutes ago, zzmadd said: Thanks a lot! The machine doesn't boot once I drop DSDT.aml in the patched folder. post one photo with error boot Link to comment Share on other sites More sharing options...
zzmadd Posted March 28, 2018 Share Posted March 28, 2018 32 minutes ago, MaLd0n said: post one photo with error boot Don't know what happened before but now tried again and it works! PCI slots populated in the System Report. Sleep works. 2 Issues as far as I can see: - Shut Down ---> gives Reboot - Sleep ---> USB hard drives show "Disk Not Ejected Properly", even though I'm using "SafeSleepUSB" Thanks a lot!! 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted March 28, 2018 Author Share Posted March 28, 2018 3 hours ago, zzmadd said: Don't know what happened before but now tried again and it works! PCI slots populated in the System Report. Sleep works. 2 Issues as far as I can see: - Shut Down ---> gives Reboot - Sleep ---> USB hard drives show "Disk Not Ejected Properly", even though I'm using "SafeSleepUSB" Thanks a lot!! shtdown check bios erp options, wake from lan, etc Link to comment Share on other sites More sharing options...

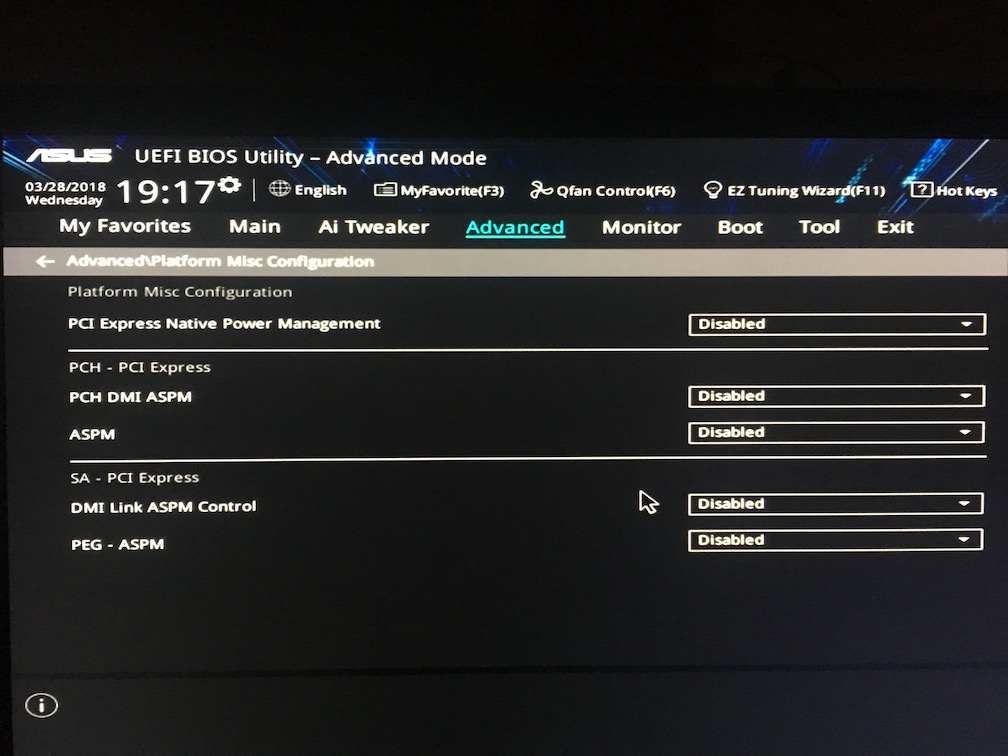

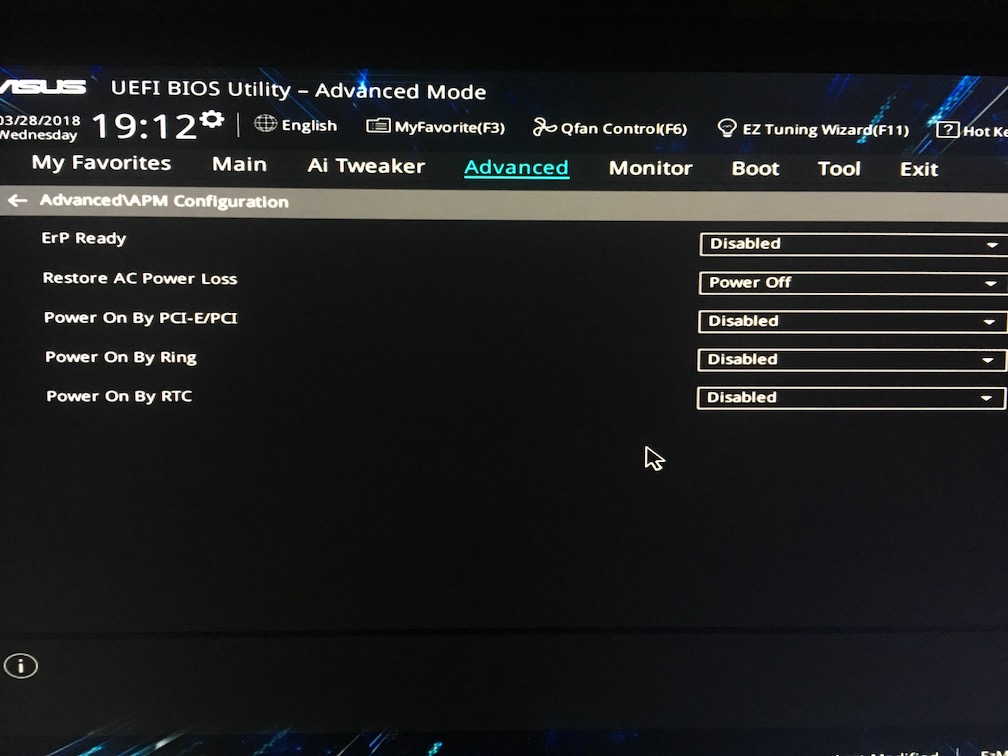

zzmadd Posted March 28, 2018 Share Posted March 28, 2018 1 hour ago, MaLd0n said: shtdown check bios erp options, wake from lan, etc It's all set to Disabled, look at the attachments. Link to comment Share on other sites More sharing options...
zzmadd Posted March 28, 2018 Share Posted March 28, 2018 3 hours ago, MaLd0n said: shtdown check bios erp options, wake from lan, etc Also this method from RHman: "The "auto restart after shutdown" is macOS/OS X specific (with certain hardware), and can usually be solved by setting XHC.PMEE=0 in _PTS" This code: https://github.com/RehabMan/OS-X-Clover-Laptop-Config/blob/master/hotpatch/SSDT-PTSWAK.dsl 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted March 28, 2018 Author Share Posted March 28, 2018 16 minutes ago, zzmadd said: Also this method from RHman: "The "auto restart after shutdown" is macOS/OS X specific (with certain hardware), and can usually be solved by setting XHC.PMEE=0 in _PTS" This code: https://github.com/RehabMan/OS-X-Clover-Laptop-Config/blob/master/hotpatch/SSDT-PTSWAK.dsl Link to comment Share on other sites More sharing options...
