[pre-release] macOS Sierra 10.12.4

jsl · February 24, 2017

I have IntelHD530 now without any Nvidia.

Previously I had Radeon HD6670.

I never saw any crashes.

I found this issue was related to Intel HD 4600 graphics.

Even only Intel HD 4600 was enabled without other GPU Safari easily crashed when video HTML5 or Flash was opened at some websites.

At present I must disable it and added another Nvidia or AMD GPU for display if need Safari working.

No such an issue for Firefox in my hackintosh.

PMheart · February 24, 2017

I found this issue was related to Intel HD 4600 graphics.

Even only Intel HD 4600 was enabled without other GPU Safari easily crashed when video HTML5 or Flash was opened at some websites.

At present I must disable it and added another Nvidia or AMD GPU for display if need Safari working.

No such an issue for Firefox in my hackintosh.

You may try this. (Thanks to @vit9696 !)

# KextToPatch

Name: com.apple.driver.AppleIntelFramebufferAzul
Find: 48898BB0000000
Replace: 90909090909090
Comment: Isolate IntelAccelerator HD4600 (10.12.4+, originally by vit9696, PMheart for 10.12.4+ corrections)
MatchOS: 10.12.4

		<key>KextsToPatch</key>
		<array>
			<dict>
				<key>Comment</key>
				<string>Isolate IntelAccelerator HD4600 (10.12.4+, originally by vit9696, PMheart for 10.12.4+ corrections)</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				SImLsAAAAA==
				</data>
				<key>MatchOS</key>
				<string>10.12.4</string>
				<key>Name</key>
				<string>com.apple.driver.AppleIntelFramebufferAzul</string>
				<key>Replace</key>
				<data>
				kJCQkJCQkA==
				</data>
			</dict>
		</array>

jsl · February 24, 2017

You may try this. (Thanks to @vit9696 !)

# KextToPatch

Name: com.apple.driver.AppleIntelFramebufferAzul
Find: 48898BB0000000
Replace: 90909090909090
Comment: Isolate IntelAccelerator HD4600 (10.12.4+, originally by vit9696, PMheart for 10.12.4+ corrections)
MatchOS: 10.12.4

		<key>KextsToPatch</key>
		<array>
			<dict>
				<key>Comment</key>
				<string>Isolate IntelAccelerator HD4600 (10.12.4+, originally by vit9696, PMheart for 10.12.4+ corrections)</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				SImLsAAAAA==
				</data>
				<key>MatchOS</key>
				<string>10.12.4</string>
				<key>Name</key>
				<string>com.apple.driver.AppleIntelFramebufferAzul</string>
				<key>Replace</key>
				<data>
				kJCQkJCQkA==
				</data>
			</dict>
		</array>

Thanks and it worked at 10.12.4 now.

Any advice to patch 10.12.2 or 10.12.3 ?

PMheart · February 24, 2017

Thanks and it worked at 10.12.4 now.

Any advice to patch 10.12.2 or 10.12.3 ?

Congratulations !

For earlier version of 10.12, please check this post? Also thanks to @vit9696 for this amazing patch ! (My modified patch cannot be implemented without his one.)

zarogon · February 24, 2017

Hi guys. Can somebody help with brightness issue... only this issue on my real MacBook Pro late 2013 =)

jsl · February 24, 2017

Congratulations !

For earlier version of 10.12, please check this post? Also thanks to @vit9696 for this amazing patch ! (My modified patch cannot be implemented without his one.)

Thanks and it worked at 10.12.3 too !

fantomas · February 27, 2017

new seed... beta 4 (16E175b)

Kynyo · February 27, 2017

So far so good. Updated.

System Software Overview:

System Version: macOS 10.12.4 (16E175b)

Kernel Version: Darwin 16.5.0

Boot Volume: macOS

Boot Mode: Normal

Secure Virtual Memory: Enabled

System Integrity Protection: Enabled

Time since boot: 10 minutes

Bootloader: Oz 167X Sierra

PMheart · February 28, 2017

~~Almost no obvious changes in 16E175b, at least for me now...~~

edit

Ah... Pike has posted some changes. https://pikeralpha.wordpress.com/2017/02/27/macos-sierra-10-12-4-build-16e175b-seeded/

Edited February 28, 2017 by PMheart

Fergarth · March 1, 2017

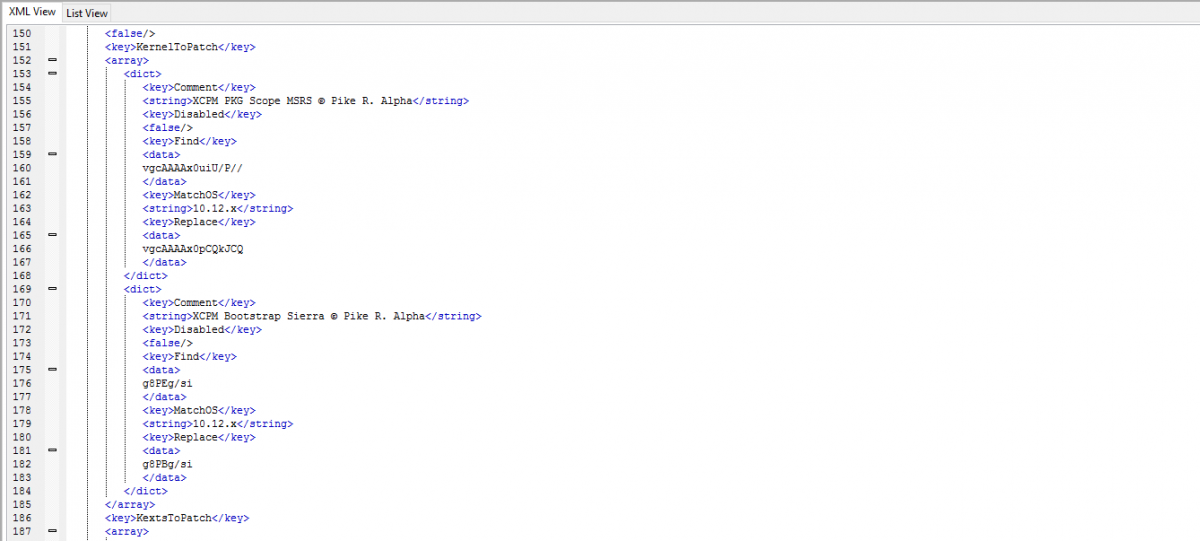

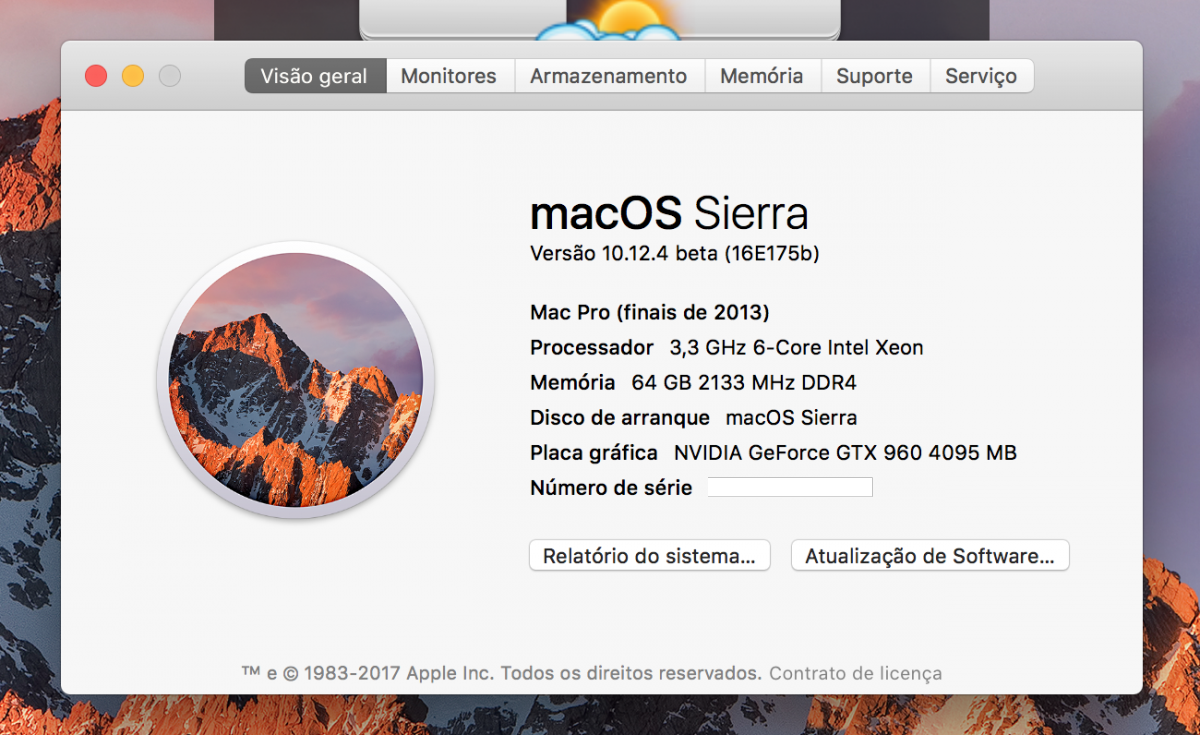

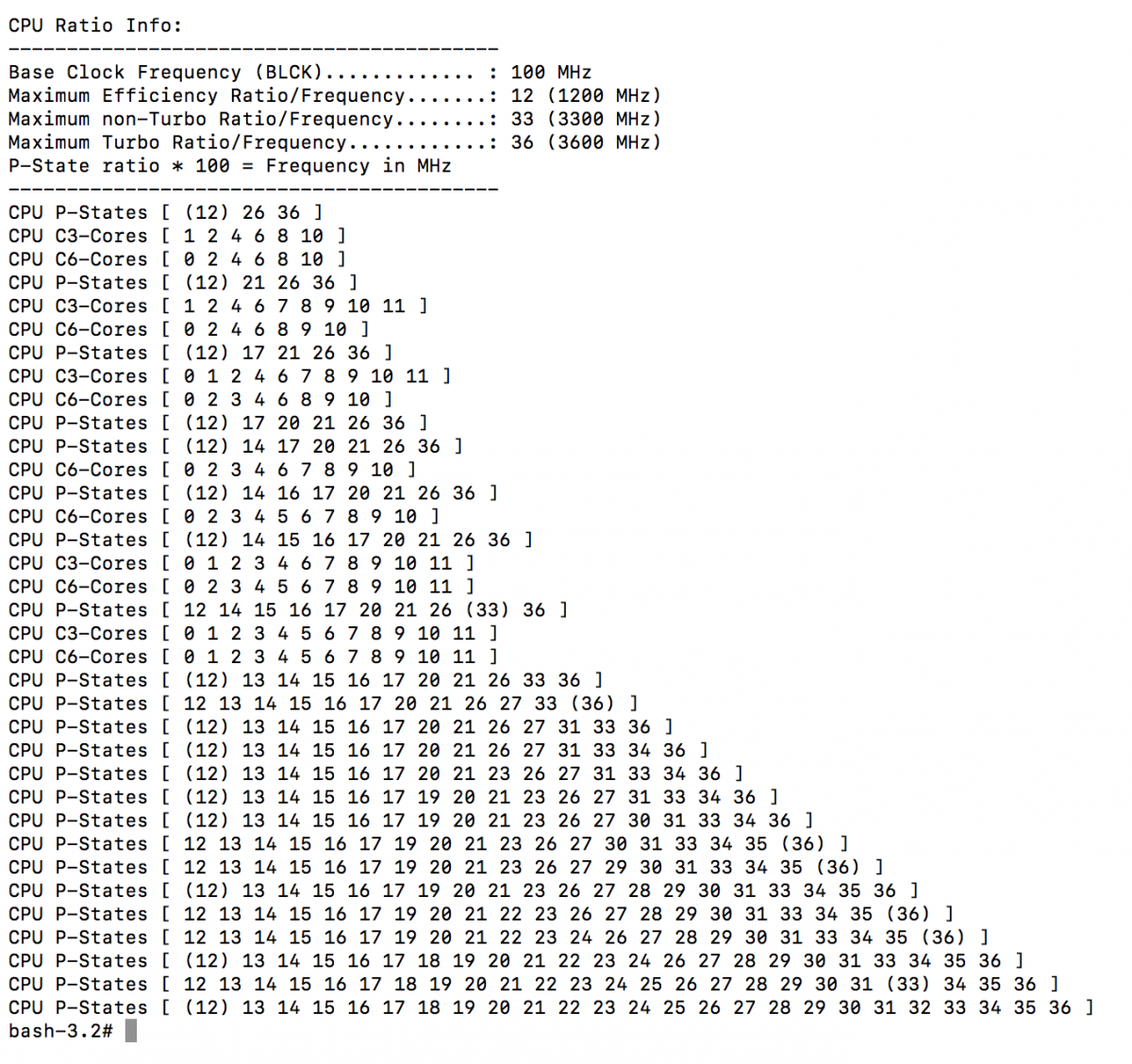

Done the update for 12.4 beta 4 (16E175b). Once again everything ok and now, only with two XCPM patches!

MaLd0n · March 1, 2017

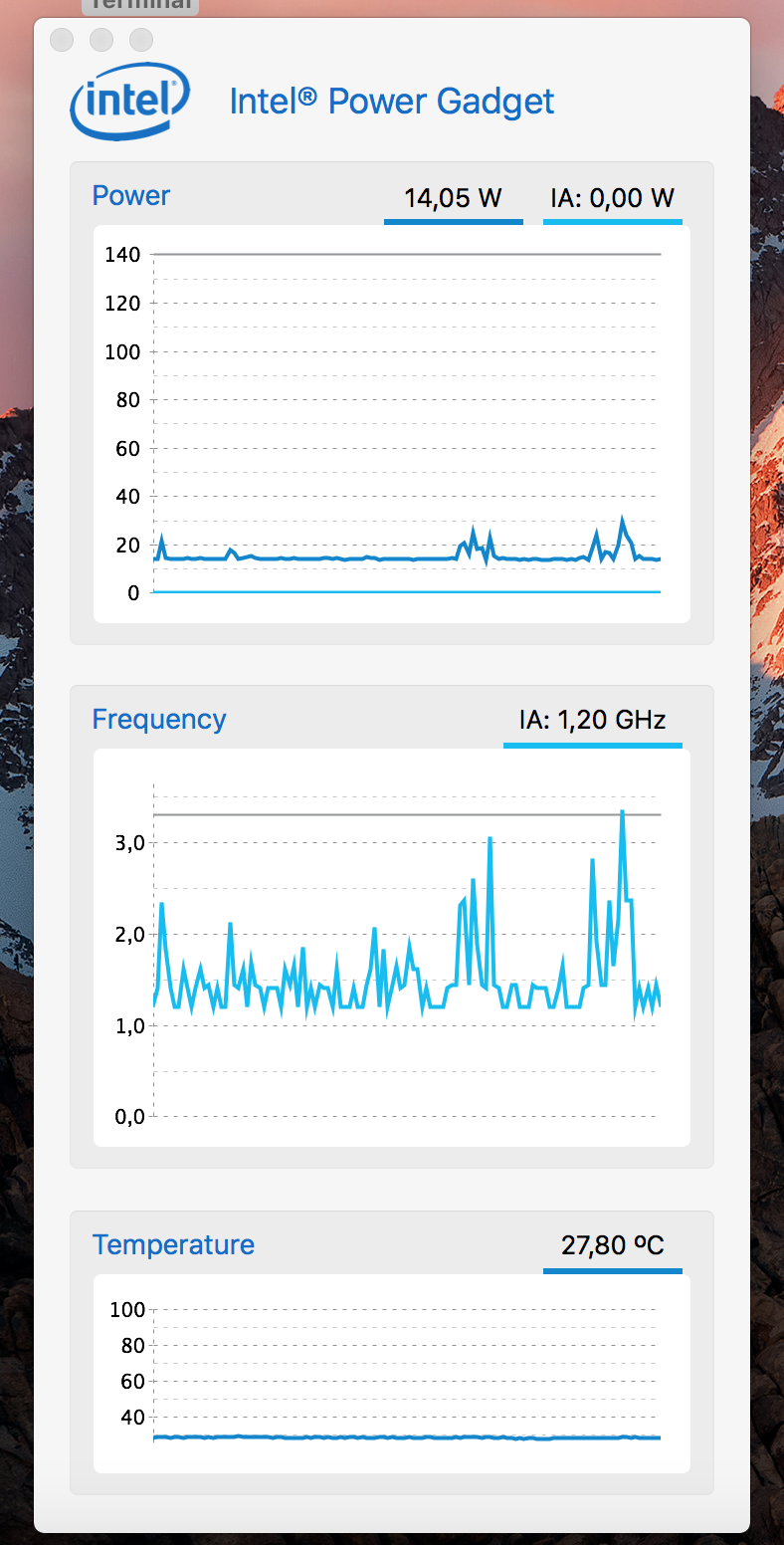

CPU Ratio Info:
------------------------------------------
Base Clock Frequency (BLCK)............. : 100 MHz
Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz)
Maximum non-Turbo Ratio/Frequency........: 33 (3300 MHz)
Maximum Turbo Ratio/Frequency............: 40 (4000 MHz)
P-State ratio * 100 = Frequency in MHz
------------------------------------------
CPU P-States [ (12) 31 40 ]
CPU C3-Cores [ 1 2 7 8 11 ]
CPU C6-Cores [ 0 2 4 6 8 10 ]
CPU P-States [ (12) 22 31 40 ]
CPU C3-Cores [ 0 1 2 3 6 7 8 10 11 ]
CPU C6-Cores [ 0 2 4 6 8 10 11 ]
CPU P-States [ (12) 22 25 31 40 ]
CPU C6-Cores [ 0 2 4 6 8 9 10 11 ]
CPU P-States [ (12) 22 23 25 31 40 ]
CPU P-States [ 12 21 22 23 25 31 (33) 40 ]
CPU P-States [ (12) 21 22 23 25 29 31 33 40 ]
CPU C6-Cores [ 0 2 4 6 7 8 9 10 11 ]
CPU P-States [ (12) 21 22 23 24 25 29 31 33 40 ]
CPU C3-Cores [ 0 1 2 3 6 7 8 9 10 11 ]
CPU C6-Cores [ 0 1 2 4 6 7 8 9 10 11 ]
CPU P-States [ 12 21 22 23 24 25 27 29 31 33 (40) ]
CPU C6-Cores [ 0 1 2 3 4 6 7 8 9 10 11 ]
CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 ]
CPU P-States [ 12 21 22 23 24 25 26 27 29 31 (33) 40 ]
CPU P-States [ 12 20 21 22 23 24 25 26 27 29 31 (33) 40 ]
CPU P-States [ 12 20 21 22 23 24 25 26 27 29 31 33 36 (40) ]
CPU P-States [ (12) 20 21 22 23 24 25 26 27 29 31 33 35 36 40 ]
CPU P-States [ 12 20 21 22 23 24 25 26 27 29 31 32 33 35 36 (40) ]
CPU P-States [ 12 20 21 22 23 24 25 26 27 29 31 32 (33) 34 35 36 40 ]
CPU P-States [ 12 20 21 22 23 24 25 26 27 28 29 31 32 (33) 34 35 36 40 ]
CPU P-States [ (12) 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 40 ]
CPU P-States [ 12 18 19 20 21 22 23 24 25 26 27 28 29 31 32 (33) 34 35 36 40 ]
CPU P-States [ 12 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 (33) 34 35 36 40 ]
CPU P-States [ (12) 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 40 ]
CPU C3-Cores [ 0 1 2 3 4 6 7 8 9 10 11 ]
CPU C3-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 ]
CPU P-States [ 12 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 38 (40) ]
CPU P-States [ 12 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 (33) 34 35 36 37 38 40 ]
CPU P-States [ 12 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 (33) 34 35 36 37 38 40 ]
CPU P-States [ (12) 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 ]
CPU P-States [ (12) 13 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 ]
CPU P-States [ (12) 13 14 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 ]
CPU P-States [ (12) 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 ]

sysctl -n machdep.xcpm.mode
1
sysctl -n machdep.xcpm.vectors_loaded_count
1

same here with 5820k, but nvidia web...pff

Fergarth · March 1, 2017

I personally only use safari to download chrome then never use safari.

Sent from my SM-G930F using Tapatalk

Was Safari working perfectly in your hackintosh at 10.12.4 (or 10.12.x) ?

Hi,

About the OS X browser, I have always used Safari and in fact never had any problem, even without having NV acceleration as is the case now, I can see and listen videos perfectly. Of course without graphical acceleration, I cannot use iMovie and other similar applications, but I have no complaints from Safari. I just used Chrome in Windows and it was before there was Edge. Safari always let me browse wherever I wanted, in all versions of OS X. At the moment, I'm in 12.4 beta 4 and I still have no problem with the original browser.

PMheart · March 2, 2017

Always Safari on my MacBook cuz Chrome is apparently a battery life killer. :yes:

And also. Chrome randomly crashed in 10.12... So now use Safari in most cases.

truemac · March 2, 2017

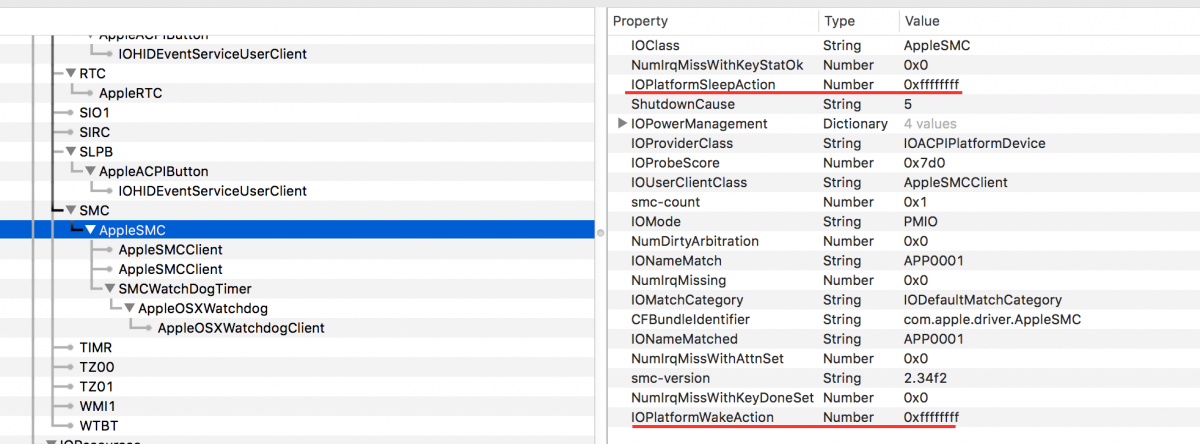

some new's on SMC device.

erice · March 3, 2017

An idea to have the sleep and the wake-up working in a decent way?

Thank you.

Slice · March 3, 2017

An idea to have the sleep and the wake-up working in a decent way?

Thank you.

Clover rev 3650 has a bug preventing sleep/wake.

Kynyo · March 7, 2017

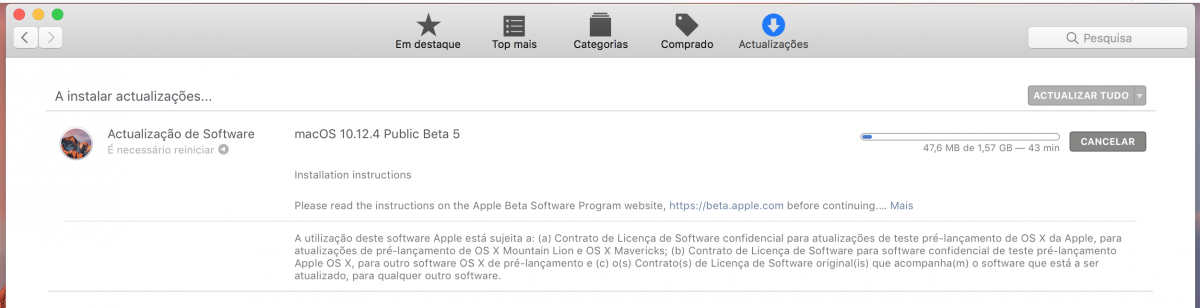

macOS Sierra 10.12.4 beta 5 (16E183b) Now Available

Updated quickly. No problems.

Fergarth · March 7, 2017

Downloading...

Come on Nvidia, what are you waiting for?

Fergarth · March 8, 2017

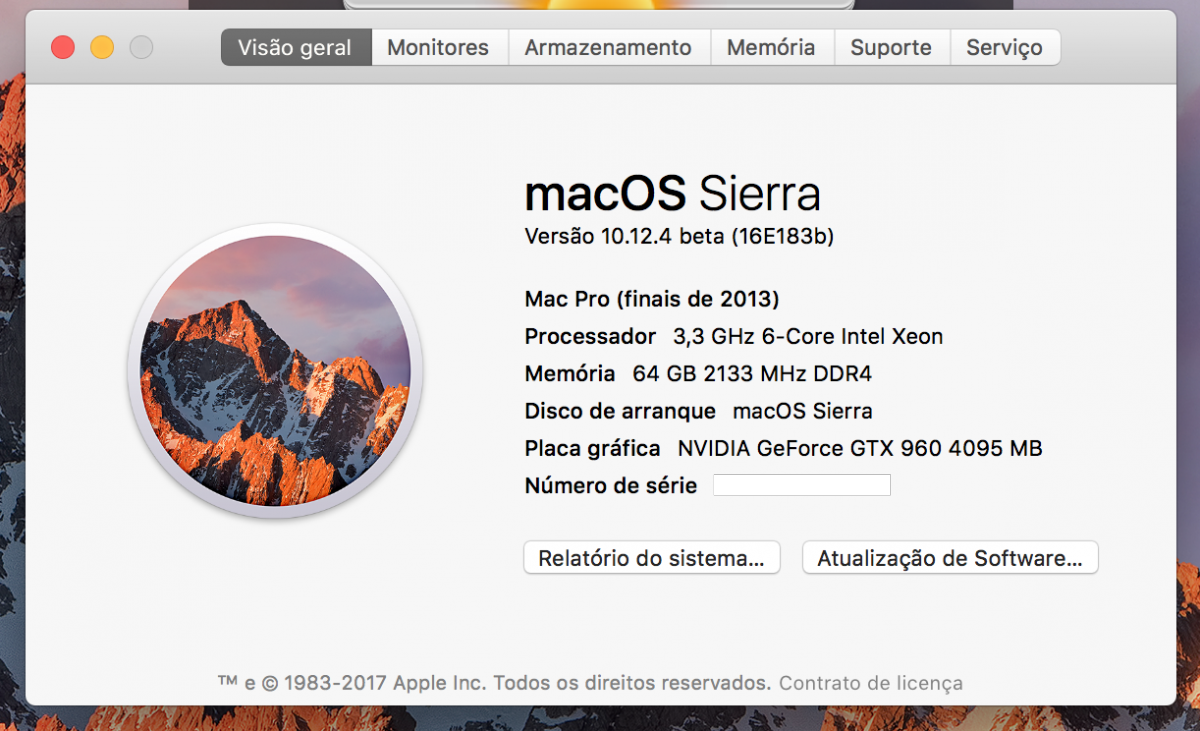

With me it always worked perfectly from 12.4 beta to 12.4 beta 4 and only with two XCPM patches, but with the beta 5 came back the nightmares

MaLd0n · March 8, 2017

Only two patches generate c3, but loose performance and now...more problems.

surfcaster · March 9, 2017

There are no apparent problems for me

Henry2010 · March 9, 2017

ATM I'm still using clover 3794 with 10.12.3. I have tested 4003, 4012, 4035, but the system didn't load at all. Is that a bug? Should I install the latest clover before installing the 10.12.4 beta, or 3794 still works with 10.12.4?

Thanks :-)

reyder · March 9, 2017

Someone can send me new kernel ? 12.12.5 version

Fergarth · March 9, 2017

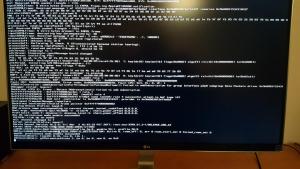

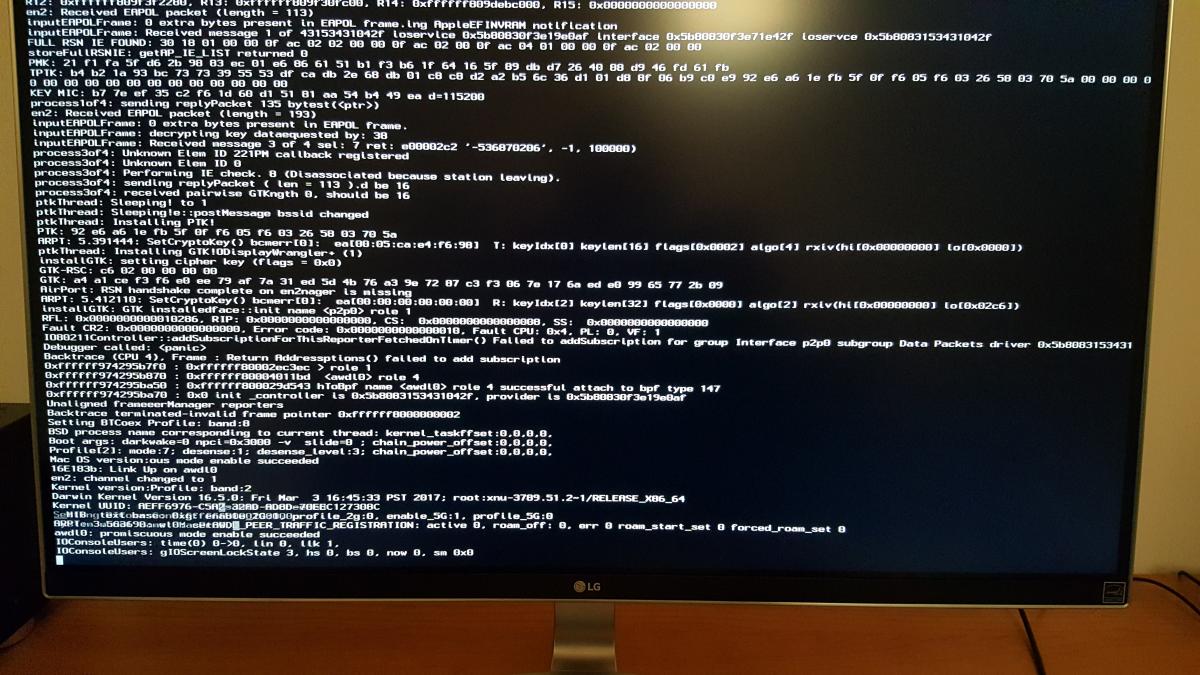

After the 12.4 beta 5, I only managed to open it once and still had time to make a print, then restarted and did not open anymore.

I have tried several patches, with and without DSDT, single user, safe mode and I can not pass this, from here it restarts... I think it's not even because of the patches I use, but may need something new.

I think I'm going back to the previous Sierra :yes:

MaLd0n · March 9, 2017

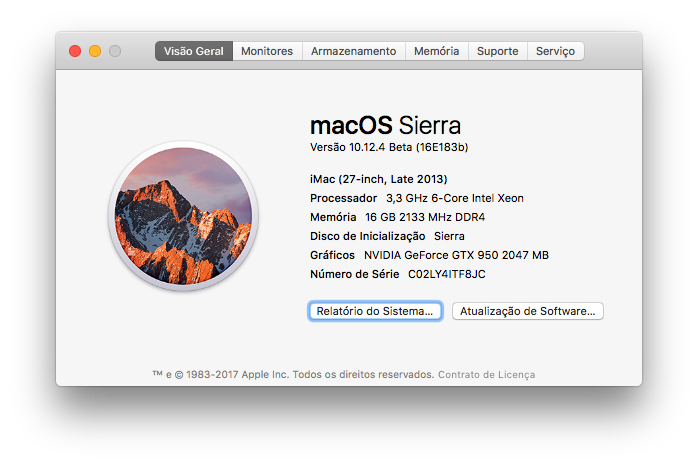

with patches i dont have any problems...long time

config.plist.zip

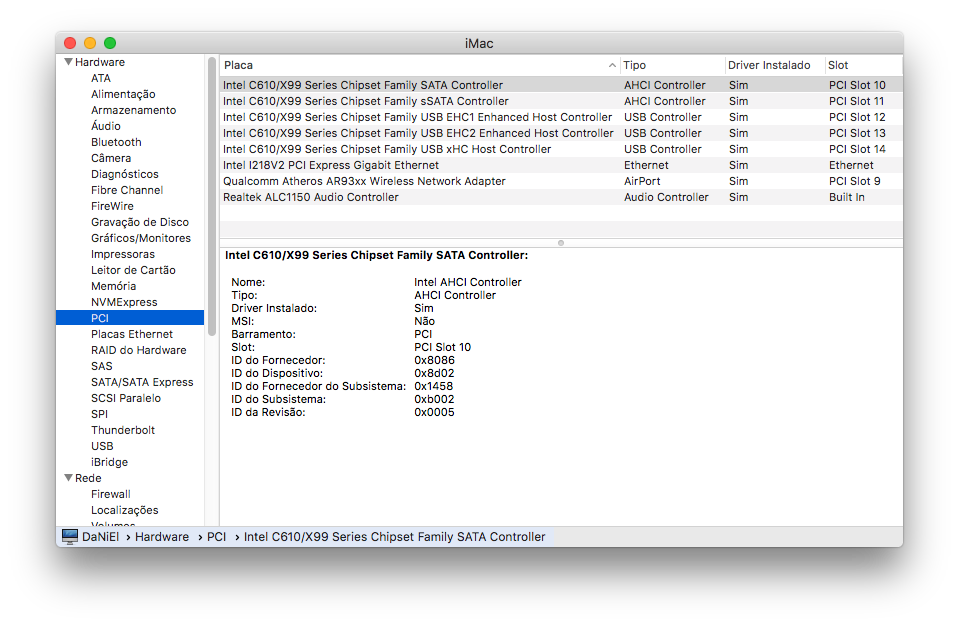

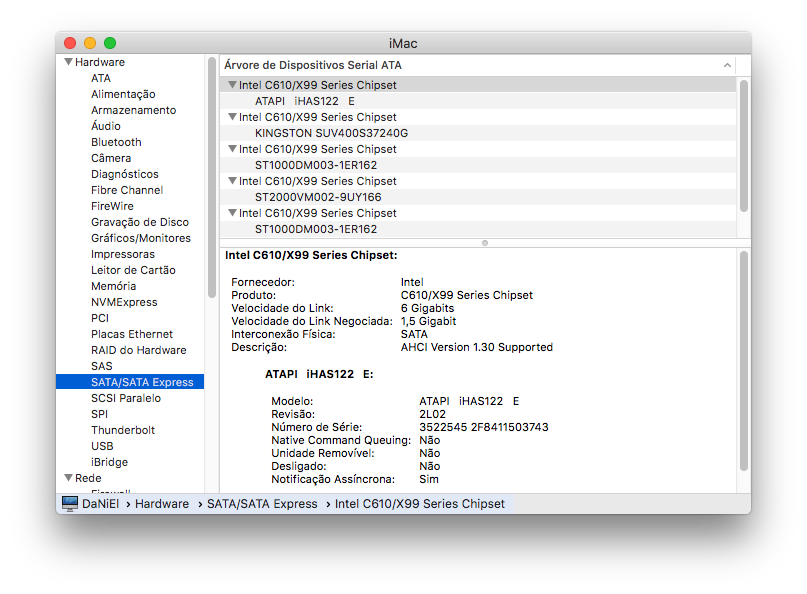

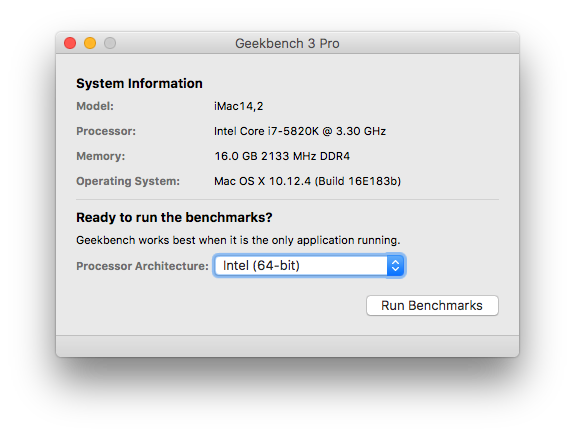

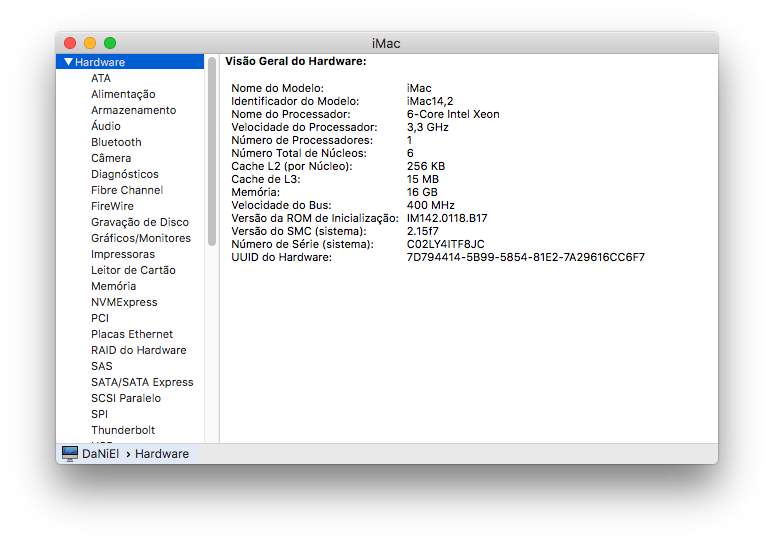

i use smbios iMac14,2 and full DSDT patched, Gigabyte Mobo and i7 5820k

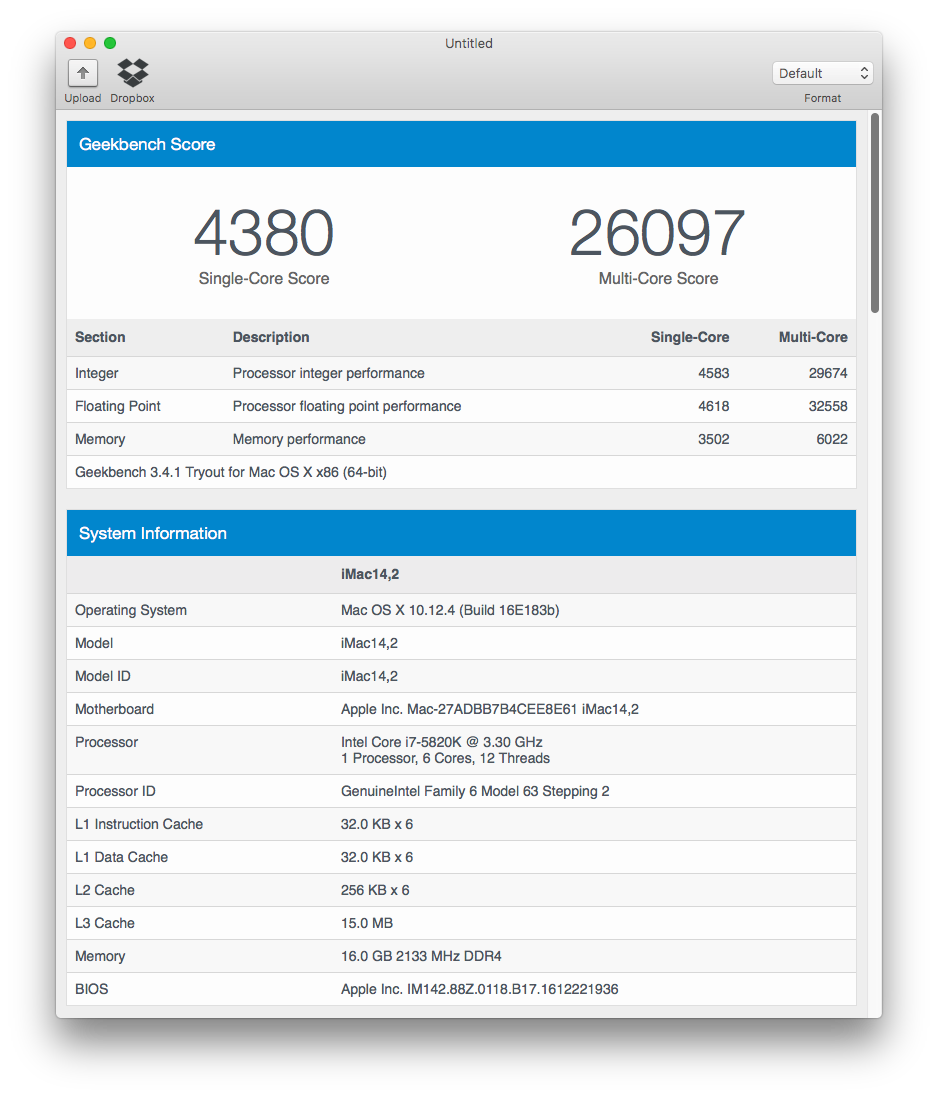

http://browser.primatelabs.com/geekbench3/8283745
