[GUIDE] Dell XPS 15 (9550) Mojave 10.14 / 10.15 Quick Installation

[Krim404]

On 9/27/2018 at 11:48 AM, zichenkkkk said:

I know it, but it update on 4 Jul,maybe not work on 18A391

it should work, but it is untested from my side. I've learned to never use a .0 release from apple, so the repo will be updated after release of 10.14.1 ;-)

Edited September 29, 2018 by wmchris

[zichenkkkk]

23 minutes ago, wmchris said:

it should work, but it is untested from my side. I've learned to never use a .0 release from apple, so the repo will be updated after release of 10.14.1 ;-)

thanks for the repo https://github.com/xxxzc/xps15-9550-macos and https://github.com/soulomoon/Dell-Precision-5510-OSX, works for me

[Krim404]

2 minutes ago, zichenkkkk said:

thanks for the repo https://github.com/xxxzc/xps15-9550-macos and https://github.com/soulomoon/Dell-Precision-5510-OSX, works for me

the first one seems to have the same patches and updates as the files in the 10.14 branch on my side. still: i would not suggest updating yet.

[Lockzi]

On 9/28/2018 at 12:00 AM, Tiberio Galbiati said:

Hello, I'm  experiencing the same issue, but only after sleep. In my case the cursor jumps randomly, I can reproduce the issue moving the cursor or in a straight line or making circles.

I'm using VoodooI2C v2.1 with SSDT from the git repo and patched with  SSDT-I2CX.aml and SSDT-XOSI.aml from the same post.

I really don't know the cause, so now I'm going to update to the last version and I'll tell you



What Mac OS version are you running? I'm still on 10.13.3 due to DisplayLink driver issues.

[Tiberio Galbiati]

On 9/29/2018 at 11:22 AM, Lockzi said:

What Mac OS version are you running? I'm still on 10.13.3 due to DisplayLink driver issues.

Hello I am currently running 10.13.6.

Now I have also upgraded VoodooI2C to 2.1.4 and the number of jumps has reduced but the issues comes also after boot and does's seems related to sleep anymore.

I am also using APCIBatteryManager.

If you need I can also upload my troubleshooting files like ACPI or Ioreg.



For the DA200 issue I can confirm the USB-C network adapter works only if plugged in after boot and it breaks after sleep.

Should I use USBInjectall?

By the way I have also ordered on eBay a USB 3 (non C) ethernet adapter...

[Krim404]

because so many people asked for it: i updated the files and the tutorial to work with 10.14.



On 9/26/2018 at 4:05 AM, alex.daoud said:

I've updated VoodooI2C to v2.1.2. This includes support for Mojave, fixes the hidd CPU usage issue people here reported, and also improves click detection.

seems to work now. thank you :-) i added your driver to the default setup in the tutorial.

[reece394]

40 minutes ago, wmchris said:

because so many people asked for it: i updated the files and the tutorial to work with 10.14.



seems to work now. thank you :-) i added your driver to the default setup in the tutorial.

Awesome stuff wmchris. For some reason when using your clover setup the native gestures aren't enabled for me whilst when I used https://github.com/soulomoon/Dell-Precision-5510-OSX clover setup the gestures were native and working. Thought it was very odd. Any idea why that would be? Just got back into hackintoshing again after a long hiatus glad to see the progress made.

[Lockzi]

7 hours ago, Tiberio Galbiati said:

Hello I am currently running 10.13.6.

Now I have also upgraded VoodooI2C to 2.1.4 and the number of jumps has reduced but the issues comes also after boot and does's seems related to sleep anymore.

I am also using APCIBatteryManager.

If you need I can also upload my troubleshooting files like ACPI or Ioreg.



For the DA200 issue I can confirm the USB-C network adapter works only if plugged in after boot and it breaks after sleep.

Should I use USBInjectall?

By the way I have also ordered on eBay a USB 3 (non C) ethernet adapter...

I was able to fix the teleporting by the assistant of Alexandred at: https://github.com/alexandred/VoodooI2C/issues/113



Really awesome trackpad now!

[Krim404]

1 hour ago, reece394 said:

Awesome stuff wmchris. For some reason when using your clover setup the native gestures aren't enabled for me whilst when I used https://github.com/soulomoon/Dell-Precision-5510-OSX clover setup the gestures were native and working. Thought it was very odd. Any idea why that would be? Just got back into hackintoshing again after a long hiatus glad to see the progress made.

https://github.com/wmchris/DellXPS15-9550-OSX/commit/b51c14616dc77d3fc3e61d5f6269d773c7349a98

;-)

[reece394]

1 hour ago, wmchris said:

https://github.com/wmchris/DellXPS15-9550-OSX/commit/b51c14616dc77d3fc3e61d5f6269d773c7349a98

;-)

Awesome that is what it was! Glad it wasn't me being stupid  The only problem I have with the native trackpad drivers now is that right click doesn't seem to do anything. The rest of it is awesome though

[reece394]

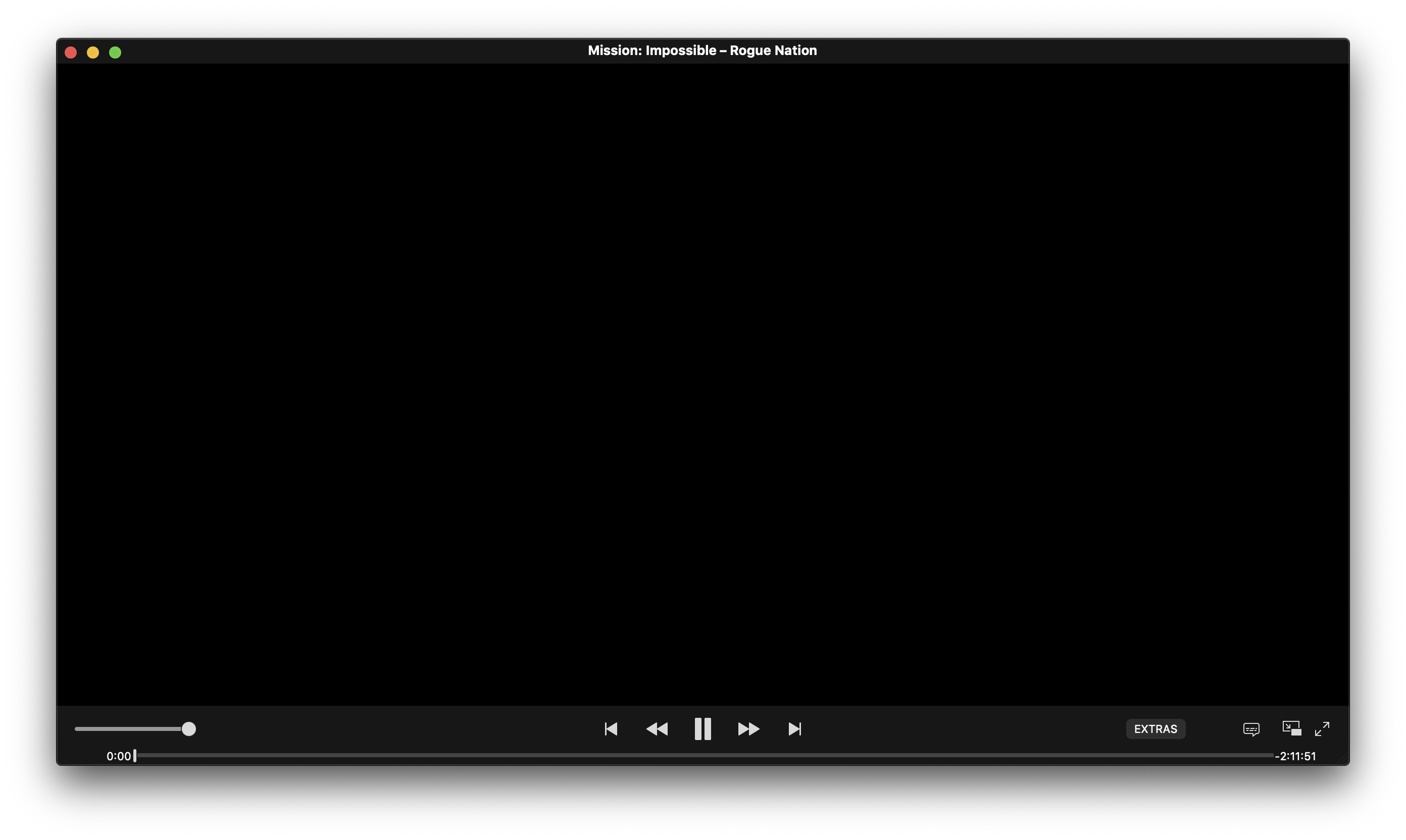

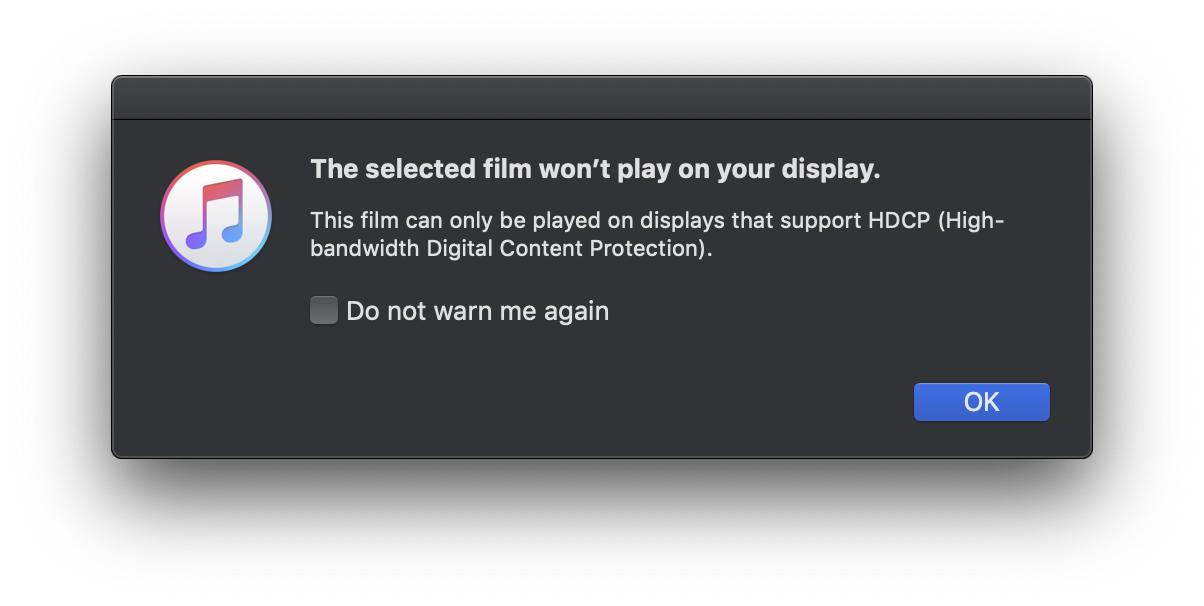

Anybody having problems playing back iTunes content on Mojave? From what I have read there was an extension called Shiki that handled this but now it is merged into WhateverGreen. Seems to be an HDCP issue. Whilst I could download the movies and it would work fine it would be cool to stream them like a real Mac. DRM sucks....

[Krim404]

12 hours ago, reece394 said:

Anybody having problems playing back iTunes content on Mojave? From what I have read there was an extension called Shiki that handled this but now it is merged into WhateverGreen. Seems to be an HDCP issue. Whilst I could download the movies and it would work fine it would be cool to stream them like a real Mac. DRM sucks....



https://github.com/acidanthera/WhateverGreen/blob/master/Manual/FAQ.Shiki.en.md

if you find the solution, please tell us. i never used itunes, so my motivation for a fix is pretty low. ;-)

Edited October 1, 2018 by wmchris

[reece394]

2 hours ago, wmchris said:

https://github.com/acidanthera/WhateverGreen/blob/master/Manual/FAQ.Shiki.en.md

if you find the solution, please tell us. i never used itunes, so my motivation for a fix is pretty low. ;-)

Will do! For now the VDADecoderChecker is stating this which is a good start:

GVA info: [11.7.34] AVFQTX_CreateInstance 0x108273000, [1920x1056::1280x720] profile_level:77:41, tt(fp):0(0), usage:0, frame_mbs:1, di:0, dither:1, oold:0, stream_ram:0, stream_buf_size:2097152, fmt: 420v ...

GVA info: AVFQTX_CreateInstance, GFX:0 ,Bandwidth:94003200, PhysicalAccelerator create error = 0

GVA info: AVFQTX_DisposeInstance 0x108273000, scheduled:0, output:0, high_perf:0[  nan%], blocked:0[  nan%], error:0, slices:0, maxFrameSize:0

Hardware acceleration is fully supported

I will have to do some more research later in the week about this as only GVA info: Successfully connected to the Intel plugin, offline Gen75 is mentioned. Since Mojave is a new release that is most likely why... I will try shikigva=1 now but probably not that easy

Edit: As predicted not that easy... will have to do more digging

Even downloading videos and playing them causes this.



Edited October 1, 2018 by reece394

[Krim404]

48 minutes ago, hackedWifi said:

I did a fresh install of Mojave but the first boot was successful. But now macOS won't boot neither from the SSD nor the USB installer. I keep getting the can't allocate runtime area. Unable.to boot. I noticed that aptioMemoryFix is being used
My Clover folder is the one from this repo

Sent from my Pixel XL using Tapatalk


https://github.com/wmchris/DellXPS15-9550-OSX/blob/10.14/Tutorial_10.14_Step7.md

https://github.com/wmchris/DellXPS15-9550-OSX/blob/10.14/Additional/slide_calc.md

https://github.com/wmchris/DellXPS15-9550-OSX/blob/10.14/10.14/CLOVER/drivers64UEFI/other/readme.md

[phaberest]

I just updated to 10.14.



The new CLOVER from the repo is not working, I ended up upgrading my 10.13 config, replacing the patched folder and dowloading the latest version of the WhateverGreen.kext (that replaces IntelGraphicsFixup.kext)



Edited October 2, 2018 by phaberest

[hackedWifi]

Do you mind to elaborate on what is not working from the folder.

I just updated to 10.14.

The new CLOVER from the repo is not working, I ended up upgrading my 10.13 config, replacing the patched folder and dowloading the latest version of the WhateverGreen.kext (that replaces IntelGraphicsFixup.kext)


Sent from my Pixel XL using Tapatalk

[reece394]

3 hours ago, phaberest said:

I just updated to 10.14.



The new CLOVER from the repo is not working, I ended up upgrading my 10.13 config, replacing the patched folder and dowloading the latest version of the WhateverGreen.kext (that replaces IntelGraphicsFixup.kext)

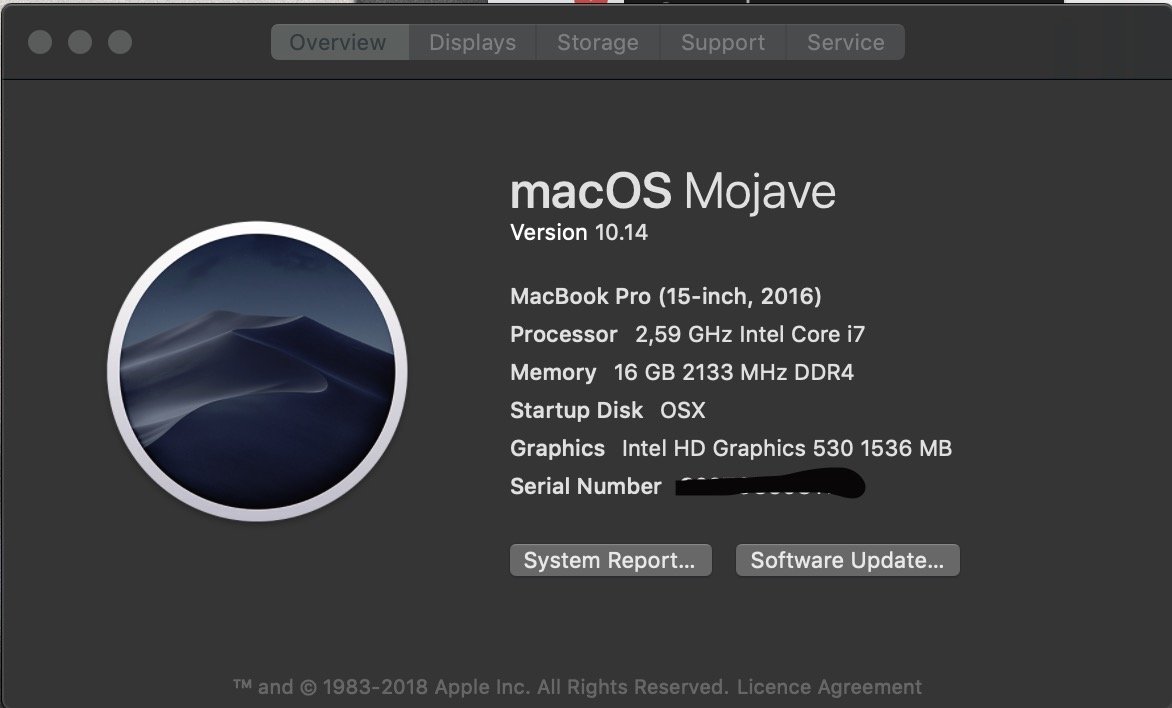

Hmm that is odd as it is working for me. With a few issues. The fans seem to be over active and then quiet down after a while of using. The native trackpad drivers (VoodooI2C) work but the right click doesn't for me for some odd reason. And of course as mentioned above HDCP is broke for iTunes and Netflix via Safari at this point in time.

[Krim404]

6 hours ago, phaberest said:

I just updated to 10.14.



The new CLOVER from the repo is not working, I ended up upgrading my 10.13 config, replacing the patched folder and dowloading the latest version of the WhateverGreen.kext (that replaces IntelGraphicsFixup.kext)



i'd double check the functionality of the repo before removing the unstable statement on two different XPS 9550 with different configurations, both worked fine. so i doubt it had something to do with the pository.

Edited October 2, 2018 by wmchris

[phaberest]

Don't worry guys, it is still too early for me to consider it an exclamation.



I'm playing with it since yesterday, but I think the main problem is that I'm not able to boot with the folder of the repo. I tried to play with the config.plist and the kexts, but it doesn't boot using VirtualSMC, I had to stick to FakeSMC.



I experienced what I suppose are the known conflicts between VoodooI2C and ACPIBatteryManager, I momentarily disabled the second one and will need to understand how to make the new battery kexts working.



Anyway I'll try all over and give you an update on the situation.



It's in fact the first time that I'm not able to start directly from the repo folder. The slide works fine with AllocFix and slide=0, so that's not part of the issue.



--- UPDATE ---
Sadly I'm no way near to the solution. I am stuck at a KP as soon as I remove FakeSMC and the related kexts, as well as SMCHelper64, and try to use VirtualSMC.

I would like to post the KP, but for some weird reason it logged it only when I happened to be using FakeSMC(I tried various configs and got KPs with it too), with the other configuration it is not saving it. I have no KP log of all the tries I've done with VirtualSMC (I will in case post a photo), it is a KP related to cpu with a RC2 error anyway.

It has to be I must have done something wrong, but I really have no idea what...

With the (sort of) working config that lets me in the OS I have no battery management but the rest seems to be working as of now.

Edited October 3, 2018 by phaberest

[hackedWifi]

EDIT: OsxAptioFix and AllocFix with slide=0 worked for me

Based on my memmap output. After calculating my slide value it was 144. Base on the error cannot relocate 0x13ed5 pages at 0x18ca4000

I tried from aptioDrv1 ,2 and, 3. Using different slide values from 143 to 148. I didn't boot. I also tried aptioFixdrv with Allocfix or OsxLowMemory. That didn't work either.

I don't why. Yesterday it booted fine once. After that it didn't



Sent from my Pixel XL using Tapatalk













[Krim404]

18 hours ago, phaberest said:

Don't worry guys, it is still too early for me to consider it an exclamation.

Did you do a fresh install or an upgrade? Maybe you have some old kexts left, which are installed in L/E or S/L/E ? Most of the time these are the culprit

[Krim404]

6 hours ago, hackedWifi said:

I don't why. Yesterday it booted fine once. After that it didn't

There are multiple possible issues: bios upgrade, new kexts (bigger prelinked kernel), adding new hardware...

[hackedWifi]

The only thing I did was to update my BIOS to the latest. Will I face any issues by using AllowFix with OsxAptioFix. Since this was the last resort as instructed on the tutorial?

There are multiple possible issues: bios upgrade, new kexts (bigger prelinked kernel), adding new hardware...

Sent from my Pixel XL using Tapatalk

[phaberest]

2 hours ago, wmchris said:

Did you do a fresh install or an upgrade? Maybe you have some old kexts left, which are installed in L/E or S/L/E ? Most of the time these are the culprit

It was an upgrade, but the only kexts I have in S/L/E are the ones of VoodooPS2Controller and the audio (backup and modified - about that it was weird to see that I didn't have to patch it again, audio worked OTB)



I leave you here the list of kexts, can you spot something I may have missed?


Spoiler

/S/L/E

total 0
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:25 ALF.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 06:03 AMD10000Controller.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 06:03 AMD7000Controller.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 06:03 AMD8000Controller.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 06:03 AMD9000Controller.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 06:03 AMD9500Controller.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 06:03 AMDFramebuffer.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 06:02 AMDMTLBronzeDriver.bundle
drwxr-xr-x@ 3 root  wheel    96B Aug 23 06:03 AMDRadeonVADriver.bundle
drwxr-xr-x@ 3 root  wheel    96B Aug 23 06:03 AMDRadeonVADriver2.bundle
drwxr-xr-x@ 3 root  wheel    96B Aug 23 06:03 AMDRadeonX4000.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 06:03 AMDRadeonX4000GLDriver.bundle
drwxr-xr-x@ 3 root  wheel    96B Aug 23 06:03 AMDRadeonX4000HWServices.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 06:03 AMDRadeonX5000.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 06:03 AMDRadeonX5000GLDriver.bundle
drwxr-xr-x@ 3 root  wheel    96B Aug 23 06:03 AMDRadeonX5000HWServices.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 06:02 AMDRadeonX5000MTLDriver.bundle
drwxr-xr-x@ 3 root  wheel    96B Aug 23 06:02 AMDRadeonX5000Shared.bundle
drwxr-xr-x@ 3 root  wheel    96B Aug 23 06:03 AMDRadeonX6000HWServices.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 06:02 AMDShared.bundle
drwxr-xr-x@ 3 root  wheel    96B Aug 23 06:03 AMDSupport.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:44 AirPortBrcmNIC-MFG.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:30 Apple16X50Serial.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:34 AppleACPIPlatform.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:30 AppleAHCIPort.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:30 AppleAPIC.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:34 AppleAVEBridge.kext
drwxr-xr-x@ 3 root  wheel    96B Sep 21 03:29 AppleActuatorDriver.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:45 AppleBCMWLANBusInterfacePCIe.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:44 AppleBCMWLANCore.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:45 AppleBCMWLANCoreV3_Datastore.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:33 AppleBacklight.kext
drwxr-xr-x@ 6 root  wheel   192B Sep 21 06:19 AppleBacklightExpert.kext
drwxr-xr-x@ 3 root  wheel    96B Sep 21 03:30 AppleBluetoothMultitouch.kext
drwxr-xr-x@ 3 root  wheel    96B Sep 21 03:30 AppleBluetoothRemote.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:34 AppleBusPowerController.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 31 01:34 AppleCameraInterface.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:40 AppleCredentialManager.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:25 AppleEFIRuntime.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:46 AppleEffaceableNOR.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:46 AppleEffaceableStorage.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:28 AppleEmbeddedOSSupportHost.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:47 AppleFDEKeyStore.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:29 AppleFIVRDriver.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:25 AppleFSCompressionTypeDataless.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:25 AppleFSCompressionTypeZlib.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 21 03:19 AppleFWAudio.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:29 AppleFileSystemDriver.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:50 AppleFileUtil.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 24 04:47 AppleGFXHDA.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:39 AppleGraphicsControl.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:54 AppleGraphicsPowerManagement.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 24 04:48 AppleHDA.kext
drwxr-xr-x@ 4 root  wheel   128B Sep 12 00:44 AppleHDA.kext_bck
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:39 AppleHIDALSService.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 29 21:54 AppleHIDKeyboard.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 29 21:54 AppleHIDMouse.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:29 AppleHPET.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:39 AppleHPM.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:39 AppleHSSPIHIDDriver.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:39 AppleHSSPISupport.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:25 AppleHV.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:25 AppleHWSensor.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:38 AppleIRController.kext
drwxr-xr-x@ 3 root  wheel    96B Sep 21 03:26 AppleInputDeviceSupport.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 29 22:04 AppleIntelBDWGraphics.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 29 22:04 AppleIntelBDWGraphicsFramebuffer.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 29 22:03 AppleIntelBDWGraphicsGLDriver.bundle
drwxr-xr-x@ 3 root  wheel    96B Aug 29 22:03 AppleIntelBDWGraphicsMTLDriver.bundle
drwxr-xr-x@ 3 root  wheel    96B Aug 29 22:04 AppleIntelBDWGraphicsVADriver.bundle
drwxr-xr-x@ 3 root  wheel    96B Aug 29 22:04 AppleIntelBDWGraphicsVAME.bundle
drwxr-xr-x@ 3 root  wheel    96B Aug 29 22:04 AppleIntelCFLGraphicsFramebuffer.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 29 22:04 AppleIntelCFLGraphicsVAME.bundle
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:25 AppleIntelCPUPowerManagement.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:25 AppleIntelCPUPowerManagementClient.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 29 22:04 AppleIntelFramebufferAzul.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 29 22:04 AppleIntelFramebufferCapri.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 29 22:03 AppleIntelGraphicsShared.bundle
drwxr-xr-x@ 3 root  wheel    96B Aug 29 22:04 AppleIntelHD4000Graphics.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 29 22:03 AppleIntelHD4000GraphicsGLDriver.bundle
drwxr-xr-x@ 3 root  wheel    96B Aug 29 22:03 AppleIntelHD4000GraphicsMTLDriver.bundle
drwxr-xr-x@ 3 root  wheel    96B Aug 29 22:04 AppleIntelHD4000GraphicsVADriver.bundle
drwxr-xr-x@ 3 root  wheel    96B Aug 29 22:04 AppleIntelHD5000Graphics.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 29 22:03 AppleIntelHD5000GraphicsGLDriver.bundle
drwxr-xr-x@ 3 root  wheel    96B Aug 29 22:03 AppleIntelHD5000GraphicsMTLDriver.bundle
drwxr-xr-x@ 3 root  wheel    96B Aug 29 22:04 AppleIntelHD5000GraphicsVADriver.bundle
drwxr-xr-x@ 3 root  wheel    96B Aug 29 22:04 AppleIntelHSWVA.bundle
drwxr-xr-x@ 3 root  wheel    96B Aug 29 22:04 AppleIntelIVBVA.bundle
drwxr-xr-x@ 3 root  wheel    96B Aug 29 22:04 AppleIntelKBLGraphics.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 29 22:04 AppleIntelKBLGraphicsFramebuffer.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 29 22:03 AppleIntelKBLGraphicsGLDriver.bundle
drwxr-xr-x@ 3 root  wheel    96B Aug 29 22:03 AppleIntelKBLGraphicsMTLDriver.bundle
drwxr-xr-x@ 3 root  wheel    96B Aug 29 22:04 AppleIntelKBLGraphicsVADriver.bundle
drwxr-xr-x@ 3 root  wheel    96B Aug 29 22:04 AppleIntelKBLGraphicsVAME.bundle
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:37 AppleIntelLpssDmac.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:37 AppleIntelLpssGspi.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:36 AppleIntelLpssI2C.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:36 AppleIntelLpssI2CController.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:37 AppleIntelLpssSpiController.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:36 AppleIntelLpssUARTCommon.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:36 AppleIntelLpssUARTv0.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:36 AppleIntelLpssUARTv1.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:25 AppleIntelMCEReporter.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:45 AppleIntelPCHPMC.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 29 22:04 AppleIntelSKLGraphics.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 29 22:04 AppleIntelSKLGraphicsFramebuffer.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 29 22:03 AppleIntelSKLGraphicsGLDriver.bundle
drwxr-xr-x@ 3 root  wheel    96B Aug 29 22:03 AppleIntelSKLGraphicsMTLDriver.bundle
drwxr-xr-x@ 3 root  wheel    96B Aug 29 22:04 AppleIntelSKLGraphicsVADriver.bundle
drwxr-xr-x@ 3 root  wheel    96B Aug 29 22:04 AppleIntelSKLGraphicsVAME.bundle
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:29 AppleIntelSlowAdaptiveClocking.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 29 22:04 AppleIntelTGLGraphics.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 29 22:04 AppleIntelTGLGraphicsFramebuffer.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 29 22:03 AppleIntelTGLGraphicsGLDriver.bundle
drwxr-xr-x@ 3 root  wheel    96B Aug 29 22:03 AppleIntelTGLGraphicsMTLDriver.bundle
drwxr-xr-x@ 3 root  wheel    96B Aug 29 22:04 AppleIntelTGLGraphicsVAME.bundle
drwxr-xr-x@ 3 root  wheel    96B Aug 17 23:59 AppleKextExcludeList.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:48 AppleKeyStore.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:45 AppleLPC.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:41 AppleLSIFusionMPT.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:34 AppleMCCSControl.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:29 AppleMCP89RootPortPM.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 18 00:51 AppleMIDIBluetoothDriver.plugin
drwxr-xr-x@ 3 root  wheel    96B Aug 21 03:17 AppleMIDIFWDriver.plugin
drwxr-xr-x@ 3 root  wheel    96B Aug 18 00:50 AppleMIDIIACDriver.plugin
drwxr-xr-x@ 3 root  wheel    96B Aug 18 00:50 AppleMIDIRTPDriver.plugin
drwxr-xr-x@ 3 root  wheel    96B Aug 18 00:50 AppleMIDIUSBDriver.plugin
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:24 AppleMatch.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:32 AppleMikeyHIDDriver.kext
drwxr-xr-x@ 3 root  wheel    96B Jul 17 20:17 AppleMobileDevice.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:33 AppleMobileFileIntegrity.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 21 03:49 AppleMultitouchDriver.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:42 AppleOSXUSBNCM.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 25 04:35 AppleOSXWatchdog.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:33 AppleOnboardSerial.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:25 ApplePlatformEnabler.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:29 AppleRAID.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:43 AppleRAIDCard.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:28 AppleRTC.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:30 AppleSDXC.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:33 AppleSEPManager.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:25 AppleSMBIOS.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:31 AppleSMBusController.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:31 AppleSMBusPCI.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:30 AppleSMC.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:33 AppleSMCLMU.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:33 AppleSMCRTC.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:25 AppleSRP.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:42 AppleSSE.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:28 AppleSmartBatteryManager.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:43 AppleStorageDrivers.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:38 AppleSystemPolicy.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:29 AppleThunderboltDPAdapters.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:33 AppleThunderboltEDMService.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:31 AppleThunderboltIP.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:30 AppleThunderboltNHI.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:30 AppleThunderboltPCIAdapters.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 24 04:43 AppleThunderboltUTDM.kext
drwxr-xr-x@ 3 root  wheel    96B Sep 21 03:30 AppleTopCase.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:43 AppleUSBACM.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 24 04:47 AppleUSBAudio.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:43 AppleUSBCDC.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:39 AppleUSBCHCOM.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:36 AppleUSBCommon.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:43 AppleUSBDMM.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:38 AppleUSBDisplays.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:43 AppleUSBECM.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:43 AppleUSBEEM.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:43 AppleUSBEthernet.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:39 AppleUSBEthernetHost.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:41 AppleUSBFTDI.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:38 AppleUSBMultitouch.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:43 AppleUSBNCM.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:43 AppleUSBNetworking.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:39 AppleUSBPLCOM.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:42 AppleUSBRealtek8153Patcher.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:39 AppleUSBSerial.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:39 AppleUSBTopCase.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:43 AppleUSBWCM.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:38 AppleUSBiBridge.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 24 04:47 AppleUpstreamUserClient.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 21 03:58 AppleVADriver.bundle
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:43 AppleWWANAutoEject.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:30 AppleXsanScheme.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:30 Apple_iSight.kext
drwxr-xr-x@ 6 root  wheel   192B Sep 21 06:20 AudioAUUC.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:35 BCMWLANFirmware4364_Datastore.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:34 BCMWLANFirmware4364_Hashstore.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:24 BootCache.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:36 BridgeAudioCommunication.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:36 BridgeAudioController.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:38 CellPhoneHelper.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:30 CoreStorage.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:29 CoreTrust.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:24 DSACL.ppp
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:25 DSAuth.ppp
drwxr-xr-x@ 3 root  wheel    96B Aug 18 02:14 DVFamily.bundle
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:33 Dont Steal Mac OS X.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:25 EAP-KRB.ppp
drwxr-xr-x@ 3 root  wheel    96B Aug 18 00:22 EAP-RSA.ppp
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:25 EAP-TLS.ppp
drwxr-xr-x@ 3 root  wheel    96B Aug 23 06:07 GeForce.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:54 GeForceAIRPlugin.bundle
drwxr-xr-x@ 3 root  wheel    96B Aug 23 06:00 GeForceGLDriver.bundle
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:57 GeForceMTLDriver.bundle
drwxr-xr-x@ 3 root  wheel    96B Aug 23 06:07 GeForceVADriver.bundle
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:28 HFS.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:27 HFSEncodings.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:42 IO80211Family.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:39 IO80211FamilyV2.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:25 IOACPIFamily.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:30 IOAHCIFamily.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:29 IOATAFamily.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:36 IOAVBFamily.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 21 03:28 IOAccelerator2D.plugin
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:38 IOAcceleratorFamily2.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 24 04:45 IOAudioFamily.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:36 IOBDStorageFamily.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 29 21:49 IOBluetoothFamily.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 29 21:49 IOBluetoothHIDDriver.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:30 IOBufferCopyController.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:30 IOBufferCopyEngineFamily.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:30 IOCDStorageFamily.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:34 IODVDStorageFamily.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 21 03:17 IOFireWireAVC.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:29 IOFireWireFamily.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:30 IOFireWireIP.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 21 03:17 IOFireWireSBP2.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:39 IOFireWireSerialBusProtocolTransport.kext
drwxr-xr-x@ 7 root  wheel   224B Sep 21 06:20 IOGraphicsFamily.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:30 IOHDIXController.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:28 IOHIDFamily.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:30 IOImageLoader.kext
drwxr-xr-x@ 6 root  wheel   192B Sep 21 06:19 IONDRVSupport.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:39 IONVMeFamily.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:34 IONetworkingFamily.kext
drwxr-xr-x@ 6 root  wheel   192B Sep 21 06:20 IOPCIFamily.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:43 IOPlatformPluginFamily.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:25 IOReportFamily.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:38 IOSCSIArchitectureModelFamily.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:39 IOSCSIParallelFamily.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:25 IOSMBusFamily.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:42 IOSerialFamily.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:30 IOSkywalkFamily.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:25 IOSlaveProcessor.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:25 IOSlowAdaptiveClockingFamily.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:25 IOStorageFamily.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:25 IOStreamFamily.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:24 IOSurface.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 21 03:17 IOThunderboltFamily.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:33 IOTimeSyncFamily.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:42 IOUSBAttachedSCSI.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 24 04:47 IOUSBFamily.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:36 IOUSBHostFamily.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:41 IOUSBMassStorageClass.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:39 IOUSBMassStorageDriver.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:38 IOUserEthernet.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:28 IOVideoFamily.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:25 KXLog.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:38 KernelRelayHost.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:24 L2TP.ppp
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:26 Libm.kext
drwxr-xr-x@ 3 root  wheel    96B Jun 11 20:23 NVDAGF100Hal.kext
drwxr-xr-x@ 3 root  wheel    96B Jun 11 20:23 NVDAGK100Hal.kext
drwxr-xr-x@ 3 root  wheel    96B Jun 11 20:23 NVDAResman.kext
drwxr-xr-x@ 3 root  wheel    96B Jun 11 20:23 NVDAStartup.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 21 03:17 NVMeSMARTLib.plugin
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:29 NVSMU.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:25 OSvKernDSPLib.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:24 PPP.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 18 00:27 PPPSerial.ppp
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:24 PPPoE.ppp
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:24 PPTP.ppp
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:47 Quarantine.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:25 Radius.ppp
drwxr-xr-x@ 3 root  wheel    96B Feb  3  2017 RemoteVirtualInterface.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 21 03:18 SMARTLib.plugin
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:34 SMCMotionSensor.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:39 Sandbox.kext
drwxr-xr-x@ 6 root  wheel   192B Aug 23 05:18 System.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:25 TMSafetyNet.kext
drwxr-xr-x@ 3 root  wheel    96B Sep 17 00:37 VoodooPS2Controller.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:46 acfs.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:46 acfsctl.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 31 01:33 apfs.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:25 autofs.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:25 cd9660.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:34 cddafs.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:25 corecapture.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:26 corecrypto.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:31 eficheck.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:25 exfat.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:41 iPodDriver.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:25 mcxalr.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:25 msdosfs.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:25 ntfs.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:25 pmtelemetry.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:24 pthread.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:30 smbfs.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:25 triggers.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:25 udf.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 24 04:43 vecLib.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:26 webcontentfilter.kext
drwxr-xr-x@ 3 root  wheel    96B Aug 23 05:25 webdav_fs.kext



/L/E

total 0
drwxr-xr-x  3 root  wheel    96B Apr 24 08:45 ACS6x.kext
drwxr-xr-x  3 root  wheel    96B May  8 21:06 ATTOCelerityFC8.kext
drwxr-xr-x  3 root  wheel    96B May  7 15:53 ATTOExpressSASHBA2.kext
drwxr-xr-x  3 root  wheel    96B May  7 15:54 ATTOExpressSASRAID2.kext
drwxr-xr-x@ 3 root  wheel    96B Sep 10 03:32 AppleBacklightInjector.kext
drwxr-xr-x@ 3 root  wheel    96B Sep 10 03:32 AppleGraphicsDevicePolicyInjector.kext
drwxr-xr-x  3 root  wheel    96B Sep  6  2017 ArcMSR.kext
drwxr-xr-x  3 root  wheel    96B Sep  1  2013 CalDigitHDProDrv.kext
drwxr-xr-x  3 root  wheel    96B Oct  2 12:23 DisplayLinkDriver.kext
drwxr-xr-x  3 root  wheel    96B May  4 00:31 HighPointIOP.kext
drwxr-xr-x  3 root  wheel    96B Dec  5  2017 HighPointRR.kext
drwxr-xr-x  3 root  wheel    96B Aug  2 07:42 HoRNDIS.kext
drwxr-xr-x@ 3 root  wheel    96B Sep 10 03:32 NullEthernet.kext
drwxr-xr-x  3 root  wheel    96B Mar 31  2017 PromiseSTEX.kext
drwxr-xr-x  3 root  wheel    96B Apr 25 02:09 SoftRAID.kext
drwxr-xr-x@ 3 root  wheel    96B Sep 12 00:05 VerbStub.kext
drwxr-xr-x@ 3 root  wheel    96B Sep 10 03:32 X86PlatformPluginInjector.kext
drwxr-xr-x  3 root  wheel    96B Aug  7 12:53 intelhaxm.kext





Edited October 3, 2018 by phaberest

[Krim404]

1 hour ago, hackedWifi said:

The only thing I did was to update my BIOS to the latest. Will I face any issues by using AllowFix with OsxAptioFix. Since this was the last resort as instructed on the tutorial?

only a bios update ;-). The .25 update was the main reason why we had this issue at first. before that noone needed any slide calculations to run OSX.



if it works, it works. but you can have problems with nvram and sometimes crashes on boot - but so far noone opened an issue when its running.

Edited October 3, 2018 by wmchris
