bratwurstinhalator
bratwurstinhalator
Posted
Posted
18 minutes ago, savvamitrofanov said:

Very interesting stuff

"  if (!gDriversFlags.AptioMemFixLoaded) {
    DeleteNvramVariable(L"recovery-boot-mode", &gEfiAppleBootGuid);
  }

"

Clover doesn't touch this variable if AptioMemoryFix loaded, so problem inside something different

Try to reset nvram with tool CleanNvram from https://github.com/acidanthera/AptioFixPkg from UEFI shell



Thank you for taking a look at the source code.



I executed CleanNvram and it removed quite a view variables. However, I still can't boot. Symptoms have not changed.


Link to comment
Share on other sites
savvas
savvas
Posted
Posted
1 minute ago, bratwurstinhalator said:



Thank you for taking a look at the source code.



I executed CleanNvram and it removed quite a view variables. However, I still can't boot. Symptoms have not changed.

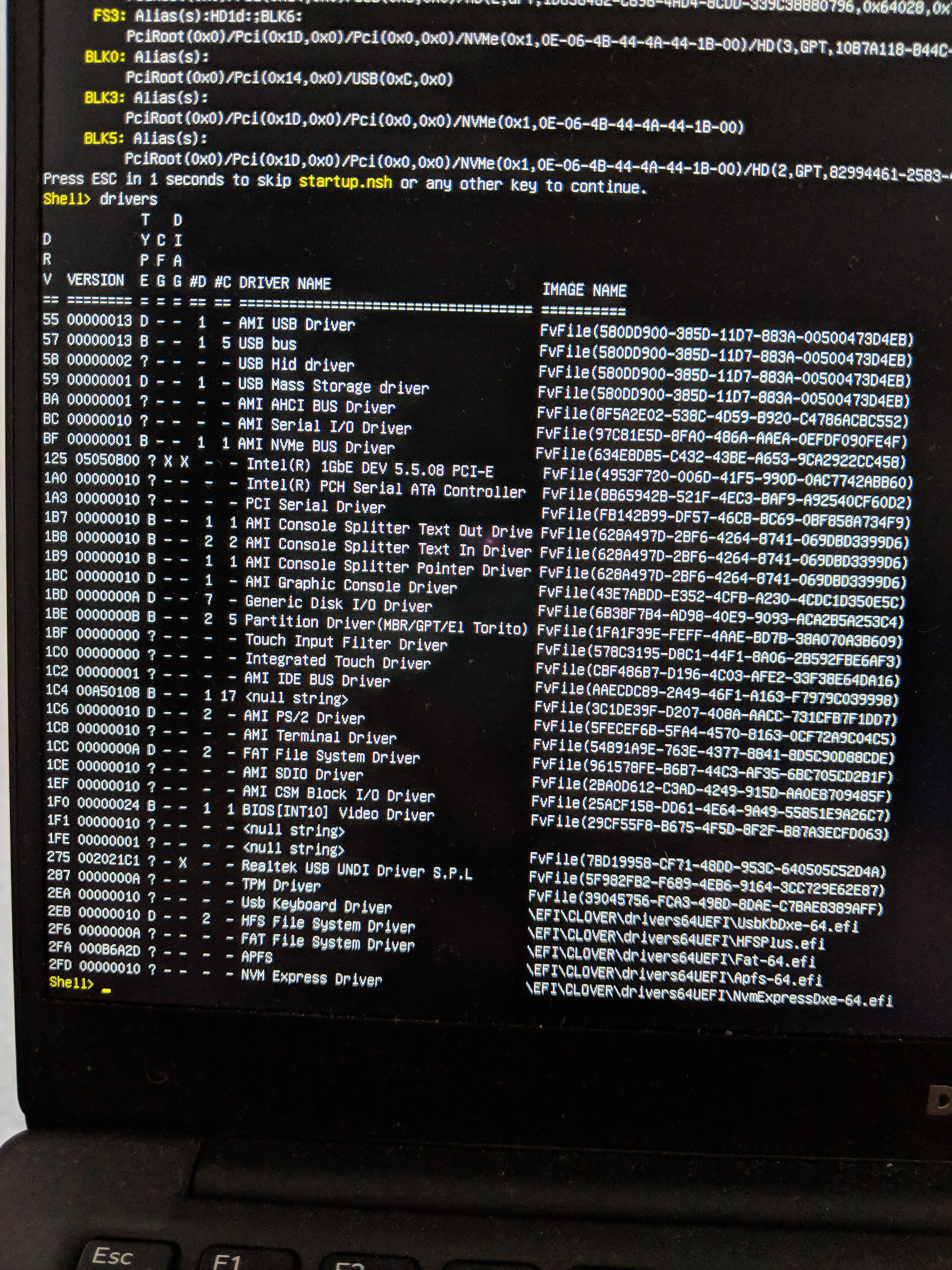

Launch clover and start uefi shell and then run command "drivers" and give me it's output

Link to comment
Share on other sites
savvas
savvas
Posted
Posted
1 minute ago, savvamitrofanov said:

HFS+?

As mentioned here https://applelife.ru/threads/ne-vvoditsja-parol-pri-zagruzki-sistemy.2496457/

This problem appears due to broken caches.

So, try vit9696 steps to solve it:

1. Boot into Recovery HD

2. Mount encrypted volume

3. Perform this command in terminal

rm -rf "/Volumes/Macintosh HD/System/Library/Caches/com.apple.corestorage"

3. Where Macintosh HD - name of your volume

Link to comment
Share on other sites
bratwurstinhalator
bratwurstinhalator
Posted
Posted (edited)
11 minutes ago, savvamitrofanov said:

As mentioned here https://applelife.ru/threads/ne-vvoditsja-parol-pri-zagruzki-sistemy.2496457/

This problem appears due to broken caches.

So, try vit9696 steps to solve it:

1. Boot into Recovery HD

2. Mount encrypted volume

3. Perform this command in terminal

rm -rf "/Volumes/Macintosh HD/System/Library/Caches/com.apple.corestorage"

3. Where Macintosh HD - name of your volume

I removed the com.apple.corestorage directory but symptoms have not changed.

I could give APFS another shot but I don't think it'll work either.



Last time I tried booting from APFS FileVault Preboot, booting failed with the following output:

/BuildRoot/Library/Caches/com.apple.xbs/Sources/AppleKeyStore/AppleKeyStore-565.70.8/libeks.c: eks_get_file_vault_services: AKS EFI: Initializating Callbacks (local)
GetStashedKek called
/BuildRoot/Library/Caches/com.apple.xbs/Sources/AppleKeyStore/AppleKeyStore-565.70.8/libeks.c: fv_cached_get_kek: AKS EFI: Found Stashed KEK (len=0)
apfs_keybag_unlock_record_tag:1632: failed to unwrap volume key, err = 3758097122 (tag = 2)
apfs_keybag_unlock_record:1707: failed to unwrap volume key, err = 5
apfs_efi_meta_crypto_state_unwrap:332: apfs_efi_meta_crypto_state_unwrap: apfs_keybag_unlock_record with stashed KEK failed
apfs_mount:16233:
Failed to unwrap meta crypto state

The output was followed by "start loginwindow initialize". Back then I thought it cannot boot because it is unable to decrypt the device but now I'm wondering if it just failed to initialize the login window.

Edited by bratwurstinhalator
Link to comment
Share on other sites
savvas
savvas
Posted
Posted (edited)
12 minutes ago, bratwurstinhalator said:

I removed the com.apple.corestorage directory but symptoms have not changed.

I could give APFS another shot but I don't think it'll work either.



Last time I tried booting from APFS FileVault Preboot, booting failed with the following output:


/BuildRoot/Library/Caches/com.apple.xbs/Sources/AppleKeyStore/AppleKeyStore-565.70.8/libeks.c: eks_get_file_vault_services: AKS EFI: Initializating Callbacks (local)
GetStashedKek called
/BuildRoot/Library/Caches/com.apple.xbs/Sources/AppleKeyStore/AppleKeyStore-565.70.8/libeks.c: fv_cached_get_kek: AKS EFI: Found Stashed KEK (len=0)
apfs_keybag_unlock_record_tag:1632: failed to unwrap volume key, err = 3758097122 (tag = 2)
apfs_keybag_unlock_record:1707: failed to unwrap volume key, err = 5
apfs_efi_meta_crypto_state_unwrap:332: apfs_efi_meta_crypto_state_unwrap: apfs_keybag_unlock_record with stashed KEK failed
apfs_mount:16233:
Failed to unwrap meta crypto state

The output was followed by "start loginwindow initialize". Back then I thought it cannot boot because it is unable to decrypt the device but now I'm wondering if it just failed to initialize the login window.

Could you give fresh nvram dump from Recovery HD?

Run "nvram -p" in terminal

Add this BootGraphics section into Clover's config.plist

    <key>BootGraphics</key>
    <dict>
        <key>EFILoginHiDPI</key>
        <integer>0</integer>
        <key>UIScale</key>
        <integer>1</integer>
    </dict>

Edited by savvamitrofanov
Link to comment
Share on other sites
bratwurstinhalator
bratwurstinhalator
Posted
Posted
5 minutes ago, savvamitrofanov said:

Could you give fresh nvram dump from Recovery HD?

Run "nvram -p" in terminal

fakesmc-key-MSWr-ui8	%00
fakesmc-key-RPlt-ch8*	j130a%00%00%00
fakesmc-key-RBr -ch8*	2017mbp%00
EFILoginHiDPI	%00%00%00%00
fakesmc-key-#KEY-ui32	%00%00%00%11
fakesmc-key-BATP-flag	%00
fakesmc-key-MSTc-ui8	%00
fakesmc-key-BNum-ui8	%01
security-mode	none
csr-active-config	g%00%00%00
fakesmc-key-$Num-ui8	%01
fakesmc-key-MSFW-ui8	%01%00
fakesmc-key-REV -ch8*	%02C%0f%00%00%06
fakesmc-key-MSPS-ui16	%00%03
backlight-level	%ff%ff
fakesmc-key-$Adr-ui32	%00%00%03%00
fakesmc-key-EPCI-ui32	%09%b0%f0%00
bluetoothActiveControllerInfo	%00%e3%f3%0c%00%00%00%000%14%9c%b6%d0%ee%afP
fakesmc-key-MSAc-ui16	%00%00
fakesmc-key-RMde-char	A
fakesmc-key-BBIN-ui8	%01
flagstate	%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00%00
specialbootdevice	%02%01%0c%00%d0A%03%0a%00%00%00%00%01%01%06%00%00%1d%01%01%06%00%00%00%03%17%10%00%01%00%00%00%00%1bDJDK%06%0e%04%01*%00%03%00%00%00%1d%a0D%07%00%00%00%00%e4k%02%00%00%00%00%00%18%a1%b7%10L%b4%08B%9dK%f8%d0%dd%9b%12%8a%02%02%7f%ff%04%00
fakesmc-key-BEMB-flag	%01



Link to comment
Share on other sites
savvas
savvas
Posted
Posted (edited)

Also it possible related to new secure boot mechanism on fresh mac's. Try to set smbios to mbp 2016 just for test.

If it wont help - then replace SMCHelper with VirtualSmc.efi and it could dance...

Edited by savvamitrofanov
Link to comment
